Titanium Pipe Fittings Manufacturer in India

Home|Titanium Pipe Fittings

Commercial Pure Titanium Grade 2 Buttweld Fittings Supplier in Mumbai

Titanium Pipe Fittings Specification



5 Advantages for Engineers in Egypt to buy Titanium Pipe Fittings from India?
  • Cost-Effectiveness
  • High-Quality Standards
  • Variety and Customization
  • Timely Delivery
  • After-Sales Support
Manisha Steel Centre

Table of Content

Titanium Pipe Fittings Specification
Titanium Pipe Fittings Sizes

Titanium Pipe Fittings Sizes

  • Welded Fittings: 24" to 96"
  • Schedule : Sch XS TO XXS
  • Seamless Fittings: 1/2″ – 24″
  • End : Buttweld, Plain Bevel, Bevelled, Compound Bevel
Titanium Stub Ends Manufacturing Standards

Titanium Stub Ends Manufacturing Standards

  • MSS-SP-43
  • ASME B16.28
  • ANSI B16.9
  • 100% Tested With MTC EN 10204/3.1
Titanium Grade 2 Pipe Fittings Physical Properties

Titanium Grade 2 Pipe Fittings Physical Properties

  • Melting Point:4.51 g/cm³
  • Density:1,668°C (3,034°F)
  • Heat Treatment: 520 J/kg·K
Titanium Buttweld Fittings Process

Titanium Buttweld Fittings Process

  • Fabricated
  • Seamless
  • Welded

Titanium Pipe Fittings Types

Titanium Pipe Fittings Types

  • Elbow
  • Reducer
  • Stub End
  • Cross, Tee

Titanium Stub Ends International Standards

Titanium Stub Ends International Standards

  • UNS R50400
  • WNR 3.7035
  • ASTM B363
  • ASME SB363
Titanium Elbow Bending Radius

Titanium Elbow Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
Titanium Grade 2 Tee Origin

Titanium Grade 2 Tee Origin

  • European
  • Janpanese
  • Russia
  • American
UNS R50400 Reducer Services

UNS R50400 Reducer Services

  • Cutting
  • Shearing
  • Heat Treatment
WNR 3.7035 Cap Packaging

WNR 3.7035 Cap Packaging

  • Bundled
  • Bubble Wraps
  • Wooden Box
ASTM B363 Wpt2 Stub End Surface Finish

ASTM B363 Wpt2 Stub End Surface Finish

  • Pickled
  • Polished
ASTM B363 Wpt2 Reducer Testing

ASTM B363 Wpt2 Reducer Testing

  • PMI, Hardness test
  • Ultrasonic
  • HIC test
Titanium Buttweld Fittings Price

Searching for the Best Deal on Titanium Pipe Fittings? You can get an estimate right away by sending an email to kalpesh@manishasteelcentre.com.

Size in mm Weight In LBS Price in USD (per unit)
1 3 US$ 34.86
1-1/2 4 US$ 34.29
2 6 US$ 46.86
2-1/2 8 US$ 54.99
3/4 2 US$ 32.86
4 15 US$ 92.62
5 19 US$ 118.55
6 24 US$ 124.12
8 39 US$ 217.43
3 10 US$ 71.12
3-1/2 12 US$ 125.98
1/2 2 US$ 27.48
10 52 US$ 272.82
12 85 US$ 406.40
ASTM B363 WPT2 Elbow Size Chart
NPS 1/16 1/8 1/4 3/8 1/2 3/4 1 - - 2 - 3 - 4
List Of Equivalent 0.313 0.405 0.54 0.675 0.84 1.05 1.315 1.66 1.9 2.375 2.875 3.5 4 4.5
O.D.& I.D. May-16 13/32 35/64 43/64 27/32 - - 1-21/32 1-29/32 - - - 4 -
Size Of Threads In Inch 27 27 18 18 14 14 - - - - 8 8 8 8

Offer UNS R50400 Tee and Reducer With Size Ranging 1/2 - 48" (Welded) and 1/2- 10″(Seamless)

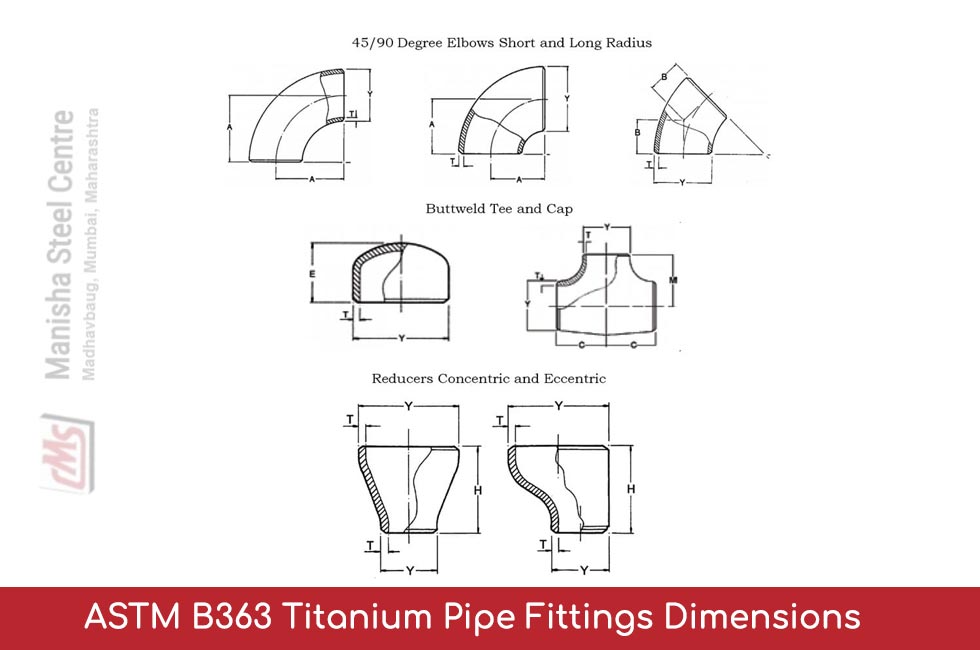

ASTM B363 Titanium Pipe Fittings Dimensions

Genuine Titanium Pipe Fittings Manufacturer in India As Per Specification

ASTM B363 Titanium Pipe Fittings Dimensions



NPS (In Inches) 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 8 10 12
O.D. mm 21.3 26.7 33.4 42.2 48.3 60.3 73 88.9 101.6 114.3 141.3 168.3 219.1 273.1 323.9
(Inches/ inch.) 0.84 1.05 1.315 1.66 1.9 2.375 2.875 3.5 4 4.5 5.563 6.625 8.625 10.75 12.75
Buttweld 90 Deg Elbow LR Elbow Center to Face (In Inch) 1 1/2 1 1/8 1 1/2 1 7/8 2 1/4 3 3 3/4 4 1/2 5 1/4 6 7 1/2 9 12 15 18
SR Elbow Center to Face (In Inch) – – 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 8 10 12
Buttweld 45 Deg Elbow LR Elbow Center to Face (In Inch) 05-Aug Jul-16 07-Aug 1 1 1/8 1 3/8 1 3/4 2 2 1/4 2 1/2 3 1/8 3 3/4 5 6 1/4 7 1/2
Radius (In Inch)         3 4 5 6 7 8 10 12 12 15 18
Buttweld Return 180 Deg Elbow LR Elbow Center to Center (In Inch) 2 2 1/4 3 3 3/4 4 1/2 6 7 1/2 9 10 1/2 12 15 18 24 30 36
Back to face (In Inch) 1 7/8 1 11/16 2  3/16 2 3/4 3 1/4 4  3/16 5  3/16 6 1/4 7 1/4 8 1/4 10  5/16 12  5/16 16  5/16 20 3/8 24 3/8

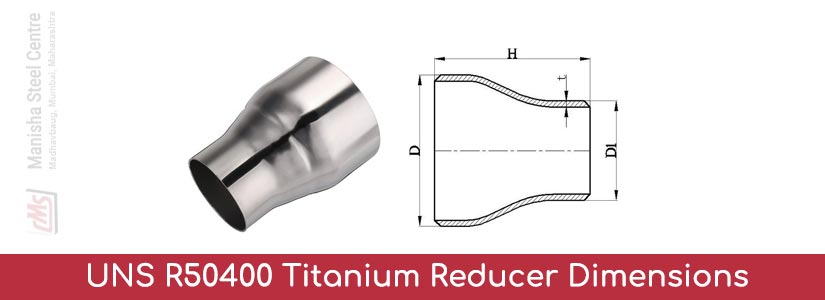

UNS R50400 Titanium Reducer Dimensions
UNS R50400 Titanium Reducer Dimensions



RCD Reiso Code SMALL Ø BIG Ø Hight (H) MM Theoretical Weight In KG (Kilogram)
(DN) (D) MM Thickness Of (S) MM (DN) (D) MM Thickness Of (S) In MM.
42 21 1/2 21.3 2.0 1"1/4 42.4 2.6 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
27 21 1/2 21.3 2.0 3/4 26.9 2.3 38 0.08
33 21 1/2 21.3 2.0 1 33.7 2.6 50 0.09
33 27 3/4 26.9 2.3 0.09
60 27 3/4 26.9 2.3 2 60.3 2.9 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1"1/4 42.4 2.6 0.32
60 48 1"1/2 48.3 2.6 0.33
*48 21 1/2 21.3 2.0 1"1/2 48.3 2.6 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1"1/4 42.4 2.6 0.20
89 42 1"1/4 42.4 2.6 3 88.9 3.2 90 0.55
89 48 1"1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2"1/2 76.1 2.9 0.63
114 48 1"1/2 48.3 2.6 4 114.3 3.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2"1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
76 33 1 33.7 2.6 2"1/2 76.1 2.9 90 0.40
76 42 1"1/4 42.4 2.6 0.47
76 48 1"1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
139 60 2 60.3 2.9 5 139.7 4.0 127 1.60
139 76 2"1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
Titanium Grade 2 Pipe Fittings Pressure Rating
NPT/ ISO Pipe Size in. Titanium Pipe Fittings
Female Male
psig (bar) psig (bar)
1/2 3 900 (268) 6 100 (420)
1/4 5 200 (358) 6 400 (440)
1/8 5 200 (358) 8 000 (551)
1/16 5 300 (365) 8 800 (606)
3/8 4 200 (289) 6 200 (427)
3/4 3 600 (248) 5 800 (399)
1 3 500 (241) 4 200 (289)
1 1/2 3 600 (248) 4 000 (275)
1 1/4 4 000 (275) 4 800 (330)
2 3 100 (213) 3 100 (213)

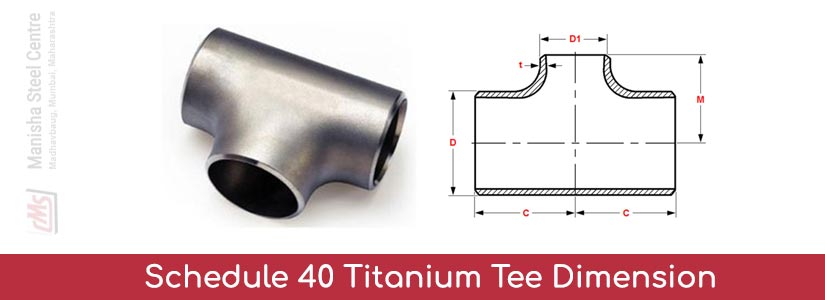

Schedule 40 Titanium Tee Dimension
Schedule 40 Titanium Tee Dimension



NPS (O.D. at bevel Center-to-End
(M) Outlet (C) Run
1" 33.4 38 38
1 1/4" 42.2 48 48
1 1/2" 48.3 57 57
14" 355.6 279 279
16" 406.4 305 305
2 1/2" 73.0 76 76
3" 88.9 86 86
3 1/2" 101.6 95 95
2" 60.3 64 64
4" 114.3 105 105
5" 141.3 124 124
6" 168.3 143 143
1/2" 21.3 25 25
3/4" 26.7 29 29
18" 457.0 343 343
20" 508.0 381 381
22" 559.0 419 419
24" 610.0 432 432
8" 219.1 178 178
10" 273.0 216 216
12" 323.8 254 254

Buy Short and Long Radius WNR 3.7035 Elbow With Bending Radius 5D, 3D, 1D, 2D etc.

WNR 3.7035 Elbow Bending Radius
Nominal Pipe Size (NPS) Short Radius Long Radius
1/2" 1.5x NPS 3x NPS
1" 1.5x NPS 3x NPS
1 1/2" 1.5x NPS 3x NPS
2" 1.5x NPS 3x NPS
3" 1.5x NPS 3x NPS
4" 1.5x NPS 3x NPS
6" 1.5x NPS 3x NPS
8" 1.5x NPS 3x NPS
10" 1.5x NPS 3x NPS
Most Common Types of Titanium Pipe Fittings

Trusted Titanium Pipe Fittings Supplier in India in Custom Shapes and Types

Titanium Elbow

Titanium Elbow

Titanium Grade 2 Tee

Titanium Grade 2 Tee

UNS R50400 Reducer

UNS R50400 Reducer

WNR 3.7035 Cap

WNR 3.7035 Cap

ASTM B363 Wpt2 Stub End

ASTM B363 Wpt2 Stub End

Ti Gr 2 Cross

Ti Gr 2 Cross

Titanium Pipe Fittings Benefits
Titanium Pipe Fittings Benefits
Keep Ready Stock Of ASTM B363 Wpt2 Pipe Cap and Stub End For Sale At Lowest Possible Price
ASTM B363 Wpt2 Pipe Cap Wall Thickness
NPS Schedule No. OD in inch Wall Thickness in inch
1/2" Schedule 10 0.840 0.065
6" 6.625 0.065
2" 2.375 0.065
1" 1.315 0.065
4" 4.500 0.065
3" 3.500 0.065
8" 8.625 0.065
10" 10.750 0.065
1/2" Schedule 40 0.840 0.109
4" 4.500 0.237
2" 2.375 0.154
1" 1.315 0.140
3" 3.500 0.216
6" 6.625 0.280
8" 8.625 0.322
10" 10.750 0.365
1" Schedule 80 1.315 0.179
1/2" 0.840 0.147
2" 2.375 0.218
3" 3.500 0.300
4" 4.500 0.337
6" 6.625 0.402
8" 8.625 0.439
10" 10.750 0.500

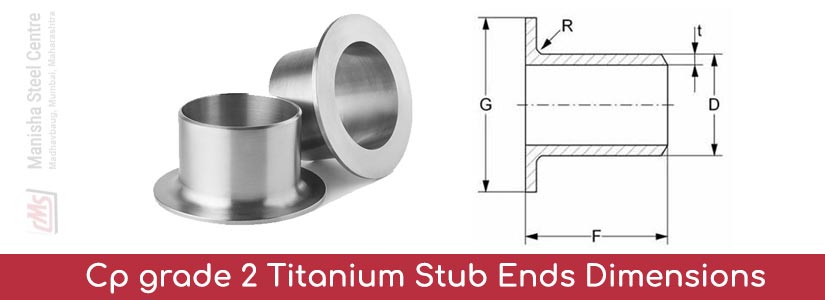

Cp grade 2 Titanium Stub Ends Dimensions
Cp grade 2 Titanium Stub Ends Dimensions
NPS O.D. For of barrel Diameter Of (G) Radius Of(R) Length Of (F)
(Min.) (Max.) Long Pattern Short Pattern
1″ 32.6 35.0 51 3 102 51
1 1/4″ 41.4 43.6 64 5 102 51
1 1/2″ 47.5 49.9 74 6 102 51
2″ 59.5 62.4 92 8 152 64
2 1/2″ 72.2 75.3 105 8 152 64
3″ 88.1 91.3 127 10 152 64
6″ 167.5 171.3 216 13 203 89
8″ 218.3 222.1 270 13 203 102
10″ 272.3 277.2 324 13 254 127
12″ 323.1 328.0 381 13 254 152
4″ 113.5 116.7 157 11 152 76
5″ 140.5 144.3 186 11 203 76
1/2″ 20.5 22.8 35 3 76 51
3/4″ 25.9 28.1 43 3 76 51
22″ 558.0 565.0 641 13 305 152
14″ 354.8 359.9 413 13 305 152
16″ 405.6 411.0 470 13 305 152
18″ 456.0 462.0 533 13 305 152
20″ 507.0 514.0 584 13 305 152
3 1/2″ 100.8 104.0 140 10 152 76
24″ 609.0 616.0 692 13 305 152
Get Ti Gr 2 Weld Fittings Online As Per ANSI B16.9 With Various Value Added Services and Complete Doucmentation
Grade 2 Titanium Stub End Value Added Services
Grade 2 Titanium Stub End Value Added Services
  • Chemical Analysis
  • Intergranular Corrosion (IGC) Test
  • Hardness Test
  • Chemical Equipment
  • Pitting Resistance Test
  • Positive Material Identification
  • Micro and MacroTest
  • Flattening Test

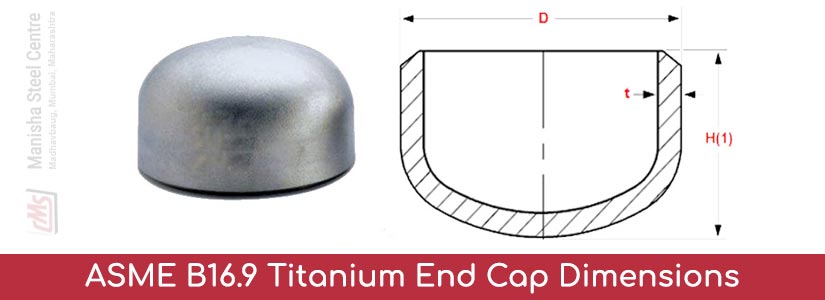

ASME B16.9 Titanium End Cap Dimensions
ASME B16.9 Titanium End Cap Dimensions
NPS O.D. of D Length Of (H1) Length Of (H)
1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 44 38
2.1/2 73 51 38
3 88.9 64 51
3.1/2 101.6 76 64
4 114.3 76 64
5 141.3 89 76
6 168.3 102 89
8 219.1 127 102
10 273 152 127
12 323.8 178 152
14 355.6 191 165
16 406.4 203 178
18 457 229 203
20 508 254 229
22 559 254 254
24 610 305 267
ASTM B363 Wpt2 Reducer Test Certificates
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • EN 10204/3.1B
  • Third Party Inspection Repor
Titanium Pipe Fittings HSN Code
Specification HS Code
Titanium Pipe Fittings 81089090
Grade 2 Titanium Elbow Equivalent
STANDARD ASTM UNS WERKSTOFF NR.
Titanium Grade 5 Pipe Fittings ASTM B363 R50400 3.7035
Titanium Grade 2 Tee Chemical Composition
Grade O H C N Ti Fe
Ti Gr 2 0.25 maximum 0.015 maximum 0.10 maximum 0.03 maximum bal 0.30 maximum
Mechanical Properties of UNS R50400 Reducer
Grade Yield Strength (0.2%Offset) Tensile Strength Elongation
ASTM B363 Titanium Grade 2 Psi – 39900 , MPa – 275 Psi – 49900 , MPa – 344 20 %
ASTM B363 Wpt2 Stub End Physical Properties
Grade Density Melting Point
ASTM B363 Titanium Grade 2 4.5 g/cm3 1665 °C (3030 °F)
Check Available Stock
Titanium 90 Degree Elbow

Titanium 90 Degree Elbow

Gr2 Titanium Pipe Fitting

Gr2 Titanium Pipe Fitting

Titanium Stub End Welding Pipe Fittings

Titanium Stub End Welding Pipe Fittings

Titanium 90 Degree 1.5D Elbow Bend Pipe Fittings

Titanium 90 Degree 1.5D Elbow Bend Pipe Fittings

High Quality Titanium 45 Degree Elbow

High Quality Titanium 45 Degree Elbow

ASME B16.5 ASTM B363 Titanium Equal Tee

ASME B16.5 ASTM B363 Titanium Equal Tee

Titanium Pipe Fittings Delivery Time As Per Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Austria 60
Switzerland 45-60
Malaysia  7
Indonesia  7
Slovenia 60
Malta  60
Albania  45
Thailand  7
Hungary 45
Finland 45-60
Ireland 60
Croatia 60
Slovakia 45-60
Singapore  8
Vietnam  14
