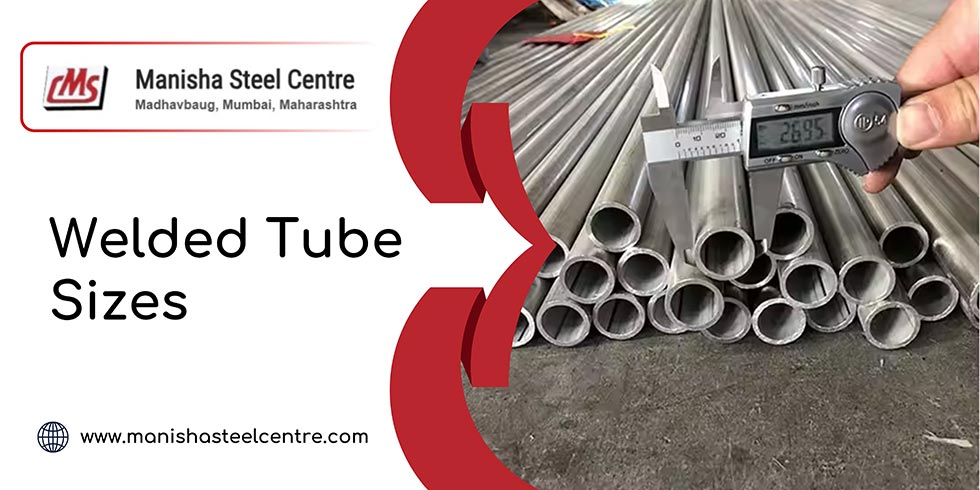

Welded Tube Sizes
Manisha Steel Centre

Table of Content



Check ERW Steel Tube Standard Sizes and BWG Gauge Chart

ERW Steel Tube Standard Sizes
Tube O.D (INCH) Tube O.D (MM) Wall Thickness (INCH) Wall Thickness (MM) BWG
0.250 6.35 0.020 0.51 -
0.028 0.71  22
0.035 0.89  20
0.049 1.25  18
0.065 1.65  16
1.375 34.93 0.035 0.89  20
1.125 28.58 0.065 1.65  16
1.875 47.63 0.065 1.65  16
0.188 4.78 0.035 0.89  20
0.313 7.95 0.035 0.89  20
0.049 1.25  18
0.375 9.53 0.028 0.71  22
0.035 0.89  20
0.049 1.25  18
0.065 1.65  16
0.500 12.7 0.035 0.89  20
0.049 1.25  18
0.650 1.65  16
0.750 19.05 0.035 0.89  20
0.049 1.25  18
0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
0.625 15.88 0.035 0.89  20
0.049 1.25  18
0.065 1.65  16
1.000 25.4 0.035 0.89  20
0.049 1.25  18
0.065 1.65  16
0.083 2.11  14
0.095 2.41  13
0.120 3.05  11
0.875 22.23 0.035 0.89  20
0.049 1.25  18
0.065 1.65  16
0.120 3.05  11
1.750 44.45 0.035 0.89  20
0.065 1.65  16
0.083 2.11  14
1.250 31.75 0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
1.5000 38.1 0.049 1.25  18
0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
2.500 63.5 0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
6.000 152.4 0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
2.000 50.8 0.049 1.25  18
0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
2.125 53.98 0.065 1.65  16
2.250 57.15 0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
4.000 101.6 0.065 1.65  16
0.083 2.11  14
2.750 69.85 0.065 1.65  16
5.000 127 0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
0.188 4.78 -
3.000 76.2 0.049 1.25  18
0.065 1.65  16
0.083 2.11  14
0.120 3.05  11
3.250 82.55 0.065 1.65  16
0.120 3.05  11
3.500 88.9 0.065 1.65  16
4.250 108 0.120 3.05  11
4.500 114.3 0.065 1.65  16
8.000 203.2 0.120 3.05  11
Welded Tubing BWG Gauge Chart
BWG in mm
3 0.259 6.58
4 0.238 6.05
5 0.22 5.59
6 0.203 5.16
12 0.109 2.77
13 0.095 2.41
14 0.083 2.11
10 0.134 3.4
11 0.12 3.05
20 0.035 0.89
31 0.01 0.254
1 0.3 7.62
32 0.009 0.229
33 0.008 0.203
21 0.031 0.81
7 0.179 4.57
8 0.164 4.19
36 0.004 0.102
26 0.018 0.46
34 0.007 0.178
27 0.016 0.41
25 0.02 0.51
23 0.025 0.64
24 0.023 0.56
35 0.005 0.127
28 0.0135 0.356
29 0.013 0.33
30 0.012 0.305
16 0.065 1.65
17 0.058 1.47
18 0.049 1.24
19 0.042 1.07
22 0.028 0.71
15 0.072 1.83
2 0.283 7.21
9 0.147 3.76

Refer Welded Square Tube Dimensions

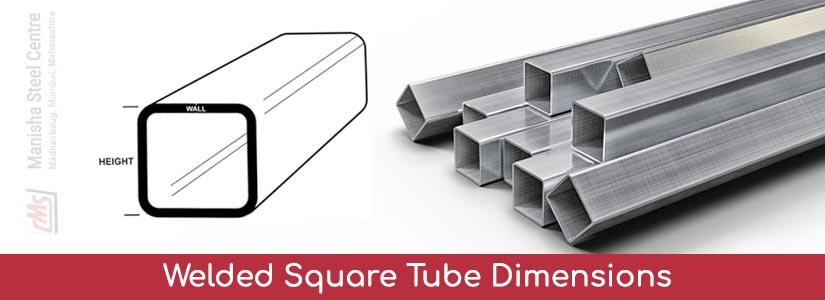

Welded Square Tube Dimensions
Welded Square Tube Dimensions
External  Dimensions Wall  Thickness  Mm
A  X  A  Mm 5 4 3 2,5 2 1,5 1,2 1
10  X  10 - - - - - 0,422 0,347 0,294
15  X  15 - - - - 0,857 0,661 0,538 0,453
16  X  16 - - - - 0,921 0,709 0,576 0,485
20  X  20 - - - - 1,176 0,901 0,729 0,613
25  X  25 - - 2,167 1,837 1,495 1,140 0,921 0,772
30  X  30 - - 2,645 2,236 1,814 1,379 1,112 0,932
35  X  35 - - 3,124 2,635 2,133 1,618 1,304 1,091
40  X  40 - 4,703 3,602 3,033 2,452 1,858 1,495 1,251
45  X  45 - 5,341 4,081 3,432 2,771 2,097 1,686 1,410
50  X  50 7,349 5,979 4,559 3,831 3,090 2,336 1,878 -
60  X  60 8,943 7,255 5,516 4,628 3,728 2,814 - -
70  X  70 10,538 8,531 6,473 5,426 4,366 3,293 - -
80  X  80 12,133 9,807 7,430 6,223 5,004 3,771 - -
100  X  100 15,323 12,359 9,344 7,818 6,279 4,728 - -
120  X  120 18,513 14,910 11,258 9,413 7,555 - - -
150  X  150 23,298 18,738 14,129 11,805 9,469 - - -
200  X  200 31,272 25,118 18,913 15,793 12,659 - - -
250  X  250 39,247 31,497 23,698 - - - - -
Welded Round Tube Weight Chart
Outside Diameter, mm Wall Thickness, mm Weight, kg/m
6   1   0,123
8   1   0,173
10   1   0,222
12   1   0,272
13   1   0,296
14   1   0,321
15   1   0,346
16   1   0,370
17,2   1   0,400
18   1   0,420
19,05   1   0,446
20   0,8   0,379
21,3   1   0,501
22   0,8   0,419
23   1,5   0,796
25   0,8   0,478
25,4   1   0,603
26,9   1,2   0,762
28   1   0,667
29   1,5   1,019
30   1   0,716
32   1   0,765
33   1,5   1,167
33,7   3,2   2,410
34   1   0,815
35   1   0,840
38,1   1   0,916
40   1   0,963
41   1,5   1,463
42   1,5   1,500
42,4   1,2   1,221
43   1,5   1,537
44,5   1,2   1,283
45   1,2   1,298
48,3   1,2   1,396
50   1   1,210
50,8   1   1,230
51   1   1,235
52   1   1,259
53   1,5   1,908
54   1,2   1,565
57   1,2   1,653
60,3   1,2   1,751
63,5   1,2   1,846
70   1,2   2,039
73   1,5   2,648
76,1   1,2   2,219
80   1,2   2,335
83   1,5   3,019
84   2   4,050
85   1,5   3,093
88,9   5   10,359
101,6   4   9,640
103   1,5   3,760
104   2   5,037
108   1,5   3,945
114,3   1,5   4,178
127   1,5   4,648
128   1,5   4,685
129   1,5   4,723
139,7   1,5   5,119
153   1,5   5,611
154   2   7,507
155   2,5   9,414
156   3   11,334
159   4   15,310
168,3   2   8,213
203   1,5   7,463
204   2   9,976
205   2,5   12,501
206   3   15,038
219,1   4   21,246
254   2   12,445
255   2,5   15,587
256   3   18,742
273   4   26,570
304   2   14,915
306   3   22,446
323,9   2   15,897
354   2   17,384
355,6   3   26,120
406,4   3   29,883

Find Here Welded Rectangular and Oval Tube Dimensions

Welded Rectangular Tubing Dimensions
External  Dimensions Wall  Thickness  mm
A  X  B  Mm 5 4 3 2,5 2 1,5 1,2 1
20  X  15 - - - - 1,016 0,781 0,634 0,533
20  X  10 - - - - - 0,661 0,538 0,453
25  X  15 - - - - 1,176 0,901 0,729 0,613
25  X  10 - - - - 1,016 0,781 0,634 0,533
30  X  15 - - - - 1,335 1,020 0,825 0,693
30  X  10 - - - - 1,176 0,901 0,729 0,613
30  X  20 - - 2,167 1,837 1,495 1,140 0,921 0,772
35  X  20 - - 2,406 2,036 1,654 1,259 1,017 0,852
40  X  15 - - 2,406 2,036 1,654 1,259 1,017 0,852
40  X  27 - - 2,980 2,515 2,037 1,547 1,246 1,044
40  X  30 - - 3,124 2,635 2,133 1,618 1,304 1,091
40  X  20 - - 2,645 2,236 1,814 1,379 1,112 0,932
40  X  10 - - 2,167 1,837 1,495 1,140 0,921 0,772
50  X  20 - - 3,124 2,635 2,133 1,618 1,304 1,091
50  X  25 - - 3,363 2,834 2,292 1,738 1,399 1,171
50  X  30 - - 3,602 3,033 2,452 1,858 1,495 1,251
50  X  40 - - 4,081 3,432 2,771 2,097 1,686 1,410
60  X  10 - - 3,124 2,635 2,133 1,618 1,304 1,091
50  X  10 - - 2,645 2,236 1,814 1,379 1,112 0,932
60  X  30 - - 4,081 3,432 2,771 2,097 1,686 1,410
60  X  40 - 5,979 4,559 3,831 3,090 2,336 - -
70  X  20 - 5,341 4,081 3,432 2,771 2,097 - -
70  X  40 - 6,617 5,038 4,229 3,409 2,575 - -
80  X  20 - 5,979 4,559 3,831 3,090 2,336 - -
80  X  30 - 6,617 5,038 4,229 3,409 2,575 - -
80  X  40 8,943 7,255 5,516 4,628 3,728 2,814 - -
80  X  50 9,741 7,893 5,995 5,027 4,047 3,054 - -
100  X  40 10,538 8,531 6,473 5,426 4,366 3,293 - -
100  X  60 12,133 9,807 7,430 6,223 5,004 3,771 - -
100  X  80 13,728 11,083 8,387 7,021 5,641 4,250 - -
120  X  60 13,728 11,083 8,387 7,021 5,641 4,250 - -
150  X  50 15,323 12,359 9,344 7,818 6,279 - - -
60  X  20 - - 3,602 3,033 2,452 1,858 1,495 1,251
200  X  100 23,298 18,738 14,129 11,805 9,469 - - -
120  X  80 15,323 12,359 9,344 7,818 6,279 4,728 - -
100  X  50 11,336 9,169 6,952 5,824 4,685 3,532 - -
150  X  100 19,310 15,548 11,736 9,812 7,874 - - -
160  X  80 18,513 14,910 11,258 9,413 7,555 - - -
120  X  40 12,133 9,807 7,430 6,223 5,004 3,771 - -
80  X  60 10,538 8,531 6,473 5,426 4,366 3,293 - -
Welded Oval Tubing Dimensions
Welded Oval Tubing Dimensions
Width (A*B) Wall Thickness (mm)
7*25 0.5-1.5
8*15 0.5-1.5
9.5*29.5 0.5-1.5
10*20 0.5-1.5
12*23 0.5-1.5
13.5*27 0.5-1.5
14*58 0.5-2.0
15*25 0.5-1.5
15.6*28.6 0.5-1.5
15*30 0.5-1.5
19*38 0.5-1.5
20*50 0.5-2.0
22*31 0.5-1.5
25*65 0.5-2.0
25*65 0.5-2.0
25*45 0.5-2.0
25*55 0.5-2.0
30*102 0.5-2.0
30*102 0.5-2.0
30*60 0.5-2.0
35*78 0.5-2.0
40*75 0.5-2.0
40*96 0.5-2.0
50*150 1.0-5.0
50*150 1.0-5.0
50*110 1.0-5.0
55*128 1.0-5.0
63*133 1.0-5.0
100’195 1.0-5.0
Understand Difference Between Welded Tube vs Seamless
Welded Tube vs Seamless Tube
Property Welded Tube Seamless Tube
Manufacturing Process Welded from metal strip Extruded from solid billet
Seam Has a welded seam No seam
Strength Lower (approx. 10-20% weaker) Higher (approx. 20-30% stronger)
Wall Thickness Varies widely (from 0.5 mm to >100 mm) More consistent (usually 1-50 mm)
Cost Lower (20-40% cheaper) Higher (30-50% more expensive)
Pressure Resistance Medium (up to 50-70 bar) High (up to 150-200 bar)
Customization High (varied sizes) Moderate (limited by extrusion process)
Common Applications Automotive, Furniture, Low-pressure Oil & Gas, Aerospace, High-pressure
Production Speed Fast (continuous process) Slow (due to extrusion)
Surface Finish Visible weld seam Smooth, no seam
Must View Welded Tubing Weight Chart Here
Welded Tubing Weight Chart
Wall Thickness mm
Ø Outside mm 0,8 1 1,2 1,5 1,6 2,0 2,5 2,6 3 3,2 3,6> 4 5
12 - 0,224 0,275 0,325 0,394 0,417 - - - - - - - -
13 - 0,244 0,3 0,355 0,432 - - - - - - - - -
19 - 0,365 0,451 0,535 0,657 0,697 0,851 1,033 1,068 - - - - -
20 - 0,385 0,476 0,565 0,695 0,737 0,901 1,096 1,133 - - - - -
21,3 1/2″ 0,411 0,508 0,604 0,744 0,789 0,967 1,177 1,217 - - - - -
22 - 0,425 0,526 0,625 0,77 0,817 1,002 1,221 1,263 - - - - -
23 - 0,445 0,551 0,655 0,808 0,857 1,052 1,283 1,328 - - - - -
25 - 0,485 0,601 0,715 0,883 0,937 1,152 1,409 1,458 1,653 - - - -
14 - 0,264 0,326 0,385 0,47 0,497 0,601 - - - - - - -
15 - 0,284 0,351 0,415 0,507 0,537 0,651 - - - - - - -
16 - 0,304 0,376 0,445 0,545 0,577 0,701 - - - - - - -
17,2 3/8″ 0,329 0,406 0,481 0,59 0,625 0,761 0,92 0,951 - - - - -
18 - 0,345 0,426 0,505 0,62 0,657 0,801 0,97 1,003 - - - - -
25,4 - 0,493 0,611 0,727 0,898 0,954 1,172 1,434 1,484 1,683 - - - -
19,05 - 0,366 0,452 0,536 0,659 0,699 0,854 1,036 1,071 - - - - -
35 - 0,685 0,851 1,016 1,258 1,338 1,653 2,035 2,109 2,404 2,548 - - -
38 - 0,745 0,926 1,106 1,371 1,458 1,803 2,222 2,305 2,629 2,788 - - -
38,1 - 0,747 0,929 1,109 1,375 1,462 1,808 2,229 2,311 2,637 2,796 - - -
40 - 0,785 0,977 1,166 1,446 1,538 1,903 2,348 2,435 2,779 2,949 - - -
42 - 0,825 1,027 1,226 1,521 1,619 2,003 2,473 2,565 2,93 3,109 - - -
30 - 0,585 0,726 0,865 1,07 1,138 1,402 1,722 1,784 2,028 2,147 - - -
31,8 - 0,621 0,771 0,919 1,138 1,21 1,492 1,834 1,901 2,163 2,292 - - -
32 - 0,625 0,776 0,925 1,146 1,218 1,502 1,847 1,914 2,178 2,308 - - -
6 - 0,104 0,125 - - - - - - - - - - -
10 - 0,184 0,225 0,264 0,319 0,337 - - - - - - - -
33 - 0,645 0,801 0,956 1,183 1,258 1,552 1,909 1,979 2,254 2,388 - - -
33,7 1″ 0,659 0,819 0,977 1,209 1,286 1,588 1,953 2,025 2,306 2,444 - - -
34 - 0,665 0,826 0,986 1,221 1,298 1,603 1,972 2,044 2,329 2,468 - - -
26,9 3/4″ 0,523 0,649 0,772 0,954 1,014 1,247 1,527 1,582 1,795 - - - -
28 - 0,545 0,676 0,805 0,995 1,058 1,302 1,596 1,654 1,878 - - - -
42,4 1″1/4 0,833 1,037 1,238 1,536 1,635 2,023 2,498 2,591 2,96 3,141 - - -
45 - 0,885 1,102 1,316 1,634 1,739 2,153 2,661 2,76 3,155 3,349 - - -
48,3 1″ 1/2 0,952 1,184 1,415 1,758 1,871 2,319 2,867 2,975 3,403 3,614 - - -
51 - 1,006 1,252 1,496 1,859 1,979 2,454 3,036 3,151 3,606 3,83 - - -
52 - 1,026 1,277 1,526 1,897 2,019 2,504 3,099 3,216 3,681 3,91 - - -
53 - 1,046 1,302 1,556 1,934 2,059 2,554 3,161 3,281 3,756 3,99 - - -
114,3 4″ - - 3,398 4,237 4,515 5,624 6,999 7,272 8,361 8,902 9,979 11,048 13,684
129 4″1/2 - - - 4,789 5,104 6,36 7,919 8,229 9,465 10,08 11,304 12,52 15,525
139,7 5″ - - - 5,191 5,533 6,896 8,589 8,926 10,269 10,937 12,269 13,592 16,864
70 - - - 2,067 2,573 2,74 3,405 4,226 4,388 5,033 5,353 5,986 6,611 -
73 - - - 2,157 2,686 2,861 3,556 4,413 4,583 5,258 5,593 6,256 6,911 -
76,1 2″ 1/2 - - 2,251 2,802 2,985 3,711 4,607 4,785 5,491 5,841 6,535 7,222 -
43 - 0,845 1,052 1,256 1,559 1,659 2,053 2,535 2,63 3,005 3,189 - - -
44,5 - 0,875 1,089 1,301 1,615 1,719 2,128 2,629 2,728 3,117 3,309 - - -
108 - - - 3,209 4 4,263 5,308 6,604 6,862 7,888 8,397 9,411 10,417 12,896
88,9 3″ - - 2,635 3,283 3,498 4,352 5,409 5,618 6,453 6,867 7,689 8,504 -
100 - - - 2,969 3,7 3,942 4,908 6,104 6,341 7,287 7,756 8,69 9,615 -
154 - - - - - - 7,612 9,484 9,857 11,343 12,083 13,558 15,024 18,655
168,3 6″ - - - - - 8,328 10,379 10,788 12,417 13,229 14,847 16,456 20,445
204 - - - - - - 10,116 12,614 13,112 15,099 16,09 18,065 20,032 24,915
54 - 1,066 1,327 1,587 1,972 2,099 2,604 3,224 3,346 3,831 4,071 - - -
56,5 - 1,116 1,39 1,662 2,066 2,2 2,729 3,38 3,509 4,019 4,271 4,769 - -
66,6 - 1,318 1,643 1,965 2,445 2,604 3,235 4,013 4,167 4,778 5,08 5,679 6,27 -
80 - - - 2,368 2,948 3,141 3,906 4,852 5,039 5,784 6,154 6,887 7,612 -
83 - - - 2,458 3,061 3,261 4,056 5,039 5,234 6,01 6,394 7,157 7,913 -
84 - - - 2,488 3,099 3,301 4,107 5,102 5,299 6,085 6,474 7,248 8,013 -
57 - 1,126 1,402 1,677 2,085 2,22 2,574 3,412 3,542 4,056 4,311 4,814 - -
58,2 - 1,15 1,432 1,713 2,13 2,268 2,814 3,487 3,62 4,147 4,407 4,922 - -
60 - 1,186 1,477 1,767 2,197 2,34 2,905 3,6 3,737 4,282 4,551 5,084 5,609 -
60,3 2″ 1,192 1,485 1,776 2,209 2,352 2,92 3,618 3,757 4,304 4,575 5,111 5,639 -
63,5 - 1,256 1,565 1,872 2,329 2,48 3,08 3,819 3,965 4,545 4,832 5,4 5,96 -
8 - 0,144 0,175 - - - - - - - - - - -
50 - 0,986 1,227 1,466 1,822 1,939 2,404 2,974 3,086 3,531 3,75 - - -
50,8 - 1,002 1,247 1,49 1,852 1,971 2,444 3,024 3,138 3,591 3,814 - - -
64 - 1,266 1,578 1,887 2,348 2,5 3,105 3,85 3,997 4,582 4,872 5,445 6,01 -
85 - - - 2,518 3,136 3,341 4,157 5,165 5,365 6,16 6,554 7,338 8,113 -
104 - - - 3,089 3,85 4,103 5,108 6,354 6,602 7,587 8,077 9,05 10,016 12,395
101,6 3″1/2 - - 3,017 3,76 4,006 4,988 6,204 6,445 7,407 7,885 8,834 9,776 -
219,1 8″ - - - - - 10,872 13,559 14,095 16,233 17,3 19,426 21,544 26,805
Size Chart of Welded Coil Tubing
OD, Inch OD, mm WT, Inch WT, mm
1 25.4 0.065 1.65
1 25.4 0.083 2.11
1 25.4 0.035 0.89
1 25.4 0.049 1.24
1/2 12.7 0.049 1.24
1/2 12.7 0.065 1.65
1/2 12.7 0.035 0.89
1/2 12.7 0.083 2.11
1/4 6.35 0.035 0.89
1/4 6.35 0.049 1.24
1/4 6.35 0.065 1.65
1/4 6.35 0.028 0.71
3/4 19.05 0.049 1.24
3/4 19.05 0.065 1.65
3/4 19.05 0.035 0.89
3/4 19.05 0.083 2.11
3/8 9.53 0.049 1.24
3/8 9.53 0.028 0.71
3/8 9.53 0.035 0.89
3/8 9.53 0.065 1.65
5/8 15.88 0.035 0.89
5/8 15.88 0.049 1.24
5/8 15.88 0.065 1.65
5/8 15.88 0.083 2.11
3/16 4.76 0.028 0.71
3/16 4.76 0.035 0.89
5/16 7.94 0.028 0.71
5/16 7.94 0.035 0.89
5/16 7.94 0.049 1.24
5/16 7.94 0.065 1.65
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
