Titanium Pipe Manufacturer in India | Ti Exhaust Pipe Grade 2 and 5

NQA Approved Ti Exhaust Pipe Supplier in Mumbai in Various Grades, Refer Specification

Why Suppliers in Egypt of Titanium Pipe buying material from India?

Feature	Description
Wide Range of Sizes and Grades	Versatile Product Options
Strong Export Reputation	Trusted in Global Markets
Eco-Friendly Manufacturing	Sustainable Production
Proximity to Key Markets	Strategic Location

Table of Content

Titanium Pipe Specification
Hs Code of Ti Exhaust Pipe
Titanium Pipe Price List
Types Of Ti Alloy Pipe
Titanium Pipe Sizes
ASME SB 338 Round Pipe Dimensions
3 Inch Titanium Exhaust Pipe Wall Thickness
Schedule Chart of ASTM B861 Gr2 ERW Pipe
Bending Radius of Titanium Seamless Pipe
Grade 2 VS Stainless Steel Pipe
Grade 5 Titanium Pipe Welding Techniques
3.5 Titanium Grade 5 Pipe Roughness
Weight Chart of Titanium Alloy Pipe
Benefits of Titanium Exhaust Pipe
Pressure Rating of ASME SB 861 Hot Finished Pipe
Titanium Welded Pipe Applications
Ti Alloy Rectangular Pipe Chemical Composition
Mechanical Properties of ASTM B338 Titanium Welded Pipe
Equivalent Grades of ASME SB 861 Seamless Pipe
Titanium Straight Pipe Density
Advantages and Disadvnatages of Titanium Pipe
Is a Titanium Exhaust Pipe Better than Stainless Steel Pipe ?

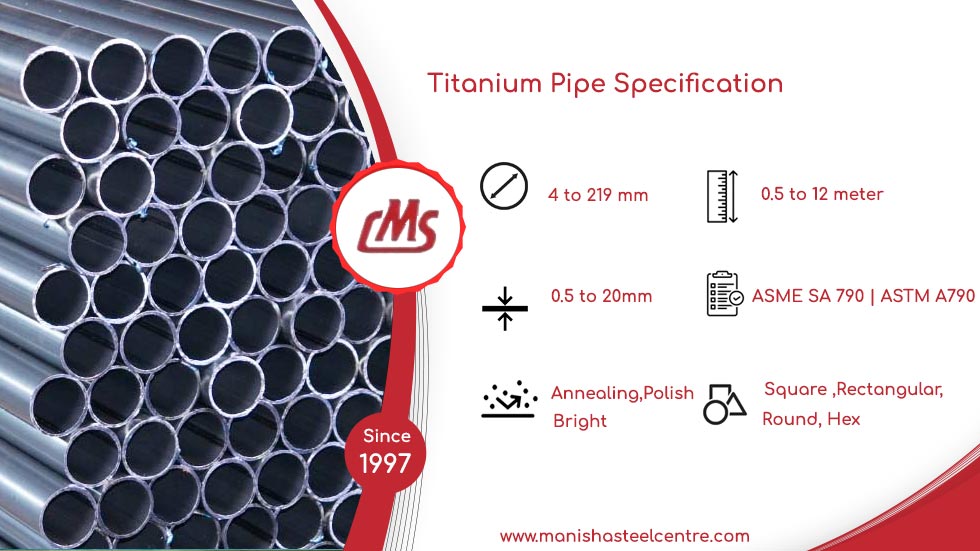

Titanium Pipe Specification

Ti Grade 5 Alloy Seamless Pipe Sizes

Wall Thickness:0.5 to 20mm
OD: 4 to 219 mm
Length: Cut Length, Double Random & Single

Titanium Gr2 Welded Pipe Size

Wall Thickness: 0.5 to 20mm
OD: 5.0 to 1219.2 mm
Length: Single, Double Random & Cut Length

Titanium 3 Inch Pipe Manufacturing Process

Hot Formed
Cold Formed
Precision Rolled

ASTM B338 Gr2 Titanium Thick-Walled Pipe

Wall Thickness: 2.5 to 100mm
OD: 10 to 600mm
Length: 0.5 to 12 meter

Pure Titanium Welded Pipe Standards

ASME SB 861 | ASTM B861
UNS, DIN, API
UNS : R56400 | R50400

3 Titanium Exhaust Pipe Documentation

Visual Inspection
Mill Test Certificates
PMI Test Reports

WNR 3.7165 Cold Rolled Pipe Shapes

Hex
Round
Rectangle
Square

Titanium Pipe Grade 2 Origin

European
Janpanese
Russia
American

Titanium Alloy Pipes Services

Shearing
Cutting
Heat Treatment

ASME SB 861 ERW Pipe Packaging

Bubble Wraps
Bundled
Wooden Box

Titanium Seamless Pipe Finish

Bright
Annealing
Polished

ASTM B 338 Titanium Cold Drawn Pipes End

Beveled
Plain

Ti Hollow Pipes Testing

PMI
Ultrasonic
Chemical
Mechanical

Titanium Heat Exchanger Pipe Manufacturing Method

Seamless
ERW
Welded

Hs Code of Ti Exhaust Pipe

Material	HS code
Ti Pipes	81089090

Buy 3 and 4 Inch Titanium Seamless Pipe Or Any Custom Sizes At Lowest Possible Price

Titanium Pipe Price List

Are You Looking for Titanium Pipe at the Best Price? Send an email to kalpesh@manishasteelcentre.com to get a quick estimate.

Price list	Price in USD	Price in UAE Dirham
ASTM B861 SEAMLESS TITANIUM PIPE Size: LENGTH 2-3MTR	US $ 16.78	UAE 61.63
TITANIUM WELDED PIPE Size: 7MTR	US $ 23.88	UAE 87.71
TITANIUM GR2 PIPE Size: 3MTR	US $ 25.18	UAE 92.49

Get ASTM B861 Gr2 and Grade 5 Titanium Pipe in Square, Round, Rectangle Form

Types Of Ti Alloy Pipe

Titanium Pipe Supplier in India in different Forms and Shapes at Industry Price

Titanium Seamless Pipe

ASTM B861 Grade 2 ERW Pipe

Titanium Grade 5 Welded Pipe

Ti Round Pipe

Titanium Alloy Rectangular Pipe

ASME SB 338 Square Pipe

Titanium Pipe Exhaust

Ti Gr 5 Hot Rolled Pipe

B338 Gr 2 Polished Pipe

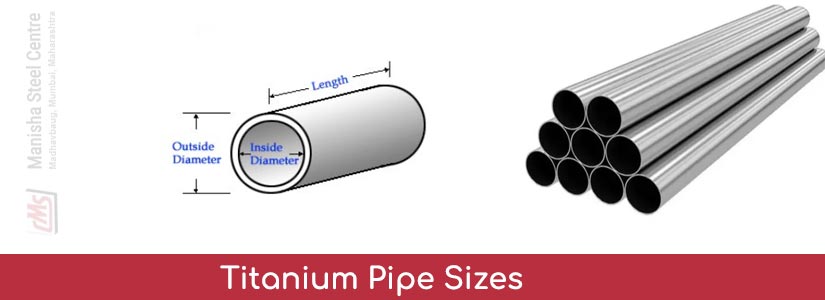

Titanium Pipe Sizes

Manisha Steel Centre Leading Titanium Pipe Manufacturer in India offers a range of sizes to suit the needs of their customers.

OD inches	ID inches	D/t Ratio	Ave. Wall inches
0.250	0.210	12.50	0.020
0.500	0.460	25.00	0.020
0.375	0.319	13.39	0.028
0.750	0.584	9.04	0.083
0.625	0.585	31.25	0.020
1.000	0.834	12.05	0.083
2.000	1.732	14.93	0.134
1.500	1.310	15.79	0.095
0.875	0.835	43.75	0.020
1.750	1.680	50.00	0.035
0.250	0.180	7.14	0.035
0.500	0.430	14.29	0.035
0.375	0.335	18.75	0.020
1.000	0.944	35.71	0.028
2.000	1.930	57.14	0.035
0.625	0.527	12.76	0.049
0.750	0.694	26.79	0.028
1.250	1.084	15.06	0.083
0.625	0.495	9.62	0.065
1.750	1.510	14.58	0.120
0.875	0.777	17.86	0.049
1.500	1.430	42.86	0.035

ASME SB 338 Round Pipe Dimensions

Tube Cross Sectional Area (in2)	0.0145	0.0236	0.0378	0.0305	0.0502	0.0302	0.0511	0.0888	0.038	0.0649	0.1144	0.1582	0.0635	0.1079	0.1739	0.2195	0.0537	0.2065	0.2623	0.0855	0.1464	0.2391	0.3051	0.1336	0.242
Internal Area (in2)	0.0346	0.0254	0.0113	0.0799	0.0603	0.1662	0.1452	0.1075	0.2688	0.2419	0.1924	0.1486	0.3783	0.3339	0.2679	0.2223	0.5476	0.3948	0.339	0.6999	0.639	0.5463	0.4803	1.0936	0.9852

Offer Commercially Pure Titanium Welded Pipe With Wall Thickness 0.5 - 20mm Suitable For Aerospace Sector

3 Inch Titanium Exhaust Pipe Wall Thickness

Gauge	Outside Diameter Tolerance mm	Thin Wall (TW) mm	Regular Wall (RW) mm	Ultra Thin Wall (UTW) mm	Extra Thin Wall (XTW) mm
30	0.304 - 0.317		0.064 - 0.089
10	3.378 - 3.429	0.216 - 0.292	0.318 - 0.394
29	o.330 - 0.342		0.064 - 0.089
11	3.023 - 3.073	0.216 - 0.292	0.293 - 0.368
28	0.355 - 0.368		0.076 - 0.102
12	2.743 - 2.749		0.267 - 0.321
27	0.406 - 0.419	0.064 - 0.089	0.089 - 0.115
13	2.387 - 2.438	0.191 - 0.267	0.267 - 0.343
26	0.457 - 0.469		0.089 - 0.114
14	2.082 - 2.133	0.165 - 0.229	0.216 - 0.292	0.076 - 0.134	0.114 - 0.165
25	0.508 - 0.520	0.089 - 0.114	0.115 - 0.140
15	1.816 - 1.841	0.127 - 0.165	0.204 - 0.254	0.070 - 0.121	0.096 - 0.134
24	0.558 - 0.571	0.089 - 0.114	0.114 - 0.140	0.051 - 0.102
16	1.638 - 1.663	0.127 - 0.165	0.204 - 0.254	0.070 - 0.121	0.096 - 0.133
23	0.635 - 0.647	0.089 - 0.114	0.140 - 0.165	0.051 - 0.102
17	1.460 - 1.485	0.115 - 0.152	0.177 - 0.229	0.057 - 0.102	0.083 - 0.127
22	0.711 - 0.723	0.096 - 0.121	0.140 - 0.165	0.051 - 0.102	0.077 - 0.102
18	1.257 - 1.282	0.127 - 0.165	0.191 - 0.241	0.051 - 0.102	0.083 - 0.121
21	0.812 - 0.825	0.102 - 0.127	0.140 - 0.165	0.051 - 0.102
19	1.054 - 1.079	0.102 - 0.140	0.166 - 0.216		0.070 - 0.108
20	0.901 - 0.914	0.108 - 0.134	0.108 - 0.165

Supply Cold and Hot Formed Titanium Alloy Pipe Tested With Ultrasonic and PMI Testing, Refer Schedule Chart

Schedule Chart of ASTM B861 Gr2 ERW Pipe

NPS (Inches)	Schedule 40	Schedule 5	Schedule 80	Schedule 10	Schedule 160
1/8	0.140"	0.050"	0.180"	0.068"	0.240"
1-1/4	0.300"	0.105"	0.400"	0.140"	0.500"
1/4	0.180"	0.065"	0.220"	0.083"	0.300"
1	0.280"	0.095"	0.350"	0.120"	0.450"
1/2	0.200"	0.080"	0.250"	0.095"	0.350"
1-1/2	0.320"	0.120"	0.420"	0.150"	0.550"
3/4	0.250"	0.090"	0.300"	0.105"	0.400"
2-1/2	0.400"	0.160"	0.500"	0.200"	0.750"
2	0.375"	0.140"	0.475"	0.170"	0.625"
4	0.500"	0.200"	0.600"	0.250"	1.000"
3	0.450"	0.180"	0.550"	0.220"	0.800"
6	0.600"	0.220"	0.750"	0.280"	1.200"
5	0.550"	0.210"	0.700"	0.270"	1.100"
10	0.850"	0.270"	1.050"	0.350"	1.500"
8	0.750"	0.250"	1.000"	0.320"	1.400"
12	1.000"	0.300"	1.250"	0.400"	1.750"

Grade 5 Titanium Pipe Welding Techniques

Bending Radius of Titanium Seamless Pipe

Property	Bending Radi
Gr 2 ti pipe	4 to 6 times the diameter of the pipe
Gr 5 ti pipe	6–8 times the diameter of the pipe
Bending Methods
Compression Bending	Mandrel Bending

Grade 2 VS Stainless Steel Pipe

Property	Titanium Grade 2 Pipe	Stainless Steel Pipe
Material Composition	99.2% Ti	iron with chromium (10.5-30%)
Heat Resistance	up to 600-700°C or 1112-1292°F	800-900°C or (1472-1652°F)
Modulus of Elasticity	105 GPa (15.2 x 10³ ksi)	190 to 210 GPa (27.5-30.5 x 10³ ksi)
Corrosion Resistance	Excellent Resistance	Good resistance
Thermal Conductivity	21.9 W/m·K	16-20 W/m·K
Weight	lighter because of its reduced density.	Heavy Weight
Electrical Conductivity	2.4 x 10⁶ S/m	1.45 x 10⁶ S/m
Weldability	Weldability is Excellent	Usually good
Applications	Aerospace,medical implants, chemical processing, marine, high-strength applications.	Automotive, medical equipment, food processing,plumbing ,construction, and industrial applications.

3.5 Titanium Grade 5 Pipe Roughness

Roughness	Values
Extruded /Manufactured	Ra 1.6 to 3.2 microns
Polished/Finished	Ra 0.2 to 0.8 microns

Weight Chart of Titanium Alloy Pipe

DIMENSIONS	WEIGHT PER	WALL	DIMENSIONS	WEIGHT PER	WALL
(MM)	METRE (KG)	(MM)	(MM)	METRE (KG)	(MM)
12.7 x 12.7	0.44	1.20	40 x40	1.49	1.20
20 x 20	0.88	1.50	50 x50	3.08	2.00
15 x 15	0.65	1.50	40 x40	3.75	3.00
30 x 30	1.84	2.00	100 x 100	9.53	3.00
12.7 x 12.7	0.55	1.50	40 x40	1.85	1.50
20 x 20	1.19	2.00	50 x50	4.65	3.00
15 x 15	0.53	1.20	40 x40	2.45	2.00
30 x 30	1.37	1.50	100 x 100	6.40	2.00
20 x 20	0.71	1.20	50 x50	2.32	1.50
30 x 30	1.10	1.20	80 x80	7.53	3.00
25 x 25	1.49	2.00	70 x70	6.53	3.00

Benefits of Titanium Exhaust Pipe

Malleable
Precisely designed
Corrosion resistant
Enhanced service life
High strength
Durable functioning
Impeccable finish
Heat resistance
Excellent conductivity

Pressure Rating of ASME SB 861 Hot Finished Pipe

Tube O.D. (in.)	Wall Thickness of Tube (inches)
	Working Pressure (psig)
	.028	.065	.035	.109	.095	.049	.120	.083
3/4		3000			4600	2200		4000
5/16		7300	3700			5400
1/8	7900		10100
1/2		4400	2300			3200
1/4	3700	9500	4800			7000
1		2200		3900	3400		4300	2900
3/8		6100	3100			4400

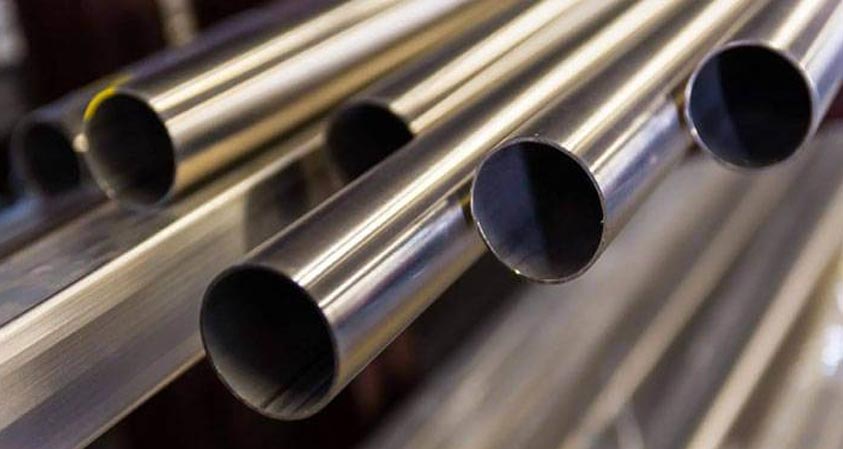

Titanium Welded Pipe Applications

Pulp and Paper Industry
Specialty Chemicals
Condensers
Gas Processing
Off-Shore Oil Drilling Companies
Power Generation
Heat Exchangers
Chemical Equipment
Sea Water Equipment
Petrochemicals
Pharmaceuticals

Ti Alloy Rectangular Pipe Chemical Composition

Grade	Fe	C	O	N	Ti	H	Al	V
Titanium Grade 2	0.3 max	0.1 max	0.25 max	0.03 max	99.2 min	0.015 max
Titanium Grade 5	0.40 max	0.10 max	0.20 max	0.05 max	90 min	0.015 max	5.5-6.75 max	3.5-4.5

Mechanical Properties of ASTM B338 Titanium Welded Pipe

Standards	Melting Point	Tensile Strength	Yield Strength	Elongation
TI GR 2	1665 °C (3030 °F)	Psi 49900 , MPa 344	Psi 39900 , MPa 275	20 %
Ti Gr 5	1632 °C (2970 °F)	Psi 138000 , MPa 950	Psi 128000 , MPa 880	14 %

Equivalent Grades of ASME SB 861 Seamless Pipe

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr 5	3.7165	R56400
Titanium Gr 2	3.7035	R50400

Titanium Straight Pipe Density

Standard	Density
Titanium Gr5	4.43 G/Cm3
Titanium Gr2	4.5 G/Cm3

Advantages and Disadvnatages of Titanium Pipe

Advantages of Titanium	Disadvantages of Titanium
High Strength	High Cost
Biocompatibility	Brittleness at Low Temperatures
Corrosion Resistance	Difficulty in Machining
Durability and Longevity	Alloying Challenges
High Melting Point	Limited Availability
Non-Magnetic	Requires Specialized Welding
Low Thermal Conductivity	Fatigue Strength Concerns

Is a Titanium Exhaust Pipe Better than Stainless Steel Pipe ?

Titanium Exhaust Pipe	Stainless Steel Pipe
Lighter	More Affordable
Superior Corrosion Resistance	Good Durability
Better Heat Resistance	Deeper Sound
Higher Cost	Heavier
Premium Appearance	More Maintenance

Titanium Pipe Ready Stock

Seamless Ti Pipe for Heat Exchanger

Pure Gr2 Titanium Pipe

High Quality ASTM B861 15mm 19mm Grade 2 Pipe

Medical Industrial ASTM B338 Titanium Gr5 Pipe

Cold Rolled ASME SB 861 Ti Grade 2 Pipe

ASTM B338 Thin Wall Grade 2 Titanium Seamless Pipe

Titanium Pipe Delivery Time and Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Sudan	30
Belgium	7
The Republic Of Congo	45-60
Yemen	21
Equatorial Guinea	45-60
Norway	45
Costa Rica	45
Jordan	21
Panama	45
Cyprus	45
Germany	45
Netherlands	45
Germany	45
Gabon	45-60
Angola	45

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
