Marine Grade Stainless Steel Pipe

Home|Marine Grade Stainless Steel Pipe
Marine Grade Stainless Steel Pipe Specification
Most important Documents to Import Marine Grade Stainless Steel Pipe in Morocco
  • Bill of Lading
  • Packing List
  • Insurance Certificate
  • Safety Data Sheet
  • Commercial Invoice
  • Customs Declaration
  • Tariff Classification and Duty Payment
  • Certificate of Origin
Manisha Steel Centre

Table of Content


SS Boat Rail Tubing Manufacturer in India With Tested Raw Material, Refer Specification

Marine Grade Stainless Steel Pipe Specification
Marine Steel Pipe Sizes

Marine Steel Pipe Sizes

  • Size: 1/8 - 12 Inch
  • schedule : SCH 5 , SCH 40,SCH XS, SCH XXS

SS Boat Rail Tubing Manufacturing Process

SS Boat Rail Tubing Manufacturing Process

  • Cold Formed
  • Hot Formed
  • Precision Rolled
Marine Steel Seamless Pipe Sizes

Marine Steel Seamless Pipe Sizes

  • OD: 1/8 inches - 12 inches
  • Length: Single, Double Random & Cut Length
  • Wall Thk : 12.7 mm to 0.6 mm
SS 304 Marine Welded Pipe

SS 304 Marine Welded Pipe

  • OD: 114.3 mm - 6.35 mm
  • Wall Thickness: 12.7 mm - 0.8 mm
  • Length: up to 26 m

Marine Grade Stainless Steel Pipe Testing

Marine Grade Stainless Steel Pipe Testing

  • PMI
  • Ultrasonic
  • Chemical
  • Mechanical
Marine Grade 316 Stainless Steel Tubing Origin

Marine Grade 316 Stainless Steel Tubing Origin

  • Russia
  • Janpanese
  • European
  • American

Marine Exhaust Tube Standards

Marine Exhaust Tube Standards

  • ASME SA 312 | ASTM A312
  • SUS, AISI, GB, ASME
  • DIN, API,EN , UNS
Marine Grade 316 Stainless Steel Tubing Documentation

Marine Grade 316 Stainless Steel Tubing Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
Marine Grade Stainless Steel Pipe Services

Marine Grade Stainless Steel Pipe Services

  • Cutting
  • Shearing
  • Heat Treatment

Stainless Steel for Marine Use Packaging

Stainless Steel for Marine Use Packaging

  • Wooden Box
  • Bubble Wraps
  • Bundled
SS Boat Rail Tubing Finish

SS Boat Rail Tubing Finish

  • Bright
  • Annealing
  • Polished
Stainless Steel Rail Tubing End

Stainless Steel Rail Tubing End

  • Plain
  • Beveled

Marine Grade 316 SS Tubing Applications
  • marine fasteners
  • marine fittings
  • marine structures

Marine Grade 316 Stainless Steel Tubing Supplier in Mumbai With Size Ranging From 1/8 to 12 Inch Or Custom

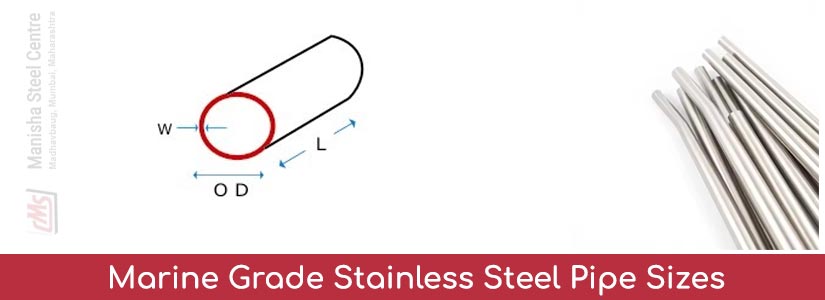

Marine Grade Stainless Steel Pipe Sizes

Marine Grade Stainless Steel Pipe Manufacturer in India supplies a large range of sizes and thicknesses to meet the needs of its clients.

Marine Grade Stainless Steel Pipe Sizes
OD OD BWG BWG BWG BWG BWG BWG BWG BWG
14 10 18 12 20 16 25 22
WT mm WT mm WT mm WT mm WT mm WT mm WT mm WT mm
2.108 3.404 1.245 2.769 0.889 1.651 0.508 0.711
mm inch kgs/m kgs/m kgs/m kgs/m kgs/m kgs/m 　- kgs/m
9.53  3/8 0.429 　- 0.257 　- 0.193 0.356 0.126 0.157
12.7  1/2 0.612 　- 0.356 0.754 0.263 0.457 　- 0.214
15.88  5/8 0.796 　- 0.455 0.995 0.334 0.588 　- 0.271
6.35 1/4 　- 　- 0.174 　- 0.133 0.212 0.081 0.109
31.75 1 1/4 1.574 2.641 0.947 2.014 0.688 1.244 　- 0.554
19.05  3/4 0.895 　- 0.553 1.236 0.405 0.729 　- 0.327
25.4 1    1.234 2.05 0.75 1.574 0.546 0.981 　- 0.44
38.1 1 1/2 1.904 3.233 1.144 2.454 0.832 1.514 　- 0.667
50.8 2    2.574 4.03 1.549 3.334 　- 2.034 　- 　-
44.5 1 3/4 2.244 3.5 1.342 2.894 　- 1.774 　- 　-
76.2 3    3.914 6.19 2.345 5.094 　- 3.084 　- 　-
63.5 2 1/2 3.244 5.13 1.949 4.214 　- 2.554 　- 　-
101.6 4    5.254 8.35 　- 6.854 　- 4.134 　- 　-
88.9 3 1/2 4.584 7.27 2.729 5.974 　- 3.609 　- 　-
114.3 4 1/2 5.924 9.43 　- 7.734 　- 4.654 　- 　-
Schedule 40 Marine Grade Stainless Steel Pipe Weight Chart
Nominal SS Square Pipe Schedule 10 SS Square Pipe Schedule 5 SS Square Pipe Schedule 40
Inch MM Kg./M Wt./MM Wt./MM Kg./M Kg./Ft Kg./Ft Kg./M Wt./MM Kg./Ft
1 1 / 4 33.40 2.690 2.77 1.65 1.650 0.820 0.503 3.380 3.56 1.030
1 / 2 21 0.999 2.11 1.65 0.801 0.305 0.244 1.270 2.77 0.387
1 1 / 2 42.20 3.110 2.77 1.65 1.900 0.948 0.579 4.050 3.68 1.230
3 / 4 21.30 1.280 2.11 1.65 1.020 0.390 0.311 1.680 2.87 0.512
2 48.30 3.920 2.77 1.65 3.340 1.200 0.728  -  -  -
1 26.70 2.090 2.77 1.65 1.290 0.637 0.393 2.500 3.38 0.762
3 88.90 6.450 3.05 2.11 4.510 1.970 1.380  -  -  -
2 1 / 2 73.00 5.260 3.05 2.11 3.690 1.600 1.130  -  -  -
3 1 / 2 101.60 7.400 3.05 2.11 5.190 2.260 1.580 - - -

Find Reliable Source Of Sch 40 SS 304 Marine Tubing At Lowest Possible Price

Marine Grade Stainless Steel Pipe Price

Are You Trying to Find a Good Deal on Marine Grade Stainless Steel Pipe ? You can get an estimate immediately by sending an email. kalpesh@manishasteelcentre.com.

Size Price in USD Price in Ghana Price in Saudi Arabia Price in Bahrain
1 * 6 inch USD $ 72.99 GHS 980.64 SAR 273.78 BHD 27.51
22 mm USD $ 15.52 GHS 208.51 SAR 58.21 BHD 5.85
7/8 * 6 inch USD $ 52.99 GHS 711.93 SAR 198.76 BHD 19.97
9.5 mm USD $ 12.70 GHS 170.63 SAR 47.64 BHD 4.79
Which Maintenance Procedures Are Necessary to Keep Stainless Steel Marine Exhaust Pipes in Excellent Condition and Protect Against Rust or Damage?
Regular Cleaning Inspect for Damage
Protective Coatings Avoid Contact with Non-Stainless Steel Materials
Monitor Exhaust Temperature Check Exhaust System Alignment
Offer Ready Stock Of Marine Stainless Steel Pipe Ideal For Canvas Top Frames and Grab Rails
Types Of Marine Steel Pipe

Manisha Steel Centre Trusted Marine Grade Stainless Steel Pipe Supplier in India delivers a wide range of shapes and forms at reasonable prices.

Marine Grade Stainless Steel Tube

Marine Grade Stainless Steel Tube

SS Boat Rail Tubing

SS Boat Rail Tubing

Sch 40 Marine Grade Stainless Steel 304 Tube

Sch 40 Marine Grade Stainless Steel 304 Tube

SCH 80 Marine Grade Stainless Steel Pipe

SCH 80 Marine Grade Stainless Steel Pipe

4 Inch Marine Exhaust Tube

4 Inch Marine Exhaust Tube

Marine Grade 316 SS Tubing

Marine Grade 316 SS Tubing

Marine Exhaust Tube  Schedule Chart
Nominal wall thickness comparsion table for stainless steel pipe (ASME B36.10 & B36.19)
DN in DN mm φmm SCH 40S SCH 10S Sch 40
1/2 15 21.3 2.77 2.11 2.77
1/8 6 10.3 1.73 1.24 1.73
3/4 20 26.7 2.87 2.11 2.87
1/4 8 13.7 2.24 1.65 2.24
3 1/2 90 101.6 5.74 3.05 5.74
3/8 10 17.1 2.31 1.65 2.31
2 1/2 65 76 5.16 3.05 5.16
1 25 33.4 3.38 2.77 3.38
5 125 141.3 6.55 3.4 6.55
2 50 60.3 3.91 2.77 3.91
12 300 323.8 9.53 4.57 10.31
1 1/4 32 42.2 3.56 2.77 3.56
8 200 219.1 8.18 3.76 8.18
1 1/2 40 48.3 3.68 2.77 3.68
3 80 88.9 5.49 3.05 5.49
14 350 355.6  - 4.78 11.13
4 100 114.3 6.02 3.05 6.02
18 450 457  - 4.78 14.27
6 150 168.3 7.11 3.4 7.11
16 400 406.4  - 4.78 12.7
10 250 273 9.27 4.19 9.27
24 600 610  - 6.35 17.48
20 500 508  - 5.54 15.09
28 700 711  -  -  -
22 550 559  - 5.54  -
30 750 762  - 7.92  -
26 650 660  -  -  -
34 850 864  -  - 17.48
32 800 813  -  - 17.48
36 900 914  -  - 19.05
Deliver Best Quality Stainless Steel Rail Tubing and SS Marine Exhaust Pipe With Various Surface Finish
SS Boat Rail Tubing Surface Finish
  • Brushed Finish
  • Mirror Finish
  • Bead Blast Finish
  • Raw Finish
  • Polished Finish
  • Satin Finish
  • Matte Finish
  • Electropolished Finish
Marine Grade 316 SS Tubing Temperature Range
Pipe Range Ⅲ Ⅱ I
Designed Pressure (Mpa) Designed Temperature (℃) Designed Pressure (Mpa) Designed Temperature (℃) Designed Pressure(Mpa) Designed Temperature (℃)
≤ >
Other Media 1.6 200 1.6-7.0 200-300 4.0 300
Fuel Oil 0.7 60 0.7-1.6 60-150 1.6 150
Steam and Hot Oil 0.7 170 0.7-1.6 170-300 1.6 300

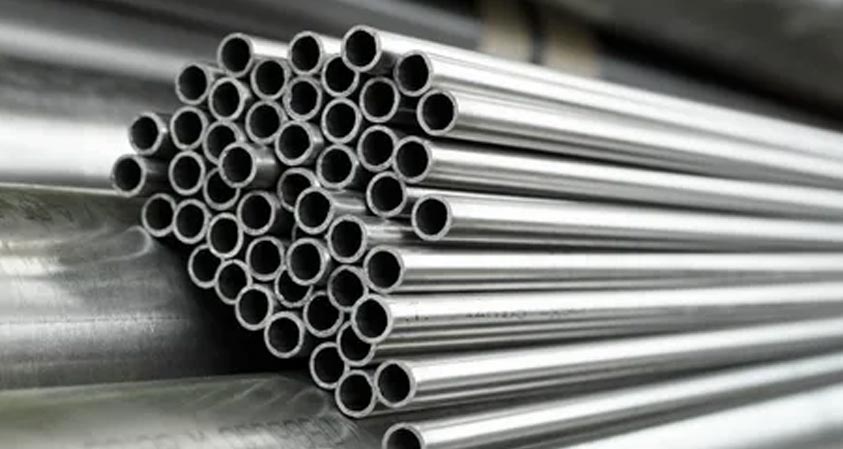

SS 304 Marine Tubing Manufacturing Process
SS 304 Marine Tubing Manufacturing Process
  • Continuous Casting
  • Inspection and Testing
  • Sinking Process
  • Continuous Seamless Tube Mills
  • Welding Process
  • Annealing
  • Drawing/ Floating Process
Marine Grade Stainless Steel Tube Chemical Composition
Marine Grade Stainless Steel Pipe Grades UNS Mn Si C P S Ni Cr Mo
TP316L S31603 2 1 0.035 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0
TP304 S30400 2 1 0.08 0.045 0.03 8.0-11.0 18.0-20.0  -
TP316 S3160 2 1 0.08 0.045 0.03 11.0-14.0 16.0-18.0 2.0-3.0
Marine Grade Stainless Steel Pipe Equivalent Grades
GRADE UNS NO DIN/WERKSTOFF
316L S31603 1.4404
304 S30400 1.4301
316 S31600 1.4436
Marine Exhaust Tube Mechanical Properties
Material Heat Elongation %, Min Yield Strength Tensile Strength
Treatment Ksi (MPa), Min. Ksi (MPa), Min.
TP316L Solution 35 25(170) 70(485)
TP304 Solution 35 30(205) 75(515)
TP316 Solution 35 30(205) 75(515)
Delivery Time based on the Location for Marine Grade Stainless Steel Pipe
Changes in Price
Extra 5 %
Export to Shipping Time in Days
France 28
Belgium 40
Portugal 45
Netherland 30
Uk 30
Czech Republic 45
Spain  30
Norway 45
Italy 28
Greece 45
Ukraine 60
Russia 20
Denmark 35
Bahamas  60
Germany 21
