ERW Pipe Weight Chart

Home|ERW Pipe Weight Chart
ERW Pipe Weight Chart
Manisha Steel Centre

Table of Content



Get Electric Resistance Welding Pipe Standard Size Chart

Electric Resistance Welding Pipe Standard Size Chart
NB Size OD 5S 10S S10 S20 40S S40 S60 XS/80S S80 S100 S120 S140 S160 XXS
mm
- 1/8” 10.29 - 1.2 - - - 1.73 - - 2.41 - - - - -
- 1/4” 13.72 - 1.7 - - - 2.24 - - 3.02 - - - - -
- 3/8” 17.15 - 1.7 - - - 2.31 - - 3.2 - - - - -
15 1/2” 21.34 1.7 2.1 - - 2.8 2.77 - 3.73 3.73 - - - 4.78 7.47
40 1 1/2” 48.26 1.7 2.8 - - 3.7 3.68 - 5.08 5.08 - - - 7.14 10.2
50 2” 60.33 1.7 2.8 - - 3.9 3.91 - 5.54 5.54 - - - 9.74 11.1
65 2 1/2” 73.03 2.1 3.1 - - 5.2 5.16 - 7.01 7.01 - - - 9.53 14
80 3” 88.9 2.1 3.1 - - 5.5 5.49 - 7.62 7.62 - - - 11.1 15.2
90 3 1/2” 101.6 2.1 3.1 - - 5.7 5.74 - 8.08 8.08 - - - - -
100 4” 114.3 2.1 3.1 - - 6 6.02 - 8.56 8.56 - 11.1 - 13.5 17.1
125 5” 141.3 2.8 3.4 - - 6.6 6.55 - 9.53 9.53 - 12.7 - 15.9 19.1
20 3/4” 26.67 1.7 2.1 - - 2.9 2.87 - 3.91 3.91 - - - 5.56 7.82
25 1” 33.4 1.7 2.8 - - 3.4 3.38 - 4.55 4.55 - - - 6.35 9.09
32 1 1/4” 42.16 1.7 2.8 - - 3.6 3.56 - 4.85 4.85 - - - 6.35 9.7
150 6” 168.3 2.8 3.4 - - 7.1 7.11 - 10.97 11 - 14.3 - 18.3 22
300 12” 323.9 4 4.6 - 6.4 9.5 10.3 14.3 12.7 17.5 21.4 25.4 28.6 33.3 25.4
250 10” 273.1 3.4 4.2 - 6.4 9.3 9.27 12.7 12.7 15.1 19.3 21.4 25.4 28.6 25.4
650 26” 660.4 - - 7.9 13 9.5 - - 12.7 - - - - - -
700 28” 711.2 - - 7.9 13 9.5 - - 12.7 - - - - - -
850 34” 863.6 - - 7.9 13 9.5 17.5 - 12.7 - - - - - -
350 14” 355.6 4 4.8 6.4 7.9 9.5 11.1 15.1 12.7 19.1 23.8 27.8 31.8 35.7 -
750 30” 762 6.4 7.9 7.9 13 9.5 - - 12.7 - - - - - -
800 32” 812.8 - - 7.9 13 9.5 17.5 - 12.7 - - - - - -
500 20” 508 4.8 5.5 6.4 9.5 9.5 15.1 20.6 12.7 26.2 32.5 38.1 44.5 50 -
550 22” 558.8 4.8 5.5 6.4 9.5 9.5 - 22.2 12.7 28.6 34.9 41.3 47.6 54 -
600 24” 609.6 5.5 6.4 6.4 9.5 9.5 17.5 24.6 12.7 31 38.9 46 52.4 59.5 -
200 8” 219.1 2.8 3.8 - 6.4 8.2 8.18 10.3 12.7 12.7 15.1 19.3 20.6 23 22.2
400 16” 406.4 4.2 4.8 6.4 7.9 9.5 12.7 16.7 12.7 21.4 26.2 31 36.5 40.5 -
450 18” 457.2 4.2 4.8 6.4 7.9 9.5 14.3 19.1 12.7 23.8 29.4 34.9 39.7 45.2 -
900 36” 914.4 - - 7.9 13 9.5 19.1 - 12.7 - - - - - -
ERW Pipe Size Chart
Nominal Pipe Size (NPS) Outer Diameter (OD) (inches)
1/2 0.840
1 1.315
1 1/2 1.900
1 1/4 1.660
2 2.375
2 1/2 2.875
3 3.500
3/4 1.050
4 4.500
6 6.625
8 8.625
10 10.750
12 12.750

Must Check ERW Pipe Dimensions Chart

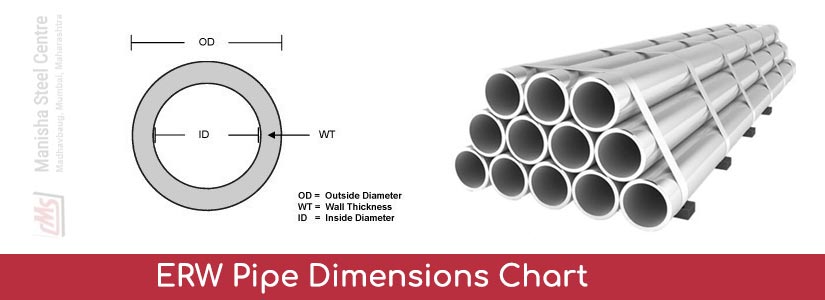

ERW Pipe Dimensions Chart
ERW Pipe Dimensions Chart
Nominal Size- NPS (inches) ID (inches) OD (inches) SCH Wall Thickness (inches)
1 1.185 1.315 5 0.065
1.097 1.315 10 0.109
1.049 1.315 40 0.133
0.957 1.315 80 0.179
1/2 0.710 0.840 5 0.065
0.674 0.840 10 0.083
0.622 0.840 40 0.109
0.546 0.840 80 0.147
1/4 0.410 0.540 10 0.065
0.364 0.540 40 0.088
0.302 0.540 80 0.119
1/8 0.307 0.405 10 0.049
0.269 0.405 40 0.068
0.215 0.405 80 0.095
3/4 0.920 1.050 5 0.065
0.884 1.050 10 0.083
0.824 1.050 40 0.113
0.742 1.050 80 0.154
3/8 0.545 0.678 10 0.065
0.493 0.678 40 0.091
0.423 0.678 80 0.126
1 1/2 1.770 1.900 5 0.065
1.682 1.900 10 0.109
1.610 1.900 40 0.145
1.500 1.900 80 0.200
1 1/4 1.530 1.660 5 0.065
1.442 1.660 10 0.109
1.380 1.660 40 0.140
1.278 1.660 80 0.191
2 2.245 2.375 5 0.065
2.157 2.375 10 0.109
2.067 2.375 40 0.154
1.939 2.375 80 0.218
2 1/2 2.709 2.875 5 0.083
2.635 2.875 10 0.120
2.469 2.875 40 0.203
3 3.334 3.500 5 0.083
3.260 3.500 10 0.120
3.068 3.500 40 0.216
3 1/2 3.834 4.000 5 0.083
3.760 4.000 10 0.120
4 4.334 4.500 5 0.083
4.260 4.500 10 0.120
4.026 4.500 40 0.237
5 5.345 5.563 5 0.109
5.295 5.563 10 0.134
6 6.407 6.625 5 0.109
6.357 6.625 10 0.134

Find ERW Pipe Schedule Chart Here

ERW Pipe Schedule Chart
Nominal Pipe Size (NPS) Schedule 10 Schedule 20 Schedule 40 Schedule 80
2″ 0.154″ 0.218″ 0.370″ 0.450″
12″ 0.406″ 0.687″ 1.200″ 1.320″
2-1/2″ 0.203″ 0.276″ 0.432″ 0.552″
10″ 0.365″ 0.593″ 1.050″ 1.200″
24″ 0.625″ 1.125″ 2.000″ 2.250″
3/4″ 0.113″ 0.154″ 0.216″ 0.300″
1-1/4″ 0.140″ 0.191″ 0.274″ 0.375″
4″ 0.237″ 0.337″ 0.600″ 0.800″
18″ 0.562″ 0.875″ 1.700″ 1.900″
14″ 0.437″ 0.750″ 1.400″ 1.500″
1″ 0.133″ 0.179″ 0.244″ 0.322″
1-1/2″ 0.145″ 0.200″ 0.300″ 0.400″
1/2″ 0.109″ 0.147″ 0.205″ 0.254″
16″ 0.500″ 0.875″ 1.500″ 1.750″
6″ 0.280″ 0.432″ 0.840″ 1.050″
20″ 0.593″ 1.000″ 1.800″ 2.000″
3″ 0.216″ 0.300″ 0.500″ 0.600″
5″ 0.258″ 0.375″ 0.700″ 0.900″
8″ 0.322″ 0.500″ 0.900″ 1.100″
Check ERW Pipe Thickness Chart in mm
ERW Pipe Thickness Chart
Nominal size in Inch OD in mm OD in Inch Wall thickness in Inch Wall thickness in mm
1 Inch 33.4 mm 1.315 0.065 1.65
10 Inch 273.1 mm 10.750 0.134 3.4
1/2 Inch 21.3 mm 0.840 0.065 1.65
3 1/2 Inch 101.6 mm 4.000 0.083 2.11
12 Inch 323.9 mm 12.750 0.156 3.96
3/4 Inch 26.7 mm 1.050 0.065 1.65
6 Inch 168.3 mm 6.625 0.109 2.77
22 Inch 559.0 mm 22.000 0.188 4.78
24 Inch 610.0 mm 24.000 0.218 5.54
3 Inch 88.9 mm 3.500 0.083 2.11
30 Inch 762.0 mm 30.000 0.250 6.35
2 Inch 60.3 mm 2.375 0.065 1.65
20 Inch 508.0 mm 20.000 0.188 4.78
4 Inch 114.3 mm 4.500 0.083 2.11
2 1/2 Inch 73.0 mm 2.875 0.083 2.11
1 1/4 Inch 42.2 mm 1.660 0.065 1.65
16 Inch 406.4 mm 16.000 0.165 4.19
8 Inch 219.1 mm 8.625 0.109 2.77
14 Inch 355.6 mm 14.000 0.156 3.96
1 1/2 Inch 48.3 mm 1.900 0.065 1.65
18 Inch 457.0 mm 18.000 0.165 4.19
5 Inch 141.3 mm 5.563 0.109 2.77
View Jindal ERW Pipe Weight Chart
Jindal ERW Pipe Weight Chart
Size OD WT Weight Gallon Standard to XXHY Schedule Pipe #
1/2 0.84 0.109 0.85 .0158 STD 40
0.147 1.09 .0122 XHY 80
0.188 1.31 .0088 - 160
1 1.315 0.133 1.68 .0449 STD 40
0.179 2.17 .0374 XHY 80
0.250 2.85 .0271 - 160
1 1/2 1.90 0.145 2.72 .1058 STD 40
0.200 3.63 .0918 XHY 80
3 1/2 4.0 0.120 4.98 .5768 - 10
0.226 9.12 .5136 STD. 140
0.250 10.02 .4998 - -
0.281 11.17 .4821 - -
1 1/4 1.66 0.140 2.27 .0777 STD 40
0.191 3.00 .0666 XHY 80
0.250 3.77 .0549 - 160
0.281 4.86 .0730 - 160
2 2.375 0.109 2.64 .1898 - 10
0.154 3.66 .1743 STD 40
0.218 5.03 .1534 XHY 80
0.250 5.68 .1434 - -
0.281 6.29 .1344 - -
0.344 7.47 .1161 - 160
2 1/2 2.875 0.120 3.53 .2833 - 10
0.203 5.80 .2487 STD. 40
0.216 6.14 .2435 - -
0.250 7.02 .2301 - -
0.276 7.67 .2202 XHY 80
0.375 10.02 .1842 - 160
3/4 1.05 0.113 1.13 .0277 STD 40
0.154 1.48 .0225 XHY 80
0.219 1.95 .0153 - 160
3 3.50 0.120 4.34 .4336 - -
0.156 5.58 .4147 - -
0.172 6.12 .4064 - -
0.188 6.66 .3984 - -
0.216 7.58 .3840 STD. 40
0.250 8.69 .3672 - -
0.281 9.67 .3521 - -
0.300 10.26 .3431 XHY 80
0.438 14.34 .2811 - 160
0.318 12.52 .4617 XHY 80
4 4.5 0.120 5.62 .7404 - 10
0.156 7.24 .7156 - -
0.188 8.67 .6942 - -
0.203 9.32 .6838 - -
0.219 10.02 .6725 - -
0.237 10.80 .6613 STD. 40
0.250 11.36 .6528 - -
0.281 12.67 .6326 - 60
0.312 13.97 .6126 - -
0.337 15.00 .5972 XHY 80
0.438 19.02 .5361 - 120
0.531 22.53 .4822 - 160
5 5.563 0.188 10.80 1.0979 - -
0.219 12.51 1.0716 - -
0.258 14.63 1.0391 STD. 40
0.281 15.87 1.0204 - -
0.312 17.51 .99647 - -
0.344 19.19 .9696 - -
0.375 20.80 .9449 XHY 80
0.500 27.06 .8495 - 120
0.625 32.99 .7590 - 160
6 6.625 0.109 7.59 1.6748 - 5
0.134 9.30 1.6488 - 10
0.156 10.79 1.6260 - -
0.188 12.94 1.5937 - -
0.203 13.94 1.5780 - -
