Stainless Steel 316L Pipe | SS 316l Seamless and Welded Tube

5 Advantages for Engineers in Argentina to buy Stainless Steel 316L Pipe from India

Cost-Effectiveness
Availability and Timely Delivery
High-Quality Manufacturing
Wide Range of Standards and Specifications
Access to Expertise and Customer Support

Table of Content

Stainless Steel 316L Pipe Specification
SS316l Pipe Wall Thickness
Stainless Steel 316L Pipe Price
UNS S31603 Square Tube Dimensions
What Are the Benefits of Using 316l Stainless Steel Pipe in Medical Applications?
Why is 316l SS Pipe a Superior Grade?
Stainless Steel 316L Pipe Sizes
316l SS Tube Weight Chart
316l Stainless Steel Seamless Pipe Schedule Chart
Stainless Steel Pipe 316l Seamless Pressure Rating Chart
SS 316l Pipe EFW Pipe American Standards
Stainless Steel 316l Welded Pipe European Standards
Types Of 316L Stainless Pipe
WNR 1.4404 ERW Pipe Roughness
AISI 316l Rectangular Tube HSN Code
SUS 316l Round Pipe Applications
ASTM A312 S31603 Round Tube Chemical Composition
Stainless Steel 316L Square Pipe Equivalent Grades
SUS 316l ERW Tube Mechanical Properties
Physical Properties of Stainless Steel 316l Tubes

Stainless Steel 316L Pipe Specification

Stainless Steel 316l Seamless Pipe Sizes

Wall Thk :0.6m - 12.7 mm
OD: 1/8 - 12 inches NPS
Length: Cut Length, Double Random & Single Random

SS 316l Welded Pipe

Wall Thickness: 0.8 - 12.7 mm
OD: 6.35 - 114.3 mm
Length: 26 Meters

SUS 316l Thick-Walled Pipe

Length : 1/2 to 12 meter
OD : 10 to 600 mm
Thickness : 2.5 to 100 mm

WNR 1.4404 Seamless Pipe Shapes

Square
Round
Rectangular

INOX 316l Rectangular Pipe Manufacturing Process

Cold Formed
Precision Rolled
Hot Formed

AISI 316l ERW Pipe

OD: 6.35 to 114.3 mm
Wall Thickness : 12.7 to 0.8 mm
Length : 26 meter

316l Stainless Steel Pipe Testing

Chemical
PMI
Mechanical
Ultrasonic

SS 316L EFW Pipe Origin

European
Russia
American
Janpanese

Stainless Steel 316l Tube Standards

ASTM A312 | ASME SA312
UNS, API, EN , DIN
ASME, GB, AISI, SUS

ASME SA312 Welded Tube Documentation

Visual Inspection
PMI Test Reports
Mill Test Certificates

WNR 1.4404 ERW Pipe Services

Heat Treatment
Cutting
Shearing

UNS S31603 Welded Pipe Packaging

Wooden Box
Bundled
Bubble Wraps

SS 316l Tube Finish

Bright
Polished
Annealing

AISI 316l Round Tube End

Beveled
Plain

SS316l Pipe Wall Thickness

Pipe Schedule	Nominal Pipe Size (NPS)	Outside Diameter (OD)	Wall Thickness (mm)	Wall Thickness (inches)
Schedule 80	1/2"	0.840"	3.73 mm	0.147"
	2"	2.375"	5.54 mm	0.218"
	1"	1.315"	4.55 mm	0.179"
	4"	4.500"	8.56 mm	0.337"
	3"	3.500"	7.62 mm	0.300"
Schedule 40	1/2"	0.840"	2.77 mm	0.109"
	2"	2.375"	3.91 mm	0.154"
	1"	1.315"	3.56 mm	0.140"
	4"	4.500"	6.02 mm	0.237"
	3"	3.500"	5.49 mm	0.216"
Schedule 10	1/2"	0.840"	1.65 mm	0.065"
	4"	4.500"	2.26 mm	0.089"
	1"	1.315"	1.65 mm	0.065"
	3"	3.500"	2.11 mm	0.083"
	2"	2.375"	1.65 mm	0.065"

High Quality and Low Price SS 316l Tube Manufacturer in India

Stainless Steel 316L Pipe Price

Would You Like to Buy Competitively Priced Stainless Steel 316L Pipe? By sending an email, you can receive an estimate right away. kalpesh@manishasteelcentre.com.

Nippon Steel & Sumitomo Metals (NSSMC)	SANYO Special Steel	Schoeller Bleckmann (AUSTRIA )	Kobe Steel	Tubacex (SPAIN)	Salzgitter Mannesmann Stainless Tubes	Sandvik	DMV Stainless
USD/TON	USD/TON	USD/TON	USD/TON	USD/TON	USD/TON	USD/TON	USD/TON
5170-6820	5170-6820	5690-7500	5170-6820	5690-7500	5690-7500	6890-9075	6260-8250

UNS S31603 Square Tube Dimensions

Outside Diameter		Qty/B	0.6	6.0	0.7	5.0	0.8	1.5	0.9	2.0	1.0	3.0	1.2	4.0
mm	Inches	Lgh	Kgs	Kgs	Kgs	Kgs	Kgs	Kgs	Kgs	Kgs	Kgs	Kgs	Kgs	Kgs
152.4	6"	10
9.5	3/8"	100	0.81		0.94		1.06	1.82	1.18		1.29		1.51
22.2	7/8"	100	1.97		2.29		2.60	4.72	2.91		3.22		3.83
12.7	1/2"	100	1.10		1.28		1.45	2.55	1.61		1.78		2.10
38.1	11/2"	50	3.42		3.98		4.53	8.34	5.09		5.64		6.73
15.9	5/8"	100	1.39		1.62		1.84	3.28	2.05		2.26		2.68
31.8	11/4"	50	2.84		3.31		3.77	6.91	4.23		4.68		5.58
19.1	3/4"	100	1.69		1.96		2.22	4.01	2.49		2.75		3.26
63.5	21/2"	10					7.62	14.13	8.56	18.69	9.50	27.58	11.36
25.4	1"	100	2.26		2.63		2.99	5.45	3.35		3.71		4.41
50.8	2"	10					6.08	11.24	6.82	14.83	7.57	21.79	9.04
28.6	11/8"	50	2.55		2.97		3.38	6.18	3.79		4.19		5.00
88.9	31/2"	10					10.71	19.92	12.03	26.41	13.36	39.16	15.99	51.60
41.3	15/8"	50	3.71		4.32		4.92	9.07	5.52		6.12		7.31
76.2	3"	10					9.17	17.03	10.30	22.55	11.43	33.37	13.68	43.88
44.5	13/4"	50	4.00		4.66		5.31	9.80	5.96		6.61		7.90
127	5"	10
101.6	4"	10		87.16		73.39		22.82		30.27		44.95	18.31	59.32

What Are the Benefits of Using 316l Stainless Steel Pipe in Medical Applications?

Why is 316l SS Pipe a Superior Grade?

Property	Explanation
Fabricability	Easy to form & weld
Biocompatibility	Safe for medical use
Non-reactivity	Chemically inert
Durability & Strength	High tensile strength
Cost Efficiency	Long-term cost savings
Aesthetic Appeal	Smooth, shiny finish
Long Lifespan	Extended service life
Impact Resistance	Strong under mechanical stress

Supplier Of Stainless Steel Pipe 316l Seamless in Mumbai With OD 1/8 to 12" NPS or Custom, Refer Size Chart

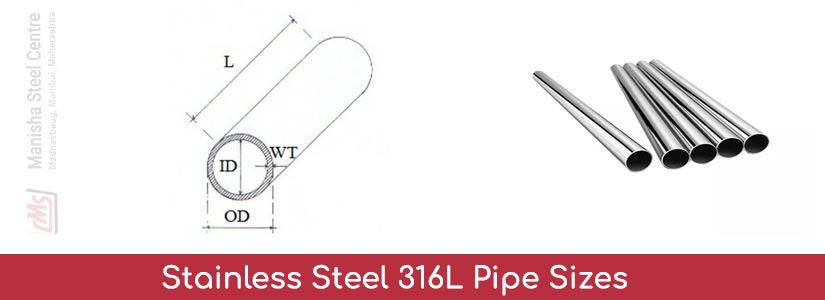

Stainless Steel 316L Pipe Sizes

Stainless Steel 316L Pipe Manufacturer in India offers a wide variety of diameters and sizes to satisfy consumer needs

Nominal Pipe Size (NPS)		Outside Diameter (OD)
inch	mm	mm
10 Inch	250 mm	273.1 mm
1/8 Inch	3 mm	10.3 mm
6 Inch	150 mm	168.3 mm
1/4 Inch	6 mm	13.7 mm
18 Inch	450 mm	457.2 mm
3/8 Inch	10 mm	17.1 mm
8 Inch	200 mm	219.1 mm
1/2 Inch	15 mm	21.3 mm
12 Inch	300 mm	323.8 mm
3/4 Inch	20 mm	26.7 mm
5 Inch	125 mm	141.3 mm
1 Inch	25 mm	33.4 mm
14 Inch	350 mm	355.6 mm
1.1/4 Inch	32 mm	42.2 mm
3 Inch	80 mm	88.9 mm
1.1/2 Inch	40 mm	48.3 mm
4 Inch	100 mm	114.3 mm
2 Inch	50 mm	60.3 mm
20 Inch	500 mm	508.0 mm
2.1/2 Inch	65 mm	73.0 mm
24 Inch	600 mm	610.0 mm
16 Inch	400 mm	406.4 mm

316l SS Tube Weight Chart

Nominal size [inches]	Outside diameter [inches]	Wall thickness [inches]	Weight [lb/ft]	Outside diameter [mm]	Wall thickness [mm]	Weight [kg/m]
1/2″ DN15	0.84	0.109	0.85	21.3	2.77	1.27
1 1/2″ DN40	1.9	0.145	2.74	48.3	3.68	4.08
12″ DN300	12.75	0.375	49.91	323.9	9.53	74.28
3/4″ DN20	1.05	0.113	1.14	26.7	2.87	1.7
4″ DN100	4.5	0.237	10.87	114.3	6.02	16.18
1 1/4″ DN32	1.66	0.14	2.29	42.2	3.56	3.41
1″ DN25	1.32	0.133	1.69	33.4	3.38	2.52
10″ DN250	10.75	0.365	40.79	273.1	9.27	60.7
2″ DN50	2.375	0.154	3.68	60.3	3.91	5.47
3 1/2″	4.0	0.226	9.18	101.6	5.74	13.66
2 1/2″ DN65	2.875	0.203	5.84	73.0	5.16	8.69
3″ DN80	3.5	0.216	7.64	88.9	5.49	11.36
6″ DN150	6.625	0.28	19.11	168.3	7.11	28.44
5″ DN125	5.563	0.258	14.72	141.3	6.55	21.91
8″ DN200	8.625	0.322	28.77	219.1	8.18	42.82

Buy UNS S31603 Welded Pipe and Tube With Wall Thickness 0.8 to 12.7 mm, Check Schedule Chart

316l Stainless Steel Seamless Pipe Schedule Chart

NB Sizes	Sch 10	Sch 5	Sch 80	Sch 40	Sch 160
1/2"	√	√	√	√	√
1/8"	√	√	√	√
1 1/4"	√	√	√	√	√
1/4"	√	√	√	√
1 1/2"	√	√	√	√	√
3/8"	√	√	√	√
2"	√	√	√	√	√
3/4"	√	√	√	√	√
2 1/2"	√	√	√	√	√
1"	√	√	√	√	√
4"	√	√	√	√	√
3"	√	√	√	√	√
6"	√	√	√	√
5"	√	√	√	√

Stainless Steel Pipe 316l Seamless Pressure Rating Chart

Pipe Size (inches)	Pipe Schedule	Temperature (°F)
Pipe Size (inches)	Pipe Schedule	750	100	600	200	500	300	700	400	650
1"	80	2501	4213	2659	3634	2791	3265	2528	3002	2580
10"	40	578	974	615	840	945	755	584	694	596
1"	160	3646	6140	3876	5296	4068	4759	3684	4375	3761
10"	160	1868	3147	1986	2714	2085	2439	1880	2242	1927
1.5"	80	1889	3182	2009	2744	2108	2466	1909	2267	1949
8"	80	1005	1692	1068	1459	1121	1311	1015	1205	1036
1.5"	160	2743	4619	2916	3984	3060	3580	2772	3291	2829
8"	160	1885	3175	2004	2738	2103	2460	1905	2262	1944
2"	40	1129	1902	1201	1640	1260	1474	1141	1355	1165
5"	40	797	1342	847	1158	889	1040	805	956	822
2"	160	2671	4499	2840	3880	2980	3486	2699	3205	2755
5"	80	1176	1981	1250	1709	1312	1535	1189	1411	1213
3"	40	1072	1806	1140	1558	1196	1400	1084	1287	1106
4"	80	1314	2213	1397	1909	1466	1715	1328	1577	1355
6"	40	724	1219	770	1052	808	945	732	869	747
3"	80	1516	2553	1612	2202	1691	1979	1532	1819	1564
6"	160	1953	3289	2076	2836	2179	2549	1973	2343	2014
4"	40	909	1531	967	1321	1014	1187	919	1091	938

Maintain Ready Stock Of European and American Standards WNR 1.4404 ERW Pipe Tube Online

SS 316l Pipe EFW Pipe American Standards

Stainless Steel 316L Pipe American Standard
ASTM A999
ASTM A312 / A312M	ASTM A790 / A790M
ASTM A409 / A409M	ASTM A814 / A814M
ASTM A778	ASTM A928 / A928M
ASTM A376 / A376M	ASTM A813 / A813M

Stainless Steel 316l Welded Pipe European Standards

EN 10312: 2002
EN 10088-2: 2014
EN 10217-7: 2005
EN 10216-5: 2004

Offer 316l Stainless Steel Pipe in Square, Rectangular and Round Form, Check Available Type

Types Of 316L Stainless Pipe

Manisha Steel Centre Top-Rated Stainless Steel 316L Pipe Supplier in India provides a wide range of shapes and forms at competitive prices.

SS 316l Seamless Tube

WNR 1.4404 Square Pipe

UNS S31603 Rectangular Tube

SUS 316l Welded Tube

AISI 316l Square Tube

INOX 316l Round Pipe

Stainless Steel 316L ERW Pipe

ASTM A312 Welded Pipe

316l Rectangular Pipe

316L Stainless Steel Pipe Round Tube

316L SS EFW Pipe

AISI 316L Seamless Pipe

WNR 1.4404 ERW Pipe Roughness

MATERIAL SURFACE	ABSOLUTE ROUGHNESS COEFFICIENT Ε MM
SS 316L	0.015
Drawn Brass / Copper	0.0015
Lead, Aluminum Alloy	0.001 to 0.002

AISI 316l Rectangular Tube HSN Code

Material	HS code
SS 316L	73041110

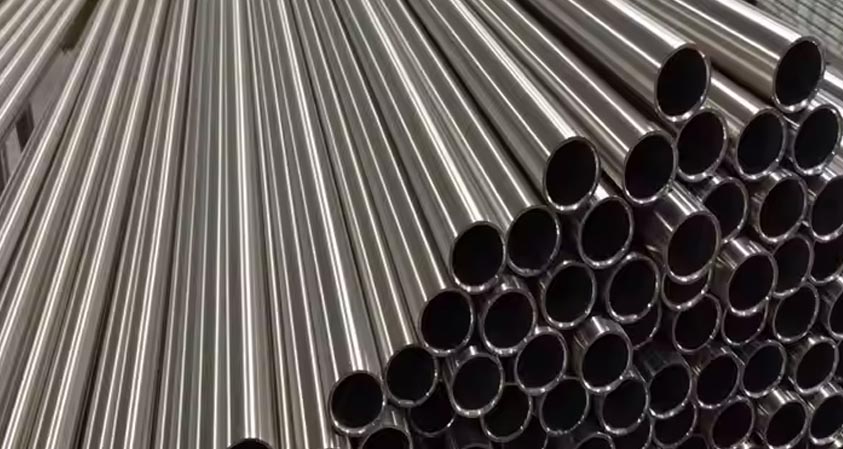

SUS 316l Round Pipe Applications

Food processing equipment
Railway cars
Kitchen benches,troughs, sinks
Architectural applications
Automotive trim
welded screens for mining
Heat Exchangers
construction materials
Trailers
Threaded fasteners
Chemical containers

ASTM A312 S31603 Round Tube Chemical Composition

Grade		Si	C	S	Mn	Cr	P	Ni	Mo	N
316L	min.	-	-	-	-	16.0	-	10.0	2.00	-
316L	max.	0.75	0.08	0.03	2.00	18.0	0.045	14.0	3.00	0.10

Stainless Steel 316L Square Pipe Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.	AFNOR	JIS	GOST	EN	BS
SS 316L	S31603	1.4404 / 1.4435	Z3CND17‐11‐02 / Z3CND18‐14‐03	SUS 316L	03Ch17N14M3 / 03Ch17N14M2	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	316S11 / 316S13

SUS 316l ERW Tube Mechanical Properties

Grade	Elongation (% in 50mm) min	Yield Strength (MPa) min	Tensile Strength (MPa) min	Hardness
Grade	Elongation (% in 50mm) min	Yield Strength (MPa) min	Tensile Strength (MPa) min	Rockwell B (HR B) max	Brinell (HB) max
316L	40%	170	485	95	217

Physical Properties of Stainless Steel 316l Tubes

Grade	Specific Heat 0-1000C (J/kg.K)	Density (kg/m3)	Electrical Resistivity (n.m)	Elastic Modulus (GPa)	Thermal Conductivity (W/m.K)		Mean Coefficient of Thermal Expansion (m/m/0C)
Grade	Specific Heat 0-1000C (J/kg.K)	Density (kg/m3)	Electrical Resistivity (n.m)	Elastic Modulus (GPa)	at 100°C	at 500°C	0-100°C	0-315°C	0-538°C
316L	500	8000	740	193	16.3	21.5	15.9	16.2	17.5

SS316l Pipe Available Stock for Purchase

Stainless Steel 316L Pipe Suppliers are offered to satisfy a range of customer needs and are easily accessible in many forms.

5 Metric Stainless Steel 316L Pipe

12" OD 316L Stainless Steel Welded Round Tube

30 mm x 1.5 mm x 2 m AISI 316l SS Polished Pipe

1-1/2 inch OD d Stainless Steel 316L Tubing

1-1/2" OD d Stainless Steel 316L Tubing

High quality 316L Stainless Steel Seamless Pipe

Cold Drawn 316L SS Rectangular Tube

Stainless Steel 316L Pipe Estimated Delivery Time as per Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Ukraine	60
Germany	21
Czech Republic	45
Bahamas	60
Netherland	30
Denmark	35
Uk	30
Greece	45
Portugal	45
Belgium	40
Spain	30
Italy	28
France	28
Norway	45
Russia	20

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
