Stainless Steel 304 Pipe

Home|Stainless Steel 304 Pipe
Stainless Steel 304 Pipe Specification
Top 5 Reasons for Suppliers in Malaysia to Procure Stainless Steel 304 Pipe from Manisha Steel Centre
Reason Description
Wide Stock Range Various Sizes/Grades
Comprehensive Documentation Certifications, Reports
Strong Industry Partnerships Leading Supplier Collaborations
Reliable Stock Availability Always In Stock
Strong Customer Feedback Positive Reviews
Manisha Steel Centre

Table of Content


Stainless Steel 304 Pipe Specification
304 SS Pipe Sizes

304 SS Pipe Sizes

  • Size: : 1/2 to 16 inch NB
  • OD : 1" to 7/8"
  • Length: 6 meters

Stainless Steel 304 Tubes Testing

Stainless Steel 304 Tubes Testing

  • Ultrasonic
  • Mechanical
  • PMI
  • Chemical
SS 304 Sch 40 Seamless Pipe Sizes

SS 304 Sch 40 Seamless Pipe Sizes

  • OD: 1/8 to 12"
  • Length: Cut Length ,Double Random & Single Random
  • Wall Thk :0.6 to 12.7 mm

INOX 304 Welded Pipe

INOX 304 Welded Pipe

  • Wall Thickness: 1 - 20 mm
  • OD: 1/4 - 36"
  • Length: Single Random, Double Random & Cut Length

SS304 EFW Pipe Manufacturing Process

SS304 EFW Pipe Manufacturing Process

  • Precision Rolled
  • Cold Formed
  • Hot Formed
304 SS ERW Pipe

304 SS ERW Pipe

  • Wall Thickness: 0.8 - 12.7 mm
  • OD: 6.35 - 114.3 mm
  • Length : up to 26 meter
304 Stainless Steel Exhaust Pipe Standards

304 Stainless Steel Exhaust Pipe Standards

  • ASME SA 312| ASTM A312
  • SUS ,AISI, GB, ASME
  • API,, DIN,EN, UNS

Stainless Steel 304 Round Tube Documentation

Stainless Steel 304 Round Tube Documentation

  • Mill Test Certificates
  • Visual Inspection
  • PMI Test Reports
UNS S30400 ERW Pipe Features

UNS S30400 ERW Pipe Features

  • Versatility
  • Rigidity
  • Ease of Fabrication
  • Durability
SUS 304 Exhaust Pipe Origin

SUS 304 Exhaust Pipe Origin

  • American
  • European
  • Janpanese
  • Russia
WNR 1.4301 Welded Pipe Services

WNR 1.4301 Welded Pipe Services

  • Cutting
  • Heat Treatment
  • Shearing
304 Stainless Steel Tube Packaging

304 Stainless Steel Tube Packaging

  • Bundled
  • Wooden Box
  • Bubble Wraps
Tubing 304 Finish

Tubing 304 Finish

  • Bright
  • Polished
  • Annealing
304 Square Tubing End

304 Square Tubing End

  • Plain
  • Beveled


UNS S30400 Welded Tube Schedule Chart
NPS OD SCH 40S SCH 5S SCH 80S SCH 10S
4 114.3 6.02 2.11 8.56 3.05
1/4 13.72 2.24 – 3.02 1.65
24 609.6 9.53 5.54 12.7 6.35
3/8 17.15 2.31 – 3.2 1.65
1/2 21.34 2.77 1.65 3.73 2.11
20 508 9.53 4.78 12.7 5.54
3/4 26.67 2.87 1.65 3.91 2.11
14 355.6 9.53 3.96 12.7 4.78
1 33.4 3.38 1.65 4.55 2.77
12 323.85 9.53 3.96 12.7 4.57
1.25 42.16 3.56 1.65 4.85 2.77
22 558.8 – 4.78 – 5.54
10 273.05 9.27 3.4 12.7 4.19
1.5 48.26 3.68 1.65 5.08 2.77
18 457.2 9.53 4.19 12.7 4.78
2 60.33 3.91 1.65 5.54 2.77
16 406.4 9.53 4.19 12.7 4.78
2.5 73.03 5.16 2.11 7.01 3.05
8 219.08 8.18 2.77 12.7 3.76
3 88.9 5.49 2.11 7.62 3.05
6 168.28 7.11 2.77 10.97 3.4
3.5 101.6 5.74 2.11 8.08 3.05
5 141.3 6.55 2.77 9.53 3.4

Superior Quality 304 Stainless Steel Tube Manufacturer in India With OD 3.00 to 219.10 mm At Best Price

Stainless Steel 304 Pipe Price

Do You Want to Get Stainless Steel 304 Pipe at a Discount? To get an estimate immediately, send an email. kalpesh@manishasteelcentre.com.

Nominal Bore Outside Diameter Sch-5S
mm mm INCH Weight (Kg/mt) Wt mm Price/Kg
500 508 20 59.25 4.78 237
3 10.3 1/8 0.276 1.24 214
600 609.6 24 82.47 5.54 248
6 13.7 1/4 0.39 1.24 215
400 406.4 16 41.56 4.19 220
10 17.1 3/8 0.49 1.24 216
450 457.2 18 46.8 4.19 228
15 21.3 1/2 0.8 1.65 215
350 355.6 14 34.36 3.96 210
20 26.7 3/4 1.03 1.65 215
200 219.1 8 14.79 2.77 197
25 33.4 1 1.3 1.65 219
150 168.3 6 11.32 2.77 197
32 42.2 1 1/4 1.65 1.65 215
125 141.3 5 9.47 2.77 195
40 48.3 1 1/2 1.91 1.65 216
100 114.3 4 5.84 2.11 196
50 60.3 2 2.4 1.65 215
250 273.1 10 22.63 3.4 197
65 73 2 1/2 3.69 2.11 215
300 323.9 12 31.25 3.96 202
80 88.9 3 4.51 2.11 215
What Are the Reasons Why Stainless Steel 304 Tubes Gradually Replace Plastic Pipes?
Reasons Stainless Steel 304 Tubes

Top Schedule 40 and Sch 10 SS 304 Seamless Tubing and Pipe Supplier in Mumbai, Refer Thickness Chart

WNR 1.4301 Seamless Pipe Thickness Chart
NPS Designator Schedule 160 in. Schedule XX in. Schedule 80S in. Schedule 40S in. Schedule 10S in.
4 .534 .674 0.337 0.237 0.120
10 1.125   0.500 0.365 0.165
3/4 .218 .308 0.154 0.113 0.083
1/4     0.119 0.088 0.065
1 1/4 .250 .382 0.191 0.140 0.109
1.0 .250 .358 0.179 0.133 0.109
6 .719 .864 0.432 0.280 0.134
3/8     0.126 0.091 0.065
16 1.594   0.500 0.375 0.188
1 1/2 .281 .400 0.200 0.145 0.109
5 .625 .750 0.375 0.258 0.134
1/2 .188 .294 0.147 0.109 0.083
14 1.406   0.500 0.375 0.188
2 1/2 .375 .552 0.276 0.203 0.120
3 .438 .600 0.300 0.216 0.120
12 1.312   0.500 0.375 0.180
3 1/2   .636 0.318 0.226 0.120
8 .906 .875 0.500 0.322 0.148
2 .343 .436 0.218 0.154 0.109

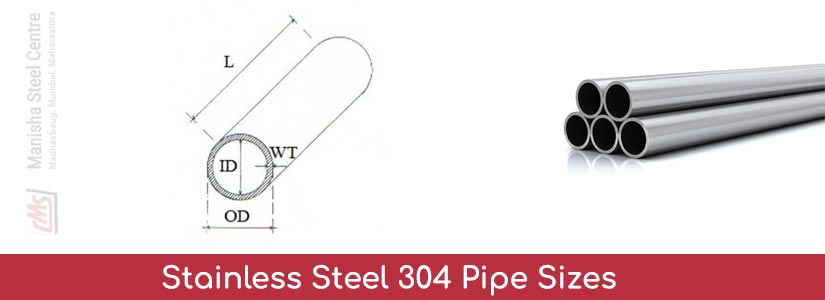

Stainless Steel 304 Pipe Sizes

Stainless Steel 304 Pipe Manufacturer in India an extensive range of sizes to meet client requirements.

Stainless Steel 304 Pipe Sizes
SS 304 Pipe OD
mm		 Pipe WT
mm		 Sch in. Kg/m
13.72 2.24 40S 1/4 0.64
88.90 5.49 40S 3 11.47
17.15 1.65 10S 3/8 0.64
48.26 3.68 40S 1½ 4.11
21.34 2.11 10S 1/2 1.02
219.08 8.18 40S 8 43.20
26.67 2.11 10S 3/4 1.30
141.30 6.55 40S 5 22.10
33.40 2.77 10S 1 2.13
168.28 18.262) 160 6 68.59
114.30 8.56 80S 4 22.67
42.16 2.77 10S 1¼ 2.73
141.30 15.882) 160 5 49.87
60.33 2.77 10S 2 3.99
114.30 3.05 10S 4 8.50
73.03 3.05 10S 2½ 5.35
168.28 10.97 80S 6 43.21
219.08 18.23 120 8 91.30
101.60 3.05 10S 3½ 7.53
168.28 3.4 10S 6 14.04
101.60 8.08 80S 3½ 18.92
Types Of 304 Stainless Pipe

Stainless Steel 304 Pipe Supplier in India offers an extensive list of shapes.

SS 304 Seamless Pipe

SS 304 Seamless Pipe

Stainless Steel 304 Welded Pipe

Stainless Steel 304 Welded Pipe

UNS S30400 Seamless Tube

UNS S30400 Seamless Tube

WNR 1.4301 Welded Tube

WNR 1.4301 Welded Tube

SUS 304 ERW Pipe

SUS 304 ERW Pipe

AISI 304 ERW Tube

AISI 304 ERW Tube

INOX 304 EFW pipe

INOX 304 EFW pipe

SS 304 Sch 10 Round Pipe

SS 304 Sch 10 Round Pipe

304 Stainless Steel Square Pipe

304 Stainless Steel Square Pipe

SS304 Round Tube

SS304 Round Tube

304 SS Square Tube

304 SS Square Tube

Schedule 80 304 Stainless Steel Rectangular Tube

Schedule 80 304 Stainless Steel Rectangular Tube

What is the Difference Between 304 and 316 Stainless Steel Pipes?
Property 304 Stainless Steel 316 Stainless Steel
Size Range 1/8 to 24 inch 1/8 to 24 inch
Yield Strength (MPa) 31,000 to 45,000 psi 32,000 to 42,000 psi
Composition 18% Cr , 8% Ni 16% Cr, 10% Ni, 2% Mb
Temperature Resistance Up to 870°C  925°C
Corrosion Resistance Normal Highly Resistant
Standard Pipe Schedules Schedule 5, 10, 40, 80, 160 5, 10, 40, 80, 160
Applications architectural Marine environments

Specialized in Producing WNR 1.4301 Welded Pipe and Tube With Plain and Beveled End , Check Weight Chart

Stainless Steel 304 EFW Pipe Weight Per Meter
Nominal size [inches] Wall thickness [inches] Outside diameter [inches] Weight [kg/m] Weight [lb/ft]
6″ DN150 0.28 6.625 28.44 19.11
1/2″ DN15 0.109 0.84 1.27 0.85
1 1/2″ DN40 0.145 1.9 4.08 2.74
3 1/2″ 0.226 4.0 13.66 9.18
2 1/2″ DN65 0.203 2.875 8.69 5.84
3/4″ DN20 0.113 1.05 1.7 1.14
4″ DN100 0.237 4.5 16.18 10.87
1 1/4″ DN32 0.14 1.66 3.41 2.29
1″ DN25 0.133 1.32 2.52 1.69
10″ DN250 0.365 10.75 60.7 40.79
2″ DN50 0.154 2.375 5.47 3.68
12″ DN300 0.375 12.75 74.28 49.91
3″ DN80 0.216 3.5 11.36 7.64
8″ DN200 0.322 8.625 42.82 28.77
5″ DN125 0.258 5.563 21.91 14.72
As SS 304 Pipe Suppliers, Carry Full Stock UNS S30400 ERW Pipe in Round, Square, Rectangular Shape With Standard Size and Custom Cut Length
AISI 304 Rectangular Pipe Most Popular Sizes
  • 1 304 Stainless Steel Tubing
  • 1 2 304 Stainless Steel Tubing
  • 4 Sch 10 Stainless Steel Pipe
  • 2 304 Stainless Steel Pipe
  • 4 Schedule 40 Stainless Steel Pipe
Schedule 40 304 Stainless Steel Pipe Pressure Rating Chart
Pipes Size (inches) 2″ 1″ 3″ 1 1/2″
Pipes Schedule 40 160 80 40 160 80 40 160 80 40 160 80
Temperature (oF) 300 1474 3486 2129 2362 4759 3265 1400 2976 1979 1750 3580 2466
100 1902 4499 2747 3048 6140 4213 1806 3840 2553 2257 4619 3182
600 1201 2840 1734 1924 3876 2659 1140 2424 1612 1425 2916 2009
200 1640 3880 2369 2629 5296 3634 1558 3312 2202 1947 3984 2744
650 1165 2755 1682 1867 3761 2580 1106 2352 1564 1383 2829 1949
400 1355 3205 1957 2171 4375 3002 1287 2736 1819 1608 3291 2267
700 1141 2699 1648 1824 3684 2528 1084 2304 1532 1354 2772 1909
500 1260 2980 1820 2019 4068 2791 1196 2544 1691 1496 3060 2108
750 1129 2671 1631 1810 3646 2501 1072 2280 1516 1340 2743 1889
Award-Winning Exporter and Stockist Of SUS 304 Exhaust Pipe Suitable For Automotive Industry, See HSN Code
SUS 304 ERW Pipe Applications

Manisha Steel is a reliable SS 304 Pipe Suppliers, providing durable stainless steel solutions for diverse applications.

  • Modern Architecture
  • Water treatment facilities
  • Oil and Gas Processing
  • Refinery & Petrochemicals
  • Dairy and Food Processing
  • Pesticides
  • Ship Building
  • Pharmaceuticals
  • Desalination
  • Textile Machinery
  • Chemicals
  • Fertilizers
  • Breweries
  • Energy industries
  • Automotive Industry
  • Pulp and Paper
  • Construction
  • Power Plants
SS 304 Tube HSN Code
HSN Code 73041110

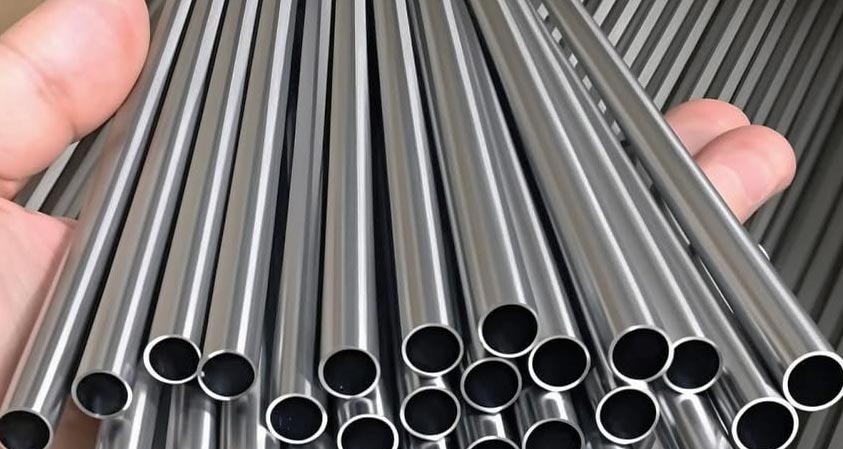

304 Stainless Tubing Surface Finish
304 Stainless Tubing Surface Finish
  • Pickled Finish
  • Mill Finish
  • Polished Finish
  • Electropolished Finish
  • Bright Annealed Finish
  • Passivated Finish
SS 304 Tube Chemical Composition
SS 304 PIPE GRADES Mn Cr S P C Ni Si
304 Pipe 2 18.0-20.0 0.03 0.045 0.08 8.0-11.0 1
Equivalent Grades of Seamless 304 Stainless Steel Tubing

Manisha Steel is a reputable SS 304 pipe suppliers, offering products that meet American standards for quality and performance.

Grade UNS No Euronorm Old British Japanese JIS Swedish SS
No Name BS En
304 S30400 1.4301 X5CrNi18-10 304S31 58E SUS 304 2332
Stainless Pipe 304 Mechanical Properties
Grade Yield Strength Tensile Strength Elongation Hardness
Rockwell Brinell
304 205 515 40 92 201
Physical Properties of 304 Stainless Round Tube
Grade Elastic Modulus (GPa) Density (kg/m3) Thermal Conductivity (W/m.K) Mean Coefficient of Thermal Expansion (m/m/0C) Electrical Resistivity (n.m) Specific Heat 0-1000C (J/kg.K)
at 1000C at 5000C 0-1000C 0-3150C 0-5380C
304 193 8000 16.2 21.5 17.2 17.8 18.4 720 500
Stainless Tube 304 Available Stock for Sale

Stainless Steel 304 Pipe Suppliers are readily available in various forms and are provided to meet a variety of client demands.

High Quality 304 Stainless Steel Pipe

High Quality 304 Stainless Steel Pipe

155mmx120mm Stainless Steel 304 Square Tube

155mmx120mm Stainless Steel 304 Square Tube

10mm Stainless Steel 304 Welded Tube

10mm Stainless Steel 304 Welded Tube

1 Schedule 10 304 SS Square Tube

1 Schedule 10 304 SS Square Tube

2 Inch Seamless Stainless Steel 304 Pipes

2 Inch Seamless Stainless Steel 304 Pipes

Stainless Steel 304 Pipe Time of Delivery by Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Norway 45
Greece 45
Czech Republic 45
Germany 21
Ukraine 60
Denmark 35
France 28
Bahamas  60
Portugal 45
Uk 30
Italy 28
Netherland 30
Russia 20
Belgium 40
Spain  30
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
