Stainless Steel Pipe Fittings Manufacturer in India

Experienced SS Buttweld Fittings Supplier in Mumbai As Per ASTM A403

Stainless Steel Pipe Fittings Specification

List of Projects in United States where Manisha Steel Centre Supplied Stainless Steel Pipe Fittings?

Project Name	Location
Marine Research Facility	Miami, FL
Healthcare Facility	New York, NY
Food Processing Plant	Atlanta, GA
Water Treatment Plant	Los Angeles, CA
Chemical Plant	Baton Rouge, LA
Oil & Gas Refinery	Houston, TX

Table of Content

SS Pipe Fittings Specification
Stainless Steel Pipe Fittings Price list
Stainless Plumbing Fittings Custom Sizes
Stainless Steel Buttweld Fittings Dimensions
SS Plumbing Fittings Sealing Methods to Ensure Leak-Tight Performance
Stainless Steel 90 Degree Elbow Dimensions
ANSI B16.9 SS Weld Fittings Surface Finishes
Most Common Types of SS Pipe Fittings
Schedule Chart of Stainless Steel Pipe Cap
Stainless Steel Pipe Fittings Manufacturing Process
SS Water and Gas Pipe Fittings Various Application
Stainless Steel Fittings HS Code
ASTM A403 SS Buttweld Fittings Advantages
Stainless Pipe Fittings Equivalent
SS Pipe Cap Chemical Composition
Mechanical Properties of Stainless Steel Water Pipe Fittings
SS Pipe Fittings Physical Properties
How do Stainless Steel Pipe Fittings perform in corrosive environments?

SS Pipe Fittings Specification

Stainless Pipe Fittings Sizes

Welded Fittings: 1/2″-24″
Seamless Fittings: 4″-72″
Schedule : SCH 5 - SCH 160, XXS
End : Plain Bevel, Compound Bevel, Buttweld, Bevelled

SS Fittings Manufacturing Standards

MSS-SP-43
ANSI B16.9
ASME B16.28
100% Tested With MTC EN 10204/3.1

Stainless Steel Pipe Cap Benefits

Corrosion Resistance
Durability and Strength
Chemical Resistance

Stainless Steel Weld Fittings Process

Seamless
Fabricated
Welded

Stainless Steel Fittings Types

Elbow
Tee
Cap
Stub End

Stainless Steel Pipe Cap International Standards

ASTM A403
ASTM A182
ANSI B16.5

Stainless Steel Gas Pipe Fittings Bending Radius

Stainless Steel Weldable Fittings Origin

European
Janpanese
Russia
American

SS Pipe Fittings Services

Shearing
Heat Treatment
Cutting

Stainless Steel Butt Welding Fittings Packaging

Bubble Wraps
Bundled, Wooden Box

SS Pipe Fittings Surface Finish

Pickled
Polished

Stainless Steel Fittings Testing

PMI, Hardness test
Ultrasonic, HIC test

Stainless Steel Pipe Fittings Price list

Are You Looking for Stainless Steel Pipe Fittings at the Best Price? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Fitting Type	Size	Price in USD (per Unit )
Elbow (90°)	1/2" - 24"	US $150
Elbow (45°)	1/2" - 24"	US $130
Reducer (Concentric)	1/2" - 24"	US $180
Reducer (Eccentric)	1/2" - 24"	US $200
Coupling	1/2" - 24"	US $70
Union	1/2" - 24"	US $90
Cap	1/2" - 24"	US $80

Buy Excellent Quality Stainless Steel Plumbing Fittings For Leak Tight Performance in Custom Sizes At Best Price

Stainless Plumbing Fittings Custom Sizes

Genuine Stainless Steel Pipe Fittings Manufacturer in India As Per Specification

Fitting Type	Available Sizes (Inches)
Elbow (90°)	1/2" to 48"
Elbow (45°)	1/2" to 48"
Tee	1/2" to 48"
Reducer	1/2" to 48"
Coupling	1/2" to 48"
Union	1/2" to 48"
Cap	1/2" to 48"
Cross	1/2" to 4"

Stainless Steel Buttweld Fittings Dimensions

NPS (inches)	OD		45° Elbows		90° Elbows		180° Returns
	OD		LR		LR	SR	LR
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	5/8	-	1 1/2	–	2	1 7/8
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
3/4	26.7	1.050	7/16	-	1 1/8	–	2 1/4	1 11/16
1	33.4	1.315	7/8	-	1 1/2	1	3	2 3/16
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
1 1/4	42.2	1.660	1	-	1 7/8	1 1/4	3 3/4	2 3/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

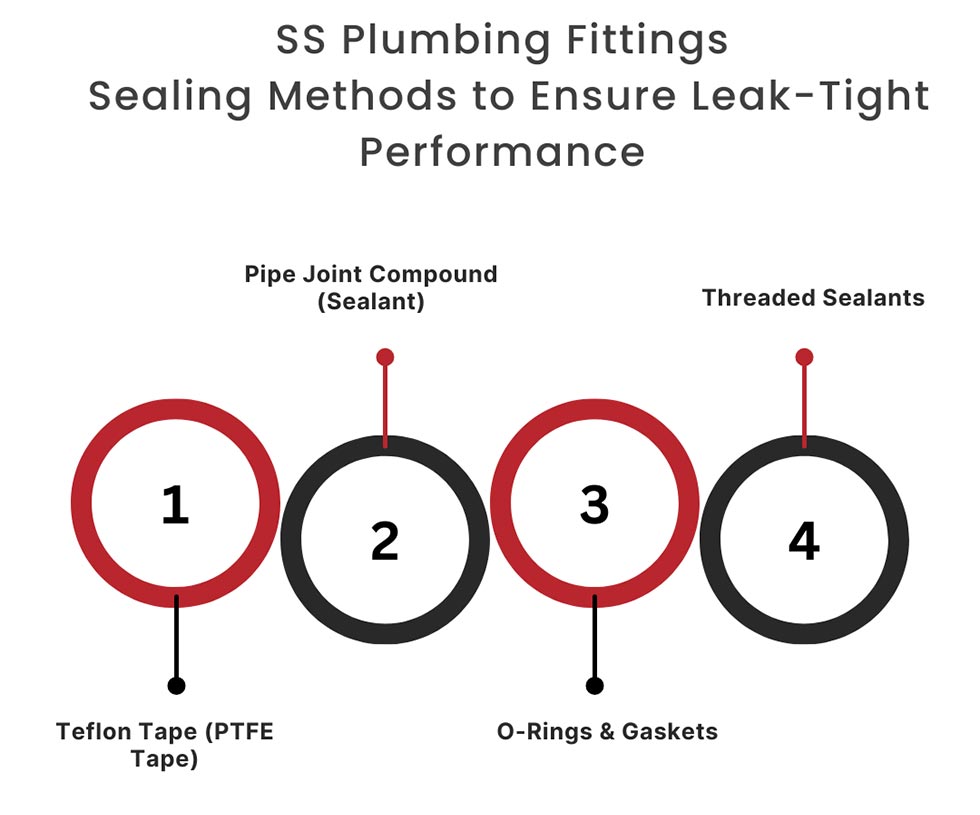

SS Plumbing Fittings Sealing Methods to Ensure Leak-Tight Performance

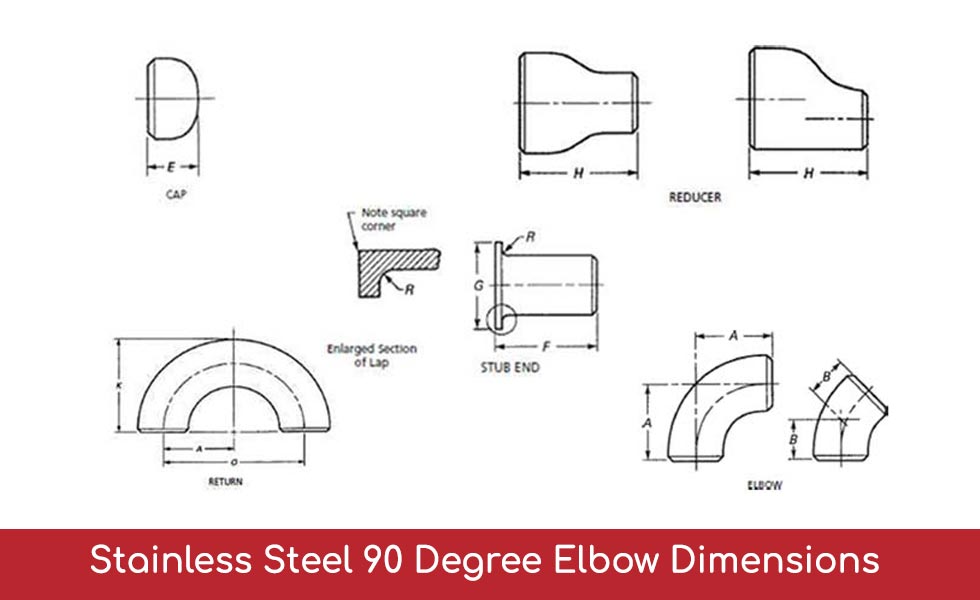

Stainless Steel 90 Degree Elbow Dimensions

Minimal Size			DN	65	20	300	350	150	550	25	125	32	100	200	250	80	400	450	500	40	50	90	15	600
Minimal Size			NPS	21-Feb	¾	12	14	6	22	1	5	11-Apr	4	8	10	3	16	18	20	11-Feb	2	31/2	½	24
Outer Dia.			D	73	26.7	323.8	355.6	168.3	559	33.4	141.3	42.2	114.3	219.1	273	88.9	406.4	457	508	48.3	60.3	101.6	21.3	610
Elbows	Long	90 deg	A	95	38	457	533	229	838	38	190	48	152	305	381	114	610	686	762	57	76	133	38	914
	Long	45 deg	B	44	19	190	222	95	343	22	79	25	64	127	159	51	254	286	318	29	35	57	16	381
	Short	90 deg	A	64	-	305	356	152	559	25	127	32	102	203	254	76	406	457	508	38	51	89	-	610
Returns	Long		O	190	76	914	1067	457	1676	76	381	95	305	610	762	229	1219	1372	1524	114	152	267	76	1829
	Long		K	132	51	619	711	313	1118	56	262	70	210	414	518	159	813	914	1016	83	106	184	48	1219
	Short		O	127	-	610	711	305	1118	51	254	64	203	406	508	152	813	914	1016	76	102	178	-	1219
	Short		K	100	-	467	533	237	838	41	197	52	159	313	391	121	610	686	762	62	81	140	-	914
Caps			E	38	25	152	165	89	254	38	76	38	64	102	127	51	178	203	229	38	38	64	25	267
Stub Ends	Long		F	152	76	254	305	203	305	102	203	102	152	203	254	152	305	305	305	102	152	152	76	305
	Short		F	64	51	152	152	89	152	51	76	51	76	102	127	64	152	152	152	51	64	76	51	152
	Radius of Fillet		R	8	3	13	13	13	13	3	11	5	11	13	13	10	13	13	13	6	8	10	3	13
	Diam of Lap		G	106	43	381	413	218	641	51	185	64	157	270	324	127	470	533	584	73	92	140	35	692
Reducers Note 1			H	89	38	203	330	140	508	51	127	51	102	152	178	89	356	381	508	64	76	102	-	508

Offer All Types of SS Weld Fittings in Both Seamless and Welded Form With Polished and Pickled Finish

ANSI B16.9 SS Weld Fittings Surface Finishes

Surface Finish Types
1D	Hot Rolled, Annealed, and Pickled
2B	Cold Rolled, Annealed, and Pickled
BA	Bright Annealed
No. 4	Brushed Finish
No. 8	Mirror Finish
2D	Cold Rolled, Annealed
6K	600 Grit Polish
Electropolished	Electropolished

Most Common Types of SS Pipe Fittings

Trusted Stainless Steel Pipe Fittings Supplier in India in Custom Shapes and Types

Stainless Steel Elbow

Stainless Tee

SS Reducer

ANSI B16.9 Stainless Steel Cap

ASTM A403 Stainless Stub End

ASME SA403 SS Cross

Find Here Wide Stock of Stainless Steel Pipe Cap and Stub End Stock With Sch 10 to Sch 160 As Per ANSI B16.9

Schedule Chart of Stainless Steel Pipe Cap

Pipe Size (Inches)	Wall Thickness
Pipe Size (Inches)	Schedule 40	Schedule 80	Schedule 160
1/2"	0.109"	0.147"	0.218"
3/4"	0.113"	0.154"	0.250"
1"	0.140"	0.179"	0.300"
1-1/4"	0.140"	0.191"	0.337"
1-1/2"	0.145"	0.200"	0.350"
2"	0.154"	0.218"	0.375"
2-1/2"	0.203"	0.276"	0.400"
3"	0.216"	0.300"	0.450"
4"	0.237"	0.337"	0.500"
5"	0.258"	0.375"	0.562"
6"	0.280"	0.432"	0.625"
8"	0.322"	0.500"	0.750"
10"	0.365"	0.500"	0.875"
12"	0.406"	0.562"	1.000"
14"	0.437"	0.625"	1.125"
16"	0.500"	0.750"	1.250"
18"	0.562"	0.812"	1.375"
20"	0.593"	0.875"	1.500"
24"	0.687"	1.000"	1.750"

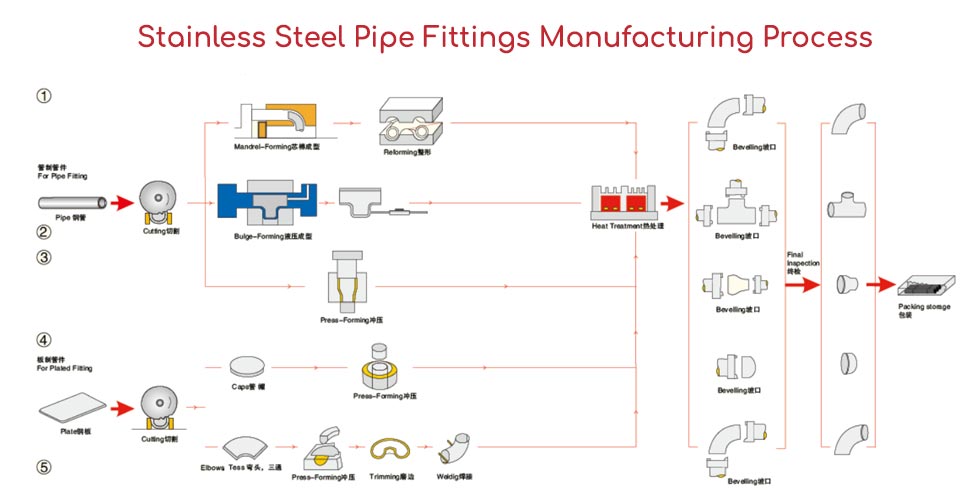

Stainless Steel Pipe Fittings Manufacturing Process

Manisha Steel, a leading Stainless Steel Fittings Manufacturers in India, employs advanced manufacturing processes to ensure precision, durability.

No MOQ, Premier Exporter Of SS Water and Gas Pipe Fittings in Various Grades and Shapes For Various Application

SS Water and Gas Pipe Fittings Various Application

Drinking Water Systems
Wastewater Treatment Systems
Fire Protection Systems
Natural Gas Distribution
Compressed Air Systems
Industrial Gas Systems
Gasoline and Diesel Pipelines

Stainless Steel Fittings HS Code

Product	HSN Code
SSl Pipe Fittings	7307

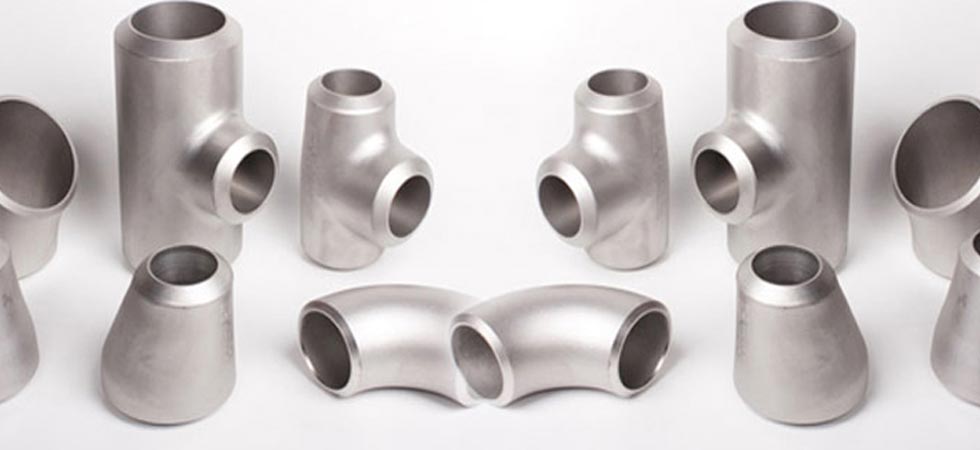

ASTM A403 SS Buttweld Fittings Advantages

Durability and Strength
Corrosion Resistance
Leak-Tight Joints
Smooth Flow and Reduced Turbulence
Versatility
Chemical Resistance
Reduced Maintenance Costs
Improved Structural Integrity

Stainless Pipe Fittings Equivalent

STANDARD	UNS	WERKSTOFF NR.	JIS	EN	GOST	BS	AFNOR
SS 304	S30400	1.4301	SUS 304	X5CrNi18-10	08Х18Н10	304S31	Z7CN18‐09
SS 304L	S30403	1.4306 / 1.4307	SUS 304L	X2CrNi18-9 / X2CrNi19-11	03Х18Н11	3304S11	Z3CN18‐10
SS 304H	S30409	1.4301	–	–	–	–	–
SS 310	S31000	1.4841	SUS 310	X15CrNi25-20	20Ch25N20S2	310S24	–
SS 310S	S31008	1.4845	SUS 310S	X8CrNi25-21	20Ch23N18	310S16	–
SS 310H	S31009	–	–	–	–	–	–
SS 316	S31600	1.4401 / 1.4436	SUS 316	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	–	316S31 / 316S33	Z7CND17‐11‐02
SS 316L	S31603	1.4404 / 1.4435	SUS 316L	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	03Ch17N14M3 / 03Ch17N14M2	316S11 / 316S13	Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 316H	S31609	1.4401	–	–	–	–	–
SS 316Ti	S31635	1.4571	SUS 316Ti	X6CrNiMoTi17-12-2	08Ch17N13M2T	320S31	Z6CNDT17‐123
SS 317	S31700	1.4449	SUS 317	–	–	–	–
SS 317L	S31703	1.4438	SUS 317L	X2CrNiMo18-15-4	–	–	–
SS 321	S32100	1.4541	SUS 321	X6CrNiTi18-10	–	–	–
SS 321H	S32109	1.4878	SUS 321H	X12CrNiTi18-9	–	–	–
SS 347	S34700	1.4550	SUS 347	X6CrNiNb18-10	08Ch18N12B	–	–
SS 347H	S34709	1.4961	SUS 347H	X6CrNiNb18-12	–	–	–
SS 904L	N08904	1.4539	SUS 904L	X1NiCrMoCu25-20-5	STS 317J5L	904S13	Z2 NCDU 25-20

SS Pipe Cap Chemical Composition

Grades		Chromium	Manganese	Silicon	Molybdenum	Nitrogen	Carbon	Sulfur	Phosphorus	Nickel
304	min.	18.0								8.0
304	max.	20.0	2.0	0.75		0.10	0.08	0.030	0.045	10.5
304L	min.	18.0								8.0
304L	max.	20.0	2.0	0.75		0.10	0.030	0.030	0.045	12.0
304H	min.	18.0					0.04			8.0
304H	max.	20.0	2.0	0.75			0.010	0.030	0.045	10.5
SS 310		24.00 26.00	2 max	0.015 max	0.10 max	54.7 min	0.015 max	0.015 max	0.020 max	19.00 21.00
316	min.	16.0			2.03.0					10.0
316	max.	18.0	2.0	0.75	2.03.0		0.035	0.030	0.045	14.0
316L	min.	16.0			2.03.0					10.0
316L	max.	18.0	2.0	0.75	2.03.0		0.035	0.030	0.045	14.0
316TI		16.00 18.00	10.00 14.00	2.0 max	0.75 max		0.08 max	0.030 max	0.045 max	2.00 3.00
317		18.00 20.00	2 max	1 max	3.00 4.00		0.08 max	0.030 max	0.045 max
SS 317L		18.00 20.00	2.0 max	1.0 max	3.00 4.00		0.035 max	0.030 max	0.045 max	11.00 15.00
SS 321		17.00 19.00	2.0 max	1.0 max		0.10 max	0.08 max	0.030 max	0.045 max	9.00 12.00
SS 321H		17.00 19.00	2.0 max	1.0 max		0.10 max	0.04 0.10	0.030 max	0.045 max	9.00 12.00
347/ 347H		17.00 20.00	2.0 max	1.0 max			0.08 max	0.030 max	0.045 max	9.0013.00
410	min.	11.5
410	max.	13.5	1.0	1.00			0.15	0.030	0.040	0.75
446	min.	23.0				0.10
446	max.	30.0	1.5	0.75		0.25	0.2	0.030	0.040	0.50
904L	min.	19.0			4.00	0.10				23.00
904L	max.	23.0	2.00	1.00	5.00	0.25	0.20	0.035	0.045	28.00

Mechanical Properties of Stainless Steel Water Pipe Fittings

Grades	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
306/ 316H	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
310 / 310S / 310H	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
904L	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %
321	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %

SS Pipe Fittings Physical Properties

Grades	Density	Melting Point
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)
316L	8.0 g/cm3	1399 °C (2550 °F)
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)
904L	7.95 g/cm3	1350 °C (2460 °F)
321	8.0 g/cm3	1457 °C (2650 °F)
347	8.0 g/cm3	1454 °C (2650 °F)

How do Stainless Steel Pipe Fittings perform in corrosive environments?

Corrosion Resistance
Resistance to Specific Corrosive Elements
Long-Term Durability
Maintenance
Limitations in Extreme Environments

Check Available Stock

ASME B 16.9 Stainless Steel Butt Weld Equal Tee

Stainless Steel 45/90 Degree 2 Inch Butt-Welded Elbows

Stainless Steel 90 Degree Elbow Long Type Bend

1/4-4 inch Stainless Steel 45 Degree Elbow

Stainless Steel 90 Degree Elbow High Quality Pipe Fitting

ASTM A403 Long Radius Sanitary Stainless Steel Pipe Fitting Elbow

Stainless Steel Pipe Fittings Delivery Time As Per Location

Cost Changes Extra 5 %
Export to	Delivery Time in Days
Philippines	14
France	30
Belgium	10
Indonesia	9
Oman	5
UAE	5 days
Saudi Arabia	7
USA	40-60
Germany	25-30
Uk	30
Italy	30
Qatar	7
Singapore	8
Kuwait	10
Netherlands	9

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
