Hastelloy Pipe Fittings

Home|Hastelloy Pipe Fittings

Alloy C22 Buttweld Fittings Manufacturer in India in Seamless and Welded Form

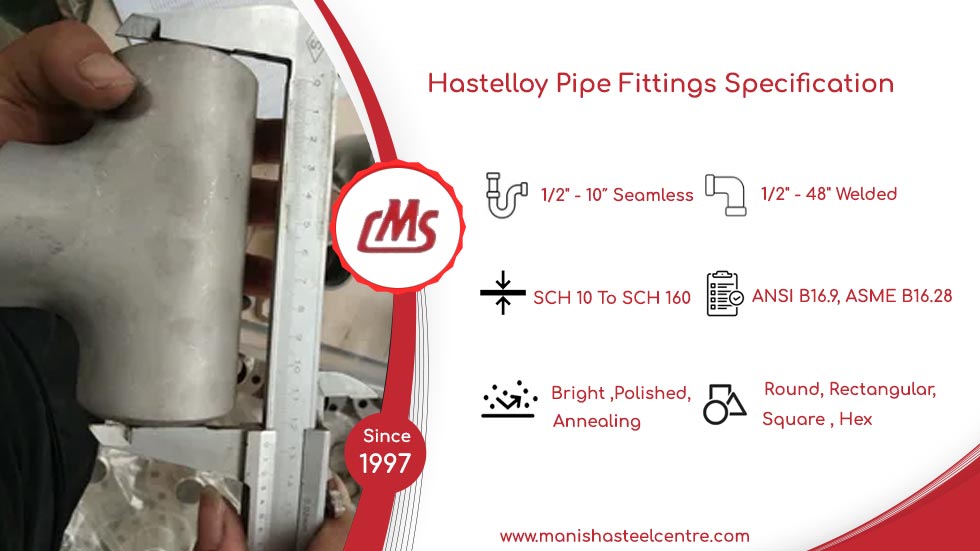

Hastelloy Pipe Fittings Specification



Why Stockists in United States should buy Hastelloy Pipe Fittings from Manisha Steel Centre?
  • Quality Assurance
  • Wide Product Range
  • Competitive Pricing
  • Reliable Delivery and Stock Availability
  • Expertise and Technical Support
  • Global Presence and Shipping
  • Certifications and Compliance
  • Long-Term Supplier Relationship
Manisha Steel Centre

Table of Content

Hastelloy Pipe Fittings Specification

Genuine Hastelloy Pipe Fittings Manufacturer in India As Per Specification

Hastelloy Pipe Fittings Sizes

Hastelloy Pipe Fittings Sizes

  • Welded Fittings: 1/2" - 10″
  • Seamless Fittings: 1/2" - 48"
  • Schedule : SCH 10 - SCH 160
  • End : Plain Bevel, Compound Bevel, Buttweld, Bevelled
Manufacturing Standards

Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1
Hastelloy C22 Fittings Physical Properties

Hastelloy C22 Fittings Physical Properties

  • Melting Point:1399°C (2550°F)
  • Density:75°F
  • Heat Treatment: 1121°C / 2050°F
Hastelloy C22 Pipe Fittings Process

Hastelloy C22 Buttweld Fittings Process

  • Seamless
  • Fabricated
  • Welded
Alloy C22 Buttweld Fittings Types

Hastelloy C22 Buttweld Fittings Types

  • Reducer
  • Elbow
  • Cap
  • Tee
C22 Pipe Fittings International Standards

C22 Pipe Fittings International Standards

  • UNS: N06022
  • ASTM B366 | ASME SB 366
  • WNR:2.4602
  • Trade : Inconel® 22, Nicrofer® 5621
Hastelloy Fittings Bending Radius

Hastelloy Fittings Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
Hastelloy C22 Cap Origin

Hastelloy C22 Cap Origin

  • European
  • Janpanese
  • Russia
  • American
Hastelloy C22 Stub End Services

Hastelloy C22 Stub End Services

  • Shearing
  • Heat Treatment
  • Cutting
Hastelloy Fittings Packaging

Hastelloy Fittings Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
Alloy C22 Pipe Fittings Surface Finish

Alloy C22 Pipe Fittings Surface Finish

  • Pickled
  • Polished
Alloy C22 Buttweld Fittings Testing

Alloy C22 Buttweld Fittings Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test
Hastelloy Fittings Price Per Kg

Are You Trying to Find the Best Deal on Hastelloy Pipe Fittings? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

Hastelloy Pipe Fittings Price in INR Price in USD
Hastelloy B2 1/2″ Schedule 10 Stub End 12756.99 $183.6
Alloy C22 2-1/2″ Schedule 10 Stub End 37506.65 $539.8
ASTM B366 Hastelloy C22 1/2″ Tee 97761.88 $1407.2
Alloy C22 90 Deg LR Seamless Elbow 90049.32 $1296.2
Hastelloy UNS N06022 1-1/2″ 45° Elbow 19871.99 $286
ASTM B366 Hastelloy B3 Stub End 15077.70 $217
Hastelloy UNS N06022 1-1/4″ 45° Elbow 17009.32 $244.8

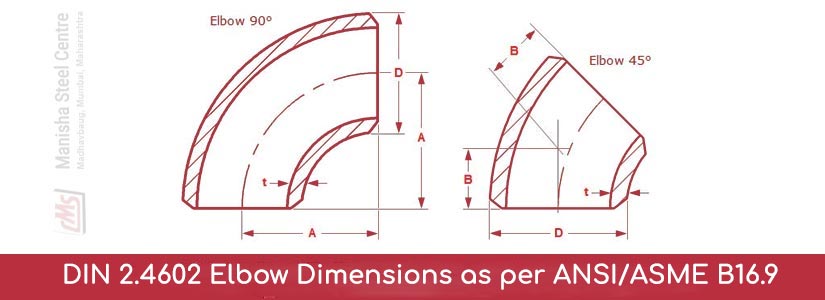

DIN 2.4602 Elbow Dimensions as per ANSI/ASME B16.9
DIN 2.4602 Elbow Dimensions



NPS O.D. D 90 degrees Long Radius Center-to-End A 90 degrees 3D Center-to-End A 45 degrees Long Radius Center-to-End B 45 degrees 3D Center-to-End B
1¼ 42.2 48 95 25 39
1½ 48.3 57 114 29 47
1 33.4 38 76 22 31
2 60.3 76 152 35 63
2½ 73 95 190 44 79
3 88.9 114 229 51 95
3½ 101.6 133 267 57 111
1/2 21.3 38 – 16 –
4 114.3 152 305 64 127
32 813 1219 2438 502 1010
34 864 1295 2591 533 1073
36 914 1372 2743 565 1135
38 965 1448 2896 600 1200
12 323.8 457 914 190 378
14 355.6 533 1067 222 441
20 508 762 1524 318 632
3/4 26.7 38 57 19 24
5 141.3 190 381 79 157
6 168.3 229 457 95 189
8 219.1 305 610 127 252
40 1016 1524 3048 632 1264
42 1067 1600 3200 660 1326
44 1118 1676 3353 695 1389
26 660 991 1981 406 821
28 711 1067 2134 438 883
30 762 1143 2286 470 964
46 1168 1753 3505 727 1453
10 273 381 762 159 316
24 610 914 1829 381 757
16 406.4 610 1219 254 505
18 457 686 1372 286 568
22 559 838 1676 343 694
48 1219 1829 3658 759 1516

ASTM B366 WPHC22 Elbow and Tee Supplier in Mumbai With SCH 10 to SCH 160

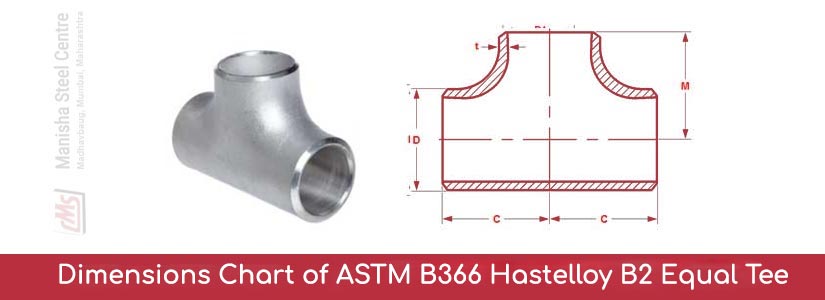

Dimensions Chart of ASTM B366 Hastelloy B2 Equal Tee
Dimensions Chart of ASTM B366 Buttweld Equal Tee



Nominal Pipe Size OD at bevel Center-to-End
Run (C) Outlet(M)
3/4″ 26.7 29 29
1″ 33.4 38 38
1 1/4″ 42.2 48 48
6″ 168.3 143 143
8″ 219.1 178 178
1/2″ 21.3 25 25
16″ 406.4 305 305
18″ 457.0 343 343
20″ 508.0 381 381
4″ 114.3 105 105
5″ 141.3 124 124
22″ 559.0 419 419
10″ 273.0 216 216
12″ 323.8 254 254
14″ 355.6 279 279
1 1/2″ 48.3 57 57
2″ 60.3 64 64
2 1/2″ 73.0 76 76
3″ 88.9 86 86
3 1/2″ 101.6 95 95
24″ 610.0 432 432
ASTM B366 WPHC22 Reducing Tee Weight in Kg
SCH STD SCH XS
NPS LBS KG LBS KG
1 0.75 0.34 0.88 0.4
1.1/4 1.3 0.59 1.6 0.73
1.1/2 2 0.91 2.25 1.02
2 3.5 1.59 4 1.81
16 195 88.45 280 127.01
18 249 112.94 332 150.59
3 7 3.18 8.5 3.86
3.1/2 9 4.08 12 5.44
4 12 5.44 15.8 7.17
26 770 349.27 875 396.89
30 1060 480.81 1200 544.31
1/2 0.35 0.16 0.45 0.2
2.1/2 6 2.72 7 3.18
8 55 24.95 75 34.02
3/4 0.45 0.2 0.6 0.27
20 342 155.13 480 217.72
22 414 187.79 550 249.48
24 528 239.5 610 276.69
10 85 38.56 105 47.63
12 120 54.43 160 72.57
5 21 9.53 26 11.79
6 34 15.42 40 18.14
14 165 74.84 240 108.86
36 1490 675.85 1700 771.11

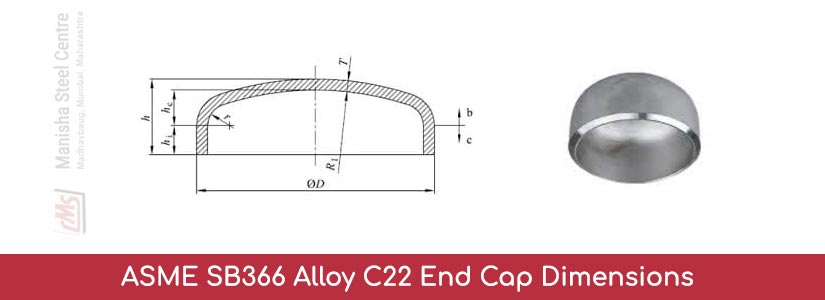

ASME SB366 Alloy C22 End Cap Dimensions
ASTM B366 Alloy C22 End Cap Dimensions



Normal Size of End Cap Outer Diameter (D) Length Of (Hight) Length Of (Hight 1)
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
1/2 21.3 25 25
3/4 26.7 25 25
6 168.3 89 102
8 219.1 102 127
20 508 229 254
22 559 254 254
44 1118 343 …
46 1168 343 …
48 1219 343 …
28 711 267 …
30 762 267 …
32 813 267 …
34 864 237 …
36 914 267 …
10 273 127 152
24 610 267 305
12 323.8 152 178
42 1067 305 …
26 660 267 …
16 406.4 178 203
18 457 203 229
4 114.3 64 76
5 141.3 76 89
38 965 305 …
40 1016 305 …
14 355.6 165 191
Alloy C22 Fittings Classes for WP Grades
Class Construction Non-destructive Examination
WX Welded Radiography
WU Welded Ultrasonic
S Seamless None
W Welded Radiography or Ultrasonic

Buy Hot forming and Mandrel Hastelloy C22 Cap and Reducer As Per ANSI B16.9 at Lowest Price

Werkstoff nr 2.4602 Pipe Fittings Price
Alloy C22 Pipe Fittings Price in INR Price in USD
Alloy C22 90 Deg LR Seamless Elbow 90049.32 $1296.2
Hastelloy DIN 2.4602 1-1/2″ 45 Deg Elbow 19871.99 $286
ASTM B366 Hastelloy C22 Stub End 15077.70 $217
ASTM B366 Alloy C22 2-1/2″ Schedule 10 Stub End 37506.65 $539.8
ASTM B366 Hastelloy C22 1/2″ Tee 97761.88 $1407.2
Hastelloy C22 UNS N06022 1/2″ Schedule 10 Stub End 12756.99 $183.6
ASTM B366 C22 Hastelloy Alloy Class 3000 1/8″ Elbow 49381.21 $710.7
ASME SB366 Alloy C22 1/8″ Tee in Mumbai 13347.59 $192.1
Hastelloy UNS N06022 1-1/4″ 45 Deg Elbow 17009.32 $244.8
Hastelloy DIN 2.4602 1″ Schedule 40 Stub End 17690.24 $254.6
Size Chart of Hastelloy C22 Pipe Fittings
NPS Outside Diameter 45° Elbows 90° Elbows 180° Returns
(inches) - Long Radius Long Radius Short Radius Long Radius
- (mm) (inches) Center to Face (inches) Radius (inches) Center to Face (inches) Center to Face (inches) Center to Center (inches) Back to face (inches)
1 33.4 1.315 7/8 - 1 1/2 1 3 2 3/16
1 1/4 42.2 1.660 1 - 1 7/8 1 1/4 3 3/4 2 3/4
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3/4 26.7 1.050 7/16 - 1 1/8 – 2 1/4 1 11/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
1/2 21.3 0.840 5/8 - 1 1/2 – 2 1 7/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8
Hastelloy C-22 End Caps Surface Finishes
BPE Surface Finish Code CSI Surface Finish Code Product Contact Surface Finish Treatment (ID) Non-Product Contact Surface Finish Treatment (OD) Product Contact Surface (Max Ra)* Non-Product Contact Surface (Max Ra) Dimensions & Tolerances (BPE) or (CSI)
N/A PU Unpolished/Mill Unpolished/Mill Mill Finish Mill Finish CSI
SF1 PL Mechanical Polish/As Drawn Mechanical Polish 20 µ-inch (0.51 µm) 32 µ-inch (0.81 µm) BPE
SF5 PO Electropolished Mechanical Polish 20 µ-inch (0.51 µm) 32 µ-inch (0.81 µm) BPE
SF6 P25 Electropolished Mechanical Polish 25 µ-inch (0.64 µm) 32 µ-inch (0.81 µm) BPE
Most Common Types Of Hastelloy Pipe Fittings

Trusted Hastelloy Pipe Fittings Supplier in India in Custom Shapes and Types

Alloy C22 90° Elbow

Alloy C22 90° Elbow

ASTM B366 WPHC22 Concentric Reducer

ASTM B366 WPHC22 Concentric Reducer

Hastelloy C22 45° Elbow

Hastelloy C22 45° Elbow

ANSI B16.9 Alloy C22 Eccentric Reducer

ANSI B16.9 Alloy C22 Eccentric Reducer

UNS N06022 180° Elbow

UNS N06022 180° Elbow

Hastelloy C Stub End

Hastelloy C Stub End

ASTM B366 DIN 2.4602 Equal Tee

ASTM B366 DIN 2.4602 Equal Tee

Hastelloy ASTM B366 C22 Cap

Hastelloy ASTM B366 C22 Cap

Alloy C22 Hastelloy Reducing Tee

Alloy C22 Hastelloy Reducing Tee

Hastelloy ASTM B366 B2 Equal Cross

Hastelloy ASTM B366 B2 Equal Cross

ASME SB366 Hastelloy C LR Elbow

ASME SB366 Hastelloy C LR Elbow

ASTM B366 Hastelloy C22 SR Elbow

ASTM B366 Hastelloy C22 SR Elbow

Get NACE MR0175 tested UNS N06022 Cross and Stub End ideal For Extreme Temperatures Application
UNS N06022 Cross Applications

Manisha Steel Centre is a leading Hastelloy Pipe Fittings Manufacturers in India providing high-performance materials for various applications that need resistance to corrosion in their pipeline structures.

UNS N06022 Cross Applications
ANSI B16.9 Alloy C22 Lap Joint Stub End Dimensions Chart
ANSI B16.9 Alloy C22 Lap Joint Stub End Dimensions Chart



 NPS Outside Diameter at Bevel Diameter of Lap Radius of Fillet Short Pattern Long Pattern
Max Min G R F F
1 35.0 32.6 51 3 51 102
1-1/4 43.6 41.4 64 5 51 102
1-1/2 49.9 47.5 73 6 51 102
2 62.4 59.5 92 8 64 152
2-1/2 75.3 72.2 105 8 64 152
3 91.3 88.1 127 10 64 152
3-1/2 104.0 100.8 140 10 76 152
4 116.7 113.5 157 11 76 152
5 144.3 140.5 186 11 76 203
8 222.1 218.3 270 13 102 203
1/2 22.8 20.5 35 3 51 76
3/4 28.1 25.9 43 3 51 76
18 462 456 533 13 152 305
20 514 507 584 13 152 305
22 565 558 641 13 152 305
24 616 609 692 13 152 305
10 277.2 272.3 324 13 127 254
12 328.0 323.1 381 13 152 254
14 359.5 354.8 413 13 152 305
16 411.0 405.6 470 13 152 305
6 171.3 167.5 216 13 89 203
Offer High Quality Hastelloy Fittings With Various Bending Radious like 6D, 1D, 10D, 8D, 5D etc.
Hastelloy Fittings Bending Radious
Fitting Type NPS (Nominal Pipe Size) Bending Radius (inches)
Elbow 1/2" 1.5D
3/4" 1.5D
1" 2D
1-1/4" 2D
1-1/2" 2.5D
2" 3D
2-1/2" 3.5D
3" 4D
4" 5D
5" 6D
6" 7D
8" 8D
10" 10D
12" 12D
14" 14D
16" 16D
18" 18D
20" 20D
24" 24D

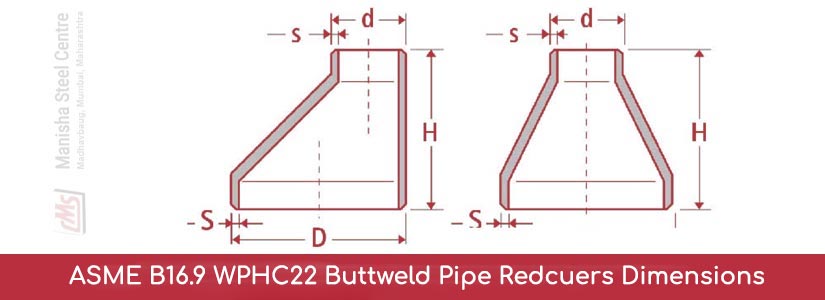

ASME B16.9 WPHC22 Buttweld Pipe Redcuers Dimensions
ASME B16.9 WPHC22 Buttweld Pipe Redcuers Dimensions



Code RCD REISO Ø BIG Ø SMALL Height H mm Theoretical Weight KG
DN D mm Thickness S mm DN d mm Thickness s mm
42 21 1″1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
*48 21 1″1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1″1/4 42.4 2.6 0.20
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
76 33 2″1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1″1/4 42.4 2.6 0.47
76 48 1″1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1″1/4 42.4 2.6 90 0.55
89 48 1″1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2″1/2 76.1 2.9 0.63
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1″1/4 42.4 2.6 0.32
60 48 1″1/2 48.3 2.6 0.33
*168 76 6 168.3 4.5 2″1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2″1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
114 48 4 114.3 3.6 1″1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2″1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

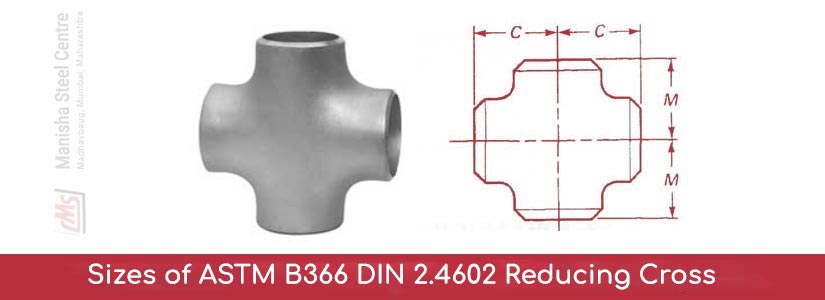

Sizes of ASTM B366 DIN 2.4602 Reducing Cross
Sizes of ASTM B366 DIN 2.4602 Reducing Cross



Nominal Pipe Size (NPS) DN OD at Bevel Center- to-End
Run.C Outlet. M[Notes(1) and (2)]
1-1/4 32 42.2 48 48
1-1/2 40 48.3 57 57
2 50 60.3 64 64
1/2 15 21.3 25 25
2-1/2 65 73.0 76 76
3 80 88.9 86 86
3-1/2 90 101.6 95 95
16 400 406.4 305 305
18 450 457 343 343
3/4 20 26.7 29 29
1 25 33.4 38 38
10 250 273.0 216 216
12 300 323.8 254 254
26 650 660 495 495
32 800 813 597 597
34 850 864 635 635
46 1150 1168 851 800
38 950 965 711 711
28 700 711 521 521
30 750 762 559 559
4 100 114.3 105 105
5 125 141.3 124 124
36 900 914 673 673
42 1050 1067 762 711
22 550 559 419 419
24 600 610 432 432
44 1100 1118 813 762
6 150 168.3 143 143
8 200 219.1 178 178
40 1000 1016 749 749
48 1200 1219 889 838
14 350 355.6 279 279
20 500 508 381 381

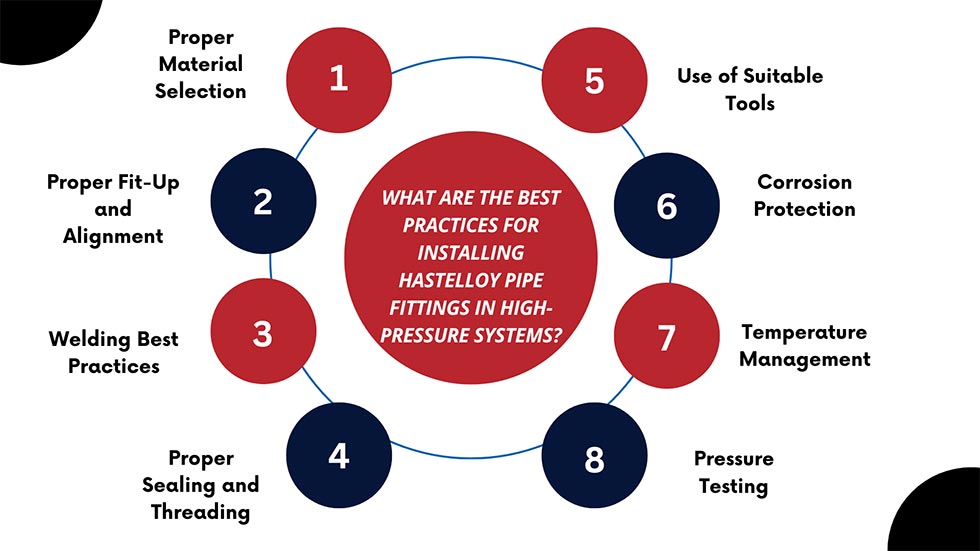

What are the best practices for installing Hastelloy pipe fittings in high-pressure systems?
Installing Hastelloy Pipe Fittings
ASTM B366 Buttweld Fittings Equivalent Standards
Grades UNS WERKSTOFF NR. JIS EN
Hastelloy C22 N06022 2.4602 NW 6022 NiCr21Mo14W
Hastelloy B2 N10665 2.4617 – –
Hastelloy C N06001 2.4816 – –
Hastelloy Elbow Chemical Composition
Grades Element Hastelloy C22 Hastelloy B2 Hastelloy C
Carbon (C) Max % 0.015% 0.03% 0.05%
Nickel (Ni) Min % 56.0% 57.0% 52.0%
Max % 60.0% 60.0% 58.0%
Molybdenum (Mo) Min % 13.0% 28.0% 0.0%
Max % 15.0% 30.0% 3.0%
Chromium (Cr) Min % 20.0% 0.0% 14.0%
Max % 22.0% 0.0% 17.0%
Iron (Fe) Min % 3.0% 0.0% 0.0%
Max % 5.0% 2.0% 6.0%
Manganese (Mn) Min % 0.0% 0.0% 0.5%
Max % 1.0% 1.0% 1.0%
Copper (Cu) Min % 0.0% 0.0% 0.0%
Max % 3.0% 0.5% 2.0%
Tungsten (W) Min % 0.0% 0.0% 0.0%
Max % 0.5% 4.0% 0.0%
Silicon (Si) Min % 0.0% 0.0% 0.2%
Max % 0.5% 0.5% 0.5%
Hastelloy Fittings Mechanical Properties
Property Hastelloy C22 Hastelloy B2 Hastelloy C
Yield Strength (MPa) 290-450 MPa 240-550 MPa 275-510 MPa
Tensile Strength (MPa) 655-965 MPa 550-760 MPa 690-1035 MPa
Modulus of Elasticity (GPa) 180 GPa 160 GPa 200 GPa
Hardness (HRB) 90 HRB max 85 HRB max 95 HRB max
Poisson's Ratio 0.31 0.33 0.30
Elongation (% in 50 mm) 40% min 30% min 30% min
Physical Properties of Hastelloy Pipe Fittings
Property Hastelloy C22 Hastelloy B2 Hastelloy C
Density (g/cm³) 8.89 g/cm³ 8.80 g/cm³ 8.90 g/cm³
Melting Point (°C) 1370-1410°C 1370-1410°C 1370-1410°C
Specific Heat (J/g·K) 0.44 J/g·K 0.46 J/g·K 0.46 J/g·K
Thermal Conductivity (W/m·K) 9.6 W/m·K 8.8 W/m·K 13.2 W/m·K
Electrical Resistivity (μΩ·cm) 85 μΩ·cm 110 μΩ·cm 80 μΩ·cm
Magnetic Permeability Non-magnetic Non-magnetic Non-magnetic
Young’s Modulus (GPa) 180 GPa 160 GPa 200 GPa
How does the Hastelloy B2 grade differ from Hastelloy C?
Property Hastelloy B2 Hastelloy C
Corrosion Resistance Excellent in hydrochloric acid (HCl) Better in oxidizing acids and general environments
Tensile Strength (MPa) 620 MPa 655 MPa
Yield Strength (MPa) 240 MPa 290 MPa
Elongation (%) 35% 45%
Temperature Resistance 540°C (1000°F) 760°C (1400°F)
Cost More economical More expensive
Applications Hydrochloric acid handling, pickling Chemical processing, aerospace, marine
Difference Between Hastelloy C22, B2 and C-276
Factor Hastelloy C22 Hastelloy B2 Hastelloy C-276
Corrosion Resistance Best for oxidizing & reducing environments Excellent in hydrochloric acid Excellent in oxidizing & reducing
Temperature Resistance Up to 760°C Up to 540°C Up to 760°C
Mechanical Strength High Moderate High
Stress Corrosion Cracking Excellent resistance to SCC Poor resistance in oxidizing conditions Excellent resistance to SCC
Cost Expensive Most economical Expensive
Best Applications Seawater, chemical processing, chemical reactors Hydrochloric acid, pickling Aerospace, chemical processing, marine
Fabrication Ease Easier to weld and fabricate Moderate Easy to weld but requires expertise
When to Use Hastelloy B2 Fittings Instead of Hastelloy C22?
Criteria Hastelloy B2 Hastelloy C22
Hydrochloric Acid Excellent resistance Good, but less effective
Temperature High-temp performance (up to 540°C) Moderate temp (up to 760°C)
Oxidizing Environments Poor resistance Good resistance
Cost More cost-effective More expensive
Applications HCl processing, pickling Chemical, pharmaceutical industries
What is the corrosion resistance of Hastelloy C under extreme conditions?
Corrosive Medium Resistance of Hastelloy C
Sulfuric Acid Excellent resistance
Hydrochloric Acid Excellent resistance in both dilute and concentrated forms
Phosphoric Acid Excellent resistance
Chlorides Outstanding resistance to stress corrosion cracking (SCC)
Oxidizing Acids Excellent resistance to strong oxidizing acids
Seawater/Brine Superior resistance to pitting and crevice corrosion in chloride environments
High Temperatures Maintains resistance up to 760°C (1400°F)
Check Available Stock
Hastelloy Seamless Tee Pipe Fitting

Hastelloy Seamless Tee Pipe Fitting

ASME B16.9 1.5D Long Radius Butt Welded Elbow

ASME B16.9 1.5D Long Radius Butt Welded Elbow

Hastelloy C22 Butt Weld Tee

Hastelloy C22 Butt Weld Tee

ASME B16.9 Hastelloy B2 Eccentric Reducer

ASME B16.9 Hastelloy B2 Eccentric Reducer

ANSI B16.28 Hastelloy UNS N06022 Cross

ANSI B16.28 Hastelloy UNS N06022 Cross

Hastelloy C276 C22 C2000 Concentric Reducer

Hastelloy C276 C22 C2000 Concentric Reducer

Hastelloy Pipe Fittings Delivery Time As Per Location
Price variations 5 % extra
Export to Shipping Time in Days
Singapore 8
USA 40-60
Belgium 6-9
Netherlands 19-20
Germany 15-50
France 30
South Africa 25-30
UAE 5 days
Qatar 7
Saudi Arabia 7
Oman 5
Uk 30
Italy 30
Philippines 14
Malaysia 10
Indonesia 9
Bahrain 9
Kuwait 10
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
