ASTM A420 WPL6 Pipe Fittings | SA 420 Gr Wpl6 Buttweld Elbow

Manufacturer Of ASME SA 420 Gr Wpl6 Buttweld Fittings in India For Low Temperature Services

ASTM A420 WPL6 Pipe Fittings Specification

List of 5 Important Documents for Brazil Buyers to purchase ASTM A420 WPL6 Pipe Fittings from India

Document	Explanation
Certificate of Origin	Goods country of origin
Bill of Lading (BOL)	Shipping receipt
Commercial Invoice	Final transaction bill
Packing List	Shipment contents
Proforma Invoice (PI)	Preliminary sales details

Table of Content

ASTM A420 WPL6 Pipe Fittings Specification
Carbon Steel WPL6 Pipe Fittings Size Range
ASTM A420 Grade WPL6 Tee Dimensions
A420 Wpl6 Fittings Price
A420 WPL6 Fittings Elevated Temperatures
SA 420 Gr WPL6 Stub End Dimensions
A 420 Wpl6 Bend Dimensions
ASTM A420 WPL6 vs A234 WPB
Most Common Types of ASTM A420 WPL6 Pipe Fittings
ASTM A420 WPL6 Buttweld Pipe Fittings Charpy Impact Test
A420 Wpl6 Low Temperature Carbon Steel Reducer Dimensions
ASTM A420 Grade WPL6 Cap Dimensions
In what industries are ASTM A420 WPL6 pipe fittings typically used?
A420 WPL6 Pipe Fittings Pressure Rating Chart
Carbon Steel Wpl6 Pipe Fittings Applications
Wpl6 Tee Reducing BW Value Added Services
What type of impact testing is required for ASTM A420 WPL6 Pipe Fittings?
Sa 420 Gr Wpl6 Cross Chemical Composition
Mechanical Properties of SA 420 Wpl6 Long Radius Reducing Elbow
ASTM A420 WPL6 Butt Welded Joint HSN Code
Test Certificates and Documentation of A420 Wpl6 Seamless Equal Tee
At what temperature must the Charpy V-notch impact test be conducted for ASTM A420 WPL6 pipe fittings?

ASTM A420 WPL6 Pipe Fittings Specification

ASTM A420 WPL6 Pipe Fittings Sizes

Welded Fittings: 1/2 to 24”
Seamless Fittings: 24 to 96”
Schedule : SCH 5 TO SCH XXS
End : Compound Bevel, Buttweld, Plain Bevel, Bevelled

A 420 Wpl6 BW Fittings Manufacturing Standards

MSS-SP-43
ANSI B16.9
ASME B16.28
100% Tested With MTC EN 10204/3.1

Sa 420 Wpl6 Seamless Pipe Fittings Benefits

Smooth surface
High pressure capacity
Resistance to corrosion

ASTM A420 WPL6 Butt Welded Joint Process

Seamless
Fabricated
Welded

Sa 420 Gr Wpl6 Welded Pipe Fittings Types

Elbow
Reducer
Stub End
Cross

A420 Wpl6 Seamless Equal Tee Features

Seamless construction
Equal branch sizes
Butt-weld connection

Sa 420 Gr Wpl6 Elbow Bending Radius

Wpl6 Butt Welding Fittings Origin

European
Janpanese
Russia
American

ASTM A420 WPL6 Butt Welded Joint Services

Shearing
Heat Treatment
Cutting

A420 Wpl6 Butt Weld Fittings Packaging

Bubble Wraps
Bundled
Wooden Box

Wpl6 Butt Welding Fittings Surface Finish

Pickled
Polished

ASTM A420 Gr WPL6 Stub End Testing

PMI, Hardness test
Ultrasonic, HIC test

Carbon Steel WPL6 Pipe Fittings Size Range

Are You Looking for the Best ASTM A420 WPL6 Pipe Fittings Deal? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Equivalent List	Outside DaimeterAnd Inside Daimeter	Diameter Of Nominal Pipe	Threads Size In Inches
0.405	13/32	1/8	27
0.540	35/64	1/4	18
1.315	1-5/16	1	11-1/2
1.660	1-21/32	1-1/4	11-1/2
1.900	1-29/32	1-1/2	11-1/2
4.000	4	3-1/2	8
2.375	2-3/8	2	11-1/2
0.313	5/16	1/16	27
2.875	2-7/8	2-1/2	8
3.500	3-1/2	3	8
0.675	43/64	3/8	18
0.840	27/32	1/2	14
1.050	1-3/64	3/4	14
4.500	4-1/2	4	8

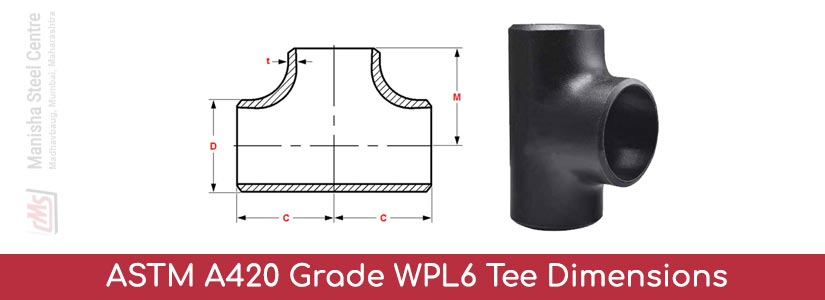

ASTM A420 Grade WPL6 Tee Dimensions

NPS	O.D. at bevel	Center-to-End
NPS	O.D. at bevel	(M) Outlet	(C) Run
1 1/4"	42.2	48	48
5"	141.3	124	124
6"	168.3	143	143
8"	219.1	178	178
10"	273.0	216	216
2 1/2"	73.0	76	76
3"	88.9	86	86
12"	323.8	254	254
22"	559.0	419	419
3 1/2"	101.6	95	95
4"	114.3	105	105
1/2"	21.3	25	25
1 1/2"	48.3	57	57
2"	60.3	64	64
14"	355.6	279	279
16"	406.4	305	305
18"	457.0	343	343
20"	508.0	381	381
3/4"	26.7	29	29
1"	33.4	38	38
24"	610.0	432	432

Premium Quality ASTM A420 Grade WPL6 Elbow and Tee Supplier in Mumbai in Odd Sizes At Affordable Price

A420 Wpl6 Fittings Price

Genuine ASTM A420 WPL6 Pipe Fittings Manufacturer in India As Per Specification

Type of Fittings	Size (STD)	Schedule	Price In India (INR)	Price in USD
90 Deg Elbow	1/2"	Schedule 40	INR 611.56	US $7.06
	3/4"		INR 691.64	US $7.98
	1"		INR 699.48	US $8.07
	1 1/4"		INR 740.20	US $8.54
	1 1/2"		INR 940.66	US $940.66
	2"		INR 967.06	US $11.16
Tee	1/2"	Schedule 80	INR 1118.41	US $12.91
	3/4"		INR 1246.88	US $14.39
	1"		INR 1443.99	US $16.67
	1 1/4"		INR 2184.91	US $25.22
	1 1/2"		INR 2592.13	US $29.92
	2"		INR 3092.13	US $35.69
Con. Reducer	3/4 X 1/2"	Schedule 40	INR 917.78	US $10.59
	1 X 1/2"	Schedule 80	INR 1134.25	US $13.09
	1 X 3/4"		INR 1199.37	US $13.84
	1 1/4 X 1/2"		INR 1797.73	US $20.75
	1 1/4 X 3/4"		INR 1998.36	US $23.07
	1 1/4 X 1"		INR 1866.37	US $21.54
	1 1/2 X 3/4"		INR 2151.47	US $24.83
	1 1/2 X 1 1/4"		INR 2350.34	US $27.13
	2 X 1/2"		INR 2639.84	US $30.47
End Cap	1/2"	Schedule 160	INR 2212.19	US $25.53
	3/4"		INR 2287.86	US $26.41
	1"		INR 2475.86	US $28.58
	1 1/2"		INR 2851.84	US $32.92

A420 WPL6 Fittings Elevated Temperatures

*DSI	*Temperatures
17.9	600
17.3	650
20	200
20	300
20	150
19	500
19.9	400
16.8	700
20	-20~100

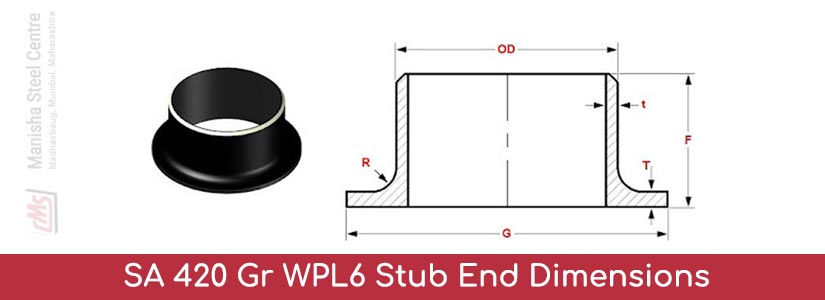

SA 420 Gr WPL6 Stub End Dimensions

NPS	Outside Daimeter of barrel		Radius Of(R)	Diameter Of (G)	Length Of (F)
NPS	(Min.)	(Max.)	Radius Of(R)	Diameter Of (G)	Long Pattern	Short Pattern
1/2″	20.5	22.8	3	35	76	51
2″	59.5	62.4	8	92	152	64
2 1/2″	72.2	75.3	8	105	152	64
14″	354.8	359.9	13	413	305	152
16″	405.6	411.0	13	470	305	152
18″	456.0	462.0	13	533	305	152
20″	507.0	514.0	13	584	305	152
22″	558.0	565.0	13	641	305	152
4″	113.5	116.7	11	157	152	76
5″	140.5	144.3	11	186	203	76
3″	88.1	91.3	10	127	152	64
6″	167.5	171.3	13	216	203	89
8″	218.3	222.1	13	270	203	102
3/4″	25.9	28.1	3	43	76	51
1″	32.6	35.0	3	51	102	51
1 1/4″	41.4	43.6	5	64	102	51
3 1/2″	100.8	104.0	10	140	152	76
1 1/2″	47.5	49.9	6	74	102	51
10″	272.3	277.2	13	324	254	127
12″	323.1	328.0	13	381	254	152
24″	609.0	616.0	13	692	305	152

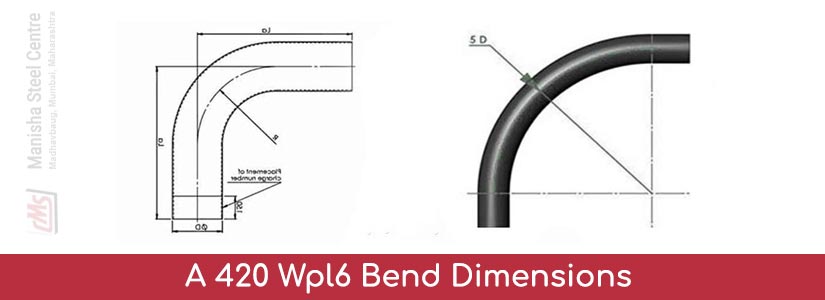

A 420 Wpl6 Bend Dimensions

Standard Of Pipe		Specification	2,5D	. Bauart 5
Size	Dia. [OD]	CLR	CLR	CLR
50	60,3	125	151	-
40	48,3	110	212	-
200	219,1	-	-	510
80	88,9	-	222	205
100	114,3	-	286	270
300	323,9	-	-	775
350	355,6	-	-	850
65	76,1	-	190	175
125	139,7	-	350	330
150	168,3	-	421	390
20	26,9	110	67	-
25	33,7	110	84	-
32	42,4	110	106	-
400	406,4	-	-	970
250	273	-	-	650
500	508	-	-	1245

Understand Major Difference Between ASTM A420 WPL6 vs A234 WPB

ASTM A420 WPL6 vs A234 WPB

Property	ASTM A420 WPL6	ASTM A234 WPB
Temperature Range	-50°F to 150°F (-45.6°C to 65.6°C)	-20°F to 750°F (-28.9°C to 398.9°C)
Yield Strength (min)	35 ksi (240 MPa)	35 ksi (240 MPa)
Tensile Strength (min)	60 ksi (415 MPa)	70 ksi (485 MPa)
Elongation	20% (in 8 in / 200 mm)	20% (in 8 in / 200 mm)
Charpy V-Notch Impact Test	Required at -50°F (-45.6°C) for certain thicknesses	Not required (but can be specified)
Chemical Composition	Carbon (max 0.30%), Manganese (0.60-1.06%), etc.	Carbon (max 0.30%), Manganese (0.60-1.06%), etc.
Wall Thickness	Up to 2.5 inches (63.5 mm)	Up to 4 inches (101.6 mm)

Most Common Types of ASTM A420 WPL6 Pipe Fittings

Trusted ASTM A420 WPL6 Pipe Fittings Supplier in India in Custom Shapes and Types

SA 420 Gr Wpl6 Elbow

ASTM A420 Grade WPL6 Tee

ASTM A420 WPL6 Reducer

ASTM A420 Grade WPL6 Cap

ASTM A420 Gr WPL6 Stub End

A 420 Wpl6 Pipe Bend

Sa 420 Gr Wpl6 Cross

ASTM A 420 Gr Wpl6 Elbow Lr 90 degree BW

SA 420 Wpl6 Long Radius Reducing Elbow

A420 Wpl6 Seamless Equal Tee

Wpl6 Tee Reducing BW

ASTM A420 Grade WPL6 Long Pattern Stub End

Buy LTCS A 420 Wpl6 Weld Fittings Manufactured As Per ASME B16.9 Which Impact Tested At -45℃

ASTM A420 WPL6 Buttweld Pipe Fittings Charpy Impact Test

Specimen Size	A*		B*
mm	ft·lbf	J	ft·lbf	J
10 by 2.5	4	5.4	3	4.1
10 by 7.5	10	13.6	8	10.8
10 by 5.0	7	9.5	5	7.0
10 by 10.0	13	17.6	10	13.6

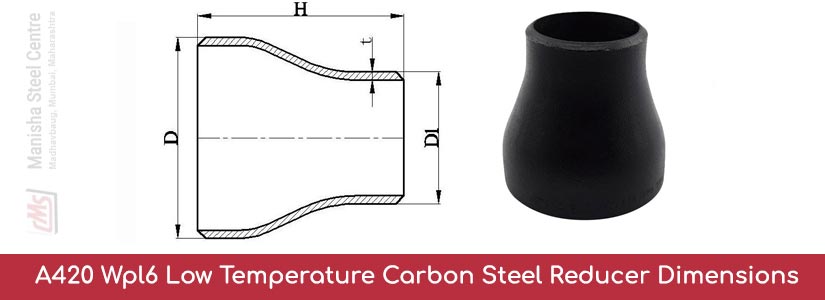

A420 Wpl6 Low Temperature Carbon Steel Reducer Dimensions

RCD Reiso Code	Hight (H) MM	SMALL Ø			BIG Ø			Theoretical Weight in KG (kg)
RCD Reiso Code	Hight (H) MM	(DN)	(D) MM	Thickness Of (S) mm	(DN)	(D) MM	Thickness Of (S) In mm.	Theoretical Weight in KG (kg)
42 21	50	1/2	21.3	2.0	1"1/4	42.4	2.6	0.12
42 27		3/4	26.9	2.3				0.13
42 33		1	33.7	2.6				0.14
27 21	38	1/2	21.3	2.0	3/4	26.9	2.3	0.08
33 21	50	1/2	21.3	2.0	1	33.7	2.6	0.09
33 27	50	3/4	26.9	2.3	1	33.7	2.6	0.09
60 27	76	3/4	26.9	2.3	2	60.3	2.9	0.30
60 33		1	33.7	2.6				0.31
60 42		1"1/4	42.4	2.6				0.32
60 48		1"1/2	48.3	2.6				0.33
76 33	90	1	33.7	2.6	2"1/2	76.1	2.9	0.40
76 42		1"1/4	42.4	2.6				0.47
76 48		1"1/2	48.3	2.6				0.48
76 60		2	60.3	2.6				0.49
*48 21	64	1/2	21.3	2.0	1"1/2	48.3	2.6	0.18
48 27		3/4	26.9	2.3				0.19
48 33		1	33.7	2.6				0.20
48 42		1"1/4	42.4	2.6				0.20
89 42	90	1"1/4	42.4	2.6	3	88.9	3.2	0.55
89 48		1"1/2	48.3	2.6				0.61
89 60		2	60.3	2.9				0.62
89 76		2"1/2	76.1	2.9				0.63
139 60	127	2	60.3	2.9	5	139.7	4.0	1.60
139 76		2"1/2	76.1	2.9				1.70
139 89		3	88.9	3.2				1.74
139 114		4	114.3	3.6				1.76
114 48	100	1"1/2	48.3	2.6	4	114.3	3.6	0.85
114 60		2	60.3	2.9				0.98
114 76		2"1/2	76.1	2.9				1.00
114 89		3	88.9	3.2				1.02
*273 114	178	4	114.3	3.6	10	273.0	6.3	7.00
*273 139		5	139.7	4.0				7.20
273 168		6	168.3	4.5				7.40
273 219		8	219.1	6.3				7.55
*168 76	140	2"1/2	76.1	2.9	6	168.3	4.5	2.60
168 89		3	88.9	3.2				2.70
168 114		4	114.3	3.6				2.82
168 139		5	139.7	4.0				2.94
219 114	152	4	114.3	3.6	8	219.1	6.3	5.03
219 139		5	139.7	4.0				5.12
219 168		6	168.3	4.5				5.18
323 168	203	6	168.3	4.5	12	323.9	7.1	11.00
323 219		8	219.1	6.3				11.10
323 273		10	273	6.3				11.20

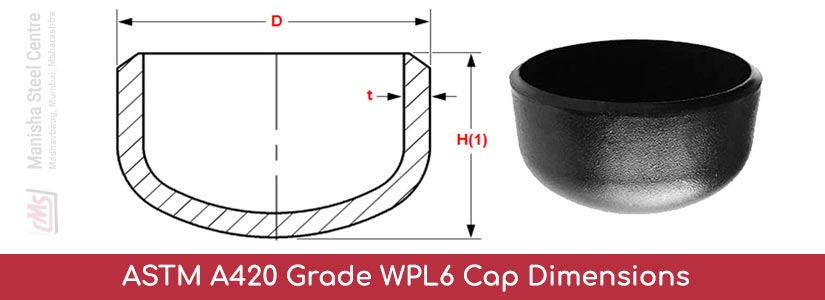

ASTM A420 Grade WPL6 Cap Dimensions

NPS	O.D.Of D	Length Of (H)	Length Of (H1)
1	33.4	38	38
1.1/4	42.2	38	38
1.1/2	48.3	38	38
18	457	203	229
20	508	229	254
2	60.3	38	44
2.1/2	73	38	51
3	88.9	51	64
3.1/2	101.6	64	76
3/4	26.7	25	25
10	273	127	152
12	323.8	152	178
4	114.3	64	76
5	141.3	76	89
6	168.3	89	102
8	219.1	102	127
1/2	21.3	25	25
22	559	254	254
14	355.6	165	191
16	406.4	178	203
24	610	267	305

In what industries are ASTM A420 WPL6 pipe fittings typically used?

A420 WPL6 Pipe Fittings Pressure Rating Chart

Temperature Ratings		Pressure Class
		150	300
			1/4 - 1 inch.	1 1/4 - 2 inch.	2 1/2 - 3 inch.
(oC)	(oF)		1/4 - 1 inch.	1 1/4 - 2 inch.	2 1/2 - 3 inch.
288	550	-	300	300	300
260	500	-	510	450	385
232	450	-	725	600	475
204	400	-	935	750	560
177	350	150	1150	900	650
149	300	185	1360	1050	735
121	250	225	1575	1200	825
93	200	265	1785	1350	910
-29 to 66	-20 to 150	300	2000	1500	1000

Offer Carbon Steel Wpl6 Material Commonly Used in Pressure Vessel and Pressure Pipelines

Carbon Steel Wpl6 Pipe Fittings Applications

Petrochemicals
Cryogenic
Pharmaceuticals
Heat exchangers
Condensers
Pulp and paper industry

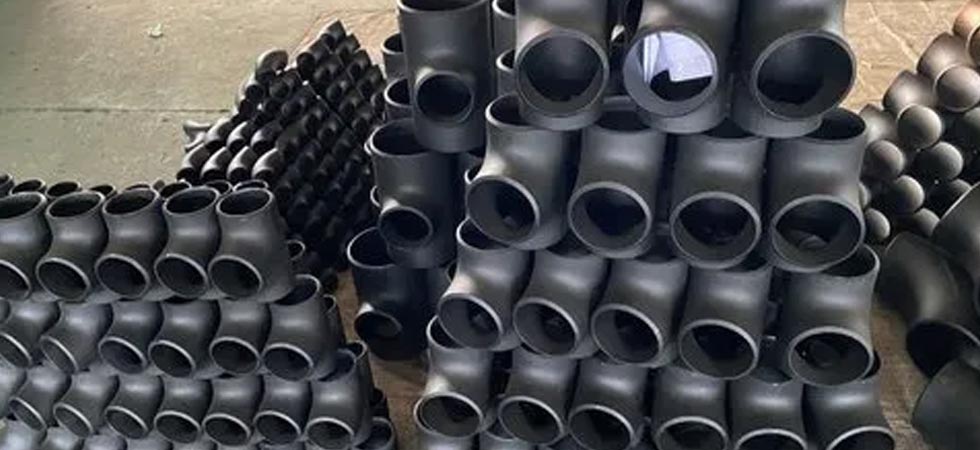

Wpl6 Tee Reducing BW Value Added Services

Chemical Equipment
Flattening Test
Mechanical Testing
Pitting Resistance Test
Micro and MacroTest
Chemical Analysis
Intergranular Corrosion Test
PMI Testing

What type of impact testing is required for ASTM A420 WPL6 Pipe Fittings?

Property	Requirements
Impact Test Type	Charpy V-notch Impact Test
Test Temperature	-50°F (-45.6°C)
Minimum Absorbed Energy	15 ft-lb (20.3 J) per specimen
Applicable Thickness	0.50 inches (12.7 mm)

Sa 420 Gr Wpl6 Cross Chemical Composition

Elements	Value %
Sulfur [S]	≤0.040
Silicon [Si]	0.15-0.40
Nickel [Ni]	≤0.40
Vanadium[V]	≤0.08
Phosphorus [P]	≤0.035
Chromium [Cr]	≤0.30
Carbon [C]	≤0.30
Manganese [Mn]	0.50-1.35
Copper [Cu]	≤0.40
Columbium [Cb]	≤0.02
Molybdenum [Mo]	≤0.12

Mechanical Properties of SA 420 Wpl6 Long Radius Reducing Elbow

Properties	Yield Strength, min.		Tensile Strength, min.		Elongation %, min
Value	ksi	MPa	ksi	MPa	Longitudinal	Transverse
Value	35	240	65-95	415-655	22	12

ASTM A420 WPL6 Butt Welded Joint HSN Code

HS Code	Description
7307	ASTM A420 WPL6 Buttweld Pipe Fittings

Test Certificates and Documentation of A420 Wpl6 Seamless Equal Tee

Raw Materials Certificate
100% Radiography Test Report
EN 10204/3.1B,
Third Party Inspection Report
Heat Treatment Charts
Fumigation Certificates
Guarantee Letter
QAP (Quality Assurance Plan)
NABL approved Laboratory Test Reports

At what temperature must the Charpy V-notch impact test be conducted for ASTM A420 WPL6 pipe fittings?

-50°F (-45.6°C).

Check Available Stock

Carbon Steel Pipe Fittings Straight Tee 2 inch

High Pressure ASME B16.9 Butt Weld CS A420 WPL6 Pipe Fitting Tee

10 inch ERW SCH80 Carbon Black Steel Equal Tee

ASTM Butt Welding Carbon Steel A420 Wpl6 Pipe Fitting Caps

ASME B16.9 BW Carbon Steel Pipe Fitting Eccentric Reducer

ASME B16.9 ASTM A420 WPL6 90 DEG Carbon Steel Elbow

A420 Wpl6 Fittings Delivery Time As Per Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Russia	20
Puerto Rica	45
Mexico	45
Jamaica	50
Panama	45
Equatorial Guinea	45-60
Gabon	45-60
Trinidad And Tobago	60
The Republic Of Congo	45-60
Norway	45
Germany	21
Denmark	35
Costa Rica	45
Canada	45
Bahamas	60

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
