ASTM A182 F9 Fittings | ASME SA 182 Grade F9 Tee/Elbow Sizes

Prominent Manufacturer Of ASME SA 182 Grade F9 Pipe Fittings in India As Per ANSI B16.9

Table of Content

ASTM A182 F9 Fittings Specification
SA 182 F9 Welded Fittings Weight Chart
Alloy Steel F9 Seamless Pipe Fittings Size Range
Bending Radius for ASTM A182 F9 Fittings
F9 steel Weldable Pipe Fittings Chemical Composition
Most Common Types of ASTM A182 F9 Fittings
ASTM A182 F9 Alloy Steel Stub End Applications
F9 Alloy Steel Butt Welded Fittings Equivalent Standards
SA182 F9 Tee Dimensions Chart
F9 Steel Weldable Pipe Fittings Testings
Mechanical Properties of SA 182 F9 Welded Fittings
A182 F9 Weld Fittings Physical Properties

ASTM A182 F9 Fittings Specification

ASTM A182 F9 Pipe Fittings Sizes

Size : 1/2" NB TO 48" NB
Schedule : Sch 5s TO xxs
End : Plain Bevel, Buttweld, Bevelled, Compound Bevel

ASTM A182 Gr F9 Buttweld Fittings Manufacturing Standards

MSS-SP-43
ANSI B16.9
ASME B16.28
100% Tested With MTC EN 10204/3.1

A182 F9 Weld Fittings Benefits

Good Strength
Corrosion Resistance
Weldability

SA 182 F9 Welded Fittings Process

Seamless
Fabricated
Welded

A182 Gr F9 Welded Pipe Fittings Types

Elbow
Reducer
Stub End
Cross

F9 steel Weldable Pipe Fittings International Standards

ASTM A182
ASME SA 182
UNS K90941

A182 F9 Elbow Bending Radius

SA182 F9 Butt Welding Fittings Origin

European
Janpanese
Russia
American

F9 steel Weldable Pipe Fittings Services

Shearing
Heat Treatment
Cutting

ASTM A182 Grade F9 BW Fittings Packaging

Bubble Wraps
Bundled
Wooden Box

A182 F9 Weld Fittings Surface Finish

Pickled
Polished

A182 Gr F9 Welded Pipe Fittings Testing

PMI, Hardness test
Ultrasonic, HIC test

SA 182 F9 Welded Fittings Weight Chart

Are You Trying to Find the Best Deal on ASTM A182 F9 Fittings? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

NPS	A	B	QTY	Weight in KG
½	1.12	1.31	100	0.57
¾	1.31	1.5	75	0.71
1	1.5	1.81	40	1.08
1 ¼	1.75	2.19	25	1.68
1 ½	2.00	2.44	18	2.38
¼	0.81	0.88	160	0.20
2	2.38	2.97	10	3.55
2 ½	3.00	3.62	4	6.22
3	3.38	4.31	2	10.36
4	4.19	5.75	1	23.91

Supplier Of Forged or Rolled UNS K90941 Tee and Reducer in Mumbai With Unmatched Range Of Sizes

Alloy Steel F9 Seamless Pipe Fittings Size Range

Genuine ASTM A182 F9 Fittings Manufacturer in India As Per Specification

DN-NPT	TPI	Tapping /Drill Size mm	Major Diameter mm	Pitch mm
1/8″	27	8.25	10.242	0.941
1/4″	18	10.70	13.616	1.411
3/8″	18	14.10	17.055	1.411
1/2″	14	17.40	21.223	1.814
2½”	8	65.50	72.699	3.175
3″	8	81.50	88.608	3.175
3½”	8	94.30	101.316	3.175
4″	8	107.00	113.973	3.175
5″	8	134.384	141.300	3.175
6″	8	161.191	168.275	3.175
3/4″	14	22.60	26.568	1.814
1″	11.5	28.50	33.228	2.209
1¼”	11.5	37.00	41.985	2.209
1½”	11.5	43.50	48.054	2.209
2″	11.5	55.00	60.092	2.209
1/16″	27	6.00	7.895	0.941
8″	8	211.673	219.075	3.175
10″	8	265.311	273.050	3.175
12″	8	315.793	323.850	3.175

Manufacturing ASTM A182 Gr F9 Elbow With Various Bending Radius Like 1D, 3D, 5D, 2D, See Chemical Composition

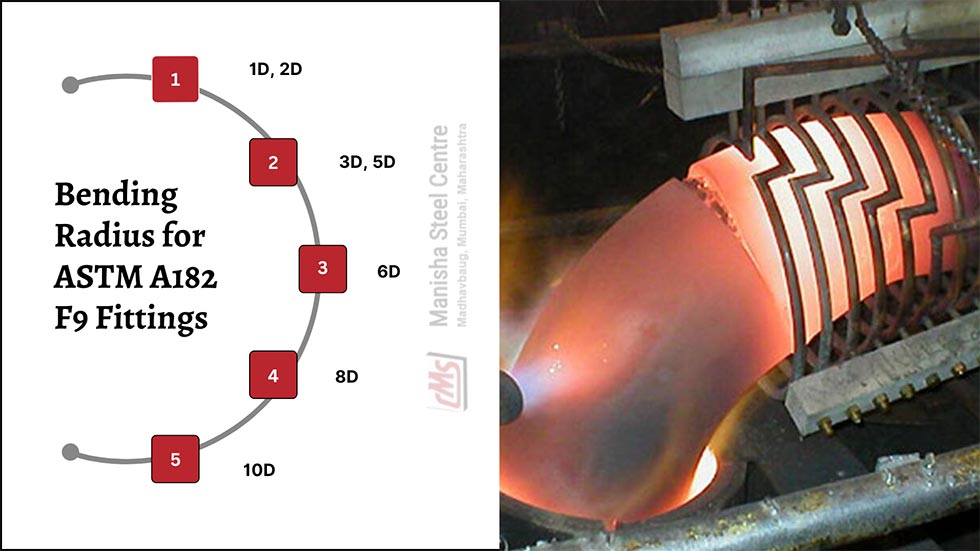

Bending Radius for ASTM A182 F9 Fittings

F9 steel Weldable Pipe Fittings Chemical Composition

Grade	C	Cr	Mo	Mn	Si	S	P
A182 F9	0.15	8 - 10	0.9 - 1.1	0.3 - 0.6	0.5 - 1	0.03	0.03

Most Common Types of ASTM A182 F9 Fittings

Trusted ASTM A182 F9 Fittings Supplier in India in Custom Shapes and Types

ASTM A182 Grade F9 Elbow

ASTM A182 F9 Tee

ASTM A182 Gr F9 Reducer

ASTM A182 Grade F9 Cap

UNS K90941 Stub End

ASTM A182 F9 Alloy Steel Pipe Bend

F9 Alloy Steel Cross

SA 182 Gr F9 Seamless Pipe Fittings

SA182 F9 Butt Welding Fittings

Surplus Stock Of F9 Alloy Steel Stub End and Pipe Cap Suitable For High Temperature Service, Refer Equivalent

ASTM A182 F9 Alloy Steel Stub End Applications

Power Generation Plants
Petrochemical and Refining
Oil & Gas Industry
Chemical Processing
High-Pressure Steam Systems
Heavy Manufacturing and Fabrication
Nuclear Power Plants

F9 Alloy Steel Butt Welded Fittings Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	Trade Name
Alloy Steel F9	1.7386	K90941	9Cr-1Mo

Deliver Best Quality SA 182 F9 Buttweld Fittings in both Seamless and Welded Form With Various Schedule and Pressure Class

SA182 F9 Tee Dimensions Chart

NPS	DN	O.D. of Band H			Min. Wall Thick. G			Center to End 45 Deg Elbow C			Center to End NPT Elbow, NPT Tee, NPT Cross A			Length of Thread. Minimum (1)
NPS	DN	Class 2000	Class 3000	Class 6000	Class 2000	Class 3000	Class 6000	Class 2000	Class 3000	Class 6000	Class 2000	Class 3000	Class 6000	B	L2
1/4	8	22	25	33	3.18	3.30	6.60	17	19	22	21	25	28	8.1	10.2
3/8	10	25	33	38	3.18	3.51	6.98	19	22	25	25	28	33	9.1	10.4
1/2	15	33	38	46	3.18	4.09	8.15	22	25	28	28	33	38	10.9	13.6
3/4	20	38	46	56	3.18	4.32	8.53	25	28	33	33	38	44	12.7	13.9
1/8	6	22	22	25	3.18	3.18	6.35	17	17	19	21	21	25	6.4	6.7
1	25	46	56	62	3.68	4.98	9.93	28	33	35	38	44	51	14.7	17.3
1-1/4	32	56	62	75	3.89	5.28	10.59	33	35	43	44	51	60	17.0	18.0
1-1/2	40	62	75	84	4.01	5.56	11.07	35	43	44	51	60	64	17.8	18.4
2	50	75	86	102	4.27	7.14	12.09	43	44	52	60	64	83	19.0	19.2
2-1/2	65	92	102	121	5.61	7.65	15.29	52	52	64	76	83	95	23.6	28.9
3	85	109	121	146	5.99	8.84	16.64	64	64	79	86	95	106	25.9	30.5
4	100	146	152	152	6.55	11.18	18.67	79	79	79	106	114	114	27.7	33.0

F9 Steel Weldable Pipe Fittings Testings

Testing Method	Destructive / Non-Destructive
Tensile Test	Destructive
Impact Test	Destructive
Hardness Test	Non-Destructive
Ultrasonic Test	Non-Destructive
Visual Inspection	Non-Destructive
Magnetic Particle Test	Non-Destructive
Radiographic Test	Non-Destructive
Hydrostatic Test	Non-Destructive

Mechanical Properties of SA 182 F9 Welded Fittings

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation %
A182 F9	585	380	20

A182 F9 Weld Fittings Physical Properties

Property	Value
Density	7.80 g/cm³
Melting Point	1370 - 1425°C (2500 - 2600°F)
Maximum Operating Temperature	Up to 900°F (480°C)

ASTM A182 F9 Fittings Delivery Time As Per Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Germany	21
Canada	45
Mexico	45
The Republic Of Congo	45-60
Puerto Rica	45
Gabon	45-60
Bahamas	60
Jamaica	50
Panama	45
Equatorial Guinea	45-60
Denmark	35
Russia	20
Trinidad And Tobago	60
Costa Rica	45
Norway	45
