ASTM A403 WP316L Fittings

Home|ASTM A403 WP316L Fittings

Finest Quality Stainless Steel 316L Elbow and Reducer Manufacturer in India As Per ANSI B16.9

ASTM A403 WP316L Fittings Specification



How to get High Quality ASTM A403 WP316L Fittings in UAE at lowest Price?
Strategy Explanation
Trade Shows Network & negotiate
Online Marketplaces Check Alibaba, Amazon
Certification & Quality Verify standards
Consider Importing Import options
Review Distributors Local distributor deals
Request Multiple Quotes Compare pricing
Manisha Steel Centre

Table of Content

ASTM A403 WP316L Fittings Specification
ASTM A403 WP316L Fittings Sizes

ASTM A403 WP316L Fittings Sizes

  • Welded Fittings: Upto to 24"
  • Seamless Fittings: NPS 1/2" to 24"
  • Schedule : 5S to XXS
  • End : Compound Bevel, Buttweld, Plain Bevel, Bevelled

ASTM A403 WP316L Elbow Manufacturing Standards

ASTM A403 WP316L Elbow Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1

ASTM A403 WP 316l Cross Physical Properties

ASTM A403 WP 316l Cross Physical Properties

  • Melting Point:1371 - 1399°C
  • Density:7.98 g/cm³
  • Heat Treatment: 500 J/kg·K
ASTM A403-WP316l - W Stub End Process

ASTM A403-WP316l - W Stub End Process

  • Seamless
  • Fabricated
  • Welded
Stainless Steel 316L Pipe Fittings Types

Stainless Steel 316L Pipe Fittings Types

  • Elbow
  • Reducer
  • Stub End
  • Cross

ASME SA 403 WP316L Tee International Standards

ASME SA 403 WP316L Tee International Standards

  • UNS: S31603
  • ASME SA 403
  • WNR:1.4404 / 1.4435
  • ASTM A403
ASTM A403 WP316L Elbow Bending Radius

ASTM A403 WP316L Elbow Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
ASTM A403 Gr WP316L Reducer Origin

ASTM A403 Gr WP316L Reducer Origin

  • European
  • Janpanese
  • Russia
  • American

ASTM A403 WP 316l Cross Services

ASTM A403 WP 316l Cross Services

  • Shearing
  • Heat Treatment
  • Cutting

ASTM A403 Gr WP316L Reducer Packaging

ASTM A403 Gr WP316L Reducer Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
ASTM A403 Grade WP316L Tee Surface Finish

ASTM A403 Grade WP316L Tee Surface Finish

  • Pickled
  • Polished
A403 Gr WP316L Fittings Testing

A403 Gr WP316L Fittings Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test

Size Of Stainless Steel 316l Pipe Fittings

Are You Looking for the Best ASTM A403 WP316L Fittings Deal? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

O.D. And I.D. Diameter Of Nominal Pipe Threads Size In Inches Equivalent List
1-5/16 1 11-1/2 1.315
1-21/32 1-1/4 11-1/2 1.660
1-29/32 1-1/2 11-1/2 1.900
2-3/8 2 11-1/2 2.375
2-7/8 2-1/2 8 2.875
3-1/2 3 8 3.500
35/64 1/4 18 0.540
43/64 3/8 18 0.675
27/32 1/2 14 0.840
1-3/64 3/4 14 1.050
4 3-1/2 8 4.000
4-1/2 4 8 4.500
5/16 1/16 27 0.313
13/32 1/8 27 0.405

Best ASME SA 403 WP316L Tee and Cap Supplier in Mumbai With WP or CR Class As Per Custom Drawing

ASTM A403 Gr. WP316L Pipe Fittings Weight Chart

Genuine ASTM A403 WP316L Fittings Manufacturer in India As Per Specification

NPS 10S SCH 40S SCH 80S SCH
45 Deg Elbow 90 Deg Elbow Equal Tee 45 Deg Elbows 90 Deg Elbows Equal Tee 45 Deg Elbow 90 Deg Elbow Equal Tee
8 0.01 0.02 0.03 0.02 0.03 0.06 0.03 0.04 0.07
10 0.02 0.03 0.05 0.02 0.03 0.03 0.04 0.06 0.09
15 0.03 0.06 0.09 0.04 0.08 0.10 0.05 0.10 0.14
20 0.03 0.07 0.13 0.04 0.08 0.17 0.05 0.11 0.20
25 0.08 0.14 0.28 0.11 0.15 0.29 0.14 0.22 0.38
32 0.11 0.23 0.49 0.17 0.26 0.59 0.23 0.40 0.68
40 0.17 0.30 0.68 0.23 0.40 0.86 0.29 0.51 1.02
50 0.25 0.50 0.85 0.4 0.70 1.28 0.59 0.91 1.59
65 0.48 0.85 1.41 0.77 1.40 2.19 0.99 1.81 3.13
80 0.63 1.25 1.77 1.08 2.20 3.31 1.50 2.97 4.45
90 0.75 1.70 2.67 1.42 2.83 4.08 2.00 4.00 5.44
100 1.08 2.10 3.46 2.09 4.47 5.27 2.81 6.18 7.71
150 2.72 5.45 8.07 5.44 10.89 10.99 8.16 16.32 13.61
200 5.33 10.20 15.65 10.77 21.54 20.91 16.56 33.11 28.12
250 9.75 18.15 26.46 19.27 38.56 35.38 25.86 51.71 49.90
300 13.62 25.80 39.46 29.71 59.42 62.14 39.69 79.38 83.91
A403 Gr WP316L Fittings Pressure Ratings
Temperature Ratings Type of Pressure Class
150 LBS 300 LBS
1/4 - 1 " 1 1/4 - 2 " 2 1/2 - 3 "
(oC) (oF)
-29 to 66 -20 to 150 300 2000 1500 1000
288 550 - 300 300 300
260 500 - 510 450 385
232 450 - 725 600 475
204 400 - 935 750 560
177 350 150 1150 900 650
149 300 185 1360 1050 735
121 250 225 1575 1200 825
93 200 265 1785 1350 910
SS 316L Fitting Schedule 40 Dimension Chart
NPS OD ID WT Weight In Kgs Maximum Pressure in PSI
1/2 .840 .602 .109 .170 590
3/4 1.050 .804 .113 .226 480
1 1.315 1.029 .133 .333 450
1-1/4 1.660 1.360 .140 .450 370
1-1/2 1.900 1.590 .145 .537 330
1/4 .540 .344 .088 .086 780
3/8 .675 .473 .091 .115 620
2 2.375 2.047 .154 .720 280
2-1/2 2.875 2.445 .203 1.136 300
3 3.500 3.042 .216 1.488 260
3-1/2 4.000 3.521 .226 1.789 240
4 4.500 3.998 .237 2.118 220
5 5.563 5.016 .258 2.874 190
6 6.625 6.031 .280 3.733 180
8 8.625 7.942 .322 5.619 160
10 10.750 9.976 .365 7.966 140
12 12.750 11.889 .406 10.534 130
14 14.000 13.073 .437 12.462 130
16 16.000 14.940 .500 16.286 130
18 18.000 16.809 .562 20.587 130
20 20.000 18.743 .593 24.183 120
24 24.000 22.544 .687 33.652 120
Stainless Steel 316L Buttweld Fittings Dimensional Tolerance
All Type of Buttweld Fittings 45 deg & 90 deg elbows 180 Degree Returns
NPS I.D. at End O.D. at Bevel WT t / t1 Center to End Daimeter A-B-C-M Back to Face Daimeter (K) Center to Center Daimeter (O) Align- ment of Ends (U)
1/2 a 2 1/2 0,8 1 Not less than 87,50% of nominal tickness 2 7 7 1
3 a 3 1/2 1,6 1 2 7 7 1
4 1,6 +2 -1 2 7 7 1
5 a 6 1,6 +3 -1 2 7 7 1
8 1,6 2 2 7 7 1
10 3,2 +4 -3 2 7 7 2
12 a 18 3,2 +4 -3 3 10 2 7
20 a 24 4,8 +6 -5 3 10 2 7
26 a 30 4,8 +7 -5 3 - - - -
32 a 48 4,8 +7 -5 5 - - - -

Offer an Extensive Array Of A403 Grade WP316L Butt Weld Fittings Tested Visually for Surface Discontinuities

A403 Grade WP316L Butt Weld Fittings Testings
  • Visual Inspection
  • Dimensional Inspection
  • Mechanical Testing
  • Hydrostatic Pressure Test
  • Impact Testing
  • Chemical Composition
  • Non-Destructive Testing
Most Common Types Of ASTM A403 WP316L Fittings

Trusted ASTM A403 WP316L Fittings Supplier in India in Custom Shapes and Types

Stainless Steel 316L Seamless Pipe Fittings

Stainless Steel 316L Seamless Pipe Fittings

ASTM A403 WP316L Weldable Pipe Fittings

ASTM A403 WP316L Weldable Pipe Fittings

ASME SA 403 WP316L Butt Weld Elbow

ASME SA 403 WP316L Butt Weld Elbow

A403 Gr WP316L Tee

A403 Gr WP316L Tee

ASTM A403 Gr WP316L WX Reducer

ASTM A403 Gr WP316L WX Reducer

ASTM A403 WP 316l Cap

ASTM A403 WP 316l Cap

ASTM A403 WP316L Stainless Steel Stub End

ASTM A403 WP316L Stainless Steel Stub End

A403 Gr WP316L Pipe Bend

A403 Gr WP316L Pipe Bend

ASTM A403 Gr. WP316L Cross

ASTM A403 Gr. WP316L Cross

ASTM A403 WP316L Elbow Surface Finishes
  • Mill Finish
  • Pickled and Passivated
  • Electropolished
  • Brushed (Satin Finish)
  • Polished
Buy Custom Made ASTM A403 Gr WP316L WX Cross and Stub end for Pressure Piping Applications At Factory Price
ASTM A403 WP316L Fittings Price
Type of Fittings Size SCH Class Price in USD Per Piece
90 Deg Elbow 1/2" SCH 40 150 US $1.73
3/4" 150 US $3.22
1” 150 US $4.38
1-1/2” 150 US $5.76
1" SCH 80 150 US $8.06
2" 150 US $10.36
3" 150 US $15.55
4" 150 US $17.85
6" 150 US $19.58
Equal Tee 3/4" SCH 40 150 US $4.61
1/2 150 US $5.76
3/4” 150 US $6.91
1” 150 US $9.79
2” 150 US $10.83
3” 150 US $11.78
4” 150 US $14.78
6” 150 US $17.10
Concentric Reducer 3/4 X 1/2” SCH 80 150 US $3.45
1 X 1/2” 150 US $6.91
4 X 2” 150 US $10.36
8 X 4” 150 US $13.82

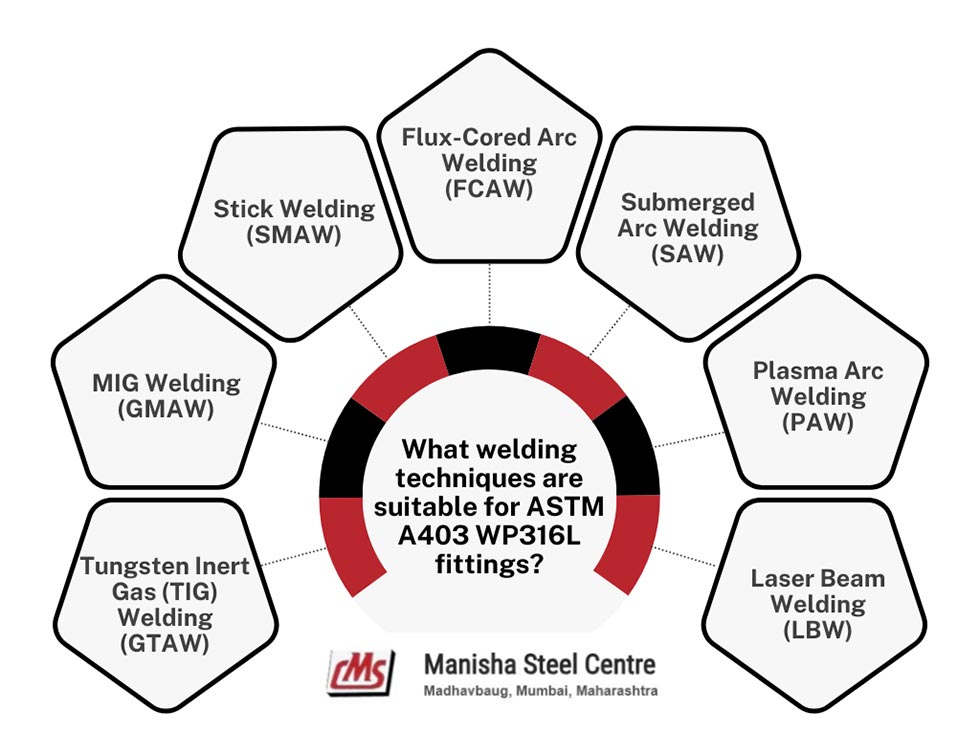

What welding techniques are suitable for ASTM A403 WP316L fittings?
Welding Techniques for ASTM A403 WP316L Fittings
ASTM A403 Gr WP316L Tee HSN Code
Description HSN Code
ASTM A403 WP316L Fittings 73072100
Supply Seamless or Welded ASTM A403-WP316l - W Stainless Steel Fittings With Heat Treatment
ASTM A403 Gr WP316L Reducer Heat Treatment
Heat Treatment Process Temperature / Method
Solution Annealing 1010°C to 1120°C (1850°F to 2050°F)
Rapid Cooling Water quenching or air cooling
Stress Relieving 400°C to 600°C (750°F to 1100°F)
Pickling / Passivation Post-heat treatment surface treatment
What factors are considered when designing ASTM A403 WP316L Fittings?

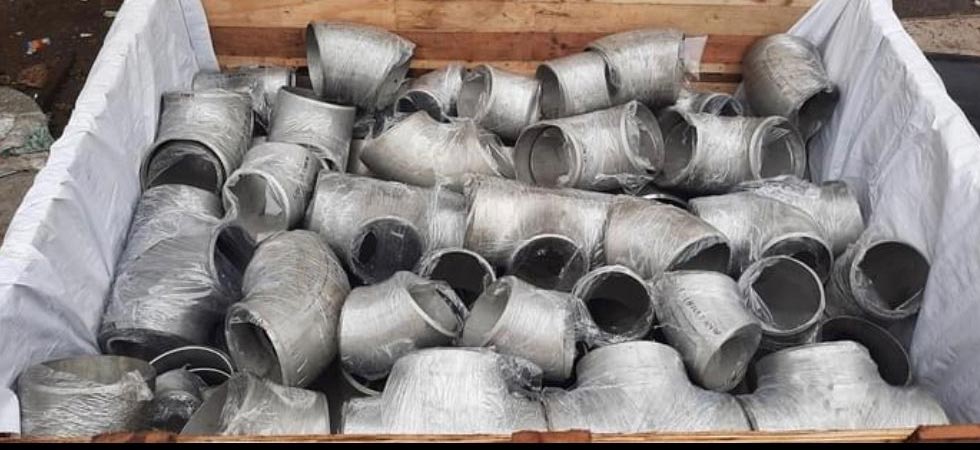

Designing ASTM A403 WP316L Fittings
  • Material Composition
  • Dimensions and Tolerances
  • Pressure Rating
  • Temperature Range
  • Weldability
  • Surface Finish
  • Stress and Fatigue Resistance
ASTM A403 WP316L Equivalent Standards
GRADE UNS NO EURONORM OLD BRITISH SWEDISH SS JAPANESE JIS
NO NAME BS EN
316L S31603 1.4404 X2CrNiMo17-12-2 316S11 – 2348 SUS 316L
ASTM A403 WP 316l Cross Chemical Composition
Garde MN P CR SI C N MO NI S
316L Min – – 16.0 – – – 2.00 10.0 –
Max 2.0 0.045 18.0 0.75 0.03 0.10 3.00 14.0 0.03
Mechanical Properties of ASTM A403 Grade WP316L Tee
Grade Yield Strength 0.2% PROOF (MPA) MIN Tensile Strength (MPA) MIN ELONG (% IN 50MM) MIN Hardness
ROCKWELL B (HR B) MAX BRINELL (HB) MAX
316L 170 485 40 95 217
A403 Gr WP316L Fittings Physical Properties
Grade Dencity (KG/M3) Elastic Modulus (GPA) Specific Heat 0-100°C (J/KG.K) Elec Resistivity (NΩ.M) Mean Co-eff Of Thermal Expansion (ΜM/M/°C) Thermal Conductivity (W/M.K)
0-100°C 0-315°C 0-538°C AT 100°C AT 500°C
316L 8000 193 500 740 15.9 16.2 17.5 16.3 21.5
ASTM A403 WP316L Fittings Delivery Time As Per Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Bangladesh  14
Ecuador  60
Sri Lanka  5
Bolivia  45
Brazil  45-60
Chile  45
Venezuela  45
Mayanmar  25
Taiwan  15
Cambodia  9
Argentina  45
Maldives  7
Colombia  45
South Korea  7
Japan  7
