Alloy Steel Pipe Fittings Specification
Alloy Steel Buttweld Fittings Price
ASTM A234 Wp22 Pipe Elbow Dimensions Standard
Alloy Steel Pipe Fittings Dimensions
Weight Chart of Alloy Steel Pipe Fittings
Alloy Steel Reducer Schedule Chart
Most Common Types of Alloy Steel Pipe Fittings
Alloy Steel Stub End Surface Finishes
Alloy Steel Reducer Dimensions
Alloy Steel Fittings Applications
Chrome Moly Stub End Dimensions
ASTM A234 Alloy Steel End Cap Dimensions
ASME B16.9 Chrome Moly Tee Dimensions

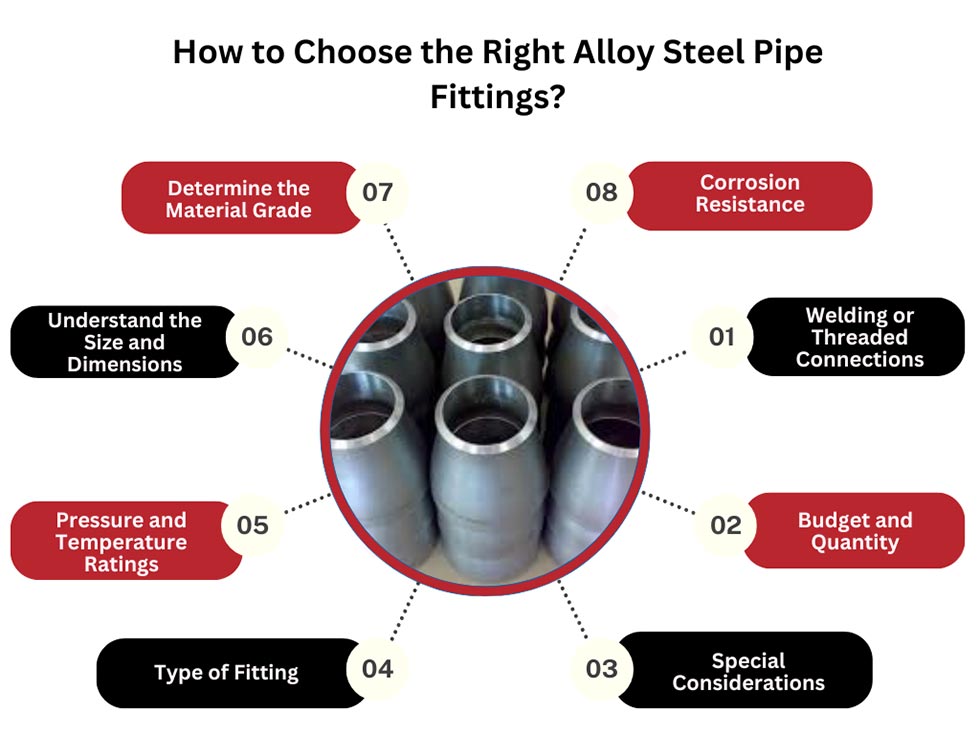

How to Choose the Right Alloy Steel Pipe Fittings?
Alloy Steel Fittings Length Chart
Pressure Rating of Alloy Steel Buttweld Fittings

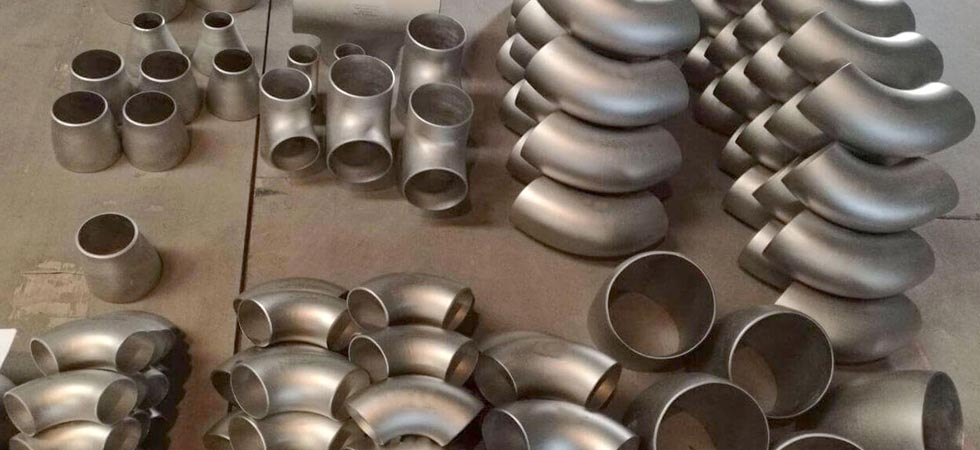

How do I ensure proper Maintenance of Alloy Steel Pipe Fittings?
Alloy Steel Fittings Chemical Composition
Mechanical Properties of Alloy Steel Buttweld Fittings

High Quality Chrome Moly Buttweld Fittings Supplier in Mumbai in Both Seamless and Welded Form

Alloy Steel Pipe Fittings Specification

Alloy Steel Pipe Fittings Sizes

Welded Fittings: 1/2″ – 48″
Seamless Fittings: 1/2″ – 10″
Schedule : SCH10 to XXS
End : Plain Bevel, Compound Bevel, Buttweld, Bevelled

Alloy Steel Fittings Manufacturing Standards

MSS-SP-43
ANSI B16.9, ASME B16.28
100% Tested With MTC EN 10204/3.1

Chrome Moly Pipe Fittings Physical Properties

Melting Point:1,400°C to 1,500°C
Density:7.85 g/cm³
Heat Treatment: 700°C and 800°C

Alloy Steel Buttweld Fittings Process

Seamless
Fabricated
Welded

Alloy Steel Buttweld Fittings Types

Reducer
Elbow
Cap
Stub End

Alloy Steel Pipe Fittings Benefits

Enhanced Strength
Excellent Weldability
Cost-Effectiveness
Impact Resistance

Alloy Steel Buttweld Fittings Bending Radius

3D
1D, 2D
5D

Alloy Steel Fittings Origin

European
Janpanese
Russia
American

Alloy Steel Buttweld Fittings Services

Shearing
Heat Treatment
Cutting

Chrome Moly Buttweld Fittings Packaging

Bubble Wraps
Bundled
Wooden Box

Alloy Steel Stub End Surface Finish

Pickled
Polished

Alloy Steel Fittings Testing

PMI, Hardness test
Ultrasonic, HIC test

Buy Alloy Steel Elbow and Tee As Per ASTM A234 With Size Ranging From 1/8 to 48" NB At Factory Price

Alloy Steel Buttweld Fittings Price

Are You Looking for the Best Price on Pipe Fittings Made of Alloy Steel? In order to obtain an estimate immediately, send an email tokalpesh@manishasteelcentre.com.

Type of Fittings	Size	Price in INR (India) Per Piece	Price in USD Per Piece
ASME B16.9 Elbow	3/4"	INR 136	US $ 1.58
90 Deg Elbow	1"	INR 225	US $ 2.61
	2"	INR 336	US $ 3.90
	3"	INR 365	US $ 4.23
	4"	INR 469	US $ 5.44
	5"	INR 689	US $ 7.99
	6"	INR 750	US $ 8.70
ASME B16.9 Cap	1/2"	INR 145	US $ 1.68
End Cap	3/4"	INR 267	US $ 3.10
	1"	INR 298	US $ 3.46
	1 1/4"	INR 345	US $ 4.00
	2"	INR 399	US $ 4.63
ASME B16.9 Reducer	3/4 X 1/2	INR 128	US $ 1.48
Concentric Reducer	1 X 1/2"	INR 250	US $ 2.90
	4 X 2"	INR 454	US $ 5.27
	5 X 4"	INR 576	US $ 6.68
	6 X 4"	INR 985	US $ 11.43
ASME B16.9 Tee	1/2"	INR 102	US $ 1.18
Equal Tee	3/4"	INR 168	US $ 1.95
	3/1"	INR 276	US $ 3.20
	2"	INR 387	US $ 4.49
	3"	INR 498	US $ 5.78
	4"	INR 550	US $ 6.38

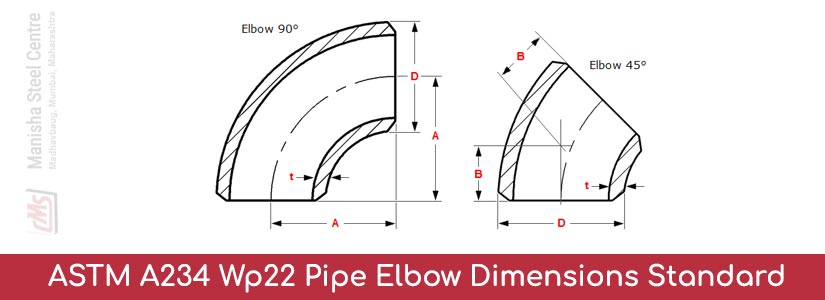

ASTM A234 Wp22 Pipe Elbow Dimensions Standard

Genuine Alloy Steel Pipe Fittings Manufacturer in India As Per Specification

NPS	OD D	45° Long Rad Center to End B	45° 3D Center to End B	90° Long Rad Center to End A	90° 3D Center to End A
1/2	21.03	16	-	38	-
3/4	26.07	19	24	38	57
3½	101.06	57	111	133	267
2	60.03	35	63	76	152
6	168.03	95	189	229	457
8	219.01	127	252	305	610
10	273	159	316	381	762
1¼	42.02	25	39	48	95
1½	48.03	29	47	57	114
14	355.06	222	441	533	1067
5	141.03	79	157	190	381
2½	73	44	79	95	190
1	33.04	22	31	38	76
12	323.08	190	378	457	914
4	114.03	64	127	152	305
3	88.09	51	95	114	229
16	406.04	254	505	610	1219

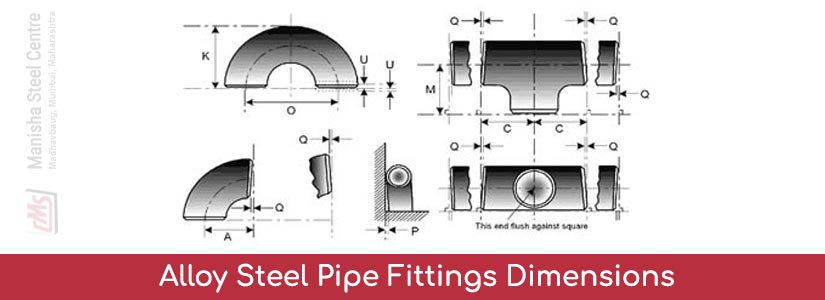

Alloy Steel Pipe Fittings Dimensions

NPS	ALL FITTINGS	ALL FITTINGS	CAPS	ELBOWS AND TEES	REDUCERS	180 DEG RETURN BENDS	180 DEG RETURN BENDS
NPS	OD at Bevel (1), (2)	ID at End (1), (3), (4)	Overall Length E	Centre -to- End Dimension A, B, C, M	Overall Length H	Centre-to- Centre O	Alignment of Ends U
½ to 2½	0.006 -0.003	0.003	0.012	0.006	0.006	0.025	0.003
3 to 3 ½	0.006	0.006	0.012	0.006	0.006	0.025	0.003
4	0.006	0.006	0.012	0.006	0.006	0.025	0.003
5 to 8	0.009 -0.006	0.006	0.025	0.006	0.006	0.025	0.003
10 to 18	0.016 -0.012	0.012	0.025	0.009	0.009	0.038	0.006
20 to 24	0.025 -0.019	0.019	0.025	0.009	0.009	0.038	0.006
26 to 30	0.025 -0.019	0.019	0.038	0.012	0.019	…	…
32 to 48	0.025 -0.019	0.019	…	0.019	0.019	…	…

Weight Chart of Alloy Steel Pipe Fittings

NPS	10S Schedule			40S Schedule			80S Schedule
NPS	Buttweld 45 Degree Elbow	Buttweld 90 Degree Elbow	B16.9 Buttweld Equal Tee	Buttweld 45 Deg Elbows	Buttweld 90 Deg Elbows	B16.9 Buttweld Equal Tee	Buttweld 45 Degree Elbow	Buttweld 90 Degree Elbow	ASME B16.9 Buttweld Equal Tee
8	0.01	0.02	0.03	0.02	0.03	0.06	0.03	0.04	0.07
10	0.02	0.03	0.05	0.02	0.03	0.03	0.04	0.06	0.09
15	0.03	0.06	0.09	0.04	0.08	0.10	0.05	0.10	0.14
20	0.03	0.07	0.13	0.04	0.08	0.17	0.05	0.11	0.20
25	0.08	0.14	0.28	0.11	0.15	0.29	0.14	0.22	0.38
32	0.11	0.23	0.49	0.17	0.26	0.59	0.23	0.40	0.68
40	0.17	0.30	0.68	0.23	0.40	0.86	0.29	0.51	1.02
50	0.25	0.50	0.85	0.4	0.70	1.28	0.59	0.91	1.59
65	0.48	0.85	1.41	0.77	1.40	2.19	0.99	1.81	3.13
80	0.63	1.25	1.77	1.08	2.20	3.31	1.50	2.97	4.45
90	0.75	1.70	2.67	1.42	2.83	4.08	2.00	4.00	5.44
100	1.08	2.10	3.46	2.09	4.47	5.27	2.81	6.18	7.71
150	2.72	5.45	8.07	5.44	10.89	10.99	8.16	16.32	13.61
200	5.33	10.20	15.65	10.77	21.54	20.91	16.56	33.11	28.12
250	9.75	18.15	26.46	19.27	38.56	35.38	25.86	51.71	49.90
300	13.62	25.80	39.46	29.71	59.42	62.14	39.69	79.38	83.91

Get Certified & Tested AS Reducer and Cap With Sch 10 To Sch 160 As Per ANSI/ASME B16.9

Alloy Steel Reducer Schedule Chart

Schedule	Size (inches)	Wall Thickness (inches)	OD (inches)	Reducer Dimensions (OD)	Reducer Dimensions (ID)
Schedule 10	1/2"	0.083	0.840	0.840	0.670
	1"	0.109	1.315	1.315	1.103
	2"	0.154	2.375	2.375	2.067
	4"	0.237	4.500	4.500	4.026
Schedule 40	1/2"	0.109	0.840	0.840	0.622
	1"	0.140	1.315	1.315	1.035
	2"	0.154	2.375	2.375	2.067
	4"	0.237	4.500	4.500	4.026
Schedule 80	1/2"	0.147	0.840	0.840	0.546
	1"	0.179	1.315	1.315	0.957
	2"	0.218	2.375	2.375	1.939
	4"	0.337	4.500	4.500	3.826
Schedule 160	1/2"	0.218	0.840	0.840	0.404
	1"	0.300	1.315	1.315	0.715
	2"	0.375	2.375	2.375	1.625
	4"	0.500	4.500	4.500	3.500

Most Common Types of Alloy Steel Pipe Fittings

Trusted Alloy Steel Pipe Fittings Supplier in India in Custom Shapes and Types

Alloy Steel Elbow

Chrome Moly Tee

ASME B16.9 AS Reducer

Alloy Steel Cap

Chrome Moly Stub End

ASTM A234 AS Cross

Keep IBR Approved Alloy Steel Stub End and Cross Stock for Immediate Despatch With Polished and Pickled Surface Finish

Alloy Steel Stub End Surface Finishes

Bright Annealed (BA) Finish
Mill Finish
Polished Finish
Passivated Finish
Shot Blasted or Sand Blasted Finish
Bead Blast Finish
Hot-Dip Galvanized Finish
Coated Finish
Heat-Treated Finish

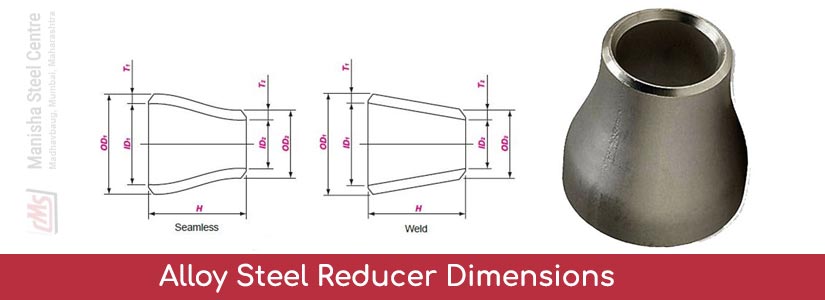

Alloy Steel Reducer Dimensions

RCD Reiso Code	SMALL Ø			BIG Ø			Hight (H) mm	Theoretical Weight in KG (Kilogram)
RCD Reiso Code	(DN)	(D) MM	Thickness Of (S) mm	(DN)	(D) MM	Thickness Of (S) In mm.	Hight (H) mm	Theoretical Weight in KG (Kilogram)
33 21	1/2	21.3	2.0	1	33.7	2.6	50	0.09
33 27	3/4	26.9	2.3	1	33.7	2.6	50	0.09
27 21	1/2	21.3	2.0	3/4	26.9	2.3	38	0.08
42 21	1/2	21.3	2.0	1"1/4	42.4	2.6	50	0.12
42 27	3/4	26.9	2.3					0.13
42 33	1	33.7	2.6					0.14
60 27	3/4	26.9	2.3	2	60.3	2.9	76	0.30
60 33	1	33.7	2.6					0.31
60 42	1"1/4	42.4	2.6					0.32
60 48	1"1/2	48.3	2.6					0.33
*48 21	1/2	21.3	2.0	1"1/2	48.3	2.6	64	0.18
48 27	3/4	26.9	2.3					0.19
48 33	1	33.7	2.6					0.20
48 42	1"1/4	42.4	2.6					0.20
76 33	1	33.7	2.6	2"1/2	76.1	2.9	90	0.40
76 42	1"1/4	42.4	2.6					0.47
76 48	1"1/2	48.3	2.6					0.48
76 60	2	60.3	2.6					0.49
89 42	1"1/4	42.4	2.6	3	88.9	3.2	90	0.55
89 48	1"1/2	48.3	2.6					0.61
89 60	2	60.3	2.9					0.62
89 76	2"1/2	76.1	2.9					0.63
114 48	1"1/2	48.3	2.6	4	114.3	3.6	100	0.85
114 60	2	60.3	2.9					0.98
114 76	2"1/2	76.1	2.9					1.00
114 89	3	88.9	3.2					1.02
139 60	2	60.3	2.9	5	139.7	4.0	127	1.60
139 76	2"1/2	76.1	2.9					1.70
139 89	3	88.9	3.2					1.74
139 114	4	114.3	3.6					1.76
*168 76	2"1/2	76.1	2.9	6	168.3	4.5	140	2.60
168 89	3	88.9	3.2					2.70
168 114	4	114.3	3.6					2.82
168 139	5	139.7	4.0					2.94
219 114	4	114.3	3.6	8	219.1	6.3	152	5.03
219 139	5	139.7	4.0					5.12
219 168	6	168.3	4.5					5.18
*273 114	4	114.3	3.6	10	273.0	6.3	178	7.00
*273 139	5	139.7	4.0					7.20
273 168	6	168.3	4.5					7.40
273 219	8	219.1	6.3					7.55
323 168	6	168.3	4.5	12	323.9	7.1	203	11.00
323 219	8	219.1	6.3					11.10
323 273	10	273	6.3					11.20

Alloy Steel Fittings in Various Grades As Per the Clients Requirements Ideal For Plumbing and Fluid Flow Applications

Alloy Steel Fittings Applications

Oil and Gas Industry
Power Generation
Chemical and Petrochemical Industries
Aerospace and Aviation
Automotive and Heavy Machinery
Construction and Infrastructure
Marine and Shipbuilding Industry

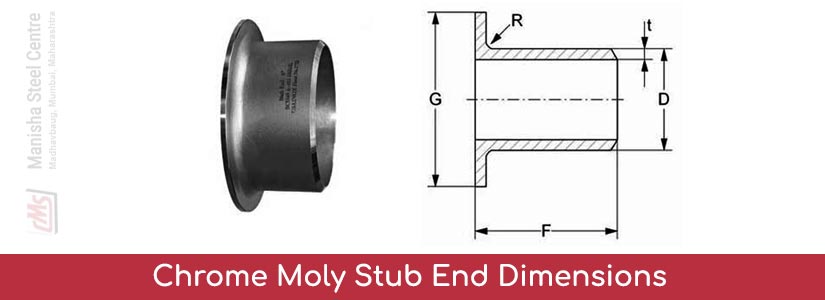

Chrome Moly Stub End Dimensions

NPS	Diameter Of (G)	Radius Of(R)	O.D. For of barrel		Length of (F)
NPS	Diameter Of (G)	Radius Of(R)	(Min.)	(Max.)	Long Pattern	Short Pattern
1″	51	3	32.6	35.0	102	51
1 1/4″	64	5	41.4	43.6	102	51
3″	127	10	88.1	91.3	152	64
1/2″	35	3	20.5	22.8	76	51
3/4″	43	3	25.9	28.1	76	51
3 1/2″	140	10	100.8	104.0	152	76
1 1/2″	74	6	47.5	49.9	102	51
2″	92	8	59.5	62.4	152	64
2 1/2″	105	8	72.2	75.3	152	64
4″	157	11	113.5	116.7	152	76
5″	186	11	140.5	144.3	203	76
6″	216	13	167.5	171.3	203	89
8″	270	13	218.3	222.1	203	102
10″	324	13	272.3	277.2	254	127
12″	381	13	323.1	328.0	254	152
14″	413	13	354.8	359.9	305	152
16″	470	13	405.6	411.0	305	152
18″	533	13	456.0	462.0	305	152
20″	584	13	507.0	514.0	305	152
22″	641	13	558.0	565.0	305	152
24″	692	13	609.0	616.0	305	152

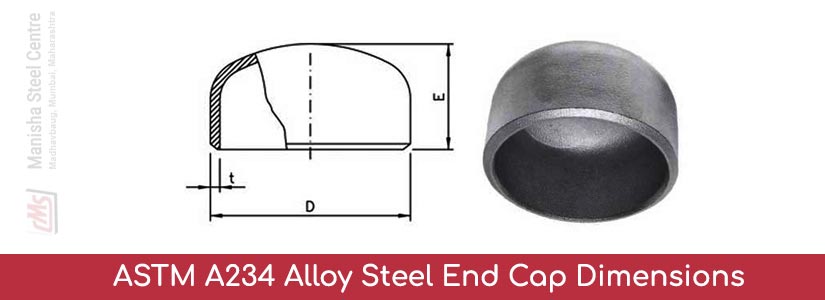

ASTM A234 Alloy Steel End Cap Dimensions

NPS of Pipe Cap	O.D.Of D	Length Of (H1)	Length Of (H)
1/2	21.3	25	25
1.1/4	42.2	38	38
1.1/2	48.3	38	38
2	60.3	44	38
2.1/2	73	51	38
3	88.9	64	51
3.1/2	101.6	76	64
3/4	26.7	25	25
1	33.4	38	38
4	114.3	76	64
5	141.3	89	76
6	168.3	102	89
8	219.1	127	102
10	273	152	127
12	323.8	178	152
14	355.6	191	165
16	406.4	203	178
18	457	229	203
20	508	254	229
22	559	254	254
24	610	305	267
26	660	-	267
28	711	-	267
30	762	-	267
32	813	-	267
34	864	-	237
36	914	-	267
38	965	-	305
40	1016	-	305
42	1067	-	305
44	1118	-	343
46	1168	-	343
48	1219	-	343

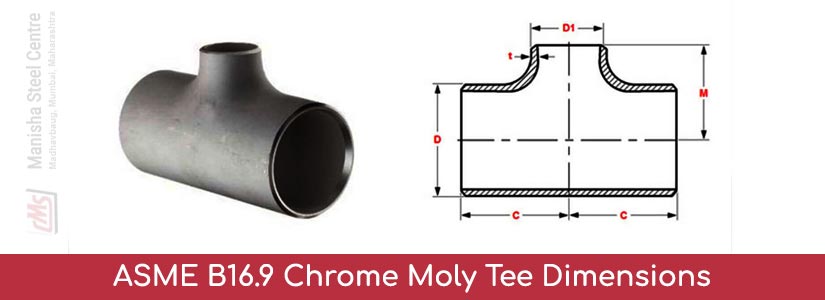

ASME B16.9 Chrome Moly Tee Dimensions

NPS of Equal Tee	Center-to-End		O.D at bevel
NPS of Equal Tee	(C) Run	(M) Outlet	O.D at bevel
1/2"	25	25	21.3
1 1/4"	48	48	42.2
1 1/2"	57	57	48.3
2"	64	64	60.3
3/4"	29	29	26.7
2 1/2"	76	76	73.0
3"	86	86	88.9
3 1/2"	95	95	101.6
1"	38	38	33.4
4"	105	105	114.3
5"	124	124	141.3
6"	143	143	168.3
8"	178	178	219.1
10"	216	216	273.0
12"	254	254	323.8
14"	279	279	355.6
16"	305	305	406.4
18"	343	343	457.0
20"	381	381	508.0
22"	419	419	559.0
24"	432	432	610.0

How to Choose the Right Alloy Steel Pipe Fittings?

Alloy Steel Fittings Length Chart

Equivalent List	O.D And I.D	Threads Size In Inches	Diameter of Nominal Pipe
0.313	5/16	27	1/16
0.405	13/32	27	1/8
0.540	35/64	18	1/4
0.675	43/64	18	3/8
0.840	27/32	14	1/2
1.050	1-3/64	14	3/4
1.315	1-5/16	11-1/2	1
1.660	1-21/32	11-1/2	1-1/4
1.900	1-29/32	11-1/2	1-1/2
2.375	2-3/8	11-1/2	2
2.875	2-7/8	8	2-1/2
3.500	3-1/2	8	3
4.000	4	8	3-1/2
4.500	4-1/2	8	4

Pressure Rating of Alloy Steel Buttweld Fittings

Temperature Ratings		Type of Pressure Class
		150 LBS	300 LBS
			1/4 - 1 Inches	1 1/4 - 2 Inches	2 1/2 - 3 Inches
(oF)	(oC)		1/4 - 1 Inches	1 1/4 - 2 Inches	2 1/2 - 3 Inches
550	288	-	300	300	300
500	260	-	510	450	385
450	232	-	725	600	475
400	204	-	935	750	560
350	177	150	1150	900	650
300	149	185	1360	1050	735
250	121	225	1575	1200	825
200	93	265	1785	1350	910
-20 to 150	-29 to 66	300	2000	1500	1000

How do I ensure proper Maintenance of Alloy Steel Pipe Fittings?

Regular Inspection
Preventive Maintenance
Replace Worn or Damaged Fittings
Handle Thermal Expansion
Avoid Overloading the System
Protect Fittings from External Damage
Proper Documentation and Records

Alloy Steel Fittings Chemical Composition

Grades	Mn	Si	Mo	C	Cr	S	P
WP1	0.30-0.90	0.10-0.50	0.44-0.65	0.28	–	0.045	0.045
WP91	0.30-0.60	0.20-0.50	0.85-1.05	0.08-0.12	0.85-1.05	0.010	0.020
WP911	0.30-0.60	0.10-0.50	0.90-1.10	0.09-0.13	0.90-1.10	0.010	0.020
WP92	0.30-0.60	0.50	0.30-0.60	0.07-0.13	0.30-0.60	0.010	0.020
WP12 CL1, WP12 CL2	0.30-0.80	0.60	0.44-0.65	0.05-0.20	0.80-1.25	0.045	0.045
WP5 CL1, WP5 CL3	0.30-0.60	0.50	0.44-0.65	0.15	4.0-6.0	0.030	0.040
WP9 CL1, WP9 CL3	0.30-0.60	1	0.90-1.10	0.15	8.0-10.0	0.030	0.030
WP11 CL1	0.30-0.60	0.50-1	0.44-0.65	0.05-0.15	1-1.50	0.030	0.030
WP11 CL2, WP11 CL3	0.30-0.80	0.50-1	0.44-0.65	0.05-0.20	1-1.50	0.040	0.040
WP22 CL1, WP22 CL3	0.30-0.60	0.50	0.87-1.13	0.05-0.15	1.90-2.60	0.040	0.040
WP24	0.30-0.70	0.15-0.45	0.90-1.10	0.05-0.10	2.20-2.60	0.010	0.020
WPR	0.40-1.06	–	–	0.20	–	0.050	0.045

Mechanical Properties of Alloy Steel Buttweld Fittings

Grades	Yield Strength, min. ksi[MPa]	Tensile Strength, min. ksi[MPa]	Elongation, min. %
Grades	Yield Strength, min. ksi[MPa]	Tensile Strength, min. ksi[MPa]	Longitudinal	Transverse
WP1	30[205]	55-80[380-550]	20	13
WP12 CL1	32[220]	60[415]	22	14
WP12 CL2	40[275]	70[485]	22	14
WP11 CL1	30[205]	60[415]	22	14
WP11 CL2	40[275]	70[485]	22	14
WP11 CL3	45[310]	75[520]	22	14
WP22 CL1	30[205]	60[415]	22	14
WP22 CL3	45[310]	75[520]	22	14
WP24	60[415]	85[585]	20	–
WP5 CL1	30[205]	60[415]	22	14
WP5 CL3	45[310]	75[520]	22	14
WP9 CL1	30[205]	60[415]	22	14

Check Available Stock of Alloy Steel Pipe Fittings

High Quality Alloy Steel 6 Inch Equal Tee Reducer

High Quality ASME B16.9 Alloy Steel Cap

ASME B16.9 Alloy Steel Lap Joint Stub End

A234 WP5 Alloy Steel 90 deg LR Elbow

High Quality Alloy Steel 6 Inch Equal Tee

Hot Rolled Alloy Steel Equal Reducing Cross

Alloy Steel Pipe Fittings Delivery Time As Per Location

Cost Changes Extra 5 %
Export to	Delivery Time in Days
Singapore	8
Germany	25-30
Uk	30
Italy	30
Philippines	14
France	30
Belgium	10
Indonesia	9
UAE	5 days
Saudi Arabia	7
USA	40-60
Qatar	7
Oman	5
Kuwait	10
Netherlands	9

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
