Stainless Steel Elbow Manufacturer in India

Home|Stainless Steel Elbow

2 Inch SS 90 Degree Elbow Fittings Supplier in Mumbai at Cheapest Price

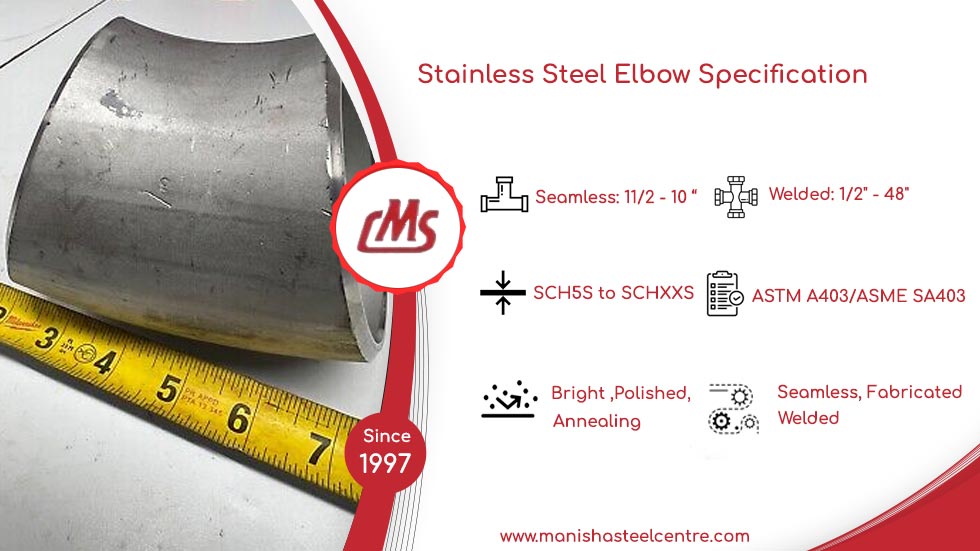

Stainless Steel Elbow Specification



5 Advantages for Engineers in Brazil to buy Stainless Steel Elbow from India
Advantage Details
Cost-Effectiveness Lower prices from India.
High-Quality Standards International quality certifications.
Wide Variety Multiple sizes and specifications.
Experienced Manufacturers Skilled in stainless steel production.
Timely Delivery Efficient shipping to Brazil.
Manisha Steel Centre

Table of Content

Stainless Steel Elbow Specification
Stainless Steel Elbow Sizes

Stainless Steel Elbow Sizes

  • Welded Fittings: 1/2" - 48"
  • Seamless Fittings: 1/2 - 10"
  • Schedule : SCH10 - SCH60
  • End : Plain Bevel, Compound Bevel, Buttweld, Bevelled
Stainless Elbows Manufacturing Standards

Stainless Elbows Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9, ASME B16.28
  • 100% Tested With MTC EN 10204/3.1

304 Stainless Weld Elbows Physical Properties

304 Stainless Weld Elbows Physical Properties

  • Melting Point:1,400°C to 1,450°C
  • Density:7.93 g/cm³
  • Heat Treatment: 500 J/kg·K
90 Degree Stainless Steel Pipe Elbows Process

90 Degree Stainless Steel Pipe Elbows Process

  • Seamless
  • Fabricated
  • Welded
Stainless Steel Elbow Types

Stainless Steel Elbow Types

  • 45 Degree Elbow
  • 90 Degree Elbow
  • Tube Elbows
  • Street Elbow
316 SS 45 Degree Elbow International Standards

316 SS 45 Degree Elbow International Standards

  • UNS: S31600
  • ASME SA403 | ASTM A403
  • WNR:1.4401 / 1.4436
Stainless Steel Street Elbow Bending Radius

Stainless Steel Street Elbow Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
304 Stainless Steel 90 Degree Elbow Origin

304 Stainless Steel 90 Degree Elbow Origin

  • European
  • Janpanese
  • Russia
  • American
Stainless 90 Degree Elbow Services

Stainless 90 Degree Elbow Services

  • Shearing
  • Heat Treatment
  • Cutting
Stainless Steel Elbow Packaging

Stainless Steel Elbow Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
Stainless Steel Pipe Elbows Surface Finish

Stainless Steel Pipe Elbows Surface Finish

  • Pickled
  • Polished
45 Degree Stainless Weld Elbows Testing

45 Degree Stainless Weld Elbows Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test
Stainless Steel Pipe Elbows Price

Are You Trying to Find the Best Deal on Stainless Steel Elbow? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

Types Price in USD
10° Elbow, SR, BW US $12.20
90° Elbow, SR, BW US $8.20
30° Elbow, SR, BW US $13.15
40° Elbow, SR, BW US$8.30
45° Elbow, BW US $10.25
SS Long Radius Elbow Weight
Nominal Size Schedule 40
DN NPS 45 Degree 90 Degree
50 2 0.37 0.66
65 2 1/2 0.77 1.37
80 3 1.23 2.19
90 3 1/2 1.66 2.96
15 1/2 0.04 0.08
25 1 0.08 0.15
200 8 12.1 31.6
250 10 20.72 37
125 5 3.86 6.89
150 6 5.99 10.7
20 3/4 0.06 0.11
500 20 82.32 147
550 22 99.68 178
300 12 31.36 56
100 4 2.31 4.13
350 14 39.98 71.4
400 16 52.42 93.6
32 1 1/4 0.14 0.25
40 1 1/2 0.22 0.39
450 18 66.64 119
600 24 118.72 212

Find here ASTM A403 304 and 316 Stainless Steel 45 Degree Elbow Ready Stock in Size 1/2 to 48″Or Custom

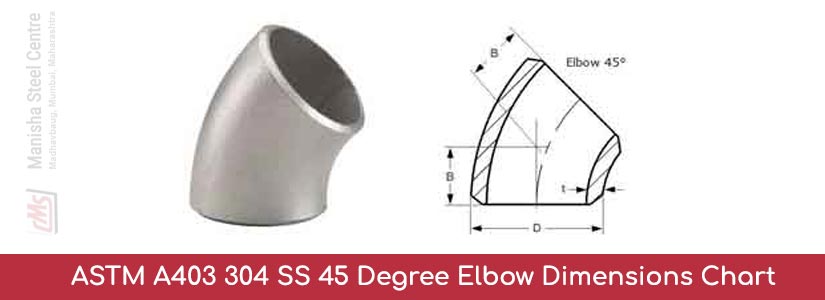

ASTM A403 304 SS 45 Degree Elbow Dimensions Chart

Genuine Stainless Steel Elbow Manufacturer in India As Per Specification

ASTM A403 304 SS 45 Degree Elbow Dimensions Chart



NPS O.D. D 45 deg 3D Center to End B 45 deg Long Rad Center to End B
1 33.4 31 22
1.1/4 42.2 39 25
1.1/2 48.3 47 29
2 60.3 63 35
2.1/2 73 79 44
3 88.9 95 51
42 1067 1326 660
16 406.4 505 254
12 323.8 378 190
14 355.6 441 222
8 219.1 252 127
10 273 316 159
44 1118 1389 695
38 965 1200 600
40 1016 1264 632
28 711 883 438
18 457 568 286
20 508 632 318
46 1168 1453 727
30 762 964 470
32 813 1010 502
34 864 1073 533
1/2 21.3 … 16
3/4 26.7 24 19
3.1/2 101.6 111 57
4 114.3 127 64
36 914 1135 565
22 559 694 343
24 610 757 381
26 660 821 406
5 141.3 157 79
6 168.3 189 95
48 1219 1516 759

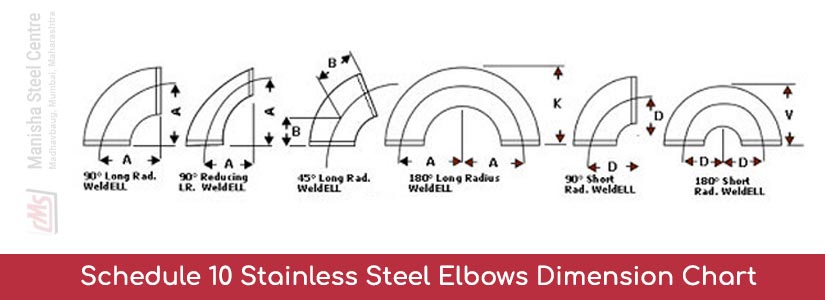

Schedule 10 Stainless Steel Elbows Dimension Chart
Schedule 10 Stainless Steel Elbows Dimension Chart



NPS OD SS 45° Elbows SS 90° Elbows SS 180° Returns
(inch.) LR LR SR LR
(mm) (inch.) Center to Face (inch.) Radius (inch.) Center to Face (inch.) Center to Face (inch.) Center to Center (inch.) Back to face (inch.)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8
Short Radius SS Elbow Pressure
NPS (inches) OD (inch) Pipe Sch Wall Thick. (inch) Temperature (oF)
100 200 300 400 500 600 650 700 750
Allowable Stress (psi)
16700 16700 16700 15500 14400 13500 13200 12900 12600
1 1/2" 1.900 40 0.145 1629 1629 1629 1512 1404 1317 1287 1258 1229
1.900 80 0.200 2303 2303 2303 2138 1986 1862 1821 1779 1738
1.900 160 0.281 3362 3362 3362 3120 2899 2717 2657 2597 2536
3" 3.500 40 0.216 1301 1301 1301 1208 1122 1052 1028 1005 982
3.500 80 0.300 1844 1844 1844 1712 1590 1491 1458 1425 1391
3.500 160 0.438 2787 2787 2787 2587 2403 2253 2203 2153 2103
1" 1.315 40 0.133 2205 2205 2205 2047 1902 1783 1743 1703 1664
1.315 80 0.179 3061 3061 3061 2841 2640 2475 2420 2365 2310
1.315 160 0.250 4493 4493 4493 4170 3874 3632 3552 3471 3390
2" 2.375 40 0.154 1371 1371 1371 1272 1182 1108 1083 1059 1034
2.375 80 0.218 1985 1985 1985 1843 1712 1605 1569 1534 1498
2.375 160 0.344 3283 3283 3283 3047 2831 2654 2595 2536 2477
5" 5.563 40 0.258 965 965 965 896 832 780 763 746 728
5.563 80 0.375 1428 1428 1428 1325 1231 1154 1129 1103 1077
5.563 160 0.625 2474 2474 2474 2296 2133 2000 1955 1911 1866
4" 4.500 40 0.237 1102 1102 1102 1023 950 891 871 851 831
4.500 80 0.337 1596 1596 1596 1482 1377 1291 1262 1233 1204
4.500 160 0.531 2611 2611 2611 2424 2552 2111 2064 2017 1970
8" 8.625 40 0.322 771 771 771 716 665 623 610 596 582
8.625 80 0.500 1218 1218 1218 1131 1050 985 963 941 919
8.625 160 0.906 2298 2298 2298 2133 1982 1858 1817 1775 1734
6" 6.625 40 0.280 877 877 877 814 756 709 693 677 661
6.625 80 0.432 1379 1379 1379 1280 1189 1115 1090 1065 1040
6.625 160 0.719 2382 2382 2382 2211 2054 1925 1883 1840 1797
10" 10.750 40 0.365 699 699 699 649 603 565 553 540 528
10.750 80 0.594 1159 1159 1159 1075 999 937 916 895 874
10.750 160 1.125 2289 2289 2289 2124 1974 1850 1809 1768 1727
45 Degree Stainless Steel Elbow Dimension Tolerance
NPS 32 to 48 26 to 30 20 to 24 10 to 18 5 to 8 4 3 to 3½ 1/2 to 2½
OD at Bevel (D) + 6.4 ,– 4.8 + 6.4, – 4.8 + 6.4, – 4.8 + 4 ,– 3.2 + 2.4, – 1.6 1.6 1.6 + 1.6, – 0.8
ID at End + 6.4, – 4.8 + 6.4, – 4.8 4.8 3.2 1.6 1.6 1.6 0.8
Center-to-End 3D (A/B) 6 6 3 3 3 3 3 3
Center-to-End LR (A/B) 5 3 2 2 2 2 2 2
Wall Thickness (t) 87.5% or more of the Nominal Wall Thickness

Buy Stainless Steel Street and Weld Elbows As Per ASME B16.9 in Both Seamless and Welded Form

SS 45 Threaded Elbow Price
Sizes Price in USD
1/8" US $2.81
1/4" US $3.01
3/8" US $3.41
1/2" US $5.06
3/4" US $7.90
1" US $13.14
1 1/4" US $14.67
1 1/2" US $22.07
2" US $31.73
2 1/2" US $65.77
3" US $80.70
4" US $131.60
Most Common Types Of SS Elbows

Trusted Stainless Steel Elbow Supplier in India in Custom Shapes and Types

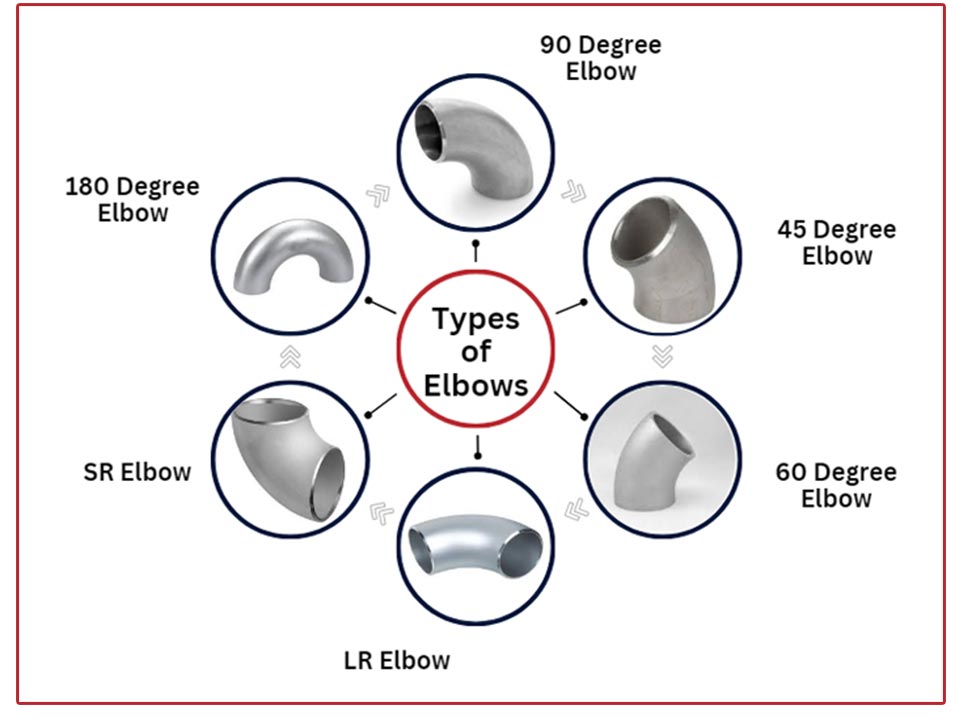

Types Of SS Elbows



Stainless Steel Pipe Elbow

Stainless Steel Pipe Elbow

ASTM A403 Stainless Steel Street Elbow

ASTM A403 Stainless Steel Street Elbow

Stainless Steel 90 Degree Elbow

Stainless Steel 90 Degree Elbow

ASME B16.9 SS 45 Degree Elbow

ASME B16.9 SS 45 Degree Elbow

Stainless Threaded Elbow

Stainless Threaded Elbow

SS Reducing Elbow

SS Reducing Elbow

304 Stainless Steel Exhaust Elbow

304 Stainless Steel Exhaust Elbow

316 Stainless Steel Tube Elbows

316 Stainless Steel Tube Elbows

Offer Long and Short Radius SS Threaded and Reducing Elbow With Various Thickness, See Dimensions and Weight Chart
SS 1D Elbow Sizes
Size Wall Thickness Radius   Approx. Weight in Kg
DN OD s a e
inch mm mm mm mm mm 45° 90°
1½ 40 44.5 1.5 40 17 0.06 0.14
2½ 65 76 2 70 29 0.23 0.46
2 50 57 1.5 52.5 22 0.10 0.20
8 200 219 3 210 87 3.00 6.00
12 300 324 4 305 126 8.55 17.10
10 250 267 3 255 106 4.44 8.88
18 450 457 4.5 457 189 20.45 40.90
16 400 419 4 400 166 16.40 32.80
5 125 133 2.5 125 52 0.90 1.80
4 100 108 2.5 100 41 0.58 1.16
1¼ 32 38 1.5 32.5 14 0.03 0.08
1 25 30 1.5 30 12 0.03 0.05
20 500 508 5 508 210 28.10 56.20
28 700 711 6 711 295 66.00 132.00
24 600 610 5 610 253 40.50 81.00
36 900 914 8 914 379 145.50 291.00
3 80 89 2 82.5 34 0.32 0.64
6 150 159 2.5 150 62 1.30 2.60
7 175 194 3 180 75 1.90 3.80
14 350 368 4 352.5 146 11.30 22.60
32 800 813 6 813 337 86.50 173.00

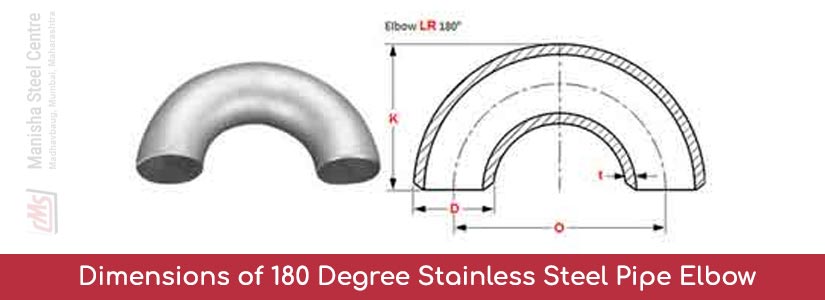

Dimensions of 180 Degree Stainless Steel Pipe Elbow
Dimensions of 180 Degree Stainless Steel Pipe Elbow



NPS O.D. D 180 deg Short Rad 180 deg Long Rad
Center to Center O Back to Face K Center to Center O Back to Face K
1/2 21.3 … … 76 48
3/4 26.7 … … 76 51
4 114.3 203 159 305 210
5 141.3 254 197 381 262
1 33.4 51 41 76 56
1.1/4 42.2 64 52 95 70
12 323.8 610 467 914 619
14 355.6 711 533 1067 711
16 406.4 813 610 1219 813
18 457 914 686 1372 914
20 508 1016 762 1524 1016
1.1/2 48.3 76 62 114 83
2 60.3 102 81 152 106
3.1/2 101.6 178 140 267 184
6 168.3 305 237 457 313
8 219.1 406 313 610 414
2.1/2 73 127 100 190 132
10 273 508 391 762 518
22 559 1118 838 1676 1118
3 88.9 152 121 229 159
24 610 1219 914 1829 1219
Weight Chart of SS Elbow
NPS inches ELBOWS SR 90° ELBOWS LR 90°
Sch.5S Sch.10S Sch.40S Sch.80S Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.03 0.04 0.05 0.07 0.05 0.06 0.08 0.10
3/4 0.04 0.05 0.06 0.07 0.06 0.07 0.09 0.11
1 0.06 0.10 0.12 0.13 0.09 0.15 0.18 0.20
1 1/2 0.12 0.20 0.27 0.33 0.18 0.30 0.40 0.50
1 1/4 0.09 0.13 0.17 0.12 0.13 0.20 0.25 0.35
2 0.20 0.33 0.47 0.60 0.30 0.50 0.70 0.90
2 1/2 0.40 0.60 0.90 1.20 0.60 0.85 1.35 1.80
3 0.60 0.90 1.35 1.90 0.90 1.30 2.00 2.90
4 0.90 1.35 2.65 3.90 1.40 2.00 4.00 5.90
5 1.95 2.40 4.35 6.50 2.90 3.60 6.50 9.70
6 2.70 3.35 7.00 10.5 4.00 5.00 10.5 16.0
8 4.90 6.70 14.5 22.5 7.40 10.0 21.5 33.5
10 9.10 11.2 25.6 35.0 13.6 16.8 38.5 52.5
12 15.6 18.0 39.5 53.0 23.4 27.0 59.0 79.0
14 19.3 23.5 47.0 63.0 29.0 35.0 70.0 94.0
16 27.5 31.5 63.5 84.0 41.3 47.0 95.0 125
18 34.5 39.5 80.0 105 51.8 59.0 120 158
20 49.0 57.0 98.0 129 73.0 85.0 146 194
24 82.0 94.0 140 188 122 140 210 282
Dimension of ASTM A403 Stainless Steel 1.5D Elbow
Inside Wall Center Line Weight
Diameter Thickness Radius Per Piece
‘A’ mm ‘B’ mm ‘C’ mm Kg
50 2.00 73 0.31
100 2.00 150 1.20
80 2.00 123 0.77
100 3.00 150 1.79
150 2.00 225 2.69
40 1.50 60 0.20
15 1.50 30 0.03
25 1.50 32.5 0.06
20 1.50 35 0.04
32 1.50 45 0.11
125 2.00 188 1.88
65 2.00 95 0.52
150 3.00 225 4.09
Stockist Of Stainless Steel Pipe Elbows, Stock 3 Inch 90 Degree Exhaust Elbow Stainless Steel

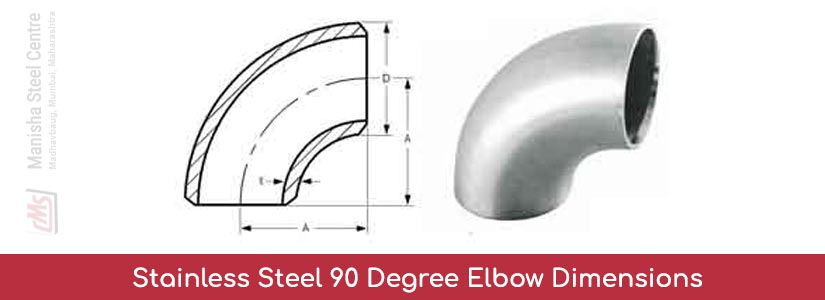

Stainless Steel 90 Degree Elbow Dimensions
Stainless Steel 90 Degree Elbow Dimensions



NPS O.D. D 90 deg 3D Center to End A 90 deg Long Radius Center to End A
1/2 21.3 … 38
2 60.3 152 76
2.1/2 73 190 95
3 88.9 229 114
3.1/2 101.6 267 133
4 114.3 305 152
5 141.3 381 190
6 168.3 457 229
8 219.1 610 305
10 273 762 381
42 1067 3200 1600
44 1118 3353 1676
46 1168 3505 1753
1.1/2 48.3 114 57
22 559 1676 838
12 323.8 914 457
14 355.6 1067 533
20 508 1524 762
3/4 26.7 57 38
1 33.4 76 38
1.1/4 42.2 95 48
26 660 1981 991
28 711 2134 1067
30 762 2286 1143
32 813 2438 1219
34 864 2591 1295
36 914 2743 1372
38 965 2896 1448
16 406.4 1219 610
18 457 1372 686
48 1219 3658 1829
40 1016 3048 1524
24 610 1829 914
Are there specific tools or dies needed for different elbow sizes?
Specific Tools or Dies for Different Elbow
  • Size-Specific Dies
  • Angle-Specific Dies
  • Material-Specific Tools
  • Mandrels and Forming Tools
  • Hydraulic or Pneumatic Press Components
  • Beveling and End-Finishing Tools
Stainless Steel Elbow HSN Code
Description HSN Code
Stainless Steel Elbow 73041910
Difference between Long-radius and Short-radius SS Elbows?
Feature Long-Radius Elbow Short-Radius Elbow
Radius of Curvature 1.5 times the pipe diameter (1.5D) Equal to the pipe diameter (1D)
Flow Characteristics Provides smoother flow with minimal pressure drop Higher turbulence and pressure drop
Space Requirement Requires more space for installation Fits in tight or restricted spaces
Pressure Resistance Handles lower pressure compared to short-radius Better for high-pressure systems
Applications Used in pipelines where flow efficiency is critical Used in compact spaces or when space is limited
Cost Slightly higher due to material usage Lower due to smaller size

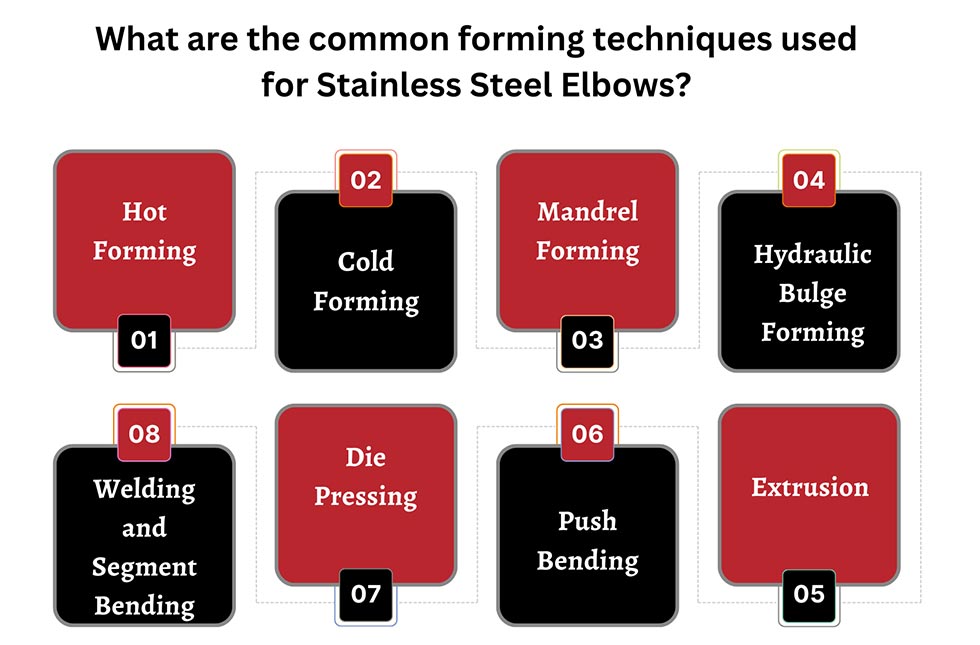

What are the common forming techniques used for SS Elbows?
Forming Techniques for Stainless Steel Elbows
SS Street Elbow Equivalent Standards
Grades UNS WERKSTOFF NR. EN JIS BS GOST AFNOR
SS 304 S30400 1.4301 X5CrNi18-10 SUS 304 304S31 08Х18Н10 Z7CN18‐09
SS 304L S30403 1.4306 / 1.4307 X2CrNi18-9 / X2CrNi19-11 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10
SS 304H S30409 1.4301 – – – – –
SS 310 S31000 1.4841 X15CrNi25-20 SUS 310 310S24 20Ch25N20S2 –
SS 310S S31008 1.4845 X8CrNi25-21 SUS 310S 310S16 20Ch23N18 –
SS 310H S31009 – – – – – –
SS 316 S31600 1.4401 / 1.4436 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 SUS 316 316S31 / 316S33 – Z7CND17‐11‐02
SS 316L S31603 1.4404 / 1.4435 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 316H S31609 1.4401 – – – – –
SS 316Ti S31635 1.4571 X6CrNiMoTi17-12-2 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17‐123
SS 317 S31700 1.4449 – SUS 317 – – –
SS 317L S31703 1.4438 X2CrNiMo18-15-4 SUS 317L – – –
SS 321 S32100 1.4541 X6CrNiTi18-10 SUS 321 – – –
SS 321H S32109 1.4878 X12CrNiTi18-9 SUS 321H – – –
SS 347 S34700 1.4550 X6CrNiNb18-10 SUS 347 – 08Ch18N12B –
SS 347H S34709 1.4961 X6CrNiNb18-12 SUS 347H – – –
SS 904L N08904 1.4539 X1NiCrMoCu25-20-5 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20
Stainless Steel Weld Elbows Chemical Composition
Grades Cr (%) Mo (%) P (%) S (%) Mn (%) Ni (%) C (%) Si (%)
SS 304 18.00 – 20.00 — 0.045 max 0.03 max 2.00 max 8.00 – 10.50 0.08 max 0.75 max
SS 304L 18.00 – 20.00 — 0.045 max 0.03 max 2.00 max 8.00 – 12.00 0.03 max 0.75 max
SS 304H 18.00 – 20.00 — 0.045 max 0.03 max 2.00 max 8.00 – 12.00 0.04 – 0.10 1.00 max
SS 310 24.00 – 26.00 — 0.045 max 0.03 max 2.00 max 19.00 – 22.00 0.25 max 1.50 max
SS 310S 24.00 – 26.00 — 0.045 max 0.03 max 2.00 max 19.00 – 22.00 0.08 max 1.50 max
SS 316 16.00 – 18.00 2.00 – 3.00 0.045 max 0.03 max 2.00 max 10.00 – 14.00 0.08 max 0.75 max
SS 316L 16.00 – 18.00 2.00 – 3.00 0.045 max 0.03 max 2.00 max 10.00 – 14.00 0.03 max 0.75 max
SS 316Ti 16.00 – 18.00 2.00 – 3.00 0.045 max 0.03 max 2.00 max 10.00 – 14.00 0.08 max 0.75 max
SS 317 18.00 – 20.00 3.00 – 4.00 0.045 max 0.03 max 2.00 max 11.00 – 15.00 0.10 max 1.00 max
SS 317L 18.00 – 20.00 3.00 – 4.00 0.045 max 0.03 max 2.00 max 11.00 – 15.00 0.03 max 1.00 max
SS 321 17.00 – 19.00 — 0.045 max 0.03 max 2.00 max 9.00 – 12.00 0.08 max 1.00 max
SS 321H 17.00 – 19.00 — 0.045 max 0.03 max 2.00 max 9.00 – 12.00 0.04 – 0.10 1.00 max
SS 347 17.00 – 19.00 — 0.045 max 0.03 max 2.00 max 9.00 – 13.00 0.08 max 1.00 max
SS 410 11.50 – 13.50 — 0.04 max 0.03 max 1.00 max — 0.15 max 1.00 max
SS 446 23.00 – 28.00 — 0.04 max 0.03 max 1.50 max — 0.20 max 1.00 max
SS 904L 19.00 – 23.00 4.00 – 5.00 0.045 max 0.03 max 2.00 max 24.00 – 26.00 0.02 max 1.00 max
Mechanical Properties of SS Pipe Elbows
Grade Yield Strength (MPa) Tensile Strength (MPa) Modulus of Elasticity (GPa) Hardness (HRB) Poisson’s Ratio Elongation (%)
SS 304L 205 520 – 720 193 85 – 95 0.29 40 – 50
SS 304H 205 520 – 720 193 85 – 95 0.29 40 – 50
SS 310 205 – 275 515 – 740 193 90 – 105 0.29 40 – 50
SS 310S 205 – 275 515 – 740 193 90 – 105 0.29 40 – 50
SS 316 205 520 – 720 193 85 – 95 0.29 40 – 50
SS 316L 205 520 – 720 193 85 – 95 0.29 40 – 50
SS 316Ti 205 520 – 720 193 85 – 95 0.29 40 – 50
SS 317 205 520 – 730 193 85 – 95 0.29 40 – 50
SS 317L 205 520 – 730 193 85 – 95 0.29 40 – 50
SS 321 205 520 – 720 193 85 – 95 0.29 40 – 50
SS 321H 205 520 – 720 193 85 – 95 0.29 40 – 50
SS 347 205 520 – 720 193 85 – 95 0.29 40 – 50
SS 410 205 520 – 720 190 85 – 95 0.28 35 – 45
SS 446 205 520 – 720 190 85 – 95 0.28 40 – 50
SS 904L 205 520 – 720 193 85 – 95 0.29 40 – 50
ASTM A403 SS Tube Elbows Physical Properties
Grades Melting Point (°C) Density (g/cm³) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K) Coefficient of Thermal Expansion (μm/m·°C)
SS 304 1,400–1,450 8.00 0.072 16.2 16.0
SS 304L 1400 – 1450 7.93 72.3 16.2 16.0
SS 304H 1400 – 1450 7.93 72.3 16.2 16.0
SS 310 1400 – 1450 7.90 72.0 14.0 17.0
SS 310S 1400 – 1450 7.90 72.0 14.0 17.0
SS 316 1375 – 1400 7.98 74.0 16.3 16.5
SS 316L 1375 – 1400 7.98 74.0 16.3 16.5
SS 316Ti 1375 – 1400 7.98 74.0 16.3 16.5
SS 317 1375 – 1400 7.95 74.5 16.3 16.5
SS 317L 1375 – 1400 7.95 74.5 16.3 16.5
SS 321 1400 – 1450 7.93 74.0 16.2 16.0
SS 321H 1400 – 1450 7.93 74.0 16.2 16.0
SS 347 1400 – 1450 7.93 74.0 16.2 16.0
SS 410 1480 – 1530 7.75 78.0 30.0 11.5
SS 446 1400 – 1450 7.80 76.0 30.0 11.5
SS 904L 1350 – 1400 8.00 70.0 15.0 16.0
How does a 304 SS Elbow differ from a 316 SS Elbow?
Feature 304 Elbow 316 Elbow
Composition 18% Cr, 8% Ni 16% Cr, 10% Ni, 2% Mo
Corrosion Resistance Good Superior (chlorides & acids)
Strength Moderate Higher in harsh conditions
Applications General-purpose Marine, chemical, pharmaceutical
Cost Lower Higher
Chloride Resistance Moderate High
How do you ensure a leak-free connection with Stainless Elbows?
  • Preparation
  • Alignment
  • Joining Method
  • Securing
  • Testing
  • Inspection
Check Available Stock

Manisha Steel Centre is one of the major Stainless Steel Elbow Manufacturers in India that offers a vast range of steel elbows to multiple industries.

Long Radius Stainless Steel 180 Degree Elbow

Long Radius Stainless Steel 180 Degree Elbow

A403 12 INCH SCH40S Stainless Steel 90 Degree Elbow

A403 12 INCH SCH40S Stainless Steel 90 Degree Elbow

4 Inch ASME B16.9 ASME A403 WP304 Butt Weld Stainless Steel Elbow

4 Inch ASME B16.9 ASME A403 WP304 Butt Weld Stainless Steel Elbow

90 Degree High Pressure Stainless Steel Elbow

90 Degree High Pressure Stainless Steel Elbow

316L SS 180 Degree LR Butt Welding Elbow

316L SS 180 Degree LR Butt Welding Elbow

Sch10s Stainless Steel ASME B16.9 45 Deg Short Radius Elbow

Sch10s Stainless Steel ASME B16.9 45 Deg Short Radius Elbow

Stainless Steel Elbow Delivery Time As Per Location
Variations in Price 5 % extra
Export to Delivery Time in Days
Uk 30
Malaysia 10
France 30
South Africa 25-30
Belgium 6-9
Netherlands 19-20
Germany 15-50
Italy 30
Philippines 14
Indonesia 9
Bahrain 9
Qatar 7
UAE 5 days
Oman 5
Saudi Arabia 7
Singapore 8
Kuwait 10
USA 40-60
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
