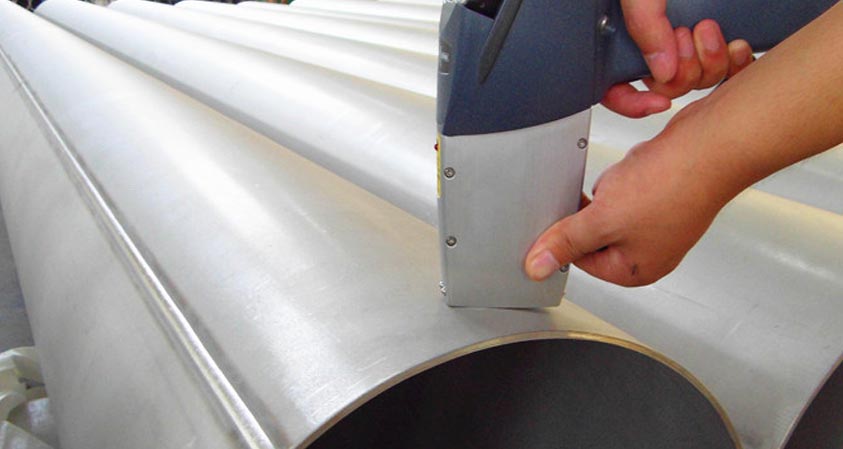

SA 358 Grade TP304 Class 3 EFW Electric Fusion Welded Pipe Testing
ASTM A358 TP304 Class 4 EFW Stainless Steel Pipe Manufacturing Process
ASTM A358 TP304 Class 2 EFW Welding Pipe Schedule
ASME SA 358 Grade 304 EFW Stainless Steel Pipe Standards
ASTM A358 TP304 Material Documentation
SA 358 Gr 304 Electric Fusion Welded Pipe Shapes
ASTM A358 GR .TP304 Electric Fusion Straight Weld Pipe Origin
SA 358 Gr 304 EFW Austenitic Chromium Nickel Stainless Steel Pipe Services
ASTM A358 TP304 Class 5 Electric Fusion Welded Steel Pipe Packaging
ASME SA 358 TP 304 Cl 1 EFW Pipe Finish
ASTM A358 TP304 Cl 1 Electric Fusion Welded Steel Pipe End
The ASTM A358 TP304 Pipe Manufacturer in India provides a large range of diameters and sizes to meet the needs of its customers.
| NPS Designator |
Outside Diameter | Nominal Wall Thickness | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | Schedule 10SA | Schedule 5SA | Schedule 80SA | Schedule 40SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 18 | 457.20 | 18.000 | 0.188B | 4.78B | 0.165 | 4.19 | … | … | … | … |
| 8 | 219.08 | 8.625 | 0.148 | 3.76 | 0.109 | 2.77 | 0.500 | 12.70 | 0.322 | 8.18 |
| 16 | 406.40 | 16.000 | 0.188B | 4.78B | 0.165 | 4.19 | … | … | … | … |
| 10 | 273.05 | 10.750 | 0.165 | 4.19 | 0.134 | 3.40 | 0.500B | 12.70B | 0.365 | 9.27 |
| 20 | 508.00 | 20.000 | 0.188B | 4.78B | 0.188 | 4.78 | … | … | … | … |
| 12 | 323.85 | 12.750 | 0.180 | 4.57 | 0.156 | 3.96 | 0.500B | 12.70B | 0.375B | 9.52B |
| 22 | 558.80 | 22.000 | 0.218B | 5.54B | 0.188 | 4.78 | … | … | … | … |
| 14 | 355.60 | 14.000 | 0.188B | 4.78B | 0.156 | 3.96 | … | … | … | … |
| 30 | 762.00 | 30.000 | 0.312 | 7.92 | 0.250 | 6.35 | … | … | … | … |
| 24 | 609.60 | 24.000 | 0.250 | 6.35 | 0.218 | 5.54 | … | … | … | … |
Are You Trying to Find ASTM A358 TP304 Pipe at a Discount? To get an estimate immediately, send an email. kalpesh@manishasteelcentre.com.
Currency |
|||||
|---|---|---|---|---|---|
| Manufacturer of | Europe EURO / MTR | India INR / MTR | Singapore $ / MTR | USA $ / MTR | Malaysia Ringgit / MTR |
| ASTM A358 Pipe GR 304 EFW PIPE Size: 42INCH | 625.83 | 56,610 | 1022.09 | 766.64 | 3113.31 |
| A358 Pipe GR 304 CL 1 SCH 60 EFW PIPE Size:24 INCH | 964.56 | 87,250 | 1575.30 | 1181.58 | 4798.38 |
| Class | Testing & Welding | Explanation |
|---|---|---|
| CL1 | Double welded, radiographed | Full inspection |
| CL2 | Double welded, no radiography | No radiography |
| CL3 | Single welded, radiographed | Single pass, full inspection |
| CL4 | Single welded, no filler, radiographed | Inside weld filler-less |
| CL5 | Double welded, spot radiographed | Spot inspection |
Superior quality goods and forms are delivered by Manisha Steel Centre, an ASTM A358 TP304 Pipe Supplier in India.
ASTM A358 TP304 EFW Pipe
ASME SA 358 TP 304 Electric Fusion Welded Pipe
ASTM A358 TP304 Class 2 Electric Fusion Straight Weld Pipe
ASME SA 358 TP 304 Cl 1 Electric Fusion Welded Steel Pipe
ASTM A358 Type 304 EFW Austenitic Chromium Nickel Stainless Steel Pipe
ASME SA 358 Grade 304 EFW Stainless Steel Pipe
ASTM A358 TP304 Class 4 EFW Welding Pipe
SA 358 Grade TP304 EFW Electric Fusion Welded Pipe
| Property | ASTM A312 | ASTM A358 |
|---|---|---|
| Pipe Type | Seamless and welded pipes | Welded pipes only |
| Grades | TP304, TP304L, TP316, TP316L, TP321, TP347 | TP304, TP304L, TP316L, TP347 |
| Heat Treatment | Solution annealed and stress relieved | Normalized, solution annealed and fully annealed depending |
| Radiography | Not mandatory unless specified | Class 1: Completely radiographed Class 2: No radiography Class 3: Completely radiographed Class 4: No filler on inside weld, radiographed Class 5: Spot radiographed |
| Wall Thickness | 0.5 mm to 100 mm | 1.6 mm to 50 mm |
| Application Temperature | up to ~800°F (427°C) | up to ~1500°F (815°C) |
| Grade | UNS No | Euronorm | Japanese JIS | Old British | Swedish SS | ||
|---|---|---|---|---|---|---|---|
| No | Name | BS | En | ||||
| 304 | S30400 | 1.4301 | X5CrNi18-10 | SUS 304 | 304S31 | 58E | 2332 |
| Grade | Yield Strength | Tensile Strength | Elongation | Hardness | |
|---|---|---|---|---|---|
| Rockwell | Brinell | ||||
| 304 | 205 | 515 | 40 | 92 | 201 |
| Grade | Density (kg/m3) | Thermal Conductivity (W/m.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| at 1000C | at 5000C | 0-1000C | 0-3150C | 0-5380C | |||||
| 304 | 8000 | 16.2 | 21.5 | 193 | 17.2 | 17.8 | 18.4 | 500 | 720 |
| Changes in Price Extra 5 % |
|
|---|---|
| Export to | Shipping Time in Days |
| Netherland | 30 |
| Denmark | 35 |
| Czech Republic | 45 |
| Spain | 30 |
| Norway | 45 |
| Portugal | 45 |
| Russia | 20 |
| Bahamas | 60 |
| Uk | 30 |
| Ukraine | 60 |
| France | 28 |
| Germany | 21 |
| Belgium | 40 |
| Italy | 28 |
| Greece | 45 |
