Duplex Pipe Fittings Manufacturer in India

Purchase 2205 Duplex Stainless Steel Elbow and Tee in Custom Sizes and Thickness As Per ANSI B16.9

Duplex Steel Pipe Fittings Specification

Why Suppliers in Belgium of Duplex Pipe Fittings buying material from India?

Reason	Explanation
Cost-Effectiveness	Lower labor
Quality	Compliance with international standards.
Variety	Wide range of sizes
Established Export	Reliable global shipping experience.
Technology	Advanced manufacturing techniques.
Skilled Workforce	Expertise in producing high-quality fittings.
Customization	Ability to offer tailored solutions.

Table of Content

Sizes Of Duplex 2205 Pipe Fittings
Duplex Pipe Fittings Specification
2205 Duplex Stainless Steel Buttweld Fittings Price
Duplex Fittings Grades
Alloy 2205 Elbow Dimensions
Sizes Of DSS 2205 Equal Tee
WNR 1.4462 Reducer Size Chart
Can Duplex Steel Fittings Be Recycled?
Most Common Types Of SAF 2205 BW Fitting
SAF 2205 Fittings Bending Radius
Why is Duplex Pipe Fittings So Good at Resisting Corrosion?
2205 DSS Long Radius vs Short Radius Elbow
Duplex Stainless Steel Pipe Fittings Manufacturing Standards
Application Of Duplex Steel Buttweld Fittings
Duplex 2205 Fittings Chemical composition
Stainless Steel 316L vs Duplex 2205 Pipe Fittings
Duplex Fittings Mechanical Properties
Equivalent Of Duplex Steel Elbow
Duplex Pipe Fittings Weight Chart
Pressure Rating Of Duplex Steel Buttweld Fittings
Alloy 2205 Fittings Dimensional Tolerances

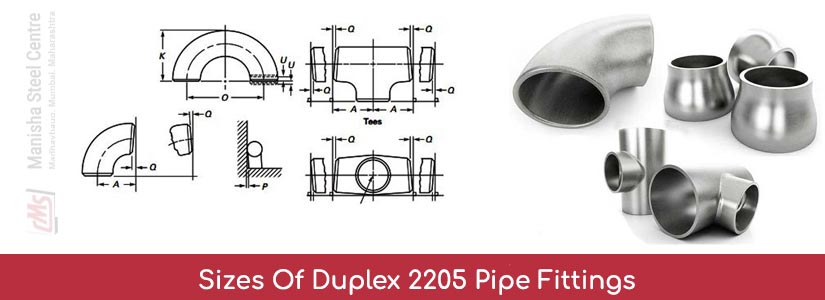

Sizes Of Duplex 2205 Pipe Fittings

Genuine Duplex Pipe Fittings Manufacturer in India Manufacturer in India As Per Specification

Manufacturing Process: Press \| Push \| Forge \| Cast
Duplex Pipe Fittings Types	Types Of Manufacturing	Sizes in inches	Specification
Duplex Tee	Reducing and Equal	½ to 48"	ASME B16.9	DIN 2615
Duplex Steel Elbow	90°, 45°, 180°			DIN 2605
Duplex Pipe Bend	Customizable (15° -180°)			DIN 2605
Duplex Steel End Cap	Bevel end, Plain end			DIN 2617
DSS Reducer	Eccentric, Concentric			DIN 2616
Duplex Steel Stub End	Long and Short Stub End			DIN 2642
DSS Cross	Reducing and Equal			DIN 2615

Duplex Pipe Fittings Specification

Duplex Stainless Steel Buttweld Fittings Sizes

Welded Fittings: 1/2 to 48"
Seamless Fittings: 1/2 to 10″
Schedule : SCH 10 - SCH 160
End : Plain Bevel, Compound Bevel, Buttweld, Bevelled

Duplex Pipe Fittings Manufacturing Standards

MSS-SP-43
ANSI B16.9
ASME B16.28
100% Tested With MTC EN 10204/3.1

Alloy 2205 Elbow Physical Properties

Melting Point:1385–1443°C.
Density:7.8 g/cm3
Heat Treatment: at 1900°F Annealed

Duplex 2205 Pipe Fittings Process

Seamless
Fabricated
Welded

Duplex Stainless Steel Pipe Fittings Types

Reducer
Elbow
Cap
Tee

Duplex Fittings International Standards

UNS: S32205 | S31803
ASME SA 815 | ASTM A815
WNR:1.4462
Trade: 22 Chrome, SM22CR®

Duplex Steel Buttweld Fittings Bending Radius

SAF 2205 BW Fitting Origin

European
Janpanese
Russia
American

Stainless Steel Round Services

Shearing
Heat Treatment
Cutting

DSS 2205 Tee Packaging

Bubble Wraps
Bundled
Wooden Box

Alloy 2205 Reducer Surface Finish

Pickled
Polished

2205 Duplex SS Stub End Testing

PMI, Hardness test
Ultrasonic, HIC test

Alloy 2205 Buttweld Fittings Supplier in Mumbai in in Seamless and Welded Form , Refer Duplex Fittings Price list

2205 Duplex Stainless Steel Buttweld Fittings Price

Are You Trying to Find the Best Deal on Duplex Pipe Fittings? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

Types	Size	Price in USD
Duplex Steel Elbow	2.1/2” x Sch. 40S	US $ 63.44
	¾” x Sch. 40S	US $ 35.68
	1” x Sch. 40S	US $ 32.96
	1.1/4” x Sch. 40S	US $ 40.83
End Cap	4” x Sch. 40S	US $ 125.98
	1” x Sch. 40S	US $ 35.15
	8” x Sch. 40S	US $ 214.85
Tee	14” x Sch. 40S	US $ 1053.36
	6” x Sch. 40S	US $ 290.23
	3” x Sch. 40S	US $ 120.33
	12” x Sch. 40S	US $ 910.21

Duplex Fittings Grades

STANDARD	WERKSTOFF NR.	UNS
Duplex S32205	1.4462	S32205
Duplex S31803	1.4462	S31803

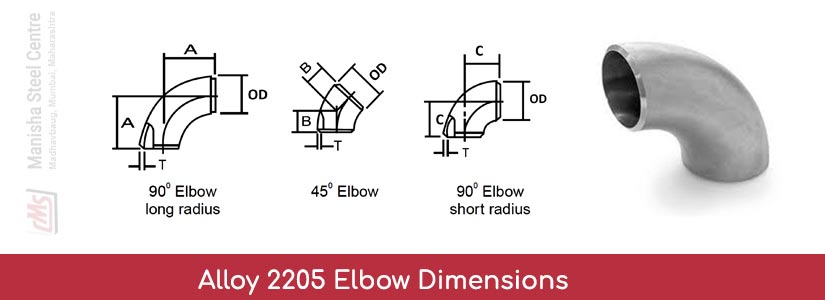

Alloy 2205 Elbow Dimensions

Size	OD	45° B	90° A	45° B	90° A
Size	OD	Long Radius Elbow		3D Elbow
14	355.06	222	533	441	1067
12	323.08	190	457	378	914
2½	73	44	95	79	190
1	33.04	22	38	31	76
3½	101.06	57	133	111	267
3	88.09	51	114	95	229
5	141.03	79	190	157	381
4	114.03	64	152	127	305
8	219.01	127	305	252	610
6	168.03	95	229	189	457
1½	48.03	29	57	47	114
1¼	42.02	25	48	39	95
2	60.03	35	76	63	152
3/4	26.07	19	38	24	57
10	273	159	381	316	762

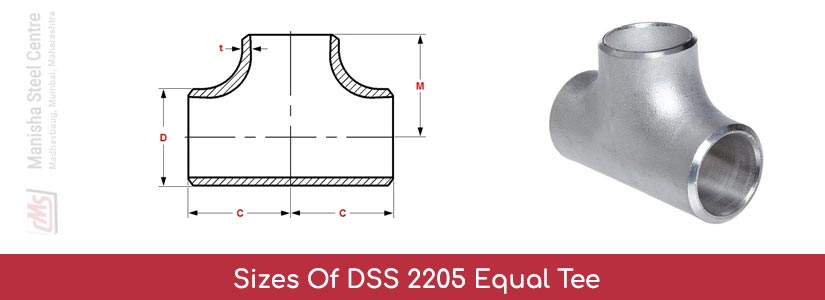

Sizes Of DSS 2205 Equal Tee

NPS	OD	Center-to-End
Inch	OD	Outlet(M)	Run (C)
3/4	26.7	29	29
1/2	21.3	25	25
3 1/2	101.6	95	95
1	33.4	38	38
3	88.9	86	86
4	114.3	105	105
14	355.6	279	279
12	323.8	254	254
6	168.3	143	143
5	141.3	124	124
8	219.1	178	178
1 1/4	42.2	48	48
10	273.0	216	216
1 1/2	48.3	57	57
2 1/2	73.0	76	76
2	60.3	64	64
18	457.0	343	343
16	406.4	305	305
20	508.0	381	381

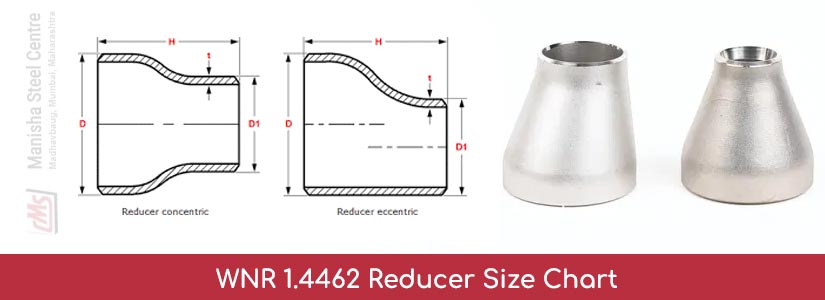

WNR 1.4462 Reducer Size Chart

NOMINAL PIPE SIZE	END TO END	OUTSIDE DIAMETER
Inch	H	P	D
3/4 x 3/8	38	17.01	26.07
3/4 x 1/2	38	21.03	26.07
1 x 1/2	51	21.03	33.04
1 x 3/4	51	26.07	33.04
1 1/4 x 3/4	51	26.07	42.02
1 1/4 x 1	51	33.04	42.02
1 1/2 x 1 1/2	64	42.02	48.03
1 1/4 x 1/2	51	21.03	42.02
1 1/2 x 3/4	64	26.07	48.03
1 1/2 x 1	64	33.04	48.03
1 1/2 x 1/2	64	21.03	48.03
2 x 1 1/4	76	42.02	60.03
2 x 1 1/2	76	48.02	60.03
2 x 3/4	76	26.07	60.03
2 x 1	76	33.04	60.03
2 1/2 x 1 1/2	89	48.03	73
2 1/2 x 2	89	60.03	73
2 1/2 x 1 1/4	89	42.02	73
3 x 2 1/2	89	73	88.09
2 1/2 x 1	89	33.04	73
3 x 1 1/2	89	48.03	88.09
3 x 2	89	60.03	88.09
3 1/2 x 3	102	88.09	101.06
3 x 1 1/4	89	42.02	88.09
3 1/2 x 21/2	102	73	101.06
3 1/2 x 1 1/2	102	48.03	101.06
3 1/2 x 2	102	60.03	101.06
3 1/2 x 1 1/4	102	42.02	101.06
4 x 3	102	88.09	114.03
4 x 3 1/2	102	101.06	114.03
4 x 2	102	60.03	114.03
4 x 2 1/2	102	73	114.03
4 x 1 1/2	102	48.03	114.03
5 x 3 1/2	127	101.06	141.03
5 x 4	127	114.03	141.03
5 x 3	127	88.09	141.03
5 x 2	127	60.03	141.03
5 x 2 1/2	127	73	141.03
6 x 5	140	141.03	168.03
6 x 4	140	114.03	168.03
6 x 3	140	88.09	168.03
6 x 3 1/2	140	101.06	168.03
6 x 2 1/2	140	73	168.03
8 x 5	152	141.03	219.01
8 x 6	152	168.03	219.01
8 x 4	152	114.03	219.01
10 x 8	178	219.01	273.01
8 x 3 1/2	152	101.06	219.01
10 x 5	178	141.03	273.01
10 x 6	178	168.01	273.01
10 x 4	178	114.03	273.01
12 x 8	203	219.01	323.09
12 x 10	203	273.01	323.09
12 x 6	203	168.03	323.09
14 x 12	330	323.09	355.06
12 x 5	203	141.03	323.09
14 x 10	330	273.01	355.06
14 x 6	330	168.03	355.06
14 x 8	330	219.01	355.06
16 x 14	356	355.06	406.04
16 x 10	356	273.01	406.04
16 x 12	356	323.09	406.04
16 x 6	356	168.03	406.04
16 x 8	356	219.01	406.04
18 x 16	381	406.04	457
18 x 12	381	323.09	457
18 x 14	381	355.06	457
18 x 10	381	273.01	457
20 x 18	508	457	508
18 x 8	381	219.01	457
20 x 16	508	406.04	508
24 x 12	508	323.09	610
20 x 12	508	323.09	508
20 x 14	508	355.06	508
20 x 10	508	273.01	508
22 x 20	508	508	559
20 x 8	508	219.01	508
22 x 18	508	457	559
22 x 14	508	355.06	559
22 x 16	508	406.04	559
22 x 12	508	323.09	559
24 x 22	508	559	610
24 x 10	508	273.01	559
24 x 20	508	508	610
24 x 16	508	406.04	610
24 x 18	508	457	610
24 x 14	508	355.06	610
24 x 10	508	273.01	610

As Exporter Of Duplex 2205 Pipe Fittings, Supply WNR 1.4462 Reducer and Cap With Polished and Pickled Finish

Can Duplex Steel Fittings Be Recycled?

Factor	Explanation
Recyclability	100% recyclable.
Materials	Nickel, Chromium, Molybdenum, Iron.
Recycling Process	Melted and Then Reused.
Energy Efficiency	Compare to new production, saves energy
Environmental Impact	Reduces emissions and mining
Scrap Value	High because of valuable alloys.
Reuse	bars, pipes, and fittings.
Standards	Meets ASME, ASTM standards.

Most Common Types Of SAF 2205 BW Fitting

Trusted Duplex Pipe Fittings Supplier in India in Custom Shapes and Types

Duplex Steel 90° Elbow

Duplex 2205 Concentric Reducer

Alloy 2205 45° Elbow

WNR 1.4462 Eccentric Reducer

DSS 2205 180° Elbow

SAF 2205 Stub End

Duplex Stainless Steel Equal Tee

Duplex Pipe Cap

2205 Duplex Stainless Steel Reducing Tee

22 Chrome Equal Cross

SM22CR® LR Elbow

SAF® 2205 SR Elbow

Offer DSS 2205 Stub End and Pipe Bend With Various Bending Radius Like 2D, 1D, 3D, 5D etc.

SAF 2205 Fittings Bending Radius

Manisha Steel, a leading Duplex Fittings Manufacturers, ensures precise bending radius specifications for optimal performance.

Fitting Type	Radius	NPS	Bending Radius (R)
Elbow 180°	Long Radius	½" to 48"	1.5 x Diameter (1.5D)
Elbow 90°	Short Radius	½" to 24"	1 x Diameter (1D)
Elbow 45°	Long Radius	½" to 48"	1.5 x Diameter (1.5D)
Elbow 180°	Short Radius	½" to 24"	1 x Diameter (1D)
Elbow 90°	Long Radius	½" to 48"	1.5 x Diameter (1.5D)
Tee	Branch Radius	½" to 48"	Equal to header size diameter
Custom Bends		Variable	3D, 2D, 10D, 5D
Reducer Bend		½" to 36"	Variable

Why is Duplex Pipe Fittings So Good at Resisting Corrosion?

2205 DSS Long Radius vs Short Radius Elbow

Feature	Short Radius Elbow	Long Radius Elbow
Radius of Curvature	1 x Diameter (1D)	1.5 x Diameter (1.5D)
German Standard	DIN 2605	DIN 2605
Size Range	½ to 48"	½ to 48"

Buy SAF 2205 BW Fitting Directly From Duplex Pipe Fittings Manufacturer in India for Application Where High Corrosion Resistance is Needed

Duplex Stainless Steel Pipe Fittings Manufacturing Standards

ASME B16.28
MSS SP43
ASME B16.9
MSS SP75

Application Of Duplex Steel Buttweld Fittings

Paper and Pulp
Oil and Gas Processing
Constructions
Petrochemicals
Railways
Seawater Pumps
Constructions
Seawater Desalination Plants
Power Generation

Duplex 2205 Fittings Chemical composition

Element	UNS S31803	UNS S32205
Iron	63.72 min	63.54 min
Silicon	1.00	1.00
Carbon	0.030	0.030
Nickel	4.50 – 6.50	4.50 – 6.50
Manganese	2.00	2.00
Molybdenum	3.0 – 3.5	2.50 – 3.50
Nitrogen	0.14 – 0.20	0.8 – 0.20
Phosphorous	0.030	0.030
Chromium	22.0 – 23.0	21.0 – 23.0
Sulphur	0.020	0.020

Stainless Steel 316L vs Duplex 2205 Pipe Fittings

Factor	Duplex 2205 Pipe Fittings	Stainless Steel 316L Fittings
UNS	UNS S32205/ S31803	UNS S31603
Group name	Duplex Stainless Steel	Austenitic Stainless Steel
Tensile	620 MPa min	485 MPa min
Life	25-30 years	20-25 years
Suitable Temperature	-50°C to 300°C	-196°C to 500°C
Highly corrosive environments	Best Suitable	Not advisable
Density	7.8 g/cm³	8.0 g/cm³
Thermal Conductivity	19 W/m·K	16 W/m·K
For Chloride Environments Corrosion Resistance	Excellent	Less effective
Duplex Steel Pipe Fittings Price per kg in India	US $6 to 8 per kg	US $4 to 5 per kg
Melting Point	1350-1450°C	1371-1399°C
Uses and Applications	Oil & gas Marine applications Chemical processing	Medical devices Chemical processing Marine environments

Duplex Fittings Mechanical Properties

Properties		Duplex Pipe Fittings
Tensile Strength	MPa	620 Min
Hardness Brinell	HB	290 Max
Proof Stress	MPa	450 Min
Elongation A50 mm	%	25 Min
Modulus of Elasticity	GPa	200

Equivalent Of Duplex Steel Elbow

Standard	UNS S32205	UNS S31803
UNS	S32205	S31803
WNR	1.4462	1.4462
Grade	F60	F51

Duplex Pipe Fittings Weight Chart

Size	Weight
1 1/2	0.39
1/2	0.08
10	37
2	0.66
12	61
16	121
14	85.1
18	176
2 1/2	1.37
24	377
4	4.12
3	2.19
8	21.6
1	0.15
3/4	0.11
5	6.89
1 1/4	0.25
6	10.7

Pressure Rating Of Duplex Steel Buttweld Fittings

Duplex 2205 Pipe Fittings Pressure Rating (psig)
NPS (inch)	Pipe Schedule	OD (inch)	Wall Thick. (in)	Temperature
				300 Fitting	100 Fitting	200 Fitting	400 Fitting	500 Fitting
				16700	16700	16700	15500	14400
1 1/2"				Allowable Stress (Pressure Rating)
	80	1.0900	0.0200	2303	2303	2303	2138	1986
	40	1.0900	0.0145	1629	1629	1629	1512	1404
	160	1.0900	0.0281	3362	3362	3362	3120	2899
2"	80	2.0375	0.0218	1985	1985	1985	1843	1712
	40	2.0375	0.0154	1371	1371	1371	1272	1182
	160	2.0375	0.0344	3283	3283	3283	3047	2831
3"	80	3.0500	0.0300	1844	1844	1844	1712	1590
	40	3.0500	0.0216	1301	1301	1301	1208	1122
	160	3.0500	0.0438	2787	2787	2787	2587	2403
4"	80	4.0500	0.0337	1596	1596	1596	1482	1377
	40	4.0500	0.0237	1102	1102	1102	1023	950
	160	4.0500	0.0531	2611	2611	2611	2424	2552
5"	80	5.0563	0.0375	1428	1428	1428	1325	1231
	40	5.0563	0.0258	965	965	965	896	832
	160	5.0563	0.0625	2474	2474	2474	2296	2133
6"	80	6.0625	0.0432	1379	1379	1379	1280	1189
	40	6.0625	0.0280	877	877	877	814	756
	160	6.0625	0.0719	2382	2382	2382	2211	2054
8"	80	8.0625	0.0500	1218	1218	1218	1131	1050
	40	8.0625	0.0322	771	771	771	716	665
	160	8.0625	0.0906	2298	2298	2298	2133	1982
10"	80	10.0750	0.0594	1159	1159	1159	1075	999
	40	10.0750	0.0365	699	699	699	649	603
	160	10.0750	1.0125	2289	2289	2289	2124	1974

Alloy 2205 Fittings Dimensional Tolerances

Nominal Pipe Size	1/2 to 2½	4	3 to 3½	5 to 8
OD at Bevel (D)	+ 1.06 - 0.08	1.06	1.06	+ 2.04 - 1.06
Nominal Pipe Size	10 to 18	26 to 30	20 to 24	32 to 48
Center to End LR (A/B)	2	2	2	2
ID at End	3.02	+ 6.04 - 4.08	4.08	+ 6.04 - 4.08
OD at Bevel (D)	+ 4 - 3.02	+ 6.04 - 4.08	+ 6.04 - 4.08	+ 6.04 - 4.08
(A/B) Center to End LR	2	3	2	5
(A/B) Center to End 3D	3	6	3	6
(A/B) Center to End 3D	3	3	3	3
ID at End	0.08	1.06	1.06	1.06
Wall Thickness (t)	Not less than 87.05% of Nominal WT

Maintain Ready Stock Of Duplex Steel Pipe Fittings

Grade	Duplex Buttweld Fittings Type	Size	Stock Quantity
S31803	Duplex Bend (Long Radius and Short Radius)	1/2 to 10"- LR/SR	350 pcs
	Duplex Steel Elbow (45°)	1/2 to 14" – LR/SR	300 pcs
	Duplex Elbow (90°)	1/2 to 14" – LR/SR	500 pcs
	Alloy 2205 Tee (Reducing)	1/2 to 14"	200 pcs
	Duplex 2205 Tee (Equal)	1/2 to 14"	400 pcs
	DSS Reducer (Eccentric)	1/2 to 14"	250 pcs
	WNR 1.4462 Reducer (Concentric)	1/2 to 14"	250 pcs
	Duplex Cross	1/2 to 4"	100 pcs
	Duplex Stainless Steel Cap	1/2 to 24"	150 pcs
	Duplex Steel Stub End	1/2 to 24"	350 pcs

Check Available Stock

Manisha Steel Centre is a renowned Duplex Pipe Fittings Manufacturers in India, offering high-quality products that meet industry standards.

Duplex Stainless Steel 90 Degree Lr Sr Elbow

45 Degree Duplex 2205 Stainless Steel Elbow

ASME B16.9 Duplex Stainless Steel Equal Tee

2 inch Sch40 ASME B16.9 2205 Stainless Steel Elbow

Duplex 2205 Seamless Elbow Tee Reducer

Duplex Stainless Steel Fittings DN8 mm-DN2000mm

Duplex Steel Pipe Fittings Delivery Time As Per Location

Port Name	Country Name	Location	(From Ex-stock) Delivery Time No. of Days	(If Not in Stock) Delivery Time No. of Days
Jeddah Port	Saudi Arabia	Jeddah	8-10	15-17
Jebel Ali Port	Dubai (UAE)	Dubai	5-7	12-14
Port Sultan Qaboos	Oman	Muscat	7-9	14-16
Hamad Port	Qatar	Doha	7-9	14-16
Port of Istanbul	Turkey	Istanbul	15-18	22-25
Shuwaikh Port	Kuwait	Kuwait City	8-10	15-17
Port Said	Egypt	Cairo	15-18	22-25
Jeddah Port	Saudi Arabia	Jeddah	8-10	15-17
Port of Algiers	Algeria	Algiers	20-25	27-32
Umm Qasr Port	Iraq	Baghdad	15-18	22-25
Tripoli Port	Libya	Tripoli	20-25	27-32
Shuwaikh Port	Kuwait	Kuwait City	8-10	15-17
Port of Casablanca	Morocco	Casablanca	25-30	32-37
Port of Latakia	Syria	Damascus	25-30	32-37
Port of Felixstowe	UK	London	25-30	32-37
Aqaba Port	Jordan	Amman	20-25	27-32
Port of Singapore	Singapore	Singapore	12-15	19-22

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
