ASTM A312 TP316 Pipe | ASME SA 312 Type 316 Seamless/ Welded Pipe

What Makes Manisha Steel Centre the Best Option for ASTM A312 TP316 Pipes?

Reasons
Extensive Inventory and Custom Solutions
Premium Quality Materials
On-Time Delivery
Rigorous Quality Control
Trusted Industry Reputation
Competitive Pricing
Certifications and Documentation
Excellent Customer Support

Table of Content

ASTM A312 TP316 Pipe Specification
ASME SA 312 TP 316 SS Pipe
ASTM A312 TP316 Pipe Price Per Kg
SA 312 Gr 316 Seamless Pipe Heat Treatment
A312 GR TP316 Welded Pipe Wall Thickness
ASTM A312 GR TP316 Austenitic Stainless Steel Pipe Schedule Chart
ASME SA 312 Grade Tp316 square Pipe Applications
ASTM A312 TP316 Pipe Sizes
ASTM A312 Type 316 ERW Pipe Testing
ASME SA 312 Type 316 Welded Pipe Services
SA 312 Gr 316 Square Pipe HS Code
How Can I Determine the Quality of ASME SA 312 Type 316 Seamless Pipe Before Purchasing?
ASTM A312 TP316 Equivalent
SA 312 Grade TP316 Round Pipe Chemical Composition?
ASTM A312 TP 316 Rectangular Pipe Mechanical Properties
ASME SA 312 TP 316 Straight Seam Welded Pipe Physical Properties

ASTM A312 TP316 Pipe Specification

ASTM A312 TP316 Pipe Sizes

OD : 0.35 mm to 6.35 mm
Size: 1/8 upto 30 inch NB
Thickness : 0.1 to 1.2mm

SA 312 Gr 316 Seamless Pipe Shapes

Round
Rectangular
Square

ASTM A312 GR .TP316 Welded Pipe Manufacturing Process

Cold Formed
Precision Rolled
Hot Formed

ASME SA 312 TP 316 ERW Pipe

OD: 6.35mm to 114.3 mm
Length : 26 m
Wall Thickness: 12.7mm to 0.8 mm

A 312 Gr 316 Seamless Pipe Sizes

Wall Thk : 12.7mm to 0.6 mm
OD: 12 to 1/8 inches
Length: Cut Length, Single Random & Double Random

ASTM A312 Grade 316 Welded Pipe

OD: 36" to 1/4"
Wall Thickness: 20mm to 1 mm
Length:Single Random, Cut Length & Double Random

SA 312 Grade TP316 Round Pipe Testing

Chemical
PMI
Mechanical
Ultrasonic

ASTM A312 GR .TP316 Pipe Origin

European
American
Russia
Janpanese

ASME SA 312 Type 316 ERW Pipe Standards

ASTM A312 | ASME SA312
GB,AISI, ASME, SUS,
API,EN , DIN, UNS

A 312 Grade TP316 Square Pipe Documentation

Visual Inspection
Mill Test Certificates
PMI Test Reports

ASTM A312 GR TP316 Rectangle Pipe Services

Heat Treatment
Cutting
Shearing

ASME SA 312 TP 316 Austenitic Stainless Steel Pipe Packaging

Wooden Box
Bundled
Bubble Wraps

SA 312 Grade TP316 Seamless Pipe Finish

Polished
Bright
Annealing

ASTM A312 Type 316 Straight Seam Welded Pipe End

Beveled
Plain

Types Of ASME SA 312 TP 316 SS Pipe

A wide range of shapes and forms are available at industry prices from an ASTM A312 TP316 Pipe Supplier in India.

ASME SA 312 TP 316 SS Pipe

A 312 Gr 316 Austenitic Stainless Steel Pipe

SA 312 Gr 316 Straight Seam Welded Pipe

ASTM A312 Type 316 Seamless Pipe

ASME SA 312 Type 316 Welded Pipe

SA 312 Grade TP316 Rectangular Pipe

ASTM A312 GR TP316 ERW Pipe

ASME SA 312 TP 316 Round Pipe

SA 312 Grade TP316 Square Pipe

Trusted ASME SA 312 Type 316 Seamless Pipe Manufacturer in India At Best Price

ASTM A312 TP316 Pipe Price Per Kg

Would You Like to Buy Competitively Priced ASTM A312 TP316 Pipe? By sending an email, you can receive an estimate right away. kalpesh@manishasteelcentre.com.

Price List	Price in USD Per/Kg	Price in UAE
A312 Tp316 SEAMLESS PIPES Size :1/2″	USD $ 14.98	UAE 55.02
ASTM A312 GR.TP316 SS PIPES OD : 21.3M	USD $ 6.39	UAE 23.47

SA 312 Gr 316 Seamless Pipe Heat Treatment

Heat Treatment
Annealing	1010 to 1120°C

Supplier Of ASTM A312 Grade 316 Austenitic Stainless Steel Pipe in Mumbai With Wall Thickness More Than 3/8 in.

A312 GR TP316 Welded Pipe Wall Thickness

Nominal Thickness		Minimum Thickness on Inspection		Nominal Thickness		Minimum Thickness on Inspection		Nominal Thickness		Minimum Thickness on Inspection
milimeter	in.	milimeter	in	milimeter	in	milimeter	in	milimeter	in	milimeter	in
1.7	0.0068	1.5	0.0060	7.5	0.0294	6.5	0.0257	19.0	0.0750	16.6	0.0658
3.7	0.0147	3.3	0.0129	9.1	0.0358	8.0	0.0313	27.8	1.083	24.3	0.0956
2.2	0.0068	2.0	0.0077	7.6	0.0300	6.7	0.0262	20.06	0.0812	18.0	0.0710
4.9	0.0191	4.2	0.0167	10.04	0.0432	9.6	0.0378	33.3	1.312	29.2	1.148
2.3	0.0091	2.0	0.0080	7.8	0.0307	6.8	0.0269	21.4	0.0843	18.7	0.0736
5.1	0.0200	4.4	0.0175	11.1	0.0436	9.7	0.0382	34.1	1.343	29.8	1.175
2.4	0.0095	2.1	0.0083	7.8	0.0308	6.9	0.0270	21.7	0.0854	19.2	0.0756
43.7	0.0187	4.2	0.0164	10.02	0.0400	8.9	0.0350	31.8	1.250	27.8	1.094
2.9	0.0113	2.5	0.0099	7.9	0.0312	6.9	0.0273	22.2	0.0875	19.5	0.0766
6.0	0.0237	5.2	0.0207	14.3	0.0562	12.5	0.0492	39.7	1.562	34.7	1.367
3.0	0.0119	2.6	0.0104	8.1	0.0318	7.1	0.0278	23.0	0.0906	20.01	0.0783
5.5	0.0218	4.9	0.0191	12.7	0.0500	11.1	0.0438	36.5	1.436	32.0	1.258
3.2	0.0125	2.8	0.0109	8.2	0.0322	7.2	0.0282	23.8	0.0937	20.08	0.0820
5.6	0.0219	4.9	0.0192	13.5	0.0531	11.8	0.0465	36.1	1.500	33.3	1.312
3.4	0.0133	2.9	0.0116	8.6	0.0337	7.5	0.0295	25.4	1.000	22.2	0.0875
7.0	0.0277	6.1	0.0242	16.6	0.0656	14.6	0.0573	46.0	1.812	49.3	1.586
3.6	0.0140	3.1	0.0122	8.7	0.0343	7.6	0.0300	26.2	1.031	22.9	0.0902
5.5	0.0216	4.8	0.0189	11.1	0.0438	9.7	0.0383	35.7	1.406	31.2	1.230
3.9	0.0154	3.4	0.0135	9.3	0.0365	8.1	0.0319	28.6	1.125	25.0	0.0984
5.7	0.0226	5.0	0.0196	14.0	0.0552	12.3	0.0483	38.9	1.531	34.0	1.340
4.0	0.0156	3.5	0.0136	9.5	0.0375	8.3	0.0328	29.4	1.156	25.7	1.012
5.2	0.0203	4.5	0.0178	11.1	0.0437	9.7	0.0382	34.9	1.375	30.06	1.203
4.5	0.0179	4.0	0.0157	9.7	0.0382	8.5	0.0334	30.09	1.218	27.1	1.066
6.6	0.0258	5.7	0.0226	15.2	0.0600	13.3	0.0525	44.5	1.750	38.9	1.531
4.8	0.0188	4.2	0.0164	10.03	0.0406	9.0	0.0355	32.5	1.281	28.5	1.121
7.1	0.0279	6.2	0.0244	17.1	0.0674	15.0	0.0590	50.00	1.968	43.7	1.772
6.4	0.0250	5.6	0.0219	15.1	0.0593	13.2	0.0519	40.05	1.593	35.4	1.394

ASTM A312 GR TP316 Austenitic Stainless Steel Pipe Schedule Chart

NOMINAL PIPE SIZE	OD	SCH 40	SCH 10	SCH 80	SCH 5
4"	4.5	0.237	0.12	0.337	0.083
1/2"	0.84	0.109	0.083	0.147	0.065
3"	3.5	0.216	0.12	0.3	0.083
1"	1.315	0.133	0.109	0.179	0.065
3-1/2"	4	0.226	0.12	0.318	0.083
3/4"	1.05	0.113	0.083	0.154	0.065
2-1/2"	2.875	0.203	0.12	0.276	0.083
1-1/4"	1.66	0.14	0.109	0.191	0.065
2"	2.375	0.154	0.109	0.218	0.083
1-1/2"	1.9	0.145	0.109	0.2	0.065

Maintain Ready Stock Of A312 GR TP316 Welded and ERW Pipe Suitable For General Corrosive Service.

ASME SA 312 Grade Tp316 square Pipe Applications

Pharmaceutical Industry
Pressure Vessels
Desalination Plants
Pulp and Paper Industry
Marine Environments
Food and Beverage Industry
Heat Exchangers
Chemical Processing Plants
Power Plants
Oil and Gas Industry

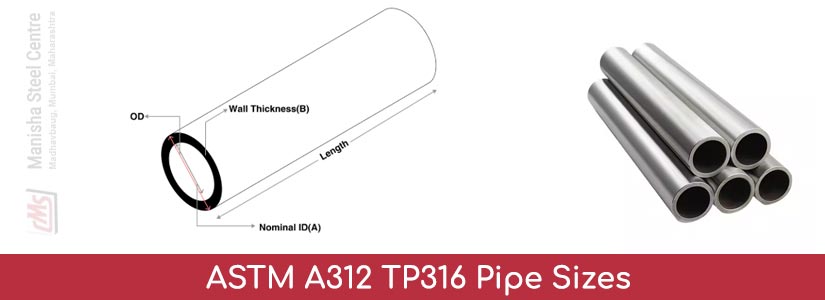

ASTM A312 TP316 Pipe Sizes

ASTM A312 TP316 Pipe Manufacturer in India that satisfies client demands by offering a wide variety of diameters and sizes

ASTM A312 Tp 321 Pipe OD mm	in.	Sch	Pipe WT mm	Kg/m
114.30	4	160	13.49	34.05
101.60	3½	80S	8.08	18.92
73.03	2½	80S	7.01	11.59
17.15	3/8	80S	3.20	1.12
60.33	2	160	8.74	11.29
13.72	1/4	80S	3.02	0.81
88.90	3	160	11.13	21.67
168.28	6	120	14.27	54.75
42.16	1¼	160	6.35	5.69
21.34	1/2	80S	3.73	1.65
219.08	8	160	23.01	112.97
26.67	3/4	80S	3.91	2.23
141.30	5	160	15.88	49.87
48.26	1½	80S	5.08	5.49
33.40	1	160	6.35	4.30

Offer ASME SA 312 TP 316 Straight Seam Welded Pipe With Various Mechanical Testing and Services

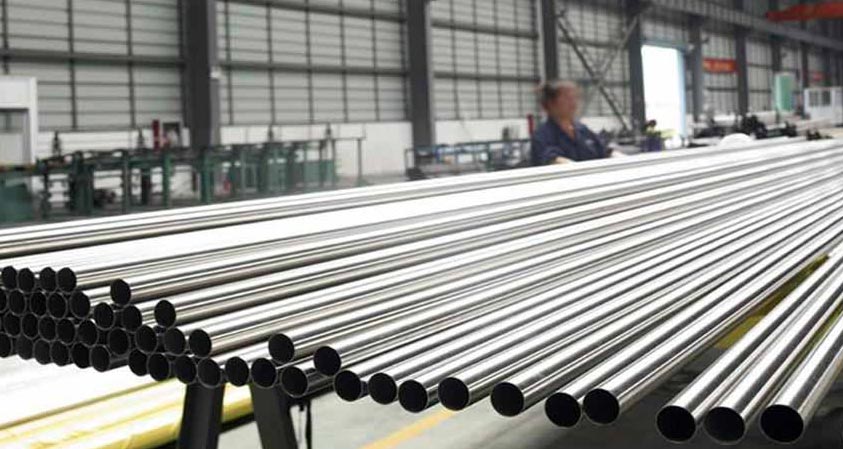

ASTM A312 Type 316 ERW Pipe Testing

Hydrostatic Analysis
Eddy Current Examining
Pitting Protection Test
Metalography Test
Visual Inspection Testing
Power Generation Industries
CVN Impact Testing
TPP Rockwell
Positive Material Recognition
Ultrasonic Testing

ASME SA 312 Type 316 Welded Pipe Services

Cutting to size
Marking and labeling
Beveling
Heat treatment
Polishing

Inspection and testing
Packaging and delivery
Threading
Coating and plating
Bending

SA 312 Gr 316 Square Pipe HS Code

HS CODE
A312 TP316 Pipe	730630

How Can I Determine the Quality of ASME SA 312 Type 316 Seamless Pipe Before Purchasing?

Examine the material grade
Check for compliance with ASTM A312 standards
Request mill test reports
Verify dimensional accuracy
Check surface quality and finish
Inspect weld quality
Check the manufacturer’s reputation

Buy ASTM A312 TP 316 Rectangular and Square Pipe As Per Your Specification Online, See Equivalent

ASTM A312 TP316 Equivalent

Grade	Japanese JIS	UNS No	Old British		Euronorm		Swedish SS
Grade	Japanese JIS	UNS No	BS	En	No	Name	Swedish SS
316	SUS 316	S31600	304S31	58E	1.4301	X5CrNi18-10	2332

SA 312 Grade TP316 Round Pipe Chemical Composition

Ni 8 - 11 %

Si 1%

P 0.045%

Cr 18 - 20 %

Mn 2%

C 0.030 %

ASTM A312 TP 316 Rectangular Pipe Mechanical Properties

Material	Temperature	Heat	Yield Strength	Elongation %, Min	Tensile Strength
	Min.	Treatment	Ksi (MPa), Min.		Ksi (MPa), Min.
	º F(º C)
TP316	1900 (1040)	Solution	30(205)	35	75(515)

ASME SA 312 TP 316 Straight Seam Welded Pipe Physical Properties

Property	SA312 Tp316 SS Pipe
Melting Point	1375 to 1400°C
Thermal Conductivity	16.3 W/m·K at 100°C
Density	8.00 g/cm³
Modulus of Elasticity	193 GPa
Coefficient of Thermal Expansion	16.0 µm/m·K
Specific Heat	500 J/kg·K at 25°C
Poisson's Ratio	0.3
Electrical Resistivity	0.72 µΩ·m

ASTM A312 TP316 Pipe Shipping Time as per Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Belgium	60
Switzerland	45-60
Singapore	8
Thailand	7
Slovakia	45-60
Malaysia	7
Germany	7
Finland	45-60
Hungary	45
Slovenia	60
Ireland	60
Malta	60
Croatia	60
Netherland	14
Albania	45

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
