ASTM A358 TP321H Pipe | ASME SA 358 TP 321H EFW Pipe

Table of Content

ASTM A358 TP321H Pipe Specification
SA 358 Type 321H EFW Austenitic Chromium Nickel Stainless Steel Pipe Classes
Types Of ASME SA 358 TP 321H EFW Pipe
ASTM A358 TP321H Pipe Sizes
SA 358 Gr 321H Cl1 EFW Welding Pipe Testing
ASME SA 358 TP 321H EFW Stainless Steel Pipe Applications
ASTM A358 TP321H Pipe Price
ASME SA 358 GR TP321H Electric Fusion Straight Weld Pipe Equivalent
ASTM A358 GR .TP321H EFW Stainless Steel Pipe Chemical Composition
SA 358 Type 321H EFW Electric Fusion Welded Pipe Mechanical Properties
Physical Properties of ASTM A358 Grade 321H Electric Fusion Straight Weld Pipe

ASTM A358 TP321H Pipe Specification

ASTM A358 TP321H EFW Pipe Sizes

OD :10.3 mm to 1219mm
Size: 5 to 1219.2 mm
Thickness : 1.24mm to 59.54mm
Length : 6 meter

ASME SA 358 TP 321H Pipe Shapes

Round
Square
Rectangular

SA 358 Grade TP321H Electric Fusion Straight Weld Pipe Manufacturing Process

Precision Rolled
Cold Formed
Hot Formed

ASTM A358 TP321H Material Schedule

SCH 140, 100, 120, 80, 60
SCH 20, 10,30, 40, 5
SCH XXS

ASME SA 358 TP 321H EFW Steel Pipe Testing

Ultrasonic
Chemical
Mechanical
PMI

ASTM A358 TP321H Class 3 Stainless Steel Pipe Origin

European
American
Russia
Janpanese

ASME SA 358 Grade TP321H EFW Stainless Steel Pipe Standards

ASME SA 358 | ASTM A358
UNS, API, EN, DIN
AISI, SUS, ASME, GB

SA 358 Gr 321H EFW Austenitic Chromium Nickel Stainless Steel Pipe Documentation

Visual Inspection
Mill Test Certificates
PMI Test Reports

ASTM A358 TP321H Class 2 Electric Fusion Straight Weld Pipe Services

Heat Treatment
Cutting
Shearing

A358 GR TP321H Cl4 EFW Welding Pipe Packaging

Wooden Box
Bundled
Bubble Wraps

ASTM A358 GR TP321H Electric Fusion Welded Pipe Finish

Polished
Bright
Annealing

ASME SA 358 TP 321H EFW Stainless Steel Pipe End

Beveled
Plain

Manufacturer Of ASME SA 358 TP 321H EFW Pipe in India With Five Different Classes

SA 358 Type 321H EFW Austenitic Chromium Nickel Stainless Steel Pipe Classes

Class	Welding Process	Radiography
ASTM A358 TP321H Class 1	Double welded, filler metal	Complete radiography
ASTM A358 TP321H Class 2	Double welded, filler metal	No radiography
ASTM A358 TP321H Class 3	Single welded, filler metal	Complete radiography
ASTM A358 TP321H Class 4	Single welded, filler metal	No radiography
ASTM A358 TP321H Class 5	Double welded, filler metal	Spot radiography

Types Of ASME SA 358 TP 321H EFW Pipe

Manisha Steel Centre Trusted ASTM A358 TP321H Pipe Supplier in India provides a wide range of diameters and shapes at competitive costs.

ASTM A358 TP321H Class 2 EFW Pipe

ASME SA 358 TP 321H Electric Fusion Welded Pipe

SA 358 Grade TP321H Electric Fusion Straight Weld Pipe

A358 GR TP321H Electric Fusion Welded Steel Pipe

SA 358 Type 321H EFW Austenitic Chromium Nickel Stainless Steel Pipe

ASTM A358 TP321H Class 4 EFW Stainless Steel Pipe

ASME SA 358 Grade TP321H EFW Welding Pipe

ASTM A358 TP321H EFW Electric Fusion Welded Pipe

Top Quality ASTM A358 Grade 321H Electric Fusion Welded Pipe Supplier in Mumbai in Custom Sizes

ASTM A358 TP321H Pipe Sizes

To meet the needs of customers, the ASTM A358 TP321H Pipe Manufacturer in India offers a large range of diameters and sizes.

Nominal	Outside	Nominal Wall Thickness (mm)
Diameter	Diameter	ASME B36.19M				ASME B36.10M
NPS	(mm)	SCH5S	SCH40S	SCH10S	SCH80S	SCH10	SCH5	STD	SCH20	XS
5	141.3	2.77	6.55	3.4	9.53	3.4	2.77	6.55	-	9.53
1 1/4	42.16	1.65	3.56	2.77	4.85	2.77	1.65	3.56	-	4.85
3	88.9	2.11	5.49	3.05	7.62	3.05	2.11	5.49	-	7.62
1/2	21.34	1.65	2.77	2.11	3.73	2.11	1.65	2.77	-	3.73
3 1/2	101.6	2.11	5.74	3.05	8.08	3.05	2.11	5.74	-	8.08
1	33.4	1.65	3.38	2.77	4.55	2.77	1.65	3.38	-	4.55
8	219.08	2.77	8.18	3.76	12.7	3.76	2.77	8.18	6.35	12.7
3/4	26.67	1.65	2.87	2.11	3.91	2.11	1.65	2.87	-	3.91
10	273.05	3.4	9.27	4.19	12.7	4.19	3.4	9.27	6.35	12.7
18	457.2	4.19	9.53	4.78	12.7	6.35	4.19	9.53	7.92	12.7
2	60.33	1.65	3.91	2.77	5.54	2.77	1.65	3.91	-	5.54
14	355.6	3.96	9.53	4.78	12.7	6.35	3.96	9.53	7.92	12.7
1 1/2	48.26	1.65	3.68	2.77	5.08	2.77	1.65	3.68	-	5.08
6	168.28	2.77	7.11	3.4	10.97	3.4	2.77	7.11	-	10.97
2 1/2	73.03	2.11	5.16	3.05	7.01	3.05	2.11	5.16	-	7.01
16	406.4	4.19	9.53	4.78	12.7	6.35	4.19	9.53	7.92	12.7
4	114.3	2.11	6.02	3.05	8.56	3.05	2.11	6.02	-	8.56
22	558.8	4.78	-	5.54	-	6.35	4.78	9.53	9.53	12.7
12	323.85	3.96	9.53	4.57	12.7	4.57	3.96	9.53	6.35	12.7
24	609.6	5.54	9.53	6.35	12.7	6.35	5.54	9.53	9.53	12.7
20	508	4.78	9.53	5.54	12.7	6.35	4.78	9.53	9.53	12.7

Buy A358 GR TP321H EFW Stainless Steel Pipe Stock Tested With Transverse Tension Test and Hydrostatic Test

SA 358 Gr 321H Cl1 EFW Welding Pipe Testing

Ultra Sonic Test (UT)	Hardness Test
Hydrostatic Test	Positive Material Identification – PMI Testing
Transverse Guided Bend Weld Test	Transverse Tension
Impact Test	Intergranular Corrosion (IGC) Test
Radiography Test	Micro Test
Hydrogen Test	Chemical Analysis
Eddy Current Testing	Pitting Resistance Test
Bend Test	Flaring Test

Get SA 358 Type 321H EFW Austenitic Chromium Nickel Stainless Steel Pipe Suitable For High Temperature Service

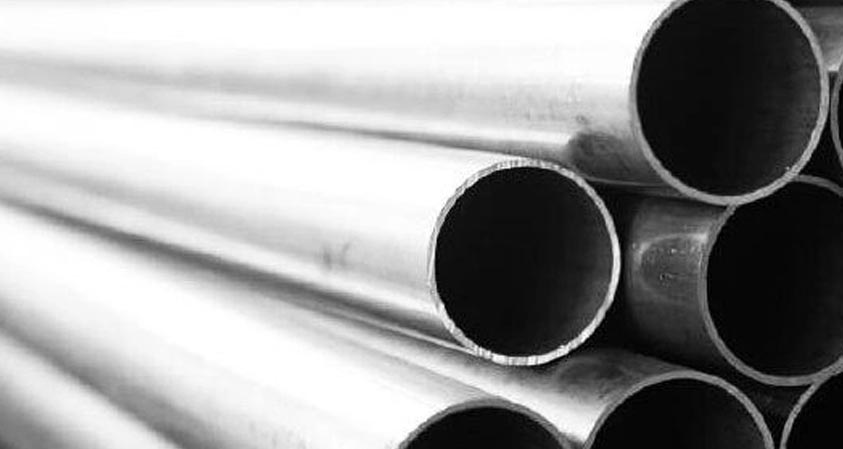

ASME SA 358 TP 321H EFW Stainless Steel Pipe Applications

Food processing equipment
Automotive trim
Chemical containers
construction materials
Threaded fasteners
Kitchen benches, sinks
Heat Exchangers
Architectural applications
Trailers
welded screens for mining
Railway cars

Expert in Manufacturing ASTM A358 TP 321H Electric Fusion Straight Weld Pipe at Lowest Possible Price

ASTM A358 TP321H Pipe Price

Are You Interested in Buying ASTM A358 TP321H Pipe at a Reasonable Price? You can immediately get an estimate by sending an email. kalpesh@manishasteelcentre.com.

Product	Per Unit (INR)
ASTM A358 TP321H Pipe SIZE 33.70 X 2.60, LENGTH MTR 5-5.8	184
A358 TP321H SEAMLESS SS GRADE PIPES SIZE 42.40 X 3.60	176

ASME SA 358 GR TP321H Electric Fusion Straight Weld Pipe Equivalent

Grade	Old British		UNS No	Japanese JIS	Euronorm		Swedish SS
Grade	BS	En	UNS No	Japanese JIS	No	Name	Swedish SS
321H	321S51	-	S32109	SUS 321H	1.4878	X6CrNiTi18-10	-

ASTM A358 GR .TP321H EFW Stainless Steel Pipe Chemical Composition

Cr 17 – 19%

Mn 2 max %

Ti 0.70 %

Ni 9 to 12%

Si 0.75 %

C 0.04 to 0.08 %

SA 358 Type 321H EFW Electric Fusion Welded Pipe Mechanical Properties

Grade	321H
Rockwell B (HR B) max	95
Yield Strength	205
Elongation	40
Tensile Strength MPa min	515
Brinell (HB) max	217

Physical Properties of ASTM A358 Grade 321H Electric Fusion Straight Weld Pipe

Grade	Density (kg/m3)	Thermal Conductivity		Specific Heat 0 to 1000C	Electrical Resistivity	Mean Coeff of Thermal Expansion (m/m/0C)			Elastic Modulus
Grade	Density (kg/m3)	at 500°C	at 100°C	Specific Heat 0 to 1000C	Electrical Resistivity	0 to 315°C	0 to 538°C	0 to 100°C	Elastic Modulus
321H	8027	22.2	16.1	500	720	17.2	18.6	16.6	193

ASTM A358 TP321 Pipe Time of Delivery and Location

Price Changes
5 % extra Export to DeliveryTime in Days Oman 5 Belgium 40-60 Kuwait 10 South Africa 25-30 Uk 30 Bahrain 9 Saudi Arabia 7 Indonesia 9 Singapore 8 Qatar 7 Germany 30 UAE 5 days Philippines 14 Netherland 30 Malaysia 10

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
