ASTM A249 TP304 Tube Sizes
ASTM A249 Tubing Standards
ASTM A249 Grade 304 ERW Tube Manufacturing Process
ASTM A249 TP 304 Boiler Tube Technique
Benefits of SA 249 304 SS Heat Exchanger Tube
ASTM A249 GR 304 Condenser Tubes Documentation
ASTM A249 Grade 304 ERW Tube Shape
ASTM A249 GR 304 Boiler Tube Origin
ASTM A249 TP304 Tube Services
ASTM A249 Stainless Steel Tube Packaging
ASTM A249 GR 304 ERW Tube Finish
ASTM A249 Tubing End

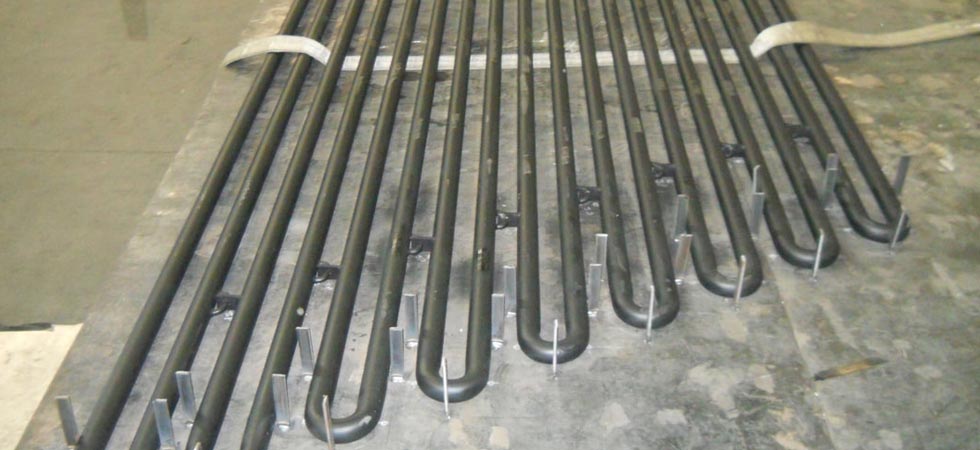

ASME SA249 Type 304 Superheater Tube Testing
ASTM A249 GR 304 Boiler Tube Marking
Are You Looking for ASTM A249 TP304 Tube at the Best Price? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.
| Specified OD, In. [Mm] | OD, Under, In. [Mm] | OD, Over, In. [Mm] | Wall Thickness | Length, In. [Mm] |
|---|---|---|---|---|
| Over 11⁄2 To 2 [40 To 50], Excl | 0.008 [0.2] | 0.008 [0.2] | +/-10.0% | +1/8″ (3.18) – 0 |
| 3 To 4 [75 To 100], Incl | 0.015 [0.38] | 0.015 [0.38] | +/-10.0% | +3/16″ [5] – 0 |
| Under 1 [25] | 0.004 [0.11] | 0.004 [0.1] | +/-10.0% | +1/8″ (3.18) – 0 |
| Over 71⁄2 To 9 [200 To 225], Incl | 0.045 [1.14] | 0.015 [0.38] | +/-10.0% | +3/16″ [5] – 0 |
| 2 To 21⁄2 [50 To 65], Excl | 0.010 [0.25] | 0.010 [0.25] | +/-10.0% | +3/16″ [5] – 0 |
| 1 To 11⁄2 [25 To 40], Incl | 0.006 [0.15] | 0.006 [0.15] | +/-10.0% | +1/8″ (3.18) – 0 |
| Over 4 To 71⁄2 [100 To 200], Incl | 0.025 [0.64] | 0.015 [0.38] | +/-10.0% | +3/16″ [5] – 0 |
| 21⁄2 To 3 [65 To 75], Excl | 0.012 [0.3] | 0.012 [0.3] | +/-10.0% | +3/16″ [5] – 0 |
Genuine ASTM A249 TP304 Tube Manufacturer in India As Per Specification
| Tube Size (OD x Wall Thickness) | Price Range (USD per Meter) |
|---|---|
| 1/4" x 0.035" (6.35mm x 0.89mm) | US $10.00 |
| 1/2" x 0.065" (12.7mm x 1.65mm) | US $15.00 |
| 3/4" x 0.083" (19.05mm x 2.11mm) | US $18.00 |
| 1" x 0.065" (25.4mm x 1.65mm) | US $20.00 |
| 1 1/4" x 0.065" (31.75mm x 1.65mm) | US $22.00 |
| 2" x 0.065" (50.8mm x 1.65mm) | US $30.00 |
| 2 1/2" x 0.083" (63.5mm x 2.11mm) | US $35.00 |
| 3" x 0.083" (76.2mm x 2.11mm) | US $40.00 |
| 4" x 0.120" (101.6mm x 3.05mm) | US $45.00 |
| 6" x 0.120" (152.4mm x 3.05mm) | US $55.00 |
Trusted ASTM A249 TP304 Tube Supplier in India in Custom Shapes and Types
ASTM A249 Type 304 Welded Stainless Steel Tube
ASTM A249 Grade 304 ERW Tube
ASTM A249 TP 304 Boiler Tube
ASME SA 249 TP 304 Superheater Tube
SA 249 304 SS Heat Exchanger Tube
ASTM A249 GR 304 Condenser Tubes
| Dimensions (mm) | Wall (mm) | Weight per metre (kg) |
|---|---|---|
| 40 x40 | 3.00 | 3.75 |
| 25 x 25 | 1.20 | 0.92 |
| 25 x 25 | 1.50 | 1.14 |
| 100 x 100 | 2.00 | 6.40 |
| 20 x 20 | 1.50 | 0.88 |
| 20 x 20 | 2.00 | 1.19 |
| 25 x 25 | 2.00 | 1.49 |
| 25 x 25 | 3.00 | 2.20 |
| 30 x 30 | 1.20 | 1.10 |
| 12.7 x 12.7 | 1.20 | 0.44 |
| 12.7 x 12.7 | 1.50 | 0.55 |
| 40 x40 | 2.00 | 2.45 |
| 30 x 30 | 1.50 | 1.37 |
| 30 x 30 | 2.00 | 1.84 |
| 40 x40 | 1.20 | 1.49 |
| 50 x50 | 1.50 | 2.32 |
| 50 x50 | 2.00 | 3.08 |
| 50 x50 | 3.00 | 4.65 |
| 60 x60 | 2.00 | 3.71 |
| 60 x60 | 3.00 | 5.49 |
| 70 x70 | 3.00 | 6.53 |
| 80 x80 | 2.00 | 4.98 |
| 80 x80 | 3.00 | 7.53 |
| 15 x 15 | 1.20 | 0.53 |
| 15 x 15 | 1.50 | 0.65 |
| 20 x 20 | 1.20 | 0.71 |
| 40 x40 | 1.50 | 1.85 |
| 100 x 100 | 3.00 | 9.53 |
| Grade | UNS No | Swedish SS | Japanese JIS | Old British | Euronorm | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 304 | S30400 | 2332 | SUS 304 | 304S31 | 58E | 1.4301 | X5CrNi18-10 |
| Grade | Yield Strength 0.2% Proof (MPa) min | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 205 | 515 | 40 | 92 | 201 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | Thermal Conductivity (W/m.K) | Mean Coefficient of Thermal Expansion (μm/m/°C) | |||
|---|---|---|---|---|---|---|---|---|---|
| at 100°C | at 500°C | 0-100°C | 0-315°C | 0-538°C | |||||
| 304 | 8000 | 193 | 500 | 720 | 16.2 | 21.5 | 17.2 | 17.8 | 18.4 |
| Cost Variations 5 % extra | |
|---|---|
| Export to | Delivery Time |
| South Africa | 25-30 |
| Bahrain | 9 |
| Singapore | 8 |
| UAE | 5 days |
| Qatar | 7 |
| Kuwait | 10 |
| France | 30 |
| Saudi Arabia | 7 |
| Malaysia | 10 |
| Uk | 30 |
| Netherlands | 19-20 |
| Belgium | 6-9 |
| Indonesia | 9 |
| Philippines | 14 |
| Germany | 15-50 |
| Oman | 5 |
