ASTM A269 TP304L Tube

Home|ASTM A269 TP304L Tube

Manufacturer Of ASME SA 269 TP 304L Stainless Steel Seamless Tubes in India, Refer Specification

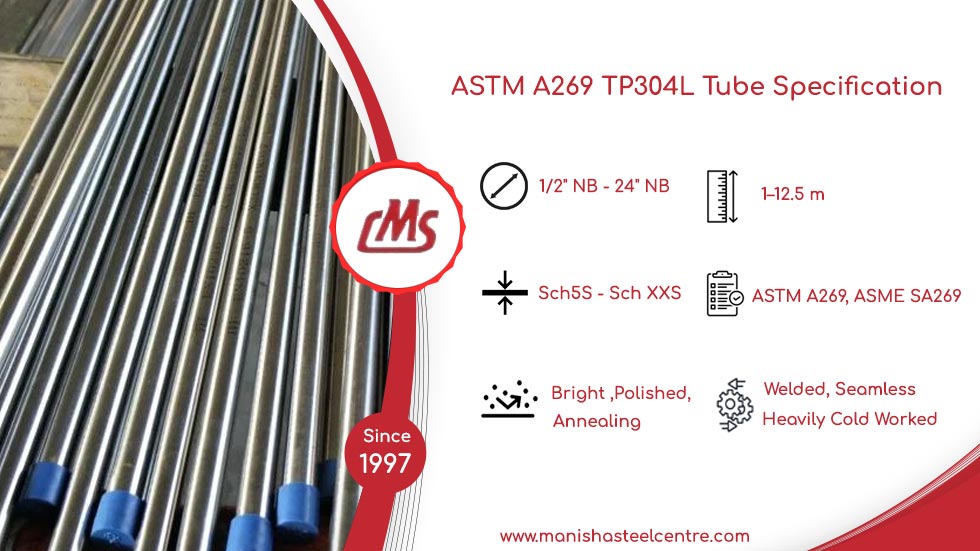

ASTM A269 TP304L Tube Specification



How Buyers of ASTM A269 TP304L Tube getting benefits to buy material from Manisha Steel Centre?
Benefits Applications
High-Quality Material Food & Beverage Processing
Competitive Pricing Chemical Processing
Wide Range of Stock Pharmaceutical & Medical Equipment
Customization Heat Exchangers
Timely Delivery Oil & Gas Industry
Trusted Supplier Architecture and Construction
ISO Certified Products Marine Industry
Manisha Steel Centre

Table of Content

ASTM A269 TP304L Tube Specification
ASTM A269 TP304L Tube Sizes

ASTM A269 TP304L Tube Sizes

  • OD: 1/2" NB - 24" NB
  • Thickness: Sch 5S - Sch XXS
  • Length: 1–12.5 meter
ASTM A269 Type 304L Seamless Tubing Standards

ASTM A269 Type 304L Seamless Tubing Standards

  • ASTM A269 | ASME SA 269
  • UNS S30403
ASTM A269 Grade 304L Welded Tube Manufacturing Process

ASTM A269 Grade 304L Welded Tube Manufacturing Process

  • Seamless, ERW
  • Welded
  • Redrawn
ASTM A269 GR TP304L Hot Finished Tube Technique

ASTM A269 GR TP304L Hot Finished Tube Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of ASTM A269 GR .TP304L ERW Tube

Benefits of ASTM A269 GR .TP304L ERW Tube

  • Good formability
  • High strength
  • Resistant to corrosion
ASME SA 269 TP 304L Condenser Tubes Documentation

ASME SA 269 TP 304L Condenser Tubes Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
SA 269 Grade TP304L Heater Tubes Shape

SA 269 Grade TP304L Heater Tubes Shape

  • Round/ Straight
  • Rectangle
  • Square/Coil
  • Hydraulic
SA 269 Gr 304L Heat Exchanger Tubes Origin

SA 269 Gr 304L Heat Exchanger Tubes Origin

  • European
  • Janpanese
  • American
  • Russia
ASTM A269 TP304L Tube Services

ASTM A269 TP304L Tube Services

  • Shearing
  • Heat Treatment
  • Cutting
ASTM A269 Grade 304L Welded Tube Packaging

ASTM A269 Grade 304L Welded Tube Packaging

  • Bubble Wraps
  • Wooden Box, Bundled
ASTM A269 GR TP304L Hot Finished Tube Finish

ASTM A269 GR TP304L Hot Finished Tube Finish

  • Annealing/Polished
  • Pickling, Bright
ASTM A269 GR .TP304L ERW Tube End

ASTM A269 GR .TP304L ERW Tube End

  • Threaded
  • Bevelled/Grooved
  • Plain
SA 269 Grade TP304L Heater Tubes Testing

SA 269 Grade TP304L Heater Tubes Testing

  • Ultrasonic, PMI
  • Chemical
  • Mechanical
ASTM A269 TP304L Tube Marking

ASTM A269 TP304L Tube Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
  • Nominal Size
ASTM A269 Type 304L Seamless Tubing Price

Do You Want to Get the Best ASTM A269 TP304L Tube Deal? Please send an email to obtain an estimate immediately. kalpesh@manishasteelcentre.com.

Size (OD x Wall Thickness) Price per Meter (USD)
1/4" x 0.035" US $11.48
1/2" x 0.049" US $16.40
3/4" x 0.065" US $21.33
1" x 0.083" US $24.75
1 1/4" x 0.095" US $29.85
2" x 0.120" US $39.36

Superior Quality Cut to Size A269 Type 304L Welded Austenitic Steel Tubing Supplier in Mumbai

Genuine ASTM A269 TP304L Tube Manufacturer in India As Per Specification

ASTM A269 TP304L SS Tubes Size Chart
OD in Inch ID WT in Inch BW Weight  Lbs/Ft.
1/2 0.460 0.020 25 0.1025
0.430 0.035 20 0.1738
0.402 0.049 18 0.2360
0.370 0.065 16 0.3020
1/4 0.210 0.020 25 0.0491
0.194 0.028 22 0.0664
0.187 0.032 21 0.0745
0.180 0.035 20 0.0804
0.152 0.049 18 0.1052
0.120 0.065 16 0.1284
1/8 0.069 0.028 22 0.0290
0.055 0.035 20 0.0336
3/4 0.680 0.035 20 0.2673
0.652 0.049 18 0.3668
0.620 0.065 16 0.4755
0.584 0.083 14 0.5913
3/8 0.319 0.028 22 0.1038
0.305 0.035 20 0.1271
0.277 0.049 18 0.1706
0.245 0.065 16 0.2152
3/16 0.131 0.028 22 0.0478
5/8 0.555 0.035 20 0.2205
0.527 0.049 18 0.3014
0.495 0.065 16 0.3888
5/16 0.242 0.035 20 0.1039
0.214 0.049 18 0.1382
0.182 0.065 16 0.1722
7/8 0.777 0.049 18 0.4323
0.745 0.065 16 0.5623
0.635 0.120 11 0.9676
7/16 0.340 0.049 18 0.2036
1 0.930 0.035 20 0.3607
0.902 0.049 18 0.4977
0.870 0.065 16 0.6491
0.834 0.083 14 0.8129
0.760 0.120 11 1.1278
1-1/4 1.010 0.120 11 1.4480
ASME SA 269 TP 304L Tubes Dimensions
OD inches ID inches D/t Ratio Ave. Wall inches Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.152 5.10 0.049 0.0309 0.0181
0.250 0.120 3.85 0.065 0.0378 0.0113
0.375 0.277 7.65 0.049 0.0502 0.0603
0.375 0.245 5.77 0.065 0.0633 0.0471
0.500 0.370 7.69 0.065 0.0888 0.1075
0.500 0.334 6.02 0.083 0.1087 0.0876
0.625 0.435 6.58 0.095 0.1582 0.1486
0.625 0.407 5.73 0.109 0.1767 0.1301
0.750 0.532 6.88 0.109 0.2195 0.2223
0.750 0.510 6.25 0.120 0.2375 0.2043
0.875 0.657 8.03 0.109 0.2623 0.3390
0.875 0.635 7.29 0.120 0.2846 0.3167
1.000 0.760 8.33 0.120 0.3318 0.4536
1.000 0.732 7.46 0.134 0.3646 0.4208
1.250 1.010 10.42 0.120 0.4260 0.8012
1.250 0.982 9.33 0.134 0.4698 0.7574
1.500 1.232 11.19 0.134 0.5750 1.1921
1.500 1.204 10.14 0.148 0.6286 1.1385
1.750 1.454 11.82 0.148 0.7449 1.6604
1.750 1.420 10.61 0.165 0.8216 1.5837
2.000 1.704 13.51 0.148 0.8611 2.2805
2.000 1.670 12.12 0.165 0.9512 2.1904

Buy ASME SA 269 Grade 304L Hot and Cold Finished Tube for General Service

ASTM A269 Grade 304L Welded Tube Surface Finishes
  • Mill Finish
  • Pickled and Passivated
  • Polished (2B Finish)
  • Satin Finish
  • Bright Annealed
  • Mirror Finish
  • Electropolished

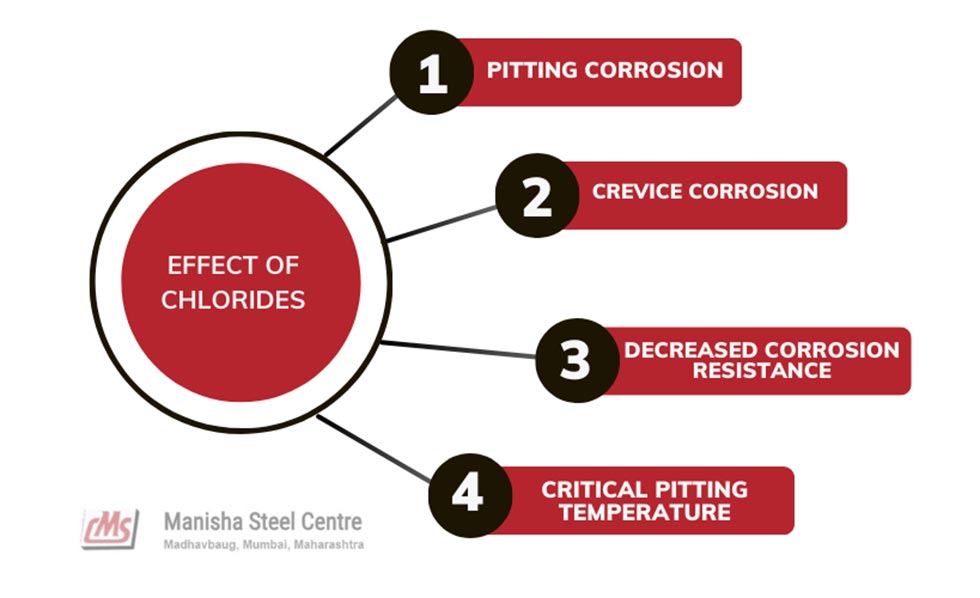

What is the effect of chlorides on the corrosion resistance of TP304L?
Effect of Chlorides
SA 269 Gr TP304L Hot Finished Tube Heat Treatment
Heat Treatment Process Temperature Range Cooling Method
Annealing Temperature typically between 1,050°C - 1,150°C (1,922°F - 2,102°F). Cool slowly in air
Solution Annealing Temperature typically around 1,000°C - 1,100°C (1,832°F - 2,012°F). Rapid quenching in water or air.
Stress Relieving Typically between 600°C - 750°C (1,112°F - 1,382°F). Cool slowly in air.
Cold Working (Post-Annealing) Not applicable No specific cooling method
Get SA 269 GR .TP304L ERW Tube Tested With Various Mechanical Test Like Flaring, Flange and Hardness Test
SA 269 GR .TP304L ERW Tube Testings
Testing Method Type
Visual Inspection (VT) NDT
Ultrasonic Testing (UT) NDT
Eddy Current Testing (ET) NDT
Magnetic Particle Testing (MPT) NDT
Radiographic Testing (RT) NDT
Tensile Testing DT
Hardness Testing DT
Impact Testing DT
Metallographic Examination DT
Flaw Detection via Sectioning DT
What is the difference between a 2B finish and a No. 4 satin finish for TP304L tubes?
Property 2B Finish No. 4 Satin Finish
Texture Smooth, slightly shiny Brushed, matte
Process Cold rolled, annealed Polished with abrasives
Corrosion High resistance Good resistance
Cleaning Easy Requires more care
Appearance Dull, uniform Fine, consistent lines
Use Industrial, food Decorative, food, pharma
Offer ASTM A269 304L Stainless Steel Tubing in Different Shapes like Square, Round , Rectangualar etc. Furnished in the Heat-Treated Condition
Most Common Types of ASTM A269 TP304L Tubes

Trusted ASTM A269 TP304L Tube Supplier in India in Custom Shapes and Types

ASTM A269 TP304L Bright Annealed Tubes

ASTM A269 TP304L Bright Annealed Tubes

ASTM A269 Type 304L Seamless Tubing

ASTM A269 Type 304L Seamless Tubing

ASTM A269 Grade 304L Welded Tube

ASTM A269 Grade 304L Welded Tube

ASTM A269 GR TP304L Hot Finished Tube

ASTM A269 GR TP304L Hot Finished Tube

ASTM A269 GR .TP304L ERW Tube

ASTM A269 GR .TP304L ERW Tube

ASTM A269 TP 304L Cold Drawn Seamless Tube

ASTM A269 TP 304L Cold Drawn Seamless Tube

ASME SA 269 TP 304L Condenser Tubes

ASME SA 269 TP 304L Condenser Tubes

SA 269 Grade TP304L Heater Tubes

SA 269 Grade TP304L Heater Tubes

SA 269 Gr 304L Heat Exchanger Tubes

SA 269 Gr 304L Heat Exchanger Tubes

What is the purpose of annealing for ASTM A269 TP304L Tubes?
  • Relieve internal stresses
  • Enhance corrosion resistance
  • Improve ductility and formability
  • Refine microstructure
  • Restore uniformity
ASTM A269 SS 304L Tube Equivalent Material
Grade UNS No Japanese JIS Swedish SS Old British Euronorm
BS En No Name
304L S30403 SUS 304L 2352 304LS11 – 1.4306 X2CrNi19-11
ASTM A269 Stainless 304L Welded Tube Chemical Composition
C 0.030%
Mn 2.0%
Si 0.75%
P 0.045%
S 0.030%
Cr 20.0%
Ni 12.0%
N 0.10%
SA269 Stainless Steel 304L Seamless Tube Mechanical Properties
Grade Yield Strength 0.2% Proof (MPa) min Tensile Strength (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304L 170 485 40 92 201
Physical Properties OF ASTM A269 TP304L SS ERW Tube
Grade Density (kg/m3) Electrical Resistivity (nΩ.m) Elastic Modulus (GPa) Specific Heat 0-100°C (J/kg.K) Thermal Conductivity (W/m.K) Mean Coefficient of Thermal Expansion (μm/m/°C)
at 100°C at 500°C 0-100°C 0-315°C 0-538°C
304L 8000 720 193 500 16.2 21.5 17.2 17.8 18.4
ASTM A269 TP304L Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
Germany 15-50
Oman 5
France 30
Saudi Arabia 7
Malaysia 10
South Africa 25-30
Uk 30
Bahrain 9
Singapore 8
UAE 5 days
Qatar 7
Kuwait 10
Netherlands 19-20
Belgium 6-9
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
