Stainless Steel Instrumentation Tube Fittings Manufacturer in India

Home| Stainless Steel Instrumentation Tube Fittings

SS Instrumentation Fittings Manufacturer in India With BSPT, NPT, BSPP Threads

Stainless Steel Ferrule Fittings Specification

How Stainless Steel Instrumentation Tube Fittings Suppliers in Singapore can make good Margins?
  • Leverage Economies of Scale
  • Differentiation through Value-Added Services
  • Optimize Supply Chain Management
  • Focus on Quality and Certification
  • International Expansion
  • Targeting High-Value Markets
  • Diversification
  • Branding and Marketing
  • Strategic Partnerships and Alliances
  • Technology and Automation
Manisha Steel Centre

Table of Content

Stainless Steel Instrumentation Tube Fittings Specification Specification
Stainless Steel Ferrule Fittings Sizes

Stainless Steel Ferrule Fittings Sizes

  • 1/8 to 2"
  • 3 to 50mm
SS Ferrule Made From

SS Ferrule Made From

  • Hex – ASTM A276;
  • Round Bar- ASTM A182
Stainless Steel Instrumentation Fittings End

Stainless Steel Instrumentation Fittings End

  • Threaded
  • Welding
  • JIC
Stainless Steel Tri Clamp Ferrule Thread

Stainless Steel Tri Clamp Ferrule Thread

  • NPT
  • BSPT
  • BSPP
Stainless Steel Double Ferrule Compression Fittings Pressure Rating

Stainless Steel Double Ferrule Compression Fittings Pressure Rating

  • 1000 Psi
  • 3000 Psi
  • 6000 Psi (SS)
  • 10000 Psi
Stainless Steel Twin Ferrule Compression Fittings Standards

Stainless Steel Twin Ferrule Compression Fittings Standards

  • ASME SA-479
  • BS 970
  •  DIN 4401
  • ASTM A276

Stainless Steel Tube Fittings Equivalent To

Stainless Steel Tube Fittings Equivalent To

  • DK-LOK
  • PARKER
  • SWAGELOK
  • HOKE
Stainless Steel Single Ferrule Compression Fittings Types

Stainless Steel Single Ferrule Compression Fittings Types

  • Tube to Female
  • Tube to Union
  • Accessories
  • Tube to Male
Stainless Steel Instrumentation Fittings Grades

Stainless Steel Instrumentation Fittings Grades

  • 304/ 304L
  • 316/316L
  • 321/321H
  • 310/310S etc.
SS Instrumentation Tube Fittings Forms

SS Instrumentation Tube Fittings Forms

  • Plug
  • Tee
  • Cross, Cap
  • Elbow
Stainless Instrument Fittings Standard Configurations

Stainless Instrument Fittings Standard Configurations

  • Tube Closure
  • Female Connector
  • Tube to Male
  • Ferrule Set, Weld Connector
  • Tube to Tube
SS Pneumatic Fittings Testing

SS Pneumatic Fittings Testing

  • HIC test
  • Hardness test
  • PMI
  • Ultrasonic
  • Hydrostatic testing

Price Of Stainless Steel Ferrule

Are You Looking for Stainless Steel Ferrule Fittings at the Best Price? Email kalpesh@manishasteelcentre.com to receive an estimate immediately.

Product Quantity Price IN INR Price in USD
SS Male Elbow Connector 1 ₹111.00 1.31
SS Male Connector Compression Double Ferrule OD Fitting 1 ₹65.00 0.77
SS Union Equal Straight Connector 1 ₹78.00 0.92
SS Tee Equal Connector 1 ₹150.00 1.77
SS Elbow Union Equal Connector 1 ₹111.00 1.31
SS Female Adapter 1 ₹81.00 0.95
SS 316 Tee Male Branch Connector Compression OD Fitting 1 ₹280.00 3.30
SS Bulkhead Union Equal Straight Connector 1 ₹111.00 1.31
SS Nut Hex Compression OD Fitting 1  ₹10.00 0.12

Buy Stainless Steel 304 Double Ferrule Compression Fittings With Size Ranging From 1/8 to 2’’

Stainless Ferrule Sizes

Stainless Steel Ferrule Fittings Manufacturer in India With 6000 PSI Pressure Rating and Various Threads

Stainless Ferrule Sizes



Metric Tube

Size 1/16 to 2 OD
Threads BSP Thread, NPTF/NPT Threads, SAE Thread, JIS Tapered Pipe Thread-PT, Metric Parallel/Tapered Thread
Pressure Rating 6000 psi for Stainless Steel

Fractional Tube

Size 1/16 to 2 OD,
Threads BSP Thread, NPT/NPTF Threads, SAE Thread, JIS Tapered Pipe Thread-PT, Metric Parallel/Tapered Thread
Pressure Rating 6000 psi for Stainless Steel



IMPERIAL
OD1 Imperial L Inch F Hex
1/8 0.47 7/16
1/16 0.31 5/16
1/4 0.50 9/16
3/8 0.56 11/16
3/16 0.47 1/2
2 2.06 3
5/16 0.53 5/8
1/2 0.69 7/8
5/8 0.69 1
7/8 0.69 1-1/4
3/4 0.69 1-1/8
1-1/4 1.25 1-7/8
1 0.81 1-1/2
1-1/2 1.50 2-1/4



METRIC
OD1 Metric F Hex L mm
2 12 11.9
3 12 11.9
4 12 11.9
6 14 12.7
8 16 13.5
10 19 15.1
12 22 17.4
14 25 17.4
15 25 17.4
16 25 17.4
18 30 17.4
20 32 17.4
22 32 17.4
25 38 20.6
28 46 30.6
30 50 32.7
32 50 34.4
38 60 40.6
50 3 in 52.3

Supplier Of SS 316 Twin and Single Ferrule Compression Fittings in Mumbai With Welding, Threaded, JIC End

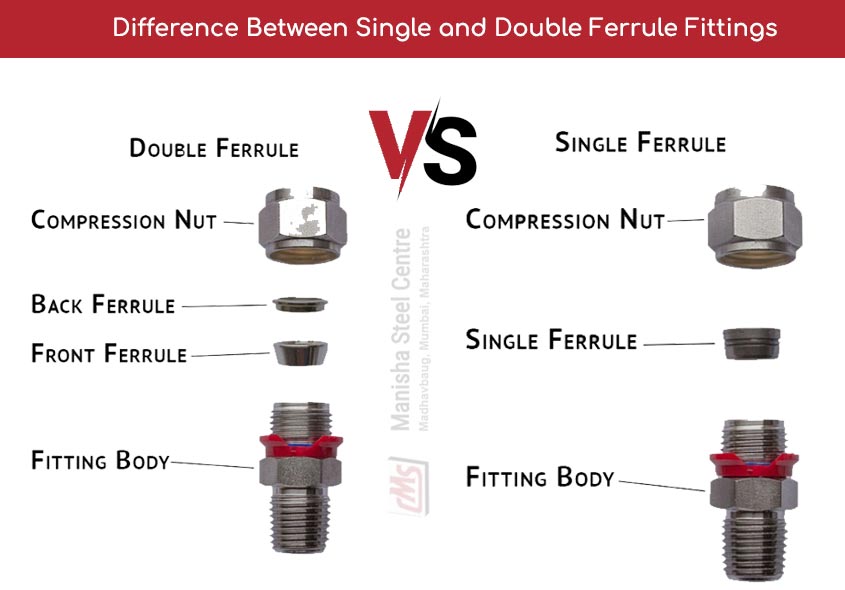

Difference Between Single and Double Ferrule Fittings
Difference Between Single and Double Ferrule Fittings



Feature Double Ferrule Fittings Single Ferrule Fittings
Sealing Mechanism Back Grips, Front Seals Single Ferrule Seals and Holds
Number of Ferrules Two Ferrules One Ferrule
Installation Little Complicated Easier
Grip Strength Strong Moderate
Tube Alignment More precise Less precise
Leak Prevention Excellent Good
Durability High Moderate
Application Systems Under High Pressure General-Purpose
Cost Higher Lower
Stock 2/3/ 6 Inch Stainless Steel Tri Clamp Ferrule As Per International Standards
Stainless Steel Ferrule Fittings Standards
Standard Description
ISO 8434-1 Standard Specifications for Compression Fittings
ASTM A312 Stainless Steel Pipe and Fitting Standards.
BS 5200 British Compression Fitting Standard.
DIN 2353 German Stainless Steel Compression Fittings Standard
ASME B16.11 Stainless Steel Fitting Standards for Pressure Systems.
SAE J514 Hydraulic Ferrule and Fitting Standards.
API 5L Requirements for Gas and Oil Fittings.
EN 10241 Threaded Steel Fittings That Meet European Standards.
Offer SS Compression Fittings in Various Types Include Bulkhead Female Connector, Union, Elbow, Tube Insert etc.
Types of SS Ferrule Fittings

Manisha Steel Centre Best Stainless Steel Instrumentation Tube Fittings Supplier in India in Various Types and Configuration

Stainless Steel Male Elbow

Stainless Steel Male Elbow

SS Female Branch Tee

SS Female Branch Tee

SS 316 Bulkhead Reducing Union

SS 316 Bulkhead Reducing Union

Stainless Steel Back Ferrule

Stainless Steel Back Ferrule

SS 304 Equal Elbow

SS 304 Equal Elbow

Stainless Steel 304L Female Run Tee

Stainless Steel 304L Female Run Tee

SS Male Branch Tee

SS Male Branch Tee

Stainless Steel 304 Tube Plug

Stainless Steel 304 Tube Plug

Stainless Steel 316 Reducing Union

Stainless Steel 316 Reducing Union

SS Union Cross

SS Union Cross

Stainless Equal Tee

Stainless Equal Tee

Stainless Steel 304 Front Ferrule

Stainless Steel 304 Front Ferrule

SS Bulkhead Male Connector

SS Bulkhead Male Connector

304L Stainless Steel Male Run Tee

304L Stainless Steel Male Run Tee

SS Tube Union

SS Tube Union

Stainless Bulkhead Female Connector

Stainless Bulkhead Female Connector

Stainless Steel 316L Tube Cap

Stainless Steel 316L Tube Cap

Stainless Steel Nut

Stainless Steel Nut

Stainless Steel Instrumentation Fittings HS Code
Product HS Code
Stainless Steel Instrumentation Fittings 73072900
Standard Configurations Of Stainless Ferrule Fittings
  • Positionable Elbow & Tee (Swivel)
  • Tube to Male - Male Elbow, Male Stub, Male Tee
  • Tube to Tube - Elbow, Straight, Cross, Tee, Bulkhead
  • Leak Proof and Interlocking System.
  • Female Connector - Female Straight, Tee, Elbow
  • Nut & Ferrule Set, Weld Connector
  • Tube Closure, Plug Cap
How Does Ferrule Fittings Work ?
How Does Ferrule Fittings Work



Step Description
1. Tube Insertion The Tube is Placed Inside the Fitting
2. Nut Tightening Ferrule(S) Are Moved Into the Fitting by the Nut.
3. Ferrule Grip The Tube is Grasped and Sealed by a Ferrule.
4. Seal Formation Leak-tight Seal is Created Between the Tube and the Fitting.
5. Pressure Hold Secure, Leak-proof Functioning is Ensured by Fitting.
Raw Material Used in SS Tri Clamp Ferrule
Typical raw material specifications head
Material Bar Forging
Brass BS2874 CZ121 BS2872 CZ 122
ASTMB 453 Alloy 345
ASTMB 16 Alloy 360 ASTMB124 ALLOY 377
Stainless steel DIN 4401 DIN 4401
BS970 316-S31 BS970 316-S31
ASME SA479-316 ASME SA182-316
High Duty Bronze DGS 1043 Grade 2 DGS 1043 Grade 2
Monel ASTMB164 ASTMB164
BS3076 NA13 BS3076 NA13
Incolony 825 ASTMB425 ASTMB425
BS3076 NA16 BS3076 NA16
Hastelloy C276 ASTMB575 ASTNB574
6Mo ASTM A479 ASTM A479
UNS S31254 UNS S31254

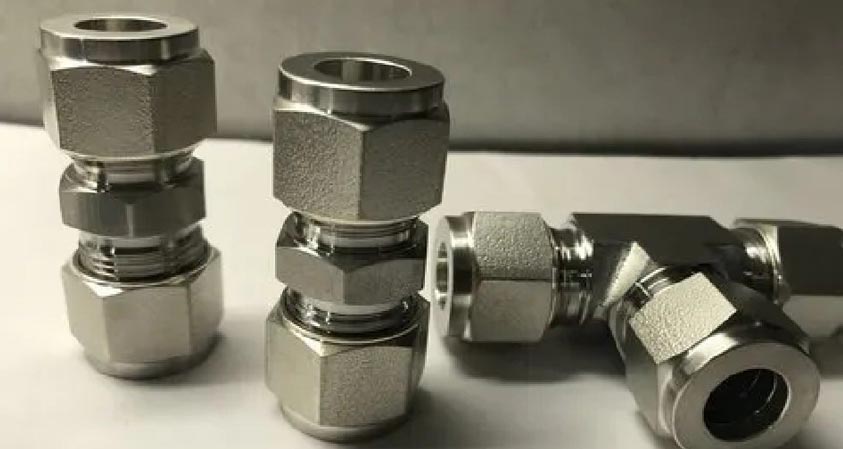

Stainless Steel Double Ferrule Compression Fittings Application
Stainless Steel Double Ferrule Compression Fittings Application
  • Oil and gas pipelines
  • Instrumentation and control systems
  • Hydraulic systems
  • Process piping
  • Food processing equipment
  • Water treatment plants
  • Automotive applications and so on.
Dimensions Of Single Ferrule Standard Gasket
Size
 C B D A
25mm
31mm
38mm
50mm
63mm
76mm
101mm
150mm
200mm
250mm
300mm
 22.2
28.6
34.9
47.6
60.3
73.0
98.4
149.2
200.0
250.8
301.6		 43.5
43.5
43.5
56.5
70.5
83.5
119.0
157.0
207.2
308.8
 2
2
2
2
2
2
2
2
2
2
2
 50.5
50.5
50.5
64.0
77.5
91.0
110.0
166.1
217.5
268.5
319.5
Stainless Steel Ferrule Fittings Also Called As
SS Instrumentation Tube Fittings

SS Instrumentation Tube Fittings

Stainless Steel Compression Tube Fittings

Stainless Steel Compression Tube Fittings

SS Double Ferrule Tube Fittings

SS Double Ferrule Tube Fittings

Stainless Steel Twin Ferrule Fittings

Stainless Steel Twin Ferrule Fittings

Outer Diameter Of SS Hydraulic Ferrule Fittings
OD Thread Designation - Nominal Size OD Actual Thread per inch
(fraction inch) (inches) (inches) BSP  NPT
13/32 1/8 0.405 28 27
5/16 1/16 0.3125 28 27
35/64 1/4 0.540 19 18
27/32 1/2 0.840 14 14
43/64 3/8 0.675 19 18
1-5/16 1 1.315 11 11-1/2
1-3/64 3/4 1.050 14 14
1-29/32 1-1/2 1.900 11 11-1/2
6-5/8 6 6.625 11 8
1-21/32 1-1/4 1.660 11 11-1/2
2-7/8 2-1/2 2.875 11 8
2-3/8 2 2.375 11 8
3-1/2 3 3.5 11 8
4-1/2 4 4.5 11 8
4 3-1/2 4.0 11 8
5-5/8 5 5.563 11 8
Dimensions Of Stainless Steel Twin Ferrule Compression Fittings
Interchanges with T-Tube O.D. (in.) Dimension, MM

    L C    G    F  E
-100-3 1/16 17.8 8.6 7.9 9.5 1.3
-200-3 1/8 22.4 12.7 11.1 9.5 2.3
-400-3 1/4 26.9 15.2 14.3 12.7 4.8
-600-3 3/8 30.5 16.8 17.5 15.9 7.1
-300-3 3/16 24.4 13.7 12.7 11.1 3.0
-500-3 5/16 29.7 16.2 15.9 15.9 6.4
-1010-3 5/8 38.9 24.4 25.4 25.4 12.7
-1810-3 11/8 55.1 31.2 46.0 42.9 24.6
-2000-3 11/4 66.5 41.1 47.6 42.9 27.7
-810-3 1/2 36.1 22.9 22.2 20.6 10.4
-1610-3 1 49.0 31.2 38.1 34.9 22.4
-1210-3 3/4 39.9 24.4 28.6 27.0 15.7
-1410-3 7/8 44.7 25.9 31.8 34.9 18.3
-2400-3 11/2 78.0 50.0 57.2 50.8 34.0
SS Tri Clover Ferrule Properties
  • Vibration resistance
  • Pressure and temperature resistance
  • Leak-tight seal
  • Easy installation
  • Versatility
  • Corrosion resistance
Pressure Rating Of Stainless Steel Single Ferrule Compression Fittings
OD
Of tube
(inch)		 Tube wall thickness (Swg/inch)
22/.028 30/.012 20/.036 33/.010 18/.048 16/.064 14/.080 12/.104
3/8 170s 205 275 380 480
1/8 345 515 600 805
1/4 265 315 465 635
1/21 155 205 275 380 450
1
1/16 680 465 865 385
5/16 205 275 380 515
7/8 85 120 170 225 240
5/8 120 170 240 310 380
3/4 105 140 195 245 300
What is the Purpose of Sealing Stainless Steel Compression Fittings ?
Purpose of Sealing Stainless Steel Compression Fittings



Purpose Description
Pressure Containment Manages Situations With a Lot of Pressure.
Leak Prevention Stops Gas or Fluid Leaks.
Durability Guarantees Sustained Performance.
Corrosion Resistance In Severe Conditions, It Resists Rusting.
Vibration Resistance Keeps the Seal Intact When Vibrated.
Ease of Installation Makes Fast, Weld-free Connections Possible.
Reusability Permits Damage-free Reuse.
SS Single Ferrule Caps Dimensions
Size
 B A
12mm
18mm
25mm
31mm
38mm
50mm
63mm
76mm
101mm
150mm
200mm
250mm
300mm
 4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
9.0
9.0
12.0
12.0
 25.1
25.1
50.5
50.5
50.5
64.0
77.5
91.0
119.0
166.1
217.5
268.5
319.5
Standard Material: 316
Benefits Of Stainless Steel Tri Clamp Ferrule
  • Connections That Are Safe and Leak-free
  • Dependable Performance Under Difficult Settings
  • Reduce the Chance of Fluid or Gas Leaks
  • Able to Withstand Mechanical Stress and Vibration
How Do You Install SS Compression Fittings on Tubing?
Purpose Description
Leak Prevention Stops Gas or Fluid Leaks.
Pressure Containment Adapts to High-Pressure Situations.
Corrosion Resistance In Harsh Conditions, It Resists Corrosion.
Durability Guarantees Sustained Performance.
Ease of Installation Makes Fast, Weld-free Connections Possible.
Vibration Resistance Keeps the Seal Intact When Vibrated.
Reusability Permits Damage-free Reuse.
Single Ferrule Polycarbonate Lenses Sizes
Size A B
25mm
31mm
38mm
50mm
63mm
76mm
101mm
150mm
200mm
250mm
300mm
 50.5
50.5
50.5
64.0
77.5
91.0
119.0
166.1
217.5
268.5
319.5		 12
12
12
12
12
12
12
12
12
12
12
Chemical Composition Of SS Tri Clamp Weld Ferrule
Grades Manganese Carbon Phosphorus Silicon Sulfur Chromium Nickel Other
SS 304L 2 .00 0.035 0.04 0.75 0.03 18.00 20.00 8.00 13.00
SS 304 2 0.08 0.04 0.075 0.03 18.00 20.00 8.00 11.00
SS 304H 2 0.04 0.1 0.04 0.75 0.03 18.00 20 8.00 11
SS 316 2.00 008 0.040 0.75 0.030 16.00 18.00 11.00 4.00 Mo2.00- 3.00
SS 310 2 0.15 0.04 0.75 0.03 24.00 26 19.00 22
SS 416 1.25 0.15 0.066 1.00 0.15 12.00 14.00
SS 316L 2 0.035 0.04 0.75 0.03 16.00 18 10.00 15 Mo 2.00 3.00
SS 317 2 0.08 0.04 0.75 0.03 18.00 20 11.00 14 Mo 3.00 4.00
SS 316H I 2.00 0_04 0.10 0040 0.75 0.030 16.00 18.00 11.00 14.00 Mo2.00-3.00
SS 321 203 0.48 0.04 0.75 0.03 17.00 20 9.00 13 Ti 5XC-0.60
SS 347 200 0.08 0.04 0.75 0.03 17.00 20 7.00 13 Cb + Ta 10 XC-1.00
21-6-9 8.00 0.04 60 1 0.03 19.00 21.5 5.50 7.5 N 0.15 0.40
Stainless Steel Instrumentation Tube Fittings Mechanical Properties
Grade Yield Strength (MPa) Poisson’s Ratio Tensile Strength (MPa) Hardness (HRB) Elongation (%) Modulus of Elasticity (GPa)
SS 304H 205 0.29 520 – 720 85 – 95 40 – 50 193
SS 304L 205 0.29 520 – 720 85 – 95 40 – 50 193
SS 310S 205 – 275 0.29 515 – 740 90 – 105 40 – 50 193
SS 310 205 – 275 0.29 515 – 740 90 – 105 40 – 50 193
SS 316L 205 0.29 520 – 720 85 – 95 40 – 50 193
SS 316 205 0.29 520 – 720 85 – 95 40 – 50 193
SS 316Ti 205 0.29 520 – 720 85 – 95 40 – 50 193
SS 317L 205 0.29 520 – 730 85 – 95 40 – 50 193
SS 446 205 0.28 520 – 720 85 – 95 40 – 50 190
SS 317 205 0.29 520 – 730 85 – 95 40 – 50 193
SS 321 205 0.29 520 – 720 85 – 95 40 – 50 193
SS 347 205 0.29 520 – 720 85 – 95 40 – 50 193
SS 321H 205 0.29 520 – 720 85 – 95 40 – 50 193
SS 410 205 0.28 520 – 720 85 – 95 35 – 45 190
SS 904L 205 0.29 520 – 720 85 – 95 40 – 50 193
Equivalent Of Stainless Steel Compression Tube Fittings
STANDARD WERKSTOFF NR. UNS JIS BS AFNOR EN GOST
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11 03Х18Н11
SS 304 1.4301 S30400 SUS 304 304S31 Z7CN18‐09 X5CrNi18-10 08Х18Н10
SS 310 1.4841 S31000 SUS 310 310S24 – X15CrNi25-20 20Ch25N20S2
SS 304H 1.4301 S30409 – – – – –
SS 310S 1.4845 S31008 SUS 310S 310S16 – X8CrNi25-21 20Ch23N18
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 03Ch17N14M3 / 03Ch17N14M2
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 –
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 Z6CNDT17‐123 X6CrNiMoTi17-12-2 08Ch17N13M2T
SS 317L 1.4438 S31703 SUS 317L – – X2CrNiMo18-15-4 –
SS 317 1.4449 S31700 SUS 317 – – – –
SS 321 1.4541 S32100 SUS 321 – – X6CrNiTi18-10 –
SS 347 1.4550 S34700 SUS 347 – – X6CrNiNb18-10 08Ch18N12B
SS 321H 1.4878 S32109 SUS 321H – – X12CrNiTi18-9 –
SS 446 1.4762 S44600 – – – – –
SS 410 1.4006 S41000 SUS 410 410S21 – X12Cr13 –
SS 904L 1.4539 N08904 SUS 904L 904S13 Z2 NCDU 25-20 X1NiCrMoCu25-20-5 STS 317J5
Maintain Ready Stock Of Stainless Steel Ferrule Fittings
1/2 Inch SS316 Stainless Steel Twin Ferrules Tube Compression 90 Degree Union Elbow

1/2 Inch SS316 Stainless Steel Twin Ferrules Tube Compression 90 Degree Union Elbow

Stainless Steel Tube Connector 6000 Psi

Stainless Steel Tube Connector 6000 Psi

High Pressure PT and NPT Thread Stainless Steel Double Ferrule Connector

High Pressure PT and NPT Thread Stainless Steel Double Ferrule Connector

SS316 Stainless Steel Double Ferrules Compression 1/16 to 2' ' Inch Tube Unions

SS316 Stainless Steel Double Ferrules Compression 1/16 to 2' ' Inch Tube Unions

3mm Stainless Steel 316 Double Ferrule External Thread Straight Pipe Fitting

3mm Stainless Steel 316 Double Ferrule External Thread Straight Pipe Fitting

High Pressure Stainless Steel 316 Double Ferrule Hydraulic Tube Fittings

High Pressure Stainless Steel 316 Double Ferrule Hydraulic Tube Fittings

SS Ferrule Fittings Shipping Time As Per Country
Price variations
5 % extra
Export to Delivery Time in Days
Algeria 45
Belgium 21
Sri lanka 6
Jordan 21
Netherlands 9
Vietnam 10
Norway 45
Australia 21
Angola 45
Cyprus 45
Russia 20
Germany 30
Kenya 19
Thailand 7
Japan 7
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
