Stainless Steel Heat Exchanger Tube Manufacturer in India

Home|Stainless Steel Heat Exchanger Tube

SS Shell and Tube Heat Exchanger Supplier in Mumbai With MTC At Lowest Price

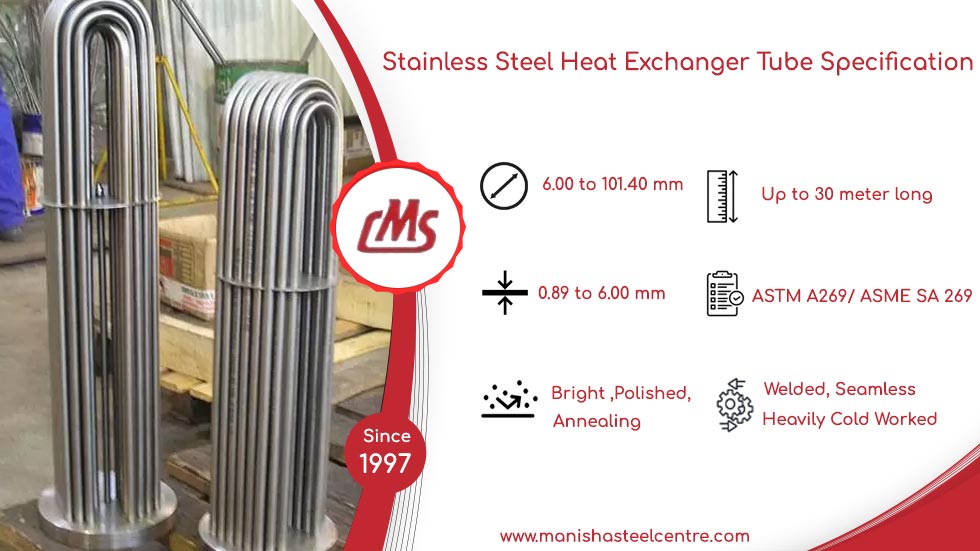

Stainless Steel Heat Exchanger Tube Specification



How to get High Quality Stainless Steel Heat Exchanger Tube in Saudi Arabia at lowest Price
  • Identify Reputable Suppliers and Manufacturer
  • Request Multiple Quotes
  • Check for Certification and Quality Standards
  • Evaluate Online Marketplaces
  • Consider Shipping and Import Taxes
  • Work with a Local Distributor
Manisha Steel Centre

Table of Content

Stainless Steel Heat Exchanger Tube Specification
SS Heat Exchanger Tube Sizes

SS Heat Exchanger Tube Sizes

  • OD: 6.00 to 101.40 mm
  • Thickness: 0.89 to 6.00 mm
  • Length: Up to 30 meter long
SS Fin Tube Heat Exchanger Standards

SS Fin Tube Heat Exchanger Standards

  • ASTM A269 | ASME SA 269
  • ASTM A213, A249
304 Stainless Steel Heat Exchanger Tube Manufacturing Process

304 Stainless Steel Heat Exchanger Tube Manufacturing Process

  • Seamless,ERW
  • Welded
  • Redrawn
SS Seamless Heat Exchanger Tube Technique

SS Seamless Heat Exchanger Tube Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of ASTM A213 Heat Exchanger Tube

Benefits of ASTM A213 Heat Exchanger Tube

  • High Strength
  • Longer Service Life
  • Quality Assurance
Stainless Steel Finned Tube Heat Exchangers Documentation

Stainless Steel Finned Tube Heat Exchangers Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
SS Straight Tube Heat Exchanger Shape

SS Straight Tube Heat Exchanger Shape

  • Round/ Straight
  • Rectangle
  • Square/Coil
SS 316 Heat Exchanger Origin

SS 316 Heat Exchanger Origin

  • European
  • Janpanese
  • American
  • Russia
SS Coil Tubing Heat Exchanger Services

SS Coil Tubing Heat Exchanger Services

  • Shearing
  • Heat Treatment
  • Cutting
Stainless Steel Fin Tube Heat Exchanger Packaging

Stainless Steel Fin Tube Heat Exchanger Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled
Stainless Steel Tube Coil Heat Exchanger Finish

Stainless Steel Tube Coil Heat Exchanger Finish

  • Annealing/Polished
  • Pickling
  • Bright
Stainless Steel Finned Tube Heat Exchangers End

Stainless Steel Finned Tube Heat Exchangers End

  • Threaded
  • Bevelled/Grooved
  • Plain
SS Heat Exchanger Tube Testing

SS Heat Exchanger Tube Testing

  • Ultrasonic
  • PMI
  • Chemical
  • Mechanical
Stainless Steel Spiral Tube Heat Exchanger Marking

Stainless Steel Spiral Tube Heat Exchanger Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
SS Tube Coil Heat Exchanger Price

Are You Looking for the Best Price on Heat Exchanger Tubes Made of Stainless Steel? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Sizes Price Per Pcs In INR Price Per Pcs In US $
7.00mm x 0.270mm x d30 INR 2,859 US $ 37.17
25.4×2.03tx 9510l INR 2,256 US $ 29.33
31.8 Od X 2.11 INR 1,638 US $ 21.29
23.5×1.91×0.32 L:659.45mm INR 2,158 US $ 28.05
7.00mm X 0.270mm X D30-0.390 INR 1,393 US $ 18.11
Stainless Steel Seamless Heat Exchanger Tubes Sizes
Nominal Size mm Size Range inches
OD × Wall OD × ID × Wall
12.00 × 1.00  10.00
14.00 × 1.00  12.00
18.00 × 1.00  16.00
19.05 × 1.24 3/4 × 16.57 × 0.049
20.00 × 1.00  18.00
22.00 × 1.50  19.00
15.00 × 1.00  13.00
8.00 × 1.00  6.00
10.00 × 1.00  8.00
28.00 × 1.00  26.00
30.00 × 1.00  28.00
38.00 × 3.00  32.00
16.00 × 1.00  14.00
25.00 × 1.00  23.00

Buy Superior Strength 304 and 316 Stainless Steel Coil Tubing Heat Exchanger in Custom and Standard Sizes

Stainless Steel Fin Tube Heat Exchanger Diameter

Genuine Stainless Steel Heat Exchanger Tube Manufacturer in India As Per Specification

Heat exchanging area(m²) Diameter of SS Heat Exchanger Tubes(mm) Diameter of pipe(mm) Design Pressure(Mpa)
2.04~3.47 1500~2500 273 0.6/1.0
2.63~3.42 1500~3000 325 0.6/1.0
8.36~18.26 1500~3200 400 0.6/1.0
18.48~30.56 2000~3200 500 0.6/1.0
35.12~49.62 2500~3500 600 0.6/1.0
Tolerance Chart of SS Coil Tubing Heat Exchanger
SPECIFICATION SIZE OD RANGE INCHES TOLERANCES
O.D. WALL
PLUS MINUS PLUS MINUS
ASTM-A-213 Under 1.000 .004" .004" 20% 0%
ASME-SA-213 1.000 to 1.500 .006" .005" 20% 0%
ASTM-A-213 Under 1.000 .004" .004" 20% D
ASME-SA-249 1.000" . 1.500 .006" .006" 10% 10%
ASTM-A-249 Under 1.000 .004" .004" 10% 10%
Heat exchanger tube 2.000 to 2.499 .010" .010" 22% 0%
2.000 - 2.499* .010" .010" 10% 10%
Welded and cold worked 1.501" - 1.999* .008" .008" 10% 10%
Cold finished seamless 1.501 to 1.999 .008" .008" 22% 0%
Minimum wall 2.500 to 2.999 .012" .012" 22% 0%
3.000 to 4.000 .015" .015" 22% 0%
4.001 to 5.000 .015" .025" 22% D
Average wall 2.500 - 2.999 .012" .012" 10% 10%
3.000" - 4.000" .015* .015* 10% 10%
4.001 - 5.000 .015" .015" 10% 10%
SS Welded Heat Exchanger Tube Wall Thickness
Diameter BWG (inch) 5 (.220) 6 (.203) 7 (.180) 8 (.165) 9 (.148) 10 (.134) 11 (.120) 12 (.109) 13 (.095) 14 (.083) 16 (.065) 18 (.049) 20 (.035)
[mm] [inch] [mm] 5,59 5,16 4,57 4,19 3,76 3,40 3,05 2,77 2,41 2,11 1,65 1,24 0,89
12,70 1/2 lb/ft - - - - 0,586 0,555 0,519 0,487 0,441 0,399 0,327 0,256 0,190
.500 kg/m - - - - 0,873 0,826 0,773 0,725 0,657 0,594 0,487 0,381 0,283
25,40 1 lb/ft - - - 1,696 1,587 1,456 1,342 1,225 1,128 0,998 0,887 0,709 0,543
1.000 kg/m - - - 2,526 2,363 2,169 1,998 1,824 1,680 1,487 1,321 1,056 0,808
31,75 1 1/4 lb/ft - 2,607 2,451 2,225 2,071 1,891 1,734 1,577 1,448 1,277 1,131 0,900 0,686
1.250 kg/m - 3,882 3,650 3,313 3,085 2,816 2,583 2,349 2,157 1,902 1,684 1,340 1,022
38,10 1 1/2 lb/ft - 3,253 3,047 2,753 2,556 2,326 2,128 1,930 1,769 1,556 1,375 1,090 0,830
1.500 kg/m - 4,845 4,538 4,100 3,807 3,464 3,169 2,875 2,634 2,317 2,048 1,624 1,236
50,80 2 lb/ft - - 4,547 4,241 3,810 3,525 3,196 2,914 2,636 2,409 2,114 1,863 1,472
2.000 kg/m - - 6,771 6,316 5,674 5,250 4,759 4,340 3,925 3,588 3,148 2,775 2,192
15,88 5/8 lb/ft - - - - 0,804 0,752 0,696 0,647 0,581 0,521 0,423 0,328 0,242
.625 kg/m - - - - 1,198 1,120 1,036 0,964 0,865 0,776 0,630 0,488 0,360
19,05 3/4 lb/ft - - - - - 1,021 0,948 0,872 0,807 0,720 0,643 0,518 0,400
.750 kg/m - - - - - 1,521 1,412 1,299 1,202 1,072 0,957 0,771 0,595
22,23 7/8 lb/ft - - - - - - 1,158 1,056 0,973 0,864 0,767 0,614 0,472
.875 kg/m - - - - - - 1,722 1,571 1,448 1,285 1,141 0,913 0,702
63,50 2 1/2 lb/ft - - 5,839 5,435 4,867 4,494 4,066 3,701 3,341 3,050 2,671 2,351 1,854
2.500 kg/m - - 8,696 8,094 7,249 6,693 6,055 5,512 4,976 4,542 3,978 3,502 2,761
76,20 3 lb/ft - - - 7,132 6,628 5,924 5,464 4,935 4,487 4,047 3,691 3,228 2,840
3.000 kg/m - - - 10,622 9,871 8,823 8,137 7,350 6,683 6,027 5,497 4,808 4,229
Stainless Coil Tubing Heat Exchanger Dimensions
OD Wall Thickness (t) Common Length (L)
19.05 1.0 – 4.0 mm 6 meters, 12 meters
127.0 4.0 – 12.0 mm
101.6 3.0 – 12.0 mm
15.9 1.0 – 3.0 mm
63.5 2.0 – 10.0 mm
25.4 1.0 – 5.0 mm
76.2 3.0 – 12.0 mm
50.8 2.0 – 8.0 mm
12.7 1.0 – 3.0 mm
6.35 0.5 – 2.0 mm
9.52 0.5 – 2.0 mm
38.1 1.5 – 6.0 mm

Offer Stainless Steel High Precision & Heat Exchanger Tubes to Transfer Heat Between Two Fluids for Various Industrial Application

SS High Precision & Heat Exchanger Tubes Applications

Manisha Steel is a trusted SS Heat Exchanger Tube Manufacturers in India, offering high-performance tubes widely used in applications such as:

  • Power Generation Industry
  • Petrochemical & Chemical Industry
  • Oil & Gas Industry
  • Food & Beverage Industry
  • HVAC
  • Marine Industry
  • Pharmaceutical Industry
Typical Performance and Dimensions of SS Heat Exchanger Tube
Model Dim. A (mm) Dim. B (mm) Dim. C (mm) Heat Dissipated (kW) Water Flow (l/min) Oil Flow (l/min) Weight (kg)
SB4507-2 460 266 89 9 120 120 11
SB4507-4 734 540 89 15 85 110 15
SB4507-6 1114 920 89 22 75 90 20
SC4508-4 764 520 114 22 140 180 21
SC4508-6 1144 900 114 35 140 170 27
SC4508-8 1652 1408 114 48 120 150 38
SD4509-4 764 510 141 52 320 240 30
SD4509-6 1134 890 141 82 250 210 45
SD4509-8 1652 1398 141 133 220 180 62
SE4510-4 784 490 168 66 460 480 44
SE4510-6 1164 870 168 100 360 390 60
SE4510-8 1672 1378 168 144 310 330 78
SE4510-9 2180 1886 168 196 280 300 104
SF4511-4 834 470 219 140 740 580 79
SF4511-6 1214 850 219 224 650 550 101
SF4511-8 1722 1358 219 354 520 500 133
SF4511-9 2230 1866 219 536 480 460 164
SG4512-4 844 430 273 223 1100 960 114
SG4512-6 1224 810 273 358 1000 920 148
SG4512-8 1732 1318 273 624 900 740 198
SG4512-9 2240 1826 273 871 790 750 244
Get Stainless Steel Fin Tube Heat Exchanger in Both Seamless and Welded Form Design By Cold Drawn Processing Technique
SS Fin Tube Heat Exchanger Cold Drawn Processing Technique
  • Tube Preparation
  • Cold Drawing
  • Annealing
  • Fin Tube Formation
  • Final Inspection and Quality Control
Technical Parameters of SS Fin Tube Heat Exchanger
Main performance parameters - Shell and Tubes type Structure
- 125 square meter Area of Heat Transfer
mm 456 Pitch
Technical Parameters MPa Shell : 0.6 Tube : 1.6 Design Pressure
°C Shell: 250 Tube: 210 Design temperature
°C Shell: 230/210 Tube: 170/190 Working temperature
Dimension mm Φ662 Dia.
mm 7040 Length
kg 2165 Weight

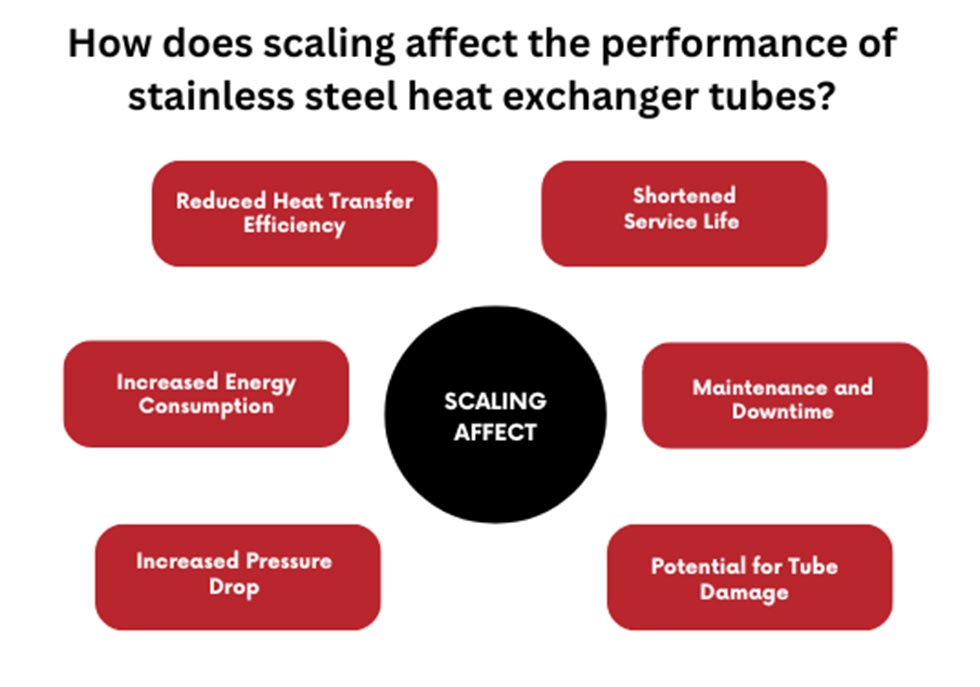

How does scaling affect the performance of SS Heat Exchanger Tubes?
Scaling affect the Performance of SS Heat Exchanger Tubes
Corrugated Stainless Steel Tubing Heat Exchanger Weight Chart
Outer Diameter (OD) Wall Thickness (t) Weight per Meter (kg/m)
15.9 1.0 0.38
50.8 2.0 1.78
12.7 1.0 0.33
127.0 4.0 7.45
101.6 3.0 4.54
19.05 1.0 0.47
76.2 3.0 3.43
25.4 1.0 0.61
63.5 2.0 2.13
38.1 1.5 1.03
Keep Stainless Steel Spiral Tube Heat Exchanger Coiled Tube Stock For Immediate Dispatch, Check More Available Types
Most Common Types of SS Heat Exchanger Tubes

Trusted Stainless Steel Heat Exchanger Tube Supplier in India in Custom Shapes and Types

SS Seamless Heat Exchanger Tube

SS Seamless Heat Exchanger Tube

SS Welded Heat Exchanger Tube

SS Welded Heat Exchanger Tube

SS Shell & Tube Heat Exchanger

SS Shell & Tube Heat Exchanger

Stainless Steel Coil Tubing Heat Exchanger

Stainless Steel Coil Tubing Heat Exchanger

SS Corrugated Heat Exchanger Tube

SS Corrugated Heat Exchanger Tube

Stainless Steel U Bent Heat Exchanger

Stainless Steel U Bent Heat Exchanger

How do you calculate the heat transfer rate for a heat exchanger using SS Tubes?
  • Using the LMTD Method
  • Using the Effectiveness-NTU Method
How do you design a heat exchanger system using SS Tubes to optimize heat transfer while minimizing pressure drop?

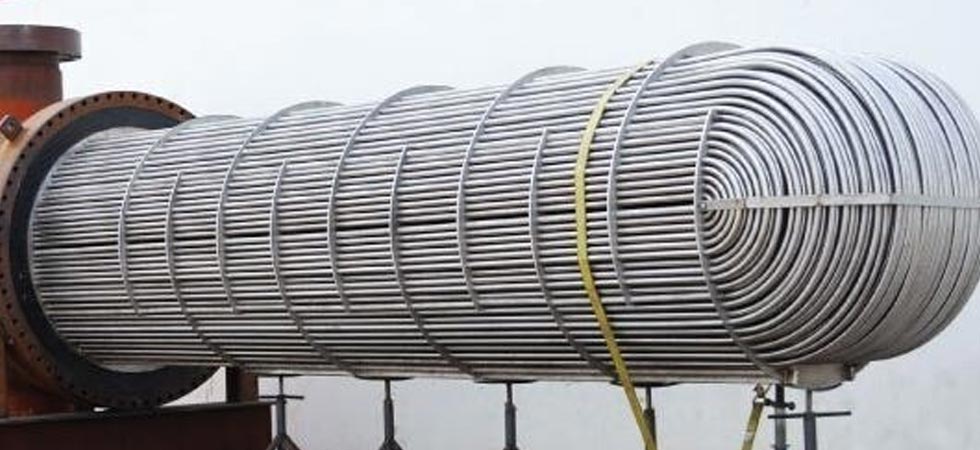

Design a Heat Exchanger System
  • Determine Design Requirements
  • Select the Appropriate Tube Dimensions
  • Choose the Right Flow Arrangement
  • Optimize the Overall Heat Transfer Coefficient
  • Minimize Pressure Drop



Design Parameter Smaller Diameter Tubes Larger Diameter Tubes
Heat Transfer Higher heat transfer Lower heat transfer
Pressure Drop Higher pressure drop Lower pressure drop
Fouling More prone to fouling Less prone to fouling
Pitch Smaller pitch = better heat transfer, higher pressure drop Larger pitch = lower heat transfer, lower pressure drop
SS Shell and Tube Heat Exchanger Equivalent Standards
America North America Japan Russia United Kingdom Russia France Europe
ASTM UNS JIS WERKSTOFF NR. BS GOST AFNOR EN
SS 304 S30400 SUS 304 1.4301 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 316 S31600 SUS 316 1.4401 / 1.4436 316S31 / 316S33 - Z7CND17‐11‐02 X5CrNiMo17-12-2 /
X3CrNiMo17-13-3
SS 316H S31609 - - 316S51 - - -
SS 316L S31603 SUS 316L 1.4404 / 1.4435 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 /
X2CrNiMo18-14-3
SS 317 S31700 SUS 317 1.4449 - - - X5CrNiMo1713
SS 310 S31000 SUS 310 1.4841 310S24 20Ch25N20S2 – X15CrNi25-20
SS 304H S30409 – 1.4301 – – – –
SS 310S S31008 SUS 310S 1.4845 310S16 20Ch23N18 – X8CrNi25-21
SS 304L S30403 SUS 304L 1.4306 / 1.4307 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 321 S32100 SUS 321 1.4541 - - - X6CrNiTi18-10
SS 347 S34700 SUS 347 1.4550 - - - X6CrNiNb18-10
SS 904L N08904 SUS 904L 1.4539 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5
SS 321H S32109 SUS 321H 1.4878 - - - X12CrNiTi18-9
SS 347H S34709 SUS 347H 1.4961 - - - X6CrNiNb18-12
SS 317L S31703 SUS 317L 1.4438 - - - X2CrNiMo18-15-4
SS 410S S41008 SUS410S 1.4516 - - - X6CrNiTi12
SS 409 S40900 SUS409 1.4512 - - - X2CrTi12
Stainless Coil Tubing Heat Exchange Chemical Composition
Grades Phosphorus Chromium Sulfur Manganese Nickel Carbon Silicon
SS 304 0.04 18.00 20.00 0.03 2 8.00 11.00 0.08 0.075
SS 304L 0.04 18.00 20.00 0.03 2 .00 8.00 13.00 0.035 0.75
SS 304H 0.04 18.00 20 0.03 2 8.00 11 0.04 0.1 0.75
SS 316 0.040 16.00 18.00 0.030 2.00 11.00 4.00 008 0.75
SS 310 0.04 24.00 26 0.03 2 19.00 22 0.15 0.75
SS 416 0.066 12.00 14.00 0.15 1.25 0.15 1.00
SS 316L 0.04 16.00 18 0.03 2 10.00 15 0.035 0.75
SS 317 0.04 18.00 20 0.03 2 11.00 14 0.08 0.75
SS 316H 0040 16.00 18.00 0.030 I 2.00 11.00 14.00 0_04 0.10 0.75
SS 321 0.04 17.00 20 0.03 203 9.00 13 0.48 0.75
SS 347 0.04 17.00 20 0.03 200 7.00 13 0.08 0.75
21-6-9 60 19.00 21.5 0.03 8.00 5.50 7.5 0.04 1
Mechanical Propertis of SS Finned Tube Heat Exchangers
Grades Yield Strength (MPa) Tensile Strength (MPa) Modulus of Elasticity (GPa) Hardness (HRB) Elongation (%) Poisson’s Ratio
SS 304 205 520 – 720 193 92 – 98 40% 0.27 – 0.30
SS 304L 205 520 – 720 193 85 – 95 40 – 50 0.29
SS 304H 205 520 – 720 193 85 – 95 40 – 50 0.29
SS 310 205 – 275 515 – 740 193 90 – 105 40 – 50 0.29
SS 310S 205 – 275 515 – 740 193 90 – 105 40 – 50 0.29
SS 316 205 520 – 720 193 85 – 95 40 – 50 0.29
SS 316L 205 520 – 720 193 85 – 95 40 – 50 0.29
SS 316Ti 205 520 – 720 193 85 – 95 40 – 50 0.29
SS 317 205 520 – 730 193 85 – 95 40 – 50 0.29
SS 317L 205 520 – 730 193 85 – 95 40 – 50 0.29
SS 321 205 520 – 720 193 85 – 95 40 – 50 0.29
SS 321H 205 520 – 720 193 85 – 95 40 – 50 0.29
SS 347 205 520 – 720 193 85 – 95 40 – 50 0.29
SS 410 205 520 – 720 190 85 – 95 35 – 45 0.28
SS 446 205 520 – 720 190 85 – 95 40 – 50 0.28
SS 904L 205 520 – 720 193 85 – 95 40 – 50 0.29
SS Heat Exchanger Coiled Tube Physical Properties
Grades Melting Point (°C) Density (g/cm³) Coefficient of Thermal Expansion (μm/m·°C) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K)
SS 304 1400 – 1450 7.93 17.2 0.072 16.2
SS 304L 1400 – 1450 7.93 16.0 72.3 16.2
SS 310 1400 – 1450 7.90 17.0 72.0 14.0
SS 304H 1400 – 1450 7.93 16.0 72.3 16.2
SS 316 1375 – 1400 7.98 16.5 74.0 16.3
SS 310S 1400 – 1450 7.90 17.0 72.0 14.0
SS 316Ti 1375 – 1400 7.98 16.5 74.0 16.3
SS 316L 1375 – 1400 7.98 16.5 74.0 16.3
SS 317L 1375 – 1400 7.95 16.5 74.5 16.3
SS 317 1375 – 1400 7.95 16.5 74.5 16.3
SS 321 1400 – 1450 7.93 16.0 74.0 16.2
SS 347 1400 – 1450 7.93 16.0 74.0 16.2
SS 321H 1400 – 1450 7.93 16.0 74.0 16.2
SS 446 1400 – 1450 7.80 11.5 76.0 30.0
SS 410 1480 – 1530 7.75 11.5 78.0 30.0
SS 904L 1350 – 1400 8.00 16.0 70.0 15.0
Check Available Stock
Prime Quality 316l Stainless Steel Heat Exchanger Tube

Prime Quality 316l Stainless Steel Heat Exchanger Tube

304l Hat Exchanger Stainless Steel Tube

304l Hat Exchanger Stainless Steel Tube

Superheater Heat Exchanger Economizer Tubes

Superheater Heat Exchanger Economizer Tubes

Stainless Steel Seamless Heat Exchanger Tube

Stainless Steel Seamless Heat Exchanger Tube

ASTM A778 60mm Heat Exchanger Metal Tubing

ASTM A778 60mm Heat Exchanger Metal Tubing

Stainless Steel Industrial Heat Exchange Finned Tube

Stainless Steel Industrial Heat Exchange Finned Tube

SS Heat Exchanger Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
Uk 30
Netherlands 19-20
Belgium 6-9
Qatar 7
Kuwait 10
France 30
Philippines 14
Germany 15-50
Oman 5
Indonesia 9
South Africa 25-30
Singapore 8
UAE 5 days
Malaysia 10
Saudi Arabia 7
Bahrain 9
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
