Aircraft Stainless Steel Tubing | SS 304 and 316 Aerospace Tube

Superior Strength SS Aircraft Tubing Manufacturer in India With Premium Quality Raw Materials

Aircraft Stainless Steel Tubing Specification

Table of Content

Aircraft Stainless Steel Tubing Specification
Aircraft Grade SS Tubing Material Specification
316 Aerospace Tube Size Chart
Aircraft Grade SS Seamless Tube Applications
Most Common Types Of Aircraft SS Tubings
SS Aircraft Exhaust Tubing Price
Stainless Aerospace Tubing Tolerance
Widest Range of SS Aircraft Tubing
What maintenance is required for stainless steel tubing used in aircraft systems?
Aircraft Grade Stainless Steel Tubing Equivalent Standards
Aerospace Stainless Steel Tubing Chemical Composition
Mechanical Properties of Aircraft Hydraulic Tubes
Aerospace Engine Tubes Physical Properties

Aircraft Stainless Steel Tubing Specification

SS Aircraft Tubing Sizes

OD: +/-0.05mm
Thickness: +/-0.05mm
Length: Single, Double Random

SS Aircraft Tube Standards

ASTM A269 | ASME SA 269
ASTM A249
AMS-T-6845/AMS 5567

SS 304 Aerospace Tube Manufacturing Process

Seamless, ERW
Welded, Redrawn

SS 316 Aerospace Tube Technique

Hot Formed
Precision Rolled
Cold Formed

Benefits of 316 Aerospace Stainless Steel Tubing

Corrosion Resistance
Heat Resistance
Long Lifespan

Aerospace Stainless Steel Tubing Documentation

Visual Inspection
Mill Test Certificates
PMI Test Reports

Aircraft Exhaust Tubing Shape

Round/ Straight
Rectangle
Square/Coil
Hydraulic

Stainless Steel Welded Aircraft Tube Origin

European
Janpanese
American

Stainless Steel Aircraft Tubing Services

Shearing, Cutting
Heat Treatment

Aerospace Engine Tubes Packaging

Bubble Wraps
Wooden Box
Bundled

Aerospace Tubing Finish

Annealing/Polished
Pickling
Bright

Aircraft Hydraulic Tubes End

Threaded
Bevelled/Grooved
Plain

Aircraft Grade SS Tubing Testing

Ultrasonic
PMI
Chemical
Mechanical

Stainless Steel Aircraft Tube Marking

Heat Number
Method of Manufacturing
Material Grade

Aircraft Grade SS Tubing Material Specification

Are You Looking to Purchase Aircraft Stainless Steel Tubing at the Best Price? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Material	Specification Number		Temper
Material	U.S. Govt.	SAE	Temper
304 Seamless or Welded	MIL-T-5695 1/4H	-	1/4 Hard
	MIL-T-5695 1/2H	-	1/2 Hard
	MIL-T-6845	AMS-5566	1/8 Hard
316 Seamless	-	AMS-5573	Annealed
316 Seamless	-	AMS-5648
304 Seamless	MIL-T-8504	AMS-5560
	-	AMS-5639
	MIL-T-8506	-
304 Welded	MIL-T-8504	AMS-5565
304 Welded	MIL-T-8506	-
304L Seamless	MIL-T-8606	-
304L Welded	MIL-T-8606	-
304 ELC Seamless	-	AMS-5647
321 Seamless or Welded	-	AMS-5557
321 Seamless	MIL-T-8606	AMS-5570
321 Seamless	MIL-T-8808	-
321 Seamless	-	AMS-6545
321 Welded	MIL-T-8606	AMS-5576
321 Welded	MIL-T-8808	-
347 Seamless or Welded	-	AMS-5556
347 Seamless	MIL-T-8606	AMS-5571
	-	AMS-5646
	MIL-T-8808	-
347 Welded	MIL-T-8606	AMS-5575
347 Welded	MIL-T-8808	-
600 Nickel Alloy	-	AMS-5580

SS 304 and 316 Aerospace Tube Stockist & Supplier in Mumbai With Size Range From 6.35 to 38.1mm or Custom

316 Aerospace Tube Size Chart

Genuine Aircraft Stainless Steel Tubing Manufacturer in India As Per Specification

OD		Wall	Aircraft Grades Stainless Steel Tubing
0.125	x	.020	321, 347, 17-7, 17-4, 15-5, 304, 316, 410, 21-6-9
	x	.028
	x	.035
0.187	x	.020
	x	.028
	x	.035
0.236	x	.020
	x	.028
	x	.035
0.250	x	.016
	x	.020
	x	.028
	x	.035
	x	.049
0.312	x	.016
	x	.020
	x	.028
	x	.032
	x	.035
0.320	x	.004
0.375	x	.019
	x	.020
	x	.028
	x	.030
	x	.032
	x	.042
	x	.049
0.394	x	.016
	x	.020
	x	.028
	x	.035
0.472	x	.020
	x	.028
	x	.035
0.480	x	.008
0.500	x	.020
	x	.026
	x	.028
	x	.035
	x	.040
	x	.043
	x	.049
	x	.056
	x	.065
0.625	x	.010
	x	.020
	x	.023
	x	.028
	x	.032
	x	.035
	x	.042
	x	.044
	x	.049
	x	.050
	x	.054
	x	.071
	x	.083
0.750	x	.020
	x	.024
	x	.027
	x	.028
	x	.035
	x	.039
	x	.052
	x	.065
	x	.083
0.787	x	.020
	x	.023
	x	.028
	x	.035
0.875	x	.020
	x	.028
	x	.035
	x	.049
1.000	x	.020
	x	.028
	x	.035
	x	.036
	x	.049
	x	.051
	x	.058
	x	.065
	x	.083
	x	.088

Buy Aircraft Grade Stainless Steel Seamless and Welded Tube For Aerospace and Commercial Applications

Aircraft Grade SS Seamless Tube Applications

Fuel Systems
Hydraulic Systems
Pneumatic Systems
Engine Components
Airframe Structures
Landing Gear Systems

Most Common Types Of Aircraft SS Tubings

Trusted Aircraft Stainless Steel Tubing Supplier in India in Custom Shapes and Types

Aircraft Stainless Steel Seamless Tube

Aircraft Stainless Steel Hydraulic Tubing

Aerospace Engine Tubes

Stainless Steel Exchaust Aircraft Tubing

Stainless Steel Welded Aircraft Tube

Aerospace Tubing

Stock and Supply SS Aircraft Exhaust Tubing As Per AMS-T-6845/AMS 5567 At Competitive Price

SS Aircraft Exhaust Tubing Price

Tube Diameter (inches)	Tube Thickness (inches)	Price per Foot (USD)
1.5	0.065	US $8
2	0.065	US $9
2.5	0.065	US $12
3	0.065	US $15
2	0.065	US $15
3	0.083	US $22
4	0.083	US $25
5	0.125	US $40

Stainless Aerospace Tubing Tolerance

Specification	Size OD Range Inches	Tolerances
		O.D.		Wall
		+	-	+	-
MIL-T-6845, CVA 1-404, DMS 1578, MMS 296	1.500 to 1.999	.006"	.006"	10%	10%
	0.501 to 0.999	.004"	.004"	10%	10%
	3.500 to 5.4999	.015"	.105"	10%	10%
	1.000 to 1.499	.005"	.005"	10%	10%
	2.500 to 3.499	.010"	.010"	10%	10%
	2.000 to 2.499	.007"	.007"	10%	10%
	up to 0.500	.003"	.003"	10%	10%

Offer Stainless Steel Aerospace Engine Tubes and Hydraulic Tubing For Critical Airframe and Engine Applications, Refer Properties

Widest Range of SS Aircraft Tubing

1/2" NB
4" NB
5" NB
6" NB
7" NB
8" NB
14" NB
16" NB
18" NB

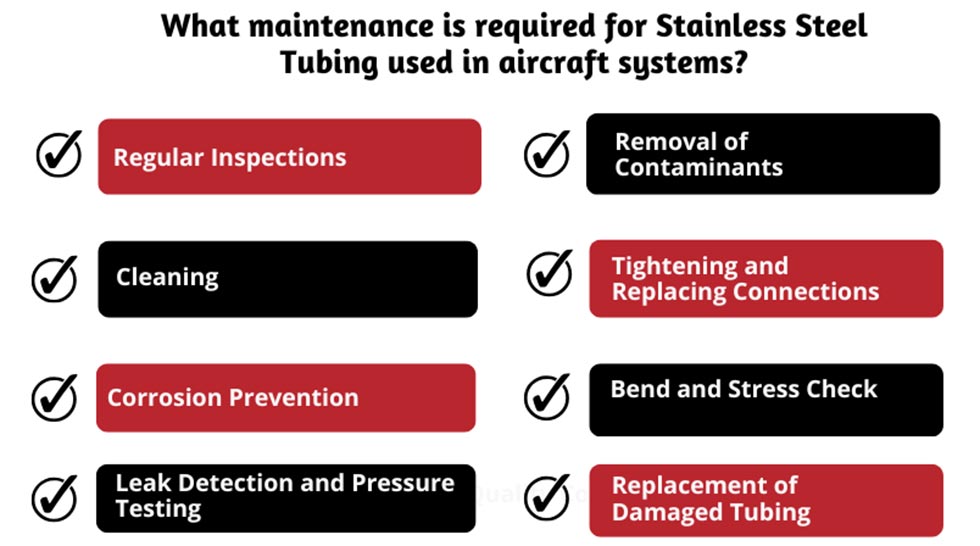

What maintenance is required for stainless steel tubing used in aircraft systems?

Aircraft Grade Stainless Steel Tubing Equivalent Standards

Grades	UNS NO	WERKSTOFF Nr
304	S30400	1.4301
304L	S30403	1.4306
316	S31600	1.4436
316L	S31603	1.4404

Aerospace Stainless Steel Tubing Chemical Composition

Grades	UNS	Cr	Mo	S	Ni	C	Mn	P	Si
TP304	S30400	18.0-20.0		0.03	8.0-11.0	0.08	2	0.045	1
TP304L	S30403	18.0-20.0		0.03	8.0-13.0	0.035	2	0.045	1
TP316	S3160	16.0-18.0	2.0-3.0	0.03	11.0-14.0	0.08	2	0.045	1
TP316L	S31603	16.0-18.0	2.0-3.0	0.03	10.0-14.0	0.035	2	0.045	1

Mechanical Properties of Aircraft Hydraulic Tubes

Material	Heat Treatment	Temperure	Yield Strength	Tensile Strength	Elongation %, Min
		Min.	Ksi (MPa), Min.	Ksi (MPa), Min.
		º F(º C)	Ksi (MPa), Min.	Ksi (MPa), Min.
TP304	Solution	1900 (1040)	30(205)	75(515)	35
TP304L	Solution	1900 (1040)	25(170)	70(485)	35
TP316	Solution	1900(1040)	30(205)	75(515)	35
TP316L	Solution	1900(1040)	25(170)	70(485)	35

Aerospace Engine Tubes Physical Properties

Grades	Density (g/cm³)	Melting Point (°C)	Coefficient of Thermal Expansion (μm/m·°C)	Electrical Resistivity (µΩ·cm)	Thermal Conductivity (W/m·K)
SS 304	8.00	1,400–1,450	16.0	0.072	16.2
SS 304L	7.93	1400 – 1450	16.0	72.3	16.2
SS 304H	7.93	1400 – 1450	16.0	72.3	16.2
SS 316	7.98	1375 – 1400	16.5	74.0	16.3
SS 316L	7.98	1375 – 1400	16.5	74.0	16.3
SS 316Ti	7.98	1375 – 1400	16.5	74.0	16.3
SS 317	7.95	1375 – 1400	16.5	74.5	16.3
SS 317L	7.95	1375 – 1400	16.5	74.5	16.3
SS 321	7.93	1400 – 1450	16.0	74.0	16.2
SS 321H	7.93	1400 – 1450	16.0	74.0	16.2
SS 347	7.93	1400 – 1450	16.0	74.0	16.2

Aircraft Stainless Steel Tubing Delivery Time As Per Location

Cost Variations 5 % extra
Export to	Delivery Time
Uk	30
Netherlands	19-20
Belgium	6-9
Indonesia	9
Philippines	14
Germany	15-50
Oman	5
Bahrain	9
Singapore	8
UAE	5 days
Qatar	7
Kuwait	10
France	30
Saudi Arabia	7
Malaysia	10
South Africa	25-30

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
