ASTM A249 TP316 Tube

Home|ASTM A249 TP316 Tube

Manufacturer Of ASME SA249 Type 316 Welded Tube in India At Best Price

ASTM A249 TP316 Tube Specification



Top 5 Reasons for Suppliers in Nigeria to Procure ASTM A249 TP316 Tube from Manisha Steel Centre
  • High-Quality Materials
  • Competitive Pricing
  • Wide Range of Specifications
  • Timely Delivery and Global Reach
  • Reliable Customer Support and Technical Expertise
Manisha Steel Centre

Table of Content

ASTM A249 TP316 Tube Specification
ASTM A249 TP316 Tube Sizes

ASTM A249 TP316 Tube Sizes

  • OD: 1/8” NB to 5” NB
  • Thickness: 1 mm to 13 mm
  • Length: Upto 6 meters
ASTM A249 Grade 316 ERW Tube Standards

ASTM A249 Grade 316 ERW Tube Standards

  • ASTM A249 | ASME SA 249
  • UNS S31600
ASTM A249 TP 316 Boiler Tube Manufacturing Process

ASTM A249 TP 316 Boiler Tube Manufacturing Process

  • Seamless, ERW
  • Welded
  • Redrawn
ASME SA 249 TP 316 Superheater Tube Technique

ASME SA 249 TP 316 Superheater Tube Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of ASTM A249 GR 316 Boiler Tube

Benefits of ASTM A249 GR 316 Boiler Tube

  • Non-toxic
  • Weldable
  • Eco-friendly
SA 249 316 SS Heat Exchanger Tube Documentation

SA 249 316 SS Heat Exchanger Tube Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
ASTM A249 GR 316 Condenser Tubes Shape

ASTM A249 GR 316 Condenser Tubes Shape

  • Round/ Straight
  • Square/Coil
  • Hydraulic
ASTM A249 TP316 Tube Origin

ASTM A249 TP316 Tube Origin

  • European
  • Janpanese
  • American
  • Russia
ASTM A249 GR 316 Boiler Tube Services

ASTM A249 GR 316 Boiler Tube Services

  • Shearing
  • Heat Treatment
  • Cutting
ASME SA 249 TP 316 Superheater Tube Packaging

ASME SA 249 TP 316 Superheater Tube Packaging

  • Bubble Wraps
  • Wooden Box, Bundled
SA 249 316 SS Heat Exchanger Tube Finish

SA 249 316 SS Heat Exchanger Tube Finish

  • Annealing/Polished
  • Pickling, Bright
ASTM A249 GR 316 Boiler Tube End

ASTM A249 GR 316 Boiler Tube End

  • Threaded
  • Bevelled/Grooved
  • Plain
ASTM A249 Grade 316 ERW Tube Testing

ASTM A249 Grade 316 ERW Tube Testing

  • Ultrasonic
  • PMI
  • Chemical
  • Mechanical
SA 249 316 SS Heat Exchanger Tube Marking

SA 249 316 SS Heat Exchanger Tube Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
ASME SA249 Type 316 Welded Tube Price

Are You Trying to Find the Best Deal on ASTM A249 TP316 Tube? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

Tube Size (OD x WT) Length (meters) Price (USD per meter)
1/2" x 0.065" 6 US $5.50
3/4" x 0.083" 6 US $6.00
1" x 0.095" 6 US $7.50
1.5" x 0.120" 6 US $10.00
2" x 0.120" 6 US $12.00

ASTM A249 Grade 316 Boiler and Heat Exchanger Tube Supplier in Mumbai Upto 304.8 mm OD and 3.2 mm ID

SA 249 TP 316 Boiler Tube Dimensions
OD inches ID inches D/t Ratio Tubing Cross Sectional Area (in2) Ave. Wall inches Internal Area (in2)
0.250 0.210 12.50 0.0145 0.020 0.0346
0.250 0.194 8.93 0.0195 0.028 0.0296
0.500 0.460 25.00 0.0302 0.020 0.1662
0.500 0.444 17.86 0.0415 0.028 0.1548
0.875 0.835 43.75 0.0537 0.020 0.5476
1.500 1.430 42.86 0.1611 0.035 1.6061
1.500 1.402 30.61 0.2234 0.049 1.5438
1.500 1.370 23.08 0.2930 0.065 1.4741
1.750 1.680 50.00 0.1886 0.035 2.2167
1.000 0.930 28.57 0.1061 0.035 0.6793
1.250 1.180 35.71 0.1336 0.035 1.0936
0.375 0.335 18.75 0.0223 0.020 0.0881
0.375 0.319 13.39 0.0305 0.028 0.0799
1.750 1.902 40.82 0.3003 0.049 2.8413
0.500 0.334 6.02 0.1087 0.083 0.0876
0.625 0.569 22.32 0.0525 0.028 0.2543
0.750 0.694 26.79 0.0635 0.028 0.3783
0.750 0.680 21.43 0.0786 0.035 0.3632
2.000 1.930 57.14 0.2161 0.035 2.9255
2.000 1.902 40.82 0.3003 0.049 2.8413
0.875 0.819 31.25 0.0745 0.028 0.5268
1.000 0.944 35.71 0.0855 0.028 0.6999
0.625 0.585 31.25 0.0380 0.020 0.2688
1.250 1.152 25.51 0.1849 0.049 1.0423
ASTM A249 Grade 316 Exchanger Tube Weight Chart

Genuine ASTM A249 TP316 Tube Manufacturer in India As Per Specification

Dimensions Wall Weight per
(mm) (mm) metre (kg)
40 x40 3.00 3.75
50 x50 1.50 2.32
50 x50 2.00 3.08
50 x50 3.00 4.65
60 x60 2.00 3.71
20 x 20 2.00 1.19
25 x 25 1.20 0.92
25 x 25 1.50 1.14
80 x80 2.00 4.98
80 x80 3.00 7.53
15 x 15 1.20 0.53
15 x 15 1.50 0.65
30 x 30 1.20 1.10
30 x 30 1.50 1.37
30 x 30 2.00 1.84
25 x 25 2.00 1.49
25 x 25 3.00 2.20
100 x 100 2.00 6.40
60 x60 3.00 5.49
70 x70 3.00 6.53
30 x 30 3.00 2.72
40 x40 1.20 1.49
40 x40 1.50 1.85
12.7 x 12.7 1.20 0.44
12.7 x 12.7 1.50 0.55
40 x40 2.00 2.45
20 x 20 1.20 0.71
20 x 20 1.50 0.88
100 x 100 3.00 9.53

Offer SA 249 TP 316 Superheater and Condenser Tube Furnished With Heat Treated Condition

SA 249 TP 316 Superheater Tube Heat Treatment
Heat Treatment Process Typical Temperature Range
Solution Annealing 1,000°C to 1,100°C (1,832°F to 2,012°F)
Stress Relieving 600°C to 750°C (1,112°F to 1,382°F)
Normalizing 950°C to 1,100°C (1,742°F to 2,012°F)
Tempering (Post-Welding) 500°C to 700°C (932°F to 1,292°F)
Most Common Types of ASTM A249 TP316 Tubes

Trusted ASTM A249 TP316 Tube Supplier in India in Custom Shapes and Types

ASTM A249 Type 316 Welded Stainless Steel Tube

ASTM A249 Type 316 Welded Stainless Steel Tube

ASTM A249 Grade 316 ERW Tube

ASTM A249 Grade 316 ERW Tube

ASTM A249 TP 316 Boiler Tube

ASTM A249 TP 316 Boiler Tube

ASME SA 249 TP 316 Superheater Tube

ASME SA 249 TP 316 Superheater Tube

ASME SA249 Grade Tp316 Welded Austenitic Steel Tubes

ASME SA249 Grade Tp316 Welded Austenitic Steel Tubes

ASTM A249 GR 316 Boiler Tube

ASTM A249 GR 316 Boiler Tube

ASME SA249 Type 316 Superheater Tube

ASME SA249 Type 316 Superheater Tube

SA 249 316 SS Heat Exchanger Tube

SA 249 316 SS Heat Exchanger Tube

ASTM A249 GR 316 Condenser Tubes

ASTM A249 GR 316 Condenser Tubes

Buy ASTM A249 GR 316 ERW Tube Online With Nominal Wall Thickness and Heavily Cold Worked
ASME SA249 TP316 Tube Wall Thickness
NPS Wall Thickness
+ –
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15.0 12.5
3~18, t/D> 5% 15.0 12.5
≥ 20, welded 17.5 12.5
1/8-2 1 /2 20.0 12.5
3~18, t/D≤ 5% 22.5 12.5

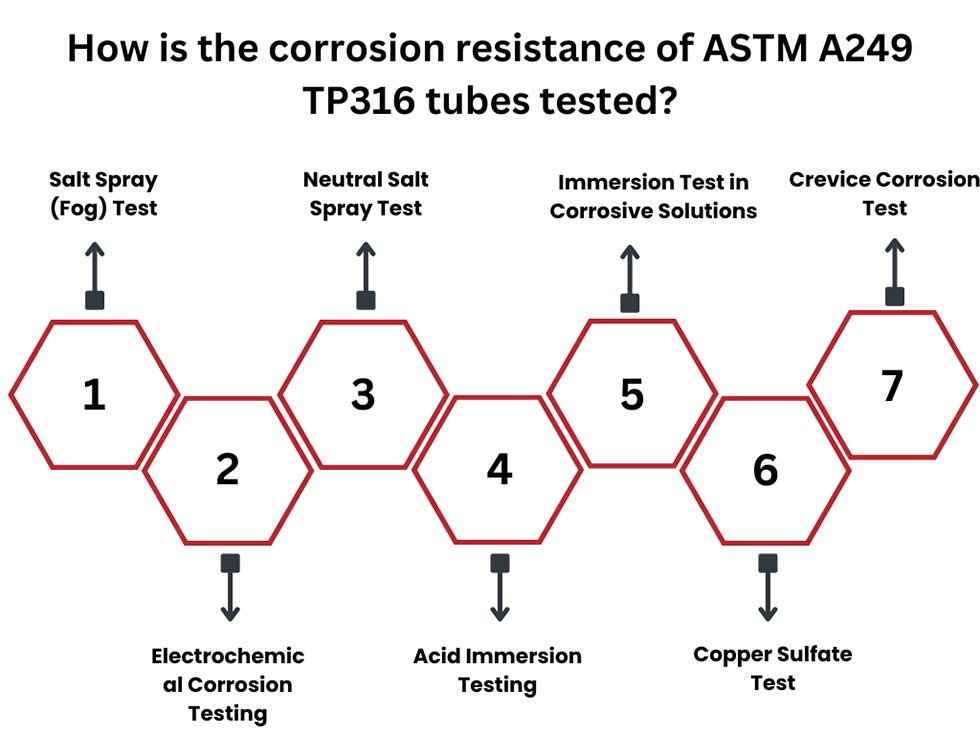

How is the corrosion resistance of ASTM A249 TP316 tubes tested?
Corrosion Resistance of ASTM A249 TP316 Tubes
What is the maximum allowable stress for ASTM A249 TP316 Tubes at high temperatures?
Temperature (°F) Maximum Allowable Stress (MPa) Maximum Allowable Stress (psi)
100°F (38°C) 207 MPa 30,000 psi
200°F (93°C) 200 MPa 29,000 psi
300°F (149°C) 193 MPa 28,000 psi
400°F (204°C) 186 MPa 27,000 psi
500°F (260°C) 179 MPa 26,000 psi
600°F (316°C) 169 MPa 24,500 psi
700°F (371°C) 158 MPa 23,000 psi
800°F (427°C) 148 MPa 21,500 psi
900°F (482°C) 138 MPa 20,000 psi
1000°F (538°C) 128 MPa 18,500 psi
1100°F (593°C) 117 MPa 17,000 psi
1200°F (649°C) 103 MPa 15,000 psi
1300°F (704°C) 90 MPa 13,000 psi
1400°F (760°C) 83 MPa 12,000 psi
1500°F (816°C) 76 MPa 11,000 psi
Get SA 249 316 SS Welded Austenitic Steel Tubes With Tension and Flattening Test
SA 249 316 SS Welded Austenitic Steel Tubes Testings
  • Tensile Test
  • Flattening Test
  • Flaring Test
  • Hydrostatic Test
  • Visual Inspection
  • Edging Test
  • Chemical Composition Test
  • Hardness Test
  • Impact Test
  • Weld Integrity Test
ASTM A249 TP316 Tube Equivalent
Grade UNS JIS WNR. / DIN AFNOR
TP 316 S31600 SUS 316 1.4401 / 1.4436 Z7CND17‐11‐02
SA 249 TP 316 Superheater Tube Chemical Composition
C 0.035%
Mn 2%
P 0.045%
S 0.03%
Cr 18.0-20.0%
Ni 8.0-13.0%
Mechanical Properties of ASTM A249 GR 316 ERW Tube
Material Yield Strength Tensile Strength Heat Temperure Elongation %, Min
Ksi (MPa), Min. Ksi (MPa), Min. Treatment Min.º F(º C)
TP316 25(170) 70(485) Solution 1900 (1040) 35
ASTM A249 TP 316 Boiler Tube Physical Properties
Grade Density (kg/m3) Specific Heat 0-1000C (J/kg.K) Thermal Conductivity (W/m.K) Electrical Resistivity (n.m) Mean Coefficient of Thermal Expansion (m/m/0C) Elastic Modulus (GPa)
at 1000C at 5000C 0-1000C 0-3150C 0-5380C
316 8000 500 16.2 21.5 720 17.2 17.8 18.4 193
What is the recommended filler material for welding ASTM A249 TP316 Tubes?
Welding Process Filler Material Filler Material Specification
TIG (GTAW) ER316 AWS A5.9 / ASME SFA-5.9
MIG (GMAW) ER316 AWS A5.9 / ASME SFA-5.9
Stick (SMAW) E316-16 AWS A5.4 / ASME SFA-5.4
Submerged Arc (SAW) SA 316 AWS A5.9
ASTM A249 TP316 Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
South Africa 25-30
Uk 30
Bahrain 9
Singapore 8
UAE 5 days
Qatar 7
Kuwait 10
Netherlands 19-20
Germany 15-50
Oman 5
France 30
Saudi Arabia 7
Malaysia 10
Belgium 6-9
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
