ASTM A249 TP304L Tube | ASME SA 249 Type 304L Welded Tubing

Manufacturer Of ASME SA 249 Type 304L Welded Austenitic Steel Tubes in India With MTC

Table of Content

ASTM A249 TP304L Tube Specification
ASTM A249 GR 304L Condenser Tube Dimensions
ASTM A249 Grade 304L ERW Tube Sizes
SA249 TP 304L Superheater Tubes Price
Most Common Types of ASTM A249 TP304L Tubes
ASTM A249 GR 304L Condenser Tubes Heat Treatment
SA 249 304L SS Boiler Tube Testings
What impact does using ASTM A249 TP304L have on energy efficiency in power generation plants?
What are the key challenges in the manufacturing of ASTM A249 TP304L tubes?
ASTM A249 TP304L Equivalent
ASTM A249 Grade 304L ERW Tube Chemical Composition
Mechanical Properties of ASTM A249 GR 304L Boiler Tube
SA 249 304L SS Boiler Tube Physical Properties

ASTM A249 TP304L Tube Specification

ASTM A249 TP304L Tube Sizes

OD: 3.35 mm To 101.6 mm OD
Thickness: 0.020" –0.220"
Length: Single, Double Random

SA 249 304L SS Heat Exchanger Tube Standards

ASTM A249
ASME SA 249

ASTM A249 GR 304L Boiler Tube Manufacturing Process

Seamless,ERW
Welded
Redrawn

ASTM A249 GR 304L Condenser Tubes Technique

Hot Formed
Precision Rolled
Cold Formed

Benefits of ASTM A249 Grade 304L ERW Tube

Improved Weldability
Durability and Longevity
Cost-Effective

ASTM A249 GR 304L Boiler Tube Documentation

Visual Inspection
Mill Test Certificates
PMI Test Reports

ASME SA249 Type 304L Superheater Tube Shape

Round/ Straight
Rectangle, Hydraulic
Square/Coil

ASTM A249 TP 304L Boiler Tube Origin

European
Janpanese
American
Russia

ASTM A249 GR 304L Condenser Tubes Services

Shearing
Heat Treatment
Cutting

ASTM A249 Type 304L Welded SS Tube Packaging

Bubble Wraps
Wooden Box
Bundled

ASTM A249 TP304L Tube Finish

Annealing/Polished
Pickling
Bright

ASME SA 249 TP 304L Superheater Tube End

Threaded, Plain
Bevelled/Grooved

ASTM A249 GR 304L Boiler Tube Testing

Ultrasonic
PMI
Chemical
Mechanical

ASTM A249 GR 304L Condenser Tubes Marking

Heat Number
Method of Manufacturing
Material Grade

ASTM A249 GR 304L Condenser Tube Dimensions

Are You Looking for the Best ASTM A249 TP304L Tube Deal? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Size OD, Inches	ID	BW Ga.	Wall Dec-In.	Weight Lbs/Ft.
1/4	0.210	25	0.020	0.0491
	0.194	22	0.028	0.0664
	0.187	21	0.032	0.0745
	0.180	20	0.035	0.0804
	0.152	18	0.049	0.1052
	0.120	16	0.065	0.1284
1/2	0.460	25	0.020	0.1025
	0.430	20	0.035	0.1738
	0.402	18	0.049	0.2360
	0.370	16	0.065	0.3020
1/8	0.069	22	0.028	0.0290
1/8	0.055	20	0.035	0.0336
3/4	0.680	20	0.035	0.2673
	0.652	18	0.049	0.3668
	0.620	16	0.065	0.4755
	0.584	14	0.083	0.5913
3/8	0.319	22	0.028	0.1038
	0.305	20	0.035	0.1271
	0.277	18	0.049	0.1706
	0.245	16	0.065	0.2152
3/16	0.131	22	0.028	0.0478
5/8	0.555	20	0.035	0.2205
	0.527	18	0.049	0.3014
	0.495	16	0.065	0.3888
5/16	0.242	20	0.035	0.1039
	0.214	18	0.049	0.1382
	0.182	16	0.065	0.1722
7/16	0.340	18	0.049	0.2036
7/8	0.777	18	0.049	0.4323
	0.745	16	0.065	0.5623
	0.635	11	0.120	0.9676
1	0.930	20	0.035	0.3607
	0.902	18	0.049	0.4977
	0.870	16	0.065	0.6491
	0.834	14	0.083	0.8129
	0.760	11	0.120	1.1278
1-1/4	1.010	11	0.120	1.4480

Genuine ASTM A249 Grade 304L ERW Tube Supplier in Mumbai With ID 3.2 mm or Custom

ASTM A249 Grade 304L ERW Tube Sizes

Genuine ASTM A249 TP304L Tube Manufacturer in India As Per Specification

OD (Inches)	OD (mm)	WT (Inches)	WT (mm)	Weight per Meter (kg)
1/4"	6.35	0.035"	0.89	0.2
1/2"	12.7	0.065"	1.65	0.5
3/4"	19.05	0.083"	2.11	0.7
1"	25.4	0.065"	1.65	1.0
1 1/4"	31.75	0.065"	1.65	1.2
2"	50.8	0.065"	1.65	1.8
2 1/2"	63.5	0.083"	2.11	2.5
3"	76.2	0.083"	2.11	3.0
4"	101.6	0.120"	3.05	4.5
6"	152.4	0.120"	3.05	6.5

Buy Cut To Size SA249 TP 304L Superheater and Heat Exchanger Tube at Fair Price

SA249 TP 304L Superheater Tubes Price

Tube Size (OD x Wall Thickness)	Price Range (USD per Meter)
3/4" x 0.083" (19.05mm x 2.11mm)	US $20.00
1" x 0.065" (25.4mm x 1.65mm)	US $22.00
1 1/4" x 0.065" (31.75mm x 1.65mm)	US $25.00
1/2" x 0.065" (12.7mm x 1.65mm)	US $15.00
4" x 0.120" (101.6mm x 3.05mm)	US $50.00
6" x 0.120" (152.4mm x 3.05mm)	US $60.00
2" x 0.065" (50.8mm x 1.65mm)	US $30.00
2 1/2" x 0.083" (63.5mm x 2.11mm)	US $35.00
3" x 0.083" (76.2mm x 2.11mm)	US $40.00
1/4" x 0.035" (6.35mm x 0.89mm)	US $11.00

Most Common Types of ASTM A249 TP304L Tubes

Trusted ASTM A249 TP304L Tube Supplier in India in Custom Shapes and Types

ASTM A249 Type 304L Welded Stainless Steel Tube

ASTM A249 Grade 304L ERW Tube

ASTM A249 TP 304L Boiler Tube

ASME SA 249 TP 304L Superheater Tube

SA 249 304L SS Heat Exchanger Tube

ASTM A249 GR 304L Condenser Tubes

Stock Wide Range of ASTM A249 GR 304L Condenser Tubes Online With Heat Treated Condition

ASTM A249 GR 304L Condenser Tubes Heat Treatment

Process	Temperature Range
Annealing	1010-1120°C (1850-2050°F)
Pickling	-
Solution Annealing	1040-1120°C (1900-2050°F)
Stress Relieving	400-600°C (752-1112°F)

Offer SA 249 304L SS Boiler Tube For Sale Tested With Hydrostatic or Nondestructive Electric Test.

SA 249 304L SS Boiler Tube Testings

Test Type	Destructive or Non-Destructive
Tensile Test	Destructive
Hardness Test	Non-Destructive
Impact Test	Destructive
Ultrasonic Test	Non-Destructive
Visual Inspection	Non-Destructive
Hydrostatic Test	Destructive
Positive Material Identification (PMI)	Non-Destructive
Flaring Test	Destructive
Flattening Test	Destructive

What impact does using ASTM A249 TP304L have on energy efficiency in power generation plants?

Improved Heat Transfer Efficiency
Enhanced Durability in High-Temperature Environments
Reduced Maintenance Costs and Downtime
Energy Conservation
Long-Term Performance in Harsh Environments
Support for Advanced Power Generation Technologies

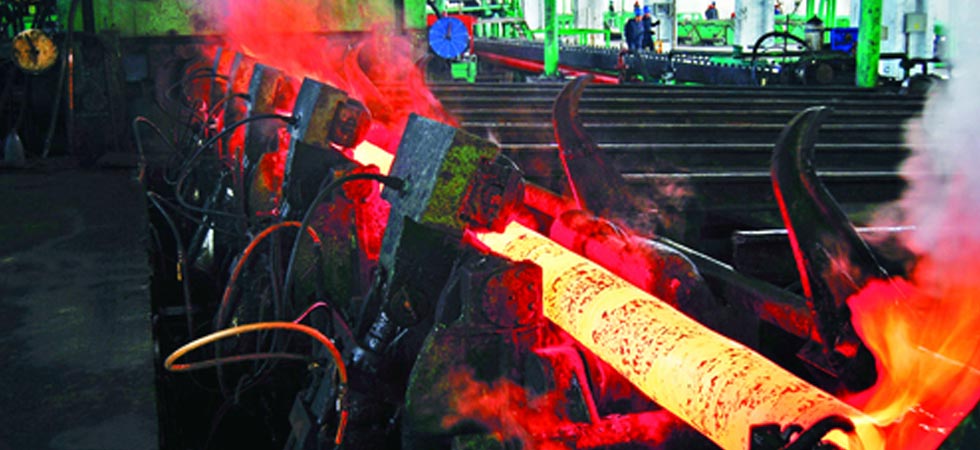

What are the key challenges in the manufacturing of ASTM A249 TP304L tubes?

Welding Challenges
Tube Formation
Surface Finish and Cleanliness
Heat Treatment Control
Chemical Composition Variability
Dimensional Tolerances
Cost of Raw Materials

ASTM A249 TP304L Equivalent

Grade	Japanese JIS	Swedish SS	UNS No	Euronorm		Old British		GOST
Grade	Japanese JIS	Swedish SS	UNS No	No	Name	BS	En	GOST
304L	SUS 304L	2332	S30403	1.4306 / 1.4307	X5CrNi18-10	304S31	58E	03Х18Н11

ASTM A249 Grade 304L ERW Tube Chemical Composition

C 0.030%

Mn 2.0%

Si 0.75%

P 0.045%

S 0.030%

Cr 20.0%

Ni 12.0%

N 0.10%

Mechanical Properties of ASTM A249 GR 304L Boiler Tube

Material	Yield Properties	Tensile Properties	Temperure	HeatTreatment	Elongational %, Min
	Ksi (MPa), Min.	Ksi (MPa), Min.	Min.
	Ksi (MPa), Min.	Ksi (MPa), Min.	º F(º C)
TP304L	25(170)	70(485)	1900 (1040)	Solution	35

SA 249 304L SS Boiler Tube Physical Properties

Grade	Density	Modulus	Electrical Resistivity (n.m)	Specific Heat 0-1000C (J/kg.K)	Mean Coefficient of Thermal Expansion (m/m/0C)				Thermal Conductivity (W/m.K)
Grade	Density	Modulus	Electrical Resistivity (n.m)	Specific Heat 0-1000C (J/kg.K)	0-3150C	0-1000C	at 1000C	0-5380C	at 5000C
304L	8000	193	720	500	17.8	17.2	16.2	18.4	21.5

ASTM A249 TP304L Tube Delivery Time As Per Location

Cost Variations 5 % extra
Export to	Delivery Time
Kuwait	10
France	30
Qatar	7
Philippines	14
Germany	15-50
Saudi Arabia	7
Malaysia	10
Uk	30
Netherlands	19-20
Belgium	6-9
Indonesia	9
South Africa	25-30
Bahrain	9
Singapore	8
UAE	5 days
Oman	5

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
