Stainless Steel Pipe Weight Calculator

Home|Stainless Steel Pipe Weight Calculator
Stainless Steel Pipe Weight Calculator
Manisha Steel Centre

Table of Content



Find Here Jindal SS 304 Pipe Weight Calculator

Jindal SS 304 Pipe Weight Calculator

You can get the approximate weight of Stainless Steel Pipe using this SS Pipe Weight Calculator.

Material:
Alloy:
Shape:
Number of Pieces:
Round Pipe
Enter size information:
Piece Weight (lbs):
Total Weight (lbs):



Offer SS Tube Weight Calculator Online For Various Grades and Shapes, Refer SS Pipe Weight Calculation Formula

SS Pipe Weight Calculation Formula

SS Pipe Weight Calculator Above, Using the Weight Calculation Formula Below

OD (mm) - Wall Thickness (mm) X Wall Thickness (mm) X 0.0248 = Wt. Per Mtr.
OD (mm) - Wall Thickness (mm) X Wall Thickness (mm) X 0.00756 = Wt. Per Feet

ksi = psi/1000 lbs = kgs/2.20462
°C = (°F-32)/1.8 ft = m/0.3048
psi = Mpa*145.0377 kgs = lbs*2.20462
°F = (°C*1.8)+32 m = ft*0.3048

Get Jindal SS 304 Square Pipe Weight Chart here

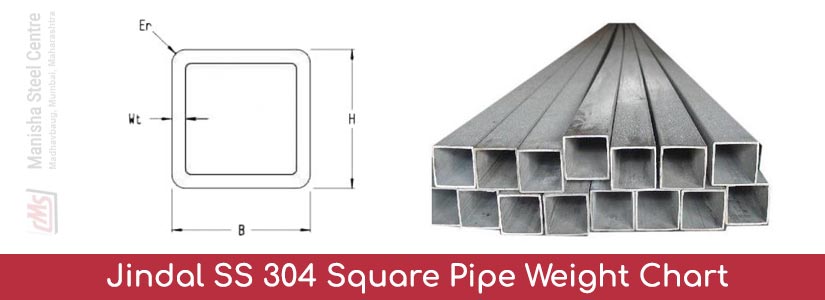

Jindal SS 304 Square Pipe Weight Chart
Jindal SS 304 Square Pipe Weight Chart



OD Diameter Designation Jindal SS 304 Square Pipe Wall Thickness
DIA SCH 80 S SCH 80 SCH 100 SCH 120 SCH. 140 SCH.160 SCH.XXS
Meter MM (A) (B) Kg/Meter Weight W.T Kg/Meter Weight W.T Kg/Meter Weight W.T Kg/Meter Weight W.T Kg/Meter Weight W.T Kg/Meter Weight W.T Kg/Meter Weight W.T
21.3 15 1/2 1.64 3.73 - - - - - - - - 1.97 4.75 2.59 7.47
141.3 125 5 31.44 9.53 - - - - 40.9 12.7 - - 49.87 15.88 58.31 19.05
60.3 50 2 7.6 5.54 - - - - - - - - 11.26 8.71 13.65 11.07
26.7 20 3/4 2.93 3.91 - - - - - - - - 2.93 5.54 3.69 7.82
10.3 6 1/8 0.47 2.41 - - - - - - - - - - - -
13.7 8 1/4 0.82 3.02 - - - - - - - - - - - -
48.3 40 11/2 5.49 5.08 - - - - - - - - 7.35 7.14 9.69 10.16
17.2 10 3/8 1.12 3.2 - - - - - - - - - - - -
508 500 2C 157.51 12.7 315.97 26.19 387.41 32.54 448.3 38.1 515.94 44.45 573.31 49.99 - -
323.9 300 12 98.95 12.7 133.88 17.45 162.14 21.41 189.82 25.4 211.31 28.58 242.4 33.32 189.82 25.4
88.9 80 3 15.51 7.62 - - - - - - - - 21.67 11.13 28.11 15.24
101.6 90 31/2 18.92 8.08 - - - - - - - - - - 34.56 16.15
355.6 350 14 109.04 12.7 160.54 19.05 197.74 23.8 227.88 27.76 257.47 31.75 286.04 35.71 - -
168.3 150 6 43.21 10.97 - - - - 55.03 14.27 - - 68.53 18.24 79.1 21.95
73 65 21/2 11.59 7.01 - - - - - - - - 15.15 9.53 20.72 14.02
406.4 400 16 125.2 12.7 206.4 21.41 249.34 26.19 290.88 30.94 338.32 36.53 370.74 40.46 - -
24.2 32 11/4 4.53 4.85 - - - - - - - - 5.69 6.35 7.88 9.7
33.4 25 1 3.29 4.55 - - - - - - - - 4.3 6.35 5.53 9.09
457.2 450 18 141.35 12.7 258.29 23.8 314.54 29.36 369.34 34.93 414.74 39.67 466.67 45.24 - -
219.1 200 8 65.63 12.7 - - 76.93 15.06 91.73 18.24 102.47 20.62 112.97 23.01 108 22.23
273.1 250 10 82.8 12.7 97.27 15.06 116.38 18.24 134.9 21.41 157.51 25.4 174.95 28.58 155.5 25.4
114.3 100 4 22.66 8.56 - - - - 28.75 11.13 - - 34.05 13.49 41.66 17.12
558.8 550 22 173.66 12.7 379.7 28.57 457.83 34.92 535.17 41.27 609.3 47.62 682.57 53.97 - -
609.6 600 24 189.82 12.7 448.3 30.94 555.76 38.89 649.44 46.02 730.72 52.37 819.7 59.51 - -
812.8 800 32 - - 254.44 12.7 OD (mm) - WT (mm) X WT (mm) X 0.0248 = Wt. Per Mtr.
711.2 700 28 - - 222.13 12.7
660.4 650 26 205.97 12.7 - -
762 750 3C - - 238.28 1270
914.4 900 36 - - 286.75 12.7
863.6 850 34 - - 270.5 12.7
304 Stainless Steel Square Pipe Weight Per Meter
Ø Outside Mm 0,8 1 1,2 1,5 1,6 2,0 2,5 2,6 3
8 - 0,144 0,175 - - - - - - -
6 - 0,104 0,125 - - - - - - -
10 - 0,184 0,225 0,264 0,319 0,337 - - - -
12 - 0,224 0,275 0,325 0,394 0,417 - - - -
13 - 0,244 0,3 0,355 0,432 - - - - -
14 - 0,264 0,326 0,385 0,47 0,497 0,601 - - -
15 - 0,284 0,351 0,415 0,507 0,537 0,651 - - -
16 - 0,304 0,376 0,445 0,545 0,577 0,701 - - -
17,2 3/8″ 0,329 0,406 0,481 0,59 0,625 0,761 0,92 0,951 -
18 - 0,345 0,426 0,505 0,62 0,657 0,801 0,97 1,003 -
19 - 0,365 0,451 0,535 0,657 0,697 0,851 1,033 1,068 -
19,05 - 0,366 0,452 0,536 0,659 0,699 0,854 1,036 1,071 -
20 - 0,385 0,476 0,565 0,695 0,737 0,901 1,096 1,133 -
21,3 1/2″ 0,411 0,508 0,604 0,744 0,789 0,967 1,177 1,217 -
22 - 0,425 0,526 0,625 0,77 0,817 1,002 1,221 1,263 -
23 - 0,445 0,551 0,655 0,808 0,857 1,052 1,283 1,328 -
25 - 0,485 0,601 0,715 0,883 0,937 1,152 1,409 1,458 1,653
25,4 - 0,493 0,611 0,727 0,898 0,954 1,172 1,434 1,484 1,683
See SS 202 Rectangular Pipe Weight Chart

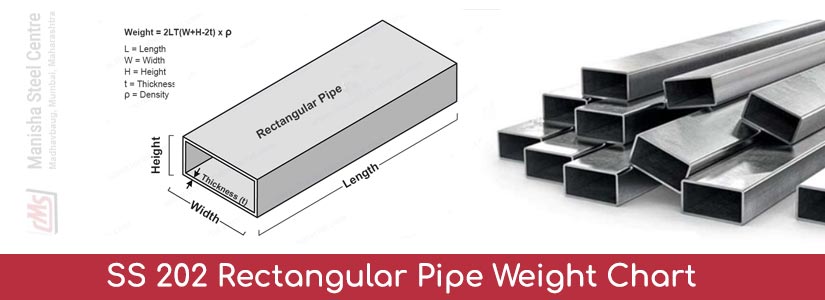

SS 202 Rectangular Pipe Weight Chart
SS 202 Rectangular Pipe Weight Chart



Size mm kg/m Size mm kg/m
40 x 20 x 3.0 2.36 40 x 25 x 1.5 1.44
50 x 30 x 3.0 3.45 50 x 30 x 4.0 4.46
50 x 25 x 3.0 3.22 50 x 30 x 2.5 2.92
50 x 40 x 3.0 3.77 60 x 40 x 2.0 2.93
70 x 50 x 2.5 4.39 70 x 50 x 3.0 5.19
80 x 40 x 3.0 5.34 80 x 40 x 4.0 6.97
70 x 50 x 4.0 6.71 80 x 40 x 2.5 4.26
300 x 200 x 10.0 75.00 400 x 200 x 8.0 73.10
150 x 100 x 10.0 35.70 160 x 80 x 5.0 18.00
40 x 20 x 2.0 1.68 40 x 20 x 2.5 2.03
50 x 25 x 2.0 2.21 50 x 25 x 2.5 2.72
40 x 25 x 2.0 1.89 40 x 25 x 2.5 2.23
100 x 50 x 4.0 8.86 100 x 50 x 5.0 10.90
100 x 50 x 2.5 5.63 100 x 50 x 3.0 6.75
100 x 60 x 3.0 7.22 100 x 60 x 3.6 8.59
250 x 150 x 8.0 48.0 250 x 150 x 10 59.3
60 x 40 x 4.0 5.72 70 x 50 x 2 3.56
80 x 40 x 5.0 8.54 80 x 50 x 3.0 5.66
90 x 50 x 3.6 7.46 90 x 50 x 5.0 10.11
80 x 50 x 4.0 7.34 90 x 50 x 3.0 6.28
250 x 150 x 5.0 30.5 250 x 150 x 6.0 38.2
300 x 200 x 6.0 48.10 300 x 200 x 8.0 60.50
120 x 80 x 3.0 9.03 120 x 80 x 4.0 12.00
100 x 60 x 5.0 11.70 120 x 80 x 2.5 7.65
120 x 80 x 5.0 14.80 120 x 80 x 6.0 17.60
150 x 100 x 6.0 22.30 150 x 100 x 8.0 29.10
120 x 80 x 8.0 22.9 150 x 100 x 5.0 18.70
60 x 40 x 2.5 3.71 60 x 40 x 3.0 4.39
200 x 100 x 5.0 22.70 200 x 100 x 6.0 27.00
160 x 80 x 6.0 21.30 160 x 80 x 8.0 27.90
200 x 100 x 8.0 35.4 200 x 100 x 10.0 43.60
400 x 200 x 10.0 90.70 400 x 200 x 16 142.00

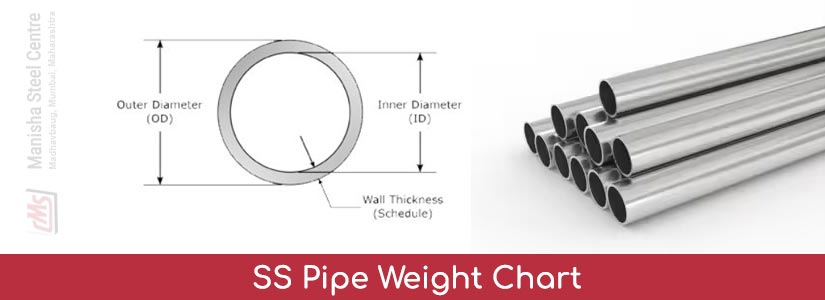

SS Pipe Weight Chart (Weight Per Foot)
SS Pipe Weight Chart



O.D. Pipe Size 5s 10s 20 30 60 100 120 140 XH XXH STD. True 5 True 10 True 40 True 80 True 160
0.405 1/8 - .049 .1863 - - - - - - .095 .3145 - .0668 .2447 .035 .1383 .049 .1863 .068 .2447 .095 .3145 -
1.050 3/4 .065 .6838 .083 .8572 - - - - - - .154 1.474 .308 2.441 .113 1.131 .065 .6838 .083 .8572 .113 1.131 .154 1.474 .218 1.937
0.540 1/4 - .065 .3297 - - - - - - .119 .5351 - .088 .4248 .049 .2570 .065 .3297 .088 .4248 .119 .5351 -
0.675 3/8 - .065 .4235 - - - - - - .126 .7388 - .091 .5676 .049 .3276 .065 .4235 .091 .5676 .126 .7388 -
1.660 1 1/4 .065 1.107 .109 1.806 - - - - - - .191 2.997 .382 5.214 .140 2.273 .065 1.107 .109 1.806 .140 2.273 .191 2.997 .250 3.765
0.840 1/2 .065 .5383 .083 .6710 - - - - - - .147 1.088 .294 1.714 .109 .8510 .065 .5380 .083 .6710 .109 .8510 .147 1.088 .187 1.304
1.315 1 .065 .8678 .109 1.404 - - - - - - .179 2.172 .382 5.214 .133 1.679 .065 .8678 .109 1.404 .133 1.679 .179 2.172 .250 3.765
1.900 1 1/2 .065 1.274 .109 2.085 - - - - - - .200 3.631 .400 6.408 .145 2.718 .065 1.274 .109 2.085 .145 2.718 .200 3.631 .281 4.859
2.875 2 1/2 .083 2.475 .120 3.531 - - - - - - .276 7.661 .552 13.70 .203 5.793 .083 2.475 .120 3.531 .203 5.793 .276 7.661 .375 10.01
4.5 4 .083 3.915 .120 5.613 - - .281 12.66 - .438 19.00 - .337 14.98 .674 27.54 .237 10.79 .083 3.915 .120 5.613 .237 10.79 .337 14.98 .531 22.51
2.375 2 .065 1.604 .109 2.638 - - - - - - .218 5.022 .436 9.029 .154 3.653 .065 1.604 .109 2.638 .154 3.653 .218 5.022 .343 7.444
3.5 3 .083 3.029 .120 4.332 - - - - - - .300 10.25 .600 18.58 .216 7.576 .083 3.029 .120 4.332 .216 7.576 .300 10.25 .438 14.32
4.0 3 1/2 .083 3.472 .120 4.973 - - - - - - .318 12.51 .636 22.85 .226 9.109 .083 3.472 .120 4.973 .226 9.109 .318 12.51 -
5.563 5 .109 6.349 .134 7.770 - - - - .500 27.04 - .375 20.78 .750 38.55 .258 14.62 .109 6.349 .134 7.770 .258 14.62 .375 20.78 .625 32.96
5.0 4 1/2 - - - - - - - - .355 17.61 .710 32.53 .247 12.53 - - - - -
8.625 8 .109 9.914 .148 13.40 .250 22.36 .277 24.70 .406 35.64 .594 50.87 .719 60.63 .812 67.76 .500 43.39 .875 72.42 .322 28.55 .109 9.914 .148 13.40 .322 28.55 .500 43.39 .906 74.69
9.625 9 - - - - - - - - .500 48.72 - .342 33.90 - - - - -
7.625 7 - - - - - - - - .500 38.05 .875 63.08 .301 23.57 - - - - -
6.625 6 .109 7.585 .134 9.290 - - - - .562 36.39 - .432 28.57 .864 53.16 .280 18.97 .109 7.585 .1349.289 .280 18.97 .432 28.57 .719 45.30
11.75 11 - - - - - - - - .500 60.07 - .375 45.55 - - - - -
12.75 12 .156 21.07 .180 24.16 .250 33.38 .330 43.77 .562 73.16 .844 107.2 1.000 125.5 1.125 139.7 .500 65.42 - .375 49.56 .165 22.18 .180 24.20 .406 53.53 .688 88.51 1.312 160.3
10.75 10 .134 15.19 .165 18.65 .250 28.04 .307 34.24 .500 54.74 .719 76.93 .844 89.20 1.000 104.1 .500 54.74 - .365 40.48 .134 15.19 .165 18.70 .365 40.48 .594 64.33 1.125 115.6
16.0 16 .165 27.90 .188 31.75 .312 52.36 .375 62.58 .656 107.5 1.031 164.8 1.219 192.3 1.438 223.5 .500 82.77 - .375 62.58 - .250 42.05 .500 82.77 .844 136.5 1.593 245.1
36.0 36 - - - .625 236.13 - - - - .500 189.57 - .375 142.68 - .312 119.11 .688 282.36 - -
18.0 18 .165 31.43 .188 35.76 .312 59.03 .437 82.06 .750 138.2 1.156 208.0 1.375 244.1 1.562 274.2 .500 93.45 - .375 70.59 - .250 47.39 .562 104.8 .938 170.8 1.781 308.5
14.0 14 .156 23.07 .188 27.73 .312 45.68 .375 54.57 .594 84.91 .938 130.7 1.094 150.7 1.250 170.2 .500 72.09 - .375 54.57 - .250 36.71 .437 63.37 .750 106.1 1.406 189.1
22.0 22 - - .375 86.61 .500 114.81 .875 197.42 1.357 302.88 1.625 353.61 1.875 403.01 .500 114.81 - .375 86.61 - .250 58.07 - 1.125 250.82 2.125 451.07
24.0 24 .218 55.37 .250 63.41 .375 94.62 .562 140.8 .969 238.1 1.531 367.4 1.812 429.4 2.062 483.1 .500 125.5 - .375 94.62 - .250 63.41 .687 171.2 1.219 296.4 2.343 541.9
20.0 20 .188 39.78 .218 46.05 .375 78.60 .500 104.1 .812 166.4 1.281 256.1 1.500 296.4 1.750 341.1 .500 104.1 - .375 78.60 - .250 52.73 .594 122.9 1.031 208.9 1.968 379.0
30.0 30 .250 79.43 .312 98.93 - .625 196.08 - - - - .500 157.53 - .375 118.65 - .312 99.08 - - -
34.0 34 - - - .625 222.78 - - - - .500 178.89 - .375 134.67 - .312 112.43 .688 244.60 - -
26.0 26 - - - - - - - - .500 136.17 - .375 102.63 - .312 85.73 - - -
42.0 42 - - - .625 276.17 - - - - .500 221.61 - .375 166.71 - - .688 330.41 - -
SS 304 Square Tube Weight Chart
Dimension 18 SWG 19 SWG 16 SWG 14 SWG 12 SWG 10 SWG
(1.2 MM) (1.0 MM) (1.65 MM) (2.1 MM) (2.6 MM) (3.2 MM)
OD Size WeighMTR WeightMTR WeightMTR WeighYMTR WeighMTR WeightMTR
19.05 3/4" 0.531 0.448 0712 0.883 4.061 1.258
38.1 11/2" 1.098 0.920 1.492 1.875 2.289 2770
63.5 21/2" 1.854 1.550 2.531 3.198 3.928 4.786
50.8 2" 1.476 1.235 2.012 2.537 3.108 3.778
88.9 31/2" 2.610 2.180 3.571 4.521 5.566 6.802
31.75 11/4" 0.909 0.763 1.232 1.544 1.880 2.266
15.875 5/8" 0.437 0.369 0.582 0.718 0.856 1.006
12.7 1/2" 0.342 0.290 0.452 0.552 0.651 0.754
76.2 3" 2.232 1.865 3.051 3.860 4747 5.794
25.4 1" 0.720 0.605 0.972 1.214 1.470 1.762
101.6 4" 2.988 2.495 4.091 5.183 6.385. 7.810
Determine the Approximate Weight Using SS Pipe Weight Calculator, See Round Pipe Weight Chart Here

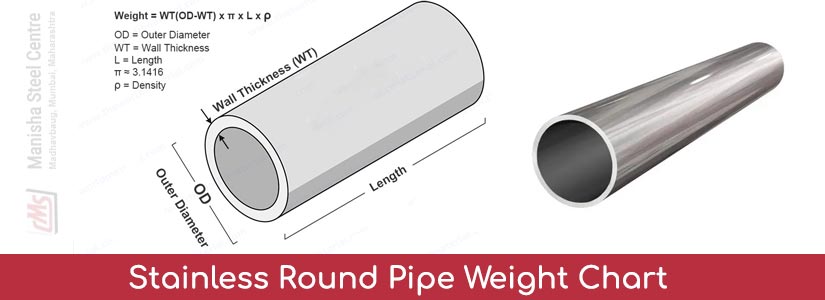

Stainless Round Pipe Weight Chart
Stainless Round Pipe Weight Chart



Designation of Diameter O/D Nominal Wall Thickness
DIA SCH.5 SCH.5S SCH.10 SCH 10S SCH.20S SCH.30 SCH.40 SCH.40S SCH 60
(A) (B) Meter mm Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk
750 3C 762 - - 120.15 6.35 149.55 7.92 149.55 7.92 238.28 12.7 296.68 15.88 - - 179.56 9.53 - -
10 3/8 17.2 - - 0.47 1.2 - - 0.63 1.65 0.74 2 - - - - 0.87 2.31 - -
65 21/2 73 3.75 2.11 3.75 2.11 5.34 3.05 5.34 3.05 6 3.5 - - - - 8.77 5.16 - -
500 2C 508 - - 60.23 4.78 79.76 6.35 69.7 5.54 118.93 9.53 157.51 12.7 185.89 15.06 118.9 9.53 251.65 2062
350 14 355.6 - - 34.86 3.96 55.53 6.35 41.99 4.78 68.95 7.92 82.58 9.53 96 11.13 82.58 9.53 128.42 15.06
650 26 660.4 - - - - 129.4 7.92 - - 205.97 12.7 - - - - 155.32 9.53 - -
25 1 33.4 1.31 1.65 1.31 1.65 2.13 2.77 2.13 2.77 2.24 3 - - - - 2.54 3.38 - -
800 32 812.8 - - - - 159.62 7.92 - - 254.44 12.7 316.88 15.88 348.11 17.48 191.69 9.53 - -
900 36 914.4 - - - - 179.77 7.92 - - 286.75 12.7 357.28 15.88 427.09 19.05 215.93 9.53 - -
600 24 609.6 - - 83.8 5.54 95.92 6.35 95.92 6.35 143.2 9.53 212.72 14.27 258.74 17.45 143.2 9.53 360.21 24.59
450 18 457.2 - - 47.46 4.19 71.69 6.35 54.15 4.78 89.1 7.92 124.32 11.13 158.27 14.27 106.83 9.53 209 19.05
550 22 558.8 - - 65.95 4.78 87.84 6.35 76.75 5.54 131.07 9.53 173.66 12.7 216.04 15.88 131.07 9.53 298.55 22.23
6 1/8 10.3 - - 0.23 1 - - 0.27 1.2 0.33 1.5 - - - - 0.37 1.73 - -
90 31/2 101.6 5.25 2.11 5.25 2.11 7.53 3.05 7.53 3.05 9.62 4 - - - - 13.78 5.74 - -
32 11/4 24.2 1.67 1.65 1.67 1.65 2.73 2.77 2.73 2.77 2.9 3 - - - - 3.44 3.56 - -
300 12 323.9 33.6 4.19 31.72 3.96 36.54 4.57 36.54 4.57 50.48 6.35 66.2 8.38 80.94 10.31 75.01 9.53 110.62 14.27
150 6 168.3 11.47 2.77 11.47 2.77 14.04 3.43 14.04 3.4 22.08 5.5 - - - - 28.69 7.11 - -
15 1/2 21.3 0.81 1.65 0.01 1.65 1.02 2.11 1.02 2.11 1.15 2.5 - - - - 1.29 2.77 - -
125 5 141.3 9.61 2.77 9.61 2.77 11.74 3.43 11.74 3.4 16.8 5 - - - - 2210 6.55 - -
100 4 114.3 5.93 2.11 5.93 2.11 8.5 3.05 8.5 3.05 12.18 4.5 - - - - 6.32 6.02 - -
700 28 711.2 - - - - 139.47 7.92 - - 222.13 12.7 276.48 15.88 - - 167.44 9.53 - -
50 2 60.3 2.42 1.65 1.93 1.65 3.99 2.77 3.99 2.77 4.9 3.5 - - - - 5.52 3.91 - -
200 8 219.1 15 2.77 15 2.77 20.27 3.76 20.77 3.76 33.82 6.35 37.38 7.04 - - 43.2 8.18 53.9 10.81
400 16 406.4 - - 42.2 4.19 63.61 6.35 48.07 4.78 79.03 7.92 94.7 9.53 125.2 12.7 94.7 9.53 162.59 16.66
850 34 863.6 - - - - 169.64 7.92 - - 270.5 12.7 336.96 15.88 370.22 17.48 203.74 9.53 - -
40 11/2 48.3 1.93 1.65 1.93 1.65 3.16 2.77 3.16 2.77 3.35 3 - - - - 4.11 3.68 - -
250 10 273.1 22.95 3.4 22.95 3.4 28.2 4.19 28.2 4.19 42.41 6.35 51.81 7.8 - - 61.22 9.27 82.8 12.2
80 3 88.9 4.59 2.11 4.59 2.11 6.56 3.05 6.56 3.05 8.37 4 - - - - 11.47 5.49 - -
8 1/4 13.7 - - 0.37 1.2 - - 0.49 1.65 0.58 2 - - - - 0.64 2.24 - -
20 3/4 26.7 1.03 1.65 1.03 1.65 1.3 2.11 1.3 2.11 1.49 2.5 - - - - 1.71 2.87 - -
Stainless Steel Square Pipe Weight Chart
OD (in mm) Size 4.85mm 5.00mm 6.00mm 6.35mm 7.00mm 8.00mm 9.50mm
273.10 10" 32.08 33.06 39.52 41.77 45.93 52.30 61.75
323.90 12" 38.16 39.32 47.04 49.73 54.70 62.32 73.65
219.10 8" 25.62 26.40 31.53 33.31 36.61 41.65 49.10
457.00 18" - - 66.73 - 77.68 88.58 104.84
508.00 20" - - 74.27 - 86.48 98.64 116.78
355.60 14" - 43.23 51.73 54.69 60.18 68.57 81.08
406.04 16" - - 51.73 54.69 60.18 68.57 81.08
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
