Stainless Steel Capillary Tube Manufacturer in India

Home|Stainless Steel Capillary Tube

Premium Quality SS Capillary Tube Supplier in Mumbai With MTC in Size 0.35 to 6.35mm or Custom

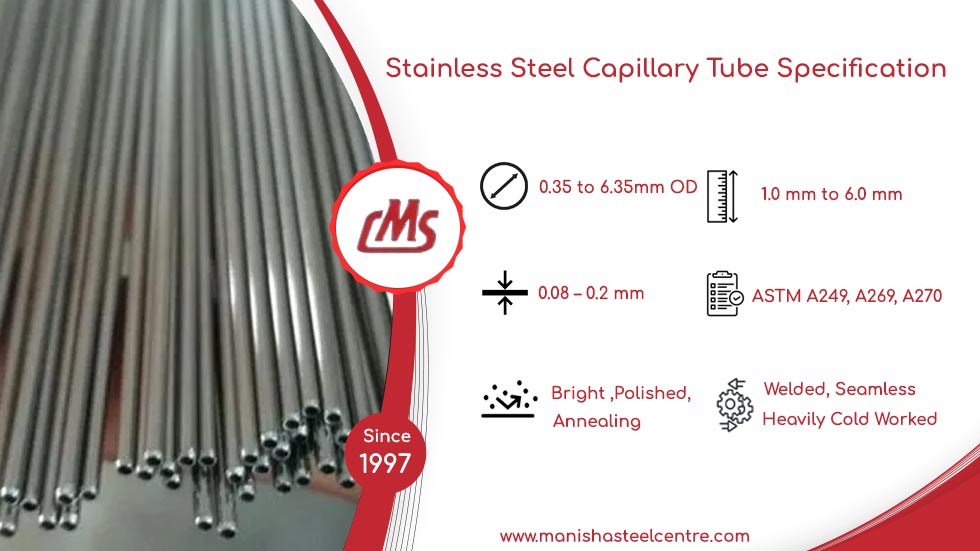

Stainless Steel Capillary Tube Specification



How Stainless Steel Capillary Tube suppliers in Kenya can make good Margins
  • Market Research
  • Quality Assurance
  • Value-Added Services
  • Bulk Sales and Contracts
  • Cost Management
  • Digital Marketing
Manisha Steel Centre

Table of Content

Stainless Steel Capillary Tube Specification
Metal Capillary Tube Sizes

Metal Capillary Tube Sizes

  • OD: 0.35 to 6.35mm OD
  • Thickness: 0.08 – 0.2 mm
  • Length: 1.0 mm to 6.0 mm
Steel Capillary Tube Grades

Steel Capillary Tube Grades

  • SS 304
  • SS 316
  • SS 304L, etc.
Stainless Capillary Tube Manufacturing Process

Stainless Capillary Tube Manufacturing Process

  • Seamless, ERW
  • Welded, Redrawn
Stainless Steel Capillary Technique

Stainless Steel Capillary Technique

  • Hot Formed
  • Precision Rolled
  • Cold Formed
Benefits of SS Micro Tubing

Benefits of SS Micro Tubing

  • Easy cleaning
  • Minimal maintenance
  • Cost-effectiveness
SS Capillary Tube Documentation

SS Capillary Tube Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
Stainless Capillary Tube Shape

Stainless Capillary Tube Shape

  • Round/ Straight
  • Rectangle
  • Square/Coil
  • Hydraulic
304 SS Capillary Tube Origin

304 SS Capillary Tube Origin

  • European
  • Janpanese
  • American
  • Russia
Stainless Steel HPLC Tubing Services

Stainless Steel HPLC Tubing Services

  • Shearing
  • Heat Treatment
  • Cutting
Steel Capillary Tube Packaging

Steel Capillary Tube Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled
SS Capillary Tubes Finish

SS Capillary Tubes Finish

  • Annealing/Polished
  • Pickling
  • Bright
304 SS Capillary Tube End

304 SS Capillary Tube End

  • Threaded
  • Bevelled/Grooved
  • Plain
SS Micro Tubing Testing

SS Micro Tubing Testing

  • Ultrasonic
  • PMI
  • Chemical
  • Mechanical
SS 1 16 in Capillary Tubing Marking

SS 1 16 in Capillary Tubing Marking

  • Heat Number
  • Method of Manufacturing
  • Material Grade
  • Nominal Size
Stainless Capillary Tube Price

Are You Trying to Find the Best Deal on Stainless Steel Capillary Tube? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

OD ID Ref Wall Price per 36" in USD
0.064″ 0.015″ 0.024″ US $18.06
0.064″ 0.020″ 0.022″ US $18.06
0.064″ 0.005″ 0.0295″ US $18.06
0.064″ 0.010″ 0.027″ US $18.06
0.064″ 0.030″ 0.0165″ US $18.06
0.064″ 0.040″ 0.0125″ US $18.06
304 Stainless Steel Capillary Tube Sizes
WT OUTSIDE DIA
mm Inches mm
00.20 1/32 00.79
00.040 1.02
00.049 1.25
00.050 1.27
00.25 / 0.40 / 0.56 / 0.71 / 0.91 5/32 3.97
00.20 / 0.25 / 0.51 / 0.81 / 0.91 / 1.22 1/8 3.18
00.23 00.072 1.83
00.25 00.083 2.11
00.50 / 0.75 / 1.00 / 1.50 00.197 5.00
00.70 / 0.90 / 1.00 00.157 4.00
00.15 / 0.20 / 0.30 / 0.40 / 0.51 / 0.91 3/32 2.38
00.15 / 0.20 / 0.25 / 0.30 / 0.40 / 0.51 / 0.56 1/16 1.63
00.30 / 0.50 / 0.70 / 0.90 00.118 3.00
00.40 00.138 3.51
00.50 00.177 4.50
00.13 / 0.20 / 0.25 / 0.40 / 0.46 / 0.51 / 0.56 / 0.71 / 0.81 / 0.91 / 1.22 / 1.63 3/16 4.76

Buy Cut To Size 316/304 Stainless Steel HPLC Tubing in Seamless and Welded Form at Pocket Friendly Price

316 SS HPLC Tubing Wall Thickness

Genuine Stainless Steel Capillary Tube Manufacturer in India As Per Specification

Outside Dia (mm) Inside Dia (mm) Wall thickness (mm)
2.50 0.08 1.21
2.00 0.10 0.95
3.00 0.20 1.40
SS Micro Tubing Pressure Rating
ID OD Length Max Pressure Color Unit
0.005" (0.127 mm) 1/16" 5 cm 27,850 psi (1921 bar) Red 3-pk.
0.005" (0.127 mm) 1/16" 20 cm 27,850 psi (1921 bar) Red 3-pk.
0.005" (0.127 mm) 1/16" 30 cm 27,850 psi (1921 bar) Red 3-pk.
0.007" (0.178 mm) 1/16" 5 cm 26,610 psi (1835 bar) Yellow 3-pk.
0.007" (0.178 mm) 1/16" 10 cm 26,610 psi (1835 bar) Yellow 3-pk.
0.007" (0.178 mm) 1/16" 20 cm 26,610 psi (1835 bar) Yellow 3-pk.
0.007" (0.178 mm) 1/16" 30 cm 26,610 psi (1835 bar) Yellow 3-pk.
0.010" (0.254 mm) 1/16" 5 cm 25,160 psi (1735 bar) Blue 3-pk.
0.010" (0.254 mm) 1/16" 10 cm 25,160 psi (1735 bar) Blue 3-pk.
0.010" (0.254 mm) 1/16" 20 cm 25,160 psi (1735 bar) Blue 3-pk.
0.010" (0.254 mm) 1/16" 30 cm 25,160 psi (1735 bar) Blue 3-pk.
0.020" (0.508 mm) 1/16" 5 cm 20,230 psi (1395 bar) Orange 3-pk.
0.020" (0.508 mm) 1/16" 10 cm 20,230 psi (1395 bar) Orange 3-pk.
0.020" (0.508 mm) 1/16" 20 cm 20,230 psi (1395 bar) Orange 3-pk.
0.020" (0.508 mm) 1/16" 30 cm 20,230 psi (1395 bar) Orange 3-pk.
Schedule Chart Of 316 SS Capillary Tubing
NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
3/4″ √ √ √ √ √
1/2″ √ √ √ √ √
1/8″ √ √ √ √
3/8″ √ √ √ √
2 1/2″ √ √ √ √ √
2″ √ √ √ √ √
4″ √ √ √ √ √
1 1/4″ √ √ √ √ √
1″ √ √ √ √ √
1 1/2″ √ √ √ √ √
6″ √ √ √ √
1/4″ √ √ √ √
3″ √ √ √ √ √
5″ √ √ √ √ -

Get SS Micro Tubing With Pickled and Bright Annealed Finish, Refer More Types

304 SS Capillary Tube Surface Finishes

Manisha Steel, a renowned SS Capillary Tube Manufacturers, offers a wide range of surface finishes such as:

  • Anodized
  • Electropolished
  • Polishing
  • Annealing
  • Mirro surface
  • Pickling
  • Bright
Most Common Types of SS Capillary Tubes

Trusted Stainless Steel Capillary Tube Supplier in India in Custom Shapes and Types

Stainless Steel 1/16 in. Capillary Tubing

Stainless Steel 1/16 in. Capillary Tubing

Stainless Steel Seamless Capillary Tube

Stainless Steel Seamless Capillary Tube

SS Evaporator Coil Capillary Tube

SS Evaporator Coil Capillary Tube

SS Micro Tubing

SS Micro Tubing

Stainless Steel HPLC Tubing

Stainless Steel HPLC Tubing

Metal Capillary Tube

Metal Capillary Tube

Offer SS Evaporator Coil Capillary Tube With Various Value Added Services, Check HS Code
Capillary Tube Stainless Steel HS Code
Product HSN Code
SS Capillary Tube 7411
Metal Capillary Tube Applications
Applications Key Points
Thermometers Accurate temperature measuremen
Medical Devices Catheters, Pumps.
Gas Chromatography Precise fluid sample handling
Flow Restriction Fine control of low-flow systems.
Cooling Systems Regulates refrigerant flow in A/C and refrigeration.
Fuel Lines in Aircrafts Lightweight
Microsurgery Precise fluid delivery
Instrumentation & Sensors Accurate fluid
Chemical/Laboratory Use Handles small volumes
Hydraulic Systems High-strength, pressure-resistant.
SS Evaporator Coil Capillary Tube Advantages
SS Evaporator Coil Capillary Tube Advantages
Get Ready Stock Of Stainless Steel Capillary Pipe in Most Popular Sizes like 1 16 in., 5mm Or Custom, Refer Tolerances
Stainless Capillary Tube Dimensional Tolerances
Gauge Outside Diameter Tolerance mm Regular Wall (RW) mm Thin Wall (TW) mm Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134 - -
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127 - 0.051 – 0.102
26 0.457 – 0.469 0.089 – 0.114 - - -
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114 - -
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114 - 0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114 - 0.051 – 0.102
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
28 0.355 – 0.368 0.076 – 0.102 - - -
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267 - -
12 2.743 – 2.749 0.267 – 0.321 - - -
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108 -
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292 - -
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089 - -
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292 - -
Cutting SS Capillary Tube
Cutting SS Capillary Tube
  • Cutting Methods
  • Tool Selection
  • Cutting Precision
  • Deburring
  • Tube Clamping
  • Safety Precautions
  • Cleanliness
7 Point to Considered Before Buying SS Capillary Tube?
  • Dimensions Of Tube
  • SS Grade
  • Temperature
  • Quality Standards and Certification
  • Precision and Tolerance
  • Tube Length
  • Pressure Ratings
Stainless Steel HPLC Tubing Equivalent Standards
America United Kingdom North America Japan Europe Russia France Russia
ASTM BS UNS JIS EN WERKSTOFF NR. AFNOR GOST
SS 304 304S31 S30400 SUS 304 X5CrNi18-10 1.4301 Z7CN18‐09 08Х18Н10
SS 316 316S31 / 316S33 S31600 SUS 316 X5CrNiMo17-12-2 /
X3CrNiMo17-13-3		 1.4401 / 1.4436 Z7CND17‐11‐02 -
SS 316H 316S51 S31609 - - - - -
SS 316L 316S11 / 316S13 S31603 SUS 316L X2CrNiMo17-12-2 /
X2CrNiMo18-14-3		 1.4404 / 1.4435 Z3CND17‐11‐02 / Z3CND18‐14‐03 03Ch17N14M3 / 03Ch17N14M2
SS 317 - S31700 SUS 317 X5CrNiMo1713 1.4449 - -
SS 310 310S24 S31000 SUS 310 X15CrNi25-20 1.4841 – 20Ch25N20S2
SS 304H – S30409 – – 1.4301 – –
SS 310S 310S16 S31008 SUS 310S X8CrNi25-21 1.4845 – 20Ch23N18
SS 304L 3304S11 S30403 SUS 304L X2CrNi18-9 / X2CrNi19-11 1.4306 / 1.4307 Z3CN18‐10 03Х18Н11
SS 321 - S32100 SUS 321 X6CrNiTi18-10 1.4541 - -
SS 347 - S34700 SUS 347 X6CrNiNb18-10 1.4550 - -
SS 904L 904S13 N08904 SUS 904L X1NiCrMoCu25-20-5 1.4539 Z2 NCDU 25-20 STS 317J5L
SS 321H - S32109 SUS 321H X12CrNiTi18-9 1.4878 - -
SS 347H - S34709 SUS 347H X6CrNiNb18-12 1.4961 - -
SS 317L - S31703 SUS 317L X2CrNiMo18-15-4 1.4438 - -
SS 410S - S41008 SUS410S X6CrNiTi12 1.4516 - -
SS 409 - S40900 SUS409 X2CrTi12 1.4512 - -
SS Micro Tubing Chemical Composition
Grades Nickel Silicon Manganese Carbon Chromium Sulfur Phosphorus
SS 304 8.00 11.00 0.075 2 0.08 18.00 20.00 0.03 0.04
SS 304L 8.00 13.00 0.75 2 .00 0.035 18.00 20.00 0.03 0.04
SS 304H 8.00 11 0.75 2 0.04 0.1 18.00 20 0.03 0.04
SS 316 11.00 4.00 0.75 2.00 008 16.00 18.00 0.030 0.040
SS 310 19.00 22 0.75 2 0.15 24.00 26 0.03 0.04
SS 416 1.00 1.25 0.15 12.00 14.00 0.15 0.066
SS 316L 10.00 15 0.75 2 0.035 16.00 18 0.03 0.04
SS 317 11.00 14 0.75 2 0.08 18.00 20 0.03 0.04
SS 316H 11.00 14.00 0.75 I 2.00 0_04 0.10 16.00 18.00 0.030 0040
SS 321 9.00 13 0.75 203 0.48 17.00 20 0.03 0.04
SS 347 7.00 13 0.75 200 0.08 17.00 20 0.03 0.04
21-6-9 5.50 7.5 1 8.00 0.04 19.00 21.5 0.03 60
Mechanical Properties of Metal Capillary Tube
Grades Tensile Strength (MPa) Yield Strength (MPa) Modulus of Elasticity (GPa) Hardness (HRB) Elongation (%) Poisson’s Ratio
SS 304 520 – 720 205 193 92 – 98 40% 0.27 – 0.30
SS 304L 520 – 720 205 193 85 – 95 40 – 50 0.29
SS 304H 520 – 720 205 193 85 – 95 40 – 50 0.29
SS 310 515 – 740 205 – 275 193 90 – 105 40 – 50 0.29
SS 310S 515 – 740 205 – 275 193 90 – 105 40 – 50 0.29
SS 316 520 – 720 205 193 85 – 95 40 – 50 0.29
SS 316L 520 – 720 205 193 85 – 95 40 – 50 0.29
SS 316Ti 520 – 720 205 193 85 – 95 40 – 50 0.29
SS 317 520 – 730 205 193 85 – 95 40 – 50 0.29
SS 317L 520 – 730 205 193 85 – 95 40 – 50 0.29
SS 321 520 – 720 205 193 85 – 95 40 – 50 0.29
SS 321H 520 – 720 205 193 85 – 95 40 – 50 0.29
SS 347 520 – 720 205 193 85 – 95 40 – 50 0.29
SS 410 520 – 720 205 190 85 – 95 35 – 45 0.28
SS 446 520 – 720 205 190 85 – 95 40 – 50 0.28
SS 904L 520 – 720 205 193 85 – 95 40 – 50 0.29
Stainless Capillary Tube Physical Properties
Grades Density (g/cm³) Melting Point (°C) Coefficient of Thermal Expansion (μm/m·°C) Thermal Conductivity (W/m·K) Electrical Resistivity (µΩ·cm)
SS 304 7.93 1400 – 1450 17.2 16.2 0.072
SS 304L 7.93 1400 – 1450 16.0 16.2 72.3
SS 310 7.90 1400 – 1450 17.0 14.0 72.0
SS 304H 7.93 1400 – 1450 16.0 16.2 72.3
SS 316 7.98 1375 – 1400 16.5 16.3 74.0
SS 310S 7.90 1400 – 1450 17.0 14.0 72.0
SS 316Ti 7.98 1375 – 1400 16.5 16.3 74.0
SS 316L 7.98 1375 – 1400 16.5 16.3 74.0
SS 317L 7.95 1375 – 1400 16.5 16.3 74.5
SS 317 7.95 1375 – 1400 16.5 16.3 74.5
SS 321 7.93 1400 – 1450 16.0 16.2 74.0
SS 347 7.93 1400 – 1450 16.0 16.2 74.0
SS 321H 7.93 1400 – 1450 16.0 16.2 74.0
SS 446 7.80 1400 – 1450 11.5 30.0 76.0
SS 410 7.75 1480 – 1530 11.5 30.0 78.0
SS 904L 8.00 1350 – 1400 16.0 15.0 70.0
Check Available Stock
304 Micro Medical Grade Capillary Tube

304 Micro Medical Grade Capillary Tube

304 Bright-Annealed Capillary Seamless Stainless Steel Tube

304 Bright-Annealed Capillary Seamless Stainless Steel Tube

SS 316 Stainless Steel Customized 2mm 3mm Capillary Tubes

SS 316 Stainless Steel Customized 2mm 3mm Capillary Tubes

Small Diameter 316L Precision Capillary Stainless Steel Tube

Small Diameter 316L Precision Capillary Stainless Steel Tube

Stainless Steel Micro Expanding Necked Capillary Tube

Stainless Steel Micro Expanding Necked Capillary Tube

316 25mm 20mm Small Diameter Capillary Stainless Steel Tube

316 25mm 20mm Small Diameter Capillary Stainless Steel Tube

SS Capillary Tube Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time
France 30
Uk 30
Indonesia 9
Germany 15-50
Oman 5
Malaysia 10
Saudi Arabia 7
Bahrain 9
Belgium 6-9
UAE 5 days
Philippines 14
South Africa 25-30
Singapore 8
Netherlands 19-20
Qatar 7
Kuwait 10
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
