Carbon Steel Pipe Fittings Manufacturer in India

Home|Carbon Steel Pipe Fittings

Full Line Low Carbon Steel Buttweld Fittings Supplier in Mumbai As Per ANSI/ASME B16.9

Carbon Steel Pipe Fittings Specification



6 Things to Remember Before buying CS Pipe Fittings from India?
  • Quality Standards and Certifications
  • Material Specifications and Grades
  • Manufacturing Process
  • Customization and Size Range
  • Supplier Reputation and Reviews
  • Price and Payment Terms
Manisha Steel Centre

Table of Content

Carbon Steel Pipe Fittings Specification
Carbon Steel Pipe Fittings Sizes

Carbon Steel Pipe Fittings Sizes

  • Welded Fittings: Up to 72”
  • Seamless Fittings: Up to 24”
  • Schedule : SCH 10 - XXH
  • End : Plain Bevel, Compound Bevel, Buttweld, Bevelled
Carbon Steel Tee Manufacturing Standards

Carbon Steel Tee Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • MTC EN 10204/3.1
Carbon Steel Coupling Benefits

Carbon Steel Coupling Benefits

  • High Strength
  • Cost-Effective
  • Versatility
Carbon Steel Pipe Coupling Process

Carbon Steel Pipe Coupling Process

  • Seamless
  • Fabricated
  • Welded
Carbon Steel Pipe Fittings Types

Carbon Steel Pipe Fittings Types

  • Elbow
  • Tee
  • Reducer, Cross
  • Cap, Stub End
Carbon Steel Reducer American Standard

Carbon Steel Reducer American Standard

  • ASTM A234
  • ASTM A403
  • ASTM A860
Carbon Steel Elbow Bending Radius

Carbon Steel Elbow Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
Carbon Steel Weld Fittings Origin

Carbon Steel Weld Fittings Origin

  • European
  • Janpanese
  • Russia
  • American
Carbon Steel Stub End Services

Carbon Steel Stub End Services

  • Shearing
  • Heat Treatment
  • Cutting
Carbon Steel Weld Cap Packaging

Carbon Steel Weld Cap Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
CS Concentric Reducer Surface Finish

CS Concentric Reducer Surface Finish

  • Pickled
  • Polished
Carbon Pipe Fittings Testing

Carbon Pipe Fittings Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test
CS Buttweld Fittings Price

Are You Looking for the Best Price on Pipe Fittings Made of Carbon Steel? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Size Master Case Inner Carton Standard SCH 40 Item Number SCH 40 Price in USD X-Heavy SCH80 Item Number SCH80 Price in USD
1/2″ 1 1 A2510008 $16.56 A2610008 $21.74
1″ 1 1 A2510016 $16.56 A2610016 $21.74
1 1/4″ 1 1 A2510020 $16.56 A2610020 $21.74
1 1/2″ 1 1 A2510024 $16.56 A2610024 $21.74
3/4″ 1 1 A2510012 $16.56 A2610012 $21.74
2″ 1 1 A2510032 $23.15 A2610032 $27.76
Carbon Pipe Fittings Dimension
NPS in Inch O.D. 45 Deg Elbow 90 Deg Elbow 180 Deg Elbow
LR Elbow LR Elbow SR Elbow LR Elbow
mm inch Inch Radius (In Inch) Inch Inch Inch Back to face (In Inch)
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8

Get Custom Designed Sch 80/Sch 10 Carbon Steel Elbow and Reducer to Suit All Your Piping Requirements

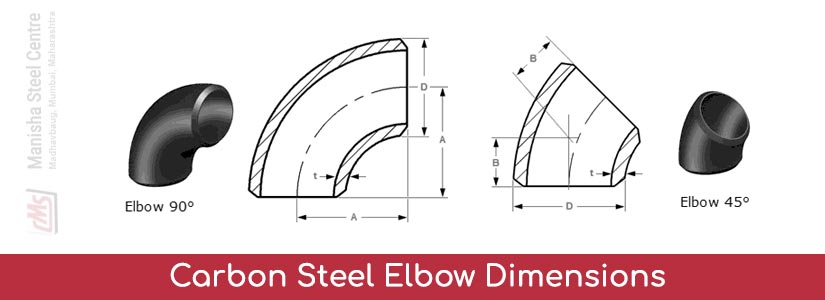

Carbon Steel Elbow Dimensions

Genuine Carbon Steel Pipe Fittings Manufacturer in India As Per Specification

Carbon Steel Elbow Dimensions



NPS O.D. D 45° 3D Center to End B 45° Long Rad Center to End B 90° 3D Center to End A 90° Long Rad Center to End A
1/2 21.3   16   38
3/4 26.7 24 19 57 38
1 33.4 31 22 76 38
1.1/4 42.2 39 25 95 48
1.1/2 48.3 47 29 114 57
3 88.9 95 51 229 114
3.1/2 101.6 111 57 267 133
4 114.3 127 64 305 152
5 141.3 157 79 381 190
6 168.3 189 95 457 229
8 219.1 252 127 610 305
28 711 883 438 2134 1067
30 762 946 470 2286 1143
2 60.3 63 35 152 76
2.1/2 73 79 44 190 95
12 323.8 378 190 914 457
44 1118 1389 695 3353 1676
46 1168 1453 727 3505 1753
10 273 316 159 762 381
18 457 568 286 1372 686
20 508 632 318 1524 762
14 355.6 441 222 1067 533
16 406.4 505 254 1219 610
32 813 1010 502 2438 1219
34 864 1073 533 2591 1295
36 914 1135 565 2743 1372
38 965 1200 600 2896 1448
40 1016 1264 632 3048 1524
42 1067 1326 660 3200 1600
22 559 694 343 1676 838
24 610 757 381 1829 914
26 660 821 406 1981 991
48 1219 1516 759 3658 1829
Tolerance of CS Buttweld Fittings
Type of Buttweld Fitting 45 and 90 Deg Elbows 180 Deg Returns
Normal Size Of Steel Pipe I.D. at End O.D. at Bevel Wall Thickness t / t1 Center-End Dai. A-B-C-M Align-ment of Ends (U) Back-Face Dai. (K) Center-Center Dai. (O)
1/2 a 2 1/2 0,8 1 Not 2 1 7 7
3 a 3 1/2 1,6 1 less 2 1 7 7
4 1,6 +2 -1 than 2 1 7 7
5 a 6 1,6 +3 -1 87,50% 2 1 7 7
8 1,6 2 of nominal 2 1 7 7
10 3,2 +4 -3 tickness 2 2 7 7
12 a 18 3,2 +4 -3 3 10 2 7
20 a 24 4,8 +6 -5 3 10 2 7
26 a 30 4,8 +7 -5 3 - - - -
32 a 48 4,8 +7 -5 5 - - - -
ASME B16.11 90 Degre Elbow Weight Chart
Nominal Pipe Size Weight In KG
2.1/2 0.79
3 1.19
3.1/2 1.59
4 2.04
5 3.4
3/4 0.04
1 0.11
1.1/4 0.17
2 0.37
1.1/2 0.18
20 72.57
14 36.29
16 45.36
18 57.15
1/2 0.04
26 124.74
30 166.47
22 89.36
24 107.95
6 5.44
8 10.43
10 19.5
12 28.12
36 240.86
Carbon Steel Weld Fittings Pressure Rating
Temperature Ratings Types of Pressure Ratings Class
Class 150# Class 300#
1/4 - 1 (Inch) 1 1/4 - 2 (Inch) 2 1/2 - 3 (Inch)
(oF) (oC)
550 288 - 300 300 300
500 260 - 510 450 385
450 232 - 725 600 475
400 204 - 935 750 560
350 177 150 1150 900 650
300 149 185 1360 1050 735
250 121 225 1575 1200 825
200 93 265 1785 1350 910
-20 to 150 -29 to 66 300 2000 1500 1000

Specialized in Stock and Supplying Seamless Carbon Steel Tee and Weld Cap With 1/2 to 24" NB, Check HS Code

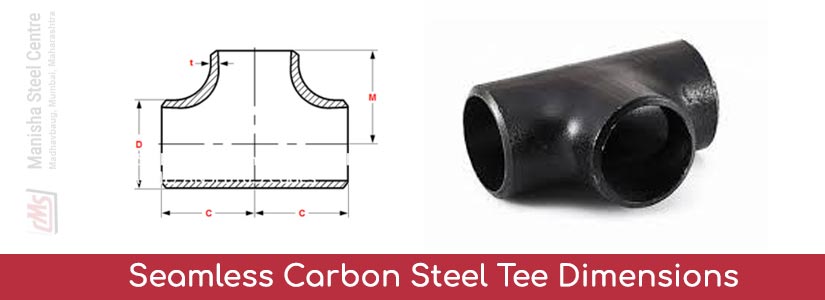

Seamless Carbon Steel Tee Dimensions
Seamless Carbon Steel Tee Dimensions



NPS Center-End
Run (C) Outlet (M)
1" 38 38
1 1/4" 48 48
1 1/2" 57 57
2" 64 64
2 1/2" 76 76
5" 124 124
6" 143 143
3 1/2" 95 95
4" 105 105
1/2" 25 25
3/4" 29 29
18" 343 343
8" 178 178
10" 216 216
12" 254 254
14" 279 279
16" 305 305
3" 86 86
Most Common Types of CS Pipe Fittings

Trusted Carbon Steel Pipe Fittings Supplier in India in Custom Shapes and Types

Carbon Steel Elbow

Carbon Steel Elbow

Sch 40 Carbon Steel Tee

Sch 40 Carbon Steel Tee

CS Reducer

CS Reducer

ASME B16.9 Carbon Steel Cap

ASME B16.9 Carbon Steel Cap

Schedule 10 Carbon Steel Stub End

Schedule 10 Carbon Steel Stub End

Low Carbon Steel Cross

Low Carbon Steel Cross

Buy Welded Carbon Steel Sch 40 Pipe Fittings in Varieties of Grades At Discounted Price, Refer Dimensions Chart
Welded Carbon Steel Sch 40 Pipe Fittings Dimensions Chart
Size (NPS) ID in inches OD in inches Length (L) in inches WT in inches
1/2" 0.622 0.840 2.375 0.109
3/4" 0.824 1.050 2.375 0.113
1" 1.035 1.315 2.375 0.140
1 1/4" 1.380 1.660 2.375 0.140
1 1/2" 1.610 1.900 2.375 0.145
2" 2.067 2.375 2.375 0.154
2 1/2" 2.469 2.875 2.375 0.203
3" 3.068 3.500 2.375 0.216
4" 4.026 4.500 2.375 0.237
5" 5.047 5.563 2.375 0.258
6" 6.065 6.625 2.375 0.280
8" 8.029 8.625 2.375 0.322
10" 10.020 10.750 2.375 0.365
12" 12.012 12.750 2.375 0.406

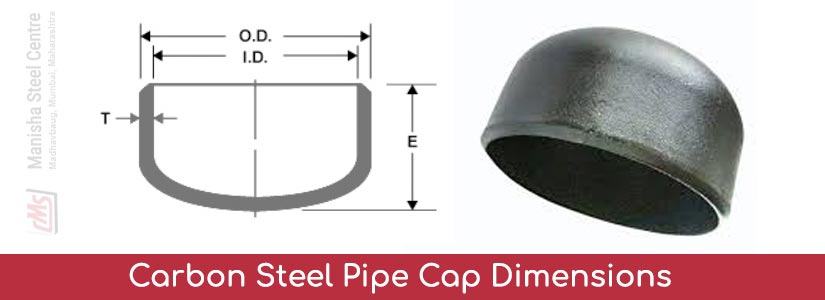

Carbon Steel Pipe Cap Dimensions
Carbon Steel Pipe Cap Dimensions
Normal Size OD (D) Length of (Hight 1) Length of (Hight)
1/2 21.3 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
4 114.3 76 64
5 141.3 89 76
2.1/2 73 51 38
3/4 26.7 25 25
3 88.9 64 51
12 323.8 178 152
14 355.6 191 165
16 406.4 203 178
2 60.3 44 38
24 610 305 267
3.1/2 101.6 76 64
18 457 229 203
20 508 254 229
22 559 254 254
6 168.3 102 89
8 219.1 127 102
10 273 152 127
26 660 … 267
28 711 … 267
CS Pipe Fittings Advantages And Disadvantages
Advantages Disadvantages
High Strength Corrosion Prone
Cost-Effective Prone to Wear and Tear
Good Machinability Limited Corrosion Resistance
Durability Heavy Weight
Versatility in Applications Temperature Sensitivity
Prominent Exporter Of CS Weld Fittings With Bending Radius Like 2D, 1D, 3D, 5D etc.Suitable For Many Industrial Applications
Carbon Steel Weld Fittings Industrial Applications
  • Oil and Gas Industry
  • Power Generation
  • Chemical and Petrochemical Industries
  • Construction and Civil Engineering
  • Automotive and Manufacturing Industries
  • Marine and Shipbuilding
  • Food and Beverage Industry

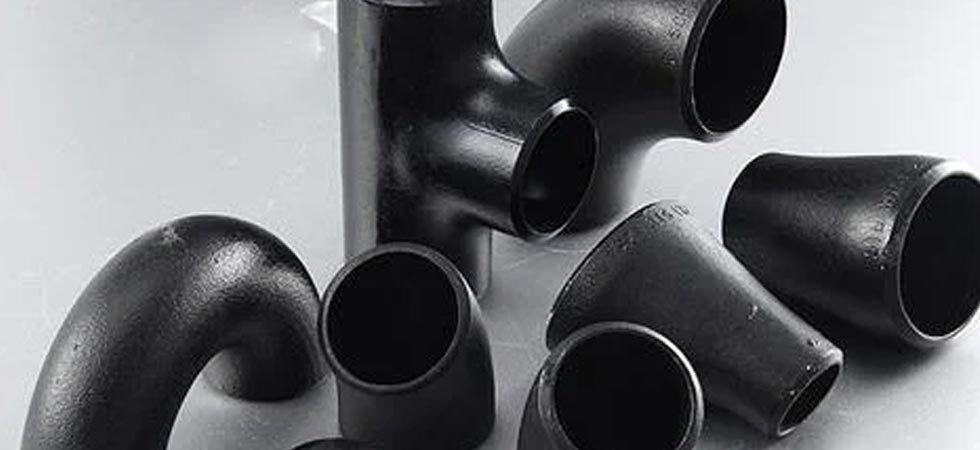

Low Carbon Steel Pipe Fittings Testings

Manisha Steel, a reputable Carbon Steel Fittings Manufacturers, provides high-quality fittings that undergo rigorous testings.

Low Carbon Steel Pipe Fittings Testings
  • Visual Inspection
  • Dimensional Testing
  • Hydrostatic Test
  • Pneumatic Test
  • Tensile Test
  • Impact Test
  • Hardness Test
  • X-Ray or Ultrasonic Test
  • Magnetic Particle Test
Carbon Steel Buttweld Fittings Bending Radius
Fitting Type Nominal Pipe Size (NPS) Standard Bending Radius (R)
Elbow (45°) 1/2" - 4" 1.5 x NPS
6" - 24" 2 x NPS
Elbow (90°) 1/2" - 4" 1.5 x NPS
6" - 24" 2 x NPS
Elbow (180°) 1/2" - 4" 3 x NPS
6" - 24" 4 x NPS
Tee (Straight) 1/2" - 4" 1.5 x NPS
6" - 24" 2 x NPS
Reducer (Concentric) 1/2" - 4" 1.5 x NPS
6" - 24" 2 x NPS
Reducer (Eccentric) 1/2" - 4" 1.5 x NPS
6" - 24" 2 x NPS
Cap 1/2" - 4" 1.5 x NPS
6" - 24" 2 x NPS
CS Pipe Bend Sizes
NPS OD at Bevel DN
1/2 21.3 15
1 33.4 25
1-1/2 48.3 40
1-1/4 42.2 32
2 60.3 50
2-1/2 73.0 65
3 88.9 80
3-1/2 101.6 90
4 114.3 100
5 141.3 125
6 168.3 150
8 219.1 200
10 273.0 250
12 323.8 300
14 355.6 350
16 406.4 400
18 457 450
20 508 500
22 559 550
24 610 600
Pressure Rating of Schedule 80 CS Pipe Fittings
NPS I.D. O.D. (Man.) Wall Thickness (Max.) Working Pressure
1/2" .526 .840 .147 850
1/4" .282 .540 .119 1130
3/4" .722 1.050 .154 690
3/8" .403 .675 .126 920
1" .936 1.315 .179 630
1-1/2" 1.476 1.900 .200 470
1-1/4" 1.255 1.660 .191 520
2" 1.913 2.375 .218 400
2-1/2" 2.290 2.875 .276 420
3" 2.864 3.500 .300 370
3-1/2" 3.326 4.000 .318 350
4" 3.786 4.500 .337 320
5" 4.768 5.563 .375 290
6" 5.709 6.625 .432 280
8" 7.565 8.625 .500 250
How do you ensure a leak-proof installation when using CS Pipe Fittings?
Leak-proof Installation
HS Code For Carbon Steel Pipe Fittings
Product HSN Code
Carbon Steel Pipe Fittings 7307
Carbon Steel Sch 40 Pipe Fittings Chemical Composition
Element Weight %
Sulphur 0.025 max *
Phosphorus 0.025 max *
Silicon 0.15 – 0.50
Manganese 0.30 – 0.60
Molybdenum 0.90 – 1.10
Chromium 2.00 – 2.50
Carbon 0.08 – 0.15
Nickel 0.5 max
Mechanical Properties of Schedule 10 CS Pipe Fittings
Property Values
Ultimate Tensile Strength * 95 min Ksi (655 Mpa)
Charpy Impact Toughness 42 mean/ 33 min J at –18o C
Elongation * 17 % min
Hardness 197 – 237 BHN (75 Ksi min)
Reduction of Area * 35 % min
0.2 % Yield Strength * 75 min Ksi (517 Mpa)
Check Available Stock
ASTM A234 Wpb Carbon Steel Seamless Butt Weld Pipe Fittings

ASTM A234 Wpb Carbon Steel Seamless Butt Weld Pipe Fittings

A234 WPB 90 Degree CS Pipe Elbow

A234 WPB 90 Degree CS Pipe Elbow

45 Degree Dimensions Long Radius Carbon Steel Pipe Fittings Elbow

45 Degree Dimensions Long Radius Carbon Steel Pipe Fittings Elbow

ANSI Black Carbon Steel ASTM B16.5 A234 WPB Concentric Reducer

ANSI Black Carbon Steel ASTM B16.5 A234 WPB Concentric Reducer

Carbon Steel 2 inch X SCH80 Bevel End Butt Weld Cross

Carbon Steel 2 inch X SCH80 Bevel End Butt Weld Cross

ANSI B16.9 Butt Welding Carbon Steel Pipe Cap

ANSI B16.9 Butt Welding Carbon Steel Pipe Cap

Carbon Steel Pipe Fittings Delivery Time As Per Location
Cost Changes
Extra 5 %
Export to Delivery Time in Days
Germany 25-30
Uk 30
Italy 30
Philippines 14
France 30
Belgium 10
Indonesia 9
Oman 5
UAE 5 days
Saudi Arabia 7
USA 40-60
Qatar 7
Singapore 8
Kuwait 10
Netherlands 9
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
