Bar Stock Fittings Manufacturer in India

Home|Bar Stock Fittings

Solid Bar Fitting Supplier in Mumbai at Affordable Price

Bar Stock Fittings Specification



What are the challenges faced by fluid power system designers in Germany when selecting bar stock fittings for high-pressure applications?
  • Material Selection
  • Sealing and Leak Prevention
  • Tolerance and Precision
  • Manufacturing Constraints
  • Cost Considerations
  • Regulatory Compliance
  • Temperature Fluctuations
  • Vibration and Fatigue Resistanc
  • Size and Integration
  • Availability and Lead Time
Manisha Steel Centre

Table of Content

Bar Stock Fittings Specification
Bar Stock Fittings Standards

Threaded Bar Stock Sizes

  • NPT : 1/8" to 12"
  • BSPT: 1/8" to 4"
  • Small Sizes : 1/8" to 2"
  • Medium: 2 1/2" to 6"
Threaded Bar Stock Sizes

Bar Stock Fittings Standards

  • ANSI/ASME B16.11
  • ASTM A182
  • ISO 9001
  • NACE MR0175
Solid Bar Fitting Materials

Solid Bar Fitting Materials

  • Stainless Steel
  • Copper
  • Brass
Manufacturing Process

Manufacturing Process

  • CNC Machining
  • Drilling and Tapping
  • Turning & Milling
Types of Bar Stock Fittings

Types of Bar Stock Fittings

  • Elbows, Tees
  • Couplings
  • Adapters
  • Caps, Unions
Advantages of Bar Stock Brass Fittings

Advantages of Bar Stock Brass Fittings

  • Strength and Durability
  • Customization
  • Corrosion Resistance
Common Brands and Manufacturers

Common Brands and Manufacturers

  • Swagelok
  • Parker Hannifin
  • FAV Fittings
  • Tyco
Bar Stock Copper Fittings Origin

Bar Stock Copper Fittings Origin

  • European
  • Janpanese
  • Russia
  • American
Bar Stock Brass Fittings Services

Bar Stock Brass Fittings Services

  • Shearing
  • Heat Treatment
  • Cutting
Solid Bar Fitting Packaging

Solid Bar Fitting Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
SS Bar Stock Surface Finish

SS Bar Stock Surface Finish

  • Pickled
  • Polished
Bar Stock Fittings Testing

Bar Stock Fittings Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test
Stainless NPT Threaded Full Coupling Price

Are You Trying to Find the Best Deal on Bar Stock Fittings? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

Size Range Price in USD
1/8 in. US $5.44
1/4 in. US $6.68
3/8 in. US $7.86
1/2 in US $10.68
3/4 in US $14.23
1 in. US $23.36
1-1/4 in US $33.13
1-1/2 in. US $40.09
2 in. US $63.13
2-1/2 in. US $165.28
3 in. US $219.91
4 in. US $364.82
1/8 in. US $5.96
1/4 in. US $7.25
3/8 in. US $8.38
1/2 in. US $11.33
3/4 in. US $15.76
1 in. US $25.57
1-1/4 in US $38.83
1-1/2 i US $49.56
Bar Stock Sizes
Type of Fitting Size (Inches)
Elbow 1/8"
1/4"
1 1/4"
3 1/2"
12"
Tees 3/8"
8"
2"
Coupling 1/2"
2 1/2"
10"
Reducer 5/8"
5"
14"
1 1/2"
Flange 3/4"
6"
3"
Cap 1"
4"

Exporter of Bar Stock Brass Fittings in Different Configurations and Sizes For Plumbing Applications

Bar Stock Brass Fittings Dimensions

Genuine Bar Stock Fittings Manufacturer in India As Per Specification

Couplings Dimensions
Type Nominal Size (inches) Outside Diameter (OD) Wall Thickness (WT) Length (L) Thread Type
Standard Coupling 1/8" - 6" 0.250" to 6.000" 0.049" to 0.250" 1" to 3" Male/Female, NPT
Reducing Coupling 1/8" x 1/4" - 6" 0.250" to 6.000" 0.049" to 0.250" 1" to 3" Male/Female, NPT
Union Coupling 1/8" - 4" 0.250" to 4.500" 0.049" to 0.250" 1" to 3" Male/Female, NPT
Reducers Dimensions
Type Nominal Size (inches) Inside Diameter (ID) Outside Diameter (OD) Wall Thickness (WT)
Concentric Reducer 1/8" - 6" 0.250" to 6.000" 0.250" to 6.000" 0.049" to 0.250"
Eccentric Reducer 1/8" - 6" 0.250" to 6.000" 0.250" to 6.000" 0.049" to 0.250"
Bushings Dimensions
Type Nominal Size (inches) Outside Diameter (OD) Wall Thickness (WT) Length (L)
Reducing Bushing 1/8" x 1/4" - 6" 0.250" to 6.000" 0.049" to 0.250" 1" to 2"
Straight Bushing 1/8" - 2" 0.250" to 2.000" 0.049" to 0.250" 1" to 2"
Applications of Bar Stock Brass Fittings

Manisha Steel Centre is one of the topmost Bar Stock Fittings Manufacturer in India providing you quality Bar Stock Fittings for engineering and other industries.

  • Plumbing Systems
  • HVAC
  • Industrial Equipment
  • Automotive and Transportation
  • Marine Applications
  • Electrical and Wiring
  • Oil and Gas Industry

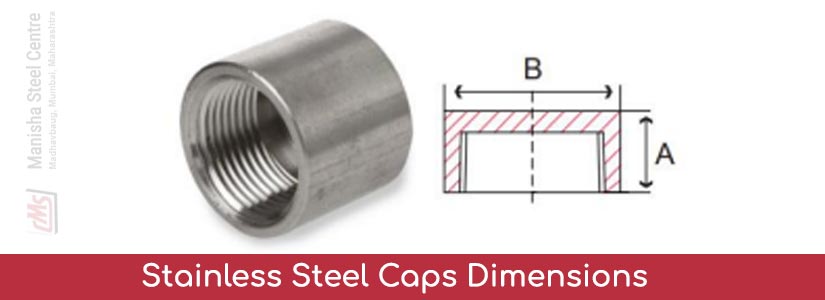

Stainless Steel Caps Dimensions
Stainless Steel Caps Dimensions



Size ( inch ) A (inch) B (inch) Weight (lb)
1/2 0.93 1.05 0.1
1/4 0.68 0.74 0.07
1/8 0.68 0.62 0.05
1-1/4 1.60 1.95 0.6
1-1/2 1.60 2.15 0.6
3/4 1.05 1.29 0.4
3/8 0.80 0.86 0.09
1 1.35 1.60 0.5
2 1.74 2.71 1.2
2-1/2 2.34 3.32 3.5
3 2.54 4.10 6.2
4 2.65 5.07 9.2

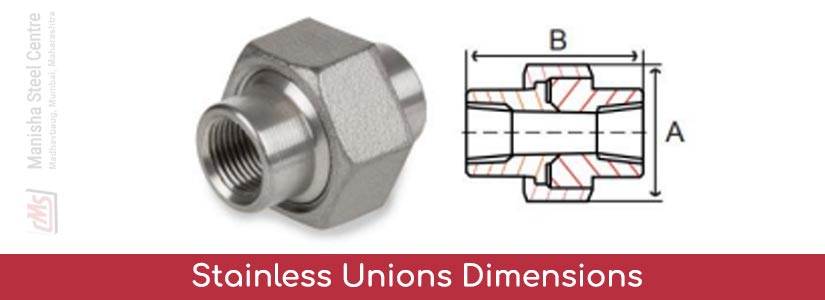

Stainless Unions Dimensions
Stainless Unions Dimensions



Size A B Weight
in in in lb
1/2 1.48 1.91 0,4
1/4 1.17 1.48 0.2
1/8 1.17 1.48 0.2
1 2.11 2.34 0.9
1-1/4 2.48 2.59 1.3
1-1/2 2.96 2.96 2.2
2 3.59 3.04 2.9
2-1/2 4.46 3.71 5.1
3/4 1.79 1.92 0.6
3/8 1.37 1.60 0.3
3 5.32 4.06 8.4

Keep Bar Stock Copper Fittings in Various Types Include Elbows, Couplings, Adapters,Tees etc.

Most Common Types Of Bar Stock Copper Fittings

Trusted Bar Stock Fittings Supplier in India in Custom Shapes and Types

Copper Elbows

Copper Elbows

Copper Couplings

Copper Couplings

Copper Adapters

Copper Adapters

Copper Tees

Copper Tees

Copper Nipples

Copper Nipples

Copper Caps

Copper Caps

Copper Reducers

Copper Reducers

Copper Bushings

Copper Bushings

Must Check Bar Stock Standard Sizes
Bar Stock Standard Sizes
Size (inches) Diameter (mm) Material
2-1/8 53.975 Steel
1-5/8 41.275
3/4 19.05
1-1/8 28.575
1/8 3.175
1/4 6.35 Stainless Steel
5/8 15.875
5/8 15.875
1-1/2 38.1
2 50.8
1 25.4
3 76.2
3/8 9.525 Brass
1-3/8 34.925
1-7/8 47.625
2-1/2 63.5
7/8 22.225
Stainless Steel Coupling Dimensions

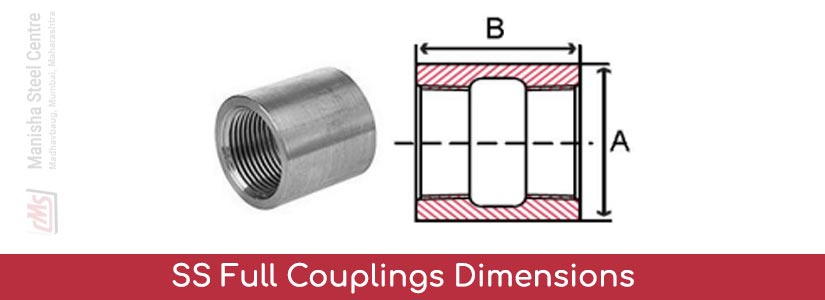

Full Coupling Dimensions
Full Coupling Dimensions



Size A B Weight
in in in lb
1/2 1.05 1.38 0.2
1/4 0.74 1.00 0.09
1/8 0.62 1.00 0.07
1 1.62 1.62 0.4
1-1/4 1.87 2.00 0.5
1-1/2 2.16 2.12 0.7
3/4 1.29 1.50 0.2
3/8 0.86 1.12 0.1
2 2.71 2.50 1.4
2-1/2 3.38 2.86 2.6
3 3.96 3.17 3.8
4 5.05 3.68 6.8

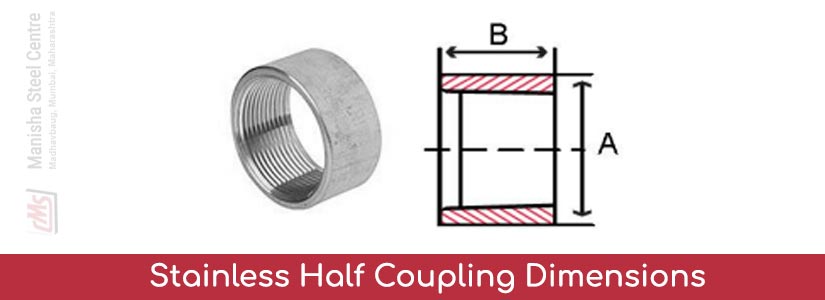

Half Coupling Dimensions
Half Coupling Dimensions



Size A B Weight
in in in lb
1/2 1.05 0.70 0.1
1/4 0.74 0.56 0.04
1/8 0.74 0.50 0.03
1 1.62 0.80 0.2
1-1/4 1.87 1.00 0.2
1-1/2 2.26 1.05 0.3
2 2.74 1.25 0.7
2-1/2 3.32 1.42 1.3
3/8 0.86 0.56 0.07
3/4 1.29 0.74 0.1
3 4.00 1.58 1.8
4 5.05 1.83 3.1
Buy Bar Stock Fittings With NPTF, NPT, NPSM Threads For Secure and Strong Connections in Plumbing
Bar Stock Fittings Thread Standards
Thread Type Thread Standard Common Uses
NPT ANSI/ASME B1.20.1
  • Water systems
  • Gas lines
  • Industrial fluid systems
NPTF ANSI/ASME B1.20.3
  • Fuel systems
  • Hydraulic systems
  • High-pressure gas lines
NPSM ANSI B1.20.1
  • Threaded machinery
  • Non-sealing applications
  • HVAC systems
Stainless Steel Bar Stock Fittings Chemical Composition
Grades Chromium (Cr) Carbon (C) Silicon (Si) Phosphorus (P) Nickel (Ni) Manganese (Mn) Sulfur (S)
304 18.0 - 20.0 0.08 max 1.0 max 0.045 max 8.0 - 10.5 2.0 max 0.03 max
304L 18.0 - 20.0 0.03 max 1.0 max 0.045 max 8.0 - 12.0 2.0 max 0.03 max
316 16.0 - 18.0 0.08 max 1.0 max 0.045 max 10.0 - 14.0 2.0 max 0.03 max
316L 16.0 - 18.0 0.03 max 1.0 max 0.045 max 10.0 - 14.0 2.0 max 0.03 max
Mechanical Properties of Stainless Bar Stock Fittings
Grades Chromium (Cr) Carbon (C) Silicon (Si) Nickel (Ni) Phosphorus (P) Manganese (Mn) Sulfur (S)
304 18.0 - 20.0 0.08 max 1.0 max 8.0 - 10.5 0.045 max 2.0 max 0.03 max
304L 18.0 - 20.0 0.03 max 1.0 max 8.0 - 12.0 0.045 max 2.0 max 0.03 max
316 16.0 - 18.0 0.08 max 1.0 max 10.0 - 14.0 0.045 max 2.0 max 0.03 max
316L 16.0 - 18.0 0.03 max 1.0 max 10.0 - 14.0 0.045 max 2.0 max 0.03 max
How do Bar Stock Fittings differ from Standard Forged Fittings?
Feature Bar Stock Fittings Standard Forged Fittings
Manufacturing Process Machined from solid bars Made by heating and shaping under pressure
Material Properties Lower density, less resistant to impact Higher strength, better fatigue resistance
Design Flexibility Customizable Standard designs, limited customization
Applications Low to medium pressure High-pressure
Cost Higher cost per piece, suitable for small runs Lower cost per piece, economical in bulk
Strength/Durability Less durable under extreme conditions Superior strength, resistant to harsh conditions
Weight Typically heavier due to machining process Lighter for the same size
What are the pressure ratings for various types of Bar Stock Fittings?
Material Size Range Pressure Rating (psi)
Stainless Steel 1/8" to 2" 1,000 to 3,000
Brass 1/8" to 2" 600 to 1,000
Carbon Steel 1/8" to 2" 1,500
Alloy Steel 1/8" to 2" 2,500 to 5,000
Monel 1/8" to 2" 1,500
Brass/Bronze 1/8" to 1" 200 to 400
Copper 1/8" to 1/2" 600 to 1,000
PVC 1/8" to 2" 200 to 400
How can you properly maintain Bar Stock Fittings to avoid corrosion or damage?
  • Regular Cleaning
  • Protective Coatings
  • Proper Storage
  • Preventing Galvanic Corrosion
  • Inspection and Monitoring
  • Proper Installation and Handling
  • Regular Lubrication
Check Available Stock
Brass Bar Stock Elbow Fittings

Brass Bar Stock Elbow Fittings

45 Degree Barstock Street Elbow

45 Degree Barstock Street Elbow

90 Degree Barstock Street Elbow

90 Degree Barstock Street Elbow

Bar Stock Fittings Delivery Time As Per Location
Cost Variations 5 % extra
Export to Delivery Time in Days
Belgium 6-9
Oman 5
Singapore 8
UAE 5 days
Philippines 14
Malaysia 10
Indonesia 9
Germany 15-50
South Africa 25-30
Kuwait 10
France 30
Uk 30
Netherlands 19-20
Saudi Arabia 7
Qatar 7
Bahrain 9
