Table of Content
Monel Pipe Fittings Sizes
Monel Swagelok Fittings Manufacturing Standards
Monel Buttweld Fitting Benefits
Monel Fittings Process
Monel Pipe Fittings Types
Monel Elbow International Standards
Monel Swagelok Fittings Bending Radius
Monel Reducer Origin
Monel Cap Services
Monel Stub End Packaging
Monel Cross Surface Finish
Monel Buttweld Fitting Testing
Searching for the Best Deal on Monel Pipe Fittings? You can get an estimate right away by sending an email to kalpesh@manishasteelcentre.com.
| NPS | All Fittings | All Fittings | All Fittings | Reducers | Caps | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends |
|---|---|---|---|---|---|---|---|---|---|
| O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Overall Length H | Overall Length E | Centre-to-End Dimension A,B,C,M | Back-to-Face K | Centre-to-Centre O | Alignment of Ends U | |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% | 0.06 | 0.12 | 0.06 | 0.25 | 0.25 | 0.03 |
| 3 to 3 ½ | 0.06 | 0.06 | 0.06 | 0.12 | 0.06 | 0.25 | 0.25 | 0.03 | |
| 4 | 0.06 | 0.06 | 0.06 | 0.12 | 0.06 | 0.25 | 0.25 | 0.03 | |
| 5 to 8 | 0.09 -0.06 | 0.06 | 0.06 | 0.25 | 0.06 | 0.25 | 0.25 | 0.03 | |
| 10 to 18 | 0.16 -0.12 | 0.12 | 0.09 | 0.25 | 0.09 | 0.25 | 0.38 | 0.06 | |
| 20 to 24 | 0.25 -0.19 | 0.19 | 0.09 | 0.25 | 0.09 | 0.25 | 0.38 | 0.06 | |
| 26 to 30 | 0.25 -0.19 | 0.19 | 0.19 | 0.38 | 0.12 | … | … | … | |
| 32 to 48 | 0.25 -0.19 | 0.19 | 0.19 | 0.38 | 0.19 | … | … | … |
| NPS | Diameter at Bevel (mm) | SCH 20 | SCH 40 |
|---|---|---|---|
| 1/2 | 21.3 | – | 0.16 |
| 3/4 | 26.7 | – | 0.2 |
| 1 | 33.4 | – | 0.29 |
| 1 1/2 | 48.3 | – | 0.77 |
| 2 | 60.3 | – | 1.88 |
| 3 | 88.9 | – | 3.82 |
| 4 | 114.3 | – | 6 |
| 5 | 141.3 | – | 9.94 |
| 6 | 168.3 | – | 16.48 |
| 8 | 219,1 | 29 | 33 |
| 10 | 273 | 34.7 | 49.35 |
| 12 | 323.8 | 59 | 70.5 |

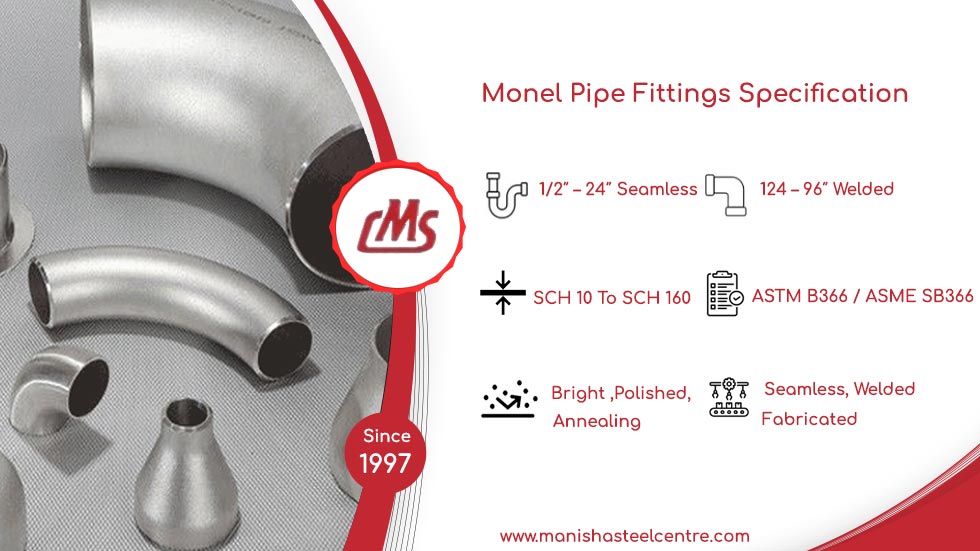

Genuine Monel Pipe Fittings Manufacturer in India As Per Specification
| Elbow Type | Size Range (Inches) |
|---|---|
| Butt Weld Elbow | 1/2" to 48" |
| 90° Elbow | 1/2" to 24" |
| 45° Elbow | 1/2" to 24" |
| Welding Method | Full Form |
|---|---|
| TIG Welding | Tungsten Inert Gas Welding |
| MIG Welding | Metal Inert Gas Welding |
| Stick Welding | Shielded Metal Arc Welding |
| Plasma Arc Welding | Plasma Arc Welding |
| Submerged Arc Welding | Submerged Arc Welding |
| Testing Method | Type |
|---|---|
| Visual Inspection | Non-Destructive |
| Ultrasonic Testing (UT) | Non-Destructive |
| Magnetic Particle Testing | Non-Destructive |
| Radiographic Testing (X-ray or Gamma Ray) | Non-Destructive |
| Dye Penetrant Testing | Non-Destructive |
| Tensile Testing | Destructive |
| Hardness Testing | Destructive |
| Impact Testing | Destructive |
| Bend Testing | Destructive |
| Corrosion Testing | Destructive/Non-Destructive |

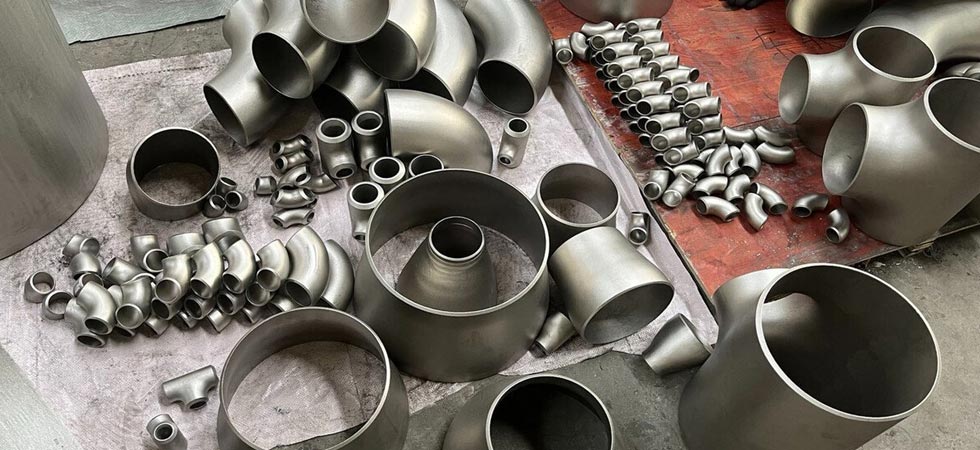

Trusted Monel Pipe Fittings Supplier in India in Custom Shapes and Types
ASTM B366 Monel Elbow
Monel Tee
Monel Alloy Reducer
Monel Cap
Monel Stub End
Monel Cross
| Feature | Hot Method | Mandrel Method |
|---|---|---|
| Process | Heated shaping | Shaped using a mandrel |
| Temperature | High temperatures required | Lower temperatures or ambient |
| Finish | Rougher surface | Smoother, precise finish |
| Material Wastage | Higher wastage | Lower wastage |
| Precision | Less precise | High precision |
| Cost | Lower cost | Higher cost |
| Applications | Large components, fittings | Small-diameter tubes, seamless pipes |
| Width (max in) | Gauge (in) | Surface Finishes |
|---|---|---|
| 48 | 18–28 | BA Mexinox only |
| 48 | 13–29 | Temper rolled plate Mexinox only |
| 60 | 11–24 | Polished plate (not brushed) |
| 60 | 12–24 | 2D – Pickled plate, Cold rolled, Heat treated |
| 72* | 10–24 | 2B – Cold rolled, Pickled, Heat treated, Skin passed Plate |
| Standard | Monel 400 fittings | Alloy K500 fittings |
|---|---|---|
| UNS | N04400 | N05500 |
| WERKSTOFF NR. | 2.4360 | 2.4375 |
| JIS | NW 4400 | – |
| AFNOR | NU-30M | – |
| BS | NA 13 | – |
| EN | NiCu30Fe | – |
| GOST | МНЖМц 28-2,5-1,5 | – |
| Element | Monel 400 fittings | Monel K500 fittings |
|---|---|---|
| Cu | 28.00 – 34.00 | 27.00 – 33.00 |
| Si | 0.50 (max.) | 0.5 (max.) |
| Fe | 2.50 (max.) | 0.5 – 2 |
| Ni | 63.00 (min.) | 63.00 (min.) |
| S | 0.024 (max.) | 0.010 (max.) |
| C | 0.30 (max.) | 0.25 (max.) |
| Mn | 2.00 (max.) | 1.5 (max.) |
| Element | Monel 400 Pipe Fittings | Monel K500 Pipe Fittings |
|---|---|---|
| Tensile Strength | MPa – 550, PSI – 80,000 | MPa – 1100, PSI – 160000 |
| Elongation | 40% | 20% |
| Yield Strength (0.2%Offset) | MPa – 240, PSI – 35,000 | MPa – 790, PSI – 115000 |
| Element | Monel 400 Pipe Fittings | Monel K500 Pipe Fittings |
|---|---|---|
| Density | 8.8 g/cm3 | 8.44 g/cm3 |
| Melting Point | 2460 °F (1350 °C) | 2460 °F (1350 °C) |
| Temperature In °F | Maximum Allowable Stress In KSI |
|---|---|
| 300 | 13.6 |
| 400 | 13.2 |
| -20~100 | 16.7 |
| 200 | 14.6 |
| 800 | 12.7 |
| 500 | 13.1 |
| 600 | 13.1 |
| 700 | 13.0 |
| 900 | 8.0 |
| Electrical Resistivity | Curie Temperature |
|---|---|
| 5.47e-005 ohm-cm | 95 °F |
| 5.47e-005 ohm-cm | 35 °C |
Monel Reducer Pipe Fittings
Monel Pipe Fittings Elbow
Custom-Sized Monel Alloy Buttweld Seamless Concentric Reducers
| Changes in Price Extra 5 % |
|
|---|---|
| Export to | Shipping Time in Days |
| Croatia | 60 |
| Slovakia | 45-60 |
| Finland | 45-60 |
| Ireland | 60 |
| Albania | 45 |
| Singapore | 8 |
| Austria | 60 |
| Switzerland | 45-60 |
| Thailand | 7 |
| Hungary | 45 |
| Vietnam | 14 |
| Malaysia | 7 |
| Indonesia | 7 |
| Slovenia | 60 |
| Malta | 60 |
