Hastelloy C276 Pipe Fittings

Home|Hastelloy C276 Pipe Fittings

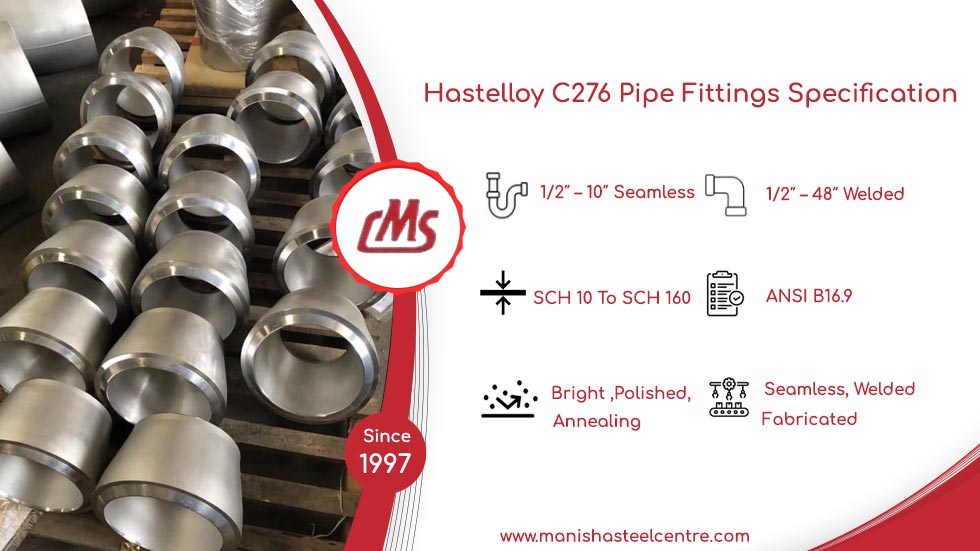

Hastelloy C276 Pipe Fittings Specification



Top 5 Reasons for Suppliers in Nigeria to Procure Hastelloy C276 Pipe Fittings from Manisha Steel Centre
  • High-Quality Materials
  • Wide Range of Products
  • Timely Delivery
  • Competitive Pricing
  • Excellent Customer Support
Manisha Steel Centre

Table of Content

Hastelloy C276 Pipe Fittings Specification
Hastelloy C276 Fittings Sizes

Hastelloy C276 Fittings Sizes

  • Welded Fittings: 1/2″ – 48″
  • Seamless Fittings: 1/2″ – 10″
  • Schedule : 5S to XXS
  • End : Compound Bevel, Plain Bevel, Buttweld, Bevelled

Hastelloy C276 Stub End Manufacturing Standards

Hastelloy C276 Stub End Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1

Nickel C276 Fittings Physical Properties

Nickel C276 Fittings Physical Properties

  • Melting Point:1370-1390°C
  • Density:8.89 g/cm³
  • Heat Treatment: 2012-2102°F
C276 Hastelloy Welded Fittings Process

C276 Hastelloy Welded Fittings Process

  • Seamless
  • Fabricated
  • Welded
C276 Pipe Fittings Types

C276 Pipe Fittings Types

  • Elbow
  • Reducer
  • Stub End
  • Cross
  • Cap
Alloy C276 Fittings International Standards

Alloy C276 Fittings International Standards

  • UNS N10276
  • ASTM B366
  • WNR 2.4819
  • ASME SB366
UNS N10276 Elbows Bending Radius

UNS N10276 Elbows Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
B366 Gr.WPHC276 bW Fittings Origin

B366 Gr.WPHC276 bW Fittings Origin

  • European
  • Janpanese
  • Russia
  • American
Ni C276 Butt Welded Joint Services

Ni C276 Butt Welded Joint Services

  • Shearing
  • Heat Treatment
  • Cutting

ASME SB 366 UNS N10276 Fittings Packaging

ASME SB 366 UNS N10276 Fittings Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
WPHC276 Elbow Surface Finish

WPHC276 Elbow Surface Finish

  • Pickled
  • Polished
Hastelloy C276 Fittings Testing

Hastelloy C276 Fittings Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test


ASTM B366 WPHC276 Buttweld Fittings Manufacturer in India At Discounted Price

ASTM B366 WPHC276 Buttweld Fittings Price
Type of Fitting Size SCH Price in USD Per Piece
Hastelloy C276 Elbow 3/4" SCH 40 US $4.57
90 Deg Elbow 1" SCH 40 US $6.69
2" SCH 40 US $8.71
3" SCH 40 US $9.50
4" SCH 40 US $11.24
5" SCH 40 US $12.97
6" SCH 40 US $14.69
Hastelloy C276 Reducer 3/4 X 1/2 SCH 160 US $6.85
Concentric Reducer 1 X 1/2" SCH 160 US $10.22
4 X 2" SCH 160 US $12.35
5 X 4" SCH 40 US $15.13
6 X 4" SCH 80 US $16.96
Hastelloy C276 Tee 1/2" SCH 40 US $6.58
3/4" SCH 40 US $7.96
3/1" SCH 40 US $9.97
2" SCH 40 US $11.84
3" SCH 40 US $14.53
Equal Tee 4" SCH 40 US $15.83
Hastelloy C276 Cap 1/2" SCH 40 US $6.85
End Cap 3/4" SCH 40 US $8.56
1" SCH 40 US $9.87
1 1/4" SCH 40 US $11.85
2" SCH 40 US $15.81

Are You Looking for Hastelloy C276 Pipe Fittings at the Best Price? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Hastelloy C276 Welded Fittings Dimensions
NPS OD Straight Tees Stub Ends Caps Straight Crosses
inch mm inch Center to End (inch) Lap Diameter (inch) Long Length (inch) Short Length (inch) Length (inch) Center to End (inch)
1 33.4 1.315 1 1/2 2 4 2 1 1/2 1 1/2
1 1/2 48.3 1.900 2 1/4 2 7/8 4 2 1 1/2 2 1/4
3/4 26.7 1.050 1 1/8 1 11/16 3 2 1 –
1 1/4 42.2 1.660 1 7/8 2 1/2 4 2 1 1/2 1 7/8
2 60.3 2.375 2 1/2 3 5/8 6 2 1/2 1 1/2 2 1/2
6 168.3 6.625 5 5/8 8 1/2 8 3 1/2 3 1/2 5 5/8
8 219.1 8.625 7 10 5/8 8 4 4 7
3 88.9 3.500 3 3/8 5 6 2 1/2 2 3 3/8
3 1/2 101.6 4.000 3 3/4 5 1/2 6 3 2 1/2 3 3/4
4 114.3 4.500 4 1/8 6 3/16 6 3 2 1/2 4 1/8
2 1/2 73.0 2.875 3 4 1/8 6 2 1/2 1 1/2 3
1/2 21.3 0.840 1 1 3/8 3 2 1 –
5 141.3 5.563 4 7/8 7 5/16 8 3 3 4 7/8
10 273.1 10.750 8 1/2 12 3/4 10 5 5 8 1/2
12 323.9 12.750 10 15 10 6 6 10

Full Line Supplier Of Nickel C276 Elbow and Cap in Mumbai With Size Ranges From 1/2 to 10 "(seamless)

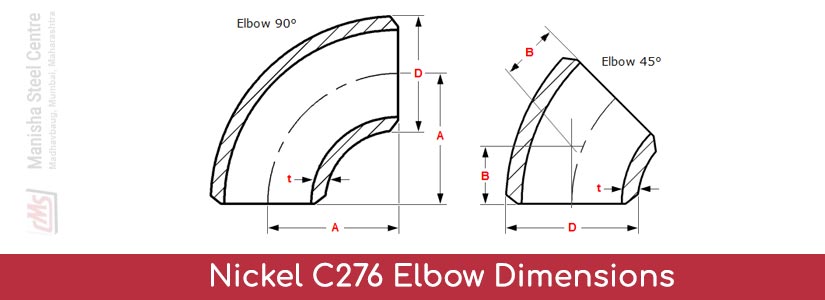

Nickel C276 Elbow Dimensions

Genuine Hastelloy C276 Pipe Fittings Manufacturer in India As Per Specification

Nickel C276 Elbow Dimensions



NPS OD D 45° Long Rad Center to End B 45° 3D Center to End B 90° Long Rad Center to End A 90° 3D Center to End A
1/2 21.03 16  - 38  -
1½ 48.03 29 47 57 114
2 60.03 35 63 76 152
2½ 73 44 79 95 190
3 88.09 51 95 114 229
3½ 101.06 57 111 133 267
4 114.03 64 127 152 305
5 141.03 79 157 190 381
1¼ 42.02 25 39 48 95
6 168.03 95 189 229 457
8 219.01 127 252 305 610
3/4 26.07 19 24 38 57
1 33.04 22 31 38 76
10 273 159 316 381 762
12 323.08 190 378 457 914
14 355.06 222 441 533 1067
16 406.04 254 505 610 1219

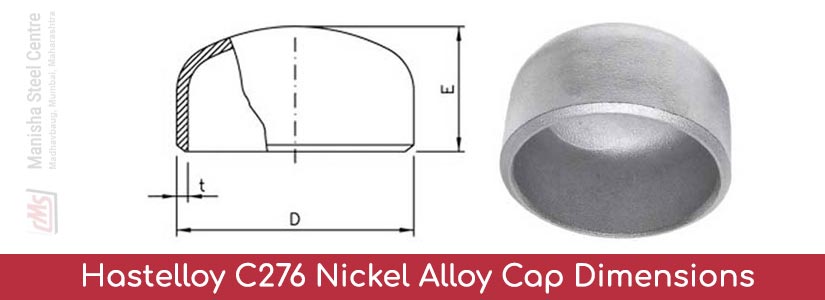

Hastelloy C276 Nickel Alloy Cap Dimensions
Hastelloy C276 Nickel Alloy Cap Dimensions



NPS O.D. of D Length Of (H1) Length Of (H)
1.1/2 48.3 38 38
2 60.3 44 38
2.1/2 73 51 38
3 88.9 64 51
3.1/2 101.6 76 64
4 114.3 76 64
5 141.3 89 76
6 168.3 102 89
8 219.1 127 102
1/2 21.3 25 25
14 355.6 191 165
16 406.4 203 178
18 457 229 203
20 508 254 229
22 559 254 254
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
10 273 152 127
12 323.8 178 152
24 610 305 267
Nickel C276 Pipe Fittings Resistance Chart
Acids Temperature Content Weight % Mean Corrosion rate, mills per year
ºF ºC Hastelloy C276
Nitric Acid + 6% HF 140 ºF 60 ºC 5% 207
Sulfuric Acid 150ºF 66 ºC 50% 4
Acetic Acid Boiling Boiling 99% -
Formic Acid 88% 2
Ferric Chloride 10% 2
Hydrochloric acid 1% 10

Get ASME SB 366 UNS N10276 Tee and Reducer As Per ANSI B16.9 For High Corrosion Prone Applications

Nickel Alloy C276 Tee Applications
Nickel Alloy C276 Tee Applications
ASME SB 366 UNS N10276 Reducer Dimensions
NPS OD END TO END
Inch P D H
2 x 1 33.04 60.03 76
2 x 3/4 26.07 60.03 76
2 1/2 x 2 60.03 73 89
3 x 2 60.03 88.09 89
3 x 1 1/2 48.03 88.09 89
3 x 1 1/4 42.02 88.09 89
1 1/4 x 1 33.04 42.02 51
1 1/4 x 3/4 26.07 42.02 51
1 1/4 x 1/2 21.03 42.02 51
1 1/2 x 1/2 21.03 48.03 64
2 x 1 1/2 48.02 60.03 76
2 x 1 1/4 42.02 60.03 76
3 1/2 x 3 88.09 101.06 102
3/4 x 3/8 17.01 26.07 38
1 x 3/4 26.07 33.04 51
1 x 1/2 21.03 33.04 51
1 1/2 x 3/4 26.07 48.03 64
2 1/2 x 1 1/2 48.03 73 89
3 x 2 1/2 73 88.09 89
4 x 3 1/2 101.06 114.03 102
4 x 3 88.09 114.03 102
4 x 2 1/2 73 114.03 102
4 x 2 60.03 114.03 102
2 1/2 x 1 1/4 42.02 73 89
2 1/2 x 1 33.04 73 89
3 1/2 x 21/2 73 101.06 102
3 1/2 x 2 60.03 101.06 102
3 1/2 x 1 1/2 48.03 101.06 102
3 1/2 x 1 1/4 42.02 101.06 102
1 1/2 x 1 1/2 42.02 48.03 64
1 1/2 x 1 33.04 48.03 64
3/4 x 1/2 21.03 26.07 38
4 x 1 1/2 48.03 114.03 102
5 x 4 114.03 141.03 127
5 x 3 1/2 101.06 141.03 127
Most Common Types of Hastelloy C276 Pipe Fittings

Trusted Hastelloy C276 Pipe Fittings Supplier in India in Custom Shapes and Types

Nickel Alloy C276 Elbow

Nickel Alloy C276 Elbow

C276 Hastelloy Tee

C276 Hastelloy Tee

ASTM B366 N10276 Reducer

ASTM B366 N10276 Reducer

C276 Nickel Alloy Cap

C276 Nickel Alloy Cap

ASTM B366 UNS N10276 Stub End

ASTM B366 UNS N10276 Stub End

Hastelloy C276 WPHC276 Pipe Bend

Hastelloy C276 WPHC276 Pipe Bend

Nickel C276 Cross

Nickel C276 Cross

Hastelloy C276 Nickel Alloy Elbow LR 90degree BW

Hastelloy C276 Nickel Alloy Elbow LR 90degree BW

B366 Gr.WPHC276 Long Radius Reducing Elbow

B366 Gr.WPHC276 Long Radius Reducing Elbow

B366 UNS N10276 SCH.80 BW Elbow

B366 UNS N10276 SCH.80 BW Elbow

Grade WPHC276 Seamless Equal Tee

Grade WPHC276 Seamless Equal Tee

DIN 2.4819 Tee Reducing BW

DIN 2.4819 Tee Reducing BW

Stock and Supply WNR 2.4819 Stub End and Cross in Sch 10 to Sch 160 With Best Corrosion Resistance Properties

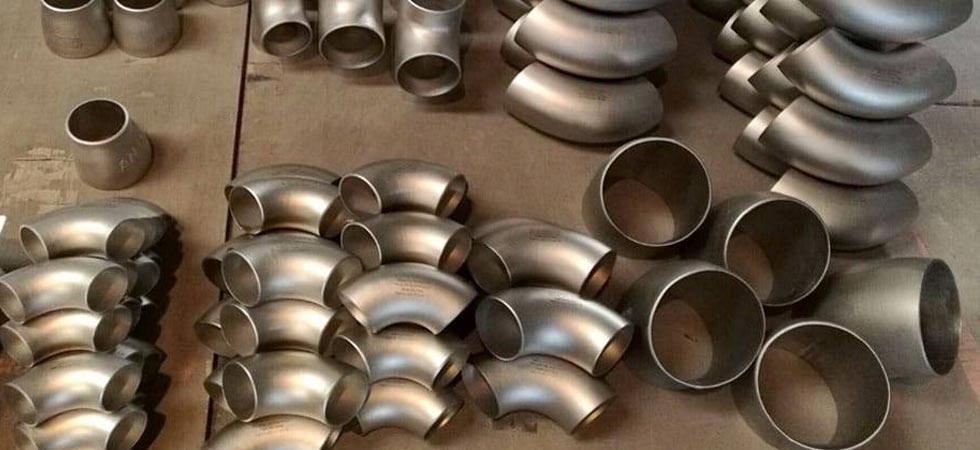

WNR 2.4819 Stub End Corrosion Resistance Properties
WNR 2.4819 Stub End Corrosion Resistance Properties
  • Resistance to Pitting and Crevice Corrosion
  • Resistance to Stress Corrosion Cracking
  • Excellent Resistance to Strong Acids
  • Resistance to High-Temperature Corrosion
  • Resistance to Organic Acids and Chlorides
DIN 2.4819 Buttweld Pipe Fittings Size Chart
O.D. and I.D. Diameter of Nominal Pipe Threads Size in Inches Equivalent List
5/16 1/16 27 0.313
1-5/16 1 11-1/2 1.315
3-1/2 3 8 3.500
4 3-1/2 8 4.000
4-1/2 4 8 4.500

1-21/32

 1-1/4 11-1/2 1.660
1-29/32 1-1/2 11-1/2 1.900
2-3/8 2 11-1/2 2.375
2-7/8 2-1/2 8 2.875
13/32 1/8 27 0.405
35/64 1/4 18

0.540
43/64 3/8 18 0.675
27/32 1/2 14 0.840
1-3/64 3/4 14 1.050

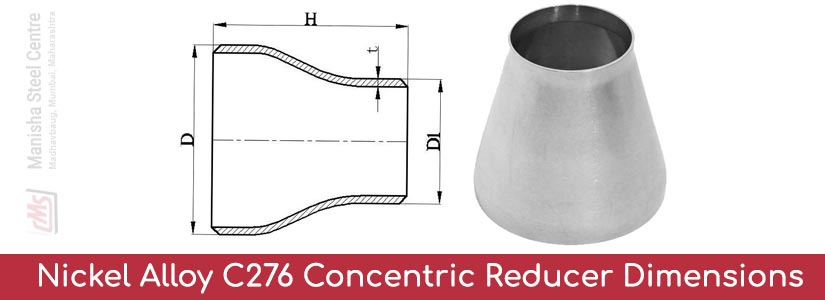

Nickel Alloy C276 Concentric Reducer Dimensions
Nickel Alloy C276 Concentric Reducer Dimensions



RCD Reiso Code SMALL Ø BIG Ø Theoretical Weight In KG (kg) Hight (H) MM
(DN) (D) mm Thickness of (S) mm (DN) (D) mm Thickness of (S) In mm
27 21 1/2 21.3 2.0 3/4 26.9 2.3 0.08 38
33 21 1/2 21.3 2.0 1 33.7 2.6 0.09 50
33 27 3/4 26.9 2.3 0.09
*48 21 1/2 21.3 2.0 1"1/2 48.3 2.6 0.18 64
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1"1/4 42.4 2.6 0.20
42 21 1/2 21.3 2.0 1"1/4 42.4 2.6 0.12 50
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
60 27 3/4 26.9 2.3 2 60.3 2.9 0.30 76
60 33 1 33.7 2.6 0.31
60 42 1"1/4 42.4 2.6 0.32
60 48 1"1/2 48.3 2.6 0.33
76 33 1 33.7 2.6 2"1/2 76.1 2.9 0.40 90
76 42 1"1/4 42.4 2.6 0.47
76 48 1"1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 1"1/4 42.4 2.6 3 88.9 3.2 0.55 90
89 48 1"1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2"1/2 76.1 2.9 0.63
114 48 1"1/2 48.3 2.6 4 114.3 3.6 0.85 100
114 60 2 60.3 2.9 0.98
114 76 2"1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 2 60.3 2.9 5 139.7 4.0 1.60 127
139 76 2"1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 2"1/2 76.1 2.9 6 168.3 4.5 2.60 140
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 4 114.3 3.6 8 219.1 6.3 5.03 152
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 4 114.3 3.6 10 273.0 6.3 7.00 178
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 6 168.3 4.5 12 323.9 7.1 11.00 203
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20
Offer 100% Radiography Tested Hastelloy Alloy C276 Seamless and Welded Fittings Online For Sale
Hastelloy Alloy C276 Seamless Fittings Testings
  • Chemical Composition Analysis
  • Mechanical Property Testing
  • Mechanical Property Testing
  • Dimensional and Visual Inspection
  • Pressure Testing
  • Weldability and Fabrication Testing
  • Non-Destructive Testing
Hastelloy C276 Pipe Fittings Equivalent Standards
STANDARD UNS WERKSTOFF NR. EN GOST JIS
Hastelloy C276 N10276 2.4819 NiMo16Cr15W ХН65МВУ NW 0276
Nickel C276 Fittings Chemical Composition
Grade Mo P Mn Fe Ni Co Cr Si S C
Hastelloy C276 15.000 – 17.000 0.004 Max 1.000 Max 4.000 – 7.000 Balance 2.05 Max 14.050 – 16.050 0.008 Max 0.003 Max 0.0010 Max
Mechanical Properties of Hastelloy C276 Stub End
Properties Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 Pipe Fittings Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %
Nickel C276 Fittings Physical Properties
Properties Density Melting Range Specific Heat Magnetic Permeability
Values lb/in3 g/cm3 °F °C Btu/lb.°F J/kg*°C 200 oersted 15.9 kA/m
0.321 8.89 2415-2500 1323-1371 0.102 427 1.0002 1.0002
Hastelloy C276 Pipe Fittings Delivery Time As Per Location
Variations in Price 5 % extra
Export to Delivery Time in Days
France 30
South Africa 25-30
Philippines 14
Oman 5
Saudi Arabia 7
Singapore 8
Italy 30
USA 40-60
Belgium 6-9
Netherlands 19-20
Germany 15-50
Indonesia 9
Bahrain 9
Uk 30
Malaysia 10
Qatar 7
UAE 5 days
Kuwait 10
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
