| Consideration | Explanation |
|---|---|
| Customs & Import | Regulations |
| Quality Assurance | Certification |
| Supplier Reputation | Reviews, Trust |
| Pricing | Competitive Rates |
| Lead Time | Delivery Time |
| Material Grade | Composition |
Table of Content
400 Alloy Fittings Sizes
400 Nickel Alloy BW Fittings Manufacturing Standards
Monel 400 Welded Fittings Physical Properties
Alloy 400 Welded Pipe Fittings Process
Monel 400 Pipe Fittings Types
400 Alloy End Cap International Standards
DIN 2.4360 Elbow Bending Radius
ASTM B366 WPNC-S Equal Tee Origin
ASME SB366 N04400 Cross Services
WPNC-S Eccentric Reducer Packaging
Alloy 400 Welded Pipe Fittings Surface Finish
NCF 400 Stub Snd Testing
Are You Looking for Monel 400 Pipe Fittings at the Best Price? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.
| Equivalent List | O.D. And I.D. | Diameter of Nominal Pipe | Threads Size In Inches |
|---|---|---|---|
| 0.540 | 35/64 | 1/4 | 18 |
| 2.875 | 2-7/8 | 2-1/2 | 8 |
| 3.500 | 3-1/2 | 3 | 8 |
| 4.000 | 4 | 3-1/2 | 8 |
| 0.675 | 43/64 | 3/8 | 18 |
| 0.840 | 27/32 | 1/2 | 14 |
| 1.050 | 1-3/64 | 3/4 | 14 |
| 1.315 | 1-5/16 | 1 | 11-1/2 |
| 0.313 | 5/16 | 1/16 | 27 |
| 0.405 | 13/32 | 1/8 | 27 |
| 1.660 | 1-21/32 | 1-1/4 | 11-1/2 |
| 1.900 | 1-29/32 | 1-1/2 | 11-1/2 |
| 2.375 | 2-3/8 | 2 | 11-1/2 |
| 4.500 | 4-1/2 | 4 | 8 |
| NPS | Weight (KG) |
|---|---|
| 1/2 | 0.04 |
| 3.1/2 | 1.59 |
| 4 | 2.04 |
| 2.1/2 | 0.79 |
| 3 | 1.19 |
| 3/4 | 0.04 |
| 1 | 0.11 |
| 10 | 19.5 |
| 5 | 3.4 |
| 6 | 5.44 |
| 8 | 10.43 |
| 1.1/4 | 0.17 |
| 1.1/2 | 0.18 |
| 2 | 0.37 |
| 12 | 28.12 |
Genuine Monel 400 Pipe Fittings Manufacturer in India As Per Specification
| Type of Fitting | Size | SCH | Material | Price in USD Per Piece |
|---|---|---|---|---|
| Monel 400 Elbow | 3/4" | SCH 40 | Monel 400 | US $4.98 |
| 90 Deg Elbow | 1" | - | US $6.91 | |
| 2" | - | US $9.19 | ||
| 3" | - | US $11.50 | ||
| 4" | - | US $11.88 | ||
| 5" | - | US $13.81 | ||
| 6" | - | US $15.54 | ||
| Monel 400 Tee | 1/2" | Monel 400 | US $6.91 | |
| 3/4" | - | US $8.20 | ||
| 3/1" | - | US $10.63 | ||
| 2" | - | US $12.66 | ||
| 3" | - | US $15.48 | ||
| Equal Tee | 4" | - | US $16.12 | |
| Monel 400 Cap | 1/2" | - | US $7.48 | |
| End Cap | 3/4" | - | US $8.68 | |
| 1" | - | US $9.21 | ||
| 1 1/4" | - | US $10.79 | ||
| 2" | - | US $14.55 | ||
| Monel 400 Reducer | 3/4 X 1/2 | SCH 160 | Monel 400 | US $7.30 |
| Concentric Reducer | 1 X 1/2" | SCH 160 | - | US $10.36 |
| 4 X 2" | SCH 160 | - | US $13.61 | |
| 5 X 4" | SCH 40 | - | US $14.82 | |
| 6 X 4" | SCH 80 | Monel 400 | US $15.86 |

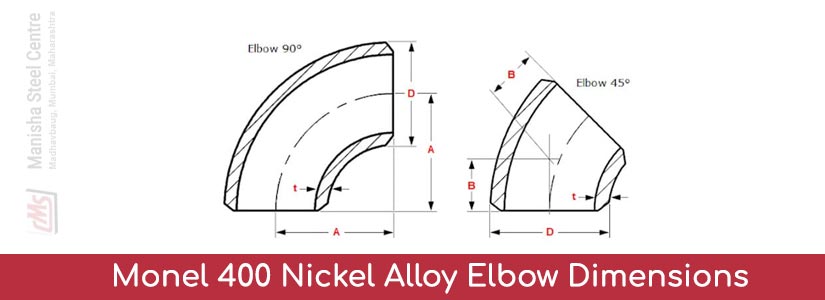

| NPS | OD (D) | 45 degree (Long Radius) Center-to-End (B) | 45 degree (3D) Center-to-End (B) | 90 degree (Long Radius) Center-to-End (A) | 90 degree (3D) Center-to-End (A) |
|---|---|---|---|---|---|
| 1/2 | 21.3 | 16 | – | 38 | – |
| 1 | 33.4 | 22 | 31 | 38 | 76 |
| 2 | 60.3 | 35 | 63 | 76 | 152 |
| 2½ | 73 | 44 | 79 | 95 | 190 |
| 3 | 88.9 | 51 | 95 | 114 | 229 |
| 3½ | 101.6 | 57 | 111 | 133 | 267 |
| 1¼ | 42.2 | 25 | 39 | 48 | 95 |
| 1½ | 48.3 | 29 | 47 | 57 | 114 |
| 3/4 | 26.7 | 19 | 24 | 38 | 57 |
| 4 | 114.3 | 64 | 127 | 152 | 305 |
| 5 | 141.3 | 79 | 157 | 190 | 381 |
| 6 | 168.3 | 95 | 189 | 229 | 457 |
| 8 | 219.1 | 127 | 252 | 305 | 610 |
| 10 | 273 | 159 | 316 | 381 | 762 |
| 12 | 323.8 | 190 | 378 | 457 | 914 |
| 14 | 355.6 | 222 | 441 | 533 | 1067 |
| 16 | 406.4 | 254 | 505 | 610 | 1219 |
| 18 | 457 | 286 | 568 | 686 | 1372 |
| 20 | 508 | 318 | 632 | 762 | 1524 |
| 22 | 559 | 343 | 694 | 838 | 1676 |
| 24 | 610 | 381 | 757 | 914 | 1829 |
| 26 | 660 | 406 | 821 | 991 | 1981 |
| 28 | 711 | 438 | 883 | 1067 | 2134 |
| 30 | 762 | 470 | 964 | 1143 | 2286 |
Trusted Monel 400 Pipe Fittings Supplier in India in Custom Shapes and Types
Nickel Alloy 400 Welded Pipe Fittings
Monel 400 Seamless Pipe Fittings
ASME SB 366 UNS N04400 Elbow
ASTM B366 WPNC Tee
400 Nickel Alloy Reducer
Nickel 400 Cap
B366 UNS N04400 Stub End
Monel 400 WPNC Pipe Bend
Monel 400 Nickel Alloy Cross

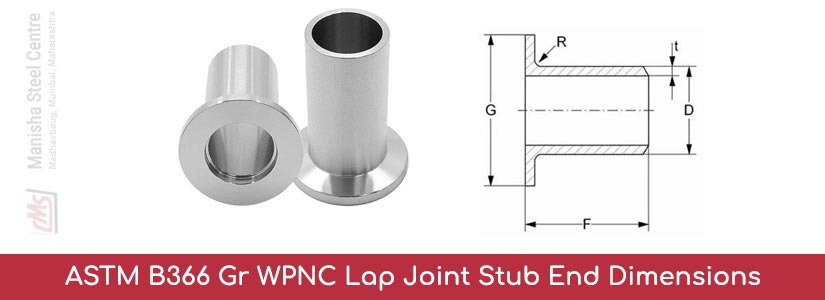

| NPS | Outside Diameter of barrel | Radius of(R) | Diameter of (G) | Length of (F) | ||
|---|---|---|---|---|---|---|
| (Min.) | (Max.) | Long Pattern | Short Pattern | |||
| 1 1/4″ | 41.4 | 43.6 | 5 | 64 | 102 | 51 |
| 1 1/2″ | 47.5 | 49.9 | 6 | 74 | 102 | 51 |
| 2″ | 59.5 | 62.4 | 8 | 92 | 152 | 64 |
| 2 1/2″ | 72.2 | 75.3 | 8 | 105 | 152 | 64 |
| 3″ | 88.1 | 91.3 | 10 | 127 | 152 | 64 |
| 3 1/2″ | 100.8 | 104.0 | 10 | 140 | 152 | 76 |
| 1/2″ | 20.5 | 22.8 | 3 | 35 | 76 | 51 |
| 6″ | 167.5 | 171.3 | 13 | 216 | 203 | 89 |
| 8″ | 218.3 | 222.1 | 13 | 270 | 203 | 102 |
| 10″ | 272.3 | 277.2 | 13 | 324 | 254 | 127 |
| 4″ | 113.5 | 116.7 | 11 | 157 | 152 | 76 |
| 5″ | 140.5 | 144.3 | 11 | 186 | 203 | 76 |
| 20″ | 507.0 | 514.0 | 13 | 584 | 305 | 152 |
| 22″ | 558.0 | 565.0 | 13 | 641 | 305 | 152 |
| 12″ | 323.1 | 328.0 | 13 | 381 | 254 | 152 |
| 14″ | 354.8 | 359.9 | 13 | 413 | 305 | 152 |
| 16″ | 405.6 | 411.0 | 13 | 470 | 305 | 152 |
| 18″ | 456.0 | 462.0 | 13 | 533 | 305 | 152 |
| 3/4″ | 25.9 | 28.1 | 3 | 43 | 76 | 51 |
| 1″ | 32.6 | 35.0 | 3 | 51 | 102 | 51 |
| 24″ | 609.0 | 616.0 | 13 | 692 | 305 | 152 |
| Properties | Hot Forming | Mandrel Forming |
|---|---|---|
| Temperature | 900°C - 1,100°C | Low temperature |
| Process | Heated & shaped | Formed around mandrel |
| Finish | Rough finish | Smooth finish |
| Cost | Higher | Lower |
| Use | Large fittings | Small to medium fittings |
| Temperature In °F | Maximum Allowable Stress In KSI |
|---|---|
| 300 | 13.6 |
| 200 | 14.6 |
| -20~100 | 16.7 |
| 600 | 13.1 |
| 500 | 13.1 |
| 400 | 13.2 |
| 900 | 8.0 |
| 800 | 12.7 |
| 700 | 13.0 |
| STANDARD | UNS | WERKSTOFF NR. | GOST | JIS | EN | BS | AFNOR |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | МНЖМц 28-2,5-1,5 | NW 4400 | NiCu30Fe | NA 13 | NU-30M |
| Grade | Ni | Al | Fe | Cu | S | Ti | C | Mn | Si |
|---|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 0.50 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max | - | 0.3 max | 2.0 max | 0.5 max |
| Element | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|
| Monel 400 | Psi – 35000 , MPa – 240 | Psi – 80000 , MPa – 550 | 40 % |
| Element | Density | Melting Point |
|---|---|---|
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) |
| Changes in Price Extra 5 % |
|
|---|---|
| Export to | Shipping Time in Days |
| Chile | 45 |
| Venezuela | 45 |
| Mayanmar | 25 |
| Ecuador | 60 |
| Sri Lanka | 5 |
| Bolivia | 45 |
| Brazil | 45-60 |
| South Korea | 7 |
| Taiwan | 15 |
| Cambodia | 9 |
| Argentina | 45 |
| Maldives | 7 |
| Colombia | 45 |
| Bangladesh | 14 |
| Japan | 7 |
