Stainless Steel Reducer Manufacturer in India

SS 304 Concentric and Eccentric Reducer Supplier in Mumbai As Per ASME B16.9

6 Things to Remember Before buying Stainless Steel Reducer from India?

Material Grade and Quality
Supplier Reputation and Certification
Dimensions and Specifications
Customizations and Variations
Price and Payment Terms
Lead Time and Shipping

Table of Content

Stainless Steel Reducer Specification
SS Sch40 Concentric Reducers Price
Stainless Pipe Reducer Size Chart
Stainless Reducer Weight Chart
SS Eccentric Reducer Dimension
ASTM A403 SS Eccentric Reducer Weight Chart
Thickness Chart of SS ASME B16.9 Reducer
Dimension Chart of Stainless Concentric Reducer
Stainless Reducer Manufacturing Process
SS Tri Clamp Concentric Reducer Size Chart
Most Common Types Of Stainless Steel Reducers
Stainless Steel Threaded Reducer Price
Drawing for SS Butt Weld Reducer
Stainless Reducer Cone HSN Code
316 SS Reducer Fittings Pressure Considerations
What are the benefits of using Stainless Reducers?
SS Eccentric Reducer vs Concentric Reducer
What is the pressure rating of a SS Reducer?
Stainless Steel Reducer Equivalent Standards

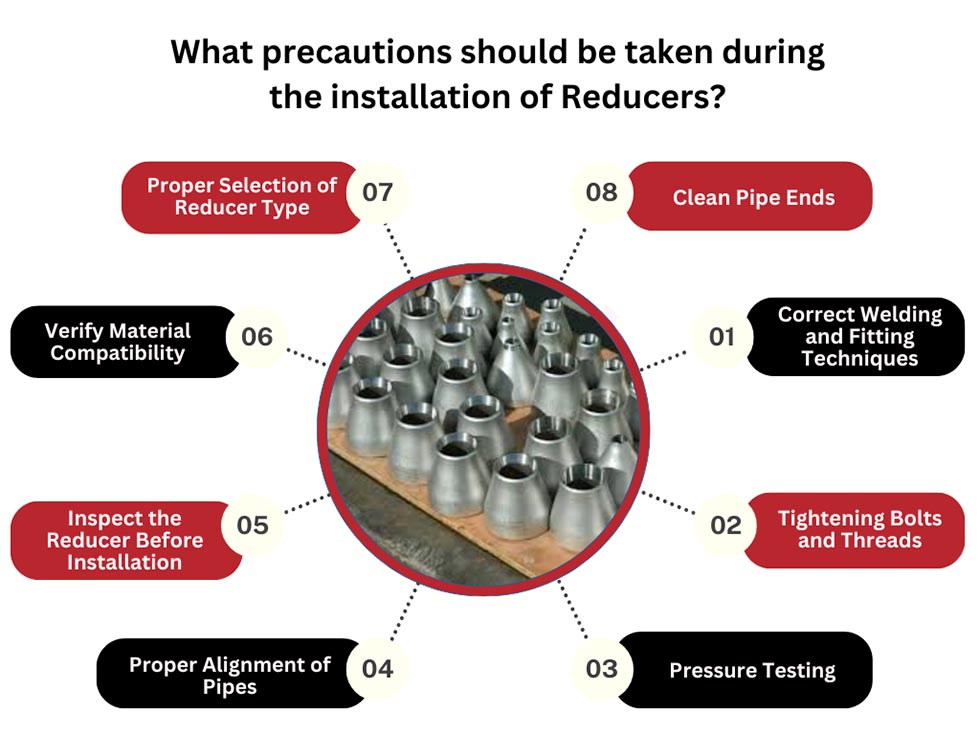

What precautions should be taken during the installation of Reducers?
SS Tube Reducer Chemical Composition
Mechanical Properties of Stainless Cone Reducer
SS Sanitary Concentric Reducer Physical Properties

Stainless Steel Reducer Specification

Stainless Steel Reducer Sizes

Welded Fittings: 1/2 to 48"
Seamless Fittings: 1/2 to 10″
Schedule : SCH 10 - SCH 160
End : Plain Bevel, Compound Bevel, Buttweld, Bevelled

Stainless Steel Pipe Reducer Manufacturing Standards

ANSI B16.9, MSS-SP-43
ASME B16.28
100% Tested With MTC EN 10204/3.1

Reducer SS 304 Physical Properties

Melting Point:1400–1450°C
Density:8.00 g/cm³
Heat Treatment: 500 J/kg·K at 20°C

Stainless Steel Bell Reducer Process

Seamless
Fabricated
Welded

Stainless Pipe Reducer Types

Cone Reducer
Concentric Reducer
Eccentric Reducer
Pipe Reducer

316 SS Reducer International Standards

UNS: UNS S31600
ASME SA403 | ASTM A403
WNR:1.4404

Stainless Reducer Cone Bending Radius

3D
1D, 2D
5D

Stainless Steel Tube Reducer Origin

European
Janpanese
Russia
American

SS Reducer Threaded Services

Shearing
Heat Treatment
Cutting

SS Eccentric Reducer Packaging

Bubble Wraps
Bundled
Wooden Box

SS Concentric Reducer Surface Finish

Pickled
Polished

Stainless Steel Reducer Coupling Testing

PMI, Hardness test
Ultrasonic, HIC test

SS Sch40 Concentric Reducers Price

Are You Trying to Find the Best Deal on Stainless Steel Reducer? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

Sizes	Price in USD
25NB x 15NB	US $8.25
25NB x 20NB	US $8.30
32NB x 25NB	US $8.25
40NB x 25NB	US $11.95
50NB x 25NB	US $16.75
50NB x 40NB	US $20.30
65NB x 40NB	US $28.80
65NB x 50NB	US $35.25
80NB x 50NB	US $45.85
80NB x 65NB	US $36.00
100NB x 50NB	US $69.60
100NB x 65NB	US $59.95
100NB x 80NB	US $59.80

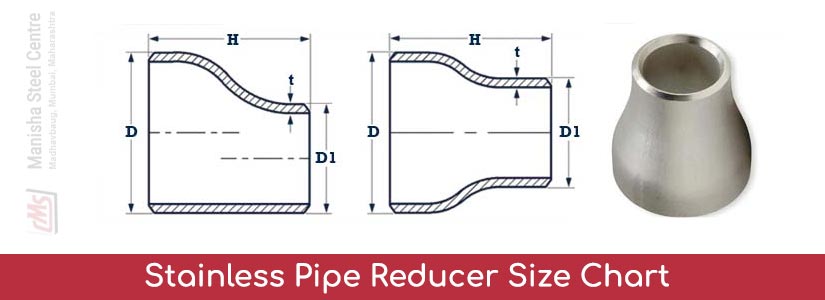

Stainless Pipe Reducer Size Chart

NPS	OD D1	OD D	Lenth H
1-3/4	26.7	33.4	51
1¼-1/2	21.3	42.2	51
1¼-3/4	26.7	42.2	51
1¼-1	33.4	42.2	51
1-1/2	21.3	33.4	51
1½-1	33.4	48.3	64
1½-1¼	42.2	48.3	64
2-3/4	26.7	60.3	76
2-1	33.4	60.3	76
2-1¼	42.2	60.3	76
1½-1/2	21.3	48.3	64
1½-3/4	26.7	48.3	64
3/4-1/2	21.3	26.7	38
2-1½	48.3	60.3	76

Stainless Reducer Weight Chart

NPS	Kg	Lbs
1-1/2	0.34	0.75
1 1/4-3/4	0.45	1
1 1/2 -1 1/4	0.68	1.5
1 1/2 -3/4	0.63	1.38
1 1/2 -1/2	0.57	1.25
3-2	2.27	5
3-1 1/4	2.15	4.75
1-3/4	0.36	0.8
1 1/4-1	0.45	1
1 1/4-1/2	0.45	1
6-5	10.43	23
6-4	9.98	22
6-3 1/2	9.53	21
6-3	9.07	20
6-2 1/2	8.62	19
8-6	16.33	36
8-5	15.88	35
3 1/2 -3	3.63	8
5-3 1/2	6.8	15
1 1/2 -1	0.68	1.5
2-1 1/4	1.02	2.25
2-1	0.98	2.15
2-1 1/2	1.08	2.38
2-3/4	0.91	2
2 1/2 -2	1.81	4
2 1/2 -1 1/2	1.77	3.9
2 1/2 -1 1/4	1.63	3.6
3-1 1/2	2.22	4.9
3 1/2 -2 1/2	3.63	8
3 1/2 -1 1/2	3.18	7
3 1/2 -2	3.18	7
3 1/2 -1 1/4	3.18	7
4-3	4.08	9
4-2 1/2	3.86	8.5
4-2	3.74	8.25
4-1 1/2	3.63	8
5-4	7.26	16
2 1/2 -1	1.59	3.5
3-2 1/2	2.72	6
5-3	6.58	14.5
5-2 1/2	6.24	13.75
5-2	6.35	14
4-3 1/2	4.08	9
8-4	14.97	33
8-3 1/2	14.51	32

Buy 316 Stainless Steel Reducer Fittings in Popular Sizes like 4 to 3 Or 3 to 2.5 Or As Per Specification

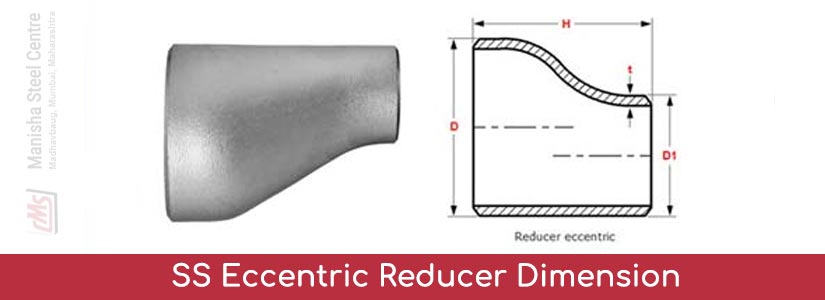

SS Eccentric Reducer Dimension

Genuine Stainless Steel Reducer Manufacturer in India As Per Specification

Size in Inch	A	B	C
1 * 3/4	25.40	19.05	25
1.1/2 * 1	38.10	25.40	36
1 * 1/2	25.40	12.70	39
3 * 2.1/2	76.20	63.50	44
4 * 2	101.60	50.80	100
4 * 2.1/2	101.60	63.50	70
2 * 1	50.80	25.40	67
2 * 1.1/2	50.80	38.10	34
2.1/2 * 1.1/2	63.50	38.10	68
2.1/2 * 2	63.50	50.80	40
3/4 * 1/2	19.05	12.70	26
3 * 2	76.20	50.80	48
4 * 3	101.60	76.20	78

ASTM A403 SS Eccentric Reducer Weight Chart

NPS	Kgs	Lbs
1-3/4	0.18	0.4
1 1/4 -1	0.23	0.5
3/4-1/2	0.08	0.17
1 1/4 -3/4	0.18	0.4
1 1/2 -1 1/4	0.32	0.7
1 1/4 -1/2	0.18	0.4
1 1/2 -1	0.28	0.62
1 1/2 -1/2	0.23	0.5
1 1/2 -3/4	0.24	0.54
3 1/2 -2 1/2	1.31	2.88
2-1 1/2	0.41	0.9
2-1	0.34	0.76
2-1 1/4	0.38	0.84
2-3/4	0.32	0.7
3 1/2 -2	1.25	2.75
3 1/2 -1 1/2	1.13	2.5
3 1/2 -1 1/4	1.09	2.4
2 1/2 -2	0.68	1.5
2 1/2 -1	0.57	1.25
3-2 1/2	0.91	2
3-2	0.82	1.8
3-1 1/2	0.77	1.7
3-1 1/4	0.73	1.6
3 1/2 -3	1.43	3.15
4-1 1/2	1.31	2.88
5-4	2.72	6
5-3 1/2	2.61	5.75
5-3	2.49	5.5
5-2 1/2	2.38	5.25
4-3 1/2	1.59	3.5
4-3	1.53	3.38
4-2 1/2	1.47	3.25
5-2	2.27	5
6-5	3.86	8.5
6-4	3.74	8.25
6-3 1/2	3.74	8.25
6-3	3.63	8
6-2 1/2	3.29	7.25
8-6	5.99	13.2
8-5	5.44	12
8-4	4.99	11
8-3 1/2	4.99	11
10-8	9.98	22
10-6	9.75	21.5
4-2	1.36	3
3/4-3/8	0.07	0.15
3/4-1/2	0.08	0.17
2 1/2 -1 1/2	0.63	1.38
2 1/2 -1 1/4	0.57	1.25
10-5	9.53	21
10-4	9.07	20
12-10	15.42	34
12-8	14.51	32
12-6	14.06	31
18-12	37.65	83
18-10	37.19	82
18-8	-	-
20-18	56.7	125
20-16	56.25	124
16-8	31.07	68.5
16-6	-	-
18-16	38.56	85
18-14	38.1	84
24-20	68.04	150
24-18	67.13	148
24-16	65.77	145
24-14	-	-
24-12	-	-
20-10	-	-
20-8	-	-
26-22	90.72	200
26-20	86.18	190
20-14	55.34	122
20-12	54.43	120
14-8	26.54	58.5
22-20	64.41	142
22-18	62.6	138
22-16	59.42	131
22-14	55.79	123
22-12	-	-
22-10	-	-
24-22	-	-
12-5	13.61	30
14-12	27.22	60
14-10	26.85	59.2
24-10	-	-
26-24	93.89	207
14-6	26.31	58
16-14	32.21	71
16-12	31.75	70
16-10	31.52	69.5
26-18	82.55	182

Thickness Chart of SS ASME B16.9 Reducer

DN	NPS	SCH20	SCH40S	SCH80S	SCH120	SCH160	STD
15	1/2	-	0.08	0.1	-	-	0.08
20	3/4	-	0.17	0.2	-	-	0.17
25	1	-	0.21	0.25	-	0.22	0.21
32	1 1/4	-	0.29	0.35	-	-	0.29
40	1 1/2	-	0.42	0.58	-	0.6	0.42
50	2	-	0.8	1.03	-	1.04	0.8
65	2 1/2	-	1.05	1.42	-	1.65	1.05
80	3	-	1.36	1.9	-	-	1.36
90	3 1/2	-	1.63	2.27	-	2.4	1.63
100	4	-	2.77	3.93	-	4.4	2.77
125	5	-	3.96	6	-	7.14	3.96
150	6	-	6.31	9.26	-	10.8	6.31
200	8	7.85	10.7	17.5	15	18.4	10.7
250	10	11.2	16.3	25.1	25.1	32.5	15.8
300	12	25.6	32.1	56.5	41.7	53.3	28.8
350	14	30.5	48.8	79	84.5	106	38.5
400	16	35.2	64.3	102	112	143	44.5
450	18	62.7	98.5	165	-	-	62.7
500	20	72.6	-	181	-	-	72.6
550	22	97	142	226	-	-	79.1
600	24	130	-	-	-	-	100

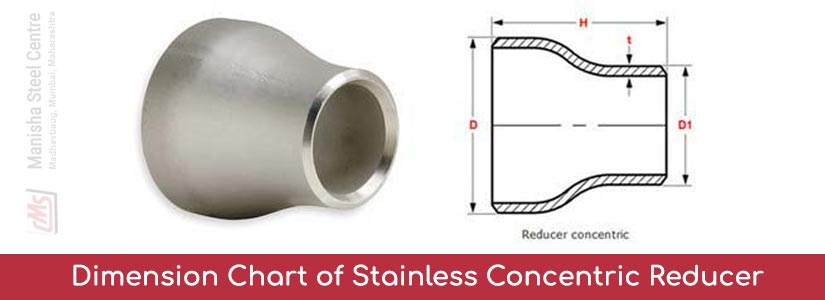

Dimension Chart of Stainless Concentric Reducer

Size in Inch	A	B	C
1 * 3/4	25.40	19.05	30
1.1/2 * 1	38.10	25.40	32
2.1/2 * 1.1/2	63.50	38.10	45
2.1/2 * 2	63.50	50.80	66
3 * 1.1/2	76.20	38.10	76
4 * 3	101.60	76.20	51
2 * 1	50.80	25.40	51
3 * 2	76.20	50.80	71
3/4 * 1/2	19.05	12.70	25.5
1 * 1/2	25.40	12.70	43
3 * 2.1/2	76.20	63.50	73
4 * 2	101.60	50.80	102
4 * 2.1/2	101.60	63.50	77
2 * 1.1/2	50.80	38.10	67

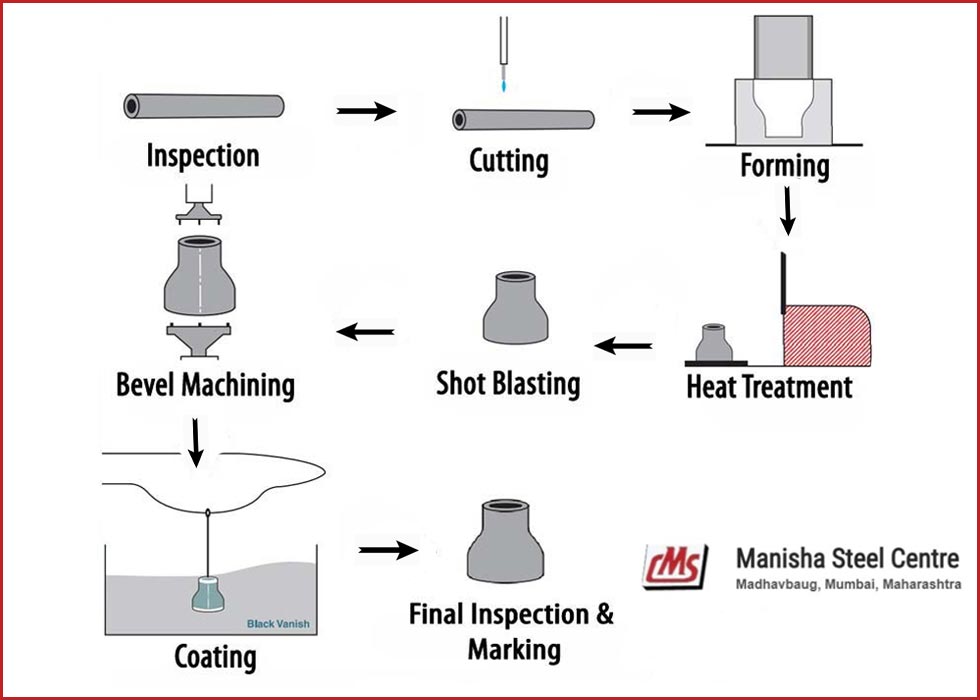

Stainless Reducer Manufacturing Process

Stockist Of SS Bell Reducer and Tri Clamp Concentric Reducer in Seamless and Welded Form in Mumbai

SS Tri Clamp Concentric Reducer Size Chart

Size (Inches)	OD (Outer Diameter) - Clamp End	ID (Inner Diameter) - Pipe End	Length
1" x 1/2"	1.66" (42.2mm)	0.84" (21.3mm)	2.5" (63.5mm)
1-1/2" x 1"	2.03" (51.6mm)	1.31" (33.4mm)	2.5" (63.5mm)
2" x 1-1/2"	2.47" (62.7mm)	1.66" (42.2mm)	3" (76.2mm)
2-1/2" x 2"	3.06" (77.7mm)	2.38" (60.4mm)	3" (76.2mm)
3" x 2-1/2"	3.56" (90.4mm)	2.88" (73.1mm)	3" (76.2mm)
4" x 3"	4.56" (116.8mm)	3.50" (88.9mm)	3.5" (88.9mm)
6" x 4"	6.63" (168.4mm)	4.50" (114.3mm)	4" (101.6mm)
8" x 6"	8.63" (219.1mm)	6.63" (168.4mm)	4.5" (114.3mm)

Most Common Types Of Stainless Steel Reducers

Trusted Stainless Steel Reducer Supplier in India in Custom Shapes and Types

Stainless Steel Pipe Reducer

Stainless Steel Concentric Reducer

Stainless Steel Bell Reducer

Tri Clamp Concentric Reducer

Sanitary Concentric Reducer

Stainless Steel Eccentric Reducer

Stainless Reducer Cone

Stainless Steel Flanged Reducer

Stainless Steel Threaded Reducer

Get Stainless Steel Threaded Reducer Online Used to Join Pipe Sections On the Same Axis At Lowest Price

Stainless Steel Threaded Reducer Price

Size (Inches)	Material Grade	Type	Price (USD/Unit)
1/4 x 1/8	SS 304	Concentric	US $1.50
3/4 x 1/2			US $3.00
1-1/4 x 1			US $4.50
2 x 1-1/2			US $8.00
3 x 2-1/2			US $12.00
1/2 x 3/8	SS 316	Eccentric	US $2.50
1 x 3/4			US $3.80
1-1/2 x 1			US $5.50
2-1/2 x 2			US $10.00
4 x 3			US $15.00

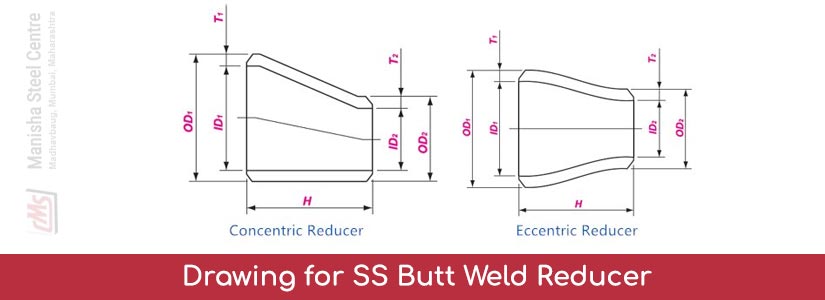

Drawing for SS Butt Weld Reducer

Nominal Size		OD at Bevel	End to End
DN	NPS	OD×OD	H
20×15	3/4×1/2	26.7×21.3	38
50×40	2×1 1/2	60.3×48.3	76
65×50	2 1/2×2	73.0×60.3	89
80×65	3×2 1/2	88.9×73.0	89
300×250	12×10	323.8×273.0	203
1300×1200	52×48	1321.0×1219.0	711
150×125	6×5	168.3×141.3	140
200×150	8×6	219.1×168.3	152
32×25	1 1/4×1	42.2×33.4	51
40×32	1 1/2×1 1/4	48.3×42.2	64
350×300	14×12	355.6×323.8	330
400×350	16×14	406.4×355.6	356
550×500	22×20	559.0×508.0	508
600×550	24×22	610.0×559.0	508
650×600	26×24	660.0×610.0	610
700×650	28×26	711.0×660.0	610
750×700	30×28	762.0×711.0	610
250×200	10×8	273.0×219.1	178
1100×1050	44×42	1118.0×1067.0	610
1150×1100	46×44	1168.0×1118.0	711
1400×1300	56×52	1422.0×1321.0	711
1500×1400	60×56	1524.0×1422.0	711
25×20	1×3/4	33.4×26.7	51
800×750	32×30	813.0×762.0	610
850×800	34×32	864.0×813.0	610
900×850	36×34	914.0×864.0	610
950×900	38×36	965.0×914.0	610
1000×950	40×38	1016.0×965.0	610
1050×1000	42×40	1067.0×1016.0	610
90×80	3 1/2×3	101.6×88.9	102
100×90	4×3 1/2	114.3×101.6	102
125×100	5×4	141.3×114.3	127
1200×1150	48×46	1219.0×1168.0	711
450×400	18×16	457.0×406.4	381
500×450	20×18	508.0×457.0	508

Stainless Reducer Cone HSN Code

Description	HSN Code
Stainless Steel Reducer	73072900

Choose From Our Selection of High-Quality SS Reducer Coupling and Socket, Available for a Quick Shipping

316 SS Reducer Fittings Pressure Considerations

Pressure Ratings
Temperature Dependencies
Material Compatibility
System Design
Welding Procedure
Quality Control and Testing
Code Compliance
Service Conditions
Size and Type of Fitting

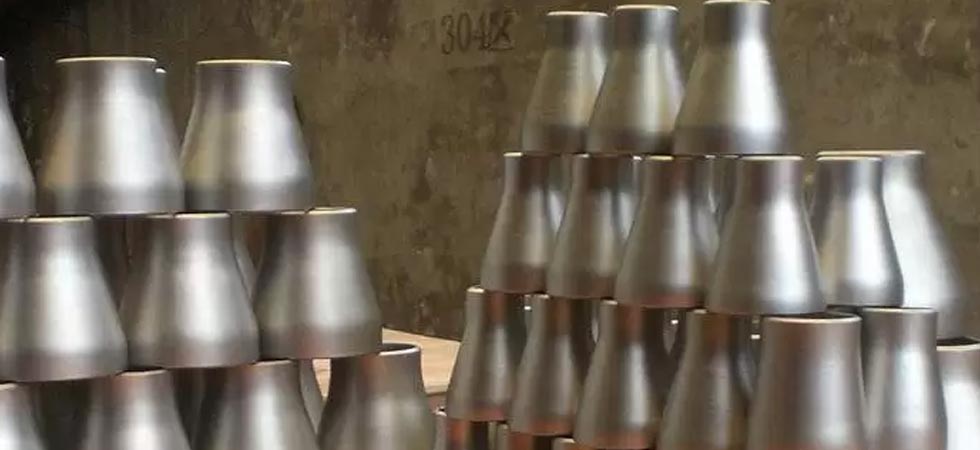

What are the benefits of using Stainless Reducers?

Corrosion Resistance
Durability and Strength
Temperature Resistance
Versatility
Hygienic and Non-Reactive
Low Maintenance
Aesthetic Appeal
High Strength
Resistance to Wear

SS Eccentric Reducer vs Concentric Reducer

Properties	Eccentric Reducer	Concentric Reducer
Shape	Offset centerline	Centerline aligned
Applications	Horizontal pipelines	Vertical pipelines
Drainage	Allows proper drainage	May retain fluid
Design Use	Non-critical alignment	Critical alignment
Common Systems	Gas, slurry, drainage	Liquid, vertical pumps
Flow Characteristics	Prevents pooling	Uniform flow

What is the pressure rating of a SS Reducer?

Pressure Class	Pressure Rating (PSI)	Temperature Range (°F)
Class 150	150 PSI	-20 to 500
Class 300	300 PSI	-20 to 600
Class 150	150 PSI	-20 to 500
Class 300	300 PSI	-20 to 600
Class 600	600 PSI	-20 to 800
Class 900	900 PSI	-20 to 1000
Class 150	150 PSI	-20 to 500
Class 300	300 PSI	-20 to 600
Class 600	600 PSI	-20 to 800
Class 150	150 PSI	-20 to 500

Stainless Steel Reducer Equivalent Standards

Grades	UNS	WERKSTOFF NR.	JIS	BS	EN	AFNOR	GOST
SS 304	S30400	1.4301	SUS 304	304S31	X5CrNi18-10	Z7CN18‐09	08Х18Н10
SS 304H	S30409	1.4301	–	–	–	–	–
SS 304L	S30403	1.4306 / 1.4307	SUS 304L	3304S11	X2CrNi18-9 / X2CrNi19-11	Z3CN18‐10	03Х18Н11
SS 310	S31000	1.4841	SUS 310	310S24	X15CrNi25-20	–	20Ch25N20S2
SS 310S	S31008	1.4845	SUS 310S	310S16	X8CrNi25-21	–	20Ch23N18
SS 310H	S31009	–	–	–	–	–	–
SS 316	S31600	1.4401 / 1.4436	SUS 316	316S31 / 316S33	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	Z7CND17‐11‐02	–
SS 316L	S31603	1.4404 / 1.4435	SUS 316L	316S11 / 316S13	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	Z3CND17‐11‐02 / Z3CND18‐14‐03	03Ch17N14M3 / 03Ch17N14M2
SS 316H	S31609	1.4401	–	–	–	–	–
SS 316Ti	S31635	1.4571	SUS 316Ti	320S31	X6CrNiMoTi17-12-2	Z6CNDT17‐123	08Ch17N13M2T
SS 317	S31700	1.4449	SUS 317	–	–	–	–
SS 317L	S31703	1.4438	SUS 317L	–	X2CrNiMo18-15-4	–	–
SS 321	S32100	1.4541	SUS 321	–	X6CrNiTi18-10	–	–
SS 321H	S32109	1.4878	SUS 321H	–	X12CrNiTi18-9	–	–
SS 347	S34700	1.4550	SUS 347	–	X6CrNiNb18-10	–	08Ch18N12B
SS 347H	S34709	1.4961	SUS 347H	–	X6CrNiNb18-12	–	–
SS 904L	N08904	1.4539	SUS 904L	904S13	X1NiCrMoCu25-20-5	Z2 NCDU 25-20	STS 317J5L

What precautions should be taken during the installation of Reducers?

SS Tube Reducer Chemical Composition

Grades	S (%)	Ni (%)	C (%)	Cr (%)	P (%)	Mn (%)	Si (%)	Mo (%)
SS 304	0.03 max	8.00 – 10.50	0.08 max	18.00 – 20.00	0.045 max	2.00 max	0.75 max	—
SS 304L	0.03 max	8.00 – 12.00	0.03 max	18.00 – 20.00	0.045 max	2.00 max	0.75 max	—
SS 304H	0.03 max	8.00 – 12.00	0.04 – 0.10	18.00 – 20.00	0.045 max	2.00 max	1.00 max	—
SS 310	0.03 max	19.00 – 22.00	0.25 max	24.00 – 26.00	0.045 max	2.00 max	1.50 max	—
SS 310S	0.03 max	19.00 – 22.00	0.08 max	24.00 – 26.00	0.045 max	2.00 max	1.50 max	—
SS 316	0.03 max	10.00 – 14.00	0.08 max	16.00 – 18.00	0.045 max	2.00 max	0.75 max	2.00 – 3.00
SS 316L	0.03 max	10.00 – 14.00	0.03 max	16.00 – 18.00	0.045 max	2.00 max	0.75 max	2.00 – 3.00
SS 316Ti	0.03 max	10.00 – 14.00	0.08 max	16.00 – 18.00	0.045 max	2.00 max	0.75 max	2.00 – 3.00
SS 317	0.03 max	11.00 – 15.00	0.10 max	18.00 – 20.00	0.045 max	2.00 max	1.00 max	3.00 – 4.00
SS 317L	0.03 max	11.00 – 15.00	0.03 max	18.00 – 20.00	0.045 max	2.00 max	1.00 max	3.00 – 4.00
SS 321	0.03 max	9.00 – 12.00	0.08 max	17.00 – 19.00	0.045 max	2.00 max	1.00 max	—
SS 321H	0.03 max	9.00 – 12.00	0.04 – 0.10	17.00 – 19.00	0.045 max	2.00 max	1.00 max	—
SS 347	0.03 max	9.00 – 13.00	0.08 max	17.00 – 19.00	0.045 max	2.00 max	1.00 max	—
SS 410	0.03 max	—	0.15 max	11.50 – 13.50	0.04 max	1.00 max	1.00 max	—
SS 446	0.03 max	—	0.20 max	23.00 – 28.00	0.04 max	1.50 max	1.00 max	—
SS 904L	0.03 max	24.00 – 26.00	0.02 max	19.00 – 23.00	0.045 max	2.00 max	1.00 max	4.00 – 5.00

Mechanical Properties of Stainless Cone Reducer

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Poisson’s Ratio	Modulus of Elasticity (GPa)	Hardness (HRB)	Elongation (%)
SS 304L	520 – 720	205	0.29	193	85 – 95	40 – 50
SS 304H	520 – 720	205	0.29	193	85 – 95	40 – 50
SS 310	515 – 740	205 – 275	0.29	193	90 – 105	40 – 50
SS 310S	515 – 740	205 – 275	0.29	193	90 – 105	40 – 50
SS 316	520 – 720	205	0.29	193	85 – 95	40 – 50
SS 316L	520 – 720	205	0.29	193	85 – 95	40 – 50
SS 316Ti	520 – 720	205	0.29	193	85 – 95	40 – 50
SS 317	520 – 730	205	0.29	193	85 – 95	40 – 50
SS 317L	520 – 730	205	0.29	193	85 – 95	40 – 50
SS 321	520 – 720	205	0.29	193	85 – 95	40 – 50
SS 321H	520 – 720	205	0.29	193	85 – 95	40 – 50
SS 347	520 – 720	205	0.29	193	85 – 95	40 – 50
SS 410	520 – 720	205	0.28	190	85 – 95	35 – 45
SS 446	520 – 720	205	0.28	190	85 – 95	40 – 50
SS 904L	520 – 720	205	0.29	193	85 – 95	40 – 50

SS Sanitary Concentric Reducer Physical Properties

Grades	Density (g/cm³)	Electrical Resistivity (µΩ·cm)	Coefficient of Thermal Expansion (μm/m·°C)	Melting Point (°C)	Thermal Conductivity (W/m·K)
SS 304	8.00	0.072	16.0	1,400–1,450	16.2
SS 304L	7.93	72.3	16.0	1400 – 1450	16.2
SS 304H	7.93	72.3	16.0	1400 – 1450	16.2
SS 310	7.90	72.0	17.0	1400 – 1450	14.0
SS 310S	7.90	72.0	17.0	1400 – 1450	14.0
SS 316	7.98	74.0	16.5	1375 – 1400	16.3
SS 316L	7.98	74.0	16.5	1375 – 1400	16.3
SS 316Ti	7.98	74.0	16.5	1375 – 1400	16.3
SS 317	7.95	74.5	16.5	1375 – 1400	16.3
SS 317L	7.95	74.5	16.5	1375 – 1400	16.3
SS 321	7.93	74.0	16.0	1400 – 1450	16.2
SS 321H	7.93	74.0	16.0	1400 – 1450	16.2
SS 347	7.93	74.0	16.0	1400 – 1450	16.2
SS 410	7.75	78.0	11.5	1480 – 1530	30.0
SS 446	7.80	76.0	11.5	1400 – 1450	30.0
SS 904L	8.00	70.0	16.0	1350 – 1400	15.0

Check Available Stock

Manisha Steel Centre is the largest High Quality Stainless Steel Reducers Manufacturers in India for use in piping applications for several industries across India.

DN10-DN150 Stainless Steel Concentric Reducer

304 Stainless Steel Eccentric Reducer

Quality Assurance Seamless Stainless Steel Eccentric Reducer

Sanitary Stainless Steel Concentric Reducer

SS304 Stainless Steel Reducer

316L Sanitary Polished Stainless Steel 3A Concentric Triclamp Reducer

Stainless Steel Reducer Delivery Time As Per Location

Variations in Price 5 % extra
Export to	Delivery Time in Days
Italy	30
USA	40-60
Belgium	6-9
Netherlands	19-20
Germany	15-50
France	30
South Africa	25-30
Philippines	14
Indonesia	9
Bahrain	9
Uk	30
Malaysia	10
Qatar	7
UAE	5 days
Oman	5
Saudi Arabia	7
Singapore	8
Kuwait	10

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
