Alloy Steel Socket Weld Fittings Manufacturer in India

Home|Alloy Steel Socket Weld Fittings

Finest Quality Chrome Moly SW Fittings Supplier in Mumbai As Per ASTM A182

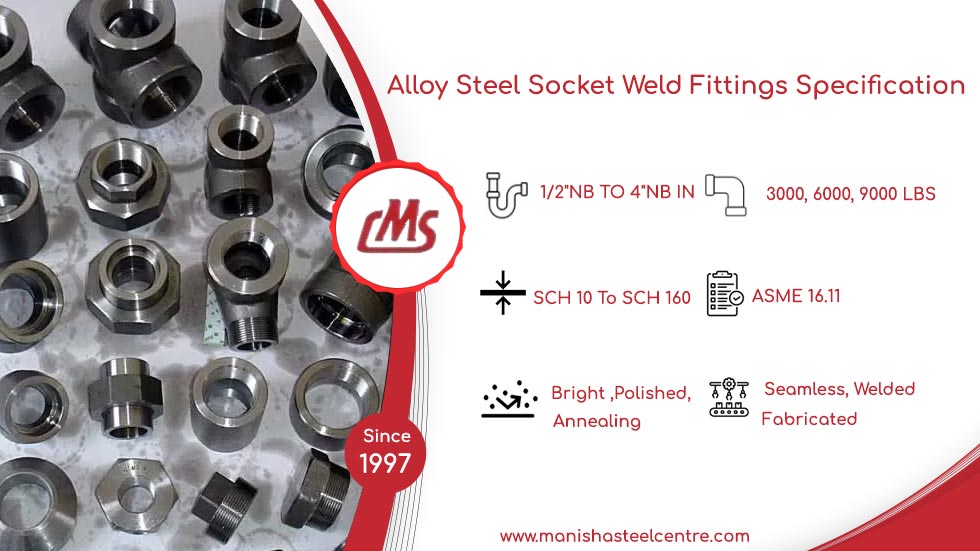

Alloy Steel Socket Weld Fittings Specification



Advantages for Buyers in Saudi Arabia to buy Alloy Steel Socket Weld Fittings from India?
  • Cost-Effectiveness
  • Quality Standards
  • Wide Product Range and Customization
  • Strong Export Infrastructure
  • Reliability and Timely Delivery
  • Diverse Supplier Base
Manisha Steel Centre

Table of Content

Alloy Steel Socket Weld Fittings Specification
Alloy Steel SW Fittings Sizes

Alloy Steel SW Fittings Sizes

  • Welded Fittings: 1/8" to 12"
  • Seamless Fittings: 1/8" to 8"
  • Class: 2000 - 9000 LBS
  • End : Buttweld, Bevelled, Plain Bevel, Compound Bevel

Chrome Moly Forged Socket Weld Fittings Manufacturing Standards

Chrome Moly Forged Socket Weld Fittings Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1

Alloy Steel Socket Weld Elbow Benefits

Alloy Steel Socket Weld Elbow Benefits

  • Excellent Strength
  • Corrosion Resistance
  • High-Temperature Performance
Alloy Steel Socket Weld Cap Process

Alloy Steel Socket Weld Cap Process

  • Seamless
  • Fabricated
  • Welded

Alloy Steel Socket Weld Fittings Types

Alloy Steel Socket Weld Fittings Types

  • Cross
  • Union
  • Reducing Insert
  • Equal Cross
Alloy Steel Socket Weld Union International Standards

Alloy Steel Socket Weld Union International Standards

  • ASTM A182
  • ASME 16.11
  • ASME SA182

Alloy Steel Socket Weld Elbow Bending Radius

Alloy Steel Socket Weld Elbow Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
Alloy Steel Socket Weld Tee Origin

Alloy Steel Socket Weld Tee Origin

  • European
  • Janpanese
  • Russia
  • American

Alloy Steel Socket Weld Plug Services

Alloy Steel Socket Weld Plug Services

  • Shearing
  • Heat Treatment
  • Cutting
Alloy Steel SW Fittings Packaging

Alloy Steel SW Fittings Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box

Alloy Steel Socket Weld Union Surface Finish

Alloy Steel Socket Weld Union Surface Finish

  • Pickled
  • Polished
Alloy Steel Socket Weld Fittings Testing

Alloy Steel Socket Weld Fittings Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test
Alloy Steel SW Fittings Size Range

Are You Looking for the Best Price on Socket Weld Fittings Made of Alloy Steel? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Min. Pipe Size AS 45 Degree Elbows AS 90 Degree Elbows AS 180 Deg Return Long Radius
LR 3R LR SR 3R XS STD
XS STD XS STD STD SCH. 160 XS XXS XS STD XS STD
1¼ .50 0.38 * * .60 1.00 .90 1.38 * .4 * * 1.75 1.25
1½ .69 .40 * * .90 1.80 1.15 1.50 .75 .56 * * 2.39 1.88
4 6.10 4.50 13.0 9.00 9.00 18.0 13.5 20.0 8.50 6.25 25.0 18.0 25.0 18.5
½ .19 .09 * * .18 * .25 * * * * * * .35
¾ .19 .09 * * .19 * .25 * * * * * .65 .40
1 .31 0.25 * * .40 .60 .50 .75 * .25 * * 1.00 .75
2 1.19 .81 2.1 1.5 1.60 3.25 2.20 3.50 1.50 1.00 4.00 3.00 4.40 3.23
2½ 2.13 1.75 4.00 3.00 3.25 5.13 4.00 7.00 2.80 2.13 8.00 6.00 8.00 6.50
3 3.50 2.63 7.00 5.00 5.00 8.50 6.50 11.0 4.25 3.00 13.0 10.0 13.00 10.25
3½ 4.50 3.50 9.00 7.00 6.75 * 8.35 16.0 6.00 4.50 18.0 13.0 16.75 13.00
5 10.7 7.50 22.0 15.0 15.0 32.0 22.0 36.0 14.0 9.60 43.0 29.0 44.0 30.0
6 17.5 12.0 35.0 23.0 24.5 57.0 35.0 65.0 23.0 18.0 70.0 45.0 70.0 50.0
8 35.0 23.0 70.0 45.0 50.0 120 71.0 118 47.5 34.0 140 90.0 142 95.0
10 53.0 43.0 109 80.0 88.0 260 107 * 70.0 58.0 218 159 215 117
12 84.0 62.0 155 117 125 450 160 * 104 80.0 310 233 320 230
14 100 80.0 200 149 160 572 205 * 140 105 400 298 400 325
16 135 100 260 195 206 * 276 * 174 132 520 390 550 412
18 167 126 330 248 260 * 340 * 219 167 660 495 690 510
20 206 160 405 305 320 * 420 * 275 210 810 610 830 640
22 260 197 490 368 394 * 520 * * * 980 735 1040 787
24 300 238 585 438 460 * 600 * 392 298 1170 875 1200 890
26 365 275 685 515 550 * 729 – – – 1370 1030 – –
30 488 367 915 685 734 – 975 – – – 1830 1370 – –
36 706 531 1315 985 1062 – 1412 – – – 2630 1970 – –

Offer an Extensive Array Of AS Socket Weld Elbow and Tee With Size From 1/8 to 4" NB

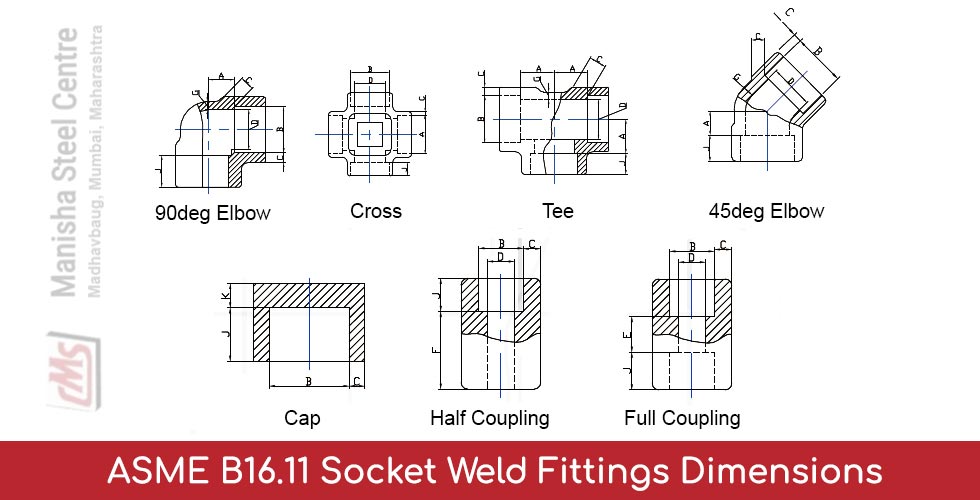

ASME B16.11 Socket Weld Fittings Dimensions

Genuine Alloy Steel Socket Weld Fittings Manufacturer in India As Per Specification

ASME B16.11 Socket Weld Fittings Dimensions



DN NPS Socket Bore Dia.(2) B Socket WT(1) C Bore Diameter of  Fittings(2) D Body WT G Depth of  Socket Min. J
Class Designation Class Designation
3000 6000 Class Designation 3000 6000
Ave. Min. Ave. Min. 3000 6000 Min. Min.
6 1/8 11.2 10.8 3.18 3.18 3.96 3.43 7.6 6.1 7.6 6.1 2.41 3.15 9.5
8 1/4 14.6 14.2 3.78 3.30 4.60 4.01 10.0 8.5 10.0 8.5 3.02 3.68        9.5
10 3/8 18 17.6 4.01 3.50 5.03 4.37 13.3 11.8 13.3 11.8 3.20 4.01        9.5
15 1/2 22.2 21.8 4.67 4.09 5.97 5.18 16.6 15.0 16.6 15.0 3.73 4.78        9.5
20 3/4 27.6 27.2 4.90 4.27 6.96 6.04 21.7 20.2 21.7 20.2 3.91 5.56 12.5
25 1 34.3 33.9 5.69 4.98 7.92 6.93 27.4 25.9 27.4 25.9 4.55 6.35 12.5
32 1-1/4 43.1 42.7 6.07 5.28 7.92 6.93 35.8 34.3 35.8 34.3 4.85 6.35 12.5
40 1-1/2 49.2 48.8 6.35 5.54 8.92 7.80 41.6 40.1 41.6 40.1 5.08 7.14 12.5
50 2 61.7 61.2 6.93 6.04 10.92 9.50 53.3 51.7 53.3 51.7 5.54 8.74 16.0
Chrome Moly SW Fittings Testing
  • Hardness Test
  • Flaring Test
  • Chemical Analysis – Spectro Analysis
  • Flattening Test
  • Mechanical Testing
  • Micro and MacroTest
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test

Buy Custom Made Low Alloy Steel Socket Weld Cross and Coupling with Pressure Class 3000 to 9000 LBS

Alloy Steel Socket Weld Cross Pressure Class
Description Class Designation
3000 6000 9000
Wall Thickness SCH 80 / XS SCH 160 XXS
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings,
Half-Couplings,
End or Pipe Caps		 1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
Most Common Types Of Alloy Steel Socket Weld Fittings

Trusted Alloy Steel Socket Weld Fittings Supplier in India in Custom Shapes and Types

Alloy Steel Socket Weld Elbow

Alloy Steel Socket Weld Elbow

Chrome Moly Socket Weld Tee

Chrome Moly Socket Weld Tee

AS Socket weld Cap

AS Socket weld Cap

Low Alloy Steel Socket weld Coupling

Low Alloy Steel Socket weld Coupling

High Alloy Steel Socket Weld Cross

High Alloy Steel Socket Weld Cross

AS Socket Weld Union

AS Socket Weld Union

Chrome Moly Socket Weld Plug

Chrome Moly Socket Weld Plug

High Alloy Steel Socket Weld Reducing Insert

High Alloy Steel Socket Weld Reducing Insert

Supply High Alloy Steel Union and Reducing Insert in Various Grade As Per ASME 16.11 At Discounted Price
AS Socket Weld Elbow Price
Size (Inches) Price in USD per piece
1/8" to 2" US $15
2" to 4" US $35
1/8" to 2" US $20
2" to 4" US $50
1/8" to 2" US $20
2" to 4" US $40
1/8" to 2" US $30
2" to 4" US $70
What are the challenges in welding Alloy Steel Socket Weld Fittings?
Welding Alloy Steel Socket Weld Fittings
Get Chrome Moly Forged Socket Weld Fittings Online With Proof Machined and Forged Black Finish
Chrome Moly Forged Socket Weld Fittings Surafce Finishes
  • Mill Finish
  • Ground Finish
  • Polished Finish
  • Bead Blast Finish
  • Pickled and Passivated Finish
  • Electro-polished Finish
  • Sandblasted Finish

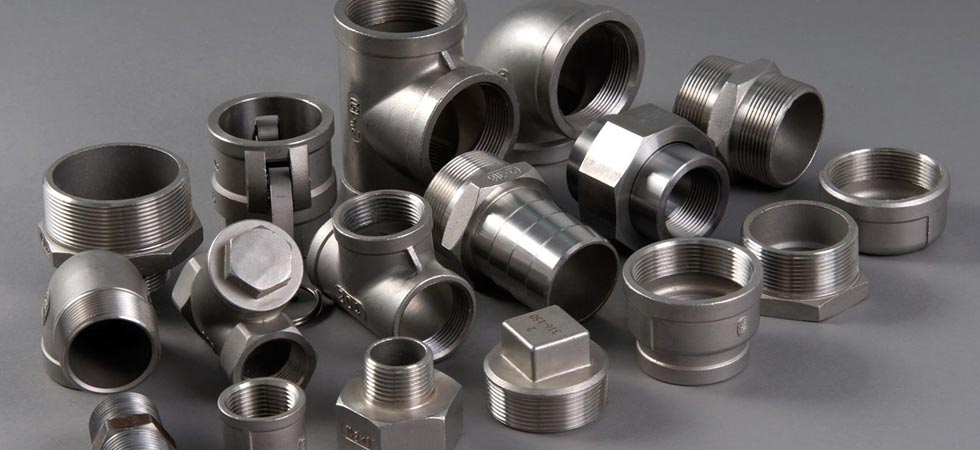

Alloy Steel Socket Weld Cross Applications
Alloy Steel Socket Weld Cross Applications
  • Gas Processing
  • Sea Water Equipment
  • Pharmaceuticals
  • Chemical Equipment
  • Petrochemicals
  • Heat Exchangers
  • Power Generation
  • Condensers
  • Pulp and Paper Industry
Pressure Ratings for Low Alloy Steel Socket Weld Fittings
Size (Inches) Typical Pressure Rating (Class/PSI)
1/8" to 2" 2000 - 3500 PSI
1/8" to 2" 2000 - 3500 PSI
1/8" to 2" 2000 - 3500 PSI
1/8" to 2" 2000 - 3500 PSI
1/8" to 2" 2000 - 3500 PSI
2" to 4" 1500 - 2500 PSI
2" to 4" 1500 - 2500 PSI
2" to 4" 1500 - 2500 PSI
2" to 4" 1500 - 2500 PSI
2" to 4" 1500 - 2500 PSI
High Alloy Steel SW Fittings Chemical Composition
Elements WPB B,C,D,E, WP11 CL3 WP22 CL1 WP5 CL3 WPC C,D,E, WP22 CL3 WP5 CL1, WP11 CL1 WP11 CL2,
Manganese 0.29–1.06 0.30–0.80 0.30–0.60 0.30–0.60 0.29–1.06 0.30–0.60 0.30–0.60 0.30–0.60 0.30–0.80
Phosporus 0.05 0.04 0.04 0.04 0.05 0.04 0.04 0.03 0.04
Chromium 0.4 1.00–1.50 1.90–2.60 4.0–6.0 0.4 1.90–2.60 4.0–6.0 1.00–1.50 1.00–1.50
Sulfur 0.058 0.04 0.04 0.03 0.058 0.04 0.03 0.03 0.04
Molybdenum 0.15 max 0.44–0.65 0.87–1.13 0.44–0.65 0.15 max 0.87–1.13 0.44–0.65 0.44–0.65 0.44–0.65
Silicon 0.10 min 0.50–1.00 0.5 0.5 0.10 min 0.5 0.5 0.50–1.00 0.50–1.00
Carbon 0.3 0.05–0.20 0.05–0.15 0.15 0.35 0.05–0.15 0.15 0.05–0.15 0.05–0.20
Alloy Steel Socket Weld Cap Mechanical Properties
Grades Tensile Strength, min. ksi[MPa] Yield Strength, min. ksi[MPa] Elongation, min. %
Transverse Longitudinal
WP1 55-80[380-550] 30[205] 13 20
WP12 CL1 60[415] 32[220] 14 22
WP12 CL2 70[485] 40[275] 14 22
WP11 CL1 60[415] 30[205] 14 22
WP11 CL2 70[485] 40[275] 14 22
WP11 CL3 75[520] 45[310] 14 22
WP22 CL1 60[415] 30[205] 14 22
WP22 CL3 75[520] 45[310] 14 22
WP24 85[585] 60[415] - 20
WP5 CL1 60[415] 30[205] 14 22
WP5 CL3 75[520] 45[310] 14 22
WP9 CL1 60[415] 30[205] 14 22
WP9 CL3 75[520] 45[310] 14 22
WPR 63-99[435-605] 46[315] - 20
WP91 90[620] 60[415] 13 20
WP911 90-120[620-840] 64[440] 13 20
WP92 90-120[620-840] 64[440] 13 20
What factors affect the price of Alloy Steel Socket Weld Fittings?
  • Material Grade
  • Size of Fittings
  • Manufacturing Process
  • Wall Thickness and Schedule
  • Pressure Rating
  • Pressure Rating
  • Heat Treatment
Alloy Steel Socket Weld Fittings Delivery Time As Per Location
Changes in Price Extra 5 %
Export to Shipping Time in Days
Sri Lanka  5
Bolivia  45
Brazil  45-60
South Korea  7
Taiwan  15
Cambodia  9
Argentina  45
Maldives  7
Colombia  45
Chile  45
Venezuela  45
Mayanmar  25
Ecuador  60
Bangladesh  14
Japan  7
