| Documents | Explanation |
|---|---|
| Bill of Lading | Shipment Confirmation |
| Material Test Certificate | Quality Assurance |
| Commercial Invoice | Transaction Details |
| Certificate of Origin | Proof of Origin |
| Packing List | Shipment Breakdown |
Table of Content
Inconel 625 Grade 2 Fittings Sizes
Alloy 625 Gr2 Fittings Manufacturing Standards
UNS N06625 Grade 1 Fittings Physical Properties
Nickel 625 Pipe Fittings Process
625 Alloy Buttweld Pipe Fittings Types
WPNCMC-s BW Fittings Benefits
Nickel 625 Weldable Pipe Fittings Bending Radius
UNS N06625 Butt Welded Joint Origin
ASTM B366 UNS N06625 Weld Fittings Services
Ni 625 Butt Weld Fittings Packaging
Alloy 625 Grade 1 Fittings Surface Finish
DIN 2.4856 Welded Fittings Testing
Are You Trying to Find the Best Price on Inconel 625 Pipe Fittings? To obtain an estimate right away, send an email to kalpesh@manishasteelcentre.com.
| Types of Fittings | Size Range | Price in INR (Per KG) | Price in USD (Per KG) |
|---|---|---|---|
| Inconel 625 Elbow | 2" X SCH 40 | INR 1500 | US $17.32 |
| 3" X SCH 40 | INR 2100 | US $24.25 | |
| 4" X SCH 40 | INR 2700 | US $ 31.18 | |
| 6" X SCH 40 | INR 4200 | US $ 48.50 | |
| 8" X SCH 40 | INR 5500 | US $ 63.51 | |
| Inconel 625 Equal Tee | 3/4 X 40 | INR 1200 | US $ 13.86 |
| 1/2 X 40 | INR 950 | US $ 10.97 | |
| 2" X 40 | INR 1999 | US $ 23.08 | |
| 4" X 40 | INR 3500 | US $ 40.41 | |
| 6" X 40 | INR 4299 | US $ 49.64 | |
| Inconel 625 Concentric Reducer | 3/4 X 1/2 X SCH 160 | INR 1200 | US $ 13.86 |
| 1 X 1/2 X SCH 160 | INR 1500 | US $ 17.32 | |
| 4 X 2 X SCH 80 X SCH 160 | INR 2099 | US $ 24.24 | |
| 6 X 4 X SCH 80 | INR 2800 | US $ 32.33 | |
| 8 X 4 X SCH 160 | INR 4400 | US $ 50.80 |
| NPS (inches) | Outer Diameter (O.D.) | 45 Degree Elbow | 90 Degree Elbow | 180 Degree Elbow | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius Elbow | LR Elbow | SR Elbow | Long Radius Elbow | |||||
| mm | inch. | Face To Center (Inche) | Radius (Inche) | Face To Center (Inche) | Face To Center (Inche) | Center to Center (Inches) | Back to face (Inches) | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Genuine Inconel 625 Pipe Fittings Manufacturer in India As Per Specification
| Diameter Of Pipe Nominal | OD And ID | Threads in Inches | Equivalent |
|---|---|---|---|
| 1/4 | 35/64 | 18 |
0.540 |
| 1/8 | 13/32 | 27 | 0.405 |
| 1/2 | 27/32 | 14 | 0.840 |
| 3/4 | 1-3/64 | 14 | 1.050 |
| 1 | 1-5/16 | 11-1/2 | 1.315 |
| 1/16 | 5/16 | 27 | 0.313 |
| 3 | 3-1/2 | 8 | 3.500 |
| 1-1/4 |
1-21/32 |
11-1/2 | 1.660 |
| 1-1/2 | 1-29/32 | 11-1/2 | 1.900 |
| 2 | 2-3/8 | 11-1/2 | 2.375 |
| 2-1/2 | 2-7/8 | 8 | 2.875 |
| 3/8 | 43/64 | 18 | 0.675 |
| 3-1/2 | 4 | 8 | 4.000 |
| Types | Seamless | Welded | Buttweld |
|---|---|---|---|
| Elbow | 1/2″ To 28″ | 4″ To 120″ | 1/2″ To 24″ |
| Reducers | 1/2″ To 48″ | 2″ To 56″ | 1/2″ To 24″ |
| End Cap | 2″ To 24 | 6″ To 70 | 1/2″ to 24″ |
| Pipe Bends | Up to 36 | Upto 48 | Up to 24 |
| Tee | 1/2″ To 36″ | 12″ To 80″ | 1/2″ To 24″ |

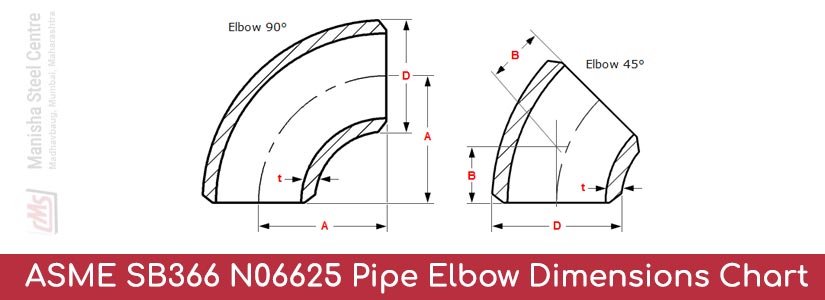

| NPS | OD D | 45° Long Rad Center to End B | 45° 3D Center to End B | 90° Long Rad Center to End A | 90° 3D Center to End A |
|---|---|---|---|---|---|
| 1 | 33.04 | 22 | 31 | 38 | 76 |
| 1¼ | 42.02 | 25 | 39 | 48 | 95 |
| 2 | 60.03 | 35 | 63 | 76 | 152 |
| 4 | 114.03 | 64 | 127 | 152 | 305 |
| 3½ | 101.06 | 57 | 111 | 133 | 267 |
| 2½ | 73 | 44 | 79 | 95 | 190 |
| 3 | 88.09 | 51 | 95 | 114 | 229 |
| 1½ | 48.03 | 29 | 47 | 57 | 114 |
| 1/2 | 21.03 | 16 | 38 | - | |
| 3/4 | 26.07 | 19 | 24 | 38 | 57 |
| 5 | 141.03 | 79 | 157 | 190 | 381 |
| 6 | 168.03 | 95 | 189 | 229 | 457 |
| 8 | 219.01 | 127 | 252 | 305 | 610 |
| 10 | 273 | 159 | 316 | 381 | 762 |
| 12 | 323.08 | 190 | 378 | 457 | 914 |
| 14 | 355.06 | 222 | 441 | 533 | 1067 |
| 16 | 406.04 | 254 | 505 | 610 | 1219 |
| Description | HSN Code |
|---|---|
| Inconel 625 Pipe Fittings | 7507 |
| Welding Methods | Full Form |
|---|---|
| TIG | Tungsten inert gas welding |
| FCAW | Flux cored arc welding |
| GMAW | Gas metal arc welding |
| SMAW | Shielded metal arc welding |
Trusted Inconel 625 Pipe Fittings Supplier in India in Custom Shapes and Types
Inconel 625 Elbow
ASTM B366 UNS N06625 Tee
ASTM B366 N06625 Reducer
ASTM B366 WPNCMC-S Cap
B366 WPNCMC Stub End
2.4856 Inconel 625 Pipe Bend
UNS N06625 Inconel 625 Cross
625 Nickel Alloy Elbow LR 90 Degree BW
UNS N06625 Inconel 625 Long Radius Reducing Elbow
Inconel Alloy 625 Seamless Equal Tee
ASME SB 366 N06625 Tee Reducing BW
ASTM B366 N06625 Long Pattern Stub End
| NPS | Weight In Kilogram (KG) | Weight In LBS |
|---|---|---|
| 4 | 2.04 | 4.5 |
| 5 | 3.4 | 7.5 |
| 6 | 5.44 | 12 |
| 8 | 10.43 | 23 |
| 10 | 19.5 | 43 |
| 12 | 28.12 | 62 |
| 1/2 | 0.04 | 0.09 |
| 1.1/2 | 0.18 | 0.4 |
| 3 | 1.19 | 2.63 |
| 14 | 36.29 | 80 |
| 16 | 45.36 | 100 |
| 18 | 57.15 | 126 |
| 20 | 72.57 | 160 |
| 2 | 0.37 | 0.81 |
| 2.1/2 | 0.79 | 1.75 |
| 1 | 0.11 | 0.25 |
| 1.1/4 | 0.17 | 0.38 |
| 3.1/2 | 1.59 | 3.5 |
| 30 | 166.47 | 367 |
| 3/4 | 0.04 | 0.09 |
| 36 | 240.86 | 531 |
| 22 | 89.36 | 197 |
| 24 | 107.95 | 238 |
| 26 | 124.74 | 275 |
| Temp. °C | Modulus of | Elasticity, GPa |
|---|---|---|
| Tension | ||
| Solution- Treated | Annealed | |
| 21 °C | 204.8 | 207.5 |
| 93 °C | 200.6 | 204.1 |
| 204 °C | 193.7 | 197.9 |
| 316 °C | 187.5 | 191.7 |
| 427 °C | 180.6 | 185.5 |
| 538 °C | 173.1 | 178.6 |
| 649 °C | 165.5 | 170.3 |
| 760 °C | 157.2 | 160.6 |
| 871 °C | 148.2 | 147.5 |
| NPS | OD | Ave. ID | (Min.) WT | (Max.) Working Pressure | Fittings Weight In KG |
|---|---|---|---|---|---|
| 1/2" | .840 | .602 | .109 | 590 | .170 |
| 3/4" | 1.050 | .804 | .113 | 480 | .226 |
| 1" | 1.315 | 1.029 | .133 | 450 | .333 |
| *1-1/4" | 1.660 | 1.360 | .140 | 370 | .450 |
| *3" | 3.500 | 3.042 | .216 | 260 | 1.488 |
| 3-1/2" | 4.000 | 3.521 | .226 | 240 | 1.789 |
| *4" | 4.500 | 3.998 | .237 | 220 | 2.118 |
| 3/8" | .675 | .473 | .091 | 620 | .115 |
| 2-1/2" | 2.875 | 2.445 | .203 | 300 | 1.136 |
| *10" | 10.750 | 9.976 | .365 | 140 | 7.966 |
| *12" | 12.750 | 11.889 | .406 | 130 | 10.534 |
| *14" | 14.000 | 13.073 | .437 | 130 | 12.462 |
| 5" | 5.563 | 5.016 | .258 | 190 | 2.874 |
| *6" | 6.625 | 6.031 | .280 | 180 | 3.733 |
| *8" | 8.625 | 7.942 | .322 | 160 | 5.619 |
| *1-1/2" | 1.900 | 1.590 | .145 | 330 | .537 |
| *2" | 2.375 | 2.047 | .154 | 280 | .720 |
| 1/4" | .540 | .344 | .088 | 780 | .086 |
| *16" | 16.000 | 14.940 | .500 | 130 | 16.286 |
| Grade | Ni | Cr | Si | S | Cu | Fe | C | Mn |
|---|---|---|---|---|---|---|---|---|
| 625 | 58.0 min | 20.0 - 23.0 | 0.50 max | 0.015 max | - | 5.0 max | 0.10 max | 0.50 max |
| STANDARD | WERKSTOFF NR. | UNS | EN | BS | GOST | JIS | AFNOR |
|---|---|---|---|---|---|---|---|
| Inconel 625 | 2.4856 | N06625 | NiCr22Mo9Nb | NA 21 | ХН75МБТЮ | NCF 625 | NC22DNB4M |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | Magnetic Properties |
|---|---|---|---|---|---|
| Inconel 625 | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % | 200–230 HB (Brinell hardness) | Non-magnetic |
| Property | Value |
|---|---|
| Density | 8.44 g/cm³ (8440 kg/m³) |
| Melting Point | 1290–1350°C (2354–2462°F) |
| Thermal Conductivity | 10.8 W/m·K at 100°C |
| Specific Heat | 0.43 J/g·K at 25°C |
| Coefficient of Thermal Expansion | 13.4 µm/m·°C (7.4 µin/in·°F) at 20-100°C |
| Young’s Modulus | 207 GPa (30 × 10⁶ psi) |
| Poisson’s Ratio | 0.30 |
| Electrical Resistivity | 1.07 µΩ·cm at 20°C |
| Temperature Range | Thermal | Conductivity2 3 | Coefficients . 10-6 | Linear of Thermal Expansion1 | |
|---|---|---|---|---|---|
| °C | °F | W/mK | Btu/(hr/ft2/in/°F) | 7°F | 1°C |
| -157 | -250 | 7.3 | 4.2 | - | - |
| -129 | -200 | 7.4 | 4.3 | - | - |
| -18 | 0 | 9.2 | 5.3 | - | - |
| 21 | 70 | 9.9 | 5.7 | - | - |
| 93 | 200 | 10.7 | 6.3 | 7.1 | 12.8 |
| 204 | 400 | 12.6 | 7.3 | 7.3 | 13.1 |
| 427 | 800 | 15.7 | 9.1 | 7,6 | 13.7 |
| 538 | 1000 | 17,5 | 10.1 | 7.8 | 14 |
| 760 | 1400 | 20.8 | 12 | 8.5 | 15.3 |
| 871 | 1600 | 22.8 | 13.2 | 8.8 | 15.8 |
| 982 | 1800 | 25.3 | 14,6 | - | - |
| Specific Heat Capacity | |||
|---|---|---|---|
| Temperature | J /kg- °C | Btu /lb- °F | |
| OC | OF | ||
| 400oC | 752OF | 496 | 0.118 |
| 300oC | 572OF | 480 | 0.115 |
| 200oC | 392OF | 463 | 0.111 |
| 100oC | 212OF | 446 | 0.107 |
| 0ос | 32OF | 429 | 0.102 |
| Changes in Price Extra 5 % | |
|---|---|
| Export to | Shipping Time in Days |
| Panama | 45 |
| Bahamas | 60 |
| Equatorial Guinea | 45-60 |
| Gabon | 45-60 |
| Trinidad And Tobago | 60 |
| The Republic Of Congo | 45-60 |
| Norway | 45 |
| Denmark | 35 |
| Costa Rica | 45 |
| Canada | 45 |
| Russia | 20 |
| Puerto Rica | 45 |
| Mexico | 45 |
| Jamaica | 50 |
| Germany | 21 |
