Nickel Alloy Pipe Fittings Manufacturer in India

Home|Nickel Alloy Pipe Fittings

Best Quality Pure Nickel 200 Buttweld Fittings Supplier in Mumbai According to ANSI B16.9

Nickel Alloy Pipe Fittings Specification



Why Stockists in Oman should buy Nickel Alloy Pipe Fittings from Manisha Steel Centre?
  • High-Quality Products
  • Wide Range of Nickel Alloys
  • Competitive Pricing
  • Custom Solutions and Expertise
  • Reliable Delivery and Logistics
  • Certifications and Compliance
Manisha Steel Centre

Table of Content

Nickel Alloy Pipe Fittings Specification
Nickel Alloy Pipe Fittings Sizes

Nickel Alloy Pipe Fittings Sizes

  • Welded Fittings: 1/2″ – 10″
  • Seamless Fittings: 1/2″ – 48″
  • Schedule : Sch 5s to Sch XXS
  • End : Bevelled, Compound Bevel, Plain Bevel, Buttweld
Nickel 200 Pipe Fittings Manufacturing Standards

Nickel 200 Pipe Fittings Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1
Nickel Alloy Fittings Physical Properties

Nickel Alloy Fittings Physical Properties

  • Melting Point: 1,455°C (2,651°F)
  • Density: 8.90 g/cm³
  • Heat Treatment: 0.435 J/g·K at 25°C
Nickel 200 Pipe Fittings Process

Nickel 200 Pipe Fittings Process

  • Seamless
  • Fabricated
  • Welded

Pure Nickel 200 BW Fittings Types

Pure Nickel 200 BW Fittings Types

  • Elbow
  • Stub End
  • Reducer
  • Cap
  • Tee
Nickel Alloy Buttweld Fittings International Standards

Nickel Alloy Buttweld Fittings International Standards

  • UNS N02200
  • ASTM B366
  • WNR 2.4066
  • ANSI B16.9
Nickel Alloy Pipe Fittings Bending Radius

Nickel Alloy Pipe Fittings Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
Nickel 200 Pipe Fittings Origin

Nickel 200 Pipe Fittings Origin

  • European
  • Janpanese
  • Russia
  • American

ASTM B366 UNS N02200 Elbow Services

ASTM B366 UNS N02200 Elbow Services

  • Shearing
  • Heat Treatment
  • Cutting

Nickel Alloy Buttweld Fittings Packaging

Nickel Alloy Buttweld Fittings Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
WNR 2.4066 Reducer Surface Finish

WNR 2.4066 Reducer Surface Finish

  • Pickled
  • Polished
UNS N02200 Cap Testing

UNS N02200 Cap Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test
Nickel 200 Pipe Fittings Sizes

Are You Trying to Find the Best Nickel Alloy Pipe Fitting Prices? You can get an estimate right away by sending an email to kalpesh@manishasteelcentre.com.

OD mm Pipe WT Schedule Kg/m
mm mm in.
13.72 2.24 1/4 40S 0.64
13.72 1.65 1/4 10S 0.50
17.15 3.20 3/8 80S 1.12
17.15 2.31 3/8 40S 0.86
21.34 3.73 1/2 80S 1.65
21.34 2.11 3/4 10S 1.30
21.34 2.77 1/2 40S 1.29
33.40 3.38 1 40S 2.54
33.40 6.352 1 80S 3.29
33.40 2.77 1 10S 2.13
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 2.77 1¼ 10S 2.73
42.16 2.77 1¼ 160 5.69
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
48.26 2.77 1½ 10S 3.16
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 2.77 2 10S 3.99
60.33 8.742 2 160 11.29
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80s 11.59
73.03 3.05 2½ 10S 5.35
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 3.05 3 10S 6.59
88.90 11.132 3 160 21.67
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
101.60 3.05 3½ 10S 7.53
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.10
114.30 13.492 4 160 34.05
141.30 9.53 5 80S 31.44
141.30 15.882 5 160 49.87
141.30 6.55 5 40S 22.10
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 3.4 6 10S 14.04
168.28 14.27 6 120 54.75
168.28 18.262 6 160 68.59
219.08 18.23 8 120 91.30
219.08 23.012 8 160 112.97
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
Nickel Alloy Fittings Dimensional Tolerances
All Fittings Reducers and Lap Joint Stub Caps 90°and 45° Ells and Tees 180° Returns Angularity Tol
NPS OD at Bevel ID at End Wall Thickness Overall Length L Overall Length E Centre-to- End Dimension A,B,C,M Centre-to- Centre Dimension O Back-to- Face Dimension K Alignment at Ends U Nominal Pipe SIze Off Angle Q Off Angle P
1/2 TO 2-1/2 +1/16 ±1/32 Not less than 87-1/2% ±1/16 ±1/8 ±1/16 ±1/4 ±1/4 ±1/32 12 to 4 1/32 1/16
- -1/32 - - - - - - - 5 to 8 1/16 1/8
3 TO 3-1/2 ±1/16 ±1/16 ±1/16 ±1/8 ±1/16 ±1/4 ±1/4 ±1/32 10 to 12 3/32 3/16
4 ±1/16 ±1/16 ±1/16 ±1/8 ±1/16 ±1/4 ±1/4 ±1/32 14 to 16 3/32 1/4
5 TO 8 +1/32 ±1/16 ±1/16 ±1/4 ±1/16 ±1/4 ±1/4 ±1/32 18 to 24 1/8 3/8
- -1/16 - - - - - - - - - -
10 TO 18 +1/16 ±1/8 ±3/32 ±1/4 ±3/32 ±3/8 ±1/4 ±1/16  All dimensions are in inches
- -1/8 - - - - - - -
20 TO 24 +1/4 ±3/32 ±3/32 ±1/4 ±3/32 ±3/8 ±1/4 ±1/16

Buy ASTM B366 UNS N02200 Reducer and Elbow in Different Sizes and Grades As Per Requirement

ASTM B366 UNS N02200 Reducer Size Chart

Genuine Nickel Alloy Pipe Fittings Manufacturer in India As Per Specification

Size (Inches) OD (Inches) Wall Thickness (Inches) Length (Inches)
1/2" x 3/8" 0.840 0.065 3.00
1" x 1/2" 1.315 0.065 3.00
2" x 1" 2.375 0.065 4.00
3" x 2" 3.500 0.065 4.00
4" x 3" 4.500 0.065 5.00
6" x 4" 6.625 0.065 5.50
8" x 6" 8.625 0.065 6.00
10" x 8" 10.750 0.065 6.50
12" x 10" 12.750 0.065 7.00
Nickel Alloy Fittings Weight Chart
NPS OD WT Schedule Weight Weight
in mm in mm Lb/ft kg/Mtr
3/4″ 1.05 27 0.113 2.87 40 STD 1.131 1.684
- - - 0.154 3.912 80 STD 1.474 2.195
1/2″ 0.84 21 0.109 2.769 40 STD 0.851 1.268
- - - 0.147 3.734 80 STD 1.088 1.621
1″ 1.315 33 0.133 3.378 40 STD 1.679 2.501
- - - 0.179 4.547 80 STD 2.172 3.325
1 1/2″ 1.9 48 0.145 3.683 40 STD 2.718 4.048
- - - 0.2 5.08 80 STD 3.361 5.409
1 1/4″ 1.66 42 0.14 3.556 40 STD 2.273 3.385
- - - 0.191 4.851 80 STD 2.997 4.464
2″ 2.375 60 0.154 3.912 40 STD 3.653 5.441
- - - 0.218 5.537 80 STD 5.022 7.48
2 1/2″ 2.875 73 0.203 5.516 40 STD 5.793 8.629
- - - 0.276 7.01 80 STD 7.661 11.411
3″ 3.5 89 0.216 5.486 40 STD 7.576 11.284
- - - 0.3 7.62 80 STD 10.253 15.272
4″ 4.5 114 0.237 6.02 - 10.79 16.073
- - - 0.337 8.56 - 14.983 22.318
6″ 6.625 168 0.188 4.775 - 12.924 19.252
- - - 0.203 5.516 - 13.923 20.739
- - - 0.219 5.563 - 14.983 22.318
- - - 0.25 6.35 - 17.021 25.354
8″ 8.625 219 0.188 4.775 - 16.94 25.233
- - - 0.203 5.156 - 18.259 27.198
- - - 0.219 5.563 - 19.661 29.286
- - - 0.25 6.35 20 22.361 33.308
10″ 10.75 273 0.188 4.775 - 21.207 31.588
- - - 0.219 5.563 - 24.631 36.689
- - - 0.25 6.35 20 28.035 41.759
- - - 0.307 7.798 30 34.24 51.002
Nickel Alloy Butt Weld Fittings Stock Sizes
Types OD WT Length
NB Sizes 1/8” ~ 8” SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Upto 6 Meters
Nickel Welded Pipe 5.0mm ~ 1219.2mm 1.0 ~ 15.0 mm
Nickel Seamless Pipe 5.0mm ~ 203.2mm As per requirement

Expert in Supplying WNR 2.4066 Tee and Cap in Both Seamless and Welded Form Suitable For High Pressure Application

Pure Nickel 200 BW Fittings Applications
  • Chemical Processing
  • Food Processing
  • Marine Industry
  • Aerospace
  • Petrochemical Industry
  • Power Plants
  • Electroplating
  • Pharmaceuticals
Most Common Types of Nickel Alloy Pipe Fittings

Trusted Nickel Alloy Pipe Fittings Supplier in India in Custom Shapes and Types

Nickel Alloy Elbow

Nickel Alloy Elbow

Nickel 200 Tee

Nickel 200 Tee

Alloy 200 Reducer

Alloy 200 Reducer

Pure Nickel 200 Cap

Pure Nickel 200 Cap

ASTM B366 UNS N02200 Stub End

ASTM B366 UNS N02200 Stub End

WNR 2.4066 Cross

WNR 2.4066 Cross

Produce Ni 200 Stub End and Cross With Both Mandrel and Hot forming Technique, Refer Manufacturing Process
Mandrel vs Hot forming Technique
Properties Mandrel Forming Hot Forming
Temperature Low High
Surface Finish Excellent Moderate
Accuracy High Moderate
Strength Consistent Variable
Cost Low High
Speed Slow Fast
Application (Stub End) Precision Large Sizes
Application (Cross) Small Large
Complexity Simple Complex
Tooling Mandrels Furnaces, Dies
Design Flexibility Limited High
Welding Minimal Possible

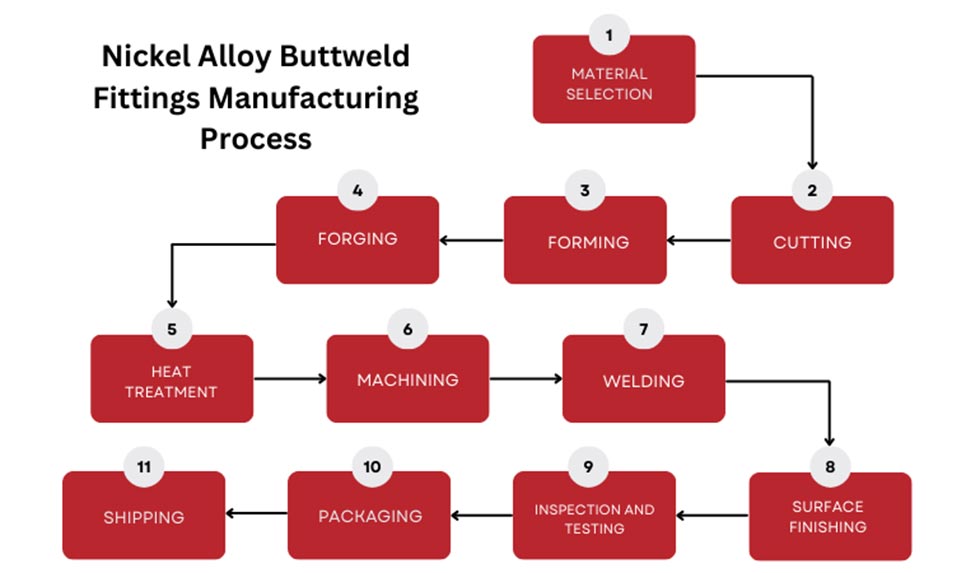

Nickel Alloy Buttweld Fittings Manufacturing Process
Nickel Alloy Buttweld Fittings Manufacturing Process
ASTM B366 UNS N02200 Elbow Pressure Rating
Pipe O.D. (in.) Wall Thickness of Pipe (inches)
- .028 .035 .049 .065 .083 .095 .109 .120
- Working Pressure (psig) - - - - - - -
1/2 - 2300 3200 4400 - - - -
1/4 3700 4800 7000 9500 - - - -
1/8 7900 10100 - - - - - -
3/4 - - 2200 3000 4000 6000 - -
3/8 - 3100 4400 6100 - - - -
5/16 - 3700 5400 7300 - - - -
1 - - - 2200 2900 3400 3900 4300
Offer Customized and 100 % Tested Alloy 200 BW Fittings in Various Forms At Lowest Possible Price
Alloy 200 BW Fittings Testings
Test Type Destructive/Non-Destructive
Tensile Test Destructive
Hardness Test Non-Destructive
Impact Test Destructive
Fluorescent Penetrant Test Non-Destructive
Magnetic Particle Test Non-Destructive
Hydrostatic Test Destructive
Ultrasonic Test Non-Destructive
X-ray or Radiographic Test Non-Destructive
Dimensional Inspection Non-Destructive
Chemical Composition Test Destructive
Corrosion Test Destructive
Visual Inspection Non-Destructive
Nickel 200 Pipe Fittings Price
Fitting Schedule/Class  Pipe Size - Pipe Fitting Price in USD(Per piece)
Schedule 10 Elbow 1/2" US $15.20
3/4" US $16.55
1" US $17.70
1-1/4" US $33.95
1-1/2" US $27.65
2" US $33.95
2-1/2" US $60.45
3" US $72.30
4" US $117.70
SCH 40 Elbow 1/2" US $24.90
3/4" US $24.90
1" US $27.75
1-1/4" US $42.40
1-1/2" US $33.45
1-1/2" US $24.28
2" US $48.10
2" US $54.55
2-1/2" US $99.50
3" US $126.80
3" US $162.25
4" US $237.25
4" US $297.75
What are the limitations of Nickel Alloy Pipe Fittings when exposed to highly acidic or basic solutions?

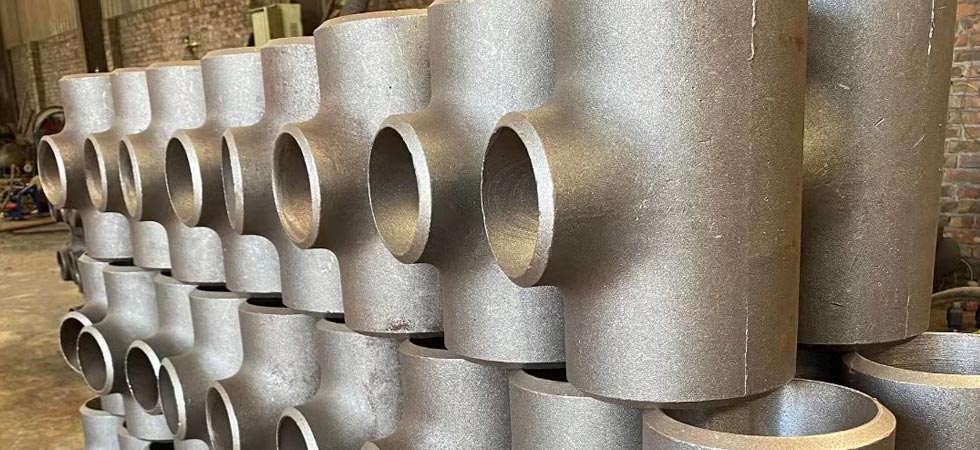

Limitations of Nickel Alloy Pipe Fittings
  • Limited Resistance to Strong Acids
  • Sensitivity to Strong Alkalis
  • Temperature-Dependent Corrosion Resistance
  • Potential for Alloy Degradation
  • Increased Risk of Galvanic Corrosion
  • High Cost of Alloy Selection
Nickel 200 Pipe Fittings Equivalent Standards
STANDARD UNS WERKSTOFF NR. BS GOST AFNOR JIS EN
Nickel 200 N02200 2.4066 NA 11 НП-2 N-100M NW 2200 Ni 99.2
Nickel Alloy Buttweld Fittings Chemical Composition
Grade C Fe Mn Cu S Ni Si Mg Ti
Nickel 200(max/min) 0.15 0.4 0.35 0.25 0.01 99.0 0.1 – –
Mechanical Properties of Nickel Alloy Fittings
Properties Yield Strength (0.2%Offset) Tensile Strength Elongation
Value Psi – 21500 , MPa – 148 Psi – 67000 , MPa – 462 45 %
WNR 2.4066 Reducer Physical Properties
Property Value
Density 8.89 g/cm³
Melting Point 1455°C (2651°F)
Thermal Conductivity 90 W/m·K
Specific Heat Capacity 0.44 J/g·K
Electrical Resistivity 0.57 µΩ·cm
UNS N02200 Cap Surface Finishes
Plate Surface finish Width (max in) Gauge (in)
2D – Cold rolled, heat treated, pickled plate 60 12–24
2B – Cold rolled, heat treated, pickled, skin passed Plate 72* 10–24
BA Mexinox only 48 18–28
Temper rolled plate Mexinox only 48 13–29
Polished plate (not brushed) 60 11–24
Check Available Stock
High Quality Nickel Alloy Pipe Fittings

High Quality Nickel Alloy Pipe Fittings

ASTM B366 UNS N02200 Nickel Elbow

ASTM B366 UNS N02200 Nickel Elbow

2 STD Nickel Alloy Steel Butt Welded Pipe Fittings

2" STD Nickel Alloy Steel Butt Welded Pipe Fittings

Nickel Alloy Reducer Pipe Fittings

Nickel Alloy Reducer Pipe Fittings

High Nickel Alloy Seamless Pipe Fittings

High Nickel Alloy Seamless Pipe Fittings

ASTM B366 Nickel Alloy Steel Butt Welded Pipe Fittings

ASTM B366 Nickel Alloy Steel Butt Welded Pipe Fittings

Nickel Alloy Pipe Fittings Delivery Time As Per Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Oman 5
Kuwait 10
Qatar 7
Uk 30
Singapore 8
Philippines 14
Bahrain 9
France 30
Saudi Arabia 7
Italy 30
Malaysia 10
South Africa 25-30
Indonesia 9
UAE 5 days
USA 40-60
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
