Carbon Steel Socket Weld Fittings Specification
CS Socket Weld Fittings Dimensions
Carbon Steel SW Fitting CNC Methods
Socket Weld Fittings vs Butt Weld Fittings
CS Socket Weld Elbow Dimensions in mm
Dimension Of CS SW Laterial Tee
Low Carbon Steel Socket Weld Coupling Price List
Most Common Types of Carbon Steel Socket Weld Fittings
High Carbon Steel Cross Pressure Rating
Carbon Steel Socket Weld Plug Temprature Range
How do you inspect Carbon Steel Socket Weld Fittings for wear or damage?
Carbon Steel Socket Weld Equal Tee Weight Chart
CS SW Fittings Threads
Carbon Steel Socket Weld Fittings Equivalent Standards
CS Socket Weld Union Chemical Composition
Difference Between GTAW and SMAW Welding

Carbon Steel Socket Weld Fittings Specification

Carbon Steel SW Fittings Sizes

Welded Fittings: 1/8" to 4"
Seamless Fittings: 1/8" to 4"
Schedule : SCH10 to SCH 160
End : Plain Bevel, Buttweld, Bevelled, Compound Bevel

Carbon Steel Socket Weld Tee Manufacturing Standards

MSS-SP-43
ANSI B16.9
ASME B16.28
100% Tested With MTC EN 10204/3.1

Carbon Steel Socket Weld Cross Benefits

Compact Design
High Pressure and Strength
Leak Resistance

Carbon Steel Socket Weld Tee Process

Seamless
Fabricated
Welded

CS Socket Weld Fittings Types

Elbow
Equal Tee
Couplings
Cross

Carbon Steel Socket Weld Union International Standards

ASTM A105
ASME SA105
ASME 16.11, MSS SP-79, 83

Carbon Steel Socket Weld Cross Bending Radius

Carbon Steel Socket Weld Plug Origin

European
Janpanese
Russia
American

Carbon Steel Socket Weld Equal Tee Services

Shearing
Heat Treatment
Cutting

Carbon Steel Socket Weld Tee Packaging

Bubble Wraps
Bundled
Wooden Box

CS Socket Weld Elbow Surface Finish

Pickled
Polished

CS Socket Weld Fittings Testing

PMI, Hardness test
Ultrasonic, HIC test

CS Socket Weld Fittings Dimensions

Are You Looking for Carbon Steel Socket Weld Fittings at the Best Price? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

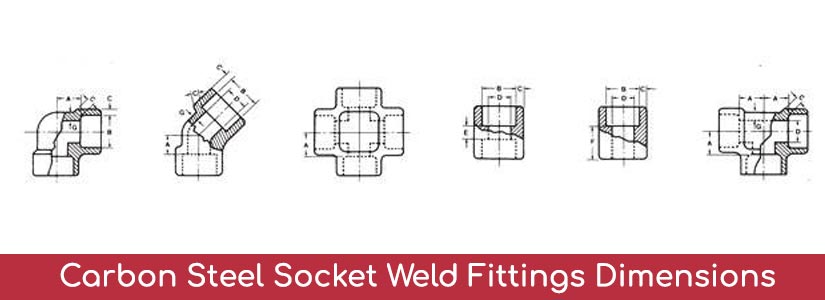

Carbon Steel Socket Weld Fittings Dimensions

NPS	Depth of Sock, Min	Sock, Bore Diameter B	Centre to Bottom of Socket				Laying Lengths		WT Min				Bore Diameter of Fitting D		Tolerances, ±
			90º Ells, Tee & Crosses		45º Ell		Couplings	Half Couplings	3000#		6000#
			A		A		E	F							A	E	F
			3000#	6000#	3000#	6000#			Sock, C	Body G	Sock C	Body G	3000#	6000#
1/4	3/8	.555 .565	7/16	17/32	5/16	5/16	1/4	5/8	.130	.119	.158	.145	.349 .379	.235	.03	.06	.03
3/8	3/8	.690 .700	17/32	5/8	5/16	7/16	1/4	11/16	.138	.126	.172	.158	.478 .508	.344	.06	.12	.06
1/2	3/8	.855 .865	5/8	3/4	7/16	1/2	3/8	7/8	.161	.147	.204	.188	.607 .637	.451	.06	.12	.06
1-1/4	1/2	1.675 1.685	1-1/16	1-1/4	11/16	13/16	1/2	1-3/16	.208	.191	.273	.250	1.365 1.395	1.145	.08	.16	.08
1-1/2	1/2	1.915 1.925	1-1/4	1-1/2	13/16	1	1/2	1-1/4	.218	.200	.307	.281	1.595 1.625	1.323	.08	.16	.08
2	5/8	2.406 2.416	1-1/2	1-5/8	1	1-1/8	3/4	1-5/8	.238	.218	.374	.344	2.052 2.082	1.674	.08	.16	.08
2-1/2	5/8	2.906 2.921	1-5/8		1-1/8		3/4	1-11/16	.301	.276		.375	2.439 2.499		.10	.20	.10
3/4	1/2	1.065 1.075	3/4	7/8	1/2	9/16	3/8	15/16	.168	.154	.238	.219	.809 .839	.599	.06	.12	.06
1/8”	3/8	.420 .430	7/16	7/16	5/16	5/16	1/4	5/8	.125	.095	.135	.124	.254 .284	.141	.03	.06	.03
1	1/2	1.330 1.340	7/8	1-1/16	9/16	11/16	1/2	1-1/8	.196	.179	.273	.250	1.034 1.064	.800	.08	.16	.08
3	5/8	3.535 3.550	2-1/4		1-1/4		3/4	1-3/4	.327	.300		.438	3.038 3.098		.10	.20	.10
4	3/4	4.545 4.560	2-5/8		1-5/8		3/4	1-7/8	.368	.337		.531	3.996 4.055		.10	.20	.10

Produce Carbon Steel Socket Weld Equal and Unequal Tee With Both Forged and CNC Method

Carbon Steel SW Fitting CNC Methods

Genuine Carbon Steel Socket Weld Fittings Manufacturer in India As Per Specification

Turning
Milling
Drilling
Boring
Grinding
Cutting
Deburring
Deburring

Socket Weld Fittings vs Butt Weld Fittings

Properties	Socket Weld Fittings	Butt Weld Fittings
Dimension	ASME B16.11	ASME B16.9
Size	1/4" To 4"	1/2" T0 24"
Installation	Ease Installation	Complex and Time-consuming
Environments	Suitable for low pressure systems	Suitable for high pressure systems
Testing	Magnetic particle & Penetrant testing	X-ray inspection
Welding	Easy to welding	High level welding skill required
Surface	Less extensive	More intensive
Applications	Small diameter pipelines	Large diameter pipelines

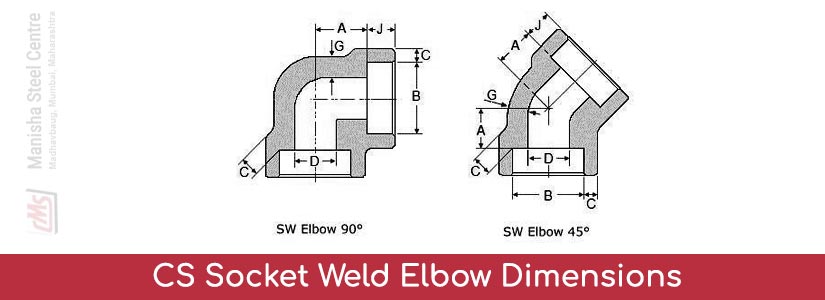

CS Socket Weld Elbow Dimensions in mm

NPS		Socket Bore Dia (B)		Socket Wall Thk (C)		Socket Depth (J)	Fitting Bore Dia (D)		Body Wall Thk (G)	Center to bottom of socket (A)		Weight (kg)
(inches)	(mm)	Min.	Max.	Avg.	Min.	Min.	Min.	Max.	Min.	90° Elbow	45° Elbow	90° Elbow	45° Elbow
1/4	8	14.2	14.6	3.78	3.30	9.5	8.5	10.0	3.02	11.0	8.0	0.095	0.086
3/8	10	17.6	18.0	4.01	3.50	9.5	11.8	13.3	3.20	13.5	8.0	0.118	0.100
1/2	15	21.8	22.2	4.67	4.09	9.5	15.0	16.6	3.73	15.5	11.0	0.204	0.191
1-1/4	32	42.7	43.1	6.07	5.28	12.5	34.3	35.8	4.85	27.0	17.5	0.689	0.630
1-1/2	40	48.8	49.2	6.35	5.54	12.5	40.1	41.6	5.08	32.0	20.5	0.943	0.762
2	50	61.2	61.7	6.93	6.04	16.0	51.7	53.3	5.54	38.0	25.5	1.529	1.343
2-1/2	65	73.9	74.4	8.76	7.67	16.0	61.2	64.2	7.01	41.0	28.5	3.025	3.520
3/4	20	27.2	27.6	4.90	4.27	12.5	20.2	21.7	3.91	19.0	13.0	0.340	0.318
1/8	6	10.8	11.2	3.18	3.18	9.5	6.1	7.6	2.41	11.0	8.0	0.113	0.100
1	25	33.9	34.3	5.69	4.98	12.5	25.9	27.4	4.55	22.5	14.0	0.476	0.431
3	80	89.8	90.3	9.52	8.30	16.0	76.4	79.4	7.62	57.0	32.0	5.026	3.878
4	100	115.2	115.7	10.69	9.35	19.0	100.7	103.8	8.56	66.5	41.0	10.247	10.913

Dimension Of CS SW Laterial Tee

NPS	OD of Band	Min WT	Min Length of Thread		Center to End
NPS	D	G	B	J	90° A	45° C
1¼	56	3.89	17	18	44	33
1½	62	4.01	17.8	18.4	51	35
2	75	4.27	19	19.2	60	43
2½	92	5.61	23.6	28.9	76	52
1	46	3.68	14.7	17.3	38	28
3	109	5.99	25.9	30.5	86	64
1/2	33	3.18	10.9	13.6	28	22
3/4	38	3.18	12.7	13.9	33	25
4	146	6.55	27.7	33	106	79
