Expert ASME SA 234 Grade WP1 Buttweld Pipe Fittings Manufacturer in India As Per ANSI B16.9

Table of Content

ASTM A234 WP1 Fittings Specification
ASTM A234 Gr WP1 Fittings Reducer Wall Thickness
ASTM A234 WP1 Alloy Steel Cross Size Chart
ASME SA234 Alloy Steel WP1 Tee Price List
ASME SA234 Alloy Steel WP1 Tee Price List
Gr WP1 Alloy Steel Weldable Pipe Fittings Weight Chart
Most Common Types of Alloy Steel WP1 Pipe Bend
CrMo A234 WP1 Reducer Testings
Chrome Moly WP1 Weld Fittings Applications
SA234 WP1 Seamless Pipe Fittings Mechanical Properties
SA 234 Grade WP1 BW Fittings Chemical Composition
ASME SA 234 WP1 Buttweld Fittings Physical Properties

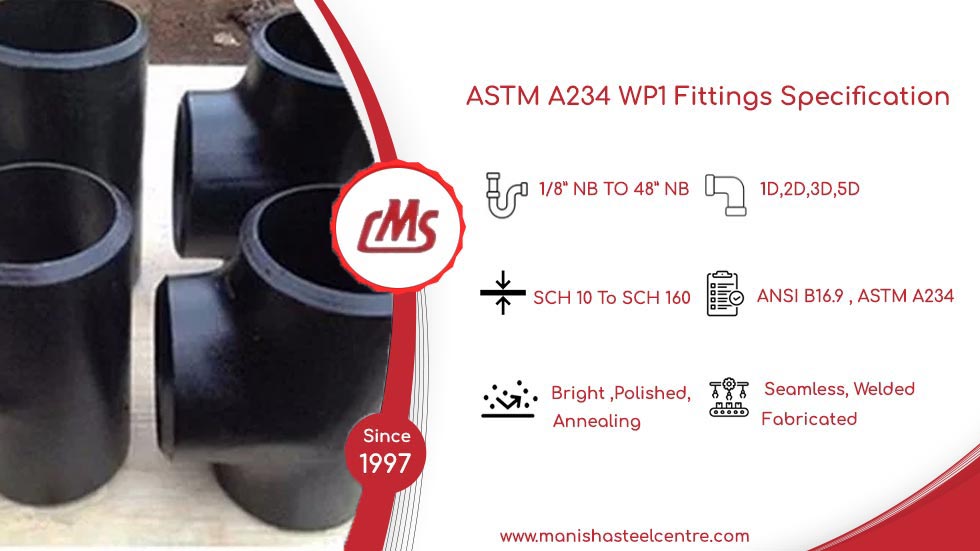

ASTM A234 WP1 Fittings Specification

ASTM A234 WP1 Alloy Steel Buttweld Pipe Fittings Sizes

Size : 1/8” NB TO 48” NB.
Schedule : 10 - 160
End :Buttweld, Bevelled , Plain Bevel, Compound Bevel

ASTM A234 Gr WP1 Fittings Manufacturing Standards

ASME SA234
ASTM A234

ASME SA 234 WP1 Buttweld Fittings Physical Properties

ASME SA 234 WP1 Buttweld Fittings Benefits

Durability
Versatility
Cost-effective

Chrome Moly WP1 Weld Fittings Process

forming
Welded
Seamless

ASTM A234 Gr WP1 Pipe Fittings Types

Elbow , Tee
Reducer , Cap , Cross
Stub End , Pipe Bend

Chromium-Molybdenum Steel WP1 Elbow International Standards

ASTM A234
ASME SA234
ANSI B16.9

ASME SA234 Alloy Steel WP1 Tee Bending Radius

CrMo A234 WP1 Reducer Origin

Russia
American
European
Janpanese

Alloy Steel ASTM A234 WP1 Cap Services

Shearing
Heat Treatment
Cutting

WP1 Alloy Steel Stub End Packaging

Bubble Wraps
Bundled
Wooden Box

Alloy Steel WP1 Pipe Bend Surface Finish

Pickled
Polished

ASTM A234 WP1 Alloy Steel Cross Testing

PMI, Hardness test
Ultrasonic, HIC test

ASTM A234 Gr WP1 Fittings Reducer Wall Thickness

Normal Size Of Steel Pipe	(Small) Inner Daimeter	(Small) Outer Daimeter	Length Of Con Reducer	(Large) Thickness	(Large) Inner Daimeter	Pipe Sch No.	Weight In Kilogram
14 x 8	7.976	8.62	13	0.438	13.124	40	68.6
16 x 10	10.02	10.75	14	0.5	15	40	96.5
16 x 12	11.938	12.75	14	0.5	15	40	96.5
16 x 14	13.124	14	14	0.5	15	40	96.5
16 x 8	7.976	8.62	14	0.5	15	40	96.5
18 x 10	10.02	10.75	15	0.562	16.876	40	131
18 x 12	11.938	12.75	15	0.562	16.876	40	131
18 x 14	13.124	14	15	0.562	16.876	40	131
18 x 16	15	16	15	0.562	16.876	40	131
12 x 8	7.976	8.62	8	0.406	11.938	40	35.8
14 x 10	10.02	10.75	13	0.438	13.124	40	68.6
14 x 12	11.938	12.75	13	0.438	13.124	40	68.6
14 x 6	6.06	6.62	13	0.438	13.124	40	68.6
20 x 12	11.938	12.75	20	0.594	18.812	40	205
20 x 14	13.124	14	20	0.594	18.812	40	205
20 x 16	15	16	20	0.594	18.812	40	205
24 x 14	13.124	14	20	0.688	22.624	40	285
12 x 10	10.02	10.75	8	0.406	11.938	40	35.8
12 x 5	5.044	5.56	8	0.406	11.938	40	35.8
12 x 6	6.06	6.62	8	0.406	11.938	40	35.8
24 x 18	16.876	18	20	0.688	22.624	40	285
24 x 20	18.812	18	20	0.688	22.624	40	285
20 x 18	16.876	16	20	0.594	18.812	40	205
24 x 16	15	4.5	8	0.688	22.624	40	285
12 x 4	4.026	6.62	14	0.406	11.938	40	35.8
16 x 6	6.06	8.62	15	0.5	15	40	96.5
18 x 8	7.976	10.75	20	0.562	16.876	40	131
20 x 10	10.02	8.62	20	0.594	18.812	40	205
20 x 8	7.976	10.75	20	0.594	18.812	40	205
24 x 10	10.02	12.75	20	0.688	22.624	40	285
24 x 12	11.938	0.406	24	0.688	22.624	40	285

Top Supplier Of Alloy Steel WP1 Tee and Elbow in Mumbai With Unmatched Range Of Sizes and Pressure

ASTM A234 WP1 Alloy Steel Cross Size Chart

Are You Trying to Find the Best Deal on ASTM A234 WP1 Fittings? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

(O.D.) & (I.D.)	(NPS)	Size Of Threads In Inch	List Of Equivalent
4-1/2	4	8	4.500
2-7/8	2-1/2	8	2.875
3-1/2	3	8	3.500
4	3-1/2	8	4.000
5/16	1/16	27	0.313
13/32	1/8	27	0.405
35/64	1/4	18	0.540
1-5/16	1	11-1/2	1.315
1-21/32	1-1/4	11-1/2	1.660
1-29/32	1-1/2	11-1/2	1.900
2-3/8	2	11-1/2	2.375
43/64	3/8	18	0.675
27/32	1/2	14	0.840
1-3/64	3/4	14	1.050

WP1 Welded Pipe Fittings Pressure Rating

Nominal Pipe Size	Wall Thickness	-20° to 650°	700°	750°	800°
1 1/2	.200	1815	1736	1566	1306
2	.218	1665	1592	1437	1198
2 1/2	.276	1935	1851	1670	1393
6	.432	1470	1406	1269	1058
1/2	.147	3030	2898	2615	2181
3/4	.154	2595	2482	2240	1868
1	.179	2610	2496	2253	1879
1 1/4	.191	1935	1851	1670	1391
24	.500	465	444	401	334
30	.500	377	362	326	270
3	.300	1770	1693	1528	1274
3 1/2	.318	1665	1592	1437	1198
4	.337	1590	1521	1372	1144
5	.375	1470	1406	1269	1058
36	.500	314	301	272	225
42	.500	269	258	232	193
48	.500	235	226	203	169
8	.500	1350	1291	1165	972
10	.500	1065	1018	919	766
16	.500	705	674	608	507
18	.500	630	602	543	453
20	.500	570	545	492	410
12	.500	900	861	777	648
14	.500	810	774	699	583

Keep Full Stock Of Chrome Moly WP1 Reducer and Cap With Sch 10 to Sch 160 At Factory Price

ASME SA234 Alloy Steel WP1 Tee Price List

Type of Fitting	Size	SCH	Price in USD (India) Per Piece
45 Deg Elbow	1/2"	SCH 40	US $1.38
-	3/4"	40	US $1.97
-	1”	40	US $3.22
Reducing Tee	3/4"	40	US $3.80
-	1/2	40	US $3.45
-	3/4”	40	US $4.49
-	1”	40	US $6.33
-	2”	40	US $8.05
Con Reducer	3/4 X 1/2”	80	US $2.68
-	1 X 1/2”	80	US $4.83
Ecc Reducer	4 X 2”	80	US $7.36
-	8 X 4”	SCH 80	US $10.58
90 Degree Elbow	1-1/2”	40	US $5.41
-	1"	80	US $6.78
-	2"	80	US $8.66

Gr WP1 Alloy Steel Weldable Pipe Fittings Weight Chart

Normal Pipe Size For ASTM A234 WP1 Elbow	Weight In Kilogram (KG)	Weight In LBS
14	36.29	80
16	45.36	100
18	57.15	126
20	72.57	160
22	89.36	197
24	107.95	238
26	124.74	275
30	166.47	367
36	240.86	531
1/2	0.04	0.09
3/4	0.04	0.09
1	0.11	0.25
1.1/4	0.17	0.38
1.1/2	0.18	0.4
4	2.04	4.5
5	3.4	7.5
6	5.44	12
8	10.43	23
10	19.5	43
12	28.12	62
2	0.37	0.81
2.1/2	0.79	1.75
3	1.19	2.63
3.1/2	1.59	3.5
NPS	KG	LBS

Most Common Types of Alloy Steel WP1 Pipe Bend

Trusted ASTM A234 WP1 Fittings Supplier in India in Custom Shapes and Types

ASTM A234 Gr WP1 Stub End

ASME SA234 Alloy Steel WP1 Pipe Bend

CrMo A234 WP1 Cross

Alloy Steel ASTM A234 WP1 Cap

WP1 Alloy Steel Reducer

Alloy Steel WP1 Tee

ASTM A234 WP1 Alloy Steel Elbow

WP1 Weldable Pipe Fittings

SA234 WP1 Seamless Pipe Fittings

Specialized in Producing Hot and Mandrel ASTM A234 Gr WP1 Weld Fittings Tested as Per NACE MR01-75

CrMo A234 WP1 Reducer Testings

Hardness Test
Tensile Testing
Hardness Testing
Corrosion Testing
Ultrasonic Testing (UT)
Visual Inspection

Buy Chromium-Molybdenum Steel WP1 Cross and Stub End Online For Various Industrial Application

Chrome Moly WP1 Weld Fittings Applications

Oil & Gas
Chemical Processing
Petrochemical Industry
Power Generation

SA234 WP1 Seamless Pipe Fittings Mechanical Properties

Grade	Elongation %	Tensile Strength (Mpa)	Hardness, HB	Yield Strength (Mpa)
ASTM A234 WP1 Fittings	20 minimum	220 minimum	121- 174	≥415 minimum

SA 234 Grade WP1 BW Fittings Chemical Composition

Grade	P	Mo	Mn	Si	C	S
ASTM A234 WP1 Fittings	0.045 maximum	0.044-0.65 maximum	0.30- 0.90	0.10- 0.50	0.28 maximum	0.045 maximum

ASME SA 234 WP1 Buttweld Fittings Physical Properties

Property	Value
Thermal Conductivity	Moderate thermal conductivity suitable for heat transfer applications
Melting Point	~1450–1510°C
Density	~7.85 g/cm³

ASTM A234 WP1 Fittings Delivery Time As Per Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Argentina	45
Maldives	7
Colombia	45
Brazil	45-60
Taiwan	15
Cambodia	9
Chile	45
Venezuela	45
South Korea	7
Ecuador	60
Japan	7
Sri Lanka	5
Bolivia	45
Bangladesh	14
Mayanmar	25
