ASTM A403 WP316 Fittings

Home|ASTM A403 WP316 Fittings

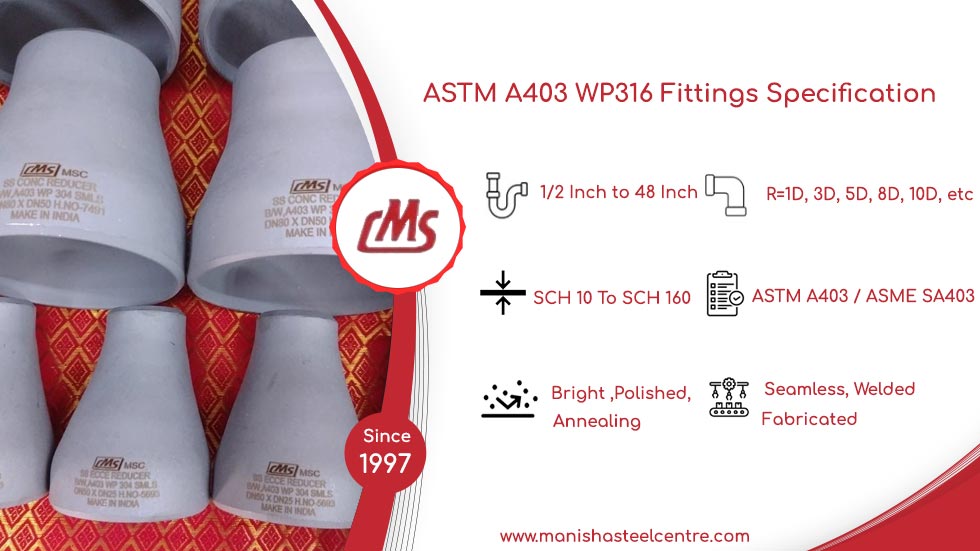

ASTM A403 WP316 Fittings Specification



Which 3 Test Reports Spain Buyers should ask before finalising the material from India?
Test Report Purpose
Export Quality Test Report Adherence to global norms
Certification of EU Regulations conformity to EU safety regulations
Certificate of Analysis (CoA) Quality and composition details
Manisha Steel Centre

Table of Content

ASTM A403 WP316 Fittings Specification
ASTM A403 WP316 Fittings Sizes

ASTM A403 WP316 Fittings Sizes

  • Welded Fittings: ½ inch to 24 inches
  • Seamless Fittings: up to 12 inches
  • Schedule : SCH5S to SCH XXS
  • End : Buttweld, Bevelled, Plain Bevel, Compound Bevel

A403 Gr WP316 Fittings Manufacturing Standards

A403 Gr WP316 Fittings Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1

ASTM A403 WP316 Elbow Physical Properties

ASTM A403 WP316 Elbow Physical Properties

  • Melting Point:1375 - 1400°C
  • Density:8.00 g/cm³
  • Heat Treatment: 500 J/kg·K
ASTM A403 Gr WP316 Cap Process

ASTM A403 Gr WP316 Cap Process

  • Seamless
  • Fabricated
  • Welded

ASTM A403 WP316 Fittings Types

ASTM A403 WP316 Fittings Types

  • Elbow
  • Reducer
  • Stub End
  • Pipe Bend

ASTM A403 Grade WP316 Tee International Standards

ASTM A403 Grade WP316 Tee International Standards

  • UNS: S31600
  • ASME SA 403 | ASTM A403
  • WNR:1.4401 / 1.4436
  • JIS SUS 316
ASTM A403 WP316 Elbow Bending Radius

ASTM A403 WP316 Elbow Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
ASTM A403 Gr. WP316 Pipe Fittings Origin

ASTM A403 Gr. WP316 Pipe Fittings Origin

  • European
  • Janpanese
  • Russia
  • American
Stainless Steel 316 Pipe Fittings Services

Stainless Steel 316 Pipe Fittings Services

  • Shearing
  • Heat Treatment
  • Cutting
ASTM A403 Gr WP316 Reducer Packaging

ASTM A403 Gr WP316 Reducer Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
ASTM A403 Gr WP316 Cap Surface Finish

ASTM A403 Gr WP316 Cap Surface Finish

  • Pickled
  • Polished
A403 Gr WP316 Fittings Testing

A403 Gr WP316 Fittings Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test



Trusted Stainless Steel 316 Elbow Manufacturer in India in Short and Long Radius At Best Price

Stainless Steel 316 Elbow Price
DN ELBOW Cat. PRICE IN USD($)
250*80 20 DEG US $10.80
250*80 30 DEG US $16.00
250*80 45 DEG US $18.20
80*80 45 DEG US $10.30
300*80 45 DEG US $22.00
125*80 60 DEG US $22.00
250*80 60 DEG US $16.60
250*80 90 DEG US $7.00
300*80 90 DEG US $10.77
80*80 90 DEG US $14.30

Are You Looking for the Best ASTM A403 WP316 Fittings Deal? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Stainless Steel 316 Pipe Fittings Dimensions
NPS OD Straight Tees Caps Stub Ends Straight Crosses
(inches) (mm) (inches) Center to End (inches) Length (inches) Lap Diameter (inches) Long Length (inches) Short Length (inches) Center to End (inches)
2 60.3 2.375 2 1/2 1 1/2 3 5/8 6 2 1/2 2 1/2
2 1/2 73.0 2.875 3 1 1/2 4 1/8 6 2 1/2 3
1 33.4 1.315 1 1/2 1 1/2 2 4 2 1 1/2
1 1/4 42.2 1.660 1 7/8 1 1/2 2 1/2 4 2 1 7/8
1 1/2 48.3 1.900 2 1/4 1 1/2 2 7/8 4 2 2 1/4
6 168.3 6.625 5 5/8 3 1/2 8 1/2 8 3 1/2 5 5/8
8 219.1 8.625 7 4 10 5/8 8 4 7
3 1/2 101.6 4.000 3 3/4 2 1/2 5 1/2 6 3 3 3/4
4 114.3 4.500 4 1/8 2 1/2 6 3/16 6 3 4 1/8
5 141.3 5.563 4 7/8 3 7 5/16 8 3 4 7/8
3/4 26.7 1.050 1 1/8 1 1 11/16 3 2 –
10 273.1 10.750 8 1/2 5 12 3/4 10 5 8 1/2
1/2 21.3 0.840 1 1 1 3/8 3 2 –
3 88.9 3.500 3 3/8 2 5 6 2 1/2 3 3/8
12 323.9 12.750 10 6 15 10 6 10
ASTM A403 WP316 SS Elbows Sizes
NPS (inches) OD 45° Elbows 90° Elbows 180° Returns
Long Radius Long Radius Short Radius Long Radius
(mm) (inches) Center to Face (inches) Radius (inches) Center to Face (inches) Center to Face (inches) Center to Center (inches) Back to face (inches)
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
8 219.1 8.625 5 12 12 8 24 16 5/16
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4

Customized ASME SA 403 WP316 Butt Weld Fittings Supplier in Mumbai in Seamless or Welded

ASME SA 403 WP316 Butt Weld Fittings Wall Thickness

Genuine ASTM A403 WP316 Fittings Manufacturer in India As Per Specification

Type NP Size (NPS) OD WT
Elbow (90°) 1/2 0.840 0.109
3/4 1.050 0.113
1 1.315 0.140
2 2.375 0.154
Union 1/2 0.840 0.109
3/4 1.050 0.113
1 1.315 0.140
Tee 1/2 0.840 0.109
3/4 1.050 0.113
1 1.315 0.140
2 2.375 0.154
Cap 1/2 0.840 0.109
3/4 1.050 0.113
1 1.315 0.140
Reducer 1 x 1/2 1.315 / 0.840 0.140 / 0.109
2 x 1 2.375 / 1.315 0.154 / 0.140
ASTM A403 Gr WP316 Cap Weight Chart
Size’s SCH 40 Elbow SCH 80 Elbow
1-1/4 0.39 0.53
2 0.85 1.13
1/2 0.10 0.14
1 0.23 0.30
1-1/2 0.54 0.73
6 7.99 10.13
12 28.75 36.41
3/4 0.14 0.18
2-1/2 1.32 1.73
4 3.17 4.07
3 1.77 2.31
5 5.52 7.12
8 12.84 16.64
10 21.35 26.90

Produce ASTM A403 Gr. WP316 Tee and Cap With Heat Treatment for Pressure Piping Applications

ASTM A403 Gr. WP316 Tee Applications
  • Chemical Processing Plants
  • Pharmaceutical Industries
  • Food and Beverage Industry
  • Marine and Offshore
  • Power Generation
  • Oil and Gas
  • Heat Exchanger Systems
Most Common Types of ASTM A403 WP316 Fittings

Trusted ASTM A403 WP316 Fittings Supplier in India in Custom Shapes and Types

A403 Grade WP316 Seamless Pipe Fittings

A403 Grade WP316 Seamless Pipe Fittings

ASME SA 403 WP316 Weldable Pipe Fittings

ASME SA 403 WP316 Weldable Pipe Fittings

ASTM A403 WP316 SS Elbow

ASTM A403 WP316 SS Elbow

ASTM A403 Gr WP316 Tee

ASTM A403 Gr WP316 Tee

ASTM A403 Gr WP316 Reducer

ASTM A403 Gr WP316 Reducer

A403 Gr WP316 Cap

A403 Gr WP316 Cap

A403 grade WP316 Stub End

A403 grade WP316 Stub End

ASME SA 403 WP316 Pipe Bend

ASME SA 403 WP316 Pipe Bend

A403 Grade WP316 Stainless Steel Cross

A403 Grade WP316 Stainless Steel Cross

Keep Bulk Stock of A403 Grade WP316 Reducer and Cross For Sale Tested With Tension Test
A403 Grade WP316 Reducer Testings
Testing Method Destructive/Non-Destructive
Visual Inspection Non-Destructive
Dimensional Inspection Non-Destructive
Hydrostatic Testing Destructive (if it fails)
Pneumatic Testing Non-Destructive
Ultrasonic Testing Non-Destructive
X-Ray/CT Scan Non-Destructive (but expensive)
Dye Penetrant Testing Non-Destructive
Magnetic Particle Testing Non-Destructive
Tensile Testing Destructive
Impact Testing Destructive
Hardness Testing (Brinell, Rockwell) Non-Destructive
Chemical Composition Testing Destructive (small sample)

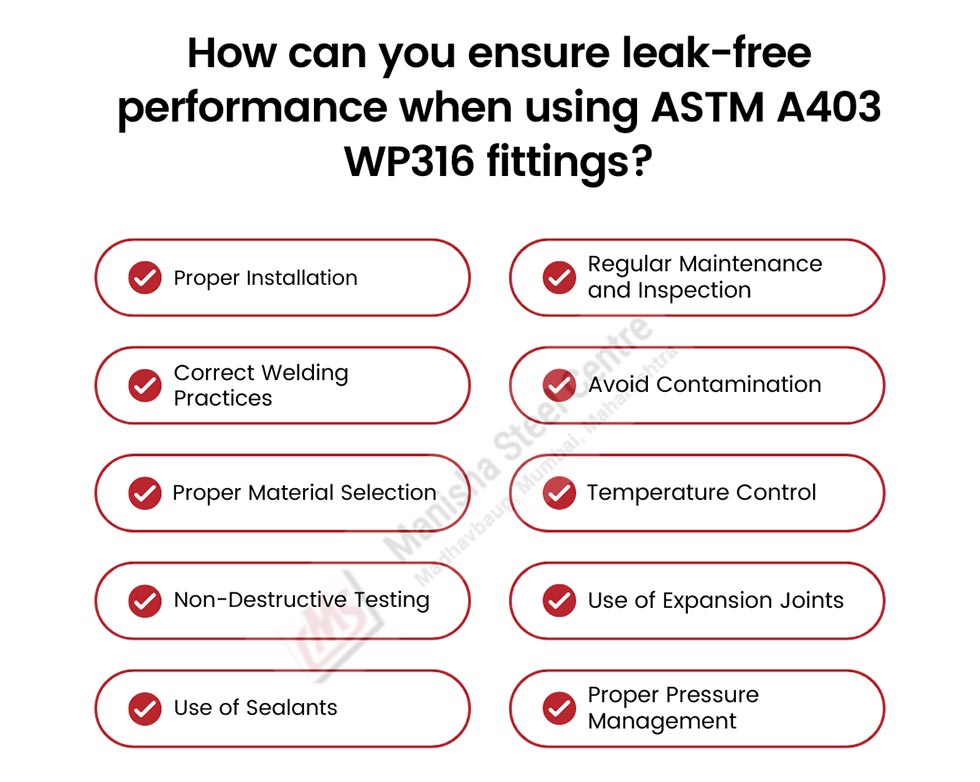

How can you ensure leak-free performance when using ASTM A403 WP316 Fittings?
Leak-free Performance ASTM A403 WP316 Fittings
SS 316 Pipe Fittings Price List
Type of Fittings Size SCH Price in USD
90 Deg Elbow STD 1/2" SCH 40 US $1.96
STD 3/4" SCH 40 US $2.42
STD 1" SCH 80 US $3.01
STD 1 1/4" SCH 40 US $3.81
STD 2" SCH 160 US $9.08
Reducing Tee 2” X ½” SCH 80 US $5.77
3” X 2” SCH 80 US $9.80
Eccentric Reducer STD 1X1/2" SCH 40 US $2.19
STD 1 X 3/4" SCH 40 US $2.59
STD 1 1/4 X 1/2" SCH 40 US $9.97
STD 1 1/2 X 1/2" SCH 40 US $6.80
STD 2 X 1" SCH 40 US $4.60
Buy ASTM A403 WP 316 Stub End With Both WP or CR Class in Various Schedule and Pressure Class
ASTM A403 Gr WP316 SS Tee Schedule Chart
DN SCH 10 SCH 40 SCH 80
45 ° Elbow 90 ° Elbow Equal Tee 45 ° Elbow 90 ° Elbow Equal Tee 45 ° Elbow 90 ° Elbow Equal Tee
8 0.01 0.02 0.03 0.02 0.03 0.06 0.03 0.04 0.07
10 0.02 0.03 0.05 0.02 0.03 0.03 0.04 0.06 0.09
15 0.03 0.06 0.09 0.04 0.08 0.10 0.05 0.10 0.14
20 0.03 0.07 0.13 0.04 0.08 0.17 0.05 0.11 0.20
25 0.08 0.14 0.28 0.11 0.15 0.29 0.14 0.22 0.38
32 0.11 0.23 0.49 0.17 0.26 0.59 0.23 0.40 0.68
40 0.17 0.30 0.68 0.23 0.40 0.86 0.29 0.51 1.02
50 0.25 0.50 0.85 0.40 0.70 1.28 0.59 0.91 1.59
65 0.48 0.85 1.41 0.77 1.40 2.19 0.99 1.81 3.13
80 0.63 1.25 1.77 1.08 2.20 3.31 1.50 2.97 4.45
90 0.75 1.70 2.67 1.42 2.83 4.08 2.00 4.00 5.44
100 1.08 2.10 3.46 2.09 4.47 5.27 2.81 6.18 7.71
150 2.72 5.45 8.07 5.44 10.89 10.99 8.16 16.32 13.16
200 5.33 10.20 15.65 10.77 21.54 20.91 16.56 33.11 28.12
250 9.75 18.15 26.46 19.27 38.56 35.38 25.86 51.71 49.90
300 13.62 25.80 39.46 29.71 59.42 62.14 39.69 79.38 83.91
ASTM A403 WP316 Equivalent Stanadrds
Standards UNS BS WERKSTOFF NR. JIS AFNOR EN
ASTM A403 WP316 S31600 316S31 / 316S33 1.4401 / 1.4436 SUS 316 Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
A403 Gr WP316 Fittings Chemical Composition
Elements C Si Mn P S Cr Ni Mo Fe
Values 0.08 max 1.0 max 2.0 max 0.045 max 0.030 max 16.00 - 18.00 11.00 - 14.00 2.00 - 3.00 67.845 min
Mechanical Composition of ASTM A403 Gr WP316 Cap
Properties Tensile Strength Yield Strength (0.2%Offset) Elongation
Values Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
ASTM A403 WP 316 Stub End Physical Properties
Properties Melting Point Density
Values 1400 °C (2550 °F) 8.0 g/cm3
What are the differences between Welded and Seamless ASTM A403 WP316 fittings?
Property Welded Seamless
Manufacturing Made by welding two pieces. Made from a single piece of metal.
Size Range Flexible with custom sizes. Limited to standard sizes.
Strength Slightly lower due to welds. Higher strength, uniform material.
Corrosion Resistance Lower at welds. Superior, no weld weaknesses.
Inspection Needs weld integrity checks. Easier to inspect, no welds.
Surface Finish May show weld lines. Smooth, continuous surface.
Durability Less durable due to weld area. More durable, long-lasting.
Cost More affordable. More expensive.
Applications Low-pressure, general use. High-pressure, critical use.
ASTM A403 WP316 Fittings Delivery Time As Per Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Denmark 35
France 28
Russia 20
Netherland 30
Ukraine 60
Spain  30
Czech Republic 45
Italy 28
Greece 45
Belgium 40
Uk 30
Germany 21
Norway 45
Portugal 45
Bahamas  60
