Inconel Pipe Fittings Manufacturer in India

Trusted Supplier Of Inconel Alloy Buttweld Fittings in Mumbai At Affordable Price

List of 5 Important Documents for Brazil Buyers to purchase Inconel Pipe Fittings from India

Documents	Explanation
Bill of Lading (BOL)	Shipping receipt
Commercial Invoice	Final transaction bill
Packing List	Shipment contents
Proforma Invoice (PI)	Preliminary sales details
Certificate of Origin	Goods country of origin

Table of Content

Inconel Pipe Fittings Specification
Inconel 601 Pipe Fittings Price
ASTM B366 Inconel Fittings Dimensions
ASTM B366 UNS N06601 Tee Schedule Chart
Nickel Alloy 601 Reducer Weight Chart
WNR 2.4851 Tee Dimension
Werkstoff 2.4851 Lateral Tee Cutting Formula
What is the importance of a chemical composition test for Inconel fittings?
EN 10253 Inconel Fittings Size Chart
WNR 2.4851 Elbow Application
Most Common Types of Inconel Pipe Fittings
Pyromet® 601 Stub End Dimensions
Why are Inconel Pipe Fittings more expensive than Stainless Steel Fittings?
Nicr23fe Weld Fittings Testings
Nicrofer® 601 Cap Test Certificates
Inconel Fittings Equivalent Standards
Inconel 601 Pipe Fittings Chemical Composition
Mechanical Properties of WNR 2.4851 Tee
Nickel Alloy 601 Reducer Physical Properties

Inconel Pipe Fittings Specification

Inconel 601 Pipe Fittings Sizes

Welded Fittings: 1/2" - 10",
Seamless Fittings: 1/2" - 48"
Schedule : Sch 5 TO Sch XXS
End : Compound Bevel, Plain Bevel, Buttweld, Bevelled

Inconel Pipe Fittings Manufacturing Standards

MSS-SP-43
ANSI B16.9
ASME B16.28
100% Tested With MTC EN 10204/3.1

Inconel 601 Pipe Fittings Physical Properties

Melting Point:1370°C (2500°F)
Density:8.47 g/cm³
Heat Treatment: 0.44 J/g·K

Nickel Alloy 601 Reducer Process

Seamless
Fabricated
Welded

Inconel Pipe Fittings Types

Elbow
Reducer
Stub End
Cross

Nicr23fe Weld Fittings International Standards

UNS N06601
WNR 2.4851
ASTM B366
ANSI B16.9

ASTM B366 UNS N06601 Elbow Bending Radius

Nicr23fe Weld Fittings Origin

European
Janpanese
Russia
American

Nicrofer® 601 Cap Services

Shearing
Heat Treatment
Cutting

WNR 2.4851 Tee Packaging

Bubble Wraps
Bundled
Wooden Box

Swagelok Inconel Fittings Surface Finish

Pickled
Polished

Parker Inconel Fittings Testing

PMI, Hardness test
Ultrasonic
HIC test

Inconel 601 Pipe Fittings Price

Searching for the Best Price on Inconel Pipe Fittings? You can get an estimate right away by sending an email to kalpesh@manishasteelcentre.com.

Type of Fitting	Size	SCH	Price in INR (India) Per Piece	Price in USD Per Piece
Tee	1/2"	Schedule 40	186	US $2.15
	3/4"		253	US $2.92
	3/1"		385	US $4.45
	2"		498	US $5.75
	3"		598	US $6.91
Equal Tee	4"		612	US $7.07
Elbow	3/4"		164	US $1.89
90 Deg Elbow	1"		264	US $3.05
	2"		354	US $4.09
	3"		432	US $4.99
	4"		598	US $6.91
	5"		762	US $8.80
	6"		898	US $10.37
Cap	1/2"		200	US $2.31
End Cap	3/4"		354	US $4.09
	1"		499	US $5.76
	1 1/4"		610	US $7.05
	2"		798	US $9.22
Reducer	3/4 X 1/2	SCH 160	176	US $2.03
Concentric Reducer	1 X 1/2"		273	US $3.15
	4 X 2"		384	US $4.44
	5 X 4"	SCH 40	486	US $5.61
	6 X 4"	SCH 80	1022	US $11.81

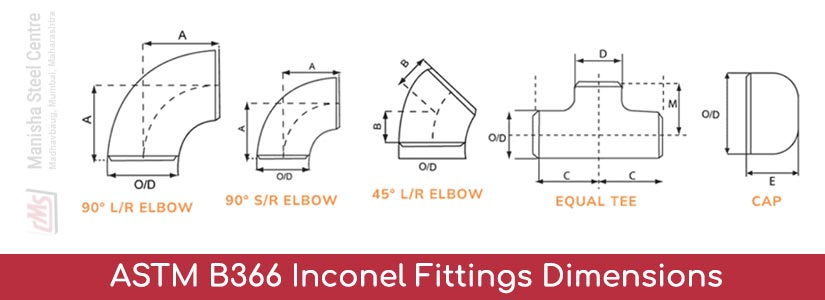

ASTM B366 Inconel Fittings Dimensions

NPS in Centimeter	O.D. In MM	Buttweld Cap	Buttweld Tee	45 Degree Elbow	90 Degree Elbow
NPS in Centimeter	O.D. In MM	E	C	B	Long Radius A	Short Radius A
1.27	21.336	1	1	5/8	1-1/2	–
1	33.401	1-1/2	1-1/2	7/8	1-1/2	1
2.54	42.164	1-1/2	1-7/8	1	1-7/8	1-1/4
5.08	60.325	1-1/2*	2-1/2	1-3/8	3	2
1.905	26.67	1-1/4	1-1/8	7/16	1-1/8	–
5.08	73.025	1-1/2	3	1-3/4	3-3/4	2-1/2
7.62	101.6	2-1/2*	3-3/4	2-1/4	5-1/4	3-1/2
12.7	141.3002	3*	4-7/8	3-1/8	7-1/2	5
2.54	48.26	1-1/2	2-1/4	1-1/8	2-1/4	1-1/2
7.62	88.9	2*	3-3/8	2	4-1/2	3
10.16	114.3	2-1/2*	4-1/8	2-1/2	6	4
20.32	219.075	4*	7	5	12	8
25.4	273.05	5*	8-1/2	6-1/4	15	10
15.24	168.275	3-1/2*	5-5/8	3-3/4	9	6
30.48	323.85	6*	10	7-1/2	18	12
35.56	355.6	6-1/2*	11	8-3/4	21	14

Get Swagelok and Parker Made ASTM B366 UNS N06601 Tee and Reducer With Sch 10 to Sch 160 As Per ANSI B16.9

ASTM B366 UNS N06601 Tee Schedule Chart

Genuine Inconel Pipe Fittings Manufacturer in India As Per Specification

Normal Pipe Size	10S Schedule			40S Schedule			80S Schedule
Normal Pipe Size	Buttweld Ecc Pipe Reducer	Buttweld Con Pipe Reducer	Buttweld Unequal And Reducing Tee	Buttweld Ecc Pipe Reducer	Buttweld Con Pipe Reducer	Buttweld Unequal And Reducing Tee	Buttweld Ecc Pipe Reducer	Buttweld Con Pipe Reducer	Buttweld Unequal And Reducing Tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Nickel Alloy 601 Reducer Weight Chart

NPS	KG	LBS
1/2	0.04	0.09
3/4	0.04	0.09
1	0.11	0.25
1¼	0.17	0.38
1½	0.18	0.4
2	0.37	0.81
2½	0.79	1.75
3	1.19	2.63
3½	1.59	3.5
4	2.04	4.5
5	3.4	7.5
6	5.44	12
8	10.43	23
10	19.5	43
12	28.12	62
14	36.29	80
16	45.36	100
18	57.15	126
20	72.57	160
22	89.36	197
24	107.95	238
26	124.74	275
30	166.47	367
36	240.86	531

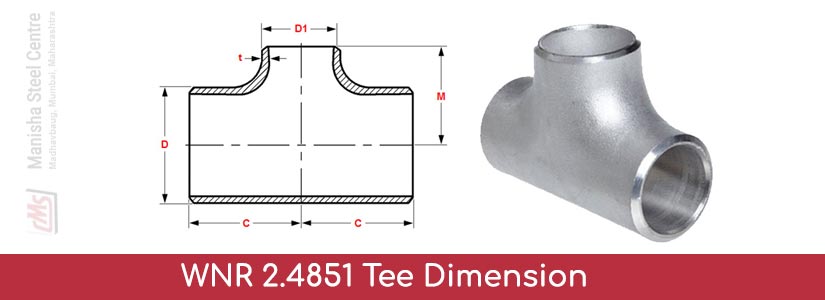

WNR 2.4851 Tee Dimension

NPS	O.D. at bevel	Center-to-End
NPS	O.D. at bevel	(M) Outlet	(C) Run
1"	33.4	38	38
1 1/4"	42.2	48	48
1 1/2"	48.3	57	57
2"	60.3	64	64
2 1/2"	73.0	76	76
8"	219.1	178	178
10"	273.0	216	216
12"	323.8	254	254
14"	355.6	279	279
5"	141.3	124	124
3"	88.9	86	86
3 1/2"	101.6	95	95
6"	168.3	143	143
20"	508.0	381	381
22"	559.0	419	419
24"	610.0	432	432
16"	406.4	305	305
18"	457.0	343	343
4"	114.3	105	105
1/2"	21.3	25	25
3/4"	26.7	29	29

Werkstoff 2.4851 Lateral Tee Cutting Formula

DEGREE	S-CUT	L-CUT
11.5"	0.0493	6.0774
15.5	0.6582	3.7985
22.5"	0.9785	2.5138
30"	0.13397	1.866
45"	0.2071	1.2071
60"	0.28867	0.866

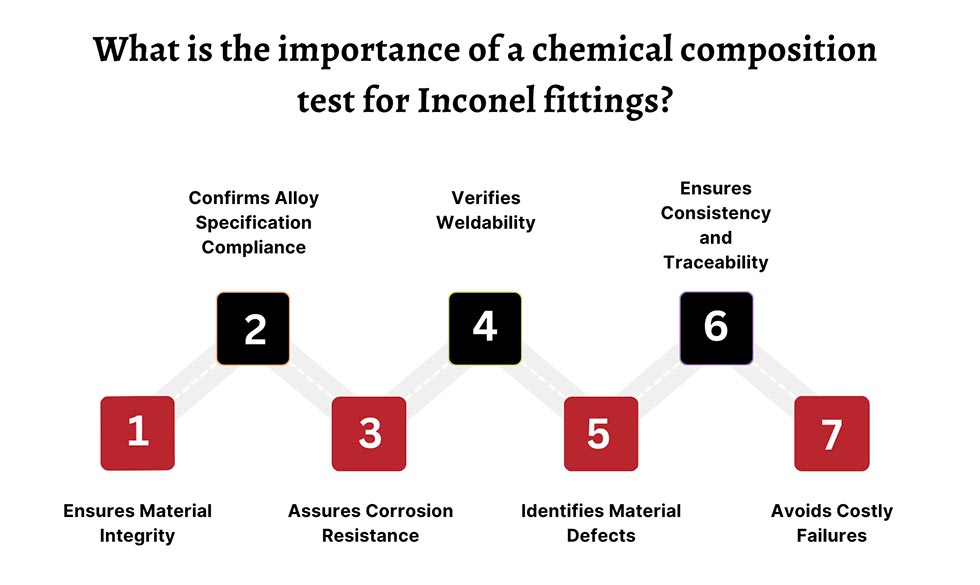

What is the importance of a chemical composition test for Inconel fittings?

Offer Large Selection of Hot and Mandrel WNR 2.4851 Elbow and Pipe Cap With Different Sizes For Aerospace Application

EN 10253 Inconel Fittings Size Chart

Equivalent List	Threads Size in Inches	O.D. And I.D.	Diameter Of Nominal Pipe
0.313	27	5/16	1/16
0.405	27	13/32	1/8
0.540	18	35/64	1/4
0.675	18	43/64	3/8
0.840	14	27/32	1/2
1.050	14	1-3/64	3/4
1.315	11-1/2	1-5/16	1
1.660	11-1/2	1-21/32	1-1/4
1.900	11-1/2	1-29/32	1-1/2
2.375	11-1/2	2-3/8	2
2.875	8	2-7/8	2-1/2
3.500	8	3-1/2	3
4.000	8	4	3-1/2
4.500	8	4-1/2	4

WNR 2.4851 Elbow Application

Aerospace
Power Generation
Chemical Processing
Oil & Gas
Nuclear
Marine
Automotive
Heat Treatment Furnaces
Industrial Applications

Most Common Types of Inconel Pipe Fittings

Trusted Inconel Pipe Fittings Supplier in India in Custom Shapes and Types

ASTM B366 UNS N06601 Elbow

WNR 2.4851 Tee

Nickel Alloy 601 Reducer

Nicrofer® 601 Cap

Pyromet® 601 Stub End

Nicr23fe Cross

Keep Bulk Stock of European and Japanese Origin Nickel Alloy 601 Cross and Stub End For Sale

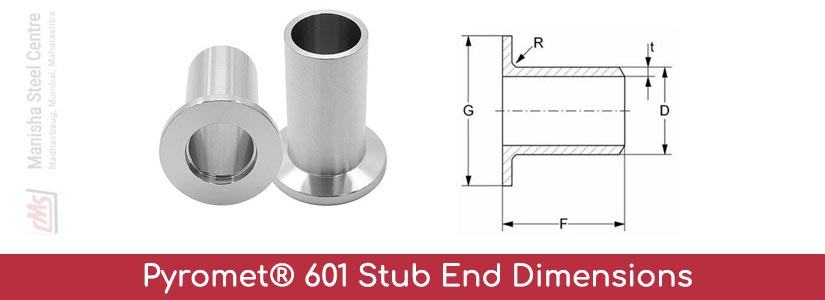

Pyromet® 601 Stub End Dimensions

NPS	Radius Of(R)	Diameter Of (G)	O.D. For of barrel		Length Of (F)
NPS	Radius Of(R)	Diameter Of (G)	(Min.)	(Max.)	Long Pattern	Short Pattern
1/2″	3	35	20.5	22.8	76	51
3/4″	3	43	25.9	28.1	76	51
1″	3	51	32.6	35.0	102	51
1 1/2″	6	74	47.5	49.9	102	51
1 1/4″	5	64	41.4	43.6	102	51
2″	8	92	59.5	62.4	152	64
2 1/2″	8	105	72.2	75.3	152	64
3″	10	127	88.1	91.3	152	64
3 1/2″	10	140	100.8	104.0	152	76
4″	11	157	113.5	116.7	152	76
5″	11	186	140.5	144.3	203	76
6″	13	216	167.5	171.3	203	89
8″	13	270	218.3	222.1	203	102
10″	13	324	272.3	277.2	254	127
12″	13	381	323.1	328.0	254	152
14″	13	413	354.8	359.9	305	152
16″	13	470	405.6	411.0	305	152
18″	13	533	456.0	462.0	305	152
20″	13	584	507.0	514.0	305	152
22″	13	641	558.0	565.0	305	152
24″	13	692	609.0	616.0	305	152

Why are Inconel Pipe Fittings more expensive than Stainless Steel Fittings?

Factor	Inconel Pipe Fittings	Stainless Steel Pipe Fittings
Material Composition	High nickel	Lower nickel
Temperature Resistance	High temp resistance up to 2,000°F (1,093°C)	Up to 1,600°F (871°C)
Corrosion Resistance	Excellent in high-temp	Good
Manufacturing Cost	High	Lower manufacturing cost
Durability	Excellent under extreme conditions	Good
Common Use	Aerospace, chemical, high-temp industries	General plumbing, food processing, mild chemical use

Obtain Nicr23fe Weld Fittings Online As Per International Standards Tested With Various Mechanical Testing

Nicr23fe Weld Fittings Testings

Visual Inspection
Tensile Test
Hardness Test
Impact Test (Charpy)
X-ray or Ultrasonic Testing
Metallographic Examination
Chemical Composition Analysis
Corrosion Resistance Test
Flaring and Flattening Test

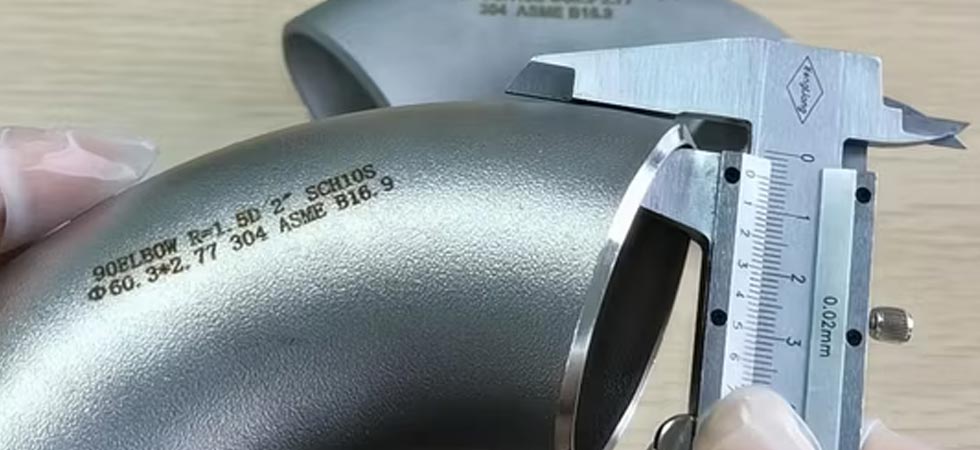

Nicrofer® 601 Cap Test Certificates

Raw Materials Certificate
Third Party Inspection Report
EN 10204/3.1B
100% Radiography Test Report
Tensile Test Report
Visual Inspection Certificate
Metallographic Examination Repor

Inconel Fittings Equivalent Standards

STANDARD	UNS	WERKSTOFF NR.	GOST	EN	JIS	BS	AFNOR
Inconel 601	N06601	2.4851	XH60BT	NiCr23Fe	NCF 601	NA 49	NC23FeA

Inconel 601 Pipe Fittings Chemical Composition

Grade	Mn	Cu	Fe	Ni	Si	C	S	Cr
Inconel 601	1.0 max	1.0 max	Balance	58.0 – 63.0	0.5 max	0.10 max	0.015 max	21.0 – 25.0

Mechanical Properties of WNR 2.4851 Tee

Element	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
Inconel 601	Psi – 30,000 , MPa – 205	Psi – 80,000 , MPa – 550	30 %

Nickel Alloy 601 Reducer Physical Properties

Element	Density	Melting Point
Inconel 601	8.1 g/cm3	1411 °C (2571 °F)

Check Available Stock

Inconel 601 Elbow Pipe Fittings

Alloy 601 Steel Butt Weld Pipe Fittings

Inconel 601 45 Degree Elbow

ASME B16.9 Inconel Concentric Reducer

ASME B16.9 Inconel 601 Sch80 Eccentric Reducer

Inconel 601 N06601 Reducing Tee
