Stainless Steel Tee Fittings

Home|Stainless Steel Tee Fittings

SS Equal and Reducing Tee Manufacturer in India As Per ASTM A403

Stainless Steel Tee Fittings Specification



How Buyers of Stainless Steel Tee Fittings in USA can save upto 5% on Stainless Pipe Tee
Methods Estimated Savings
Bulk Purchasing Up to 5%
Choosing Indian Suppliers Up to 5%
Long-Term Contracts Up to 5%
Alternative Brands Up to 5%
Shipping Optimization Up to 3-5%
Trade Discounts Up to 5%
Manisha Steel Centre

Table of Content

Stainless Steel Tee Fittings Specification
Stainless Steel Tee Sizes

Stainless Steel Tee Sizes

  • Welded Fittings: 1/2 to 48"
  • Seamless Fittings: 1/2 to 10″
  • Schedule : SCH 10 - SCH 160
  • End : Plain Bevel, Compound Bevel, Buttweld, Bevelled
Stainless Steel Flanged Tee Manufacturing Standards

Stainless Steel Flanged Tee Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1
Stainless Pipe 304 Tee Physical Properties

Stainless Pipe 304 Tee Physical Properties

  • Melting Point:1400–1450°C
  • Density:7.93 g/cm³
Stainless Steel Tank Tee Process

Stainless Steel Tank Tee Process

  • Seamless
  • Fabricated
  • Welded
Stainless Steel Tee Types

Stainless Steel Tee Types

  • Cross Tee
  • Equal Tee
  • Street Tee
  • Threaded Tee
SS 316 Threaded Tee International Standards

SS 316 Threaded Tee International Standards

  • UNS: 1.4436
  • ASME SA403 | ASTM A403
  • ISO : 1127
Stainless Pipe Tee Bending Radius

Stainless Pipe Tee Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
Stainless Steel Street Tee Origin

Stainless Steel Street Tee Origin

  • European
  • Janpanese
  • Russia
  • American
Stainless Steel Hose Barb Tee Services

Stainless Steel Hose Barb Tee Services

  • Shearing
  • Heat Treatment
  • Cutting
Stainless Reducing Tee Packaging

Stainless Reducing Tee Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
Stainless Steel T Pipe Surface Finish

Stainless Steel T Pipe Surface Finish

  • Pickled
  • Polished
Stainless Steel Threaded Tee Testing

Stainless Steel Threaded Tee Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test
Stainless Steel Equal Tee Price

Are You Trying to Find the Best Deal on Stainless Steel Tee Fittings? To get an estimate right away, send an email to kalpesh@manishasteelcentre.com.

SS Equal Tee Price in USD
1/2" US $6.45
1/4" US $3.20
1/8" US $3.11
1" US $16.04
1 1/4" US $21.98
1 1/2" US $30.13
3/4" US $9.70
3/8" US $4.57
2" US $42.86
2 1/2" US $79.33
3" US $124.50
4" US $221.40
SS Tee Fittings Dimension Tolerances
NPS 32 to 48 26 to 30 20 to 24 10 to 18 5 to 8 4 3 to 3½ 1/2 to 2½
Outside Dia at Bevel (D) +6.4 -4.8 +6.4 -4.8 +6.4 -4.8 +4 -3.2 +2.4 -1.6 1.6 1.6 +1.6 -0.8
Inside Dia at End +6.4 -4.8 +6.4 -4.8 4.8 3.2 1.6 1.6 1.6 0.8
Center to End (C / M) 5 3 2 2 2 2 2 2
Wall Thk (t) 87.5% or more of the nominal wall thickness

Supplier Of 316 and 304 Stainless Steel Tee in Most Demanding Sizes like 1/2, 3 4, 1 4, 2 inch or Custom in Mumbai

304 Stainless Steel Tee Size Chart

Genuine Stainless Steel Tee Fittings Manufacturer in India As Per Specification



Nominal Size (inches) Outside Diameter (OD) Wall Thickness (Schedule) Branch Diameter
1/2 21.3 mm 1.65 mm (SCH 10) 21.3 mm
3/4 26.7 mm 2.11 mm (SCH 40) 26.7 mm
1 33.4 mm 2.77 mm (SCH 40) 33.4 mm
1-1/2 48.3 mm 3.05 mm (SCH 40) 48.3 mm
2 60.3 mm 3.91 mm (SCH 40) 60.3 mm
3 88.9 mm 5.49 mm (SCH 40) 88.9 mm
4 114.3 mm 6.02 mm (SCH 40) 114.3 mm

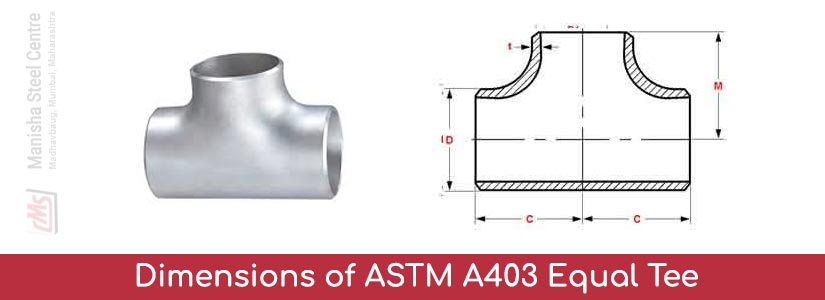

Dimensions of ASTM A403 SS Equal Tee
Dimensions of ASTM A403 SS Equal Tee



NPS (Inch.) OD Center to End (C ) Length (M)
1 33.4 38 38
1 1/4 42.2 48 48
1 1/2 48.3 57 57
2 60.3 64 64
2 1/2 73 76 76
3 88.9 86 86
3/4 26.7 29 29
24 610 432 432
26 660 495 495
20 508 381 381
10 273.1 216 216
5 141.3 124 124
1/2 21.3 25 25
46 1168 851 800
6 168.3 143 143
8 219.1 178 178
34 864 635 635
22 559 419 419
3 1/2 101.6 95 95
4 114.3 105 105
38 965 711 711
40 1016 749 749
42 1067 762 711
44 1118 813 762
28 711 521 521
30 762 559 559
32 813 597 597
36 914 673 673
12 323.9 254 254
14 355.6 279 279
16 406.4 305 305
18 457.2 343 343
48 1219 889 838
SS Threaded Reducing Tee Weight Chart
NPS LBS KG
1 1 0.45
1.1/4 2 0.91
3 10 4.54
3.1/2 – –
4 25 11.34
2.1/2 8 3.63
1/2 0.36 0.16
3/4 0.58 0.26
10 260 117.93
5 55 24.95
6 62 28.12
8 110 49.9
1.1/2 3 1.36
2 5 2.27
12 480 217.72

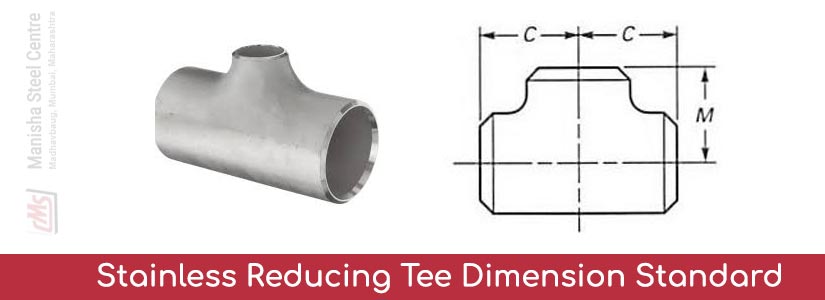

Stainless Reducing Tee Dimension Standard
Stainless Reducing Tee Dimension Standard



NPS OD at bevel Center-to-End
Run (C) Outlet(M)
1/2" 21.3 25 25
2" 60.3 64 64
2 1/2" 73.0 76 76
3" 88.9 86 86
3 1/2" 101.6 95 95
1 1/4" 42.2 48 48
1 1/2" 48.3 57 57
8" 219.1 178 178
5" 141.3 124 124
6" 168.3 143 143
3/4" 26.7 29 29
1" 33.4 38 38
20" 508.0 381 381
22" 559.0 419 419
10" 273.0 216 216
12" 323.8 254 254
14" 355.6 279 279
16" 406.4 305 305
18" 457.0 343 343
4" 114.3 105 105
24" 610.0 432 432

Stock SS Threaded Tee and Pressure Tank Tee For Leak-tight Performance, Refer Stainless Steel Pipe Tee Types

SS Pressure Tank Tee Pressure Rating Chart
Threaded Tee Pressure-Temperature
Temperature Class
150 300
1/4 - 1 inch. 1 1/4 - 2 inch. 2 1/2 - 3 inch.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
250 121 225 1575 1200 825
200 93 265 1785 1350 910
350 177 150 1150 900 650
300 149 185 1360 1050 735
450 232 - 725 600 475
400 204 - 935 750 560
550 288 - 300 300 300
500 260 - 510 450 385
Most Common Types of Stainless Steel Tee Fittings

Trusted Stainless Steel Tee Fittings Supplier in India in Custom Shapes and Types

SS Reducing Tee

SS Reducing Tee

Stainless Steel Barbed Tee

Stainless Steel Barbed Tee

SS Flanged Tee

SS Flanged Tee

Stainless Steel Pressure Tank Tee

Stainless Steel Pressure Tank Tee

Stainless Tank Tee

Stainless Tank Tee

Stainless Pipe Tee

Stainless Pipe Tee

Stainless Steel Cross Tee

Stainless Steel Cross Tee

SS Equal Tee

SS Equal Tee

Stainless Steel Hose Barb Tee

Stainless Steel Hose Barb Tee

Stainless Mechanical Tee

Stainless Mechanical Tee

Stainless Steel Street Tee

Stainless Steel Street Tee

Stainless Threaded Tee

Stainless Threaded Tee

Buy Wide Variety of Stainless Steel Barbed Tee Fittings for Quick and Easy Assembly, Check SS Tee HSN Code
Stainless Steel Tee HSN Code
Description HSN Code
Stainless Steel Tee 73079990

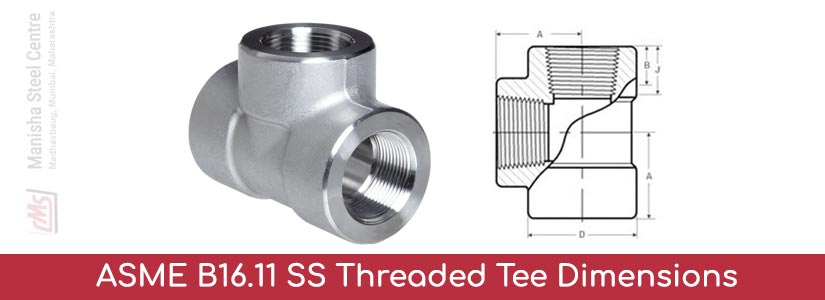

ASME B16.11 SS Threaded Tee Dimensions
ASME B16.11 SS Threaded Tee Dimensions



NPS O.D. of Band D Center to End A Minimum Length of Thread Minimum Weight
B J
1/2 33 28 10.9 13.6 3.18
1.1/4 56 44 17 18 3.89
1.1/2 62 51 17.8 18.4 4.01
3/4 38 33 12.7 13.9 3.18
1 46 38 14.7 17.3 3.68
2 75 60 19 19.2 4.27
2.1/2 92 76 23.6 28.9 5.61
3 109 86 25.9 30.5 5.99
4 146 106 27.7 33 6.55
Offer Stainless Steel Street and Unequal Tee in Both Welded and Seamless Form Ideal For Various Application
Stainless Steel Street Tee Application
  • Plumbing Systems
  • Compressed Air Systems
  • Irrigation Systems
  • Fuel and Gas Lines
  • Fire Sprinkler Systems
Difference Between Equal Tee And Barred Tee
Properties Equal Tee Barred Tee
Design Code / Standard ASME B 16.9 Shell DEP 31.40.10.13-Gen
Production Quantity Large scale in bulk Select small quantities (custom made)
Definition Standard Pipe Fitting A special type of piping component
Manufacturing Generally by forging Mostly Fabricated
Use Used in pipeline engineering used in pig launcher/receiver
Cost Cheaper Costlier than normal Tee

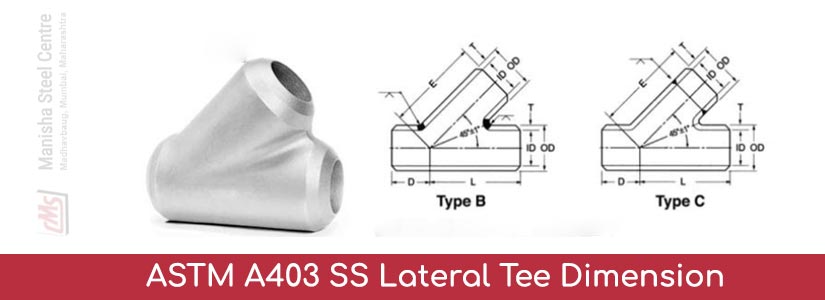

ASTM A403 SS Lateral Tee Dimension
ASTM A403 SS Lateral Tee Dimension



NPS TYPE OD X – S STD
E & L D T ID E & L D T ID
1 B 1.315 6.50 2.00 0.179 0.957 5.75 1.75 0.133 1.049
1¼ B 1.660 7.25 2.25 0.191 1.278 6.25 1.75 0.140 1.380
1½ B 1.900 8.50 2.50 0.200 1.500 7.00 2.00 0.145 1.610
2 A/B 2.375 *8.00 2.50 0.128 1.939 8.00 2.50 0.154 2.067
2½ B 2.875 **9.00 2.50 0.276 2.323 9.50 2.50 0.203 2.469
3 B 3.500 10.5011.00 3.00 0.300 2.900 10.00 3.00 0.216 3.068
3½ B 4.000 12.50 3.00 0.318 3.364 11.50 3.00 0.226 3.548
4 A/B 4.500 *12.00 3.00 0.337 3.826 12.00 3.00 0.237 4.026
5 B 5.562 **13.5015.00 3.50 0.375 4.813 13.50 3.50 0.258 5.047
6 A/B 6.625 *14.50 *3.50 0.432 5.761 14.50 3.50 0.280 6.065
8 B 8.625 **17.50 **4.00 0.500 7.625 17.50 4.50 0.322 7.981
10 B 10.750 24.00 5.50 0.500 9.750 20.50 5.00 0.365 10.020
12 B 12.750 27.50 6.00 0.500 11.750 24.50 5.50 0.375 12.000
14 B 14.000 31.00 6.50 0.500 13.000 27.00 6.00 0.375 13.250
16 B 16.000 34.50 7.50 0.500 15.000 30.00 6.50 0.375 15.250
18 B 18.000 37.50 8.00 0.500 17.000 32.00 7.00 0.375 17.250
20 B 20.000 40.50 8.50 0.500 19.000 35.00 8.00 0.375 19.250
24 B 24.000 47.50 10.00 0.500 23.000 40.50 9.00 0.375 23.250
What are the best practices for installing Stainless Tee fittings in a piping system?
  • Proper Selection of Tee Fittings
  • Cleanliness Before Installation
  • Proper Alignment
  • Correct Use of Threaded Fittings
  • Welding or Soldering
  • Proper Support and Stress Management
  • Pressure Testing
  • Ensure Proper Sealing
Stainless Steel Tee Fittings Equivalent Materials
Grades WERKSTOFF NR. UNS JIS BS AFNOR EN GOST
SS 304 1.4301 S30400 SUS 304 304S31 Z7CN18‐09 X5CrNi18-10 08Х18Н10
SS 304H 1.4301 S30409 – – – – –
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11 03Х18Н11
SS 310 1.4841 S31000 SUS 310 310S24 – X15CrNi25-20 20Ch25N20S2
SS 310S 1.4845 S31008 SUS 310S 310S16 – X8CrNi25-21 20Ch23N18
SS 310H – S31009 – – – – –
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 –
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 03Ch17N14M3 / 03Ch17N14M2
SS 316H 1.4401 S31609 – – – – –
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 Z6CNDT17‐123 X6CrNiMoTi17-12-2 08Ch17N13M2T
SS 317 1.4449 S31700 SUS 317 – – – –
SS 317L 1.4438 S31703 SUS 317L – – X2CrNiMo18-15-4 –
SS 321 1.4541 S32100 SUS 321 – – X6CrNiTi18-10 –
SS 321H 1.4878 S32109 SUS 321H – – X12CrNiTi18-9 –
SS 347 1.4550 S34700 SUS 347 – – X6CrNiNb18-10 08Ch18N12B
SS 347H 1.4961 S34709 SUS 347H – – X6CrNiNb18-12 –
SS 904L 1.4539 N08904 SUS 904L 904S13 Z2 NCDU 25-20 X1NiCrMoCu25-20-5 STS 317J5L
SS Unequal Tee Chemical Composition
Grades Cr (%) P (%) Ni (%) Mn (%) Si (%) C (%) S (%) Mo (%)
SS 304 18.00 – 20.00 0.045 max 8.00 – 10.50 2.00 max 0.75 max 0.08 max 0.03 max —
SS 304L 18.00 – 20.00 0.045 max 8.00 – 12.00 2.00 max 0.75 max 0.03 max 0.03 max —
SS 304H 18.00 – 20.00 0.045 max 8.00 – 12.00 2.00 max 1.00 max 0.04 – 0.10 0.03 max —
SS 310 24.00 – 26.00 0.045 max 19.00 – 22.00 2.00 max 1.50 max 0.25 max 0.03 max —
SS 310S 24.00 – 26.00 0.045 max 19.00 – 22.00 2.00 max 1.50 max 0.08 max 0.03 max —
SS 316 16.00 – 18.00 0.045 max 10.00 – 14.00 2.00 max 0.75 max 0.08 max 0.03 max 2.00 – 3.00
SS 316L 16.00 – 18.00 0.045 max 10.00 – 14.00 2.00 max 0.75 max 0.03 max 0.03 max 2.00 – 3.00
SS 316Ti 16.00 – 18.00 0.045 max 10.00 – 14.00 2.00 max 0.75 max 0.08 max 0.03 max 2.00 – 3.00
SS 317 18.00 – 20.00 0.045 max 11.00 – 15.00 2.00 max 1.00 max 0.10 max 0.03 max 3.00 – 4.00
SS 317L 18.00 – 20.00 0.045 max 11.00 – 15.00 2.00 max 1.00 max 0.03 max 0.03 max 3.00 – 4.00
SS 321 17.00 – 19.00 0.045 max 9.00 – 12.00 2.00 max 1.00 max 0.08 max 0.03 max —
SS 321H 17.00 – 19.00 0.045 max 9.00 – 12.00 2.00 max 1.00 max 0.04 – 0.10 0.03 max —
SS 347 17.00 – 19.00 0.045 max 9.00 – 13.00 2.00 max 1.00 max 0.08 max 0.03 max —
SS 410 11.50 – 13.50 0.04 max — 1.00 max 1.00 max 0.15 max 0.03 max —
SS 446 23.00 – 28.00 0.04 max — 1.50 max 1.00 max 0.20 max 0.03 max —
SS 904L 19.00 – 23.00 0.045 max 24.00 – 26.00 2.00 max 1.00 max 0.02 max 0.03 max 4.00 – 5.00
Mechanical Properties of Stainless Steel Hose Barb Tee
Grade Yield Strength (MPa) Tensile Strength (MPa) Hardness (HRB) Modulus of Elasticity (GPa) Elongation (%) Poisson’s Ratio
SS 304L 205 520 – 720 85 – 95 193 40 – 50 0.29
SS 304H 205 520 – 720 85 – 95 193 40 – 50 0.29
SS 310 205 – 275 515 – 740 90 – 105 193 40 – 50 0.29
SS 310S 205 – 275 515 – 740 90 – 105 193 40 – 50 0.29
SS 316 205 520 – 720 85 – 95 193 40 – 50 0.29
SS 316L 205 520 – 720 85 – 95 193 40 – 50 0.29
SS 316Ti 205 520 – 720 85 – 95 193 40 – 50 0.29
SS 317 205 520 – 730 85 – 95 193 40 – 50 0.29
SS 317L 205 520 – 730 85 – 95 193 40 – 50 0.29
SS 321 205 520 – 720 85 – 95 193 40 – 50 0.29
SS 321H 205 520 – 720 85 – 95 193 40 – 50 0.29
SS 347 205 520 – 720 85 – 95 193 40 – 50 0.29
SS 410 205 520 – 720 85 – 95 190 35 – 45 0.28
SS 446 205 520 – 720 85 – 95 190 40 – 50 0.28
SS 904L 205 520 – 720 85 – 95 193 40 – 50 0.29
ASTM A403 Stainless Pipe Tee Physical Properties
Grades Melting Point (°C) Density (g/cm³) Electrical Resistivity (µΩ·cm) Coefficient of Thermal Expansion (μm/m·°C) Thermal Conductivity (W/m·K)
SS 304 1,400–1,450 8.00 0.072 16.0 16.2
SS 304L 1400 – 1450 7.93 72.3 16.0 16.2
SS 304H 1400 – 1450 7.93 72.3 16.0 16.2
SS 310 1400 – 1450 7.90 72.0 17.0 14.0
SS 310S 1400 – 1450 7.90 72.0 17.0 14.0
SS 316 1375 – 1400 7.98 74.0 16.5 16.3
SS 316L 1375 – 1400 7.98 74.0 16.5 16.3
SS 316Ti 1375 – 1400 7.98 74.0 16.5 16.3
SS 317 1375 – 1400 7.95 74.5 16.5 16.3
SS 317L 1375 – 1400 7.95 74.5 16.5 16.3
SS 321 1400 – 1450 7.93 74.0 16.0 16.2
SS 321H 1400 – 1450 7.93 74.0 16.0 16.2
SS 347 1400 – 1450 7.93 74.0 16.0 16.2
SS 410 1480 – 1530 7.75 78.0 11.5 30.0
SS 446 1400 – 1450 7.80 76.0 11.5 30.0
SS 904L 1350 – 1400 8.00 70.0 16.0 15.0
What is the difference between 304 and 316 SS Tee fittings?
Property 304 Stainless Steel Tee Fittings 316 Stainless Steel Tee Fittings
Corrosion Resistance Good Excellent
Nickel Content 8-10.5% 10-14%
Molydbenum Content No molybdenum Contains 2-3% molybdenum for added corrosion resistance
Price Less expensive More expensive
Application General-purpose applications (e.g., food processing, plumbing) Marine, chemical, pharmaceutical industries, and high-corrosion environments
Strength Good strength and durability Higher strength and better resistance
Advantages & Disadvantages of SS Tee Fittings
Advantages & Disadvantages of SS Tee Fittings
What maintenance is required to prolong the lifespan of SS Tee fittings?
  • Regular Visual Inspections
  • Clean the Fittings Regularly
  • Monitor and Maintain Proper Alignment
  • Inspect and Tighten Connections
  • Monitor Pressure and Temperature Conditions
  • Prevent Chemical Exposure
  • Regular Pressure Testing
  • Ensure Proper Lubrication
Check Available Stock

Manisha Steel Centre is a reputed Stainless Steel Tee Fittings Manufacturers in India known for delivering durable and high-quality products to meet global standards.

Corrosion Resistance 304 Stainless Steel Seamless Tee

Corrosion Resistance 304 Stainless Steel Seamless Tee

Stainless Steel 100mm Equal Tee

Stainless Steel 100mm Equal Tee

316L Stainless Steel High-pressure Seamless Thick Wall Reducing Tee

316L Stainless Steel High-pressure Seamless Thick Wall Reducing Tee

ASME B16.9 WP316 Stainless Steel Equal Tee

ASME B16.9 WP316 Stainless Steel Equal Tee

ASTM A403 AISI 316Ti Stainless Steel Tees

ASTM A403 AISI 316Ti Stainless Steel Tees

Stainless Steel BSP NPT Threaded Cross Tee

Stainless Steel BSP NPT Threaded Cross Tee

Stainless Steel Tee Fittings Delivery Time As Per Location
Price variations 5 % extra
Export to Days for Shipping
UAE 5 days
Singapore 8
Qatar 7
USA 40-60
Belgium 6-9
Netherlands 19-20
Germany 15-50
Uk 30
France 30
Oman 5
Saudi Arabia 7
Indonesia 9
Bahrain 9
Italy 30
Malaysia 10
Philippines 14
South Africa 25-30
Kuwait 10
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
