ASTM A403 WP304 Fittings

Home|ASTM A403 WP304 Fittings

Experienced Stainless Steel 304 Elbow and Tee Manufacturer in India

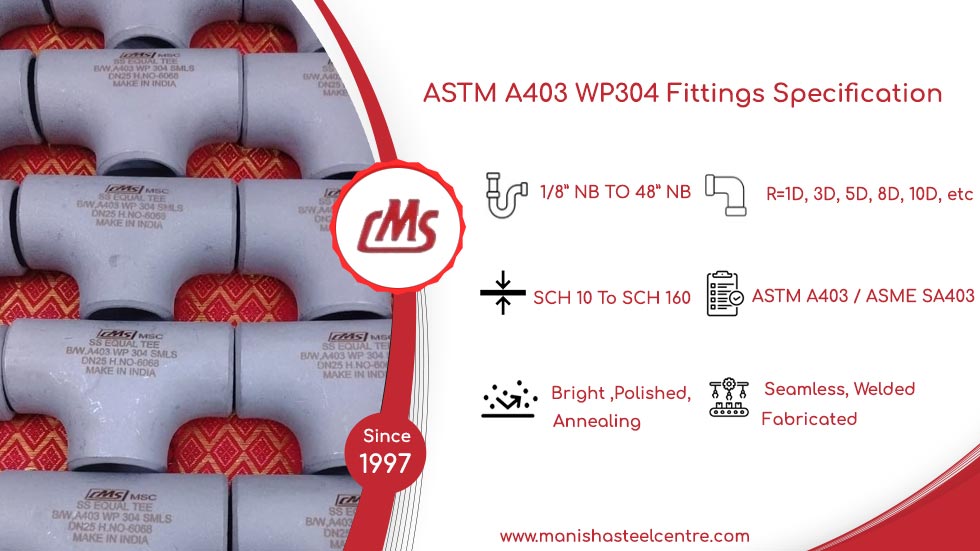

ASTM A403 WP304 Fittings Specification



List of Projects in Brazil where Manisha Steel Centre Supplied ASTM A403 WP304 Fittings
  • Petrobras Refinery Expansion
  • Itapemirim Logistics Center
  • Rio de Janeiro Olympic Park
  • Belo Monte Hydroelectric Plant
  • Santos Port Infrastructure Upgrade
  • Hydroelectric Power Plants
Manisha Steel Centre

Table of Content

ASTM A403 WP304 Fittings Specification
Stainless Steel 304 Pipe Fittings Sizes

Stainless Steel 304 Pipe Fittings Sizes

  • Welded Fittings: up to 48"
  • Seamless Fittings: 1/8" to 24"
  • Schedule : Sch 5S to XXS
  • End : Plain Bevel, Buttweld, Bevelled, Compound Bevel

ASTM A403 WP304 Fittings Manufacturing Standards

ASTM A403 WP304 Fittings Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1

ASTM A403 WP304 Elbow Physical Properties

ASTM A403 WP304 Elbow Physical Properties

  • Melting Point: 1450°C (2642°F)
  • Density:7.93 g/cm³
  • Heat Treatment: 0.500 J/g·K at 25°C (77°F)
ASTM A403 Grade WP304 Tee Process

ASTM A403 Grade WP304 Tee Process

  • Seamless
  • Fabricated
  • Welded


A403 Gr WP304 Fittings Types

A403 Gr WP304 Fittings Types

  • Elbow
  • Tee
  • Reducer
  • Stub End

ASTM A403 SS Pipe Fittings International Standards

ASTM A403 SS Pipe Fittings International Standards

  • ASTM A403
  • ASME SA 403
  • UNS S30403
  • WNR 1.4306 / 1.4307
ASTM A403 WP304 Elbow Bending Radius

ASTM A403 WP304 Elbow Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
ASTM A403 Gr WP304 Reducer Origin

ASTM A403 Gr WP304 Reducer Origin

  • European
  • Janpanese
  • Russia
  • American

A403 Gr WP304 Fittings Services

A403 Gr WP304 Fittings Services

  • Shearing
  • Heat Treatment
  • Cutting

ASTM A403 Grade WP304 Tee Packaging

ASTM A403 Grade WP304 Tee Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
ASTM A403 SS Pipe Fittings Surface Finish

ASTM A403 SS Pipe Fittings Surface Finish

  • Pickled
  • Polished
ASTM A403 Gr WP304 WX Cap Testing

ASTM A403 Gr WP304 WX Cap Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test

Stainless Steel 304 Pipe Fittings Dimensions

Are You Looking for the Best ASTM A403 WP304 Fittings Deal? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

NPS OD Straight Tees Caps Stub Ends Straight Crosses
(inches) (mm) (inches) Center to End (inches) Length (inches) Lap Diameter (inches) Long Length (inches) Short Length (inches) Center to End (inches)
1 1/4 42.2 1.660 1 7/8 1 1/2 2 1/2 4 2 1 7/8
1 1/2 48.3 1.900 2 1/4 1 1/2 2 7/8 4 2 2 1/4
2 60.3 2.375 2 1/2 1 1/2 3 5/8 6 2 1/2 2 1/2
2 1/2 73.0 2.875 3 1 1/2 4 1/8 6 2 1/2 3
1 33.4 1.315 1 1/2 1 1/2 2 4 2 1 1/2
3 88.9 3.500 3 3/8 2 5 6 2 1/2 3 3/8
4 114.3 4.500 4 1/8 2 1/2 6 3/16 6 3 4 1/8
3 1/2 101.6 4.000 3 3/4 2 1/2 5 1/2 6 3 3 3/4
1/2 21.3 0.840 1 1 1 3/8 3 2 –
3/4 26.7 1.050 1 1/8 1 1 11/16 3 2 –
5 141.3 5.563 4 7/8 3 7 5/16 8 3 4 7/8
6 168.3 6.625 5 5/8 3 1/2 8 1/2 8 3 1/2 5 5/8
8 219.1 8.625 7 4 10 5/8 8 4 7
10 273.1 10.750 8 1/2 5 12 3/4 10 5 8 1/2
12 323.9 12.750 10 6 15 10 6 10

Excellent Quality ASME SA 403 WP304 Butt Weld Fittings Supplier in Mumbai At Reasonable Price

ASTM A403 Grade WP304 Tee Price

Genuine ASTM A403 WP304 Fittings Manufacturer in India As Per Specification

Size Range SCH Price in USD per unit
1" 10S US$ 10.89
2" 10S US$ 17.06
2-1/2" 10S US$ 25.33
3" 10S US$ 34.16
4" 10S US$ 50.96
5" 10S US$ 84.40
6" 10S US$ 98.76
1/2" 10S US$ 6.50
1-1/2" 10S US$ 16.85
8" 10S US$ 189.45
10" 10S US$ 409.86
12" 10S US$ 538.49

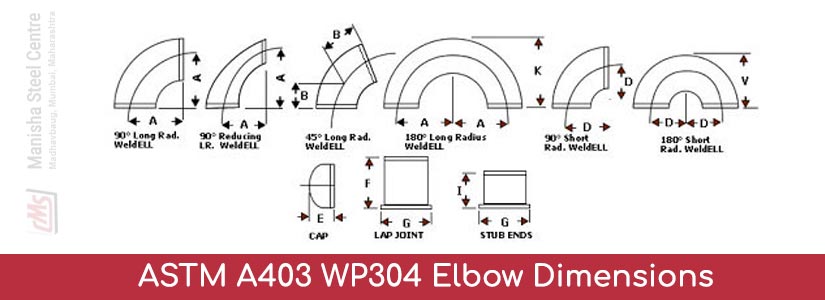

ASTM A403 WP304 Elbow Dimensions
ASTM A403 WP304 Elbow Dimensions



NPS (inch.) OD A403 WP304 45° Elbows A403 WP304 90° Elbows A403 WP304 180° Returns
LR LR SR LR
(mm) (inch.) Center to Face (inch.) Radius (inch.) Center to Face (inch.) Center to Face (inch.) Center to Center (inch.) Back to face (inch.)
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
1 1/4 42.2 1.660 1 1 7/8 1 1/4 3 3/4 2 3/4
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
8 219.1 8.625 5 12 12 8 24 16 5/16
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
5 141.3 5.563 3 1/8 10 7 1/2 5 15 10 5/16
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8
UNS S30400 Elbow Weight Chart
NPS LBS KG
1/2 0.18 0.08
1.1/4 0.6 0.27
1.1/2 0.9 0.41
2 1.6 0.73
2.1/2 3.25 1.47
3 5 2.27
3.1/2 6.75 3.06
4 9 4.08
3/4 0.19 0.09
1 0.4 0.18
10 88 39.92
12 125 56.7
14 160 72.57
16 206 93.44
8 50 22.68
24 460 208.65
26 550 249.48
30 734 332.94
18 260 117.93
20 320 145.15
22 394 178.72
5 15 6.8
6 24.5 11.11
36 1062 481.72
ASTM A403 Gr WP304L Reducer Size Chart
NPS Reduced from (inches) 1/2 3/4 1 1/2 1 1/4 2 1/2 1 2 3 3 1/2
OD (mm) 21.3 26.7 48.3 42.2 73 33.4 60.3 88.9 101.6
(inches) 0.84 1.05 1.9 1.66 2.875 1.315 2.375 3.5 4
Reducers Reduced to (inches) 01-Apr 03-Aug 03-Aug 01-Feb 01-Feb 03-Apr 1 1 1/4 01-Feb 03-Apr 1 1 1 1/4 1 1/2 2 03-Aug 01-Feb 03-Apr 03-Apr 1 1 1/4 1 1/2 1 1 1/2 2 2 1/2 1 1/4 1 1/2 2 2 1/2 3
Concentric & Eccentric Length (inches) 1 1/2 1 1/2 2 2 2 1/2 2 1/2 2 1/2 2 1/2 2 2 2 3 1/2 3 1/2 3 1/2 3 1/2 2 2 2 3 3 3 3 3 1/2 3 1/2 3 1/2 3 1/2 4 4 4 4 4

Buy Custom Size ASTM A403 Gr WP304 Wx Cap and Reducer in Seamless or Welded Form With Heat Treatment

ASTM A403 Gr WP304 Wx Cap Heat Treatment
Heat Treatment Process Temperature Range (°C) Temperature Range (°F)
Solution Annealing 1038 - 1121 °C 1900 - 2050 °F
Stress Relieving 399 - 510 °C 750 - 950 °F
Solution Heat Treatment (Alternative Process) 1010 - 1121 °C 1850 - 2050 °F
Pickling (Post-Heat Treatment) Not applicable Not applicable
Annealing (Alternative Process) 871 - 927 °C 1600 - 1700 °F
Most Common Types of ASTM A403 WP304 Fittings

Trusted ASTM A403 WP304 Fittings Supplier in India in Custom Shapes and Types

ASME SA 403 WP304 Seamless Pipe Fittings

ASME SA 403 WP304 Seamless Pipe Fittings

A403 Gr WP304 Weldable Pipe Fittings

A403 Gr WP304 Weldable Pipe Fittings

ASTM A403 Grade WP304 Elbow

ASTM A403 Grade WP304 Elbow

ASME SA 403 WP304 Tee

ASME SA 403 WP304 Tee

ASTM A403 Gr. WP304 Reducer

ASTM A403 Gr. WP304 Reducer

ASTM A403 Gr WP304 Cap

ASTM A403 Gr WP304 Cap

ASTM A403 Gr WP304 WX Stub End

ASTM A403 Gr WP304 WX Stub End

ASTM A403 WP304 Pipe Bend

ASTM A403 WP304 Pipe Bend

A403 Grade WP304 Cross

A403 Grade WP304 Cross

Offer All Types of ASTM A403 WP 304 Stainless Steel Fittings For Pressure Piping Applications
ASTM A403 Gr WP304 WX Cap Pressure class
NPS (inches) OD (inch) Wall Thick. (inch) Pipe Sch Temperature (oF)
100 200 300 400 500 600 650 700 750
Allowable Stress (psi)
16700 16700 16700 15500 14400 13500 13200 12900 12600
5" 5.563 0.258 40 965 965 965 896 832 780 763 746 728
5.563 0.375 80 1428 1428 1428 1325 1231 1154 1129 1103 1077
5.563 0.625 160 2474 2474 2474 2296 2133 2000 1955 1911 1866
4" 4.500 0.237 40 1102 1102 1102 1023 950 891 871 851 831
4.500 0.337 80 1596 1596 1596 1482 1377 1291 1262 1233 1204
4.500 0.531 160 2611 2611 2611 2424 2552 2111 2064 2017 1970
3" 3.500 0.216 40 1301 1301 1301 1208 1122 1052 1028 1005 982
3.500 0.300 80 1844 1844 1844 1712 1590 1491 1458 1425 1391
3.500 0.438 160 2787 2787 2787 2587 2403 2253 2203 2153 2103
2" 2.375 0.154 40 1371 1371 1371 1272 1182 1108 1083 1059 1034
2.375 0.218 80 1985 1985 1985 1843 1712 1605 1569 1534 1498
2.375 0.344 160 3283 3283 3283 3047 2831 2654 2595 2536 2477
1 1/2" 1.900 0.145 40 1629 1629 1629 1512 1404 1317 1287 1258 1229
1.900 0.200 80 2303 2303 2303 2138 1986 1862 1821 1779 1738
1.900 0.281 160 3362 3362 3362 3120 2899 2717 2657 2597 2536
1" 1.315 0.133 40 2205 2205 2205 2047 1902 1783 1743 1703 1664
1.315 0.179 80 3061 3061 3061 2841 2640 2475 2420 2365 2310
1.315 0.250 160 4493 4493 4493 4170 3874 3632 3552 3471 3390
ASTM A403 WP 304 SS Fittings Applications
  • Chemical Processing Industry
  • Food and Beverage Industry
  • Petrochemical and Oil & Gas Industry
  • Power Generation Industry
  • Water Treatment and Desalination
  • Pharmaceutical and Biotech Industry
  • HVAC Systems

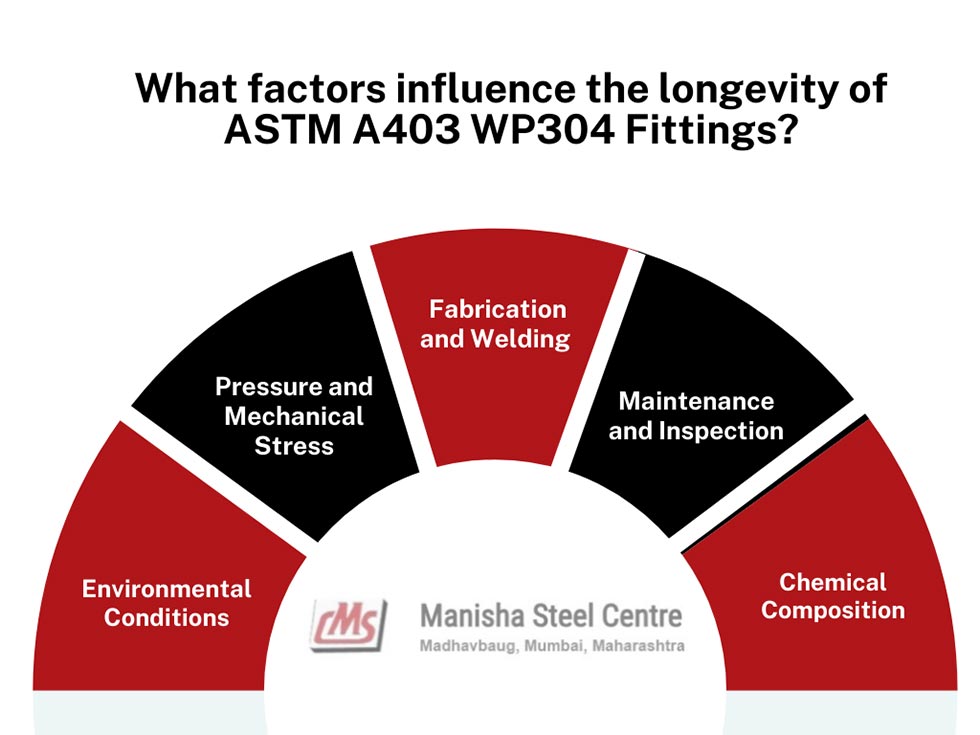

What factors influence the longevity of ASTM A403 WP304 Fittings?
Longevity of ASTM A403 WP304 Fittings
ASTM A403 SS Pipe Fittings Schedule Chart
NPS SCH 80S SCH 10S SCH 40S
Equal Tee 45 Deg Elbow 90 Deg Elbows
8 0.07 0.01 0.03
10 0.09 0.02 0.03
15 0.14 0.03 0.08
20 0.20 0.03 0.08
25 0.38 0.08 0.15
32 0.68 0.11 0.26
40 1.02 0.17 0.40
50 1.59 0.25 0.70
65 3.13 0.48 1.40
80 4.45 0.63 2.20
90 5.44 0.75 2.83
100 7.71 1.08 4.47
150 13.61 2.72 10.89
200 28.12 5.33 21.54
250 49.90 9.75 38.56
300 83.91 13.62 59.42
Find Ready Stock Of ASTM A403 Grade WP304 Stub End and Cross Tested With Tension Test To Determine the Tensile Properties
ASTM A403 Grade WP304 Stub End Testings
Testing Type Destructive/Non-Destructive
Tensile Test Destructive
Hardness Test Non-Destructive
Impact Test Destructive
Hydrostatic Test Destructive
Visual Inspection Non-Destructive
Dimensional Test Non-Destructive
Chemical Analysis Destructive
Bend Test Destructive
Flaw Detection Test Non-Destructive
ASTM A403 WP304 Equivalent Standards
STANDARD UNS WERKSTOFF NR. BS AFNOR EN GOST JIS
SS 304 S30400 1.4301 304S31 Z7CN18‐09 X5CrNi18-10 08Х18Н10 SUS 304
ASTM A403 SS Pipe Fittings Chemical Composition
Grade Cr Mo Ni C N P Si Mn S
SS 304 18 – 20 – 8 – 11 0.08 max – 0.045 max 0.75 max 2 max 0.030 max
Mechanical Properties of A403 Gr WP304 Fittings
Properties Tensile Strength Yield Strength (0.2%Offset) Elongation
Values Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
ASME SA 403 WP304 Weld Fittings Physical Properties
Properties Elastic Modulus (GPa) Specific Heat 0-1000C(J/kg.K) Electrical Resistivity (n.m) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity(W/m.K)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
Values 193 500 720 17.2 17.8 18.4 16.2 21.5
What is the difference between seamless and welded ASTM A403 WP304 Fittings?
Property ASTM A403 WP304 Seamless Fittings ASTM A403 WP304 Welded Fittings
Wall Thickness Uniform Varies near weld
Strength Higher Lower at weld
Pressure Resistance Higher Lower at weld
Cost Higher Lower
Manufacturing Process Solid billet, no joint Welded joint
Corrosion Resistance Consistent May be affected near weld
Size Range Limited to standard sizes Can be larger, flexible
Formability Excellent Good, but varies at weld
ASTM A403 WP304 Fittings Delivery Time As Per Location
Variations in Price 5 % extra
Export to Delivery Time in Days
Italy 30
USA 40-60
Belgium 6-9
Netherlands 19-20
Germany 15-50
Indonesia 9
Bahrain 9
Uk 30
Malaysia 10
France 30
South Africa 25-30
Philippines 14
Oman 5
Saudi Arabia 7
Singapore 8
Qatar 7
UAE 5 days
Kuwait 10
