Inconel Pipe | Alloy 625/ 600/ 718 Tube Manufacturer in India

How Buyers of Inconel Pipe getting Benefits to Buy Material from Manisha Steel Centre?

Affordable Rates
Superior Quality Requirements
Numerous Sizes
On-time Delivery
Technical Assistance
Long-Term Collaborations

Table of Content

Inconel Pipe Specification
Types Of Inconel Alloy Pipes
Hs Code of Inconel 625 Tubing
Inconel Pipe Sizes
Inconel 600 vs Inconel 800
Inconel 625 Welded Pipe Thickness Chart in mm
Schedule Chart of Inconel Exhaust Pipe
Inconel 718 Pipe Applications
Alloy 718 Hot Finished Tube Pressure Rating
Inconel Pipe Price List
Weight Chart of Inconel 600 ERW Pipe
Inconel Seamless Pipe Bending Methods
Inconel Tube Welding
Temperature Range of Inconel Straight Gas Tube
Inconel Alloy Pipe Grades
Chemical Composition of Inconel Clad Pipe
ASME SB 338 Round Pipe Dimensions
Mechanical Properties of Inconel Welded Tubing
Equivalent Grades of SCH 60 Inconel Alloy Pipe
Density of Inconel Boiler Tubes
What is the Difference Between Inconel and Monel Pipe?
What are the Key Benefits of using Inconel Pipes in High-Temperature Applications?

Genuine Inconel Tube Manufacturer in India With MTC

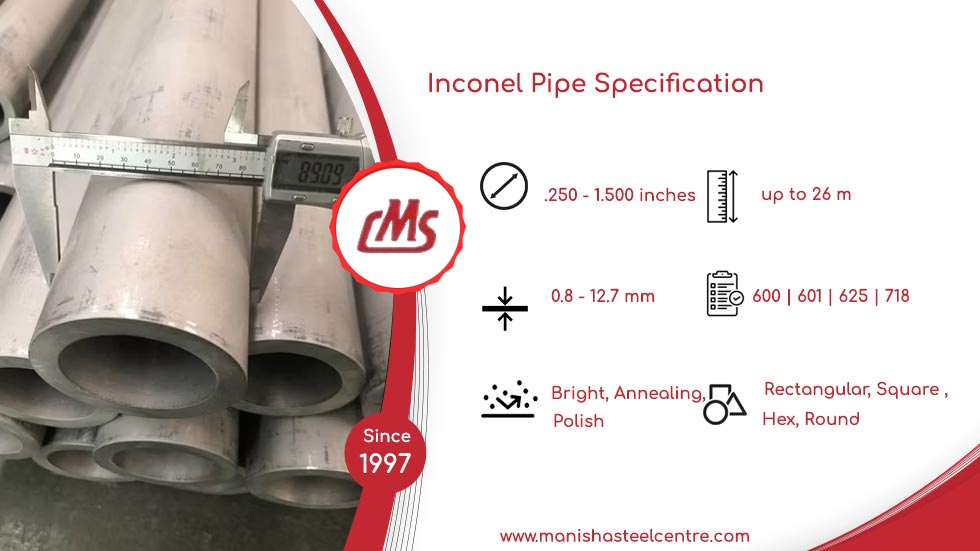

Inconel Pipe Specification

Inconel Seamless Pipe Sizes

Wall Thickness:.028 - .065 inches
OD: .250 - 1.500 inches
Length: cut to size / custom

Alloy 625 Welded Pipe Size

Wall Thickness: 0.8 - 12.7 mm
OD: 6.35 - 114.3 mm
Length:up to 26 m

Inconel 718 ERW Pipe Manufacturing Process

Precision Rolled
Cold Formed
Hot Formed

Alloy 600 Capillary Tube

Wall Thickness: 0.1 - 3 mm
OD: 0.4 - 16 mm
Length: 0.5 - 12 m

Inconel Pipe Standards

Grades : 600 | 625 | 718
DIN,UNS, API
UNS : N06600 | N06625 |N07718

Alloy 718 Cold Finished Pipe Documentation

PMI Test Reports
Mill Test Certificates
Visual Inspection

Inconel 625 Seamless Tube Shapes

Rectangle
Hex
Square
Round

Inconel Alloy Tube Origin

American
European
Russia
Janpanese

SCH40 Inconel Alloy Thick Wall Tube Services

Heat Treatment
Cutting
Shearing

Inconel 625 Hollow Pipe Packaging

Wooden Box
Bundled
Bubble Wraps

Inconel Exhaust Tubing Finish

Polished
Annealing
Bright

Inconel Straight Gas Tube End

Plain
Beveled

Inconel Gas Tube Testing

Ultrasonic
Mechanical
Chemical
PMI

Inconel 625 Tubing Manufacturing Method

Welded
ERW
Seamless

Types Of Inconel Alloy Pipes

Inconel Pipe Supplier in India are easily accessible in various Shapes and Forms

Inconel Alloy Seamless Pipe

Inconel 625 Welded Pipe

Inconel Exhaust Pipe

Inconel Alloy Hot Rolled Pipe

Inconel 600 Round Pipe

Alloy 718 ERW Pipe

Inconel Clad Pipe

Alloy 625 Square Tube

Inconel 600 Rectangular Tube

Hs Code of Inconel 625 Tubing

HS CODE	75071200

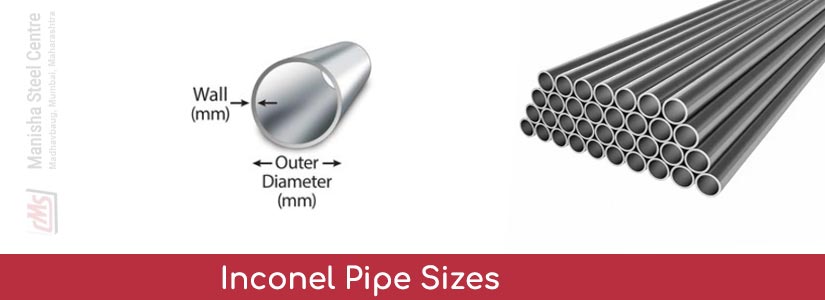

Inconel Pipe Sizes

To meet the needs of their clients, Inconel Pipe Manufacturer in India provides a variety of sizes.

OD mm	in.	Pipe WT mm	Kg/m	Sch
219.08	8	23.012)	112.97	160
168.28	6	3.4	14.04	10S
141.30	5	6.55	22.10	40S
141.30	5	6.55	22.10	40S
114.30	4	3.05	8.50	10S
101.60	3½	3.05	7.53	10S
88.90	3	3.05	6.56	10S
73.03	2½	3.05	5.35	10S
60.33	2	2.77	3.99	10S
48.26	1½	2.77	3.16	10S
42.16	1¼	2.77	2.73	10S
33.40	1	2.77	2.13	10S
26.67	3/4	2.11	1.30	10S
21.34	1/2	2.11	1.02	10S
17.15	3/8	1.65	0.64	10S
13.72	1/4	1.65	0.50	10S

Inconel 600 vs Inconel 800

Property	Inconel 600	Inconel 800
Grade / Material	Alloy 600	Alloy 800
Temperature Range	1,100°F / (593°C)	1,800°F / (982°C)
Fabrication	Easily weldable and good formability	weldability is Good
Strength	Good strength	Higher
Creep Resistance	normal resistance	creep resistance is Excellent
Applications	Heat exchangers, furnace components, chemical processing, nuclear reactors	Heat exchangers, petrochemical processing, steam generators, power plants
Thermal Expansion	low thermal expansion	High thermal expansion

Supplier Of Inconel Alloy Seamless and Welded Pipe With Custom OD and Wall Thickness in Mumbai

Inconel 625 Welded Pipe Thickness Chart in mm

Size (mm)	OD (Outside Diameter) (mm)	ID (Inside Diameter) (mm)	Wall Thickness (mm)
3.18	10.29	6.55	1.73
19.05	26.67	20.77	2.87
6.35	13.72	9.47	2.24
25.40	33.40	24.33	3.56
76.20	88.90	67.92	5.49
12.70	21.34	16.32	2.31
101.60	114.30	84.32	6.02
31.75	42.16	29.80	3.56
127.00	141.30	102.20	6.55
38.10	47.80	34.36	3.56
152.40	168.91	113.63	7.11
50.80	60.33	42.72	3.91
254.00	273.05	162.51	9.27
63.50	73.03	58.58	5.16
203.20	219.08	142.62	8.17
88.90	101.60	76.14	5.73
355.60	355.60	190.34	11.13
304.80	323.85	183.23	10.31
406.40	406.40	192.30	12.70

Schedule Chart of Inconel Exhaust Pipe

Pipe Size (inches)	Schedule XXS	Schedule 160	Schedule 80	Schedule 60
16"	16.000	16.000	16.000	16.000
3"	3.500	3.500	3.500	3.500
1/8"	0.405	0.405	0.405	0.405
6"	6.625	6.625	6.625	6.625
1/4"	0.540	0.540	0.540	0.540
14"	14.000	14.000	14.000	14.000
1/2"	0.840	0.840	0.840	0.840
4"	4.500	4.500	4.500	4.500
3/4"	1.050	1.050	1.050	1.050
12"	12.750	12.750	12.750	12.750
1"	1.315	1.315	1.315	1.315
8"	8.625	8.625	8.625	8.625
1 1/4"	1.660	1.660	1.660	1.660
5"	5.563	5.563	5.563	5.563
1 1/2"	1.900	1.900	1.900	1.900
10"	10.750	10.750	10.750	10.750
2"	2.375	2.375	2.375	2.375
3 1/2"	4.000	4.000	4.000	4.000
2 1/2"	2.875	2.875	2.875	2.875

Buy Inconel Exhaust Pipe in Various Grades Like Alloy 625/600/718 etc For Aerospace and Automotive

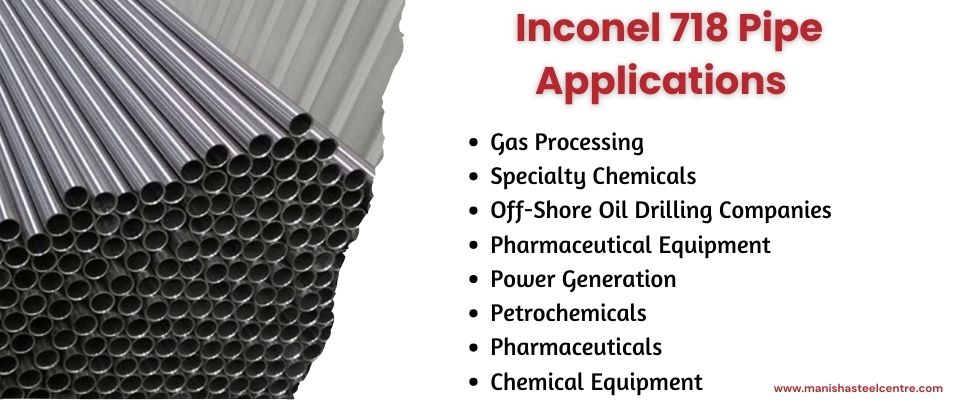

Inconel 718 Pipe Applications

Alloy 718 Hot Finished Tube Pressure Rating

Size mm	Maximum internal pressure, ksi
	100°F	400°F	200°F	600°F	300°F	700°F	500°F
10x1	534	524	534	505	529	494	516
16x1	324	318	324	307	321	300	313
6 x1	940	921	940	888	930	869	907
12x1	440	431	440	415	435	407	424
8x2	1476	1447	1476	1395	1462	1366	1425

Before Dealing With Other Inconel Pipe Supplier Don't Forget To Compare Our Price List

Inconel Pipe Price List

Are You Trying to Find the Cheapest Inconel Pipe? For a prompt estimate, send an email to kalpesh@manishasteelcentre.com.

Price list	Price in USD	Price in UAE Dirham
INCONEL 625 SMLS PIPE SIZE:25NB	US $ 110.19	UAE 404.73
INCONEL 718 ALLOY PIPES	US $ 8.28	UAE 30.41
INCONEL600 SEAMLESS PIPE Size : OD:26.67MM	US $ 29.27	UAE 107.51

Weight Chart of Inconel 600 ERW Pipe

NPS	Outside Diameter		Weight	Wall Thickness			Weight
NPS	in	mm	kg/Mtr	in	mm	Sched	Lb/ft
18″	18.000	457	61.948	0.219	5.563		41.588
1/2″	0.840	21	1.268	0.109	2.769	40 STD	0.851
10″	10.750	273	31.588	0.188	4.775		21.207
3/4″	1.050	27	1.684	0.113	2.870	40 STD	1.131
12″	12.750	324	37.570	0.188	4.775		25.222
1″	1.315	33	2.501	0.133	3.378	40 STD	1.679
20″	20.000	508	78.547	0.250	6.350		52.733
1 1/4″	1.660	42	3.385	0.140	3.556	40 STD	2.273
14″	14.000	356	41.308	0.188	4.775		27.732
1 1/2″	1.900	48	4.048	0.145	3.683	40 STD	2.718
16”	16.000	406	47.290	0.188	4.775		21.748
2″	2.375	60	5.441	0.154	3.912	40 STD	3.653
24″	24.000	610	94.456	0.250	6.350		63.413
3″	3.500	89	11.284	0.216	5.486	40 STD	7.576
2 1/2″	2.875	73	8.629	0.203	5.516	40 STD	5.793
4″	4.500	114	16.073	0.237	6.020		10.790
30″	30.000	762	118.318	0.250	6.350		79.433
6″	6.625	168	19.252	0.188	4.775		12.924
42″	42.000	1067	206.914	0.312	7.925		138.911
8″	8.625	219	25.233	0.188	4.775		16.940
48″	48.000	1219	284.112	0.375	9.525	STD	190.738
36″	36.000	914	142.180	0.250	6.350		95.453

Offer Inconel Gas Tube For High-Pressure Environments, Must Know About Inconel Tube Bending/Welding

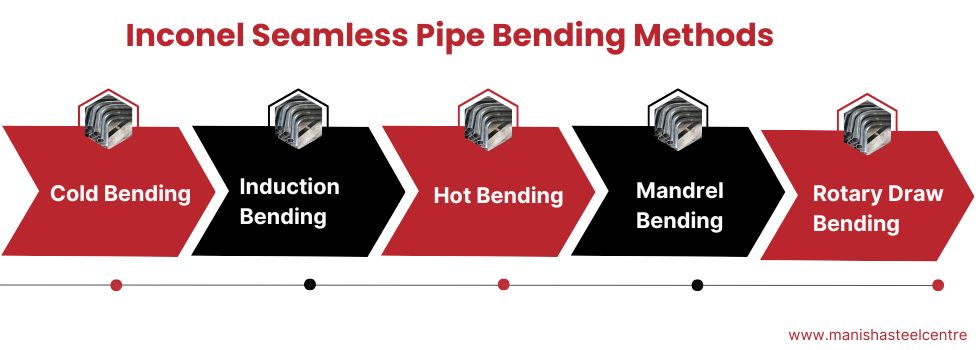

Inconel Seamless Pipe Bending Methods

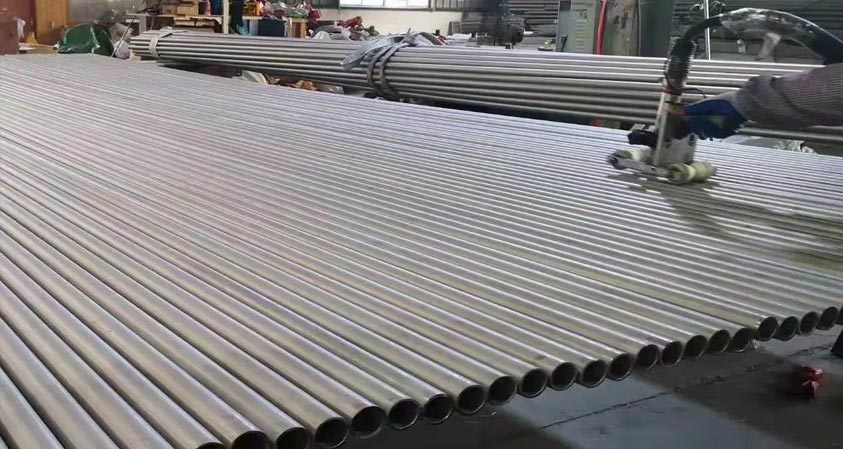

Inconel Tube Welding

Submerged Arc Welding
TIG Welding
Electron Beam Welding
Stick Welding
MIG Welding
Shielded Metal Arc Welding

Temperature Range of Inconel Straight Gas Tube

Inconel Alloy	Temperature Range
Inconel 600	-200°F - 2,000°F or -128°C - 1,093°C
Inconel 625	-200°F - 2,000°F or -128°C - 1,093°C
Inconel 718	-423°F - 1,300°F or -253°C - 704°C

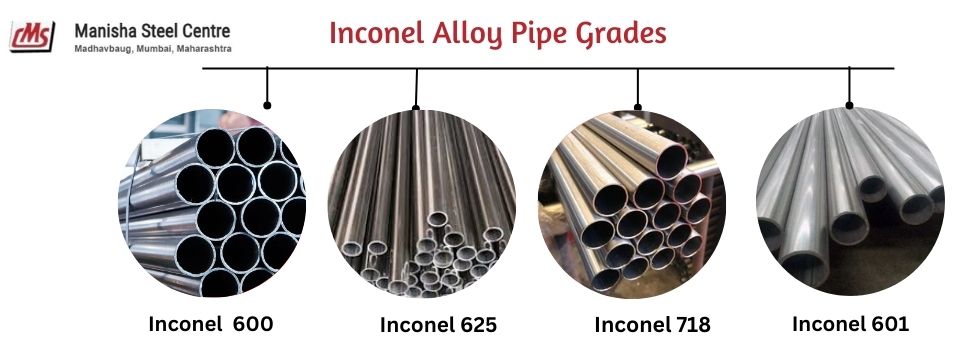

Inconel Alloy Pipe Grades

Chemical Composition of Inconel Clad Pipe

Inconel	Element (% By Mass)
Inconel	Ni	Mo	Cr	Mn	Fe	Co	Nb	Al	Cu	C	Ti	P	Si	B	S
600	72.0		14.0–17.0	1.0	6.0–10.0				0.5	0.15			0.5		0.015
625	58.0	8.0–10.0	20.0–23.0	0.5	5.0	1.0	3.15–4.15	0.4		0.1	0.4	0.015	0.5		0.015
718	50.0–55.0	2.8–3.3	17.0–21.0	0.35	Balance	1.0	4.75–5.5	0.65–1.15	0.2–0.8	0.08	0.3	0.015	0.35	0.006	0.015

Mechanical Properties of Inconel Welded Tubing

GRADE	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 600	1413 °C (2580 °F)	Psi 95,000 , MPa 655	Psi 45,000 , MPa 310	40 %
Inconel 625	1350 °C (2460 °F)	Psi 1,35,000 , MPa 930	Psi 75,000 , MPa 517	42.5 %
Inconel 718	1350 °C (2460 °F)	Psi 1,35,000 , MPa 930	Psi 75,000 , MPa 482	45 %

Equivalent Grades of SCH 60 Inconel Alloy Pipe

Grade	UNS No	Euronorm		Old British		Japanese JIS	GOST
Grade	UNS No	No	AFNOR	BS	En	Japanese JIS	GOST
600	N06600	2.4816	NC15FE11M	NA 13	NiCr15Fe	NCF 600	МНЖМц 28-2,5-1,5
625	N06625	2.4856	NC22DNB4M	NA 21	NiCr22Mo9Nb	NCF 625	ХН75МБТЮ
718	N07718	2.4668	-	-	-	NCF 718	-

Density of Inconel Boiler Tubes

GRADE	Density
Inconel 600	8.47 g/cm3
Inconel 625	8.4 g/cm3
Inconel 718	8.2 g/cm3

What is the Difference Between Inconel and Monel Pipe?

Property	Inconel Pipe	Monel Pipe
Material	Chromium + Nickel	Copper + Nickel
Corrosion Resistance	Excellent Resistance	Good in alkaline
Temperature Range	up to 2,000°F or 1,093°C	up to 1,000°F or 538°C
Applications	Aerospace,nuclear reactors, power generation	Marine, oil rigs , chemical processing,
Strength	High strength	lower Strength

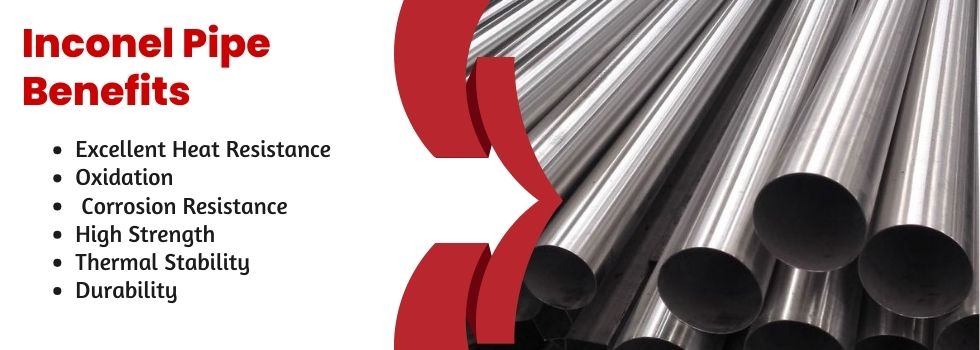

What are the Key Benefits of using Inconel Pipes in High-Temperature Applications?

Inconel Pipe Stock on hand

Inconel 625 Pipes for Heat Exchangers

Inconel 600 Pipe for Paper Industry

Inconel 625 Cold Drawn Pipe

Factory Inconel Alloy Weld Tube

Small to Large Diameter Schedule Inconel 625 Seamless Welded Pipe

High Quality Alloy Inconel 718 Pipe

Inconel Tube Estimated Time and Place

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Vietnam	10
Germany	20
Bangladesh	Dec-15
Belgium	45
Kazakhstan	45-60
Rotterdam	45
Russia	20
Thailand	7
Sweden	45
Australia	21
Norway	45
Cambodia	9
Bhutan	7
Kenya	19
Nepal	7
