Monel Pipe

Home| Monel Pipe
Monel Pipe Specification
Which 3 Test Reports Saudi Arabia Buyers should ask before Finalising the Material from India?
  • Mill Test Certificate (MTC)
  • Corrosion Resistance Test Report
  • Mechanical Testing Report
Manisha Steel Centre

Table of Content


Monel Tube Manufacturer in India As Per ASTM B163

Monel Pipe Specification
Monel K500 Seamless Pipe Sizes

Monel K500 Seamless Pipe Sizes

  • Wall Thickness:028 - .072 inches
  • OD: 125 - 2.00 inches
  • Length: custom / cut to size

Monel 400 Welded Pipe Size

Monel 400 Welded Pipe Size

  • Wall Thickness: 0.8 - 12.7 mm
  • Length:up to 26 m
  • OD:6.35 - 114.3 mm

B165 N04400 ERW Pipe Manufacturing Process

B165 N04400 ERW Pipe Manufacturing Process

  • Cold Formed
  • Precision Rolled
  • Hot Formed

Monel Capillary Tube

Monel Capillary Tube

  • OD: 0.4 - 16 mm
  • Wall Thickness: 0.1 - 3 mm
  • Length: 0.5 - 12 m


Monel Tube Standards

Monel Tube Standards

  • ASME SB 165 | ASTM B165
  • UNS ,DIN, API
  • UNS :N04400

Alloy 400 Tubing Documentation

Alloy 400 Tubing Documentation

  • Mill Test Certificates
  • PMI Test Reports
  • Visual Inspection

ASTM B165 N04400 Polish Pipe Shapes

ASTM B165 N04400 Polish Pipe Shapes

  • Round
  • Rectangle
  • Square
  • Hex
Monel Exhaust Pipe Origin

Monel Exhaust Pipe Origin

  • Russia
  • American
  • Janpanese
  • European
Alloy 400 Seamless Pipe Services

Alloy 400 Seamless Pipe Services

  • Cutting
  • Heat Treatment
  • Shearing


ASME SB165 N04400 Cold Rolled Pipe Packaging

ASME SB165 N04400 Cold Rolled Pipe Packaging

  • Bundled
  • Wooden Box
  • Bubble Wraps

Alloy 400 Hot Rolled Pipe Finish

Alloy 400 Hot Rolled Pipe Finish

  • Annealing
  • Polished
  • Bright
Monel K500 Tube End

Monel K500 Tube End

  • Beveled
  • Plain

Monel 400 Pipe Testing

Monel 400 Pipe Testing

  • Chemical
  • Ultrasonic
  • PMI
  • Mechanical

Alloy K500 Tube Manufacturing Method

Alloy K500 Tube Manufacturing Method

  • Seamless
  • ERW
  • Welded

HS Code of Monel 400 Welded Pipe
HS CODE
MOnel 400 Pipe 75071200

Monel 400 Pipe Supplier in Mumbai With OD 3-600mm or Custom at Best Price

Monel Pipe Price List

Are You Looking for the Best Deal on Monel Pipe? To receive a quick quote, email kalpesh@manishasteelcentre.com.

Price list Price in USD Price in UAE Dirham
MONEL ALLOY 400 PIPE Size: LENGTH: 6MTR US $ 4,089.28 UAE 15019.93
SCH 40 MONEL ALLOY 400 ANNEALED PIPE SIZE : 4 IN US $ 125.26 UAE 460.08
ASTM B165 MONEL 400 SEAMLESS PIPE Size: 3/4 inch US $ 151.18 UAE 555.28
Types Of Monel Alloy Pipes

Manisha Steel Centre PED approved Monel Pipe Supplier in India is well known for offering Monel pipes in a range of shapes and combinations to satisfy client needs.

>Monel Seamless Pipe

Monel Seamless Pipe

Alloy 400 Rectangular Pipe

Alloy 400 Rectangular Pipe

Monel 400 Welded Pipe

Monel 400 Welded Pipe

Monel K500 Square Pipe

Monel K500 Square Pipe

B165 N04400 Round Pipe

B165 N04400 Round Pipe

Monel Alloy ERW Pipe

Monel Alloy ERW Pipe

ASTM B165 N04400 Cold Rolled Pipe

ASTM B165 N04400 Cold Rolled Pipe

Monel K500 Hot Rolled Pipe

Monel K500 Hot Rolled Pipe

Monel 400 UNS N04400 Heat Exchanger Pipe

Monel 400 UNS N04400 Heat Exchanger Pipe

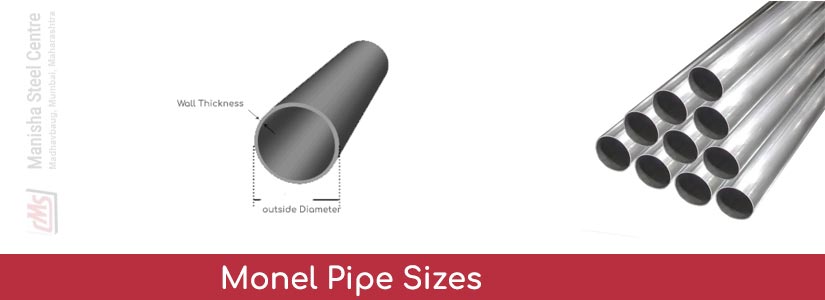

Monel Pipe Sizes

In order to satisfy their customers, Monel Pipe Manufacturer in India offers a range of sizes.

Monel Pipe Sizes
Monel 400 Pipe OD
mm		 in. Pipe WT
mm		 Kg/m Sch
13.72 1/4 3.02 0.81 80S
101.60 3½ 8.08 18.92 80S
17.15 3/8 3.20 1.12 80S
42.16 1¼ 6.352 5.69 160
21.34 1/2 3.73 1.65 80S
48.26 1½ 5.08 5.49 80S
26.67 3/4 3.91 2.23 80S
114.30 4 13.492 34.05 160
33.40 1 6.352 4.30 160
141.30 5 15.882 49.87 160
60.33 2 8.742 11.29 160
168.28 6 18.262 68.59 160
73.03 2½ 7.01 11.59 80S
219.08 8 23.012 112.97 160
88.90 3 11.132 21.67 160
ASTM B165 N04400 Seamless Tube Allowable Pressure
Pipe OD Allowable Pressure
0.5 1.0 0.6 2.0 0.7 1.8 0.8 2.5 3.0 1.2 1.5 2.2 1.6
3 464 965 567   672   775
12   215   464   411 169     262 335   360
4 335 723 411   491   567     873
22   113   236   211   301 369 137 173 262 186
6   464     310   360     567 723   775
16   158   335   298   430 528 192 244 372 262
8   335     227   262     411 528   567
18   140   294   262   377 464 169 215 326 230
10   262         206     320 411   442
25   99   206   184   262 320 120 152 228 162
14   182   389   345   500 612 222 282 433 303
Annealing Temperature of Monel Tube
Monel Alloy Annealing Temperature Range (°C) Annealing Temperature Range (°F)
Monel 400 900 to 1,000 1,650 to 1,832
Monel K500 1,030 to 1,080 1,886 to 1,976
Monel 625 1,050 to 1,150 1,922 to 2,102
Monel 600 1,100 to 1,150 2,012 to 2,102
Monel 500 1,100 to 1,150 2,012 to 2,102
Thermal Properties of Monel Tubing
Monel Grade Thermal Expansion (10⁻⁶ /°C) Thermal Conductivity (W/m·K)
Monel 400 13.8 35 - 45
Monel K-500 13.6 50 - 60
Monel 500 15.0 35 - 50
Monel 405 14.0 30 - 40
Monel 404 14.0 30 - 40
Brinell Hardness of Monel Hot Rolled Pipe
Monel Grade Brinell Hardness (HB)
Monel 400 170 - 210
Monel K-500 200 - 300
Monel 405 160 - 200
Monel 404 160 - 200
Monel 500 200 - 250

Buy Cut To Size Alloy K500 Tube With Thickness Ranging From .028 to .072", Refer Pressure Rating

Monel K500 Round Pipe Thickness Chart
Pipe OD Wall Thickness (Inches)
.010 .020 .012 .120 .016 .065 .028 .083 .035 .095 .049 .109
1/16 6,422 13,484 7,872   10,768
1       18,585   9,595   12,445 5,040 14,390 7,140 16,715
1/8   6,422         9,325   11,823
3/4       6,422   3,259   4,249 1,696 4,933 2,412 5,755
1/2           5,078   6,699 2,595   3,721
3/16   4,081         5,935   7,630   11,005
5/8           3,970   5,200 2,051 6,056 2,927
1/4           10,946 4,305   5,518   8,053
3/8           7,029     3,530   5,107
7/8       5,391   2,764   3,592 1,446 4,161 2,051 4,842
Monel 400 Tubing Pressure Rating
Pipe O.D.
(in.)		 Working Pressure (psig)
Wall Thickness of Pipe (inches)
.028 .049 .035 .083 .109 .065 .120 .095
3/8   4400 3100     6100
5/16   5400 3700     7300
1/8 7900   10100
3/4   2200   4000   3000   4600
1/4 3700 7000 4800     9500
1       2900 3900 2200 4300 3400
1/2   3200 2300     4400
Monel K500 Tube Applications
Monel K500 Tube Applications
Monel 400 Cold Rolled Pipe Dimensions
Nominal size [inches] Outside diameter (OD) [mm] Outside diameter (OD) [inches] Wall thickness [inches]
5" NPS 125 141.3 5.563 0.258
1/8" NPS 6 10.3 0.41 0.068
32" NPS 800 813.0 32.0 0.688
1/4" NPS 8 13.7 0.54 0.088
4" NPS 100 114.3 4.5 0.237
3/8" NPS 10 17.1 0.68 0.091
16" NPS 400 406.4 16.0 0.5
1/2" NPS 15 21.3 0.84 0.109
24" NPS 600 610.0 24.0 0.688
3/4" NPS 20 26.7 1.05 0.113
20" NPS 500 508.0 20.0 0.594
1" NPS 25 33.4 1.32 0.133
18" NPS 450 457.0 18.0 0.562
1 1/4" NPS 32 42.2 1.66 0.14
12" NPS 300 323.8 12.75 0.406
1 1/2" NPS 40 48.3 1.9 0.145
10" NPS 250 273.0 10.75 0.365
2" NPS 50 60.3 2.375 0.154
8" NPS 200 219.1 8.625 0.322
2 1/2" NPS 65 73.0 2.875 0.203
6" NPS 150 168.3 6.625 0.28
3" NPS 80 88.9 3.5 0.216
14" NPS 350 355.6 14.0 0.437
3 1/2" NPS 90 101.6 4.0 0.226
Stock Wide Range of ASTM B165 N04400 Seamless and Welded Pipe in Both Hot and Cold Formed, See Welding Process
Welding Process of B165 N04400 ERW Pipe
  • Shielded Metal Arc Welding
  • Flux-Cored Arc Welding
  • Tungsten Inert Gas Welding
  • Submerged Arc Welding
  • Metal Inert Gas (MIG) Welding
Electrical Property of Monel Welded Pipe
Property Value for Monel 400 Pipe
Electrical Conductivity 1.67 - 2.04 × 10⁶ S/m
Electrical Resistivity 0.49 - 0.60 µΩ·m
What is Difference Between Monel 400 VS Inconel 625 Pipe ?
Property Monel 400 Inconel 625
Density 8.8 g/cm³ 8.44 g/cm³
Yield Strength 30,000 psi (205 MPa) 80,000 psi (550 MPa)
Tensile Strength 70,000 psi (485 MPa) 130,000 psi (895 MPa)
Hardness 85 to 90 90 to 95
Elongation 45% 35%
Maximum Temp 1,000°F (540°C) 2,000°F (1,093°C)
Melting Point 1,400 to 2,500°F (760 - 1,370°C) 2,350 to 2,450°F (1,290 - 1,343°C)
Weldability Good Weldability Excellent Weldability
Corrosion Resistance Excellent Resistance Good resistance
Applications Marine,heat exchangers, chemical processing, Aerospace,high-temperature applications , chemical processing, nuclear,
Weight Chart of Monel Alloy 400 Seamless Pipe
NPS Wall Thickness Outside Diameter Weight Weight
in mm in mm Lb/ft kg/Mtr
1/2″ 0.109 2.769 0.840 21 0.851 1.268
12″ 0.188 4.775 12.750 324 25.222 37.570
3/4″ 0.113 2.870 1.050 27 1.131 1.684
18″ 0.219 5.563 18.000 457 41.588 61.948
1″ 0.133 3.378 1.315 33 1.679 2.501
42″ 0.312 7.925 42.000 1067 138.911 206.914
1 1/4″ 0.140 3.556 1.660 42 2.273 3.385
48″ 0.375 9.525 48.000 1219 190.738 284.112
4″ 0.237 6.020 4.500 114 10.790 16.073
1 1/2″ 0.145 3.683 1.900 48 2.718 4.048
14″ 0.188 4.775 14.000 356 27.732 41.308
2″ 0.154 3.912 2.375 60 3.653 5.441
24″ 0.250 6.350 24.000 610 63.413 94.456
2 1/2″ 0.203 5.516 2.875 73 5.793 8.629
20″ 0.250 6.350 20.000 508 52.733 78.547
3″ 0.216 5.486 3.500 89 7.576 11.284
16” 0.188 4.775 16.000 406 21.748 47.290
6″ 0.188 4.775 6.625 168 12.924 19.252
30″ 0.250 6.350 30.000 762 79.433 118.318
8″ 0.188 4.775 8.625 219 16.940 25.233
36″ 0.250 6.350 36.000 914 95.453 142.180
10″ 0.188 4.775 10.750 273 21.207 31.588
What are the Main Types of Corrosion that Monel 400 Alloy Pipe are Resistant to?

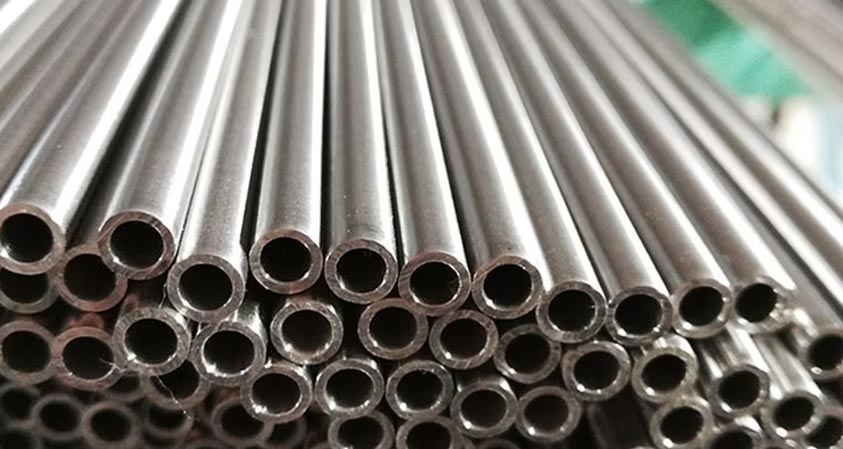

Monel 400 K500 Alloy Steel Pipe
  • Pitting Corrosion
  • Stress Corrosion Cracking
  • Galvanic Corrosion
  • Crevice Corrosion
  • Oxidation
  • General Corrosion
  • Intergranular Corrosion
Chemical Composition of Monel Exhaust Pipe
Grade C Si Mn Cu S Ni Fe
Monel 400 0.30 max 0.50 max 2.00 max 28.00 – 34.00 0.024 max 63.00 min 2.50 max
Monel K500 0.25 max 0.5 max 1.5 max 27.00 – 33.00 0.010 max 63.00 min 0.5 – 2
Mechanical Properties of Monel Alloy Tube
Element Yield Strength 0.2%Offset Tensile Strength Elongation
Monel 400 Psi – 35,000 , MPa – 240 Psi – 80,000 , MPa – 550 40 %
Monel K500 Psi – 115000 , MPa – 790 Psi – 160000 , MPa – 1100 20 %
Equivalent Grades of Monel Heat Exchanger Tubes
STANDARD UNS WERKSTOFF NR. JIS GOST BS EN AFNOR
Monel 400 N04400 2.4360 NW 4400 МНЖМц 28-2,5-1,5 NA 13 NiCu30Fe NU-30M
Monel K500 N05500 2.4375 – – – – –
Offer Monel Tubing in Various Grades and Forms like Coil, Hydraulic, Round, Straight etc.
Monel Pipe Available Grades
  • Monel 400 Pipe
  • Monel 405 Pipe
  • Monel 405 Pipe
  • Monel K500 Pipe
  • Monel 625 Pipe
  • Monel 600 Pipe
  • Monel 500 Pipe
Density of ASME SB 165 Monel Alloy Pipe
Element Density Melting Point
Monel 400 8.8 g/cm3 1350 °C (2460 °F)
Monel K500 8.44 g/cm3
Availability of Monel Pipe Stock
20mm Seamless Monel 400 Pipe

20mm Seamless Monel 400 Pipe

High Quality Monel 400 Alloy Pipe

High Quality Monel 400 Alloy Pipe

Anti Corrosion Monel K500 Seamless Pipe

Anti Corrosion Monel K500 Seamless Pipe

ASTM Pure Alloy B163 Uns N04400 Pipe

ASTM Pure Alloy B163 Uns N04400 Pipe

Hot Rolled Monel 400 Round Pipe

Hot Rolled Monel 400 Round Pipe

16mm Pure B163 Uns N04400 Pipe

16mm Pure B163 Uns N04400 Pipe

Monel Pipe Shipping Time and Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Germany 45-60
Russia 20
Belgium 45
Trinidad And Tobago 60
Sudan 30
Denmark 35
Equatorial Guinea 45-60
Puerto Rica 45
Netherlands 45-60
Bahamas  60
Canada 45
Costa Rica 45
Mexico 45
Jamaica 50
Panama 45
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
