Stainless Steel Welded Pipe Manufacturer in India

Home| Stainless Steel Welded Pipe

SS Welded Pipe Supplier in India As Per ASTM A312 At Factory Price

Stainless Steel Welded Pipe Specification
Searching Stainless Steel Welded Pipe in Oman? Find here the Benefits of Ordering from Manisha Steel Centre
  • Bulk Order Discounts
  • Easy Access to Stock
  • Durability & Corrosion Resistance
  • Sustainability Practices
  • International Compliance
Manisha Steel Centre

Table of Content

Stainless Steel Welded Pipe Specification
SS Welded Pipe Schedule

SS EFW Pipe Schedule

  • SCH20
  • STD -XS
  • XXS

Stainless Steel Welded Pipe Size

Stainless Steel Welded Pipe Size

  • Wall Thickness: 1mm to 20mm
  • OD: 1/4” OD to 36”
  • Length:Double Random, Single Random & Cut Length.
EFW SS Pipe Manufacturing Process

EFW SS Pipe Manufacturing Process

  • Hot Formed
  • Precision Rolled
  • Cold Formed

Stainless Steel Helical Welded Pipe Benefits

Stainless Steel Helical Welded Pipe Benefits

  • Larger Diameter
  • Cost-Effective
  • Versatility
SS Welded Pipe Standards

SS EFW Welded Pipe Standards

  • ASTM A312 | ASME SA312
  • ASME, ASTM and API


Stainless Steel Welded Pipe ASTM A312 Documentation

Stainless Steel Welded Pipe ASTM A312 Documentation

  • PMI Test Reports
  • Mill Test Certificates
  • Visual Inspection
Stainless Steel EFW Welded Pipe Shape

Stainless Steel EFW Welded Pipe Shapes

  • Square
  • Round
  • Hex
  • Rectangle
SS EFW Round Pipe Origin

SS EFW Round Pipe Origin

  • Janpanese
  • Russia
  • European
  • American

Stainless Steel Welded Square Pipe Services

Stainless Steel Welded Square Pipe Services

  • Heat Treatment
  • Cutting
  • Shearing
SS Electric Resistance Welded Pipe Packaging

SS Electric Resistance Welded Pipe Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled
SS Welded Pipe ASTM A312 Finish

SS Welded Pipe ASTM A312 Finish

  • Polished
  • Annealing
  • Bright
Stainless Steel EFW Rectangular Pipe End

Stainless Steel EFW Rectangular Pipe End

  • Plain
  • Beveled
SS EFW Pipe Testing

SS EFW Pipe Testing

  • Mechanical
  • Chemical
  • PMI
  • Ultrasonic

Stainless Steel Welded Polish Pipe Advantages

Stainless Steel Welded Polish Pipe Advantages

  • High Strength
  • Corrosion Resistance
  • Weldability
  • Durability
HS Code of SS Spiral Welded Pipe
HS Code Description
73064000 SS WELDED PIPE
Stainless Steel Welded Pipe Price List

Are You Trying to Find the Best Price on Stainless Steel Welded Pipe? For a prompt quote, send an email kalpesh@manishasteelcentre.com.

Price List Price in USD Price in UAE Dirham
STAINLESS STEEL WELDED PIPE Size:1/2" to 36" US $ 5.50 UAE 20.20
STAINLESS STEEL EFW PIPE Size: 1/2" to 24" US $ 6.00 UAE 22.00
STAINLESS STEEL ERW PIPE Size : 1/2" to 24" US $ 4.90 UAE 18.00
Types Of SS Welded Pipe

Stainless Steel Welded Pipe Supplier in India offers high quality types and dimensions at Factory Price

>Stainless Steel Welded Pipe

Stainless Steel Welded Pipe

Stainless Steel Welded Polished Round Pipes

Stainless Steel Welded Polished Round Pipes

Stainless Steel Spiral Welded Pipe

Stainless Steel Spiral Welded Pipe

SS EFW Round Pipe

SS EFW Round Pipe

Stainless Steel EFW Welded Pipe

Stainless Steel EFW Welded Pipe

SS Welded Rectangular Pipe

SS Welded Rectangular Pipe

Stainless Steel Welded Square Pipe

Stainless Steel Welded Square Pipe

Stock and Supply 304 Stainless Steel EFW Welded Pipe Produced Through Electric Fusion Welding, Refer Size Chart

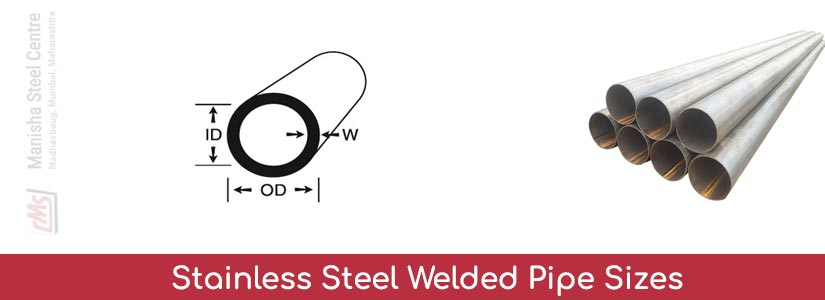

Stainless Steel Welded Pipe Sizes

Manisha Steel Centre Trusted Stainless Steel Welded Pipe Manufacturer in India guarantee premium goods in a variety of Sizes and Grades to meet client needs.

Stainless Steel Welded Pipe Sizes
ASTM A312 Pipe OD
mm		 Pipe WT
mm		 in. Kg/m Sch
168.28 10.97 6 43.21 80S
13.72 1.65 1/4 0.50 10S
26.67 3.91 3/4 2.23 80S
13.72 2.24 1/4 0.64 40S
33.40 6.352 1 4.30 160
17.15 3.20 3/8 1.12 80S
60.33 2.77 2 3.99 10S
21.34 3.73 1/2 1.65 80S
219.08 18.23 8 91.30 120
33.40 4.55 1 3.29 80S
42.16 6.352 1¼ 5.69 160
114.30 8.56 4 22.67 80S
48.26 2.77 1½ 3.16 10S
60.33 8.742 2 11.29 160
141.30 15.882 5 49.87 160
73.03 5.16 2½ 8.77 40S
88.90 3.05 3 6.56 10S
219.08 23.012 8 112.97 160
88.90 11.132 3 21.67 160
101.60 8.08 3½ 18.92 80S
141.30 9.53 5 31.44 80S
Advantages and Disadvantages of Stainless Steel EFW Welded Pipe
Advantages Disadvantages
Corrosion Resistance More Costly
Strength Susceptibility to Pitting
Aesthetic Appeal Low Flexibility
Durability Heavy Weight
Temperature Resistance Galvanic Corrosion
Hygienic Properties Difficult to Fabricate
Recyclability Maintenance Cost
American Standards of Stainless Steel Spiral Welded Pipe
ASTM ASME Type
A312 SA 312 Welded
A778 SA 778 Seam and spiral butt seam welded
A358 SA 358 EFW
A269 SA 269 Welded
A249 SA 249 Welded
A409 SA 409 Welded
A358 SA 358 EFW

Buy SS 316 Spiral Welded Pipe Or Helical Welded Pipe For Various Engineering Purpose, See Pressure Rating

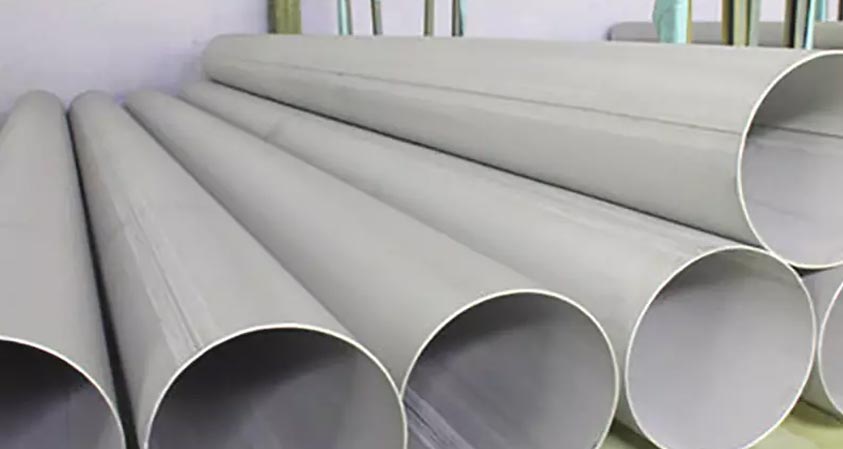

EFW SS Pipe Applications
EFW SS Pipe Applications
  • Paper & Pulp Manufacturing
  • Construction
  • Engineering Purpose
  • Textile Industries
  • Hospital and Kitchen Equipment
  • Furniture and Interior Decoration
  • Automobile Exhaust Pipes
  • Pharmaceuticals,Petrol Chemicals, Chemicals,
  • Sugar Mills, Breweries ,Dairies, Food Processing
SS Welded Pipe Pressure Rating
Pipe Size O.D. Inches 5s TRUE 5 10s TRUE 10 20 30 40s & STD TRUE 40 60
1 1.315 0.065 0.065 0.109 0.19     0.133 0.133
  0.8678 0.8678 1.404 1.404     1.679 1.679
10 10.75 0.134 0.134 0.165 0.165 0.25 0.307 0.365 0.365 0.5
  15.19 15.19 18.65 18.65 28.04 34.24 40.48 40.48 54.74
2 2.375 0.065 0.065 0.109 0.109     0.154 0.154
  1.604 1.604 2.638 2.638     3.653 3.653
20 20 0.188   0.218 0.25 0.375 0.5 0.375 0.593 0.812
  39.78   46.05 52.73 78.6 104.1 78.6 122.9 166.4
3 3.5 0.083 0.083 0.12 0.12     0.216 0.216
  3.029 3.029 4.332 4.332     7.576 7.576
30 30 0.25   0.312 0.312 0.5 0.625 0.375
  79.43   98.93 98.93 157.5 196.1 118.6
4 4.5 0.083 0.083 0.12 0.12     0.237 0.237 0.281
  3.915 3.915 5.613 5.613     10.79 10.79 12.66
40 40             0.375
              158.7
5 5.563 0.109 0.109 0.134 0.134     0.258 0.258
  6.349 6.349 7.77 7.77     14.62 14.62
18 18 0.165   0.188 0.25 0.312 0.437 0.375 0.562 0.75
  31.43   35.76 47.39 59.03 82.06 70.59 104.8 138.2
6 6.625 0.109 0.109 0.134 0.134     0.28 0.28
  7.585 7.585 9.289 9.289     18.97 18.97
36 36       0.312   0.625 0.375 0.75
        118.9   236.1 142.7 282.3
7 7.625             0.301
              23.57
32 32       0.312 0.5 0.625 0.375 0.688
        105.6 168.2 209.4 126.7 230.1
8 8.625 0.109 0.109 0.148 0.148 0.25 0.277 0.322 0.322 0.406
  9.914 9.914 13.4 13.4 22.36 24.7 28.55 28.55 35.64
28 28       0.312 0.5 0.625 0.375
        92.26 146.8 182.7 110.6
9 9.625             0.342
              33.9
48 48             0.375
              190.7
11 11.75             0.375
              45.55
26 26       0.312 0.5   0.375
        85.6 136.2   102.6
12 12.75 0.156 0.165 0.18 0.18 0.25 0.33 0.375 0.406 0.562
  21.07 22.18 24.2 24.2 33.38 43.77 49.56 53.53 73.16
42 42             0.375
              166.7
14 14 0.156   0.188 0.25 0.312 0.375 0.375 0.437 0.593
  23.06   27.73 36.71 45.68 54.57 54.57 63.67 84.91
24 24 0.218   0.25 0.25 0.375 0.562 0.375 0.687 0.968
  55.37   63.41 63.41 94.62 140.8 94.62 171.2 238.1
16 16 0.165   0.188 0.25 0.312 0.375 0.375 0.5 0.656
  27.9   31.75 42.05 52.36 62.58 62.58 82.77 107.5
34 34       0.312 0.5 0.625 0.375 0.688
        112.3 178.9 222.8 134.7 244.8
Stainless Steel Welded Pipe Astm A312 Dimensions
PIPE SCHEDULES (Inches)
Nominal O.D. Inches 80s & E.H. 10s 40 10 80 40s & Std 160
1/8 .405 .095 .049 .068 .049 .095 .068
4 1/2 5.000 .355 .247
1/4 .540 .119 .065 .088 .065 .119 .088
12 12.750 .500 .180 .406 .180 .687 .375 1.312
3/8 .675 .126 .065 .091 .065 .126 .091
16 16.000 .500 .188 .500 .250 .843 .375 1.593
1/2 .840 .147 .083 .109 .083 .147 .109 .187
3 1/2 4.000 .318 .120 .226 .120 .318 .226
3/4 1.050 .154 .083 .113 .083 .154 .113 .218
6 6.625 .432 .134 .280 .134 .432 .280 .718
8 8.625 .500 .148 .322 .148 .500 .322 .906
5 5.563 .375 .134 .258 .134 .375 .258 .625
14 14.000 .500 .188 .437 .250 .750 .375 1.406
1 1.315 .179 .109 .133 .109 .179 .133 .250
11 11.750 .500 .375
1 1/4 1.660 .191 .109 .140 .109 .191 .140 .250
4 4.500 .337 .120 .237 .120 .337 .237 .531
1 1/2 1.900 .200 .109 .145 .109 .200 .145 .281
7 7.625 .500 .301
2 2.375 .218 .109 .154 .109 .218 .154 .343
9 9.625 .500 .342
2 1/2 2.875 .276 .120 .203 .120 .276 .203 .375
10 10.750 .500 .165 .365 .165 .593 .365 1.125
3 3.500 .300 .120 .216 .120 .300 .216 .437
18 18.000 .500 .188 .562 .250 .937 .375 1.781
Offer 316L Welded Stainless Steel Pipe With OD 1/4 to 36” Tested On Various Parameters, Check Weight Chart
SS Helical Welded Pipe Weight Chart
SIZE Rectangle (MM) 1.20 0.60 4.00 2.50 0.70 3.00 0.80 2.00 0.90 1.50 1.00
20 x 80 1.87 3.08 1.41 2.33 1.57
10 x 20 0.54 0.28 0.32 0.37 0.41 0.45
50 x 110 3.02 9.79 6.21 7.42 4.99 2.27 3.76 2.52
10 x 30 0.73 0.37 0.43 0.49 0.55 0.90 0.61
40 x 60 1.87 5.97 3.82 4.55 3.08 1.41 2.33 1.57
10 x 40 0.92 0.54 0.62 0.70 1.14 0.77
40 x 80 2.26 3.72 1.70 2.81 1.89
10 x 50 1.11 0.75 0.84 1.38 0.93
30 x 50 1.49 0.76 0.88 1.00 2.45 1.13 1.85 1.25
10 x 60 1.30 0.98 1.62 1.09
26 x 13 0.73 0.37 0.43 0.49 1.17 0.55 0.90 0.61
10 x 70 1.49 1.13 1.85 1.25
25 x 75 1.87 3.08 1.41 2.33 1.57
20 x 30 0.92 0.47 0.54 0.62 1.49 0.70 1.14 0.77
25 x 50 1.40 0.71 0.82 0.94 2.29 1.05 1.73 1.17
20 x 40 1.11 0.56 0.66 0.75 1.81 0.84 1.38 0.93
35 x 60 1.87 3.08 1.41 2.33 1.57
20 x 60 1.49 0.88 1.00 2.45 1.13 1.85 1.25
Manufactured 304L Welded SS Pipe Both From Plate and Coil, View Schedule and Thickness Chart
Stainless Steel EFW Welded Pipe Thickness Chart
NPS Designator Outside Diameter in. Schedule 80S in. Schedule 5S in. Schedule 40S in. Schedule 10S in.
1/4 0.54 0.119 0.088 0.065
1/2 0.84 0.147 0.065 0.109 0.083
3/8 0.675 0.126 0.091 0.065
1 1.315 0.179 0.065 0.133 0.109
3/4 1.05 0.154 0.065 0.113 0.083
1 1/2 1.9 0.2 0.065 0.145 0.109
1 1/4 1.66 0.191 0.065 0.14 0.109
2 1/2 2.875 0.276 0.083 0.203 0.12
2 2.375 0.218 0.065 0.154 0.109
3 1/2 4 0.318 0.083 0.226 0.12
3 3.5 0.3 0.083 0.216 0.12
5 5.563 0.375 0.109 0.258 0.134
4 4.5 0.337 0.083 0.237 0.12
10 10.75 0.5 0.134 0.365 0.165
6 6.625 0.432 0.109 0.28 0.134
12 12.75 0.5 0.156 0.375 0.18
8 8.625 0.5 0.109 0.322 0.148
SS EFW Pipe Schedule Chart
MM INCH SCH 80 SCH 5 SCH 40 SCH 10
15 1/2" 445 230 371 297
450 18" ---- 13802 38745 20682
20 3/4" 605 302 470 374
250 10" 30655 6800 16196 8495
25 1" 773 352 665 555
250 10" 30655 6800 16196 8495
32 1.1/4" 1055 491 866 738
200 8" 18120 4496 11520 5805
40 1.1/2" 1279 542 1050 851
300 12" 42140 9041 20410 10473
50 2" 1769 680 1450 1071
125 5" 7331 2750 5980 3298
65 2.1/2" 2696 995 2451 1547
150 6" 10098 3110 7439 4081
80 3" 3618 1153 3110 1875
350 14" ----- 10940 23910 14960
100 4" 5274 1490 4150 2390
400 16" ---- 12002 31101 18310
Can Stainless Steel Welded Pipe be Welded ?

Yes, SS Welded Pipe can be welded. These pipes are already produced using a welding technique where stainless steel strips or sheets are joined to make a pipe.

Given below are some welding methods:

SS Welded Pipe Welding
Stainless Steel Welded Round Pipe Chemical Composition
Grade Mn C P Si Cr S Ni Mo Ti N Fe
304 min. 18.0 8.0
max. 2.0 0.08 0.045 0.75 20.0 0.030 10.5 0.10
304H min. 0.04 18.0 8.0
max. 2.0 0.010 0.045 0.75 20.0 0.030 10.5
304L min. 18.0 8.0
max. 2.0 0.030 0.045 0.75 20.0 0.030 12.0 0.10
SS 310S 2 max 0.08 max 0.045 max 1.00 max 24.00 26.00 0.030 max 19.00 21.00 0.75 max 53.095 min
SS 310 2 max 0.015 max 0.020 max 0.015 max 24.00 26.00 0.015 max 19.00 21.00 0.10 max 54.7 min
SS 310H 2 max 0.04 0.10 0.045 max 1.00 max 24.00 26.00 0.030 max 19.00 21.00 53.885 min
316L min. 16.0 10.0 2.03.0
max. 2.0 0.035 0.045 0.75 18.0 0.030 14.0
316 min. 16.0 10.0 2.03.0
max. 2.0 0.035 0.045 0.75 18.0 0.030 14.0
316TI 10.00 14.00 0.08 max 0.045 max 2.0 max 16.00 18.00 0.030 max 2.00 3.00 0.75 max
SS 317L 2.0 max 0.035 max 0.045 max 1.0 max 18.00 20.00 0.030 max 11.00 15.00 3.00 4.00 57.89 min
317 2 max 0.08 max 0.045 max 1 max 18.00 20.00 0.030 max 3.00 4.00 57.845 min
SS 321H 2.0 max 0.04 0.10 0.045 max 1.0 max 17.00 19.00 0.030 max 9.00 12.00 4(C+N) 0.70 max 0.10 max
SS 321 2.0 max 0.08 max 0.045 max 1.0 max 17.00 19.00 0.030 max 9.00 12.00 5(C+N) 0.70 max 0.10 max
410 min. 11.5
max. 1.0 0.15 0.040 1.00 13.5 0.030 0.75
347/ 347H 2.0 max 0.08 max 0.045 max 1.0 max 17.00 20.00 0.030 max 9.0013.00
904L min. 19.0 23.00 4.00 0.10
max. 2.00 0.20 0.045 1.00 23.0 0.035 28.00 5.00 0.25
446 min. 23.0 0.10
max. 1.5 0.2 0.040 0.75 30.0 0.030 0.50 0.25
Mechanical Properties of SS Welded Square Pipe
Grade Melting Point Density Yield Strength (0.2%Offset) Tensile Strength Elongation
304/ 304L 1400 °C (2550 °F) 8.0 g/cm3 30000 Psi , 205 MPa 75000 Psi, 515 MPa 35 %
310 /310H/ 310S 1402 °C (2555 °F) 7.9 g/cm3 40 %
306/ 316H 1400 °C (2550 °F) 8.0 g/cm3 35 %
304H 1400 °C (2550 °F) 8.0 g/cm3 40 %
316L 1399 °C (2550 °F) 8.0 g/cm3 35 %
321 1457 °C (2650 °F) 8.0 g/cm3 35 %
317 1400 °C (2550 °F) 7.9 g/cm3 35 %
904L 1350 °C (2460 °F) 7.95 g/cm3 35 %
347 1454 °C (2650 °F) 8.0 g/cm3 35 %
Equivalent Grades of Stainless Steel Welded Rectangular Pipes
STANDARD UNS WERKSTOFF NR. BS JIS AFNOR GOST EN
SS 304 S30400 1.4301 304S31 SUS 304 Z7CN18‐09 08Х18Н10 X5CrNi18-10
SS 304H S30409 1.4301 – – – – –
SS 304L S30403 1.4306 / 1.4307 3304S11 SUS 304L Z3CN18‐10 03Х18Н11 X2CrNi18-9 / X2CrNi19-11
SS 310S S31008 1.4845 310S16 SUS 310S – 20Ch23N18 X8CrNi25-21
SS 310 S31000 1.4841 310S24 SUS 310 – 20Ch25N20S2 X15CrNi25-20
SS 310H S31009 – – – – – –
SS 316L S31603 1.4404 / 1.4435 316S11 / 316S13 SUS 316L Z3CND17‐11‐02 / Z3CND18‐14‐03 03Ch17N14M3 / 03Ch17N14M2 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316 S31600 1.4401 / 1.4436 316S31 / 316S33 SUS 316 Z7CND17‐11‐02 – X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316H S31609 1.4401 – – – – –
SS 316Ti S31635 1.4571 320S31 SUS 316Ti Z6CNDT17‐123 08Ch17N13M2T X6CrNiMoTi17-12-2
SS 317L S31703 1.4438 – SUS 317L – – X2CrNiMo18-15-4
SS 317 S31700 1.4449 – SUS 317 – – –
SS 321H S32109 1.4878 – SUS 321H – – X12CrNiTi18-9
SS 321 S32100 1.4541 – SUS 321 – – X6CrNiTi18-10
SS 347H S34709 1.4961 – SUS 347H – – X6CrNiNb18-12
SS 347 S34700 1.4550 – SUS 347 – 08Ch18N12B X6CrNiNb18-10
SS 904L N08904 1.4539 904S13 SUS 904L Z2 NCDU 25-20 STS 317J5L X1NiCrMoCu25-20-5
SS EFW Polished Round Pipes European Standards
European standard Manufacturing process
EN 10296-2 Welded
EN 10217-7 Welded
What is the Difference Between Stainless Steel Seamless and Welded Pipe?
Feature Stainless Steel Welded Pipe Stainless Steel Seamless Pipe
Material Welded Seamless
Pipe Sizes ½ inch to 96 inches larger diameter ½ inch to 24 inches
Strength up to 450 MPa up to 550 MPa
Wall Thickness 0.5 mm to 12 mm 0.5 mm to 25 mm
Pressure 5,000 psi 20,000 psi
Applications water, construction, and gas piping chemical processing,oil & gas,aerospace, etc.
Durability durability is less Highly durable
Ready Stock of Stainless Steel Welded Pipe
Schedule 80 Stainless Steel Welded Pipe

Schedule 80 Stainless Steel Welded Pipe

1/4 in * 10 ft SS Welded Pipe

1/4 in * 10 ft SS Welded Pipe

19.05 * 2.77 *4454mm Stainless Steel EFW Pipe

19.05 * 2.77 *4454mm Stainless Steel EFW Pipe

Custom Size 5 Inch Stainless Steel ERW Pipe

Custom Size 5 Inch Stainless Steel ERW Pipe

High Quality Welded Steel Pipes

High Quality Welded Steel Pipes

Cold Drawn ASTM A312 Welded Pipe

Cold Drawn ASTM A312 Welded Pipe

Stainless Steel Welded Pipe Estimated Time as per Address
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Netherlands  14
Croatia 60
Finland 45-60
Slovenia 60
Ireland 60
Singapore  8
Belgium  60
Indonesia  7
Malaysia  7
Vietnam  14
Thailand  7
Germany  7
South Korea  7
Maldives  7
Sri Lanka  5
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
