Stainless Steel Hollow Pipe

Home|Stainless Steel Hollow Pipe
Stainless Steel Hollow Pipe Specification
5 Advantages for Engineers in Saudi Arabia to buy SStainless Steel Hollow Pipe from India
  • Reputation for Durability
  • Excellent After-Sales Support
  • Availability of Bulk Orders
  • Sustainability
  • Advanced Manufacturing Technology
Manisha Steel Centre

Table of Content


Stainless Steel Hollow Pipe Specification
SS Hollow Tube Sizes

SS Hollow Tube Sizes

  • Size: : 6 mm - 219.1 mm OD
  • Thickness : 0.7 mm to 12.7 mm Thick
  • OD : 6 to 2500 mm
  • Length: 1 to 32 Mtrs Long

Stainless Steel Hollow Cylinder Testing

Stainless Steel Hollow Cylinder Testing

  • Mechanical
  • Ultrasonic
  • Chemical
  • PMI
SS Hollow Seamless Pipe Sizes

SS Hollow Seamless Pipe Sizes

  • OD: 1/8" to 12"
  • Wall Thk :0.6 - 12.7 mm
  • Length: Cut Length ,Double Random & Single Random

Hollow Stainless Steel Welded Pipe

Hollow Stainless Steel Welded Pipe

  • OD: 1/4" - 36"
  • Wall Thickness: 1 to 20 mm
  • Length: Double Random, Single Random & Cut Length

304L SS Hollow Section Pipe Manufacturing Process

304L SS Hollow Section Pipe Manufacturing Process

  • Cold Formed
  • Precision Rolled
  • Hot Formed
SS Hollow Thick-Walled Pipe

SS Hollow Thick-Walled Pipe

  • Wall Thickness: 2.5 - 100 mm
  • OD: 10 - 600 mm
  • Length: 0.5 to 12 m
Stainless Steel Hollow Pipe Standards

Stainless Steel Hollow Pipe Standards

  • ASTM A554 | ASME SA 554
  • AISI, ASME, GB, SUS
  • DIN, UNS, API, EN

316 Stainless Steel Hollow Cylinder Documentation

316 Stainless Steel Hollow Cylinder Documentation

  • Visual Inspection
  • Mill Test Certificates
  • PMI Test Reports
SS 304 Hollow Pipe Features

SS 304 Hollow Pipe Features

  • Rigidity
  • Durability
  • Versatility
  • Ease of Fabrication
Hollow Stainless 1x1 Origin

Hollow Stainless 1x1 Origin

  • European
  • Russia
  • American
  • Janpanese
Hollow Stainless Steel Tube Services

Hollow Stainless Steel Tube Services

  • Heat Treatment
  • Cutting
  • Shearing
SS Hollow Tube Packaging

SS Hollow Tube Packaging

  • Wooden Box
  • Bundled
  • Bubble Wraps
Stainless Steel 316 Hollow Cylinder Finish

Stainless Steel 316 Hollow Cylinder Finish

  • Polished
  • Bright
  • Annealing
Hollow Stainless Steel Pipe End

Hollow Stainless Steel Pipe End

  • Beveled
  • Plain


SS Hollow Pipe HSN Code
HS Code 73041110

Best SS Hollow Tube Manufacturer in India At Affordable Price

Stainless Steel Hollow Pipe Price

Are You Searching to Find a Great Deal on Stainless Steel Hollow Pipe? To receive an estimate right away, send an email. kalpesh@manishasteelcentre.com.

Hollow Pipe Price List Product Price
Stainless Steel Hollow Tube for Pharmaceuticals Industries $756.00 to $1,665.00/ Ton
Galvanized Steel Hollow Sections US $ 37 to 67 / Pound
SS 304 Hollow Tube US $ 26364 to 18573 / Ton
SS 316L Hollow Tube $9 to 42 / Kg
Hollow SS Tube $15.00 to $658.00/ Piece
Stainless Steel 316 Hollow Tube US $ 6367 to 5625 / Ton
Large Diameter Stainless Steel Hollow Tubes $5,655.00 to $4,558.00/ Ton
Rectangular Hollow Steel Tubing $636.00 to $1,654.00/ Ton
Hollow Stainless Steel Tube Wall Thickness
NPS Designator Outside Diameter in. Schedule 160 in. Schedule 80S in. Schedule 10S in. Schedule XX in. Schedule 40S in.
10 10.750 1.125 0.500 0.165   0.365
1/4 0.540   0.119 0.065   0.088
1.0 1.315 .250 0.179 0.109 .358 0.133
3/8 0.675   0.126 0.065   0.091
1 1/2 1.900 .281 0.200 0.109 .400 0.145
1/2 0.840 .188 0.147 0.083 .294 0.109
2 1/2 2.875 .375 0.276 0.120 .552 0.203
3/4 1.050 .218 0.154 0.083 .308 0.113
3 1/2 4.000   0.318 0.120 .636 0.226
4 4.500 .534 0.337 0.120 .674 0.237
1 1/4 1.660 .250 0.191 0.109 .382 0.140
4 4.500 .534 0.337 0.120 .674 0.237
2 2.375 .343 0.218 0.109 .436 0.154
8 8.625 .906 0.500 0.148 .875 0.322
3 3.500 .438 0.300 0.120 .600 0.216
14 14.000 1.406 0.500 0.188   0.375
5 5.563 .625 0.375 0.134 .750 0.258
16 16.000 1.594 0.500 0.188   0.375
6 6.625 .719 0.432 0.134 .864 0.280
12 12.750 1.312 0.500 0.180   0.375

High Quality 304/304L Stainless Steel Hollow Cylinder Supplier in Mumbai in Odd Sizes

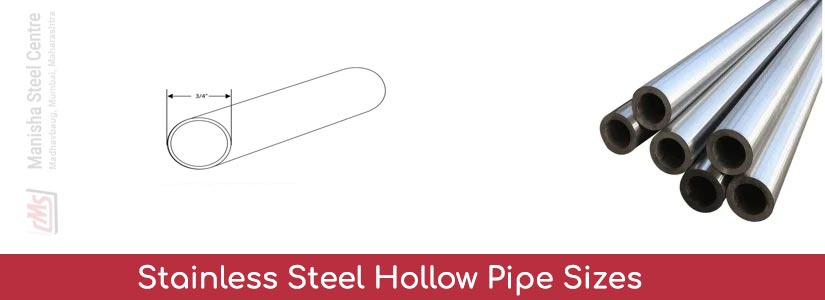

Stainless Steel Hollow Pipe Sizes

Stainless Steel Hollow Pipe Manufacturer in India offers an extensive range of diameters to satisfy client demands.

Stainless Steel Hollow Pipe Sizes
Size mm kg/m Size mm kg/m
40 * 20 * 2.5 2.03 40 * 20 * 2.0 1.68
120 * 80 * 6.0 17.60 120 * 80 * 5.0 14.80
40 * 25 * 1.5 1.44 40 * 20 * 3.0 2.36
50 * 30 * 2.5 2.92 50 * 25 * 3.0 3.22
80 * 40 * 2.5 4.26 70 * 50 * 4.0 6.71
50 * 30 * 4.0 4.46 50 * 30 * 3.0 3.45
150 * 100 * 8.0 29.10 150 * 100 * 6.0 22.30
60 * 40 * 3.0 4.39 60 * 40 * 2.5 3.71
250 * 150 * 6.0 38.2 250 * 150 * 5.0 30.5
70 * 50 * 3.0 5.19 70 * 50 * 2.5 4.39
120 * 80 * 4.0 12.00 120 * 80 * 3.0 9.03
80 * 50 * 3.0 5.66 80 * 40 * 5.0 8.54
200 * 100 * 6.0 27.00 200 * 100 * 5.0 22.70
90 * 50 * 5.0 10.11 90 * 50 * 3.6 7.46
250 * 150 * 10 59.3 250 * 150 * 8.0 48.0
100 * 50 * 3.0 6.75 100 * 50 * 2.5 5.63
400 * 200 * 8.0 73.10 300 * 200 * 10.0 75.00
100 * 60 * 3.6 8.59 100 * 60 * 3.0 7.22
300 * 200 * 8.0 60.50 300 * 200 * 6.0 48.10
160 * 80 * 5.0 18.00 150 * 100 * 10.0 35.70
400 * 200 * 16 142.00 400 * 200 * 10.0 90.70
304L Stainless Steel Hollow Cylinder Schedule Chart
NOMINAL PIPE SIZE OD SCH 40 SCH 5 SCH 80 SCH 10
1" 1.315 0.133 0.065 0.179 0.109
1/2" 0.84 0.109 0.065 0.147 0.083
1-1/4" 1.66 0.14 0.065 0.191 0.109
3/4" 1.05 0.113 0.065 0.154 0.083
2" 2.375 0.154 0.083 0.218 0.109
1-1/2" 1.9 0.145 0.065 0.2 0.109
3" 3.5 0.216 0.083 0.3 0.12
2-1/2" 2.875 0.203 0.083 0.276 0.12
4" 4.5 0.237 0.083 0.337 0.12
3-1/2" 4 0.226 0.083 0.318 0.12

Understand Difference Between SS Hollow Pipe vs Solid Pipe

Hollow Pipe vs Solid Pipe
Feature Hollow Pipe Solid Pipe
Sizes 10mm to 500mm 10mm to 500mm
Cross-sectional Area Hollow center, wall thickness Completely filled
Weight Light Weight Weight is heavy
Strength-to-weight ratio 30 to 50% 20 to 40%
Design Flexibility Varying wall thickness Limited flexibility
Cost 20 to 40% less 10 to 20% More expensive
Applications fluid transport, Lightweight structures, high stiffness , Heavy duty structures
Buy 316/316L SS Hollow Section Pipe in Various Shape like Square, Circular and Rectangular etc.
Types Of Stainless Steel Hollow Pipe

Manisha Steel Centre Leading Stainless Steel Hollow Pipe Supplier in India provides an ample variety of shapes.

Stainless Steel Hollow Tube

Stainless Steel Hollow Tube

Hollow Stainless 1x1

Hollow Stainless 1x1

316 SS Hollow Section Pipe

316 SS Hollow Section Pipe

Stainless Steel Hollow Cylinder

Stainless Steel Hollow Cylinder

Stainless Steel 304 Hollow Pipe

Stainless Steel 304 Hollow Pipe

Why Should I Choose Stainless Steel 304l Hollow Tube?
Reason Explanation
Lightweight Easy to handle
Temperature holds up to extreme temperatures.
Easy Fabrication Simple to weld, cut, and form.
Non-reactive Perfect for use with food and chemicals.
Recyclable Ecofriendly, reusable.
Long Lifespan Durable
Enhanced Safety Injury rates are lower on smooth surfaces.
Ge Hollow Stainless Steel Tube Suitable For Construction Sites and Pharmaceutical Industries, Refer Weight Chart
Stainless Steel 304 Hollow Tube Applications
Stainless Steel 304 Hollow Tube Applications
Stainless Steel Hollow Tube Weight Chart
Nominal SS Pipe Schedule 5 SS Pipe Schedule 10 SS Pipe Schedule 40
MM Inch Wt./MM Kg./Ft Kg./M Wt./MM Kg./Ft Kg./M Wt./MM Kg./Ft Kg./M
26.70 1 1.65 0.393 1.290 2.77 0.637 2.090 3.38 0.762 2.500
33.40 1 1 / 4 1.65 0.503 1.650 2.77 0.820 2.690 3.56 1.030 3.380
48.30 2 1.65 0.728 3.340 2.77 1.200 3.920
73.00 2 1 / 2 2.11 1.130 3.690 3.05 1.600 5.260
21.30 3 / 4 1.65 0.311 1.020 2.11 0.390 1.280 2.87 0.512 1.680
88.90 3 2.11 1.380 4.510 3.05 1.970 6.450
21 1 / 2 1.65 0.244 0.801 2.11 0.305 0.999 2.77 0.387 1.270
101.60 3 1 / 2 2.11 1.580 5.190 3.05 2.260 7.400
42.20 1 1 / 2 1.65 0.579 1.900 2.77 0.948 3.110 3.68 1.230 4.050
Stainless Steel 304 Hollow Tube Pressure Rating Chart
Pipe Size Pipe Schedule Temperature (oF)
650 100 500 400 750 700 200 600 300
3" 160 1682 2747 1820 1957 1631 1648 2369 1734 2129
80 2755 4499 2980 3205 2671 2699 3880 2840 3486
1 1/2" 160 986 1609 1066 1147 956 966 1388 1016 1247
80 1927 3147 2085 2242 1868 1880 2714 1986 2439
1" 160 2580 4213 2791 3002 2501 2528 3634 2659 3265
80 3761 6140 4068 4375 3646 3684 5296 3876 4759
5" 160 1355 2213 1466 1577 1314 1328 1909 1397 1715
80 2206 3601 2386 2566 2138 2161 3106 2273 2791
4" 160 1564 2553 1691 1819 1516 1532 2202 1612 1979
80 2352 3840 2544 2736 2280 2304 3312 2424 2976
8" 160 1172 1913 1267 1363 1136 1148 1650 1208 1483
80 2014 3289 2179 2343 1953 1973 2836 2076 2549
2" 160 1949 3182 2108 2267 1889 1909 2744 2009 2466
80 2829 4619 3060 3291 2743 2772 3984 2916 3580
10" 160 1036 1692 1121 1205 1005 1015 1459 1068 1311
80 1944 3175 2103 2262 1885 1905 2738 2004 2460
6" 160 1213 1981 1312 1411 1176 1189 1709 1250 1535
80 2091 3414 2262 2433 2027 2049 2945 2155 2646

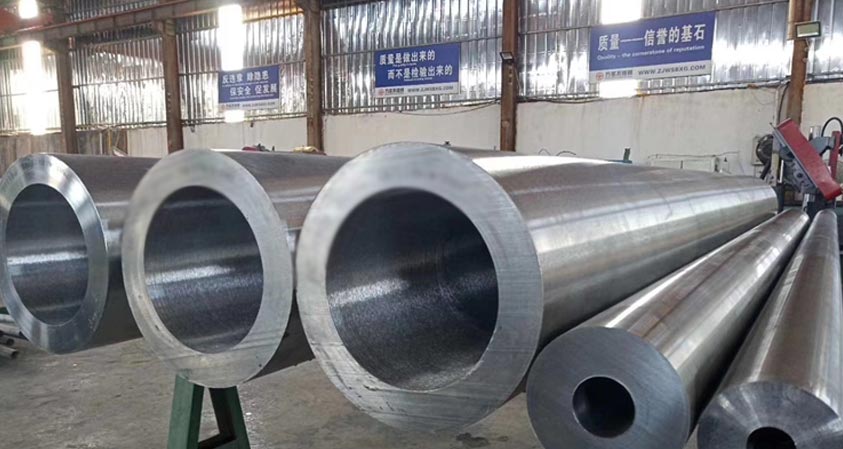

316L SS Hollow Section Pipe Manufacturing Process
316L SS Hollow Section Pipe Manufacturing Process
  • Floating Process
  • Welding Process
  • Drawing
  • Continuous Casting
  • Sinking Process
  • Annealing
  • Continuous Tube Mills
  • Testing and Inspection
Chemical Composition of Hollow Stainless 1x1
Grades Sulfur Phosphorus Silicon Manganese Chromium Carbon Other Nickel
SS 316 0.030 0.040 0.75 2.00 16.00 18.00 008 Mo2.00- 3.00 11.00 4.00
SS 304 0.03 0.04 0.075 2 18.00 20.00 0.08 8.00 11.00
SS 316H 0.030 0040 0.75 I 2.00 16.00 18.00 0_04 0.10 Mo2.00-3.00 11.00 14.00
SS 304H 0.03 0.04 0.75 2 18.00 20 0.04 0.1 8.00 11
SS 321 0.03 0.04 0.75 203 17.00 20 0.48 Ti 5XC-0.60 9.00 13
SS 316L 0.03 0.04 0.75 2 16.00 18 0.035 Mo 2.00 3.00 10.00 15
SS 317 0.03 0.04 0.75 2 18.00 20 0.08 Mo 3.00 4.00 11.00 14
SS 416 0.15 0.066 1.00 1.25 12.00 14.00 0.15
SS 304L 0.03 0.04 0.75 2 .00 18.00 20.00 0.035 8.00 13.00
SS 347 0.03 0.04 0.75 200 17.00 20 0.08 Cb + Ta 10 XC-1.00 7.00 13
SS 310 0.03 0.04 0.75 2 24.00 26 0.15 19.00 22
Equivalent Grades of SS Hollow Tube
America North America Japan France Europe Russia United Kingdom Russia
ASTM UNS JIS AFNOR EN GOST BS WERKSTOFF NR.
SS 304L S30403 SUS 304L Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11 03Х18Н11 3304S11 1.4306 / 1.4307
SS 347 S34700 SUS 347 - X6CrNiNb18-10 - - 1.4550
SS 310 S31000 SUS 310 – X15CrNi25-20 20Ch25N20S2 310S24 1.4841
SS 317L S31703 SUS 317L - X2CrNiMo18-15-4 - - 1.4438
SS 304H S30409 – – – – – 1.4301
SS 321H S32109 SUS 321H - X12CrNiTi18-9 - - 1.4878
SS 316L S31603 SUS 316L Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 /
X2CrNiMo18-14-3		 03Ch17N14M3 / 03Ch17N14M2 316S11 / 316S13 1.4404 / 1.4435
SS 304 S30400 SUS 304 Z7CN18‐09 X5CrNi18-10 08Х18Н10 304S31 1.4301
SS 316 S31600 SUS 316 Z7CND17‐11‐02 X5CrNiMo17-12-2 /
X3CrNiMo17-13-3		 - 316S31 / 316S33 1.4401 / 1.4436
SS 317 S31700 SUS 317 - X5CrNiMo1713 - - 1.4449
SS 316H S31609 - - - - 316S51 -
SS 347H S34709 SUS 347H - X6CrNiNb18-12 - - 1.4961
SS 904L N08904 SUS 904L Z2 NCDU 25-20 X1NiCrMoCu25-20-5 STS 317J5L 904S13 1.4539
SS 410S S41008 SUS410S - X6CrNiTi12 - - 1.4516
SS 310S S31008 SUS 310S – X8CrNi25-21 20Ch23N18 310S16 1.4845
SS 321 S32100 SUS 321 - X6CrNiTi18-10 - - 1.4541
SS 409 S40900 SUS409 - X2CrTi12 - - 1.4512
Mechanical Properties of SS Hollow Section Pipe
Type Yield Rockwell Hardness Tensile Elongation
SS 317 40,000 RB85 90,000 45
SS 310 45,000 RB85 95,000 45
SS 304H 35,000 RB80 85,000 55
SS 347 40,000 RB85 95,000 50
SS 316 35000 RB80 85000 50
316L 30000 RB75 80000 50
SS 304L 30000
75000		 RB75
RB95		 80000
105000		 55
20
SS 321 35000
75000		 RB80
RB95		 90,000
105000		 55
20
SS 416 35,000 RB95 75,000 20
316H 35000 RB80 85000 50
SS 304 35000
75000		 RB80
RB95		 85000
105000		 55
20
Physical Properties of Stainless Steel Hollow Cylinder
Grades Coefficient of Thermal Expansion (μm/m·°C) Melting Point (°C) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K) Density (g/cm³)
SS 904L 16.0 1350 - 1400 70.0 15.0 8.00
SS 304L 16.0 1400 - 1450 72.3 16.2 7.93
SS 304 17.2 1400 - 1450 0.072 16.2 7.93
SS 304H 16.0 1400 - 1450 72.3 16.2 7.93
SS 317 16.5 1375 - 1400 74.5 16.3 7.95
SS 347 16.0 1400 - 1450 74.0 16.2 7.93
SS 316 16.5 1375 - 1400 74.0 16.3 7.98
SS 321 16.0 1400 - 1450 74.0 16.2 7.93
SS 316L 16.5 1375- 1400 74.0 16.3 7.98
SS 446 11.5 1400 - 1450 76.0 30.0 7.80
SS 310 17.0 1400 - 1450 72.0 14.0 7.90
SS 317L 16.5 1375 - 1400 74.5 16.3 7.95
SS 310S 17.0 1400 - 1450 72.0 14.0 7.90
SS 321H 16.0 1400 - 1450 74.0 16.2 7.93
SS 410 11.5 1480 - 1530 78.0 30.0 7.75
Stainless Steel Hollow Tube Ready Stock for Sale

Stainless Steel Hollow Pipe Suppliers are offered to satisfy a range of customer needs and are easily available in different formats.

500mm Diameter Hollow Welded Steel Pipe

500mm Diameter Hollow Welded Steel Pipe

Thin-Walled 316 Stainless Steel Hollow Tube

Thin-Walled 316 Stainless Steel Hollow Tube

50mm*50mm 100mm*100mm Hollow Section Tube

50mm*50mm 100mm*100mm Hollow Section Tube

30mm Thickness Hollow Long Cylindrical Steel Pipe

30mm Thickness Hollow Long Cylindrical Steel Pipe

27mm High Temperature Stainless Steel 304 Hollow Pipe

27mm High Temperature Stainless Steel 304 Hollow Pipe

Stainless Steel Hollow Pipe Duration of Delivery by Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Uk 30
France 28
Netherland 30
Bahamas  60
Belgium 40
Denmark 35
Czech Republic 45
Greece 45
Russia 20
Ukraine 60
Norway 45
Spain  30
Germany 21
Portugal 45
Italy 28
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
