Stainless Steel Hydraulic Tubing Manufacturer in India

Stainless Steel Hydraulic Tubing Specification

How to get High Quality Stainless Steel Hydraulic Tubing in UAE at lowest Price?

Strategy	Explanation
Request Multiple Quotes	Compare pricing
Negotiate Pricing	Bulk discounts
Online Marketplaces	Check Alibaba, Amazon
Certification & Quality	Verify standards
Consider Importing	Import options
Trade Shows	Network & negotiate
Review Distributors	Local distributor deals
Long-Term Contracts	Consistent pricing

Table of Content

Stainless Steel Hydraulic Tubing Specification
What Are the Key Steps in the SS Hydraulic Pipe Manufacturing Process?
Stainless Steel Hydraulic Tubing Price
Stainless Steel Hydraulic Lines Dimensions
Stainless Steel Hydraulic Tubing Sizes
Types Of SS Hydraulic Tubing
What is the Manufacturing Process for Stainless Steel Oval Pipes?
Braided Stainless Steel Hydraulic Lines Outside Diameter Tolerance
Which Tests Are Most Frequently Performed on Stainless Steel Hydraulic Tubes ?
316 SS Hydraulic Hose Pipe Pressure Rating
SS 304 Hydraulic Lines Applications
Stainless Steel Hydraulic Cylinder Tube Chemical Composition
Stainless Hydraulic Tubing Equivalent Grades
Steel Hydraulic Pipe Mechanical Properties

Stainless Steel Hydraulic Tubing Specification

SS Hydraulic Tubing Sizes

Thickness : 0.3mm – 50 mm
Length : 6.00 to 914.4 mm
OD: 6 mm to 60.3 mm

Stainless Hydraulic Pipe Manufacturing Process

Hot Formed
Cold Formed
Precision Rolled

316 SS Hydraulic Seamless Pipe Sizes

OD: 1/8 inches to 12 inches
Wall Thk : 12.7 mm - 0.6 mm
Length: Single, Cut Length, Double Random

SS 304 Hydraulic Welded Pipe

Wall Thickness: 12.7 mm to 0.8 mm
OD: 114.3 mm to 6.35 mm
Length: 26 m

Stainless Steel Hydraulic Tube Testing

Ultrasonic
Mechanical
PMI
Chemical

Steel Hydraulic Pipe Origin

Janpanese
American
Russia
European

SS Hydraulic Pipe Standards

ASTM A312 | ASME SA 312
API, UNS, DIN, EN
SUS, ASME, GB, AISI

Braided Stainless Steel Hydraulic Lines Documentation

Mill Test Certificates
Visual Inspection
PMI Test Reports

SS Hydraulic Tube Services

Shearing
Cutting
Heat Treatment

Stainless Steel Hydraulic Cylinder Tube Packaging

Bubble Wraps
Wooden Box
Bundled

SS Hydraulic Pipe Finish

Annealing
Bright
Polished

SS Hydraulic Hose Pipe End

Beveled
Plain

What Are the Key Steps in the SS Hydraulic Pipe Manufacturing Process?

Continuous Seamless Tube Mills
Welding Process
Annealing
Floating Process
Sinking Process
Inspection and Testing

Supplier Of SS Hydraulic Pipe in Mumbai Since 1997 at Factory Price

Stainless Steel Hydraulic Tubing Price

Are You Looking to Buy Stainless Steel Hydraulic Tubing at a Competitive Price? By sending an email, you can receive an estimate right away. kalpesh@manishasteelcentre.com.

Product Price List	Price
SS 304 Hydraulic Tubing	US $ 42 to 64
Stainless Steel Hydraulic Tube Supplier	US $ 2627 to 12363
Stainless Steel Bright Annealed Hydraulic	US $ 3265 to 6526
High Quality SS Hydraulic	$3 to 36 / Kg
Stainless Steel 316 Hydraulic Tubing	US $ 1677 to 2635
1/4" SS Hydraulic Tubing Supplier In India	$434.00 to $1,655.00
SS 316L Hydraulic Tubes	$765.00 to $1,664.00
Polished Stainless Steel 316 Hydraulic Tubes	$13.00 to $675.00

Stainless Steel Hydraulic Lines Dimensions

Inside Diameter	Outside Diameter	Wall Thickness	Tolerance of Inside Diameter	Weight	Flow cross section
[mm]	[mm]	[mm]		[kg/m]	[cm2]
55	80	12,5	± 0,35	20,81	23,75
19	22	1,5	± 0,08	0,758	2,84
26	38	6	± 0,15	4,74	5,31
18	22	2	± 0,08	0,986	2,55
23	35	6	± 0,15	4,29	4,16
17	22	2,5	± 0,08	1,2	2,27
34	38	2	± 0,15	1,766	9,08
16	22	3	± 0,15	1,41	2,01
22	28	3	± 0,15	1,85	3,80
30	38	4	± 0,15	3,35	7,07
24	38	7	± 0,15	5,35	4,52
20	28	4	± 0,15	2,37	3,14
18	28	5	± 0,15	2,84	2,55
28	38	5	± 0,15	4,07	6,16
25	35	5	± 0,15	3,70	4,91
38	50	6	± 0,20	6,51	11,34
33	38	2,5	± 0,15	2,19	8,55
30	50	10	± 0,20	9,86	7,07
32	38	3	± 0,15	2,59	8,04
50	70	10	± 0,30	14,80	19,63
34	50	8	± 0,20	8,29	9,08
45	70	12,5	± 0,30	17,72	15,90
32	50	9	± 0,20	9,1	8,04
68	80	6	± 0,35	10,95	36,30
47	55	4	± 0,25	5,03	17,34
60	80	10	± 0,35	17,26	28,26
64	80	8	± 0,35	14,21	32,15

Buy Most Popular 3 8 or 1 2 inch Stainless Steel Hydraulic Tube or Custom Sizes Online

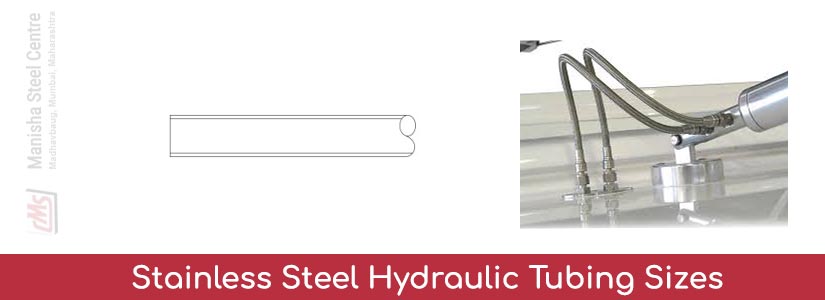

Stainless Steel Hydraulic Tubing Sizes

Stainless Steel Hydraulic Tubing Manufacturer in India offers a wide variety of diameters and sizes to satisfy customer needs.

Size (inches)	Outside Diameter		Schedule ChartSchedule Chart
	Outside Diameter		Wall Thickness and Weight
	(mm)	(inches)	10S		5S		80S		40S
	(mm)	(inches)	mm (in)	kg/m	mm (in)	kg/m	mm (in)	kg/m	mm (in)	kg/m
3/8	17.2	0.675	1.66 (0.065)	0.63	-	-	3.20 (0.126)	1.10	2.32 (0.091)	0.85
1/8	10.3	0.405	1.25 (0.049)	0.28	-	-	2.42 (0.095)	0.47	1.73 (0.068)	0.37
3/4	26.7	1.050	2.11 (0.083)	1.28	1.65 (0.065)	1.02	3.92 (0.154)	2.20	2.87 (0.113)	1.68
1/4	13.7	0.540	1.66 (0.065)	0.49	-	-	3.03 (0.119)	0.80	2.24 (0.088)	0.63
1 1/4	42.2	1.660	2.77 (0.109)	2.69	1.65 (0.065)	1.66	4.86 (0.191)	4.47	3.56 (0.140)	3.39
1/2	21.3	0.840	2.11 (0.083)	1.00	1.65 (0.065)	0.81	3.74 (0.147)	1.62	2.77 (0.109)	1.27
1 1/2	48.3	1.900	2.77 (0.109)	3.11	1.65 (0.065)	1.91	5.08 (0.200)	5.41	3.69 (0.145)	4.06
1	33.4	1.315	2.77 (0.109)	2.09	1.65 (0.065)	1.30	4.55 (0.179)	3.24	3.38 (0.133)	2.50
2 1/2	73.0	2.875	3.05 (0.120)	5.26	2.11 (0.083)	3.69	7.01 (0.276)	11.4	5.16 (0.203)	8.64
2	60.3	2.375	2.77 (0.109)	3.93	1.65 (0.065)	2.40	5.54 (0.218)	7.49	3.92 (0.154)	5.45
3 1/2	101.6	4.000	3.05 (0.120)	7.41	2.11 (0.083)	5.18	8.08 (0.318)	18.6	5.74 (0.226)	13.6
3	88.9	3.500	3.05 (0.120)	6.46	2.11 (0.083)	4.52	7.62 (0.300)	15.3	5.49 (0.216)	11.3
5	141.3	5.563	3.41 (0.134)	11.6	2.77 (0.109)	9.46	9.53 (0.375)	31.0	6.56 (0.258)	21.8
4	114.3	4.500	3.05 (0.120)	8.37	2.11 (0.083)	5.84	8.56 (0.337)	22.3	6.02 (0.237)	16.1
8	219.1	8.625	3.76 (0.148)	20.0	2.77 (0.109)	14.8	12.70 (0.500)	64.6	8.18 (0.322)	42.5
6	168.3	6.625	3.41 (0.134)	13.9	2.77 (0.109)	11.3	10.98 (0.432)	42.6	7.12 (0.280)	28.3
12	323.9	12.750	4.58 (0.180)	36.1	3.97 (0.156)	31.3	12.70 (0.500)	97.4	9.53 (0.375)	73.9
10	273.1	10.750	4.20 (0.165)	27.8	3.41 (0.134)	22.7	12.70 (0.500)	81.5	9.28 (0.365)	60.4

Supply Premium Quality 304 or 316 SS Hydraulic Hose Pipe With Various Surface Finish and Types

Types Of SS Hydraulic Tubing

Manisha Steel Centre Top-Rated Stainless Steel Hydraulic Tubing Supplier in India offers an extensive variety of forms and shapes at affordable costs.

Stainless Steel Hydraulic Pipe

316 SS Hydraulic Hose Pipe

Stainless Steel Hydraulic Lines

Braided Stainless Steel Hydraulic Lines

Stainless Steel Hydraulic Cylinder Tube

Braided Stainless Steel Hydraulic Lines Outside Diameter Tolerance

OD in mm	Tolerance in mm
4 to 30	± 0.08
35 to 38	± 0.15
42 to 50	± 0.20
55 to 60	± 0.25
70	± 0.30
80	± 0.35

Which Tests Are Most Frequently Performed on Stainless Steel Hydraulic Tubes ?

Positive Material Identification – PMI Testing	Hydrostatic Test
Macro Test	Dye Penetrant Test (DP Test)
Chemical Analysis – Spectro Analysis	Hydrogen-Induced Cracking (HIC) Test
Intergranular Corrosion (IGC) Test	Impact Test
Micro Test	Radiography Test
Pitting Resistance Test	Eddy Current Testing
Hardness Test	Ultra Sonic Test (UT)
Flaring Test	Bend Test

Get Braided Stainless Steel Hydraulic Lines Online Which Can Handle Upto 66,000 psi Pressure, View Pressure Rating

316 SS Hydraulic Hose Pipe Pressure Rating

Stainless Steel Hydraulic Tube Pressure Rating																	Swagelok Fitting Series
ODin.	Note: For gas service, select a tube wall thickness outside of the shaded area.																Swagelok Fitting Series
1/16	5600	9400	6800	12000	8100	-	-	-	-	-	-	-	-	-	-	-	100
1/8	-	-	-	-	-	10900	8500	-	-	-	-	-	-	-	-	-	200
2	-	-	-	-	-	-	-	-	-	-	-	2200	2000	2900	2500	3600	3200
3/16	-	-	-	-	-	7000	5400	-	10200	-	-	-	-	-	-	-	300
1 1/4	-	-	-	-	-	-	-	-	-	2800	2400	3600	3300	4900	4100	-	2000
1 1/2	-	-	-	-	-	-	-	-	-	2300	-	3000	2700	4000	3400	4900	2400
1	-	-	-	-	-	-	-	2400	-	3600	3100	4700	4200	-	-	-	1610
1/4	-	-	-	-	-	5100	4000	10200➀	7500	-	-	-	-	-	-	-	400
7/8	-	-	-	-	-	-	-	2800	2000	4200	3600	-	4800	-	-	-	1410
5/16	-	-	-	-	-	4000	-	8000	5800	-	-	-	-	-	-	-	500
3/4	-	-	-	-	-	-	-	3300	2400	4900	4200	-	5800	-	-	-	1210
3/8	-	-	-	-	-	3300	-	6500	4800	-	7500➀➁	-	-	-	-	-	600
5/8	-	-	-	-	-	-	-	4000	2900	6000	5200	-	-	-	-	-	1010
1/2	-	-	-	-	-	2600	-	5100	3700	-	6700	-	-	-	-	-	810

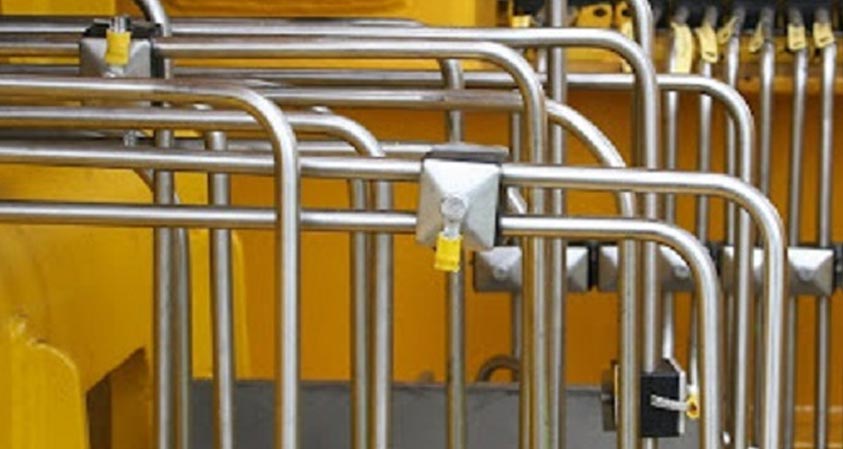

SS 304 Hydraulic Lines Applications

Renewable energy
Pulp and Paper
Aircraft Industry
Pharmaceutical
Food and beverage
Power generation
Marine Industry
Mining
Chemical and petrochemical
Oil and gas

Offer Stainless Steel Hydraulic Cylinder Tube in Both Seamless and Welded Form, Refer Properties

Stainless Steel Hydraulic Cylinder Tube Chemical Composition

STAINLESS STEEL PIPE GRADES	UNS	Mn	Mo	Cr	C	Ni	P	Si
TP304L	S30403	2		18.0-20.0	0.04	8.0-13.0	0.045	1
TP304	S30400	2		18.0-20.0	0.08	8.0-11.0	0.045	1
TP316L	S31603	2	2.0-3.0	16.0-18.0	0.04	10.0-14.0	0.045	1
TP316	S3160	2	2.0-3.0	16.0-18.0	0.08	11.0-14.0	0.045	1

Stainless Hydraulic Tubing Equivalent Grades

GRADE	DIN/WERKSTOFF	UNS NO
304	1.4301	S30400
316L	1.4404	S31603
304L	1.4306	S30403
316	1.4436	S31600

Steel Hydraulic Pipe Mechanical Properties

Material	Heat	Temperure	Tensile Strength	Yield Strength	Elongation %, Min
	Treatment	Min.	Ksi (MPa), Min.	Ksi (MPa), Min.
		º F(º C)
TP304L	Solution	1900 (1040)	70(485)	25(170)	35
TP304	Solution	1900 (1040)	75(515)	30(205)	35
TP316L	Solution	1900(1040)	70(485)	25(170)	35
TP316	Solution	1900(1040)	75(515)	30(205)	35

Stainless Steel Hydraulic Tubing Shipping Time according to the Address

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Norway	45
Portugal	45
Denmark	35
France	28
Greece	45
Belgium	40
Uk	30
Ukraine	60
Spain	30
Czech Republic	45
Italy	28
Germany	21
Russia	20
Netherland	30
Bahamas	60

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
