Stainless Steel Fasteners Manufacturer in India

Home| Stainless Steel Fasteners

Premier SS Bolts and Nuts Supplier in Mumbai Since 1997 At Factory Price

Stainless Steel Fasteners Specification
Most important Documents to Import Stainless Steel Fasteners in Germany.
  • Commercial Invoice
  • Packing List
  • Bill of Lading (B/L)
  • Certificate of Origin (CO)
  • Import Declaration
  • Declaration of Conformity (DoC)
  • Import Licenses
  • CE Certification
  • Technical Specifications and Test Reports
  • REACH Compliance Declaration
  • Importer’s VAT Registration Number
  • Customs Tariff Code
  • Insurance Certificate
Manisha Steel Centre

Table of Content

Stainless Steel Bolts and Nuts Specifications
Stainless Steel Fasteners Sizes

Stainless Steel Fasteners Sizes

  • Length: 3 to 200 mm
  • Metric: M3 to M56
  • Imperial: 3/6" to 2"
SS Bolts Head and Threads

SS Bolts Head and Threads

  • Thread: UNF, METRIC, UNC, BSW, BSF
  • Head Type:  Pan, Hex, Truss, Oval
  • Neck Type: Knurled,  Hex, Square
Stainless Steel Screws Sizes

Stainless Steel Screws Sizes

  • Size: M1.6 - M12
  • Head :Truss, Round, Pan, Button
  • Thread Pitch : Fine and Coarse
SS Bolts and Nuts Technique

SS Bolts and Nuts Technique

  • Cold forging
  • Hot forging
  • CNC Machined
Stainless Steel Washers Sizes

Stainless Steel Washers Sizes

  • ID: 0.062 - 12 inch
  • Thickness:0.002 - ½ inch
  • Forms: G, B, A, D, E, C
SS Threaded Rod Sizes

SS Threaded Rod Sizes

  • Size: M3 to M64
  • Finish: Oxidation, Phosphating, HDG
  • Condition: Cold Drawn, Threading
Stainless Steel Studs End and Types

Stainless Steel Studs End and Types

  • End: Flat, Sheared, Cut, Chamfer, Saw Rounded etc.
  • Types: Fine and Fully Threaded,  Double/Tap-End.
SS Nut Bolt Standards

SS Nut Bolt Standards

  • ASTM A193 | ASME SA 193
  • ASME B18.2.1
  • BS EN ISO 3506
SS Bolts and Nuts Surface Coating

SS Bolts and Nuts Surface Coating

  • PTFE, Zinc, Plain
  • Chrome Plated
  • Nickel Plated
Stainless Steel Bolt Nut Packaging

Stainless Steel Bolt Nut Packaging

  • Wooden Box
  • Bubble Wraps
  • Bundled
SS 304 Bolts Drive Style

SS 304 Bolts Drive Style

  • Torx, Pan, Cross, Oval
  • Hex, Truss, Round
SS 316 Fasteners Thread Type

SS 316 Fasteners Thread Type

  • Fully threaded
  • Partially threaded

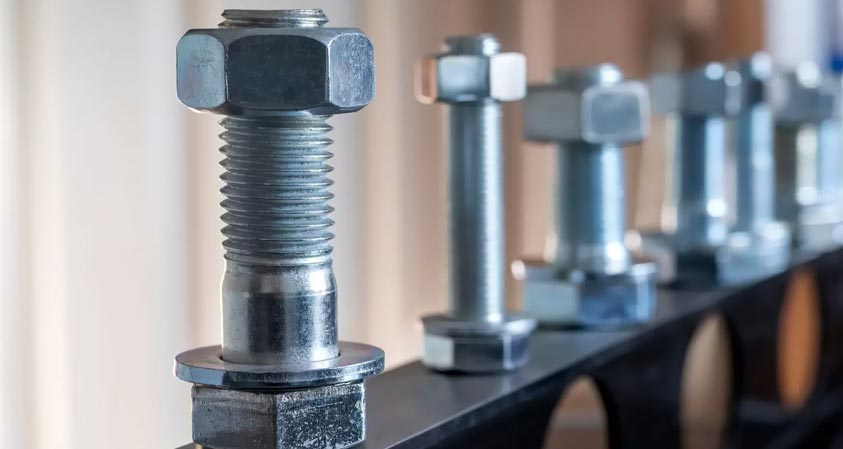

SS Anchor Fasteners Testing

SS Anchor Fasteners Testing

  • Toughness
  • PMI
  • Charpy impact test
  • Flattening
Stainless Steel Nuts & Bolts Marking

Stainless Steel Nuts & Bolts Marking

  • Size
  • Logo
  • Property/Strength class
  • Material Grade
APL SS Fasteners Price List

Do You Want to Know the Most Recent SS Fasteners Price List in India? Contact kalpesh@manishasteelcentre.com for an Expedient Estimate.

APL SS Fastener Type Length (mm) Dia (mm) Price (Rs.) Min. Order Quantity Offer Price (Rs.)
Hex Bolts 170 12 23,000 100 13,600
Hex Bolts 3 10 1,266 600 744
Hex Bolts 8 16 2,012 200 1,186
Hex Bolts 12 55 4,935 100 2,912
Hex Bolts 18 100 24,700 100 14,600
Hex Bolts 8 100 3,360 100 1,982
Hex Bolts 6 100 2,100 100 1,239
Hex Bolts 3 25 1,224 400 724
Hex Bolts 6 85 1,889 100 1,115
Hex Bolts 150 20 46,100 100 27,200
Hex Bolts 5 50 1,794 200 1,058
Hex Bolts 12 40 4,095 100 2,416
Hex Bolts 3 12 1,160 500 680
Hex Bolts 3 16 1,210 500 710
Hex Bolts 5 10 1,344 400 792
Hex Bolts 110 16 20,000 100 11,800
Hex Bolts 5 20 1,269 300 750
Hex Bolts 18 85 22,700 100 13,400
Hex Bolts 4 12 1,285 500 755
Hex Bolts 4 20 1,224 400 724



APL SS Screw Type Length (mm) Dia (mm) Grade Min. Order Quantity Price (Rs.) Offer Price (Rs.)
CSK Philips/CSK Head Self Tapping Screw 25 12 AISI 304 200 1,514 832
13 10 400 1,280 704
Pan Philips/Pan Head Self Tapping Screw 32 14 100 1,470 808
CSK Philips/CSK Head Self Tapping Screw 13 12 300 1,434 789
19 12 200 1,232 680
38 12 200 2,100 1,156
32 6 300 1,143 630
19 6 500 1,280 705
Pan Philips/Pan Head Self Tapping Screw 25 12 200 1,766 970
16 10 300 1,299 714
CSK Philips/CSK Head Self Tapping Screw 25 8 300 1,233 678
16 14 200 1,420 780
Pan Philips/Pan Head Self Tapping Screw 32 12 200 2,100 1,156
CSK Philips/CSK Head Self Tapping Screw 25 14 200 2,062 1,134
Pan Philips/Pan Head Self Tapping Screw 16 12 200 1,362 748
CSK Philips/CSK Head Self Tapping Screw 16 12 300 1,635 900
Pan Philips/Pan Head Self Tapping Screw 19 10 300 1,428 783
9.5 8 500 1,350 740
19 6 400 1,164 636
38 10 200 1,590 874

SKUs Tested 304/ 316 Stainless Steel Screws Manufacturer in India With Size From M1.6 to M12

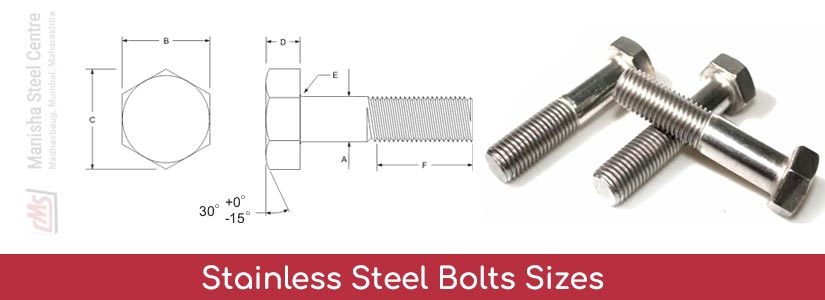

High Tensile Stainless Steel Bolts Sizes

Stainless Steel Fasteners Manufacturer in India in Both Metric and Imperial Sizes With Various Threads

High Tensile Stainless Steel Bolts Sizes



Metric Sizes

PRODUCT PROPERTY CLASS SIZE STANDARD
Hex Head Screw (Full Thread) A4 - 70/80, A2 - 70/80 M3 to M30 ISO 4017/ DIN 933
Threaded Rod A4 - 70/80, A2 - 70/80 M3 to M36 DIN 975
Socket Head Cap Screw A4 - 70/80, A2 - 70/80 M3 to M30 ISO 4762/DIN 912
Hex Nut A4 - 70/80, A2 - 70/80 M3 to M30 ISO 4032/ DIN 934
Hex Head Bolt (Partial Thread) A4 - 70/80, A2 - 70/80 M4 to M30 ISO 4014 /DIN 931
Flat - Section Spring Washer A4, A2 M3 to M36 DIN 127 B
Plain Washer A4, A2 M3 to M64 DIN 125 A
Square - Section Spring Washer A4, A2 M3 to M36 DIN 7980



Inch Sizes

PRODUCT SIZE STANDARD GRADE
Plain Washer 1/4 to 1 ANSI B18.21.1 304, 316
Screw /Hex Head Bolt 1/4 to 1 ASME B18.2.1 / ASTM F593 F593G & F593D, F593C, F593H
Socket Head Cap Screw 3/16 to 1 ASME B18.3 / F837 F837E & F837B
316, 304 Hex Nut 1/4 to 1 1/2 ASME B18.2.2 / F594 F594G & F594D, F594C, F594H
SS Fasteners Grade
Diameter Fastener Type Grades
M-12 to M-100

Hex bolts

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-12 to M-100

Hexagon bolts

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-30 to M-72

Socket head cap screws

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-12 to M-100

Hex cap screws

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-30 to M-72

Hex nuts

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-12 to M-72

Stud bolts

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-30 to M-64

Hex nylock nuts

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-30 to M-72

Hex lock nuts

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-12 to M-72

Heavy hex nuts

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-12 to M-72

Hex castle nuts

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431
M-12 to M-72

Washers

304 / 304 L 316 / 316 L 310 / 310 S 410 / 431

Get Unmatched Quality Hot and Cold Forged SS Rivets and Washer Ready Stock in Various Grades, Refer More SS Fasteners Types

Stainless Steel Nut Bolt Washer Types

Best Stainless Steel Fasteners Supplier in India in Various Types With Different Surface Finish and Condition

Stainless Steel Screws

Stainless Steel Screws

Stainless Steel Bolts and Nuts

Stainless Steel Bolts and Nuts

Stainless Steel Self Tapping Screws

Stainless Steel Self Tapping Screws

SS Studs

SS Studs

Stainless Steel Rivets

Stainless Steel Rivets

Stainless Steel Washers

Stainless Steel Washers

SS Threaded Rod

SS Threaded Rod

Stainless Steel Anchor Bolts

Stainless Steel Anchor Bolts

SS Eye Bolt

SS Eye Bolt

Stainless Steel Hex Head Bolts

Stainless Steel Hex Head Bolts

SS Self Drilling Screw

SS Self Drilling Screw

SS 304 Fasteners

SS 304 Fasteners

Stainless Steel 316 Fasteners

Stainless Steel 316 Fasteners

SS Dowel Pin

SS Dowel Pin

Stainless Steel Hex Nuts

Stainless Steel Hex Nuts

Find Stainless Steel Studs and Threaded Rod With Size Ranging M3 to M64 With Various Surface Finish and End
Surface Finish Of SS Screws
Surface Finish Appearance Applications
Passivated Finish Slightly Shiny, Matte Medical, Food, Marine
Mill Finish Rough, Dull Mechanical, Industrial
Polished Finish Reflective, Glossy Decorative, Architectural
Bead Blasted Finish Textured, Matte Medical, Aerospace
Brushed Finish Matte, Satin Architecture Appliances
Black Oxide Finish Matte Black Aesthetic, Outdoor
Electropolished Finish Smooth, Shiny Pharma, Food, Medical
Hot-Dip Galvanized Dull Gray, Rough Outdoor, Construction
Zinc Plated Finish Dull or Bright Metallic Outdoor, Automotive
Electroplated (Chrome/Nickel) Reflective, Shiny Automotive, Decorative, Plumbing
Committed Stainless Steel Nut Bolt Manufacturer in India, Check SS Bolt Torque Chart and HSN Code
Stainless Steel Bolt Torque Chart
Bolt Size 18-8 Stainless Steel
Torque in-lbs		 316 Stainless Steel
Torque in-lbs
4-48 6.6 6.9
4-40 5.2 5.5
5-40 7.7 8.1
6-32 9.6 10.1
5-44 9.4 9.8
8-32 19.8 20.7
6-40 12.1 12.7
8-36 22 23
10-32 31.7 33.1
10-24 22.8 23.8
1/4-28 94 99
1/4-20 75.2 78.8
5/16-18 132 138
3/8-16 236 247
5/16-24 142 147
7/16-14 376 393
3/8-24 259 271
7/16-20 400 418
Bolt Size 18-8 Stainless Steel
Torque ft-lbs		 316 Stainless Steel
Torque ft-lbs
1/2-20 45 47
1/2-13 43 45
9/16-18 62 65
9/16-12 56 59
1 - 14 259 270
5/8-18 103 108
5/8-11 92 96
3/4-16 124 129
3/4-10 127 131
7/8-14 193 201
7/8-9 194 202
1 - 8 286 299
SS Nut Bolt Materials overview
AISI SUS (JIS) ISO DIN
304 304 A2 1.4301
302 HQ XM-7 A2 1.4567
316 Cu 316 Cu A4
316 316 A4 1.4401
410 410 C1 1.4006
316 L 316 L A4 1.4404
430 430 F1 1.4016
SS Fasteners HSN Code
Product HSN Code
SS Fasteners 73181500

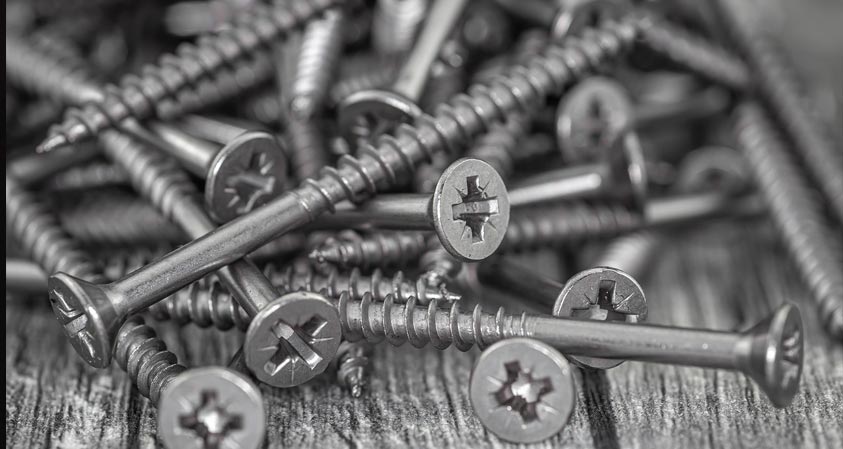

Stainless Metal Screws Application
Stainless Metal Screws Application
  • Aerospace
  • Automotive
  • Construction
  • Marine
  • Medical devices
  • Food processing equipment
  • Furniture
  • Electronics
  • Appliances
Stainless Steel Stud Sizes
ASME B16.5  Class 150 Flanges Stud Bolts Length
NPS OD of Flange NO. of Bolts dia of Bolt Circle dia of Bolt Holes Dia of Bolts Raised Face
0.06 in		 Ring Joint
3/4 3 7/8 4 2 3/4 5/8 1/2 2 1/2 –
1/2 3 1/2 4 2 3/8 5/8 1/2 2 1/4 –
1 1/4 4 5/8 4 3 1/2 5/8 1/2 2 3/4 3 1/4
1 4 1/4 4 3 1/8 5/8 1/2 2 1/2 3
1 1/2 5 4 3 7/8 5/8 1/2 2 3/4 3 1/4
2 1/2 7 4 5 1/2 3/4 5/8 3 1/2 4
2 6 4 4 3/4 3/4 5/8 3 1/4 3 3/4
3 1/2 8 1/2 8 7 3/4 5/8 3 1/2 4
3 7 1/2 4 6 3/4 5/8 3 1/2 4
5 10 8 8 1/2 7/8 3/4 3 3/4 4 1/4
4 9 8 7 1/2 3/4 5/8 3 1/2 4
6 11 8 9 1/2 7/8 3/4 4 4 1/2
10 16 12 14 3/4 1 7/8 4 1/2 5
8 13 1/2 8 11 3/4 7/8 3/4 4 1/4 4 3/4
12 19 12 17 1 7/8 4 3/4 5 1/4
16 23 1/2 16 21 1/4 1 1/8 1 5 1/4 5 3/4
14 21 12 18 3/4 1 1/8 1 5 1/4 5 3/4
20 27 1/2 20 25 1 1/4 1 1/8 6 1/4 6 3/4
18 25 16 22 3/4 1 1/4 1 1/8 5 3/4 6 1/4
24 32 20 29 1/2 1 1/4 1 1/4 6 3/4 7 1/4
Surface Coating Of Stainless Steel Nuts & Bolts
Coating Type Appearance Common Applications
Zinc Plating Dull/Bright Metallic Construction, Automotive
Passivation Slightly Shiny, Matte, Medical, Food
Chrome Plating Reflective Industrial, Automotive
Nickel Plating Smooth, Shiny Plumbing, Electronics
Phosphate Coating Matte, Grey Military, Automotive
Hot-Dip Galvanizing Dull Gray, Rough Infrastructure, Construction
Black Oxide Matte Black Machinery, Outdoor
Teflon Coating Dull Black, Smooth Food Processing, Machinery
Electroplating Smooth, Shiny Automotive, Plumbing
Dacromet Coating Matte, Grey Heavy Equipment, Marine
Stainless Steel Fasteners Standards
Standard Description Uses
ASTM F593 Stainless Steel Nuts Nuts Used in General Industry
ASTM A193 Materials for Bolting in High-temperature Applications High-Temp Nuts, Bolts, Studs
ASTM F594 Stainless Steel Bolts, Screws, Hex Head Screws, Bolts for General Use
ISO 3506-1 Stainless Steel Fasteners - Mechanical properties Bolts, Screws, Nuts
ASTM F1554 Anchor Bolts Concrete Anchor Bolts
ISO 4033 Hexagon Nuts - Dimensions Nuts for Bolts
ISO 4017 Hexagon Head Bolts - Property Class 8.8, 5.8, 10.9 Industrial Hex Bolts
DIN 931 Hex Bolts With a Whole Thread Full Thread Hex Bolts
ISO 4032 Hexagon Nuts - Mechanical properties High-Strength Fasteners
DIN 933 Hex Bolts Having a Shank That is Partially Threaded Partial Thread Bolts
DIN 7991 Hexagon Socket Flat Head Screws Countersunk Screws for Machinery
DIN 934 Internal Threads in Hexagon-shaped Nuts Hex Bolt Compatible Nuts
DIN 125 Flat Washers Load Distribution Washers
DIN 976 Threaded Rods Threaded Rods for Mechanical Use
JIS B 1180 Hexagon Nuts Dimensions General Fastening Nuts
ASME B18.3 Socket Screws Socket Screws for Electrical/Mechanical Use
DIN 970 Stainless Steel Cross-recessed Pan Head Screws Screws for Electrical, Furniture Use
BS 1083 Steel Fasteners General Requirements General Industrial Fasteners
JIS B 1181 Hexagon Bolts Dimensions Hex Bolts for Industrial Use
ASME B18.2.1 Square and Hex Bolts Square, Hex Bolts for Industrial Use
How Do You Maintain Stainless Steel Fasteners?
Activity Description Benefits
Use of Stainless Steel Cleaner Utilize Stainless Steel Cleaner Keeps the Shine
Frequent Cleaning Use a Gentle Detergent to Clean. Stops Rusting.
Lubrication Apply Anti-seize. Lessens Wear.
Avoid Contact with Different Metals Don't Mix Metals. Shields Against Galvanic Corrosion.
Proper Storage Keep Dry. Stops Rust
Avoid Harsh Chemicals Stay Away From Bleach and Chemicals. Stops Pitting.
Protection from Environmental Factors Put on Protective Coatings. Extends Life
Inspection Look for Any Damage. Finds Problems Early.
Tightening Apply the Appropriate Torque. Makes Sure It Fits Securely.
Stainless Steel Screw Sizes
Screw Size (Inch) Thread Pitch (mm) Diameter (mm) Length (mm)
#1 0.30 1.4 3 - 50
#0 0.30 1.2 3 - 50
#4 0.40 2.0 5 - 70
#2 0.35 1.6 3 - 60
#8 0.50 3.5 6 - 100
#6 0.45 2.3 5 - 80
#12 0.70 5.0 10 - 150
#10 0.60 4.8 8 - 120
#16 0.80 7.0 15 - 200
#14 0.75 6.0 12 - 150
#18 1.00 8.0 20 - 250



Screw Size (Metric) Thread Pitch (mm) Diameter (mm) Length (mm)
M3 0.5 3.0 5 - 80
M2 0.4 2.0 3 - 50
M4 0.7 4.0 6 - 100
M6 1.0 6.0 10 - 150
M5 0.8 5.0 8 - 120
M8 1.25 8.0 15 - 200
M12 1.75 12.0 30 - 300
M10 1.5 10.0 20 - 250
M20 2.5 20.0 50 - 400
M16 2.0 16.0 40 - 350
M24 3.0 24.0 60 - 500
Testing Facilities Of Bolt & Nut Stainless Steel

Manisha Steel Centre is Stainless Steel Nut Bolt Manufacturers in India by Both Hot and Cold Forging Methods.

Testing Facilities Of Bolt & Nut Stainless Steel
  • Tensile testing machine
  • Ultrasonic testing machine
  • Mobile spectrometer for PMI test
  • Radiation servo meter
  • Impact testing machine
  • Surface roughness tester
  • Microscope
  • Hardness testing machine
  • Dye penetrate test
  • IGC test facilities
SS Washer Size Chart
WasherType Outer Diameter (mm) Inner Diameter (mm) Thickness (mm)
M3 6.0 3.0 0.3
M2 5.0 2.0 0.2
M5 10.0 5.0 0.3
M4 8.0 4.0 0.3
M6 12.0 6.0 0.3
M10 20.0 10.0 0.5
M8 16.0 8.0 0.5
M12 24.0 12.0 0.5
M16 30.0 16.0 0.8
M14 28.0 14.0 0.5
M20 40.0 20.0 1.0
M30 60.0 30.0 1.2
M18 36.0 18.0 0.8
M24 48.0 24.0 1.0
M22 44.0 22.0 1.0
M27 54.0 27.0 1.0
Stainless Steel Bolt Nut Metric Conversion Table
Metric
(millimeters)		 US
(inches)		 Metric
(millimeters)		 US
(inches)
3.2 1/8 41 1-5/8
1.6 1/16 38 1-1/2
6.4 1/4 48 1-7/8
4.8 3/16 45 1-3/4
9.5 3/8 57 2-1/4
7.9 5/16 51 2
11 7/16 64 2-1/2
17 11/16 89 3-1/2
14 9/16 76 3
13 1/2 70 2-3/4
19 3/4 95 3-3/4
16 5/8 83 3-1/4
22 7/8 114 4-1/2
21 13/16 102 4
29 1-1/8 152 6
24 15/16 127 5
25 1 140 5-1/2
32 1-1/4 165 6-1/2
35 1-3/8 178 7



US
(in*)		 Metric
(mm)		 US
(in*)		 Metric
(mm)
1 25 5-1/2 140
3/32 2 2-3/16 55
1/8 3 2-9/16 65
3/32 2.5 2-3/8 60
3/16 5 2-15/16 75
5/32 4 2-3/4 70
23/32 18 4-3/4 120
1/4 6 3-1/8 80
5/16 8 3-3/8 85
15/32 12 3-3/4 95
13/32 10 3-9/16 90
5/8 16 4-5/16 110
9/16 14 3-15/16 100
1-3/16 30 5-7/8 150
2 50 7-1/2 190
25/32 20 5-1/8 130
1-9/16 40 6-11/16 170
1-3/8 35 6-6/16 160
1-3/4 45 7-1/16 180
SS Hex Nuts Dimensions
Size (M) Thickness (mm Width Across Flats (A) in mm
M4 3 7
M3 2.5 5.5
M6 4 10
M5 3.5 8
M10 6 16
M8 5 13
M14 8 19
M12 7 18
M18 10 24
M16 9 22
M22 12 30
M20 11 27
M27 14 36
M24 13 32
M30 16 41
Manufacturing Process Of Stainless Bolts
Manufacturing Process Of Stainless Bolts
Stainless Fasteners Weight Chart

AS PER IS 1363/67 THREADS

LENGTH DIAMETER
M 14 M 6 M 12 M 8 M 5 M 10 M 18 M 20 M 16 M 22
20 mm 0.812 4.892 1.711 0.598 3.411
16 mm 0.743 1.590 0.448 3.211
25 mm 8.170 0.897 5.252 1.871 0.660 3.660
35 mm 10.000 1.120 5.974 2.271 0.804 4.223 16.026 19.608 11.416
30 mm 9.690 1.010 5.574 2.070 0.737 3.912 18.657 10.707
40 mm 10.288 1.230 6.410 2.470 0.881 4.533 16.667 20.747 12.107
50 mm 11.261 1.450 7.299 2.870 1.030 5.155 17.857 22.727 13.624 28.409
45 mm 10.504 1.340 6.859 2.671 0.958 4.840 17.241 21.739 12.821
55 mm 11.628 1.560 7.740 3.071 5.464 18.868 23.810 14.409 30.120
65 mm 12.626 1.781 8.621 3.472 6.083 21.008 26.455 16.026 34.014
60 mm 12.255 1.670 8.183 3.270 5.774 20.000 25.126 15.244 32.051
75 mm 13.228 2.000 9.506 3.873 6.702 23.256 29.070 17.606 39.063
70 mm 12.987 1.890 9.058 3.671 6.394 22.124 27.778 16.835 35.461
90 mm 14.925 10.917 4.472 7.634 26.042 33.113 19.841 41.667
80 mm 13.889 2.111 10.000 4.072 7.013 24.510 30.303 18.248 40.000
110 mm 17.730 12.723 8.881 31.250 38.168 23.041 47.170
100 mm 16.340 11.820 4.873 8.251 27.778 35.714 21.459 46.296
120 mm 18.797 13.624 9.506 32.895 40.984 24.631 50.000
140 mm 20.833 15.432 10.707 35.461 46.296 27.933 55.556
130 mm 20.000 14.535 10.101 34.722 43.478 26.316 52.632
150 mm 22.222 16.340 11.312 37.594 48.544 29.412 58.824
170 mm 18.116 12.500 53.191 32.680 64.935
160 mm 24.272 17.241 11.905 40.984 50.505 31.056 61.728
180 mm 26.882 19.011 13.123 55.556 34.247 67.568
200 mm 29.586 20.833 14.327 49.020 60.976 37.594 73.529
190 mm 19.920 13.736 58.140 35.971 70.423
220 mm 22.624 15.528 65.789 40.650 79.365
250 mm 25.381 17.301 74.627 45.455 87.719
240 mm 24.510 16.722 71.429 43.860 84.746
260 mm 26.316 17.921 76.923 47.170 90.909
300 mm 29.940 20.325 87.719 53.763 104.167
280 mm 28.090 19.157 81.967 50.505 98.039
320 mm 31.646 92.593 56.818
400 mm 39.063 113.636 69.444
360 mm 35.211 104.167 63.291
340 mm 33.557 98.039 60.241
380 mm 37.037 108.696 66.667



AS PER BS 916/53 BSW THREADS

LENGTH SIZES
7/16″ 5/16″ 1/4″ 3/8″ 5/8″ 1/2″ 7/8″ 3/4″ 1.1/8″ 1″ 1.1/2″ 1.1/4″ 2″ 1.3/4″
1″ 4.950 2.041 1.252 3.123
1.1/4″ 5.388 2.281 1.401 3.458 13.966 7.692
1.1/2″ 5.875 2.523 1.556 3.797 14.925 8.306 29.240 23.810
3/4″ 1.111
1.3/4″ 6.329 2.762 1.705 4.132 15.924 8.897 31.056 25.253 45.045
2.1/4″ 7.246 3.245 2.005 4.826 17.921 10.121 34.483 28.249 70.423 50.505
2″ 6.793 3.003 1.864 4.468 16.949 9.506 32.680 26.882 47.619
2.1/2″ 7.704 3.484 2.159 5.144 18.868 10.707 36.765 29.762 73.529 52.632 156.250 98.039 312.500 227.273
3.1/2″ 9.542 4.444 2.762 6.485 22.831 13.123 43.860 35.714 84.746 60.976 178.571 113.636 333.333 250.000
3″ 8.621 3.965 2.459 5.814 20.921 11.933 40.323 32.468 79.365 56.818 166.667 106.383 333.333 250.000
4″ 10.460 4.926 3.075 7.153 24.876 14.327 48.544 38.462 90.909 66.667 185.185 119.048 357.143 277.778
5″ 12.285 5.903 3.655 8.475 28.902 16.779 54.945 43.860 102.041 76.923 208.333 135.135 384.615 294.118
4.1/2″ 11.364 5.405 3.367 7.813 26.882 15.528 51.546 40.984 98.039 69.444 192.308 128.205 384.615 277.778
6″ 14.085 6.868 4.237 9.804 32.680 19.157 63.291 50.505 116.279 86.207 238.095 156.250 416.667 357.143
5.1/2″ 13.158 6.386 3.946 9.141 30.864 17.921 58.824 47.170 108.696 81.967 227.273 147.059 416.667 333.333
7″ 34.722 20.833 73.529 53.763 128.205 96.154 250.000 172.414 500.000 384.615
9″ 42.735 25.907 87.719 64.935 156.250 116.279 312.500 200.000 555.556 454.545
8″ 38.462 23.585 79.365 58.140 142.857 106.383 277.778 185.185 555.556 416.667
10″ 47.619 28.736 96.154 71.429 166.667 125.000 333.333 217.391 625.000 454.545
12″ 53.763 33.557 113.636 80.645 192.308 147.059 384.615 250.000 714.286 555.556
11″ 50.505 31.250 104.167 75.758 178.571 135.135 357.143 238.095 714.286 500.000
14″ 60.976 38.462 125.000 92.593 217.391 166.667 416.667 277.778 833.333 625.000
18″ 76.923 48.544 156.250 113.636 263.158 208.333 555.556 333.333 1,000.000 714.286
16″ 68.493 43.478 142.857 104.167 238.095 185.185 500.000 312.500 1,000.000 714.286
20″ 84.746 53.763 172.414 125.000 294.118 227.273 625.000 384.615 1,250.000 833.333

THREADS AS PER IS 1363/67 CONTD

LENGTH M 33 M 27 M 24 M 30 M 39 M 36 M 45 M 42 M 52 M 48 M 60 M 56 M 72 M 64
65 mm 59.524 43.860 75.758
60 mm 57.471 42.373 70.423
70 mm 60.976 45.455 81.967
80 mm 108.696 65.789 49.020 87.719 135.135
75 mm 63.291 47.170 84.746
90 mm 116.279 70.423 52.632 94.340 142.857
110 mm 131.579 79.365 60.241 104.167 200.000 166.667 238.095
100 mm 125.000 74.627 56.180 100.000 192.308 156.250 217.391
120 mm 135.135 83.333 63.291 108.696 208.333 172.414 312.500 250.000
140 mm 151.515 92.593 69.444 119.048 227.273 185.185 277.778 384.615
130 mm 142.857 87.719 66.667 113.636 217.391 178.571 263.158 357.143
150 mm 156.250 98.039 73.529 125.000 238.095 192.308 333.333 294.118
170 mm 172.414 106.383 80.645 138.889 263.158 208.333 312.500 500.000 625.000 833.333
160 mm 166.667 102.041 76.923 131.579 250.000 200.000 294.118 416.667 714.286
180 mm 178.571 111.111 83.333 142.857 263.158 217.391 357.143 312.500 454.545
200 mm 192.308 119.048 90.909 151.515 294.118 238.095 384.615 333.333 555.556
190 mm 185.185 116.279 87.719 147.059 277.778 227.273 333.333
220 mm 208.333 128.205 98.039 166.667 312.500 250.000 357.143 500.000 833.333 714.286 1,250.000
250 mm 227.273 142.857 111.111 185.185 333.333 294.118 384.615 555.556
240 mm 217.391 138.889 106.383 178.571 333.333 277.778 416.667 384.615 625.000 1,000.000
260 mm 227.273 147.059 113.636 185.185 357.143 312.500 416.667
300 mm 263.158 166.667 128.205 208.333 384.615 333.333 454.545 714.286 625.000 1,666.667 1,250.000
400 mm 333.333 217.391 161.290 263.158
280 mm 250.000 156.250 119.048 200.000 357.143 312.500 454.545 416.667 1,000.000 833.333
320 mm 277.778 178.571 135.135 217.391
360 mm 294.118 192.308 147.059 250.000
340 mm 294.118 185.185 142.857 238.095
380 mm 312.500 200.000 156.250 250.000
SS Hex Bolt Dimension
Fastener Length Dia./Thread Size Fastener Thread Type Fastener Thread Direction Fastener Industry Standards
1-1/2" 1/2"-13 UNC (Coarse) Right Hand ASME B18.21
1-1/2" 1/2"-13 ASME B18.21
1-3/4" 1/2"-13 ASME B18.21
1-3/4" 1/2"-13 ASME B18.21
2" 1/2"-13 ASME B18.21
2" 1/2"-13 ASME B18.21
2-1/4" 1/2"-13 ASME B18.21
2-1/4" 1/2"-13 ASME B18.21
2-1/2" 1/2"-13 ASME B18.21
2-1/2" 1/2"-13 ASME B18.21
1-1/2" 5/8"-11 ASME B18.21
1-1/2" 5/8"-11 ASME B18.21
1-3/4" 5/8"-11 ASME B18.21
1-3/4" 5/8"-11 ASME B18.21
2" 5/8"-11 ASME B18.21
2" 5/8"-11 ASME B18.21
2-1/4" 5/8"-11 ASME B18.21
2-1/4" 5/8"-11 ASME B18.21
2-1/2" 5/8"-11 ASME B18.21
2-1/2" 5/8"-11 ASME B18.21
2-3/4" 5/8"-11 ASME B18.21
2-3/4" 5/8"-11 ASME B18.21
3" 5/8"-11 ASME B18.21
3" 5/8"-11 ASME B18.21
3-1/4" 5/8"-11 ASME B18.21
3-1/4" 5/8"-11 ASME B18.21
3-1/2" 5/8"-11 ASME B18.21
3-1/2" 5/8"-11 ASME B18.21
3-3/4" 5/8"-11 ASME B18.21
3-3/4" 5/8"-11 ASME B18.21
4" 5/8"-11 ASME B18.21
4" 5/8"-11 ASME B18.21
4-1/2" 5/8"-11 ASME B18.21
4-1/2" 5/8"-11 ASME B18.21
1-3/4" 3/4"-10 ASME B18.21
1-3/4" 3/4"-10 ASME B18.21
2" 3/4"-10 ASME B18.21
2" 3/4"-10 ASME B18.21
2-1/4" 3/4"-10 ASME B18.21
2-1/4" 3/4"-10 ASME B18.21
2-1/2" 3/4"-10 ASME B18.21
3" 3/4"-10 ASME B18.21
2-1/2" 3/4"-10 ASME B18.21
3" 3/4"-10 ASME B18.21
3-1/4" 3/4"-10 ASME B18.21
3-1/4" 3/4"-10 ASME B18.21
3-1/2" 3/4"-10 ASME B18.21
3-1/2" 3/4"-10 ASME B18.21
4" 3/4"-10 ASME B18.21
4-1/2" 3/4"-10 ASME B18.21
4" 3/4"-10 ASME B18.21
4-1/2" 3/4"-10 ASME B18.21
5" 3/4"-10 ASME B18.21
5" 3/4"-10 ASME B18.21
3-1/2" 7/8"-9 ASME B18.21
3-1/2" 7/8"-9 ASME B18.21
4" 7/8"-9 ASME B18.21
4" 7/8"-9 ASME B18.21
4-1/2" 7/8"-9 ASME B18.21
4-1/2" 7/8"-9 ASME B18.21
5" 7/8"-9 ASME B18.21
5" 7/8"-9 ASME B18.21
3-1/2" 1"-8 ASME B18.21
3-1/2" 1"-8 ASME B18.21
4" 1"-8 ASME B18.21
4" 1"-8 ASME B18.21
4-1/2" 1"-8 ASME B18.21
4-1/2" 1"-8 ASME B18.21
5" 1-1/8"-7 ASME B18.21
5" 1-1/8"-7 ASME B18.21
6" 1-1/4"-7 ASME B18.21
Why Are Stainless Steel Fasteners Over Carbon Steel?
Why Are Stainless Steel Fasteners Over Carbon Steel?



Factor Carbon Steel Fasteners Stainless Steel Fasteners
Durability Rusts With Time and is Less Resilient. Longer Life Expectancy.
Corrosion Resistance Rust-Prone. Incredibly Resistant to Corrosion.
Maintenance Needs Regular Maintenance. Low Maintenance
Strength High Strength, Particularly High Tensile Strength. Good Strength.
Temperature Resistance Weakens in Hot Weather. Excellent in Hot Weather.
Appearance Rusts and Becomes Less Attractive. Shiny and Keeps Its Appearance.
Cost Less Expensive. Expensive.
Weight Heavier. Lighter.
Environmental Impact Less Environmentally Friendly. Recyclable, Eco-friendly
Applications Automotive, General Industry Medical, Chemical, Food, Marine
Ease of Fabrication More Difficult to Machine. Simpler to Machine.
Stainless Steel Threaded Rod Sizes
Thread Weight per metre Strength
Class 70 Class 80
UTS 0.2% proof UTS 0.2% proof
Kg/m kN kN kN kN
M16 1.31 109.9 70.7 125.6 94.2
M12 0.72 64.0 41.0 73.0 54.0
M24 2.96 247.1 158.9 282.4 211.8
M20 2.05 171.5 110.3 196.0 147.0
M30 4.70 392.7 252.6 448.8 336.6
M27 3.83 321.3 206.6 367.2 275.4
M36 6.84 571.9 367.7 653.6 490.2
M33 5.78 485.8 312.3 555.2 416.4
M42 9.38 784.7 504.5 896.6 672.6
M39 8.14 683.2 439.2 780.8 585.6
M48 12.32 1031.1 662.9 1178.4 883.8
M45 10.90 914.2 587.7 1044.8 783.6
M52 14.65 1230.6 791.1 1406.4 1054.8
SS Bolts and Nuts Physical Properties
Grades Melting Point (°C) Density (g/cm³) Electrical Resistivity (µΩ·cm) Coefficient of Thermal Expansion (μm/m·°C) Thermal Conductivity (W/m·K)
SS 304L 1400 – 1450 7.93 72.3 16.0 16.2
SS 304 1400 – 1450 7.93 0.072 17.2 16.2
SS 310 1400 – 1450 7.90 72.0 17.0 14.0
SS 304H 1400 – 1450 7.93 72.3 16.0 16.2
SS 316 1375 – 1400 7.98 74.0 16.5 16.3
SS 310S 1400 – 1450 7.90 72.0 17.0 14.0
SS 316Ti 1375 – 1400 7.98 74.0 16.5 16.3
SS 316L 1375 – 1400 7.98 74.0 16.5 16.3
SS 317L 1375 – 1400 7.95 74.5 16.5 16.3
SS 317 1375 – 1400 7.95 74.5 16.5 16.3
SS 321 1400 – 1450 7.93 74.0 16.0 16.2
SS 347 1400 – 1450 7.93 74.0 16.0 16.2
SS 321H 1400 – 1450 7.93 74.0 16.0 16.2
SS 446 1400 – 1450 7.80 76.0 11.5 30.0
SS 410 1480 – 1530 7.75 78.0 11.5 30.0
SS 904L 1350 – 1400 8.00 70.0 16.0 15.0
Stainless Steel Rivets Chemical Composition
Grades Manganese Carbon Phosphorus Silicon Sulfur Chromium Nickel Other
SS 304L 2 .00 0.035 0.04 0.75 0.03 18.00 20.00 8.00 13.00
SS 304 2 0.08 0.04 0.075 0.03 18.00 20.00 8.00 11.00
SS 304H 2 0.04 0.1 0.04 0.75 0.03 18.00 20 8.00 11
SS 316 2.00 008 0.040 0.75 0.030 16.00 18.00 11.00 4.00 Mo2.00- 3.00
SS 310 2 0.15 0.04 0.75 0.03 24.00 26 19.00 22
SS 416 1.25 0.15 0.066 1.00 0.15 12.00 14.00
SS 316L 2 0.035 0.04 0.75 0.03 16.00 18 10.00 15 Mo 2.00 3.00
SS 317 2 0.08 0.04 0.75 0.03 18.00 20 11.00 14 Mo 3.00 4.00
SS 316H I 2.00 0_04 0.10 0040 0.75 0.030 16.00 18.00 11.00 14.00 Mo2.00-3.00
SS 321 203 0.48 0.04 0.75 0.03 17.00 20 9.00 13 Ti 5XC-0.60
SS 347 200 0.08 0.04 0.75 0.03 17.00 20 7.00 13 Cb + Ta 10 XC-1.00
21-6-9 8.00 0.04 60 1 0.03 19.00 21.5 5.50 7.5 N 0.15 0.40
Equivalent Of Stainless Steel Self Tapping Screws
America United Kingdom Russia Japan North America Russia Europe France
ASTM BS WERKSTOFF NR. JIS UNS GOST EN AFNOR
SS 316 316S31 / 316S33 1.4401 / 1.4436 SUS 316 S31600 - X5CrNiMo17-12-2 /
X3CrNiMo17-13-3		 Z7CND17‐11‐02
SS 316H 316S51 - - S31609 - - -
SS 304 304S31 1.4301 SUS 304 S30400 08Х18Н10 X5CrNi18-10 Z7CN18‐09
SS 316L 316S11 / 316S13 1.4404 / 1.4435 SUS 316L S31603 03Ch17N14M3 / 03Ch17N14M2 X2CrNiMo17-12-2 /
X2CrNiMo18-14-3		 Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 317 - 1.4449 SUS 317 S31700 - X5CrNiMo1713 -
SS 310 310S24 1.4841 SUS 310 S31000 20Ch25N20S2 X15CrNi25-20 –
SS 304H – 1.4301 – S30409 – – –
SS 310S 310S16 1.4845 SUS 310S S31008 20Ch23N18 X8CrNi25-21 –
SS 304L 3304S11 1.4306 / 1.4307 SUS 304L S30403 03Х18Н11 X2CrNi18-9 / X2CrNi19-11 Z3CN18‐10
SS 321 - 1.4541 SUS 321 S32100 - X6CrNiTi18-10 -
SS 347 - 1.4550 SUS 347 S34700 - X6CrNiNb18-10 -
SS 904L 904S13 1.4539 SUS 904L N08904 STS 317J5L X1NiCrMoCu25-20-5 Z2 NCDU 25-20
SS 321H - 1.4878 SUS 321H S32109 - X12CrNiTi18-9 -
SS 347H - 1.4961 SUS 347H S34709 - X6CrNiNb18-12 -
SS 317L - 1.4438 SUS 317L S31703 - X2CrNiMo18-15-4 -
SS 410S - 1.4516 SUS410S S41008 - X6CrNiTi12 -
SS 409 - 1.4512 SUS409 S40900 - X2CrTi12 -
Stainless Steel Anchor Bolts Mechanical Properties
Type Rockwell Hardness Yield Elongation Tensile
21-6-9 RB9,0
RC30.		 60000
120000		 45
20		 100000
142000
SS 304L RB75
RB95		 30000
75000		 55
20		 80000
105000
SS 310 RB85 45,000 45 95,000
SS 304 RB80
RB95		 35000
75000		 55
20		 85000
105000
SS 317 RB85 40,000 45 90,000
SS 304H RB80 35,000 55 85,000
316L RB75 30000 50 80000
SS 316 RB80 35000 50 85000
316H RB80 35000 50 85000
SS 321 RB80
RB95		 35000
75000		 55
20		 90,000
105000
SS 347 RB85 40,000 50 95,000
SS 416 RB95 35,000 20 75,000
SS Fasteners For Sale
A4 Stainless Steel Hex Head Flange Bolts and Nuts

A4 Stainless Steel Hex Head Flange Bolts and Nuts

Round Head Stainless Steel 304 Cylinder DIN912 Shoulder Bolt

Round Head Stainless Steel 304 Cylinder DIN912 Shoulder Bolt

M16 5/8inch Hex Head Bolt Stainless Steel 18-8

M16 5/8inch Hex Head Bolt Stainless Steel 18-8

Stainless Steel Black HDG Zinc Plated Fastener

Stainless Steel Black HDG Zinc Plated Fastener

Stainless Steel Flat Washer M1.6

Stainless Steel Flat Washer M1.6

304 Stainless Steel Spring Washer DIN127

304 Stainless Steel Spring Washer DIN127

Stainless Steel Fasteners Delivery Time As Per Country
Price variations
5 % extra
Export to Shipping Time in Days
Egypt 18
Azerbaijan 30-45
Turkey 21
Nigeria 30
Libya 45-60
Malaysia 10
Poland 45
Germany 20
Philippines 14
Oman 5
Indonesia 9
Kuwait 10
Bahrain 9
Singapore 8
Finland 45
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
