ASTM A234 WPB Fittings Specification
SA 234 Wpb Butt Weld Fittings Price
A234 WPB Weld Fittings Pressure Rating
SA 234 Grade WPB-W Seamless Pipe Fittings Schedule Chart
What are the advantages of buttwelding ASTM A234 WPB Fittings?
ASTM A234 WPB Pipe Fittings Size Chart
ASME Sa 234 WPB Seamless Pipe Fittings Dimensions
Size Chart of SA234 WPB Elbow
A234 WPB Pipe Bend Dimensions
Most Common Types of ASTM A234 WPB Fittings
What welding methods are compatible with ASTM A234 WPB fittings?
ASTM A234 WPB Weldable Pipe Fittings Allowable Stress
A234 WPB Carbon Steel Fittings Tolerance Chart
A234 WPB Stub End Dimensions
What industries commonly use ASTM A234 WPB fittings?
ASME SA 234 Gr WPB Pipe Elbow Testings
ASTM A234 WPB Pipe Fittings Chemical Composition
Mechanical Properties of SA 234 WPB Buttweld Fittings
ASME B16.9 SA234 WPB Seamless Fittings Working Pressure
What is the difference between ASTM A234 WPB fittings and ASTM A234 WPC fittings?

ASTM A234 WPB Fittings Specification

ASME SA 234 Gr WPB Elbow Sizes

Size : 1/2" NB to 24″NB in.
Schedule : Sch 5s to Sch XXS
End : Compound Bevel, Buttweld, Plain Bevel, , Bevelled

ASTM A234 Gr WPB Tee Manufacturing Standards

MSS-SP-43
ANSI B16.9
ASME B16.28
100% Tested With MTC EN 10204/3.1

SA 234 WPB Buttweld Fittings Benefits

Durability and Strength
Corrosion Resistance
Weldability

Alloy Steel Fittings Process

Seamless
Fabricated
Welded

ASTM A234 WPB Pipe Fittings Types

Elbow
Reducer
Stub end
Cross

ASTM A234 WPB Elbow Surface Treatment

Rust-proof black oil
Hot galvanized
Transparent oil

ASTM A234 WPB Stub End Bending Radius

ASTM A234 WPB Unequal Crosses Origin

European
Janpanese
Russia
American

ASTM A234 WPB Caps Services

Shearing
Heat Treatment
Cutting

ASME Sa 234 WPB Reducers Packaging

Bubble Wraps
Bundled
Wooden Box

A234 WPB Equal Cross Features

High-Pressure Capability
Versatility
Temperature Resistance

SA 234 WPB Weldable Pipe Fittings Testing

PMI, Hardness test
Ultrasonic, HIC test

SA 234 Wpb Butt Weld Fittings Price

Are You Looking for the Best ASTM A234 WPB Fittings Deal? If you would like an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Types	Size	SCH	Price in USD
ASTM A234 WPB Reducer	3/4 x 1/2	SCH 160	US $1.15
Concentric Reducer	1 x 1/2"		US $1.54
	4 x 2"		US $6.96
	5 x 4"	SCH 40	US $3.89
	6 x 4"	SCH 80	US $10.08
ASTM A234 WPB Elbow	3/4"	SCH 40	US $1.45
90 Deg Elbow	1"		US $2.31
	2"		US $2.72
	3"		US $3.76
	4"		US $4.94
	5"		US $6.21
	6"		US $7.29
ASTM A234 WPB End Cap	1/2"		US $1.45
End Cap	3/4"		US $2.30
	1"		US $2.70
	1 1/4"		US $3.34
	2"		US $4.02
ASTM A234 WPB Tee	1/2"		US $0.92
Equal Tee	3/4"		US $1.39
	3/1"		US $1.73
	2"		US $2.72
	3"		US $3.49
	4"		US $4.61

Superior ASTM A234 WPB Pipe Fittings Supplier in Mumbai With Pressure Rating 150 to 9000 LBS

A234 WPB Weld Fittings Pressure Rating

Genuine ASTM A234 WPB Fittings Manufacturer in India As Per Specification

Temperature Ratings		Pressure Class
		150	300
			1/4 - 1 Inches	1 1/4 - 2 Inches	2 1/2 - 3 Inches
(oF)	(oC)		1/4 - 1 Inches	1 1/4 - 2 Inches	2 1/2 - 3 Inches
-20 to 150	-29 to 66	300	2000	1500	1000
550	288	-	300	300	300
500	260	-	510	450	385
450	232	-	725	600	475
400	204	-	935	750	560
300	149	185	1360	1050	735
350	177	150	1150	900	650
250	121	225	1575	1200	825
200	93	265	1785	1350	910

SA 234 Grade WPB-W Seamless Pipe Fittings Schedule Chart

DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	Reducing tee	Ecc reducer	Con reducer	Reducing tee	Ecc reducer	Con reducer	Reducing tee	Ecc reducer	Con reducer
40x.25	0.60	0.19	0.19	0.76	0.26	0.26	0.90	0.34	0.34
50x25	0.73	0.28	0.28	1.10	0.40	0.40	1.37	0.54	0.54
50x40	0.76	0.31	0.31	1.15	0.45	0.45	1.43	0.59	0.59
80x.50	1.56	0.55	0.55	2.91	1.00	1.00	3.91	1.79	1.79
100x50	2.94	0.78	0.78	4.48	1.50	1.50	6.55	1.95	1.95
100x80	3.04	0.87	0.87	4.64	1.74	1.74	6.79	2.33	2.33
150x80	6.86	1.82	1.82	9.68	3.95	3.95	11.57	5.51	5.51
150x100	7.10	1.96	1.96	11.94	4.07	4.07	11.97	5.96	5.96
200x100	13.46	3.01	3.01	17.98	6.55	6.55	24.18	9.23	9.23
200x150	14.08	3.19	3.19	18.82	6.74	6.74	25.31	10.12	10.12

What are the advantages of buttwelding ASTM A234 WPB Fittings?

Leak-Proof Joints
High Strength and Durability
No Risk of Thread Damage
Improved Flow Efficiency
Corrosion Resistance
Lower Maintenance Costs
Ease of Installation

ASTM A234 WPB Pipe Fittings Size Chart

NPS	I.D.	O.D.
NPS	I.D.	150 LB	300 LB	400 LB	600 LB	900 LB
1	1.31	2.625	2.875	2.875	2.875	3.125
6	6.62	8.75	9.875	9.75	10.50	11.375
8	8.62	11	12.125	12	12.625	14.125
10	10.75	13.375	14.25	14.125	15.75	17.125
2	2.38	4.125	4.375	4.375	4.375	5.625
1 1/4	1.66	3	3.25	3.25	3.25	3.50
2 1/2	2.88	4.875	5.125	5.125	5.125	6.50
3	3.50	5.375	5.875	5.875	5.875	6.625
4	4.50	6.875	7.125	7	7.625	8.125
1/2	0.84	1.875	2.125	2.125	2.125	2.50
1 1/2	1.91	3.375	3.75	3.75	3.75	3.875
3/4	1.06	2.25	2.625	2.625	2.625	2.75
5	5.56	7.75	8.50	8.375	9.50	9.75
12	12.75	16.125	16.625	16.50	18	19.625

Offer Broad Range of ASTM A234 Gr WPB Tee and Reducer With Size 1/2 to 48” As ASME B16.9, Check Dimensions

ASME Sa 234 WPB Seamless Pipe Fittings Dimensions

NPS	OD		Caps	Straight Tee	Straight Crosses	Stub Ends
(in)	(mm)	(in)	Length (in)	Center to End (in)	Center to End (in)	Lap Diameter (in)	Long Length (in)	Short Length (in)
1/2	21.3	0.840	1	1	–	1 3/8	3	2
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
3/4	26.7	1.050	1	1 1/8	–	1 11/16	3	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
8	219.1	8.625	4	7	7	10 5/8	8	4
12	323.9	12.750	6	10	10	15	10	6
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5

Size Chart of SA234 WPB Elbow

Minimal Pipe Size	O.D.		45° Elbows		90° Elbows		180° Returns
Minimal Pipe Size	O.D.		LR		LR	SR	LR
(inches)	mm	(inch)	Center to Face (inch)	Radii (inch)	Center to Face (inch)	Center to Face (inch)	Center to Center (inch)	Back to face (inch)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8

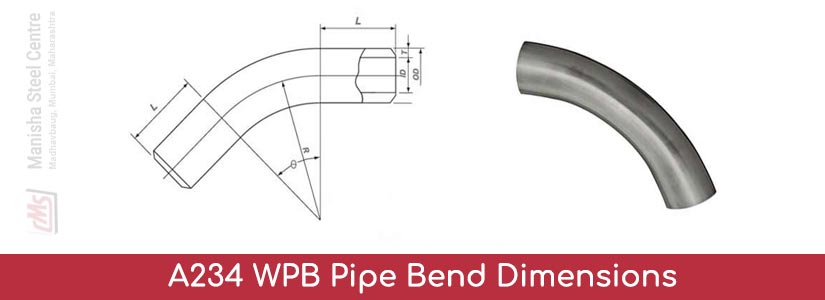

A234 WPB Pipe Bend Dimensions

Standard Of Pipe		Specification	. Bauart 5	2,5D
Size	Dia. [OD]	CLR	CLR	CLR
80	88,9	-	205	222
100	114,3	-	270	286
125	139,7	-	330	350
20	26,9	110	-	67
25	33,7	110	-	84
32	42,4	110	-	106
500	508	-	1245	-
40	48,3	110	-	212
50	60,3	125	-	151
150	168,3	-	390	421
200	219,1	-	510	-
250	273	-	650	-
300	323,9	-	775	-
350	355,6	-	850	-
400	406,4	-	970	-
65	76,1	-	175	190

Buy Carbon Steel SA 234 WPB Buttweld Fittings in Various Form For Moderate and High Temperature Services.

Most Common Types of ASTM A234 WPB Fittings

Trusted ASTM A234 WPB Fittings Supplier in India in Custom Shapes and Types

ASTM A234 Elbow

ASTM A234 Wpb Tee

A234 Wpb Reducer

ASTM A234 Gr Wpb Cap

SA 234 Wpb Stub End

A234 Wpb Pipe Bend

SA 234 Gr Wpb Cross

A234 Wpb Elbow LR 90 Degree BW

ASME Sa 234 Wpb Long Radius Reducing Elbow

ASTM A 234 Gr Wpb SCH.80 BW Elbow

SA 234 Grade WPB-W Seamless Equal Tee

A234 Wpb Long Pattern Stub End

What welding methods are compatible with ASTM A234 WPB fittings?

ASTM A234 WPB Weldable Pipe Fittings Allowable Stress

Temp.	S
125	118
65	118
400	88.9
425	75.3
450	62.7
200	118
250	118
300	118
150	118
475	45.5
500	31.6
525	21.9
550	12.7
100	118
325	118
375	105
350	117
40	118

A234 WPB Carbon Steel Fittings Tolerance Chart

All Type Of Buttweld Fitting				45 Deg & 90 Deg Elbows	180 Degree Returns
NPS	OD at Bevel	I.D. at End	WT t / t1	Center to End Daimeter A-B-C-M	Align- ment of Ends (U)	Back to Face Daimeter (K)	Center to Center Daimeter (O)
4	+2 -1	1,6	than	2	1	7	7
5 a 6	+3 -1	1,6	87,50%	2	1	7	7
8	2	1,6	of nominal	2	1	7	7
10	+4 -3	3,2	tickness	2	2	7	7
3 a 3 1/2	1	1,6	less	2	1	7	7
20 a 24	+6 -5	4,8	3	10		2	7
26 a 30	+7 -5	4,8	3	-	-	-	-
12 a 18	+4 -3	3,2	3	10		2	7
1/2 a 2 1/2	1	0,8	Not	2	1	7	7
32 a 48	+7 -5	4,8	5	-	-	-	-

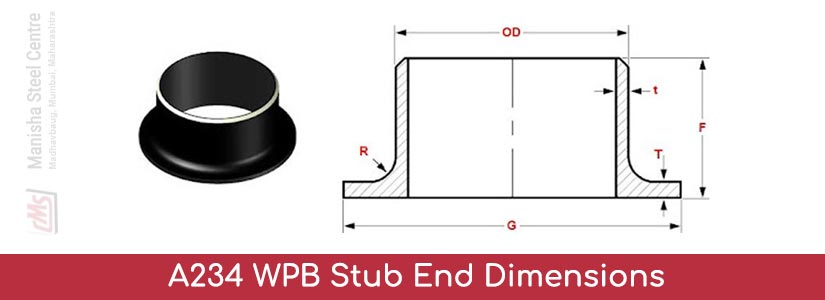

A234 WPB Stub End Dimensions

NPS	Diameter Of (G)	Radius Of(R)	O.D. For of barrel		Length Of (F)
NPS	Diameter Of (G)	Radius Of(R)	(Min.)	(Max.)	Long Pattern	Short Pattern
1″	51	3	32.6	35.0	102	51
12″	381	13	323.1	328.0	254	152
14″	413	13	354.8	359.9	305	152
16″	470	13	405.6	411.0	305	152
18″	533	13	456.0	462.0	305	152
3″	127	10	88.1	91.3	152	64
3 1/2″	140	10	100.8	104.0	152	76
4″	157	11	113.5	116.7	152	76
1 1/4″	64	5	41.4	43.6	102	51
1 1/2″	74	6	47.5	49.9	102	51
2″	92	8	59.5	62.4	152	64
2 1/2″	105	8	72.2	75.3	152	64
5″	186	11	140.5	144.3	203	76
1/2″	35	3	20.5	22.8	76	51
3/4″	43	3	25.9	28.1	76	51
20″	584	13	507.0	514.0	305	152
22″	641	13	558.0	565.0	305	152
6″	216	13	167.5	171.3	203	89
8″	270	13	218.3	222.1	203	102
10″	324	13	272.3	277.2	254	127
24″	692	13	609.0	616.0	305	152

What industries commonly use ASTM A234 WPB fittings?

Oil and Gas Industry
Petrochemical Industry
Power Generation Industry
Chemical Processing Industry
Water Treatment Industry
Food and Beverage Industry
Mining Industry

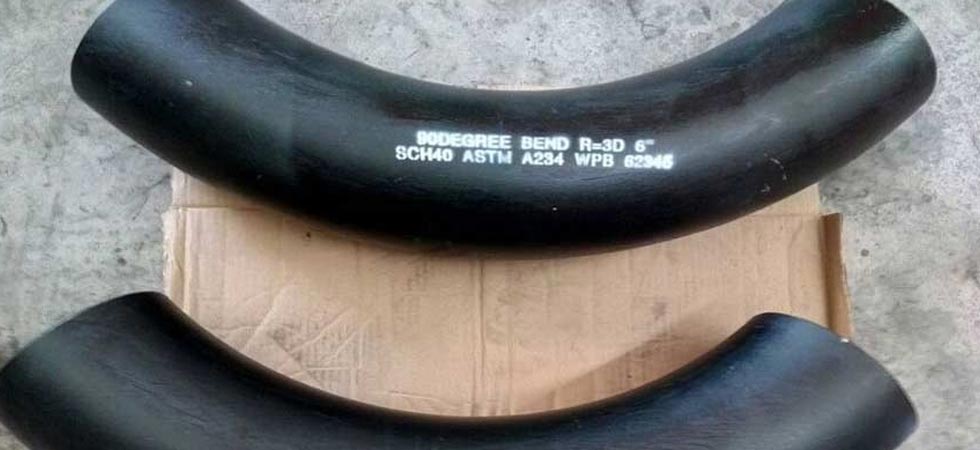

ASME SA 234 Gr WPB Pipe Elbow Testings

Hardness Test
Flattening Test
Flaring Test
Chemical Analysis – Spectro Analysis
Micro and MacroTest
Pitting Resistance Test
Mechanical Testing
Micro and MacroTest

Get A234 Material Which Covers Carbon and Alloy Steel Fittings With Seamless and Welded Form, Refer Chemical Composition/Equivalent

ASTM A234 WPB Pipe Fittings Chemical Composition

Grades	Composition, %
Grades	C	Mn	P	S	Si	Cr	Mo
WPB	0.30 max	0.29-1.06	0.050	0.058	0.10 min	0.40 max	0.15 max
WPC	0.35 max	0.29-1.06	0.050	0.058	0.10 min	0.40 max	0.15 max
WP1	0.28 max	0.30-0.90	0.045	0.045	0.10-0.50	…	0.44-0.65
WP12 CL1, WP12 CL2	0.05-0.20	0.30-0.80	0.045	0.045	0.60 max	0.80-1.25	0.44-0.65
WP11 CL2, WP11 CL3	0.05-0.20	0.30-0.80	0.040	0.040	0.50-1.00	1.00-1.50	0.44-0.65
WP22 CL1, WP22 CL3	0.05-0.15	0.30-0.60	0.040	0.040	0.50 max	1.90-2.60	0.87-1.13
WP91	0.08-0.12	0.30-0.60	0.020	0.010	0.20-0.50	8.0-9.5	0.85-1.05
WP911	0.09-0.13	0.30-0.60	0.020	0.010	0.10-0.50	8.5-9.5	0.90-1.10
WP5 CL1, WP5 CL3	0.15 max	0.30-0.60	0.040	0.030	0.50 max	4.0-6.0	0.44-0.65
WP9 CL1, WP9 CL3	0.15 max	0.30-0.60	0.030	0.030	1.00 max	8.0-10.0	0.90-1.10
WP11 CL1,	0.05-0.15	0.30-0.60	0.030	0.030	0.50-1.00	1.00-1.50	0.44-0.65
WPR	0.20 max	0.40-1.06	0.045	0.050	…	…	…

Mechanical Properties of SA 234 WPB Buttweld Fittings

Grades	WPB	WPC, WP11 CL1, WP12 CL2	WP1	WP11 CL1, WP22 CL1, WP5 CL1, WP9 CL1	WPR	WP91	WP911	WP11 CL3, WP22 CL3, WP2 CL3, WP9 CL3	WP12 CL1
Yield strength, min, Ksi [MPa] (0.2% offset or 0.5% extension- under-load)	35 [240]	40 [275]	30 [205]	30 [205]	46 [315]	60 [415]	64 [440]	45 [310]	32 [220]
Tensile strength, range Ksi [MPa]	60-95 [415-655]	70-95 [485-655]	55-80 [380-550]	60-85 [415-585]	63-88 [435-605]	85-110 [585-760]	90-120 [620-840]	75-100 [520-690]	60-85 [415-585]

ASME B16.9 SA234 WPB Seamless Fittings Working Pressure

Service	Limits of Pressure	Limits of Temperature
Gases & Vapors, Air	150 psig (1000 kPa)	(max.) 200oF (93oC), (min.) 0oF (-18oC)
Condensate And Steam	150 psig (1000 kPa)	(max.) 366oF (186oC), (min.) 0oF (-18oC)
Nonflammable Liquids	350 psig (2300 kPa)	(max.) 250oF (121oC), (min.) 0oF (-18oC)

What is the difference between ASTM A234 WPB fittings and ASTM A234 WPC fittings?

Properties	ASTM A234 WPB Fittings	ASTM A234 WPC Fittings
Material Composition	Carbon Steel	Carbon Steel
Carbon Content	0.30% Max	0.35% Max
Tensile Strength	70-85 ksi (480-585 MPa)	70-90 ksi (485-620 MPa)
Yield Strength	30 ksi (205 MPa)	35 ksi (240 MPa)
Temperature Resistance	Up to 450°F (232°C)	Up to 450°F (232°C)
Weldability	Good	Good
Common Industries	Oil & Gas, Petrochemical, Power Generation	Oil & Gas, Petrochemical, Power Generation
Price	More affordable	More expensive

Check Available Stock

ASTM A234 WPB Long Radius 45 Degree Elbow

ASME B16.9 WPB Sch40 Large Radius Big Bend 90° Elbows

ASTM A234 WPB Butt-welding Carbon Steel Pipe Fittings

Carbon Steel ASTM A234 WPB 1/2-48 inch Reducing Tee

Carbon Steel ASTM A234 WPB 1/2"-48" Reducing Tee

ASME B 16.9 WPB SMLS Equal Tee

High Quality ASTM A234 WB Carbon Steel Concentric Reducer

ASTM A234 WPB Fittings Delivery Time As Per Location

Changes in Price Extra 5 %
Export to	Shipping Time in Days
Qatar	7
South Africa	25-30
Indonesia	9
Bahrain	9
UAE	5 days
Saudi Arabia	7
Italy	30
Singapore	8
USA	40-60
Oman	5
France	30
Philippines	14
Malaysia	10
Kuwait	10
Uk	30

Why Us ?

Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
