Stainless Steel Socket Weld Fittings Manufacturer in India

Home|Stainless Steel Socket Weld Fittings

Most Popular 2 or 3 4 inch SS Socket Weld Pipe Fittings Supplier in Mumbai As Per ASME B16.11

Stainless Steel Socket Weld Fittings Specification



List of 5 Important Documents for European Buyers to purchase Stainless Steel Socket Weld Fittings from India?
  • Commercial Invoice
  • Certificate of Origin
  • Test Certificates
  • Packing List
  • Bill of Lading
Manisha Steel Centre

Table of Content

Stainless Steel Socket Weld Fittings Specification
Stainless Socket Weld Fittings Sizes

Stainless Socket Weld Fittings Sizes

  • Size: 1/8″~4″ (DN6~DN100)
  • Schedule : SCH 10 to SCH 160
  • End : Buttweld, Bevelled, Plain Bevel, Compound Bevel

Stainless Steel Reducer Socket Manufacturing Standards

Stainless Steel Reducer Socket Manufacturing Standards

  • MSS-SP-43
  • ANSI B16.9
  • ASME B16.28
  • 100% Tested With MTC EN 10204/3.1
SS Socket Weld Fittings Benefits

SS Socket Weld Fittings Benefits

  • Corrosion resistance
  • Easy installation
  • Versatile

Stainless Steel Socket Weld Pipe Fittings Process

Stainless Steel Socket Weld Pipe Fittings Process

  • Seamless
  • Fabricated
  • Welded
Stainless Socket Weld Types

Stainless Socket Weld Types

  • Elbow
  • Cross
  • Couplings
  • Union
Stainless Socket Weld Fittings International Standards

Stainless Socket Weld Fittings International Standards

  • ASTM A182
  • ASME SA182
  • ASME B16.11
Stainless Steel Tube Socket Weld Fittings Bending Radius

Stainless Steel Tube Socket Weld Fittings Bending Radius

  • 3D
  • 2D
  • 1D
  • 5D
SS Socket Weld Unequal Tee Origin

SS Socket Weld Unequal Tee Origin

  • European
  • Janpanese
  • Russia
  • American

Stainless Socket Weld Half Couplings Services

Stainless Socket Weld Half Couplings Services

  • Shearing
  • Heat Treatment
  • Cutting
Stainless Steel Socket Weld Cross Packaging

Stainless Steel Socket Weld Cross Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box
Stainless Steel Socket Weld Plug Surface Finish

Stainless Steel Socket Weld Plug Surface Finish

  • Pickled
  • Polished
Stainless Steel Socket Weld Pipe Fittings Testing

Stainless Steel Socket Weld Pipe Fittings Testing

  • PMI, Hardness test
  • Ultrasonic, HIC test
Standard of Stainless Socket Weld Fittings

Are You Looking for the Best Price on Weld Fittings for Stainless Steel Sockets? In order to obtain an estimate immediately, send an email to kalpesh@manishasteelcentre.com.

Types Standard
Union MSS SP 83
Reducing insert MSS SP 79
Bull plug MSS SP 95
Weldolet MSS-SP 97
High Pressure Stainless Socket Weld Fittings Dimensions
NPS Depth of Socket, Min Socket, Bore Diameter B Bore Dia. of Fitting D Centre to Bottom of Socket Wall Thickness Minimum Laying Lengths Tolerances, ±
90º Elbow, Tees & Pipe Cross 45º Ell 3000# 6000# NPT Couplings Half / Full Couplings
A A E F A E F
3000# 6000# 3000# 6000# 3000# 6000# Sock, C Body G Sock C Body G
1/2 3/8 .855

.865

 .607

.637

 .451 5/8 3/4 7/16 1/2 .161 .147 .204 .188 3/8 7/8 .06 .12 .06
1/4 3/8 .555

.565

 .349

.379

 .235 7/16 17/32 5/16 5/16 .130 .119 .158 .145 1/4 5/8 .03 .06 .03
1/8” 3/8 .420

.430

 .254

.284

 .141 7/16 7/16 5/16 5/16 .125 .095 .135 .124 1/4 5/8 .03 .06 .03
3/8 3/8 .690

.700

 .478

.508

 .344 17/32 5/8 5/16 7/16 .138 .126 .172 .158 1/4 11/16 .06 .12 .06
3/4 1/2 1.065

1.075

 .809

.839

 .599 3/4 7/8 1/2 9/16 .168 .154 .238 .219 3/8 15/16 .06 .12 .06
1 1/2 1.330

1.340

 1.034

1.064

 .800 7/8 1-1/16 9/16 11/16 .196 .179 .273 .250 1/2 1-1/8 .08 .16 .08
1-1/2 1/2 1.915

1.925

 1.595

1.625

 1.323 1-1/4 1-1/2 13/16 1 .218 .200 .307 .281 1/2 1-1/4 .08 .16 .08
1-1/4 1/2 1.675

1.685

 1.365

1.395

 1.145 1-1/16 1-1/4 11/16 13/16 .208 .191 .273 .250 1/2 1-3/16 .08 .16 .08
2 5/8 2.406

2.416

 2.052

2.082

 1.674 1-1/2 1-5/8 1 1-1/8 .238 .218 .374 .344 3/4 1-5/8 .08 .16 .08
2-1/2 5/8 2.906

2.921

 2.439

2.499

 1-5/8 1-1/8 .301 .276 .375 3/4 1-11/16 .10 .20 .10
3 5/8 3.535

3.550

 3.038

3.098

 2-1/4 1-1/4 .327 .300 .438 3/4 1-3/4 .10 .20 .10
4 3/4 4.545

4.560

 3.996

4.055

 2-5/8 1-5/8 .368 .337 .531 3/4 1-7/8 .10 .20 .10

Produce Stainless Socket Weld Elbow and Tee With Size From 1/8 to 4" NB As Per ASTM A182

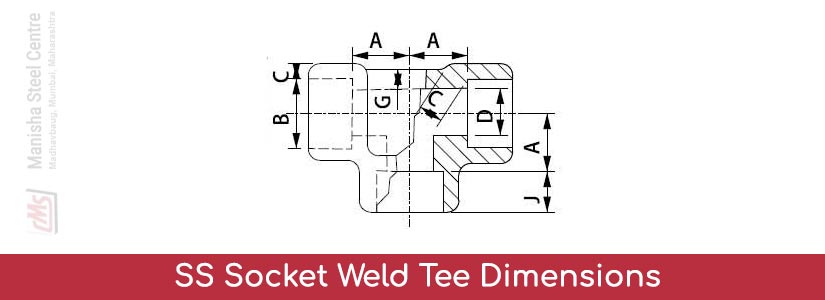

SS Socket Weld Tee Dimensions

Genuine Stainless Steel Socket Weld Fittings Manufacturer in India As Per Specification

SS Socket Weld Tee Dimensions



NPS A B Min B Max C Min C Avg
1/4 11 14.2 14.6 3.3 3.78
3/8 13.5 17.6 18 3.5 4.01
1/2 15.5 21.8 22.2 4.09 4.67
3/4 19 27.2 27.6 4.27 4.9
1 22.5 33.9 34.3 4.98 5.69
1/8 11 10.8 11.2 3.18 3.18
1-1/4 27 42.7 43.1 5.28 6.07
1-1/2 32 48.8 49.2 5.54 6.35
2 38 61.2 61.7 6.04 6.93
2-1/2 41 73.9 74.4 7.67 8.76
3 57 89.8 90.3 8.3 9.52
4 66.5 115.2 115.7 9.35 10.69
Stainless Socket Weld Fittings Pressure Requirements
Pressure Ratings Pressure Requirements
Heat Treatment and Testing NDT testing
Payment Terms and Pricing Discounts and payment conditions
Material Specifications MTC Reports
Manufacturing Process Wrought and forged process
Return Policy and Warranty NDT testing
Technical Support Provide technical documentation
Reputation and References Previous customers references
Certifications and Standards ASTM, ASME and IBR Certifications
SS Socket Weld Fittings Weight Chart
DN Class 6000 Class 3000
6 0.485 0.286
8 0.485 0.286
10 0.992 0.352
15 1.21 0.771
20 1.98 0.881
25 3.21 1.45
32 4.18 2.20
40 7.49 3.08
50 8.15 4.85
65 15.87 8.81
80 23.58 13.55
100 - 31.70
Socket Weld Fittings vs Buttweld Fitting
Socket Weld Fitting Buttweld fitting
NPS 1/2" to 4" NPS : 1/2" to 48"
ASME B16.11 ASME B16.9
Low strength High strength
Easy to weld Special tools required to weld
Bevel ends are not required Need end preparation for joining
High pressure applications High temperature applications

Get Hot and Cold Forged SS Socket Weld Cross and Couplings Stock in Various Grades and Pressure Class At Affordable Price

SS SW Pipe Fittings Price List
Size Price in USD Per Piece
1/4 US $3.47
3/8 US $6.25
1/2 US $6.26
1-1/4 US $25.21
1-1/2 US $29.80
3/4 US $8.59
1/8 US $4.48
1 US $15.27
2 US $47.65
Most Common Types Of Stainless Steel Socket Weld Fittings

Trusted Stainless Steel Socket Weld Fittings Supplier in India in Custom Shapes and Types

Stainless Steel Socket Weld Elbow

Stainless Steel Socket Weld Elbow

SS Socket Weld Tee

SS Socket Weld Tee

Stainless Socket Weld Equal Tee

Stainless Socket Weld Equal Tee

SS Socket Weld Equal Cross

SS Socket Weld Equal Cross

Stainless Steel Socket Weld Reducing Couplings

Stainless Steel Socket Weld Reducing Couplings

SS Socket weld Cap

SS Socket weld Cap

Stainless Socket Weld Union

Stainless Socket Weld Union

ASTM A182 SS Socket Weld Plug

ASTM A182 SS Socket Weld Plug

SS Socket Weld Reducing Insert

SS Socket Weld Reducing Insert

Offer Stainless Steel Socket Weld Union and Reducing Insert With Various Value Added Services like Q & T, Age Hardening etc.
SS Socket Weld Union Value Added Services
  • Machining
  • Shot Blasting
  • Sand Blasting
  • Galavanizing
  • Heat Treatment
  • Expansion
Stainless Steel Socket Weld Reducing Couplings Applications
Stainless Steel Socket Weld Reducing Couplings Applications
SS Socket Weld Fittings Pressure Rating
Temperature Class
150LB 300LB
1/4 - 1 in. 1 1/4 - 2 in. 2 1/2 - 3 in.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
250 121 225 1575 1200 825
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
300 149 185 1360 1050 735
500 260 - 510 450 385
200 93 265 1785 1350 910
550 288 - 300 300 300
Buy 150 Stainless Steel Tube Socket Weld Fittings With Forged Black and Proof Machined Finish As Per ASME B16.11
SS Tube Socket Weld Fittings Surface Finishes
  • Polished
  • Electropolished
  • Anodized
  • Brushed
  • Proof Machined Finish
  • Forged Black
  • Mill Finished
Stainless Socket Weld Fittings Equivalent Material
STANDARD UNS WERKSTOFF NR. JIS EN GOST BS AFNOR
SS 304 S30400 1.4301 SUS 304 X5CrNi18-10 08Х18Н10 304S31 Z7CN18‐09
SS 304L S30403 1.4306 / 1.4307 SUS 304L X2CrNi18-9 / X2CrNi19-11 03Х18Н11 3304S11 Z3CN18‐10
SS 304H S30409 1.4301 – – – – –
SS 310 S31000 1.4841 SUS 310 X15CrNi25-20 20Ch25N20S2 310S24 –
SS 310S S31008 1.4845 SUS 310S X8CrNi25-21 20Ch23N18 310S16 –
SS 310H S31009 – – – – – –
SS 316 S31600 1.4401 / 1.4436 SUS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 – 316S31 / 316S33 Z7CND17‐11‐02
SS 316L S31603 1.4404 / 1.4435 SUS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 03Ch17N14M3 / 03Ch17N14M2 316S11 / 316S13 Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 316H S31609 1.4401 – – – – –
SS 316Ti S31635 1.4571 SUS 316Ti X6CrNiMoTi17-12-2 08Ch17N13M2T 320S31 Z6CNDT17‐123
SS 317 S31700 1.4449 SUS 317 – – – –
SS 317L S31703 1.4438 SUS 317L X2CrNiMo18-15-4 – – –
SS 321 S32100 1.4541 SUS 321 X6CrNiTi18-10 – – –
SS 321H S32109 1.4878 SUS 321H X12CrNiTi18-9 – – –
SS 347 S34700 1.4550 SUS 347 X6CrNiNb18-10 08Ch18N12B – –
SS 347H S34709 1.4961 SUS 347H X6CrNiNb18-12 – – –
SS 904L N08904 1.4539 SUS 904L X1NiCrMoCu25-20-5 STS 317J5L 904S13 Z2 NCDU 25-20
SS Tube Socket Weld Fittings Chemical Composition
Grades Cr C S Ni Si P Mo Mn N
304 min. 18.0 8.0
max. 20.0 0.08 0.030 10.5 0.75 0.045 2.0 0.10
304H min. 18.0 0.04 8.0
max. 20.0 0.010 0.030 10.5 0.75 0.045 2.0
SS 310 24.00 26.00 0.015 max 0.015 max 19.00 21.00 0.015 max 0.020 max 0.10 max 2 max 54.7 min
SS 310S 24.00 26.00 0.08 max 0.030 max 19.00 21.00 1.00 max 0.045 max 0.75 max 2 max 53.095 min
SS 310H 24.00 26.00 0.04 0.10 0.030 max 19.00 21.00 1.00 max 0.045 max 2 max 53.885 min
304L min. 18.0 8.0
max. 20.0 0.030 0.030 12.0 0.75 0.045 2.0 0.10
316 min. 16.0 10.0 2.03.0
max. 18.0 0.035 0.030 14.0 0.75 0.045 2.0
316L min. 16.0 10.0 2.03.0
max. 18.0 0.035 0.030 14.0 0.75 0.045 2.0
316TI 16.00 18.00 0.08 max 0.030 max 2.00 3.00 2.0 max 0.045 max 0.75 max 10.00 14.00
317 18.00 20.00 0.08 max 0.030 max 1 max 0.045 max 3.00 4.00 2 max
SS 317L 18.00 20.00 0.035 max 0.030 max 11.00 15.00 1.0 max 0.045 max 3.00 4.00 2.0 max
SS 321 17.00 19.00 0.08 max 0.030 max 9.00 12.00 1.0 max 0.045 max 2.0 max 0.10 max
SS 321H 17.00 19.00 0.04 0.10 0.030 max 9.00 12.00 1.0 max 0.045 max 2.0 max 0.10 max
347/ 347H 17.00 20.00 0.08 max 0.030 max 9.0013.00 1.0 max 0.045 max 2.0 max
410 min. 11.5
max. 13.5 0.15 0.030 0.75 1.00 0.040 1.0
446 min. 23.0 0.10
max. 30.0 0.2 0.030 0.50 0.75 0.040 1.5 0.25
904L min. 19.0 23.00 4.00 0.10
max. 23.0 0.20 0.035 28.00 1.00 0.045 5.00 2.00 0.25
Mechanical Properties of Stainless Socket Weld Cross
Grades Yield Strength (MPa) Tensile Strength (MPa) Modulus of Elasticity (GPa) Poisson’s Ratio Hardness (HRB) Elongation (%)
SS 304 205 520 – 720 193 0.27 – 0.30 92 – 98 40%
SS 304L 205 520 – 720 193 0.29 85 – 95 40 – 50
SS 304H 205 520 – 720 193 0.29 85 – 95 40 – 50
SS 310 205 – 275 515 – 740 193 0.29 90 – 105 40 – 50
SS 310S 205 – 275 515 – 740 193 0.29 90 – 105 40 – 50
SS 316 205 520 – 720 193 0.29 85 – 95 40 – 50
SS 316L 205 520 – 720 193 0.29 85 – 95 40 – 50
SS 316Ti 205 520 – 720 193 0.29 85 – 95 40 – 50
SS 317 205 520 – 730 193 0.29 85 – 95 40 – 50
SS 317L 205 520 – 730 193 0.29 85 – 95 40 – 50
SS 321 205 520 – 720 193 0.29 85 – 95 40 – 50
SS 321H 205 520 – 720 193 0.29 85 – 95 40 – 50
SS 347 205 520 – 720 193 0.29 85 – 95 40 – 50
SS 410 205 520 – 720 190 0.28 85 – 95 35 – 45
SS 446 205 520 – 720 190 0.28 85 – 95 40 – 50
SS 904L 205 520 – 720 193 0.29 85 – 95 40 – 50
SS Socket Weld Union Physical Properties
Grades Melting Point (°C) Density (g/cm³) Thermal Conductivity (W/m·K)
SS 304 1400 – 1450 7.93 16.2
SS 304L 1400 – 1450 7.93 16.2
SS 310 1400 – 1450 7.90 14.0
SS 304H 1400 – 1450 7.93 16.2
SS 316 1375 – 1400 7.98 16.3
SS 310S 1400 – 1450 7.90 14.0
SS 316Ti 1375 – 1400 7.98 16.3
SS 316L 1375 – 1400 7.98 16.3
SS 317L 1375 – 1400 7.95 16.3
SS 317 1375 – 1400 7.95 16.3
SS 321 1400 – 1450 7.93 16.2
SS 347 1400 – 1450 7.93 16.2
SS 321H 1400 – 1450 7.93 16.2
SS 446 1400 – 1450 7.80 30.0
SS 410 1480 – 1530 7.75 30.0
SS 904L 1350 – 1400 8.00 15.0
Stainless Steel Socket Weld Fittings Delivery Time As Per Location
Changes in Price
Extra 5 %
Export to Shipping Time in Days
Argentina  45
Maldives  7
Colombia  45
Taiwan  15
Cambodia  9
Chile  45
Venezuela  45
South Korea  7
Ecuador  60
Japan  7
Sri Lanka  5
Bolivia  45
Brazil  45-60
Bangladesh  14
Mayanmar  25
Manisha Steel Centre



Why Us ?
  • Stockist and Exporter of Small Diameter Tubing in Grades of Austenitic and Ferritic Stainless Steel.
  • Supply as Per American and European Standards According to Dimensional Standard ASME B36.19M
  • Distributor and Trader in Mumbai of Renowned Mills Outokumpu, POSCO and Aperam
  • Associated With Dealers and Stockholders in Kuwait, Nigeria, Iraq, Egypt, Congo and Gabon
©2025 Manisha Steel Centre. All Rights Reserved
Website Designed And SEO by Mesotek
Manufacturer and Supplier of Seamless Steel Tubes in India as per ASME SA 269.
